PERFORMANCE OVERVIEW

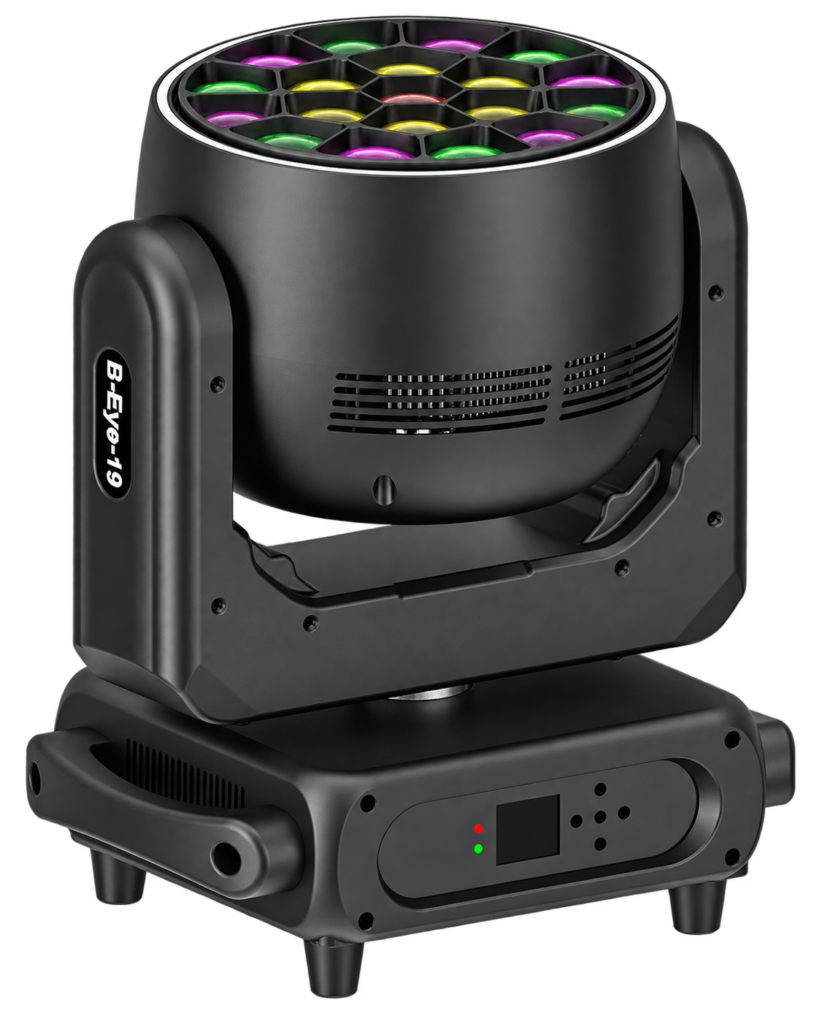

RG-1940B Rotating Bee Eye Moving Head Effects
The RG-1940B Rotating Bee Eye Moving Head combines nineteen four-in-one OSRAM LED sources, an adjustable 4–60° spot angle, a separate RGB strip and a continuously rotating front mirror disc. It gives a lighting rig beam, wash and front-lens effect options in one moving head.
19 × 40W LED sources
Four-in-one OSRAM LEDs form the primary bee-eye light source.
4–60° spot angle
Move between a tighter beam and a broader wash look.
Rotating front disc
Continuous rotation supports vortex and kaleidoscope-style effects.
RGB light strip
74 separate 5050 RGB LEDs add a visible color accent.
OPTICAL EFFECTS
Shape the output from beam to wash.
Use the tighter end of the listed 4–60° range for concentrated looks and the wider end for broader color cues. Front-disc rotation adds vortex and kaleidoscope patterns; the RGB strip adds a separate front-facing accent. Choose these layers by the cue you need, then check the footprint at your working distance.
Specifications
Technical specifications
| Model | RG-1940B |
|---|---|
| Light source | 19 × 40W four-in-one OSRAM LED sources |
| DMX channels | 24 / 26 / 38 / 81 / 95 / 100 / 102 CH |
| Control modes | DMX512, Sound, Auto, master/slave |
| LED configuration | 19 × 40W main LEDs; 74 × 5050 RGB strip LEDs at 0.12W each |
| Color system | 2800–8500K color-temperature range; RGB strip |
| Zoom range | 4–60° spot angle |
APPLICATION FIT
Where the RG-1940B fits.
Use the RG-1940B Rotating Bee Eye Moving Head where a moving-head position needs both focused and broader color looks, with front-lens effects available for show cues. Compare the LED wash light range when planning adjacent wash fixtures. Match the selected DMX mode and installation conditions to the project plan. Compare beam, spot and wash roles before building the rig.
B2B ORDER FLOW
From project brief to a relevant quotation.
PRODUCT FAQ
Questions Before You Order.
Direct answers about optics, control and project quotation.
Does 19 × 40W describe the complete fixture power?
No. It describes nineteen 40W LED light sources. Ask for the complete fixture input rating when confirming the order configuration.
What is the adjustable spot angle?
The supplied specification lists a 4–60° spot angle for focused beam and broader wash looks.
What does the RGB strip add?
It is a separate visual accent using 74 pieces of 5050 RGB LEDs at 0.12W each.
Which effects come from the rotating front lens?
The front mirror disc rotates continuously for vortex and kaleidoscope-style looks.
Which control options are listed?
DMX512, sound, Auto and master/slave modes are listed, with 24, 26, 38, 81, 95, 100 and 102-channel options.
What color-temperature and strobe ranges are listed?
The supplied specification lists 2800–8500K and 1–25 flashes per second.
How is brightness adjusted?
The fixture specification lists linear electronic dimming.
What should I send for a project quotation?
Share the quantity, destination, venue or rig type, intended effects and preferred control mode. We will review the configuration and commercial details with you.
