PERFORMANCE OVERVIEW

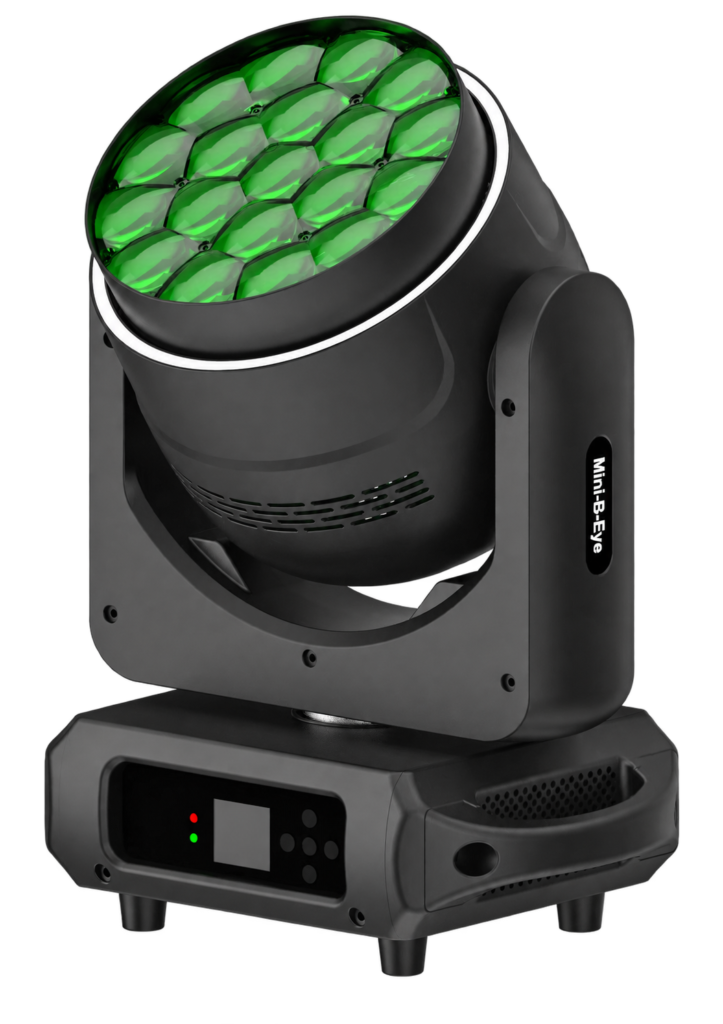

19x15W Focusing Bee Eye Moving Head overview
Choose this 19×15W focusing bee eye moving head for cues that combine an adjustable spot and rotating front-lens patterns. The listed 4–60° range changes the scale of the look, while the RGB strip adds a separate audience-facing accent. The LED source figures are not a complete fixture input-power rating.
19 × 15W OSRAM LEDs
Nineteen four-in-one LED sources form the main bee-eye optical array.
4–60° spot angle
Adjust the listed spot range for focused or wider cues in the lighting plan.
Continuous front-disc rotation
Use the rotating mirror disc for vortex and kaleidoscope-style looks.
74 RGB strip LEDs
A separate 5050 RGB strip adds a visible accent around the front lens.

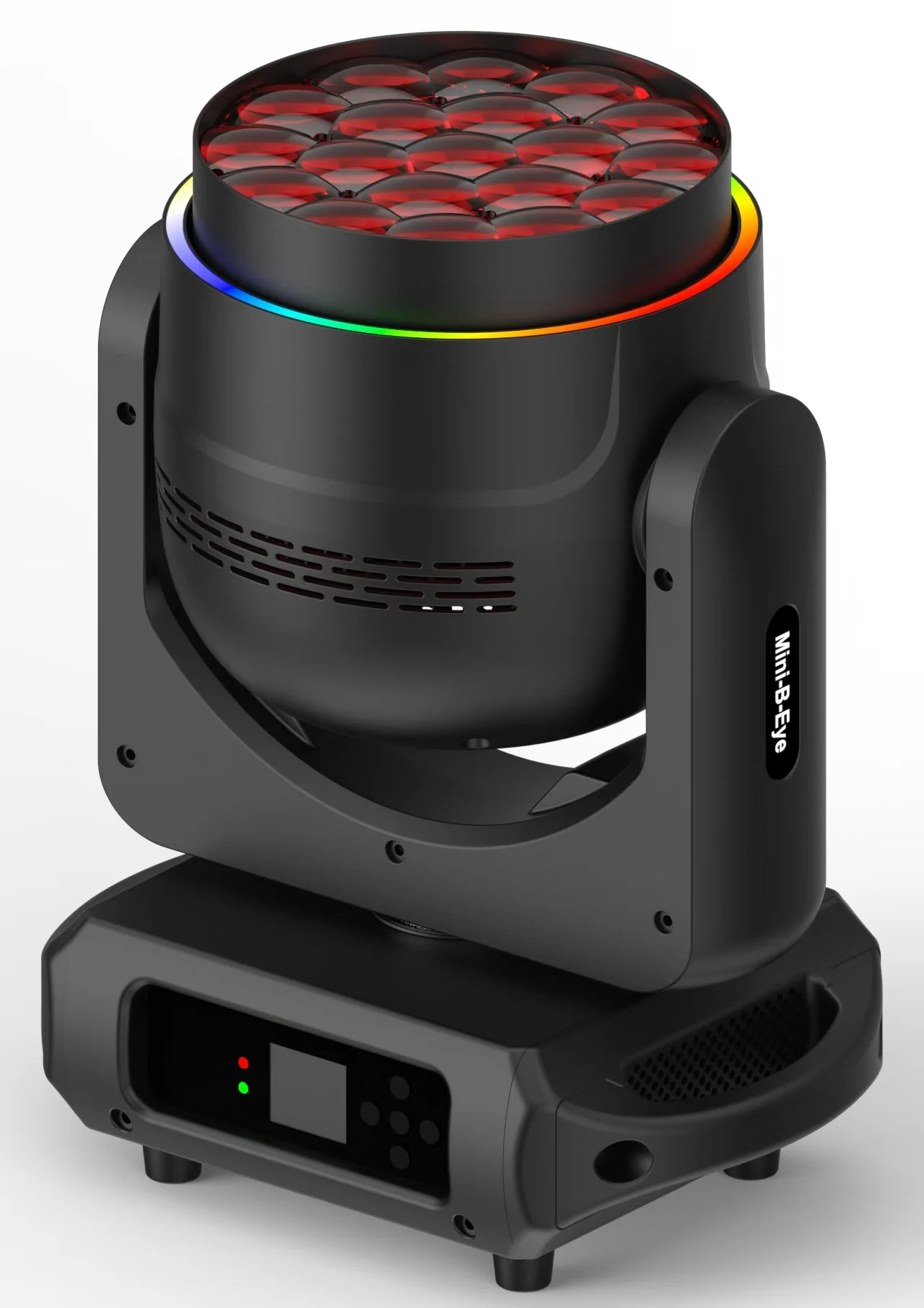

FRONT-LENS SYSTEM
Layer moving patterns with an RGB front accent.
Use continuous front-disc rotation for the listed vortex and kaleidoscope looks; use the RGB strip when a front-facing color accent is part of the cue. These layers serve different visual tasks. Check the channel chart for the selected mode instead of assuming every mode offers the same control.
PRODUCT DETAILS

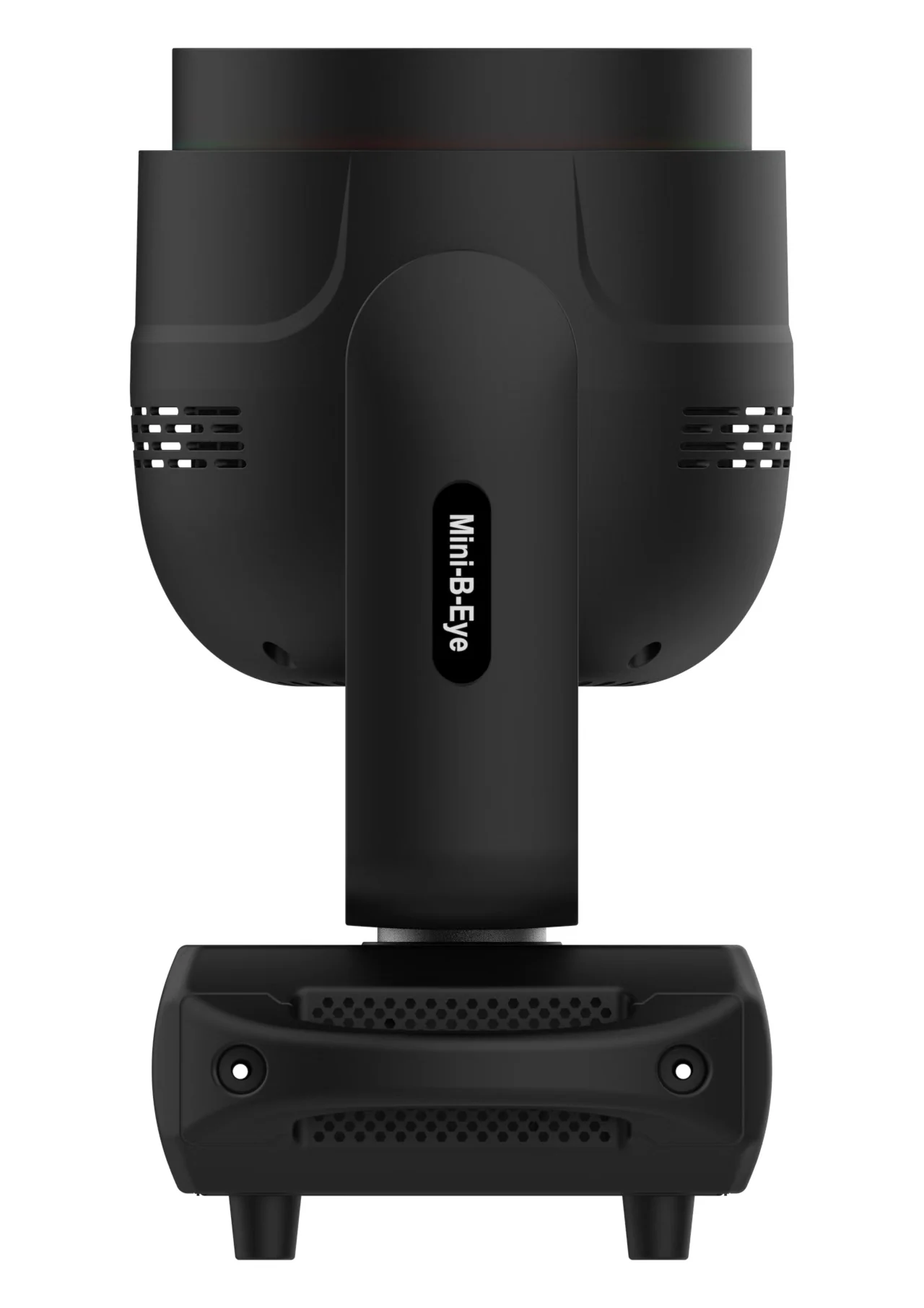

Inspect the housing and yoke from both sides.
The side and rear views show the fixture housing, support arms and base. Confirm installation space, connection layout and the supplied configuration with our team before ordering.
SPECIFICATIONS
Control and optical specifications
Use the listed source, optical and control data to compare the fixture with your lighting plan. Confirm the complete fixture input rating and installation requirements for the supplied configuration. For control-system planning, consult ESTA’s DMX512-A guide; confirm this fixture’s listed channel mode and connector configuration separately.
| LED light source | 19 × 15W four-in-one OSRAM LED sources |
|---|---|
| RGB strip | 74 × 5050 RGB LEDs; 0.12W per LED |
| Color temperature | 2800–8500K |
| Spot angle | 4–60° |
| Front mirror disc | Continuous rotation; vortex and kaleidoscope modes |
| Strobe | 1–25 flashes per second |
| Dimming | Linear electronic dimming |
| DMX channels | 24 / 26 / 38 / 81 / 95 / 100 / 102 CH |
| Control modes | DMX512, Sound, Auto, master/slave |
APPLICATION FIT
Plan this moving head around the cue and control setup.
The 19x15W Focusing Bee Eye Moving Head offers a listed 4–60° range and rotating front-disc effects for stage, event or rental planning. Compare the LED wash light range when planning adjacent color-wash fixtures. Final placement depends on the venue and confirmed installation specification. Compare beam, spot and wash roles for the planned cues.
B2B ORDER FLOW
Share the setup before requesting a quotation.
PRODUCT FAQ
Questions Before You Order
19x15W Focusing Bee Eye Moving Head: specifications, control and order planning.
Does 19 × 15W mean the fixture input power is 285W?
No. It describes nineteen 15W LED light sources. The complete fixture input rating should be confirmed for the ordered configuration.
What is the adjustable spot-angle range?
The supplied specification lists a 4–60° spot angle.
What does the RGB strip add?
It is a separate strip of 74 pieces of 5050 RGB LEDs rated at 0.12W each.
What does the rotating front disc do?
It rotates continuously for the listed vortex and kaleidoscope-style modes.
Which DMX channel options are listed?
24, 26, 38, 81, 95, 100 and 102 channels are listed. Confirm the channel map for the supplied configuration.
Can the fixture run without a DMX controller?
The supplied modes include Sound, Auto and master/slave as well as DMX512. Confirm the intended setup when ordering.
What color-temperature, strobe and dimming data are available?
The listed color-temperature range is 2800–8500K; strobe is 1–25 flashes per second; dimming is linear electronic.
What should I provide for an accurate quote?
Share quantity, destination, venue or rig type, preferred channel mode and intended effects. Ask us to confirm input power and installation details for the supplied version.
