LIGHT SOURCE AND ZOOM

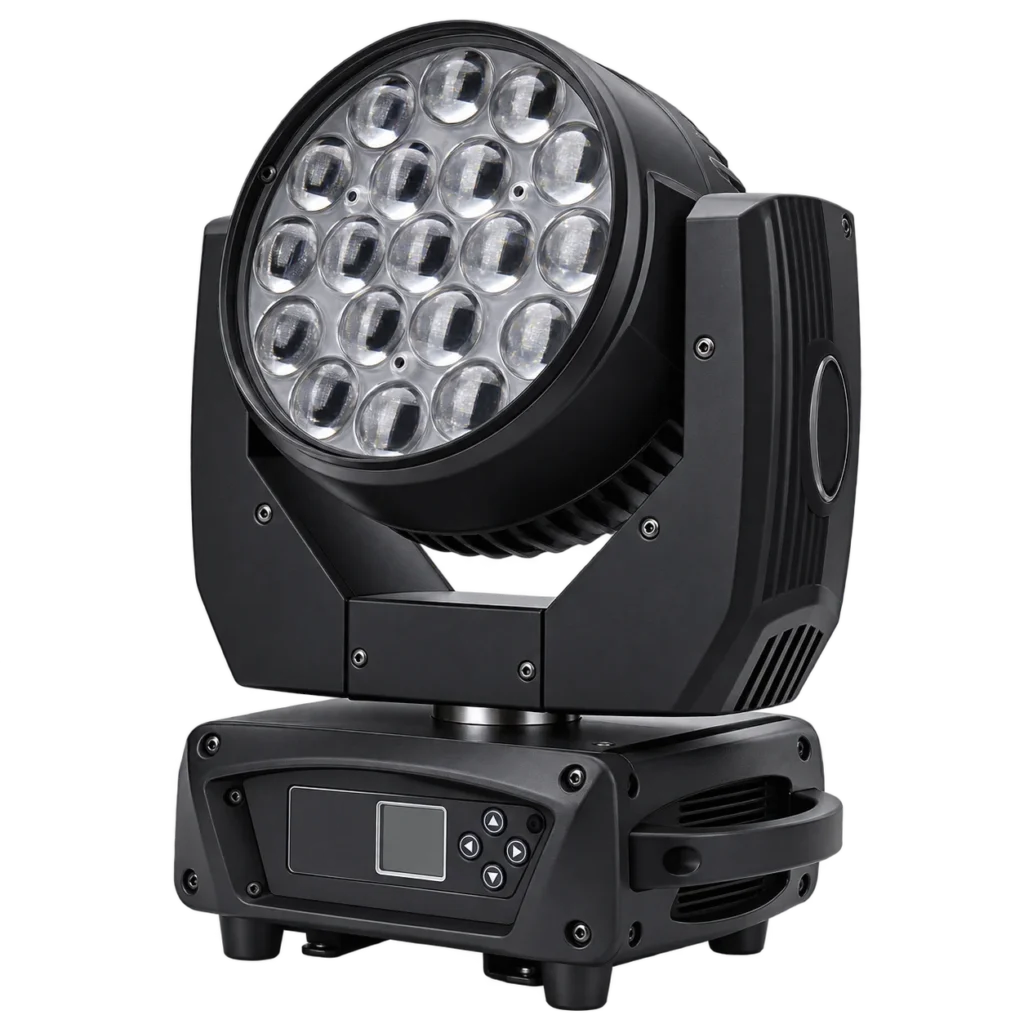

19-LED Zoom Wash Moving Head Light overview
RG-211 combines nineteen four-in-one LED sources with a listed 6–60° beam-angle range. Set the angle against the throw distance, stage size and required color coverage before finalizing a rig.
19 Four-in-One LEDs
A 19-lens front face supplies the main wash output.
6–60° Zoom
Adjust the listed beam-angle range for tighter or wider coverage.
400W Fixture Power
The stated power is for the complete fixture.
12 / 16CH DMX
Select the listed channel mode to suit the control plan.
WORKSHOP VIEWS

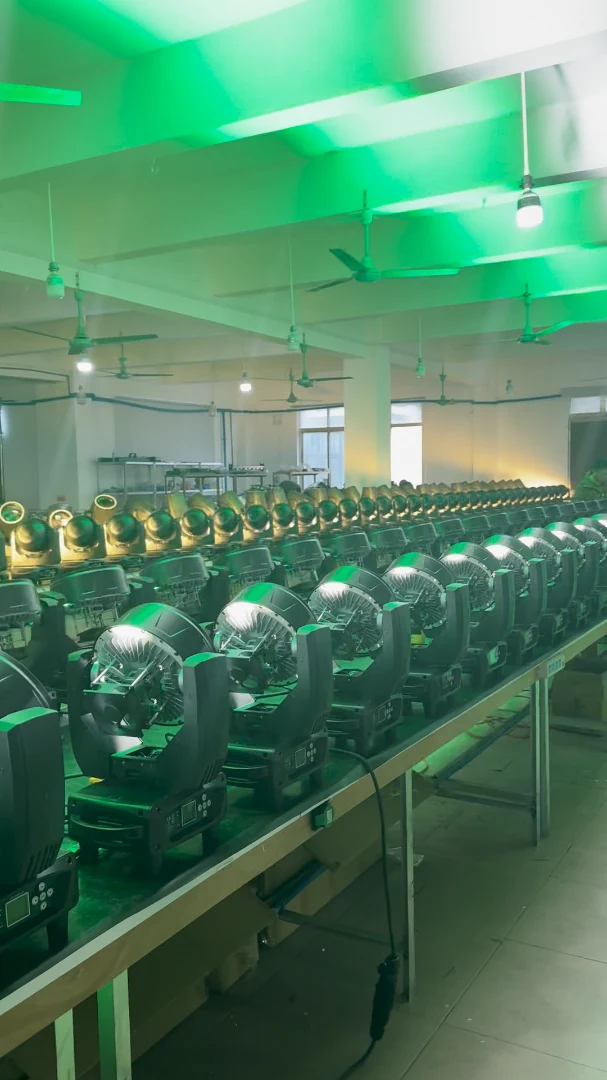

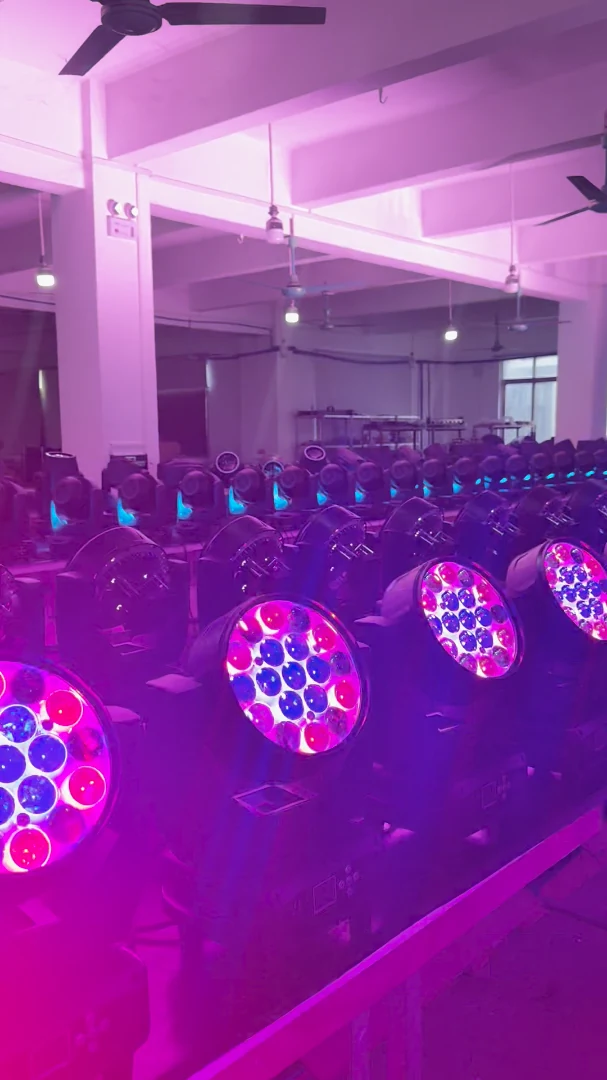

Color output across a row of fixtures.
The workshop photos show several fixtures producing different colors. Use them to review the 19-cell output and the role of repeated fixtures across a rig. Final coverage depends on the selected zoom, working distance and spacing rather than the number of units visible in a photograph.
PRODUCT VIDEO
See RG-211 in motion.
Watch the short demonstration for color changes and the visible fixture output. For your stage layout, compare a tighter setting for concentrated cues with a wider setting for color coverage, then check the required overlap at the intended working distance.
Specifications
Technical specifications
| Model | RG-211 |
|---|---|
| Public product power | 400W fixture power |
| Light source | 19 × four-in-one LEDs |
| Rated fixture power | 400W |
| Voltage | AC 90–240V, 50/60Hz |
| DMX channels | 12 / 16 CH |
| Net weight | 7.65 kg |
| Gross weight | 9.25 kg (1-unit carton); 56.24 kg (4-unit case) |
| Control modes | DMX512, master, sound, auto |
| LED configuration | 19 four-in-one LEDs |
| Color system | Four-in-one LED color mixing |
| Zoom range | 6–60° |
APPLICATION FIT
Plan the zoom range around the venue.
RG-211 is a practical option for stage and event rigs that need adjustable beam spread and 19-cell color output. Share the stage dimensions, mounting height and control setup so the fixture can be assessed against your project. Compare related LED wash lights when planning your lighting rig.
B2B ORDER FLOW
Packing data for your shipping plan.
This ordinary RG-211 has a listed net weight of 7.65kg and a 400W complete fixture rating; do not substitute the LED-ring PLUS model’s figures. The packing options below support an initial freight discussion, subject to the final order. For DMX network planning, consult ESTA’s DMX512-A guide and request the current 12CH or 16CH chart.
PRODUCT FAQ
Questions Before You Order.
Direct answers about zoom, control, packing and quotation.
Does 400W describe the full fixture?
Yes. The supplied specification lists 400W as fixture power and separately describes the source as nineteen four-in-one LEDs. It does not give a wattage for each LED.
What is the beam-angle range?
The listed range is 6–60°. Share your throw distance and coverage target when selecting a setup.
Which DMX channel modes are available?
The supplied specification lists 12CH and 16CH modes.
Can RG-211 run without a DMX controller?
The listed modes include master, sound and auto as well as DMX512. Confirm the chosen operating mode in the project brief.
What are the shipping pack dimensions?
One unit per carton is listed at 64 × 46 × 41 cm and 9.25 kg gross. A four-unit case is listed at 80 × 52 × 58 cm and 56.24 kg gross.
What should I send to request a quote?
Send quantity, destination, venue dimensions, mounting height, throw distance and control plan so the configuration and shipping terms can be reviewed.
