OPTICAL CONTROL

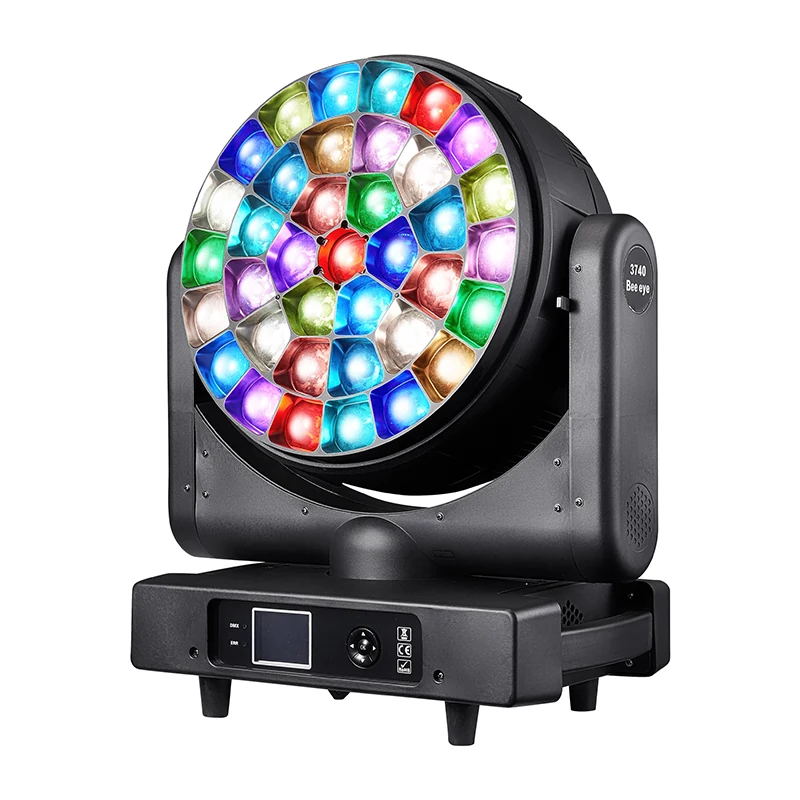

37x40W Focusing Bee Eye Moving Head Light overview
Choose this 37×40W focusing bee eye moving head when a show needs a large multi-cell face, adjustable color coverage and rotating optical cues. The listed 5.5–55° range changes the spread; CTO, color-mixing correction and linear dimming support transitions. Check coverage at the working distance and the selected profile before programming. For network planning, consult ESTA DMX512-A guidance alongside this fixture’s channel chart.
37 × 40W LEDs
Thirty-seven 40W four-in-one sources create the multi-cell face; their source ratings are distinct from the 1600W complete fixture rating.
5.5–55°
Use the listed 5.5–55° range to compare concentrated effects with broader color coverage at your planned position.
2800–8500K
The 2800–8500K range supports white-tone selection; it does not establish a measured CRI for performer lighting.
0–100%
Use 0–100% linear electronic dimming for intensity cues; test the selected fades with the actual camera setup when needed.
LENS ARRAY

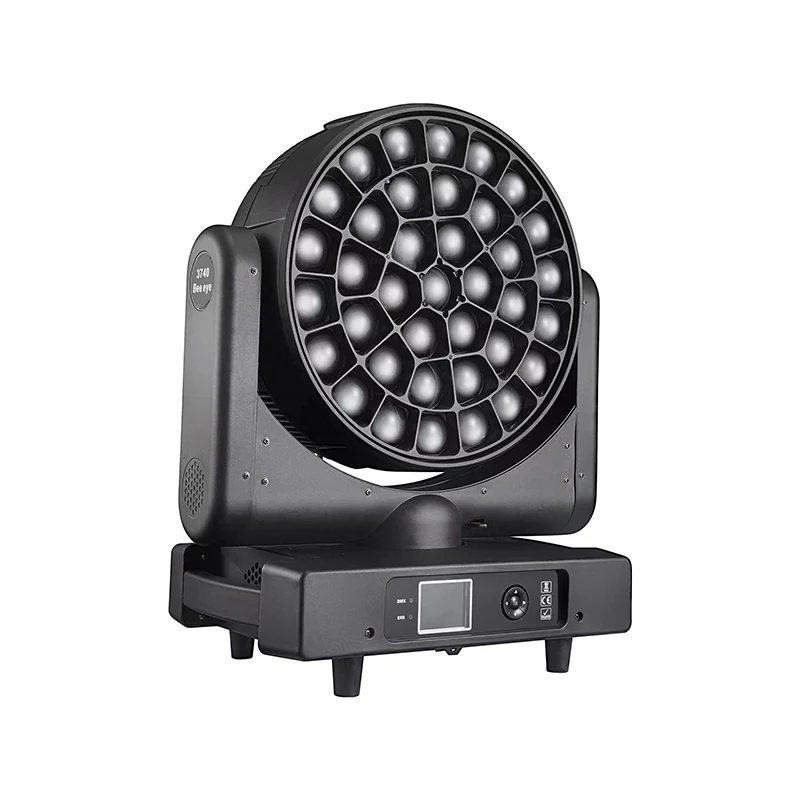

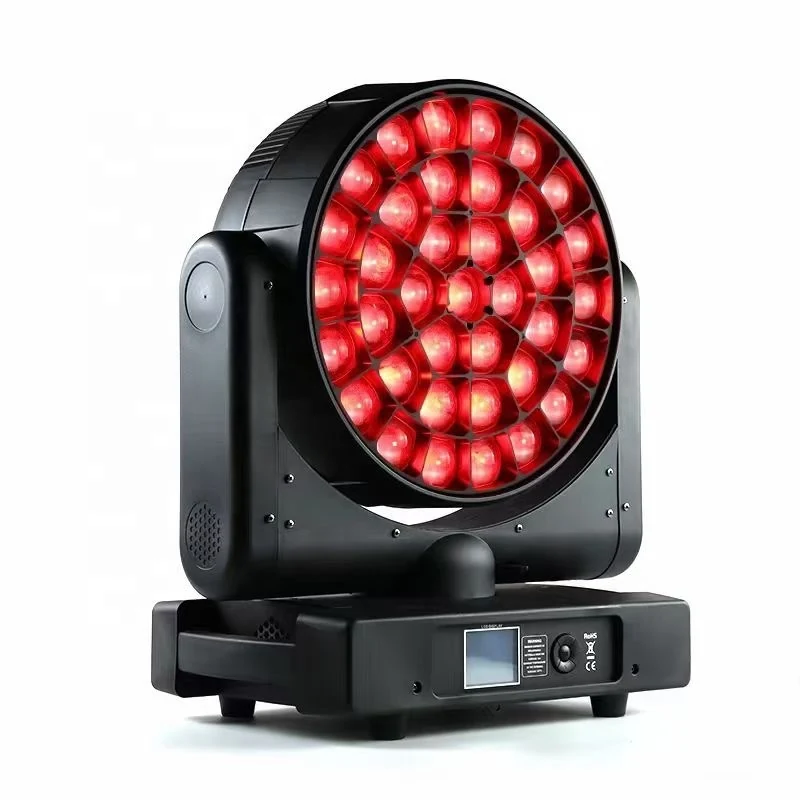

See the 37-cell face with and without light.
The unlit and red-lit views show the front lens arrangement and how the LED cells appear during operation. Output colors and programmed effects depend on the selected control mode.
BEE-EYE EFFECTS
Program rotating vortex and kaleidoscope looks.
The front lens disc is listed for continuous rotation, with vortex and kaleidoscope effect modes. Individual LED-point control is also listed. Ask for the matching DMX channel chart when specifying detailed pixel cues.
PRODUCT VIDEO
Watch the bee-eye moving head in action.
View the supplied short to see the fixture in motion, then share the color, zoom and rotating effects you need for your rig. Confirm the channel map for the selected operating mode before programming.
PRODUCT IN VIEW

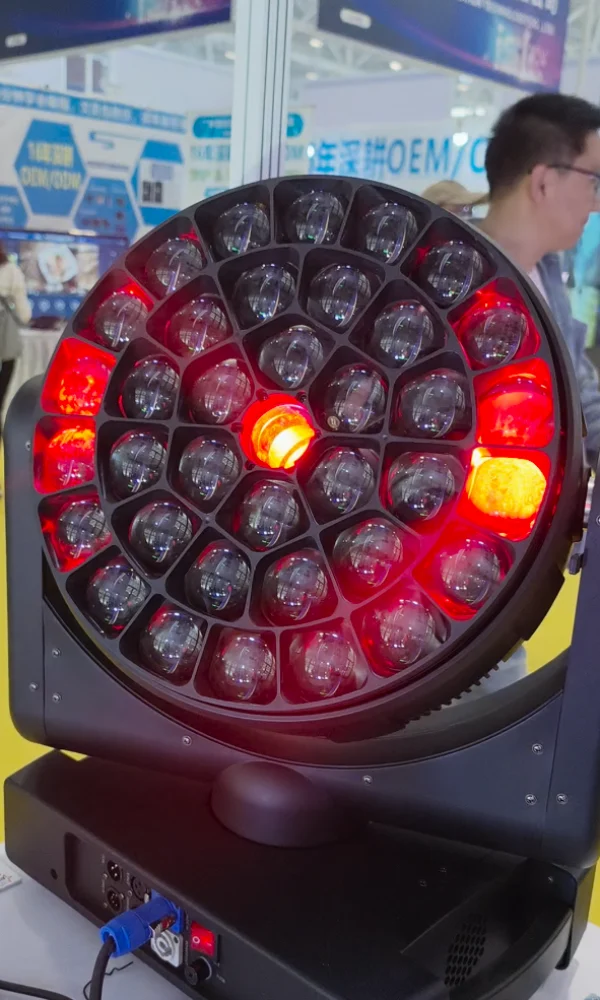

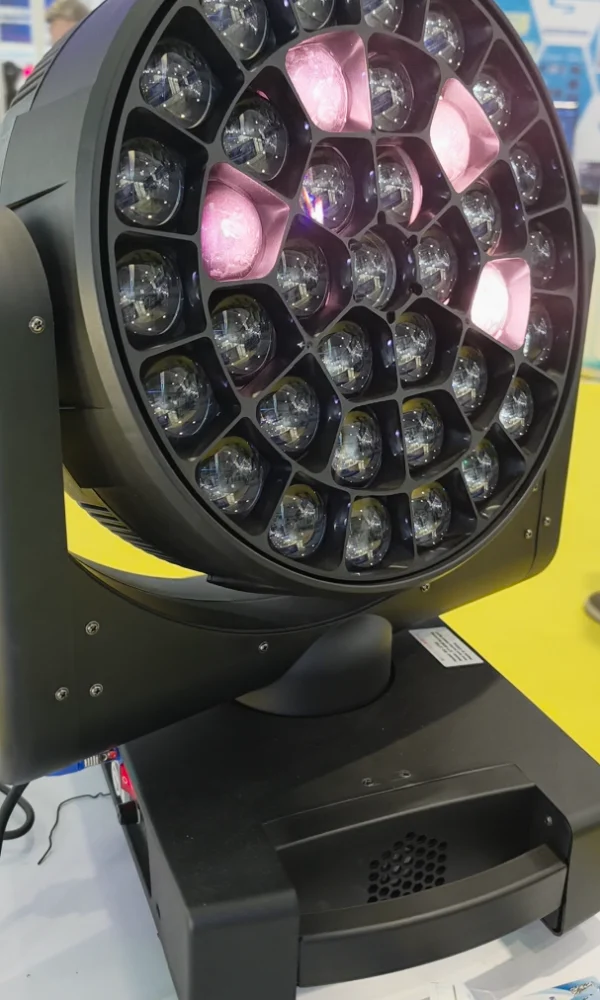

A closer look at the illuminated bee-eye face.
These supplied trade-show photos show individual cells illuminated in red, amber and pink. They document the appearance of this fixture at the display stand; they do not establish measured beam output or venue coverage.
CONTROL MODES
Choose the channel mode for your cue plan.
DMX512, RDM, sound, master-slave and auto control are listed. The available 22, 36, 111 and 148-channel modes let the project team select the required control depth; confirm the exact channel map and console profile before programming.
PRODUCT DETAILS

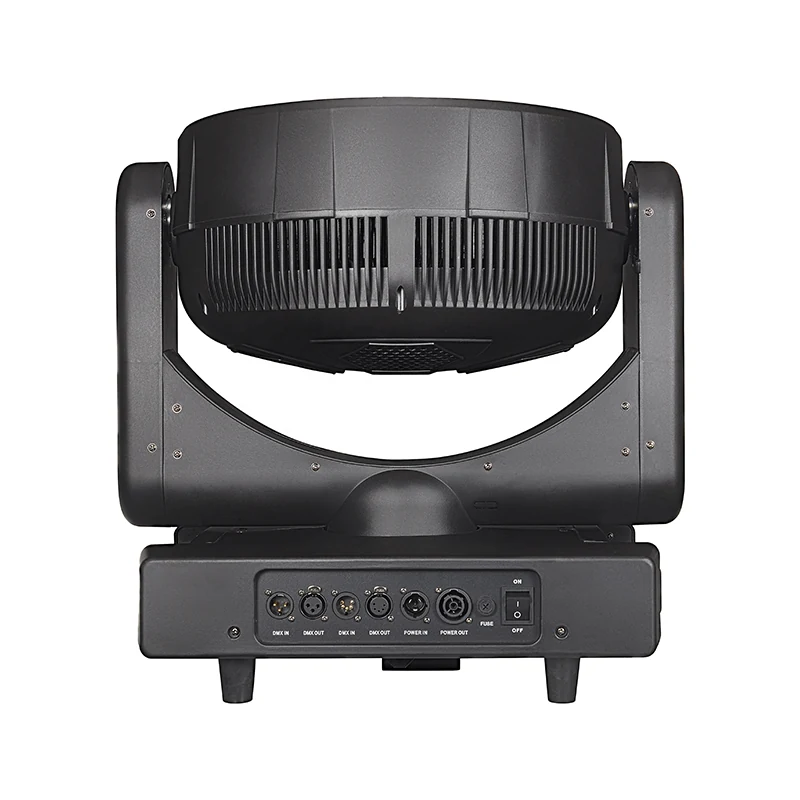

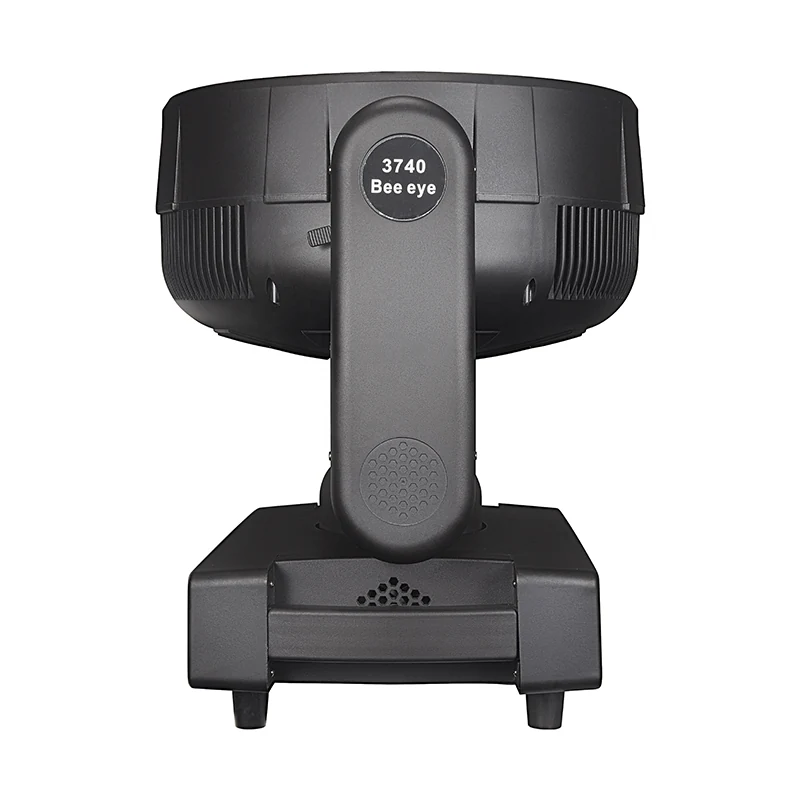

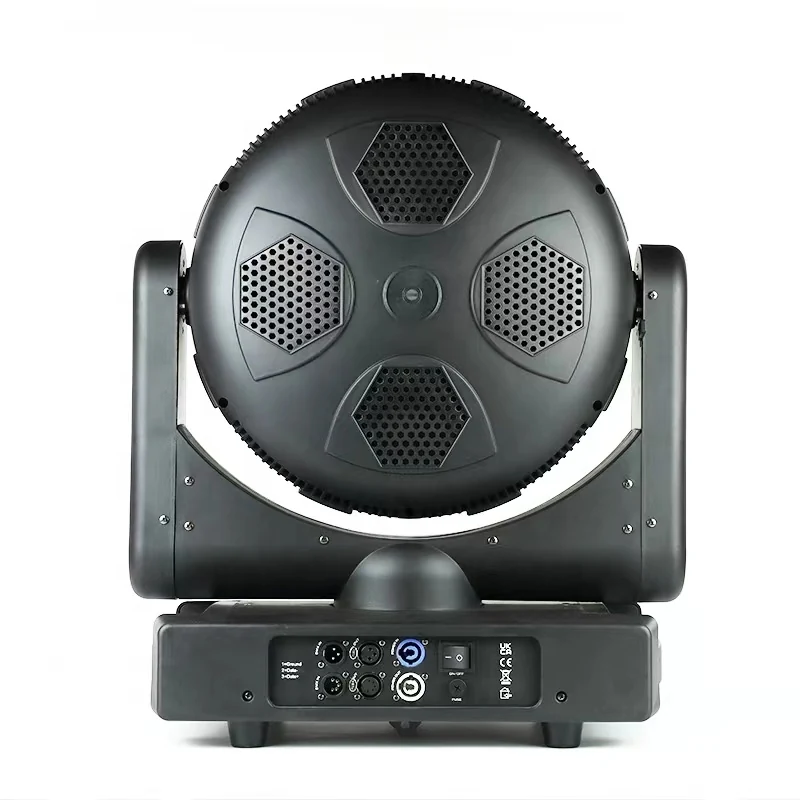

View the housing and connection area.
These product photos show the side and rear of the fixture. Confirm the supplied connector specification for your destination market when ordering.
Specifications
Technical specifications
| Model | RG-3740 |
|---|---|
| Public product power | 37 × 40W LED cells |
| Light source | 37 × 40W 4-in-1 LED cells |
| Rated fixture power | 1600W |
| Voltage | AC 100–240V, 50–60Hz |
| DMX channels | 22 / 36 / 111 / 148CH |
| Control modes | DMX512, RDM, sound, master-slave, auto |
| LED configuration | 37 × 40W 4-in-1 LED cells |
| Color system | 2800–8500K; color mixing correction; CTO |
| Zoom range | 5.5–55° spot-angle range |
| Pixel control | Individual LED-point control (channel map to confirm) |
APPLICATION FIT
Plan color and motion around the actual rig.
Use the rotating lens face and individual LED-point control when the fixture itself contributes to the stage picture; use the adjustable spread for the required color coverage. Size the console patch for the chosen 22, 36, 111 or 148-channel profile. Compare related LED wash lights for other source layouts and control needs.
Confirm site and rigging requirements for the actual installation.
PROJECT QUOTATION
Tell us how the fixture will be used.
Share your quantity, destination, operating voltage, venue, control console, channel mode and intended bee-eye effects. We can then confirm the available configuration and quote for your project.
PRODUCT FAQ
Questions Before You Order.
Answers about output ratings, optical range, control and quotation details.
What do 37×40W and 1600W refer to?
37×40W describes the listed 37 four-in-one LED cells. The listed power for the complete fixture is 1600W.
What spot-angle range is listed?
The supplied specification lists 5.5–55°. Confirm the look you need against the actual stage distance and rig position.
Which DMX modes are available?
The listed modes are 22, 36, 111 and 148 channels. Request the matching channel chart and console profile for detailed programming.
What effects can the front lens disc create?
The supplied data lists continuous front-disc rotation, vortex and kaleidoscope effect modes. Confirm the exact cue behavior for the chosen mode.
Does the light support individual LED-point control?
Individual LED-point control is listed. Ask for the channel map to confirm how it works in the selected DMX mode.
What details should I send for a quote?
Send quantity, destination, input voltage, venue, console, channel mode and the color, zoom or rotating effects required for your project.
