19-CELL EFFECT SYSTEM

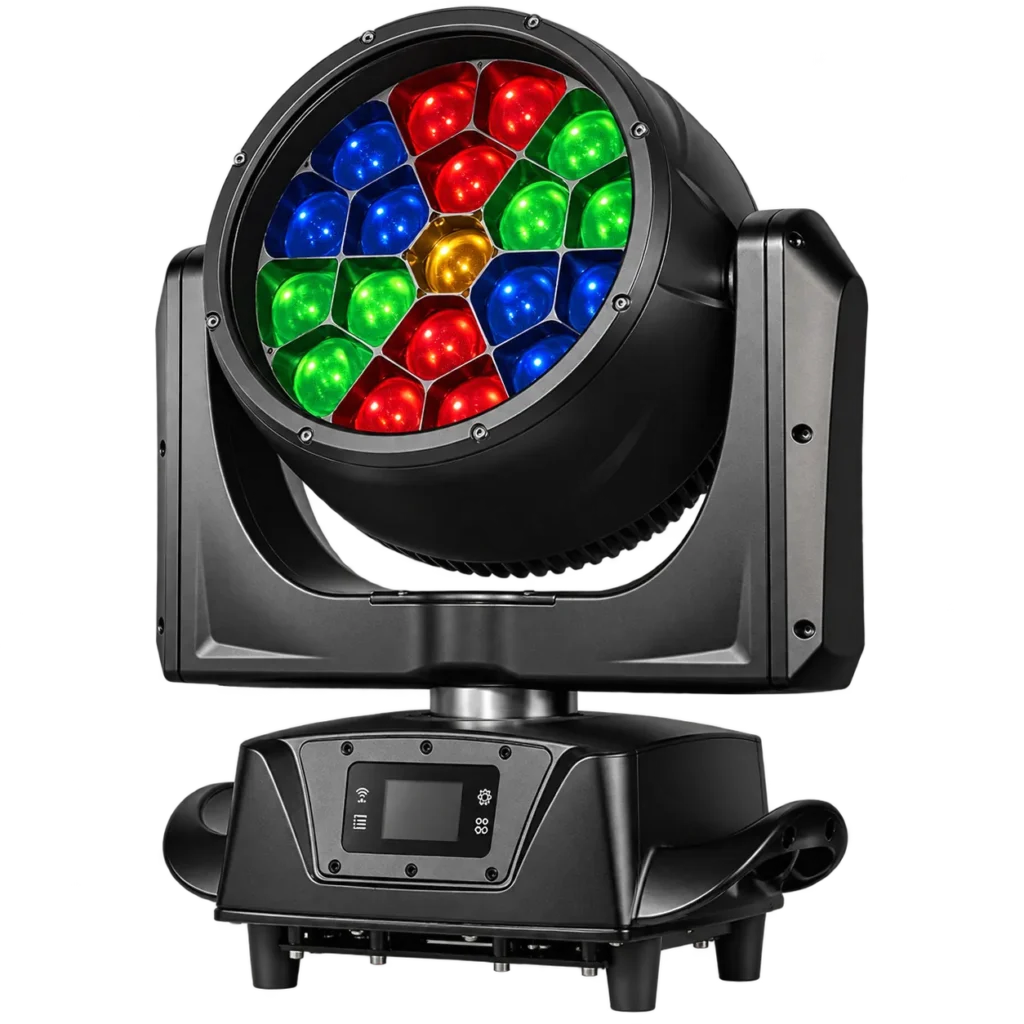

19x40W IP65 Bee-Eye Moving Head Light overview
Nineteen four-in-one 40W LEDs support wash, beam, CTO, vortex and kaleidoscope effects, with individual LED point control listed. The complete fixture maximum power is 730W.
19 × 40W LEDs
Nineteen 40W four-in-one sources provide the bee-eye face; the complete fixture has a separate 730W maximum rating.
8.5–45°
Use the listed 8.5–45° range to compare concentrated cues with broader color coverage at the planned working distance.
IP65 fixture
IP65 applies to the selected fixture; confirm outdoor connectors, cables and mounting as part of the complete installation.
57 / 76CH
Choose 57CH or 76CH pixel operation when individual-point cues are required, and check the matching map before patching.
OPTICAL RANGE
Move between tighter and broader listed spot angles.
An 8.5–45° spot-angle range, aspherical lens structure and continuously rotating front mirror plate are listed. Confirm the exact operating chart for the selected mode.
CONTROL MODES
Choose a standard or pixel DMX profile.
Standard channel options are 21, 23, 35, 36 and 37CH. Pixel operation lists 57CH and 76CH, with DMX512, sound, auto and master-slave modes.
Specifications
Technical specifications
| Model | RG-371 |
|---|---|
| Public product power | 19 × 40W four-in-one LEDs |
| Light source | 19 × 40W four-in-one LED beads |
| Rated fixture power | 730W maximum |
| Voltage | AC 100–240V, 50–60Hz |
| DMX channels | 21 / 23 / 35 / 36 / 37CH; pixel 57 / 76CH |
| IP rating | IP65 |
| Rated lamp lifespan | 50,000 hours listed |
| Control modes | DMX512, sound, auto, master-slave |
| LED configuration | 19 × 40W four-in-one LEDs; individual point control |
| Zoom range | 8.5–45° spot angle |
| Pixel control | 57CH / 76CH pixel modes |
APPLICATION FIT
Use IP65 protection as one part of the outdoor plan.
Choose this IP65 bee-eye fixture when an outdoor position needs moving color coverage and a visible lens-effect face. Decide whether the show needs standard control or individual LED-point cues before reserving the console patch. Check the field at the working distance and plan exposed connections and drainage separately. Compare related LED wash lights for other source layouts and coverage roles.
B2B ORDER FLOW
Specify zoom coverage, pixel control and outdoor positions.
For an RG-371 quotation, send the exposure conditions, target area, working distance and required wash or lens effects. Identify standard or pixel-control needs so the fixture count and console footprint can be reviewed together. For network planning, consult ESTA DMX512-A guidance alongside the selected profile’s channel chart.
PRODUCT FAQ
Questions Before You Order.
19x40W IP65 Bee-Eye Moving Head Light: specifications, control and order planning.
What does 19x40W describe?
It describes the 19 four-in-one LED sources. The listed maximum complete fixture power is 730W.
What IP rating is specified?
The fixture is listed IP65. Connections, mounting and the rest of the installation need separate site planning.
What spot-angle range is listed?
The supplied specification lists 8.5–45°.
Can the LEDs be controlled individually?
Single-LED point control is listed, with 57CH and 76CH pixel profiles.
Which standard DMX profiles are listed?
The choices are 21, 23, 35, 36 and 37CH.
What effects are specified?
CTO, color/wash, beam, vortex and kaleidoscope effects are listed.
What are the color-temperature and dimming ranges?
The listed ranges are 2800–8500K and 0–100% linear electronic dimming.
What should I include in my inquiry?
Send quantity, destination, venue exposure, fixture positions, control profile and connector or mounting needs.
