Moving head beam lights can give a nightclub the sharp aerial lines, fast sweeps, prism bursts, and synchronized movement that make a dance floor feel energetic. However, choosing a fixture only by lamp wattage or price can lead to weak coverage, uncomfortable brightness, difficult programming, or higher maintenance costs.
The right nightclub fixture depends on the room, not just the product brochure. Ceiling height, throw distance, dance-floor dimensions, haze level, control system, operating hours, and installation position all affect the final result. Buyers also need to consider reliability, spare parts, packing, and consistency when ordering multiple units.
This guide explains how to choose moving head beam lights for nightclubs and which specifications matter before requesting a quotation.

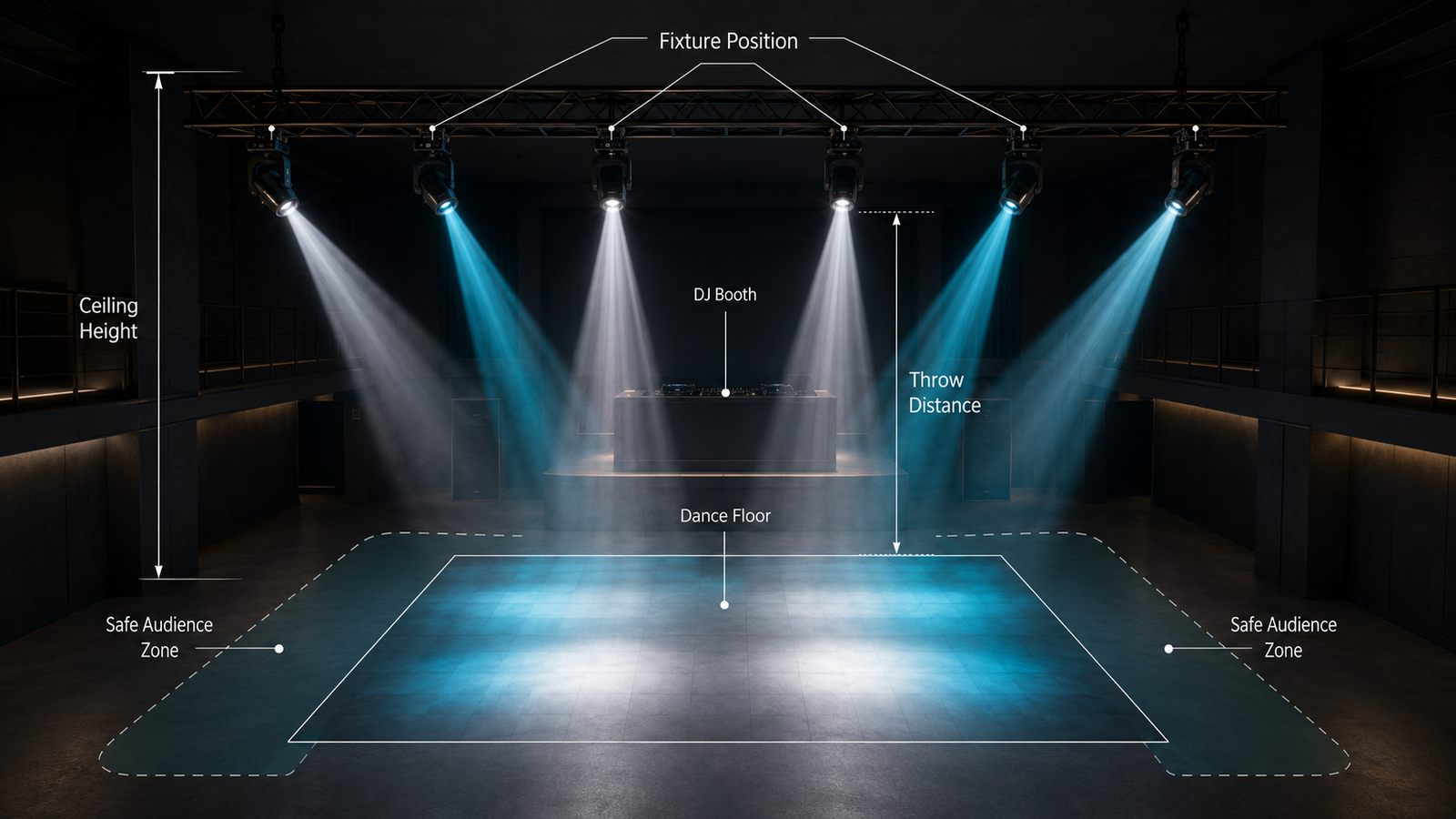

Start With the Nightclub Layout
Before comparing models, record the dimensions of the lighting area. A supplier or lighting designer should know:
- Ceiling and truss height
- Distance from each fixture to the dance floor or target area
- Dance-floor width and length
- Number and position of mounting points
- DJ booth and stage location
- LED screen, speaker, sprinkler, and ventilation positions
- Areas where direct beams must be limited
A compact club with a low ceiling does not need the same beam system as a multi-level venue with a high central truss. In a low room, an extremely tight and powerful beam may become uncomfortable when aimed toward guests. The programming will also need smaller tilt ranges and carefully controlled dimmer values.
In a larger nightclub, fixtures must remain visible across longer distances and compete with LED screens, wash lights, strobes, and ambient lighting. More output and stronger optical performance may be justified, but the layout still determines how many fixtures are required.
Plan the positions first, then select the output class and quantity. This avoids buying powerful fixtures that cannot be used effectively in the available space.
Match Beam Output to Throw Distance and Ceiling Height
Beam fixtures create impact by concentrating light into a defined shaft. The apparent strength of that shaft depends on optical efficiency, beam angle, haze, ambient light, and throw distance. Wattage alone does not describe the final effect.
For a medium nightclub with moderate ceiling height, a 295W-class beam moving head can provide a practical balance of output, effect variety, fixture size, and purchasing cost. The WUYESTAGE RG-119 295W beam moving head lists 275W or 295W high-brightness bulb options and is designed for clubs, rental stages, concerts, and entertainment venues.
For longer cross-room throws, compare candidate beam fixtures under the same haze, ambient light, color and prism cue. A higher lamp rating does not establish stronger usable output. Keep the tested model, source and fixture input power on the comparison sheet, then choose from the current beam range by the requirement each sample actually meets.
Beam angle is another important part of this decision. Narrow beams stay visually defined over distance, while wider effects can feel fuller at shorter range. For a deeper comparison, read our guide on how to choose the right beam angle.
Check the Key Specifications for Nightclub Moving Head Beam Lights
Color and Gobo Options
A nightclub needs enough visual variety to support different music styles and event formats. Fixed colors and gobos allow the operator to change the mood without adding another fixture type.
The RG-119 includes 13 colors plus white and 14 fixed gobos plus white. This gives programmers a useful library for clean beams, colored chases, patterned aerial effects, and music-synchronized sequences. When comparing other fixtures, ask for a photo of the actual color and gobo wheels instead of relying only on a general feature list.
Prism and Frost Effects
Prisms multiply one beam into several beams, creating a larger effect from a single fixture. This is especially useful above a dance floor, where rotating prism effects can fill the room during a musical peak.
The RG-119 supports a 16-facet prism and a combined 8+16+24 prism configuration. Its gradual frost function can widen and soften the output for a different look. Buyers should confirm which prism configuration is included in the quoted version because factories may offer several configurations under a similar product name.
Pan, Tilt, and Movement Quality
Fast movement creates energy, but smooth low-speed movement is equally important. Nightclubs often use slow sweeps during opening hours or lounge sessions and faster chases later in the night.
The RG-119 provides 540-degree pan and 270-degree tilt. During a sample test, check whether several fixtures return to the same position after repeated movement. Also inspect noise, vibration, brake behavior, and movement at low speed. Consistent positioning matters when multiple units are programmed as a symmetrical group.
DMX and Standalone Control
Professional nightclub installations normally use DMX control. Confirm the channel modes, DMX chart, addressing method, and compatibility with the venue’s console or software before ordering.
The 295W RG-119 provides 18- and 22-channel modes, while its control options include DMX, master-slave, sound, and auto operation. DMX offers the best control for programmed shows. Sound and auto modes can be useful for simple rooms or backup operation, but they should not replace a properly designed control workflow in a venue with scheduled performances.
Choose the Right Quantity and Fixture Placement
There is no universal number of beam lights for a nightclub. A small room may create a strong effect with four carefully placed fixtures, while a larger venue may need eight, twelve, or more to build symmetrical fans, crossing beams, and layered movements.
Use these planning principles:
- Place fixtures symmetrically when the design calls for mirrored movement.
- Avoid positions where beams repeatedly point into guests’ eyes at close range.
- Keep enough clearance for full pan and tilt movement.
- Separate fixtures from hot ventilation exhaust and sources of dust or smoke residue.
- Leave safe access for cleaning, inspection, and replacement.
- Confirm that the truss and clamps can support the full installed load.
It is often better to install a smaller number of reliable fixtures in useful positions than to fill the ceiling with low-cost products that are difficult to maintain. Ask the supplier to review a simple venue drawing before confirming the quantity.
Consider Noise, Heat, and Long Operating Hours
Nightclub lights may run for many hours several nights per week. Fans, heat, and dust therefore matter more than they do in occasional-use installations.
Ask how the fixture manages heat and whether fans are temperature controlled. Listen to a powered sample in a quiet room, especially if the fixture will also be used during dining, lounge, or private-event periods. Check the air path and determine how easily filters, lenses, and fans can be cleaned.
Regular cleaning is essential because haze fluid residue and dust can collect on optical parts and cooling channels. A maintenance schedule should include lens cleaning, fan inspection, movement checks, DMX testing, and examination of clamps and safety cables.
Evaluate Reliability Before a Bulk Order
For a nightclub, a failed fixture is visible to every guest. For a distributor or installer, repeated failures also create travel, labor, and spare-parts costs.
Before placing a bulk order, request a sample and test:
- Power-on stability during extended operation
- Color and gobo wheel positioning
- Prism insertion and rotation
- Pan and tilt accuracy
- Strobe and dimmer response
- Frost operation
- DMX addressing and channel response
- Reset behavior after power interruption

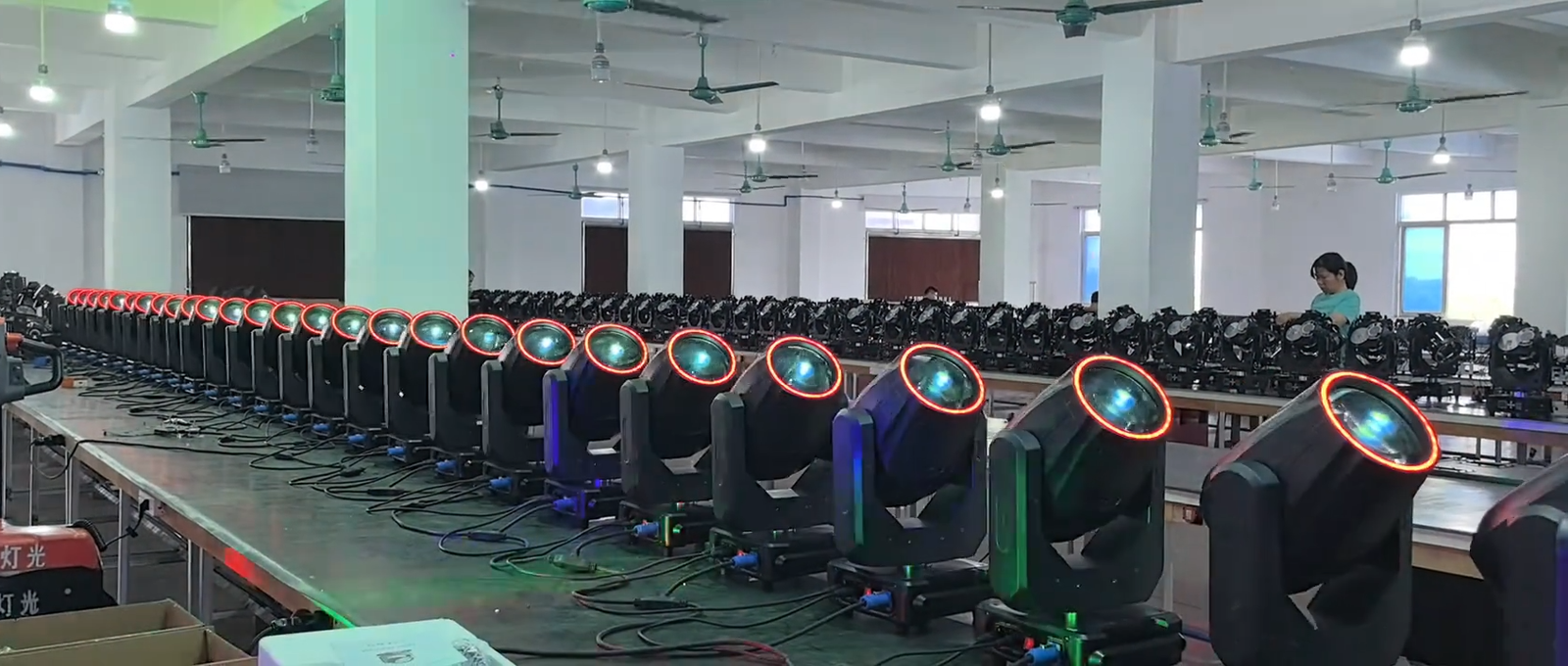

WUYESTAGE can perform pre-shipment function testing, including the lamp source, color wheel, gobo wheel, prism, movement, strobe, frost, and DMX response. For a multi-unit order, buyers should also agree on inspection criteria and ask how batch consistency is controlled.
Compare Total Cost, Not Only Unit Price
The lowest quotation is not always the lowest project cost. A nightclub buyer should include freight, installation, clamps, safety cables, signal distribution, spare parts, replacement lamps where applicable, maintenance labor, and after-sales response.

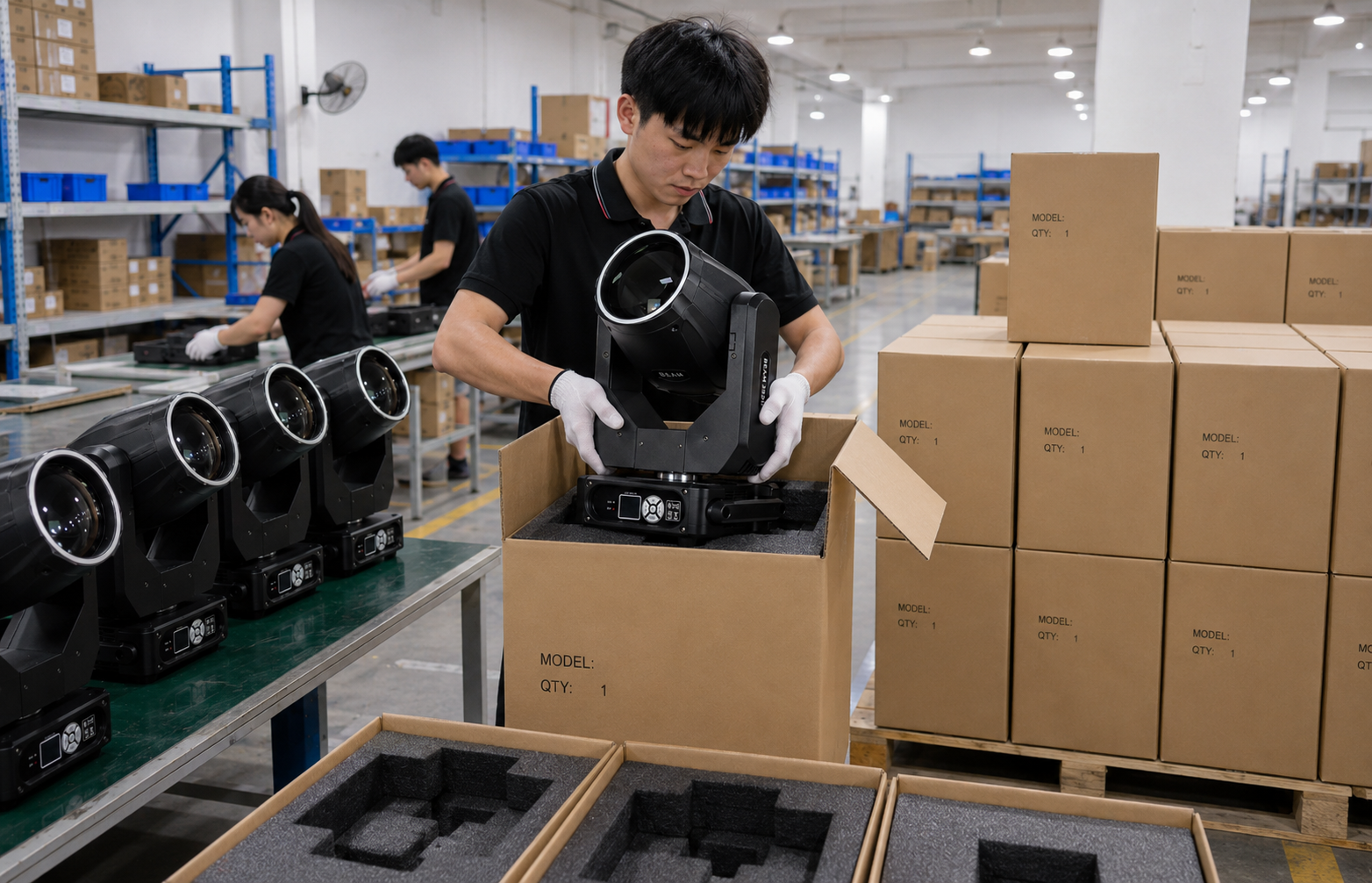

Packing is particularly important for international orders. The RG-119 standard carton is one unit per carton, with a listed carton size of 53.5 x 37.5 x 40.5 cm and gross weight of approximately 14.5 kg. Flight-case packing can be discussed for buyers who need frequent transport or stronger protection.
For long-term projects, ask whether the supplier can provide the same configuration in repeat orders. Stable specifications, appearance, firmware, and accessories make expansion and maintenance easier.

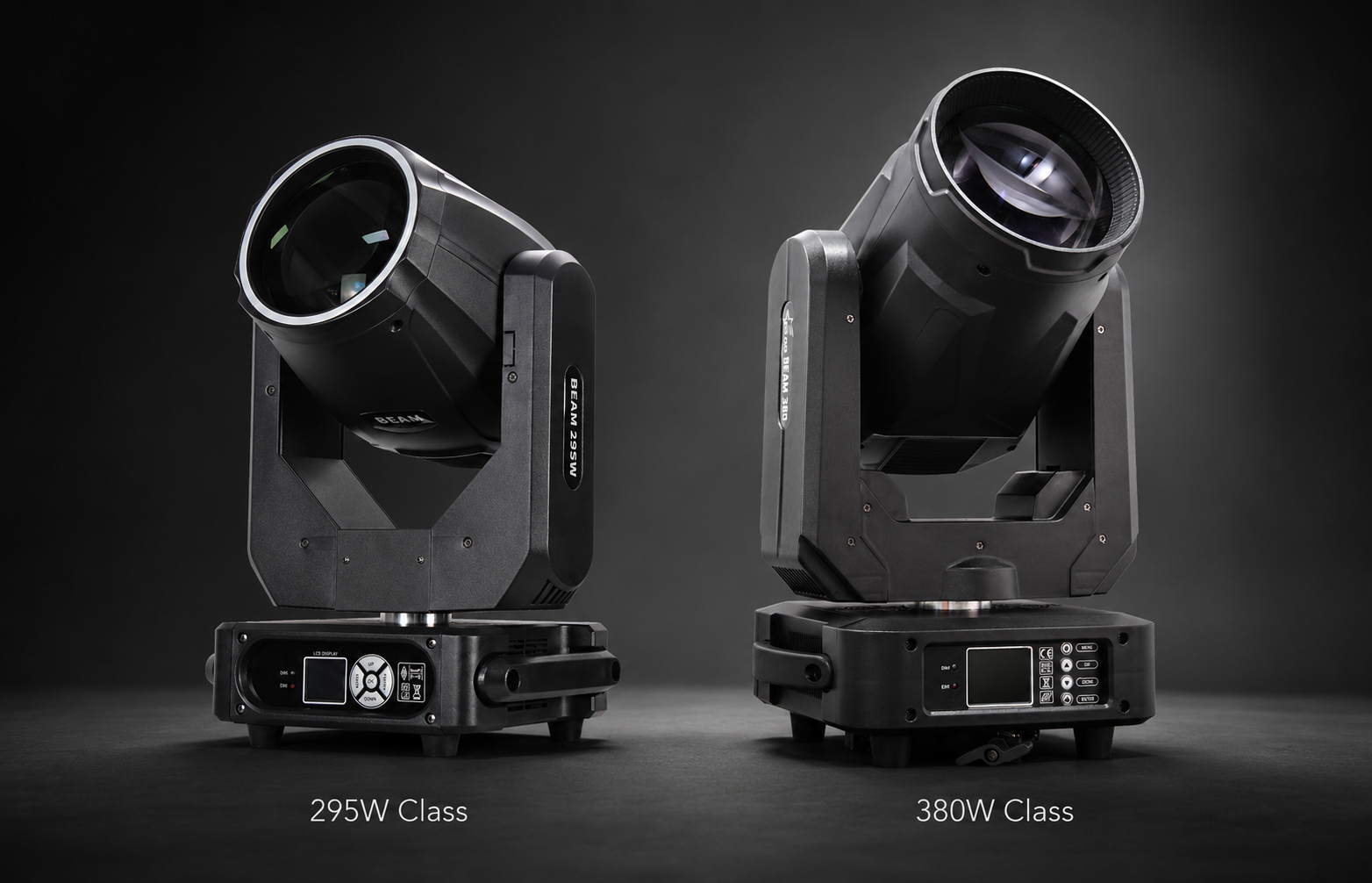

295W or 380W: Which Is Better for a Nightclub?
Neither power class is automatically better. The suitable choice depends on the room.
Shortlist the RG-119 when its colors, gobos, prism functions and operating requirements match the club cue list. Specify the 275W or 295W lamp version: the listed control footprints are 16/20CH for 275W and 18/22CH for 295W. Approve the exact source and mode together; venue size alone does not identify the correct version.
Keep a larger or alternative beam model on the shortlist only if it solves a documented gap, such as the required aerial definition at the longest position or a needed effect. Test it with the surrounding video and lighting cues on. Compare packing, fixture power and service requirements as well as the visual result.
You can review the available Beam Moving Head Lights and compare 295W and 380W options for your project.
Frequently Asked Questions
What moving head beam light is best for a small nightclub?
No lamp wattage defines the best small-club fixture. Confirm the shortest throw, audience positions, haze policy, beam movement limits and required effects. Test the selected model in those conditions and use a separate wash or front-light layer when coverage is the actual task.
How many moving head beam lights does a nightclub need?
Small venues may begin with four units, while larger clubs may use eight, twelve, or more. Quantity should be based on fixture positions and the lighting scenes the programmer needs, not on floor area alone.
Are sound-active modes enough for nightclub lighting?
Sound-active mode is useful for simple operation, but DMX control is recommended for professional venues. DMX allows repeatable cues, synchronized movement, controlled brightness, and safer beam positions.
Which specifications should I compare before buying?
Compare real output at the planned distance, beam angle, colors, gobos, prisms, frost, pan and tilt quality, DMX modes, cooling, noise, packing, spare parts, and supplier testing. Confirm the exact configuration in writing.
Can I mix 295W and 380W beam lights in one nightclub?
Yes, but the lighting designer must account for differences in output, color, movement, and beam appearance. Using matching fixtures in symmetrical positions usually makes programming easier. Different power classes can be assigned to separate zones when the design requires them.
Product Recommendation
For small and medium nightclub projects, the WUYESTAGE RG-119 295W Beam Moving Head is a versatile option with 13 colors plus white, 14 fixed gobos plus white, multiple prism effects, gradual frost, 18/22-channel DMX modes, and 540-degree pan with 270-degree tilt. It is suitable for nightclub installations, event rental, concerts, and stage projects.
For a comparison, send the shortest and longest throws and identify the cue the first sample cannot achieve. WUYESTAGE can review alternative beam configurations against that gap; preserve the approved sample settings and order version rather than choosing solely by a 295W or 380W label.
Get a Nightclub Beam Lighting Recommendation
Send WUYESTAGE your nightclub dimensions, ceiling or truss height, fixture positions, target quantity, control system, and a few venue photos. We can help you compare 295W and 380W beam moving heads, confirm the required configuration, and prepare a quotation for a sample or bulk order.
View our Beam Moving Head Lights or contact WUYESTAGE with your project details.
