PERFORMANCE OVERVIEW
Focused beam output with a second layer of RGB color.
The Beam 295 moving head brings lamp-driven beam effects and a visible RGB lens ring into the same stage picture. Choose this 295W configuration when you want moving aerial beams, separated or dense prism patterns, and a color accent on the fixture itself. Keep wash or front lighting in the rig for performers.
295W Lamp Configuration
The main beam comes from a 295W discharge lamp. Rated fixture power is 380W, the figure to use when comparing complete-fixture power requirements.
Layered Prism System
Compare the 16-facet prism with the 8+16+24 prism system: look at beam separation and pattern density in the supplied effect images.
RGB Lens Ring
27 × 5050 RGB LEDs surround the lens. This audience-facing accent adds visible color when the fixture faces the crowd.
DMX or Standalone Operation
Use DMX for programmed cues, or Master-slave, Sound and Auto modes for standalone operation. The 295W version has 18 / 22 CH DMX modes. ESTA’s DMX512-A guide explains the wider control standard.
MULTI-PRISM EFFECTS
Switch from defined beam splits to dense layered fields.

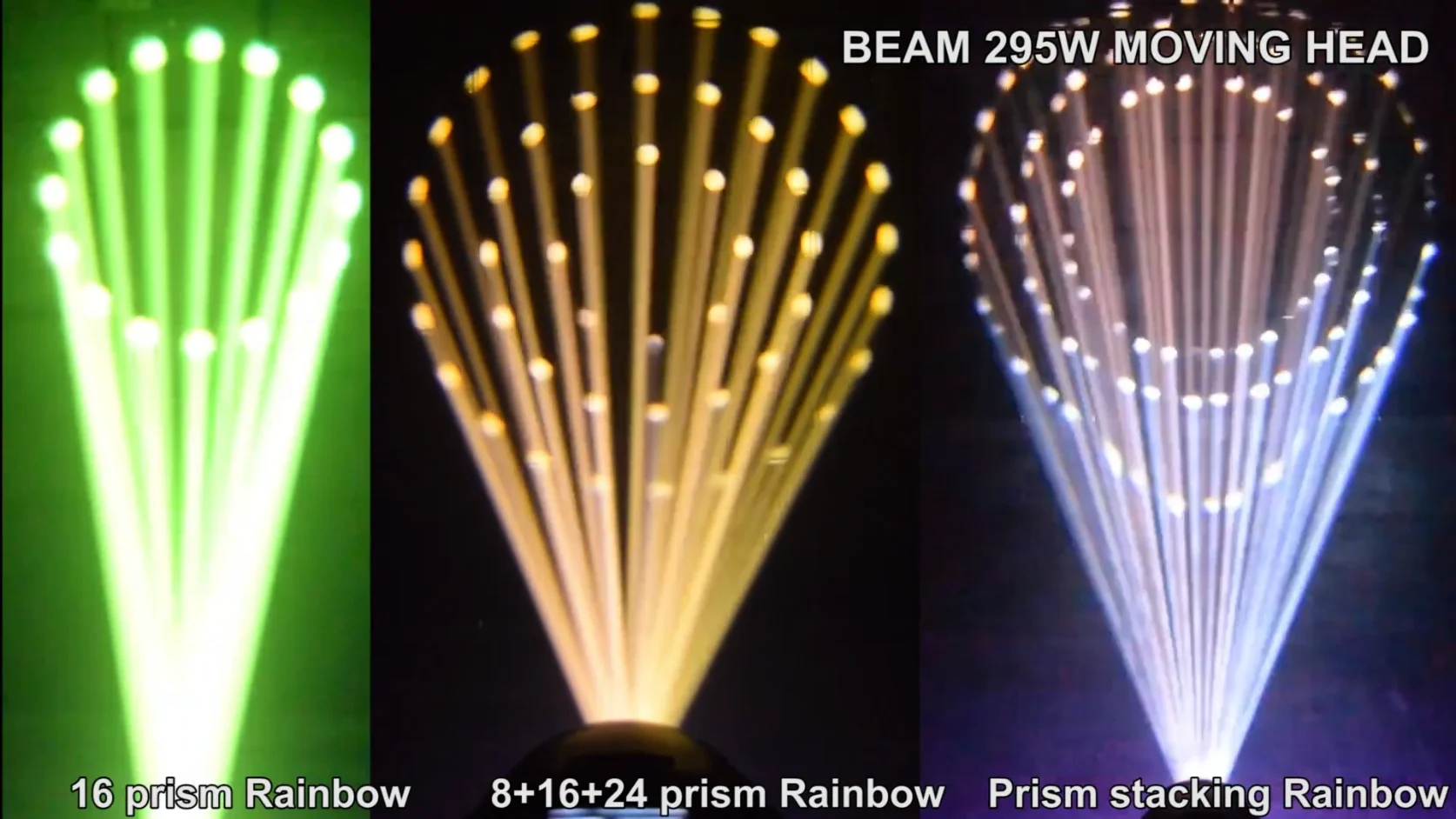

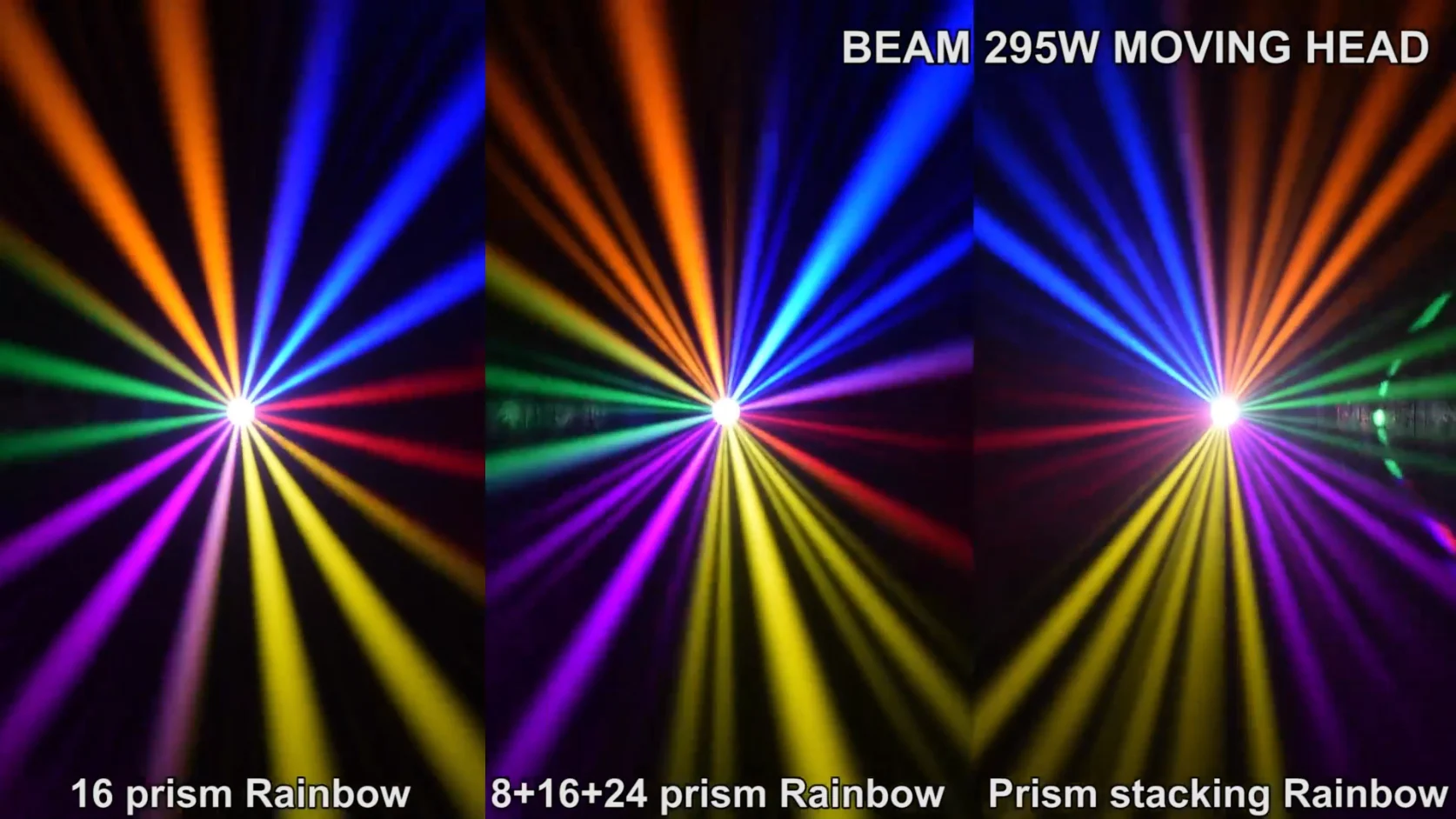

Start with the pattern your cue needs. The 16-facet prism gives a more separated beam split; the 8+16+24 prism system creates a denser multi-ray look. Compare the radial and fan effects below against your intended spacing and working distance. More facets change the pattern, so choose by the look you need on stage.
RGB LENS RING
Add front-facing color without changing the main beam.

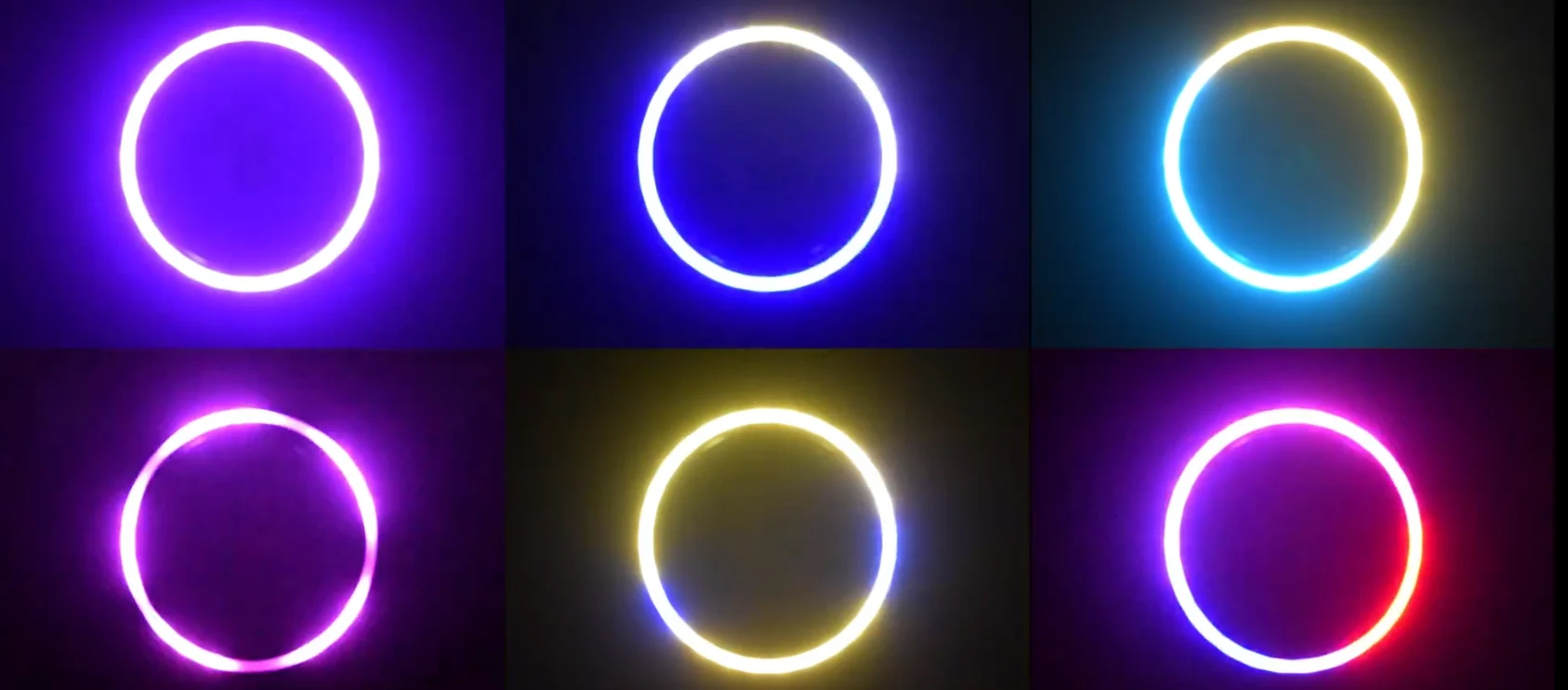

A moving head light with an LED ring gives the audience a second visible effect around the lens. On this model, 27 × 5050 RGB LEDs form that decorative color layer, while the 295W lamp produces the main beam. Prioritize the ring when the fixture will face the audience; prioritize the beam and prism images when judging the projected effect.
COLOR, GOBO & FROST
Build cues with fixed colors, gobos and gradual frost.
Use 13 colors plus open white for color changes, and 14 fixed gobos plus open for patterned effects. The color and gobo references below help you choose the looks to include in a cue. Gradual frost creates a softer effect; its specified frost effect range is 5–30°. Use dedicated wash or front-light fixtures where you need even area or face lighting.
PRODUCT DETAILS
Review the housing, controls and connection sides.

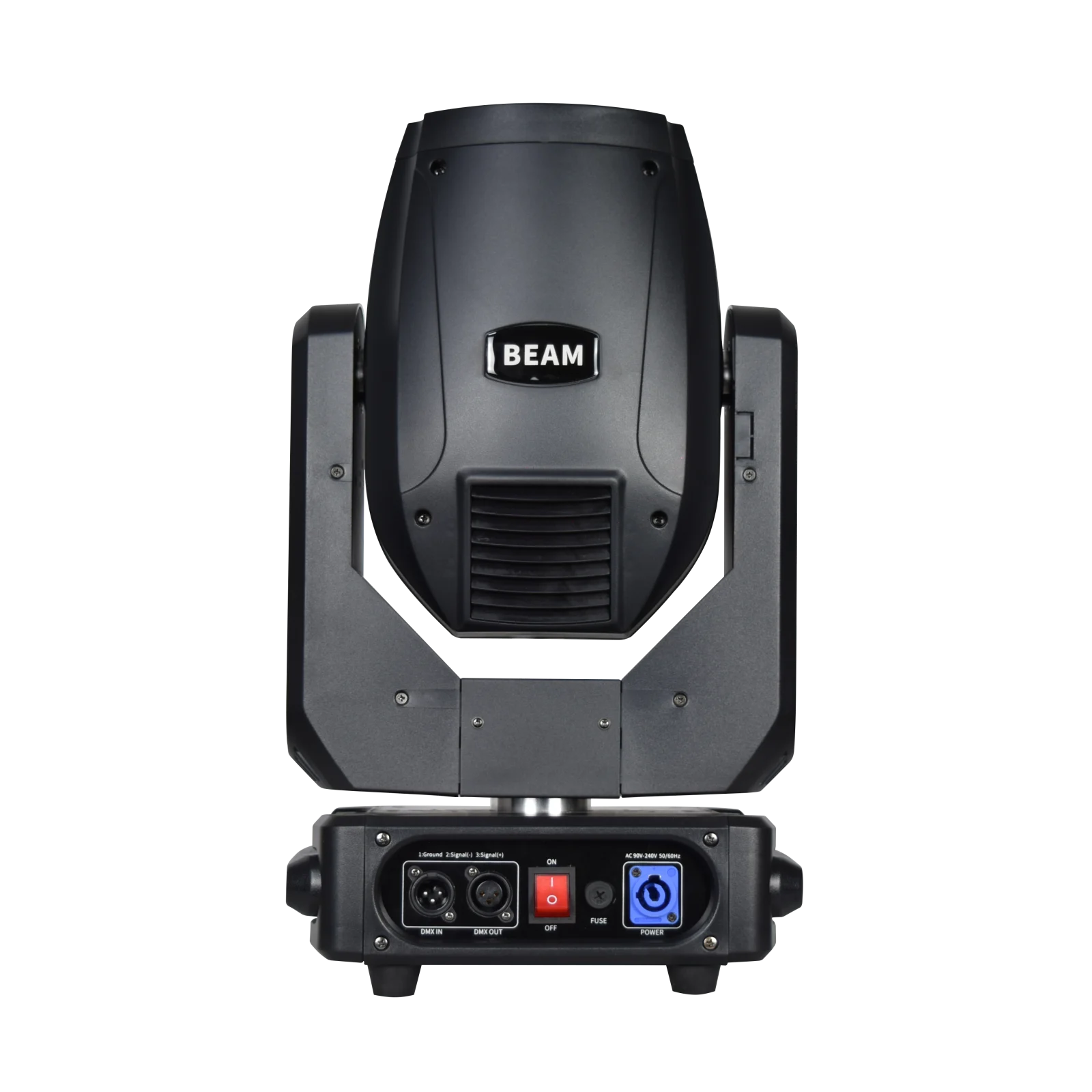

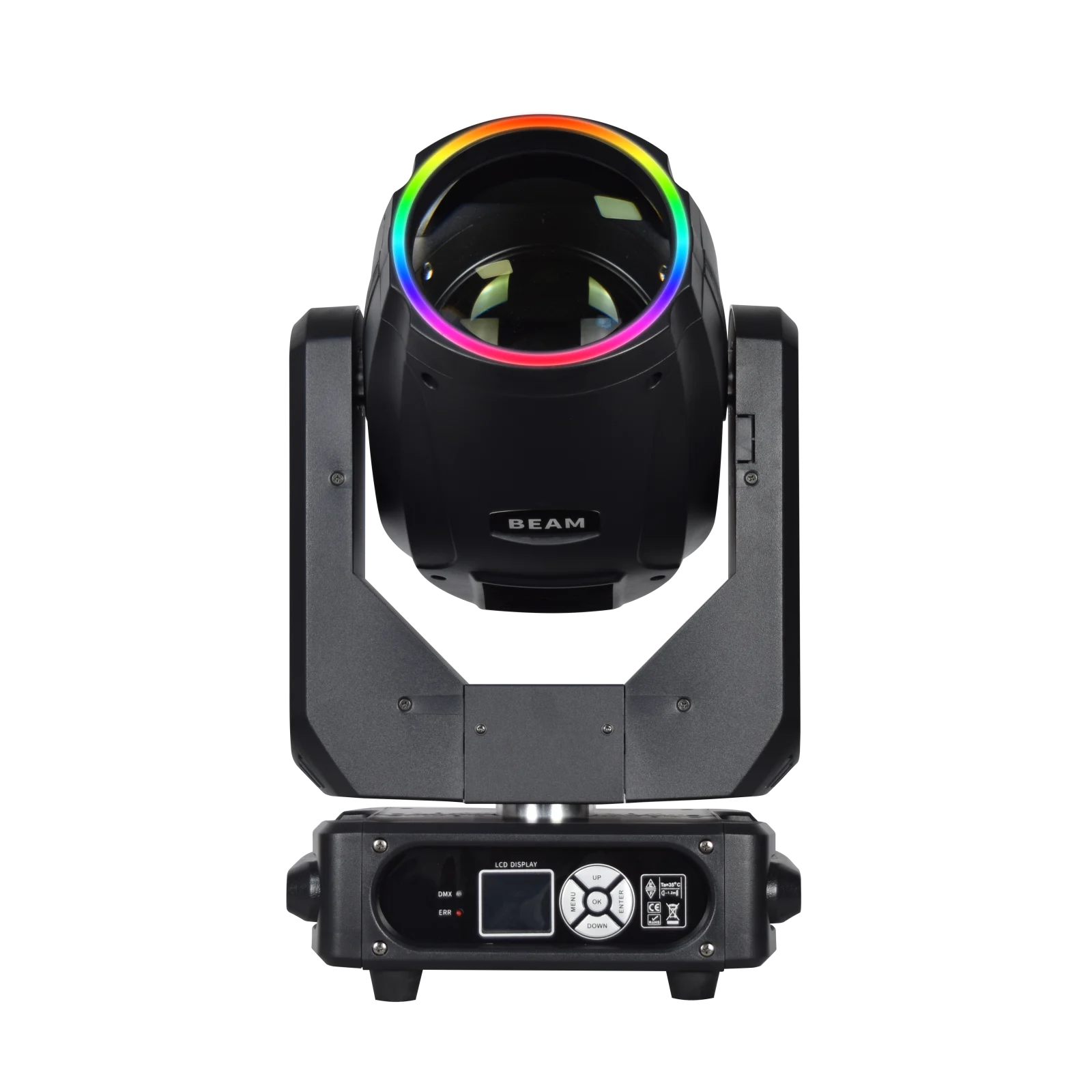

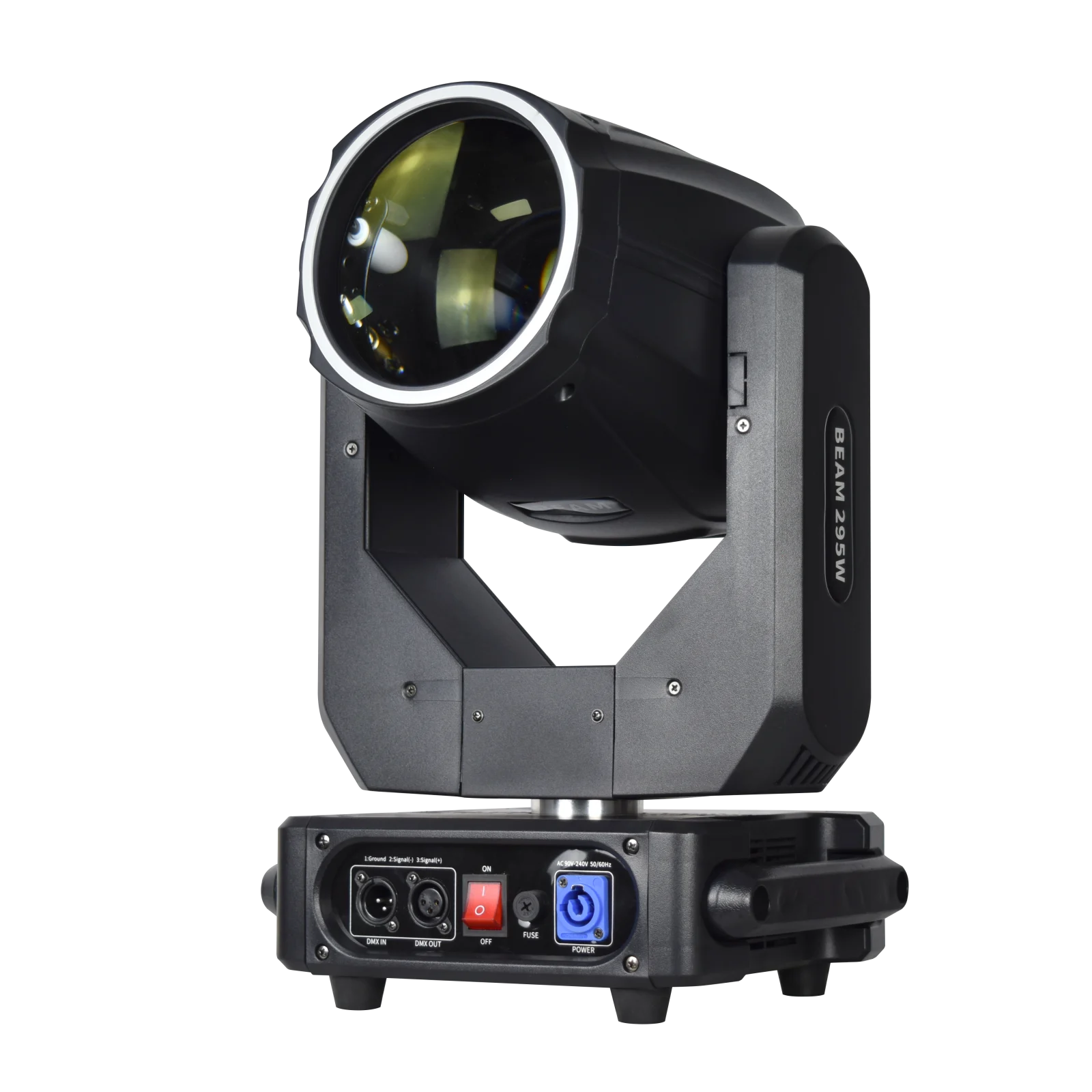

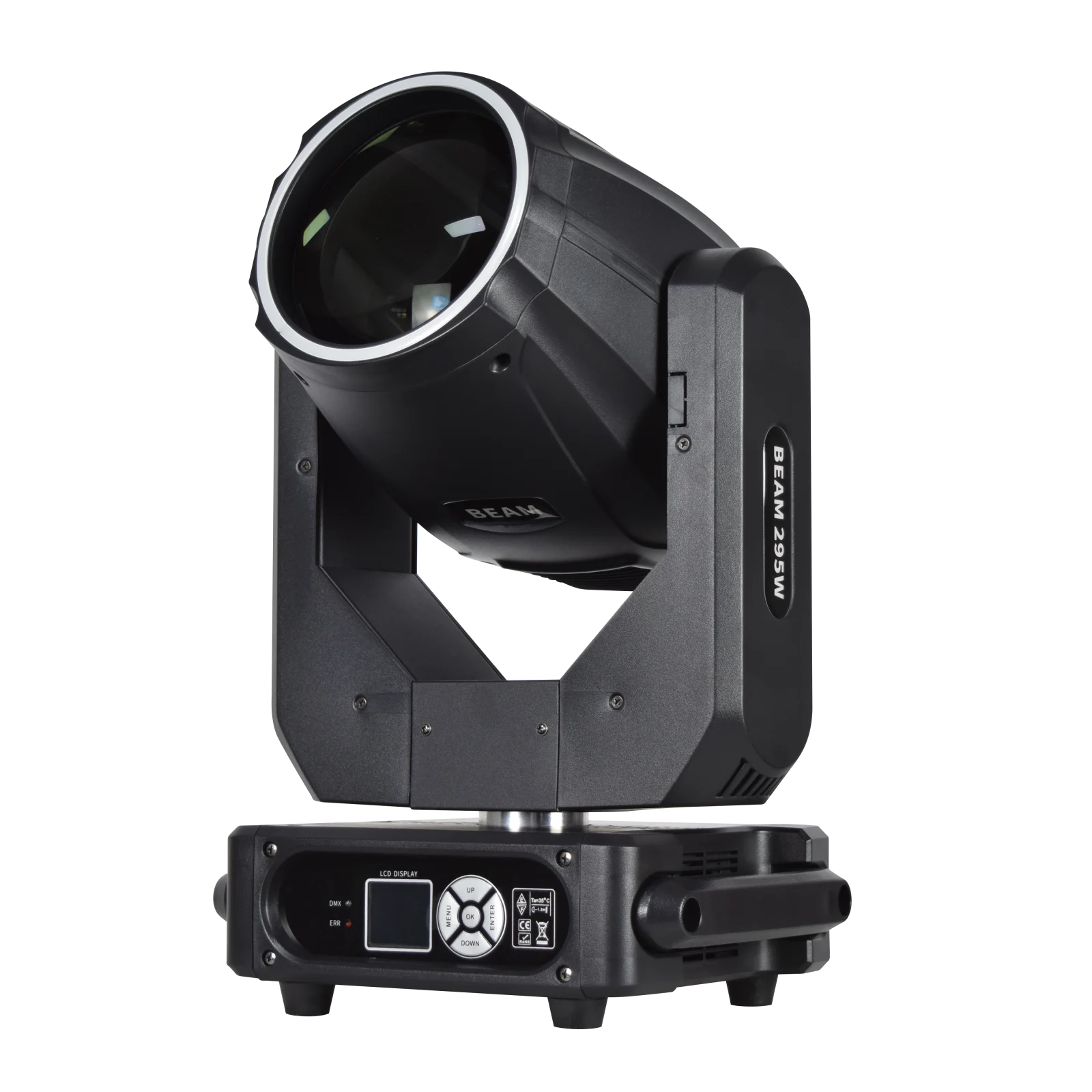

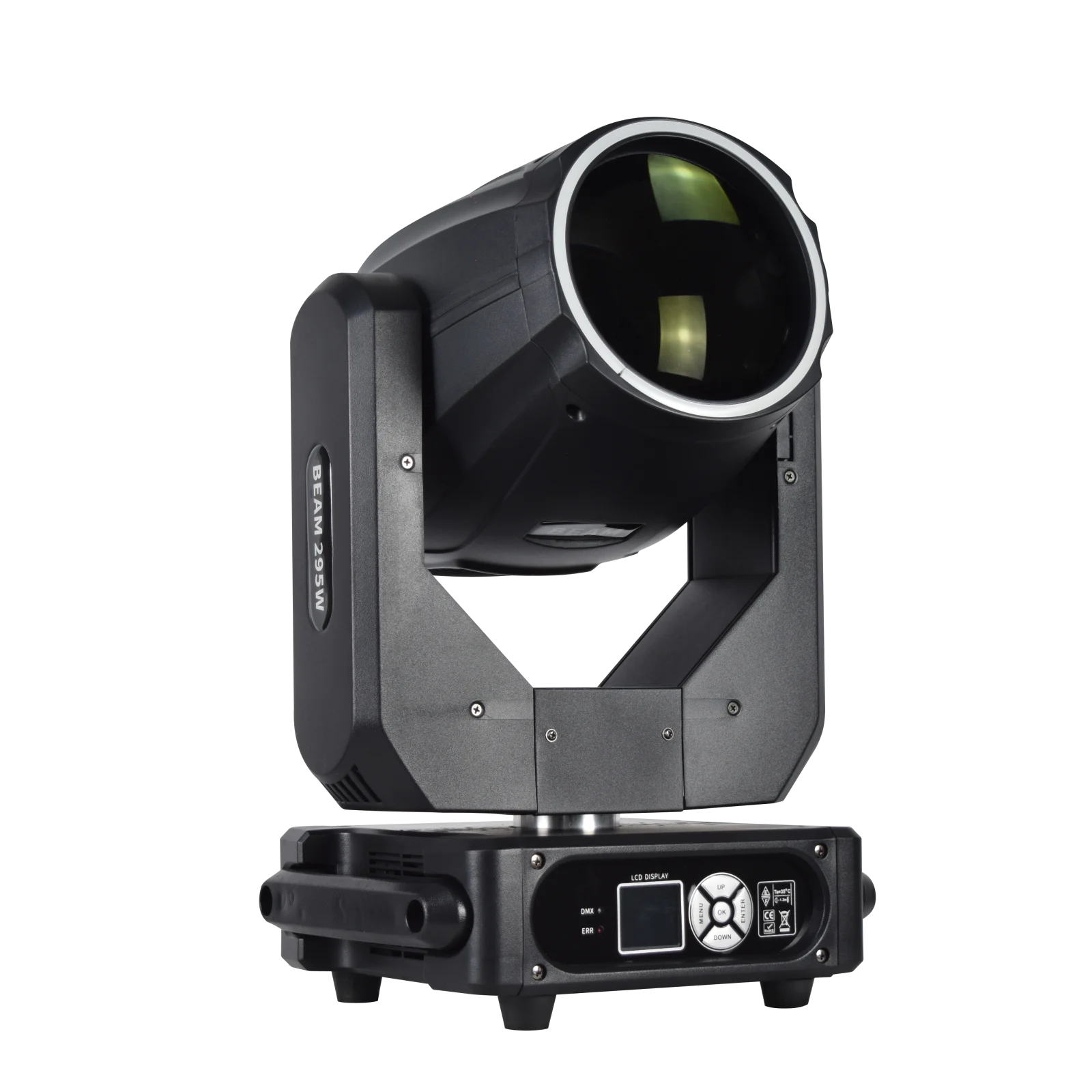

Review the front, side and rear views to see the lens ring, yoke, display panel and connection sides. Use these photographs when discussing placement, cable access and accessories for your order. The 14.5 kg figure in the packing details is carton gross weight; it is separate from the fixture’s net weight.
PRODUCT VIDEO
See the beam, prism and RGB effects in motion.
Review the supplied product video alongside the still images. Look at the prism-ray spacing, movement and visible front-ring color when deciding which effects suit your show. Use the specification table below to compare the ordered lamp and control configuration.
PRODUCTION EVIDENCE
Real units shown in workshop production and effect checks.

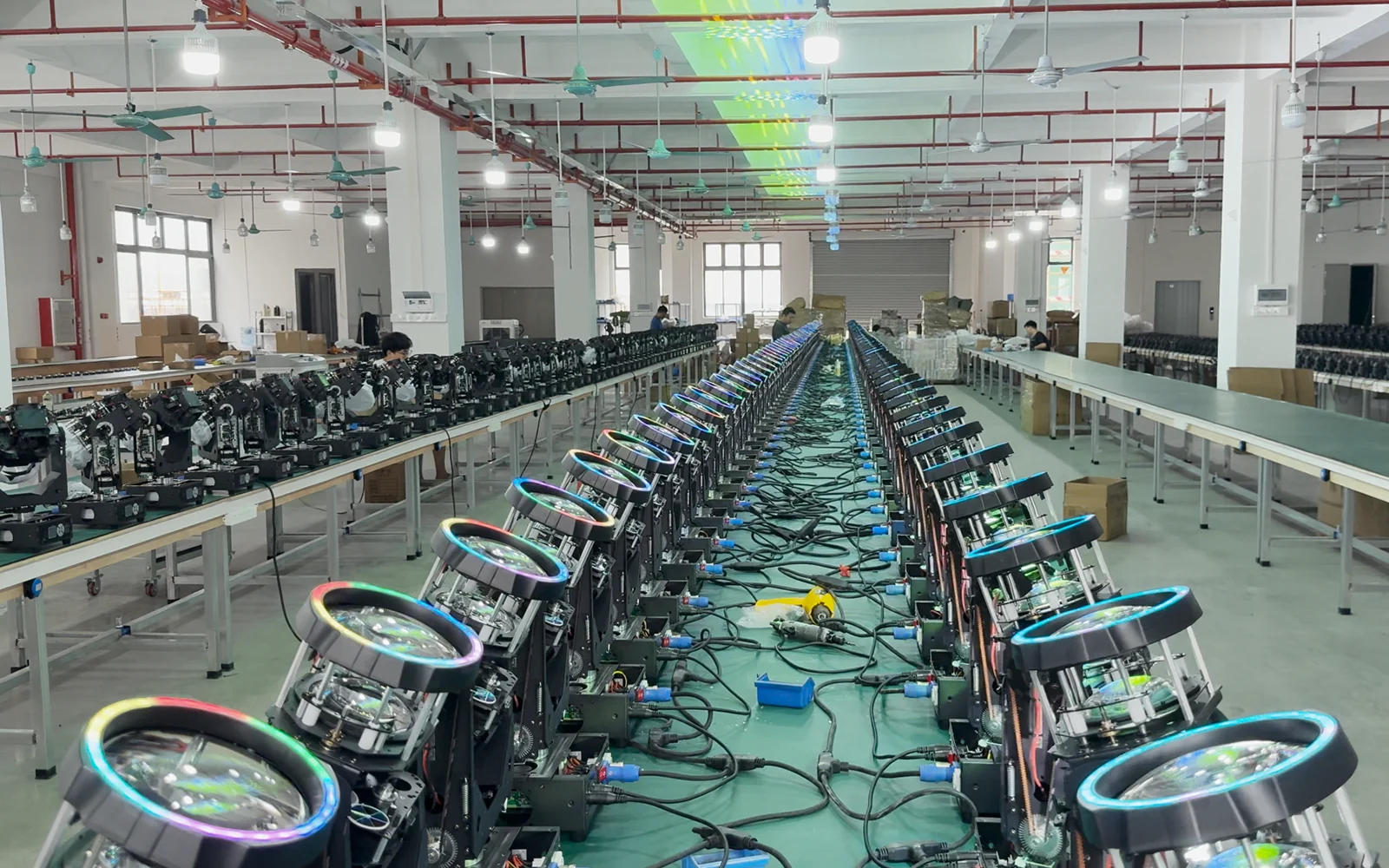

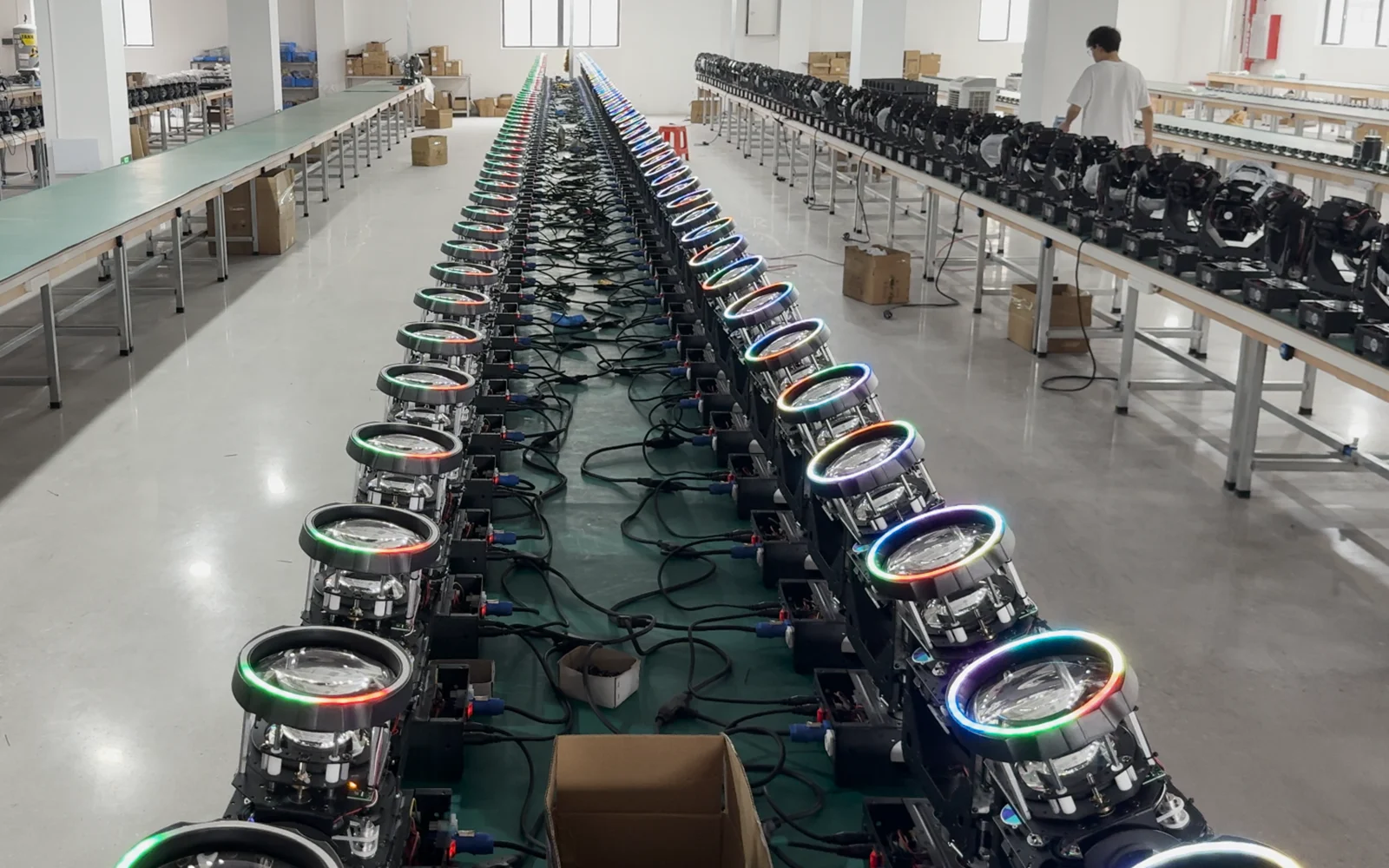

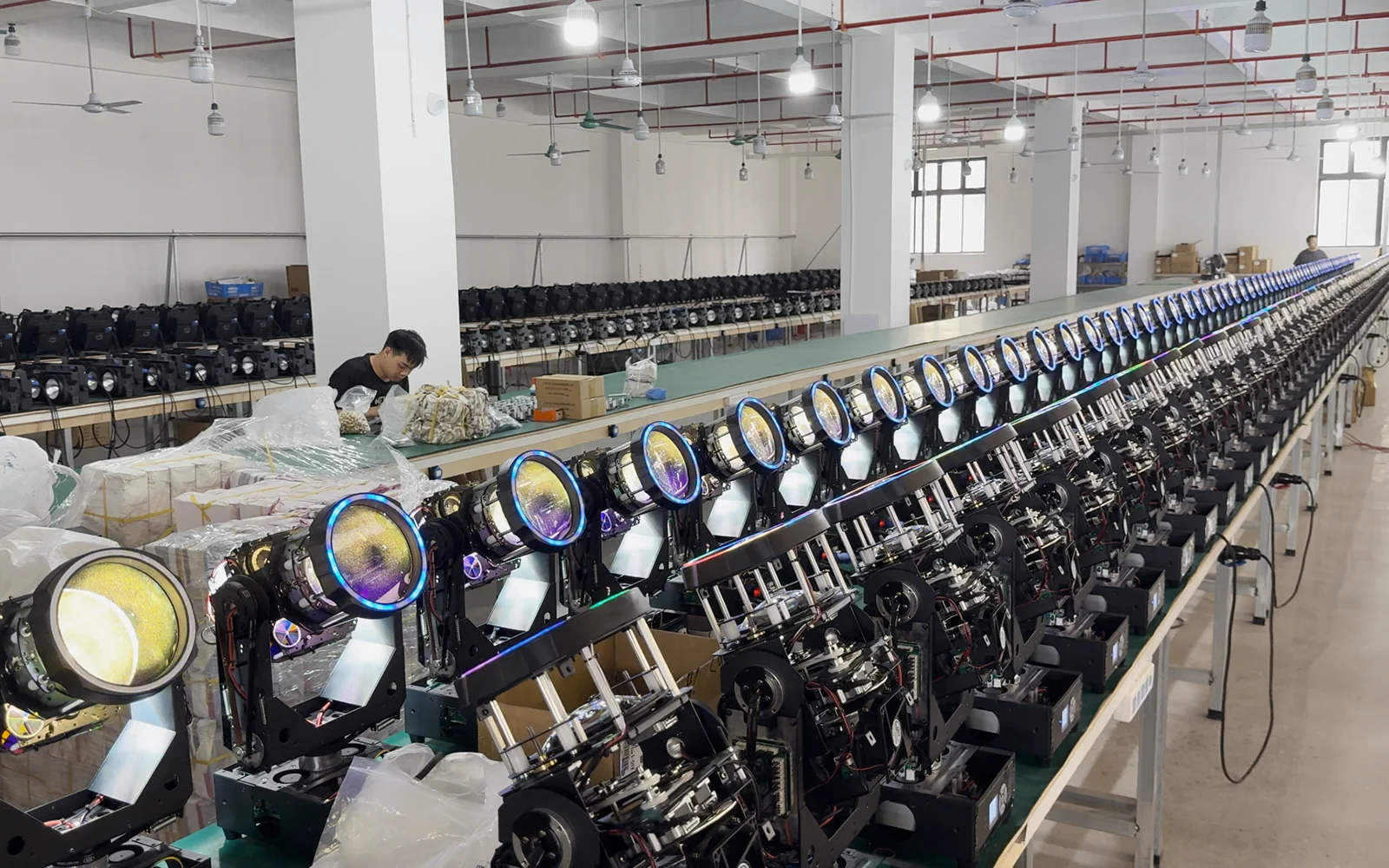

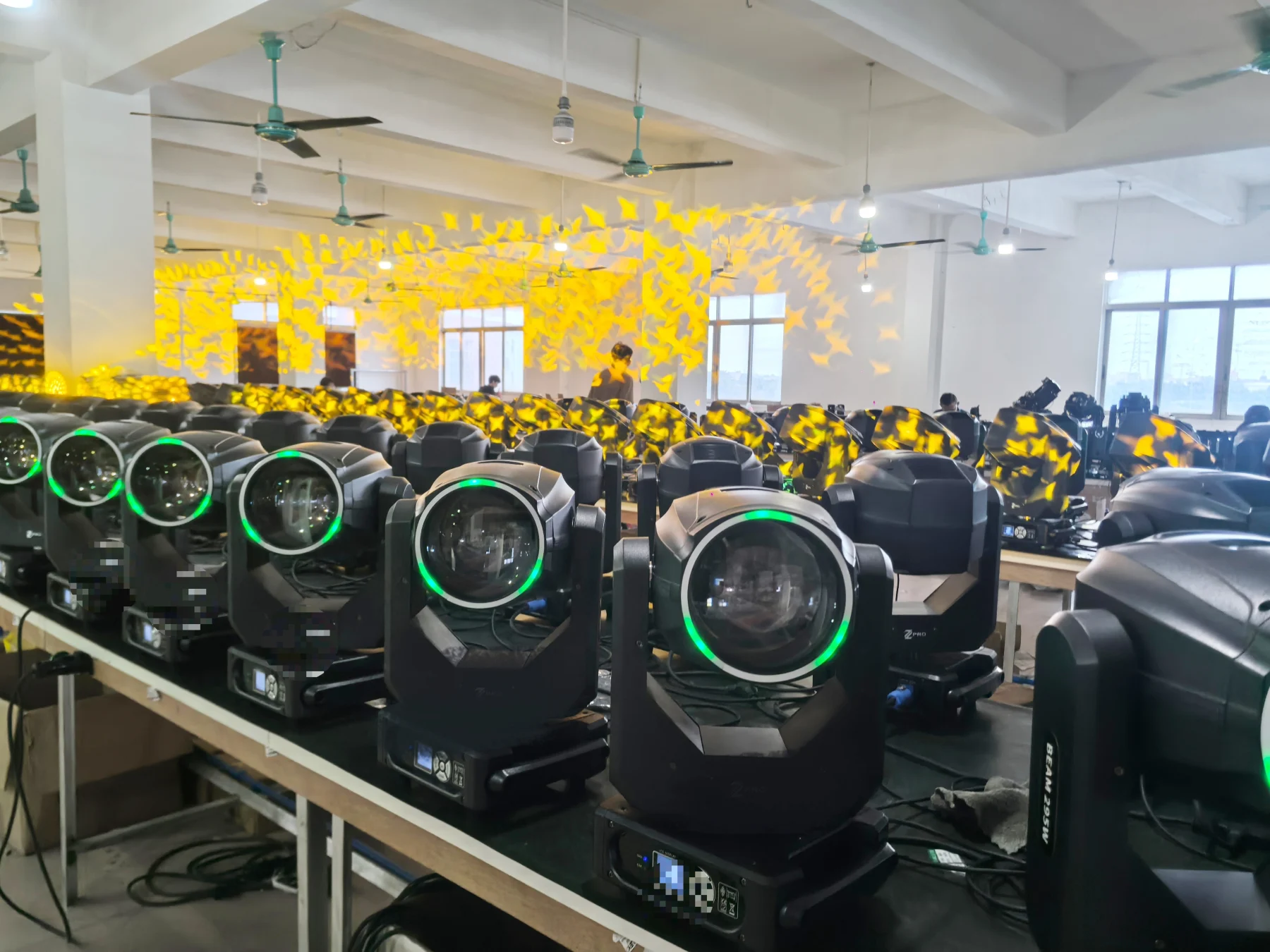

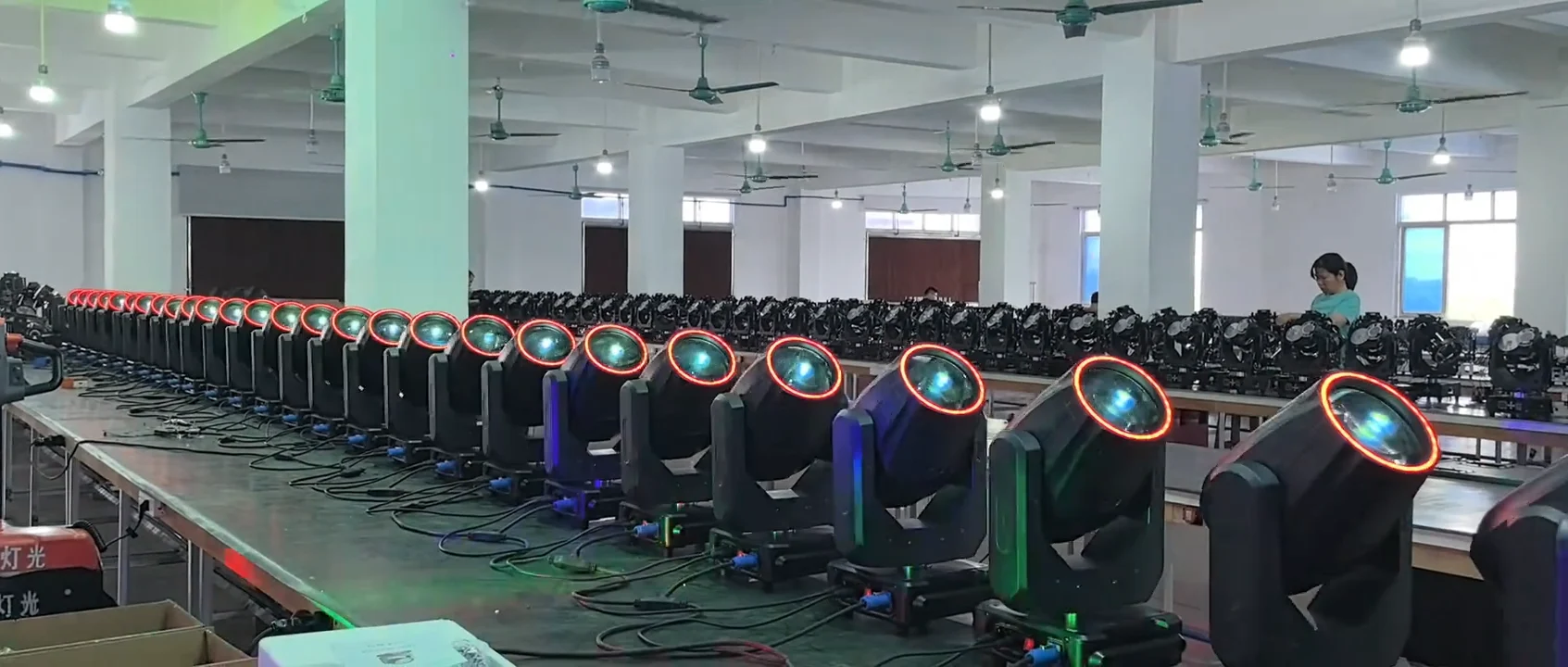

These workshop photographs show multiple units powered on, with the lens rings and projected gobo patterns visible. They give you another view of the fixture and its effects beyond the isolated product photographs. Identify the effects and front-ring appearance you want when discussing your order.
Specifications
Technical specifications
| Public product power | 295W lamp (featured configuration) |
|---|---|
| Light source | 295W discharge lamp featured; 275W lamp option in the same product family |
| Rated fixture power | 380W |
| Voltage | AC 90–240V, 50/60Hz |
| DMX channels | 295W: 18 / 22 CH; 275W: 16 / 20 CH |
| Gross weight | 14.5 kg (1-piece carton) |
| Control modes | DMX / Master-slave / Sound / Auto |
| RGB front ring | 27 × 5050 RGB LEDs (295W configuration) |
| Color wheel | 13 colors + open white |
| Fixed gobo wheel | 14 fixed gobos + open white |
| Prism system | 16-facet prism and 8+16+24 prism system |
| Frost | Gradual frost; specified frost effect range 5–30° |
| Pan / tilt | Pan 540° / Tilt 270° |
| Strobe | 1–25 flashes per second, adjustable |
APPLICATION FIT
Choose beam and prism effects for your stage layout.
For rental inventory, this fixture combines beam movement, prism patterns and a front-ring accent in one effects position. In a club, decide whether the audience will see the lens ring as well as the projected beams. For a stage or event rig, assign it to aerial effects and keep wash or profile fixtures for performer lighting. Review beam selection for nightclub layouts. To compare other configurations, browse the beam moving head range.
FACTORY SUPPLY & ORDER DETAILS
Choose your configuration and get a matched quotation.
Discuss factory supply for rental inventory, distributor and wholesale orders with WUYESTAGE. Compare offers using the same lamp configuration, quantity, packing and accessory requirements, so you can see what each quotation includes.
PRODUCT FAQ
Questions Before You Order.
Lamp and fixture power, effects, control, packing and quotation explained.
What does Beam 295 mean, and why is fixture power 380W?
This Beam 295 moving head light features a 295W discharge lamp. The complete fixture is rated at 380W, so lamp wattage and fixture power describe different things. The product family also offers a 275W lamp version with 16 / 20 CH; the featured 295W version uses 18 / 22 CH. Choose the lamp version when ordering.
Is the RGB ring the main light source?
The main beam is produced by the 295W lamp. The LED ring uses 27 × 5050 RGB LEDs around the lens as an audience-facing color accent. Choose this feature for the visible front-ring look; independently controlled ring pixels are not specified for this model.
Which prism, color and gobo effects are included?
The fixture has a 16-facet prism and an 8+16+24 prism system, 13 colors plus open white, and 14 fixed gobos plus open. Use the supplied images to compare more separated beam splits with denser multi-ray patterns. Gradual frost provides a softer effect.
How do I plan DMX control for the 295W version?
The 295W version supports 18 or 22 DMX channels, plus Master-slave, Sound and Auto operation. Match the controller profile and selected channel mode to the ordered fixture before patching. The channel count alone does not identify the function of each channel; the detailed channel assignment must match that version.
Is this a suitable choice for a rental rig or nightclub?
Choose it when your effects position needs moving aerial beams, prism patterns and a visible lens-ring accent. For a nightclub, consider whether the audience can see the ring and the projected beams. In a rental rig, compare the effect images and packing options with your show requirements. Include separate wash or front lighting for performers.
Can I specify this fixture for outdoor use?
An IP rating is not provided for this configuration. For a project with rain, dust or other outdoor exposure, state those conditions before selecting the fixture so the required environmental protection can be addressed.
What carton and flight-case options are available?
The one-piece carton measures 53.5 × 37.5 × 40.5 cm and has a gross weight of 14.5 kg. The two-piece flight case measures 75 × 40 × 60 cm. The carton gross weight includes packing; use a separately confirmed fixture net weight for rigging calculations.
What affects the price of a 295W beam moving head light?
The quotation needs a defined lamp configuration, quantity, packing and requested accessories. Start by sending quantity, destination and carton or flight-case preference. Add voltage, plug type, controller, spare-parts requests and the date you need the fixtures. These details let us prepare a quotation for the actual order.
