OUTDOOR BEAM LIGHT
380W IP65 Waterproof Beam Moving Head Light — build aerial beam cues for outdoor stages.
The 380W IP65 Waterproof Beam Moving Head Light combines a 380W discharge lamp, a 170mm lens and electric focus for beam effects on outdoor stages and rental rigs. Two standard prism systems, a 12-color wheel and 13 fixed gobos give operators several ways to change the look from one fixture.
IP65 fixture
Select the IP65 housing for exposed event rigs while planning protected connections, cable routing and the installation environment.
170mm front lens
A 2°–30° adjustable beam-angle range and linear electric focus support changes to beam presentation across the rig.
Two prism systems
Standard 8+16 and 8+8+8 prism systems offer different beam multiplication looks; 24 and 32 prism options are available by order.
16-channel DMX512
Use the standard 16-channel configuration for cue control. Sound, Auto and Master/Slave operation are also listed.
REAL BEAM OUTPUT
See the beam in two demonstration-room photographs.
The supplied photographs show the same product’s white aerial beam in two room conditions. They provide visual examples of beam shape; haze, exposure and ambient light affect appearance, so the images do not establish illuminance or throw-distance ratings.
COLOR, GOBO AND PRISM
Change beam looks with dedicated optical effects.
The optical system pairs 12 high-definition, high-temperature-resistant color filters with 13 fixed gobos. Bidirectional gobo shake, animation and flowing-water effects expand the cue palette without changing the fixture.
Standard prisms
The listed standard prism combinations are 8+16 and 8+8+8. Specify any custom 24 or 32 prism configuration in the quotation.
Color configuration
The standard wheel uses 12 color filters. CMY is an optional configuration and uses a separate channel mode.
Focus and movement
Linear electric focus works with the listed 2°–30° beam-angle range. Pan is 540° and tilt is 270°; request the channel chart for programming.
PRODUCT VIEWS
Inspect the body, base and cable exits.

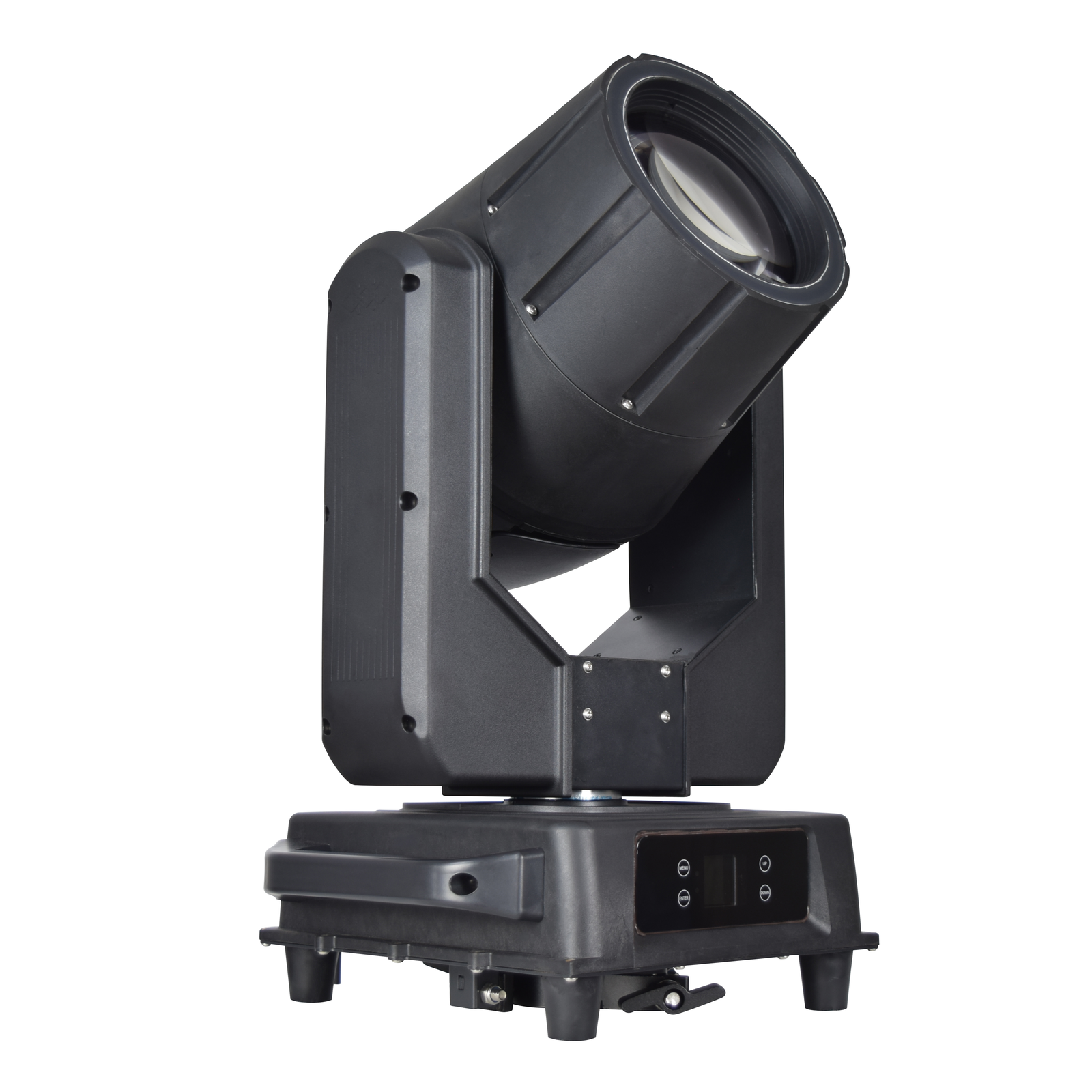

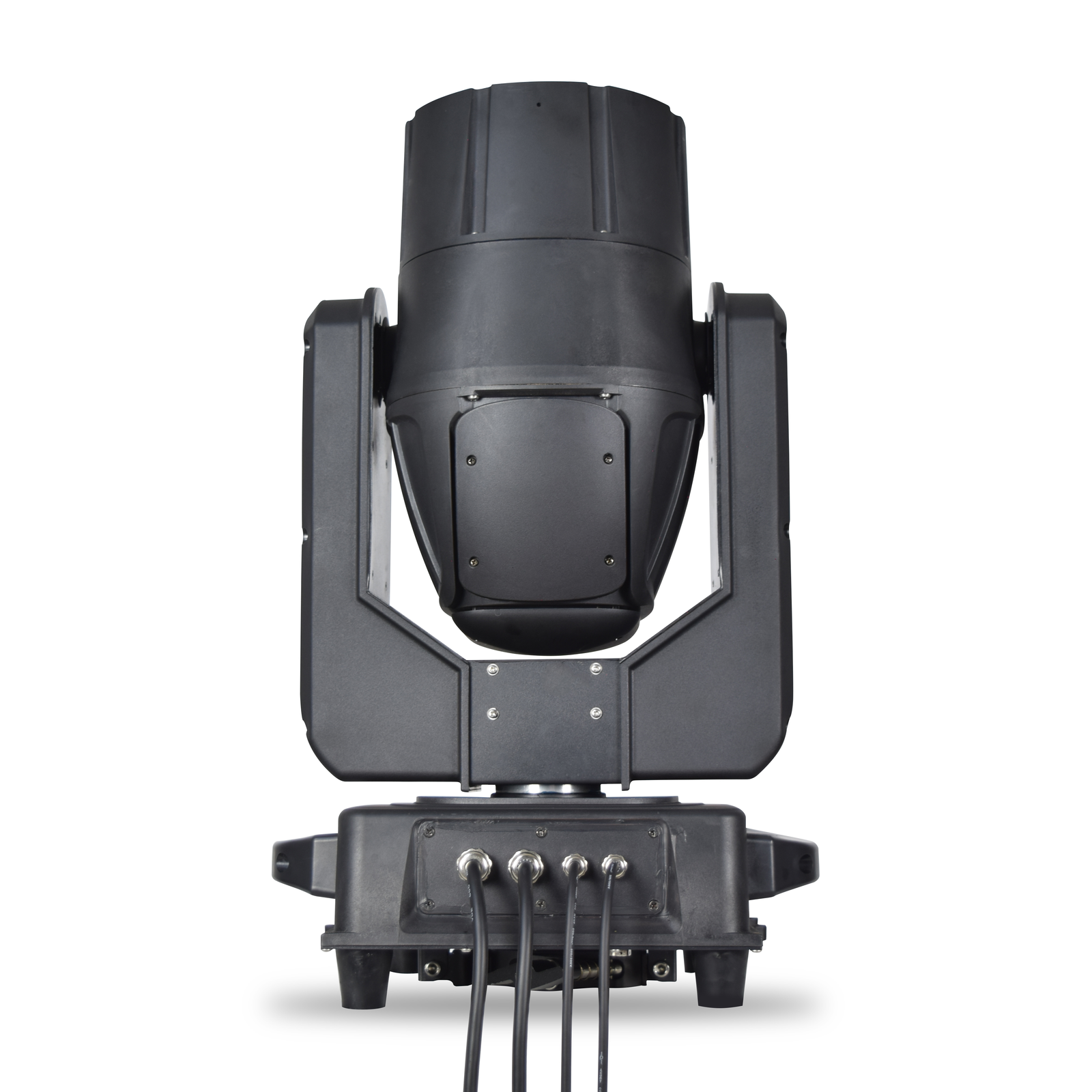

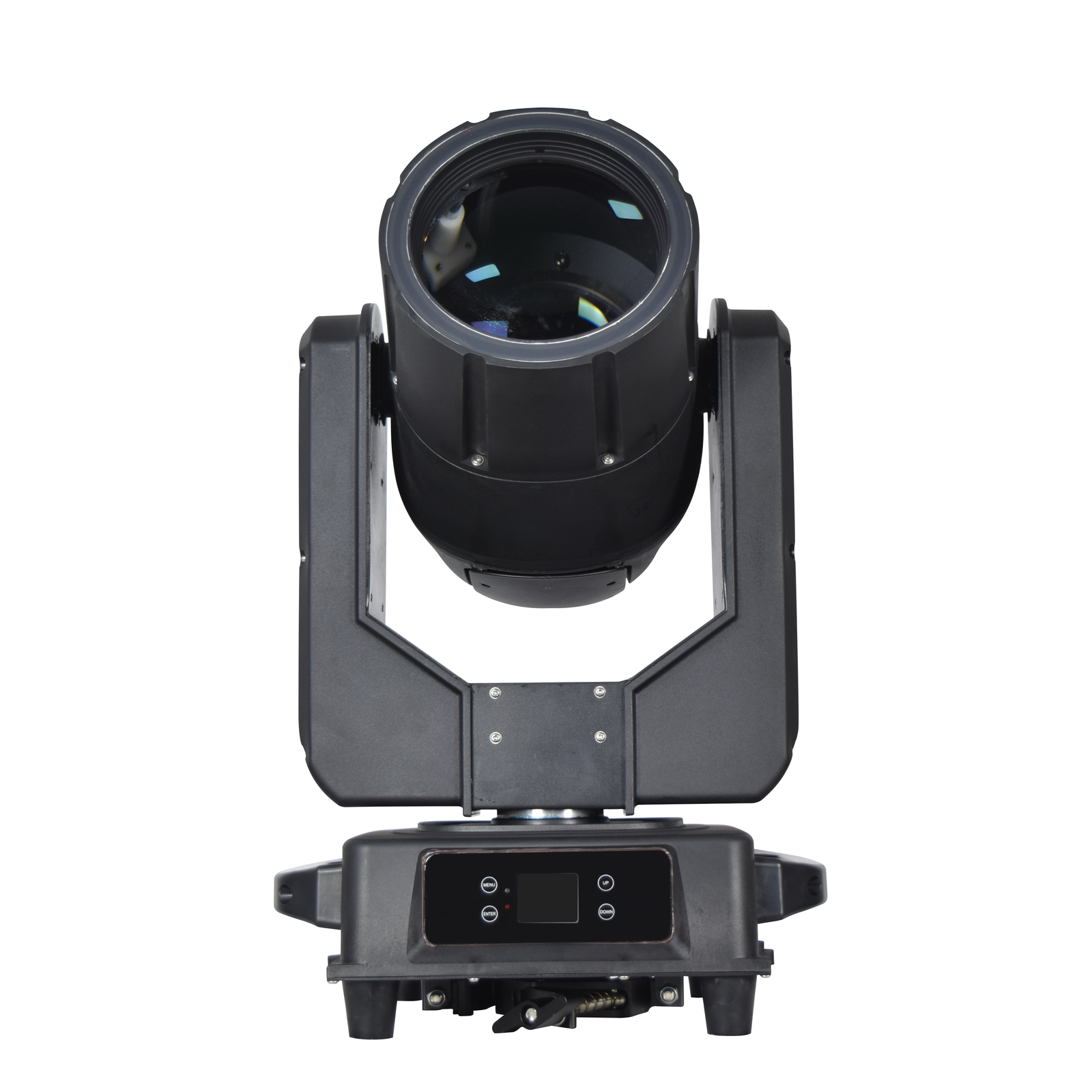

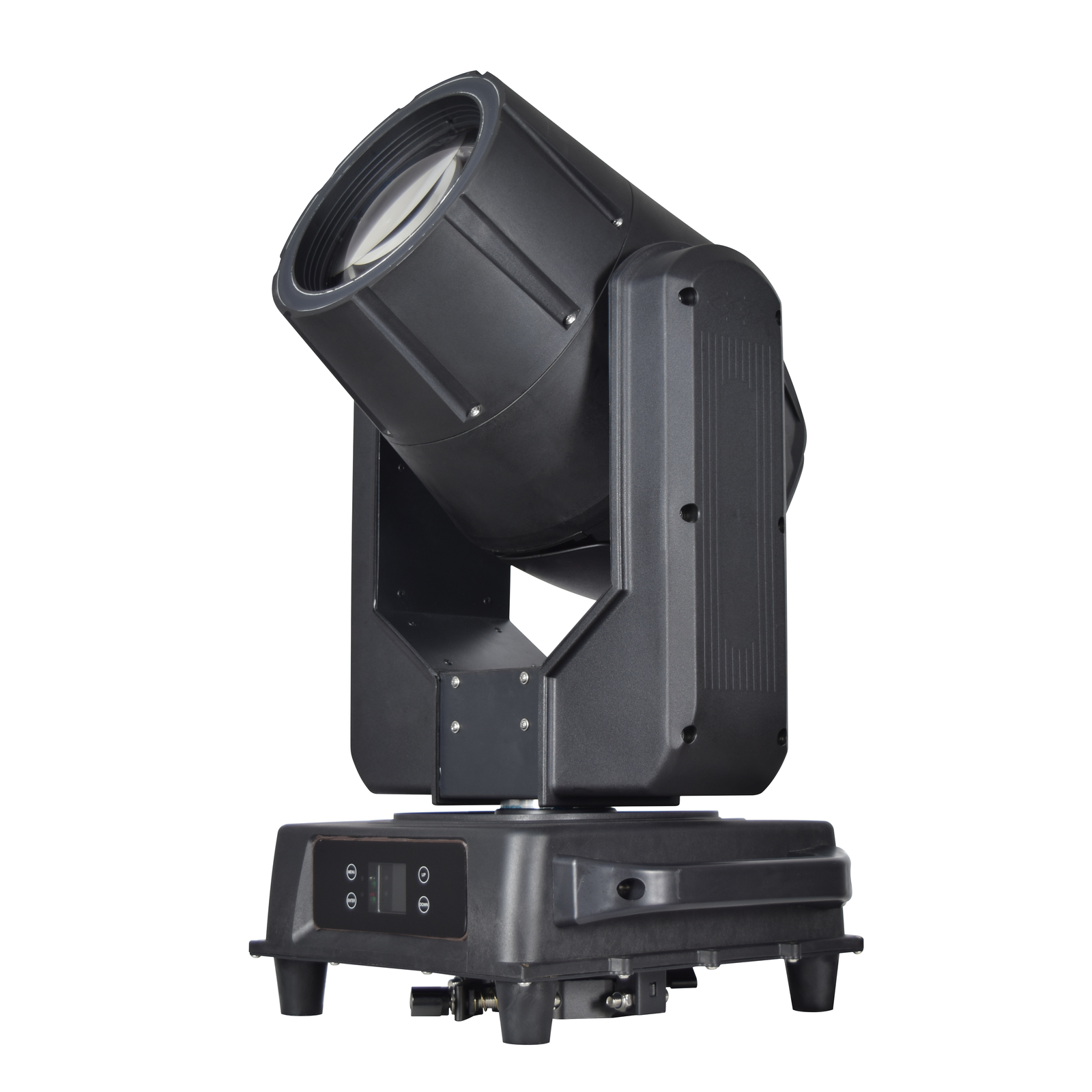

Four views show the front lens, side housing, base handles and rear cable exits. Specify connector, plug, mounting and transport requirements for the installation.
Specifications
Technical specifications
| Model | RG-118B |
|---|---|
| Public product power | 380W |
| Light source | OSRAM / YODN MSD 380W |
| Rated fixture power | 600W |
| Voltage | AC 90–245V, 50/60Hz |
| DMX channels | Standard 16CH; optional CMY version 20CH |
| IP rating | IP65 |
| Product dimensions | 418 × 378 × 620mm |
| Net weight | 25kg |
| Control modes | DMX512, Sound, Auto, Master/Slave |
| Beam angle | 2°–30° adjustable; lens diameter 170mm |
| Color wheel | 12 high-definition high-temperature-resistant color filters; optional CMY |
| Fixed gobo wheel | 13 fixed gobos; bidirectional shake, animation and flowing-water effects |
| Prism system | Standard 8+16 and 8+8+8; customizable 24 and 32 prism configurations |
| Focus | Linear electric focusing |
| Pan / tilt | Pan 540°; Tilt 270° |
APPLICATION FIT
Use focused beams as a show-effect layer.
For 380W IP65 Waterproof Beam Moving Head Light applications, outdoor concerts, festival rigs and event-rental systems can use this fixture for aerial beams, gobo cues and prism effects. Select separate fixtures for broad stage wash or performer front lighting. Plan beam direction, mounting, weather exposure and power distribution as part of the complete rig.
Concert and festival rigs
Use DMX512 when beam movement and optical changes need to follow programmed show cues.
Event rental inventory
Define the standard or optional optical configuration so fixtures in the same show file match.
Outdoor installation planning
IP65 is the fixture rating. Review cable connections, drainage, mounting and local installation requirements for the complete system.
Explore the beam moving head light range to compare product roles and configurations.
B2B ORDER FLOW
Specify the lamp, optics and installation before ordering.
For your 380W IP65 Waterproof Beam Moving Head Light order, send the quantity and project brief so the offer can cover the required fixture configuration, accessories and shipping requirements. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
Lamp power, optical configurations, control and outdoor project planning.
Does 380W describe the lamp or the whole fixture?
380W describes the OSRAM / YODN MSD lamp configuration. The fixture power is listed separately as 600W.
What beam angle and focus are listed?
The verified specification lists a 2°–30° adjustable beam-angle range, a 170mm lens and linear electric focusing.
Which prism systems are supplied as standard?
The standard specification lists 8+16 and 8+8+8 prism systems. Custom 24 and 32 prism configurations can be specified in the order.
How many colors and fixed gobos are available?
The standard color wheel uses 12 high-temperature-resistant color filters, and the fixed gobo wheel has 13 patterns with bidirectional shake, animation and flowing-water effects.
How many DMX channels does it use?
The standard configuration uses 16 channels. The optional CMY configuration listed in the product master uses 20 channels; request the channel chart that matches the ordered version.
Can it operate without a DMX console?
Sound, Auto and Master/Slave operation are listed alongside DMX512. Choose the control workflow according to whether the rig needs synchronized programmed cues or standalone operation.
What should I consider for outdoor use?
The fixture is rated IP65. Plan suitable mounting, cable routing and protected electrical connections for the site; the fixture rating does not establish the rating of the entire installed system.
What details are needed for a quotation?
Send quantity, destination, application, installation environment, voltage, plug, prism choice, standard or CMY version, mounting accessories, spare-lamp and packing needs. Include the required schedule so the offer can address the project.
