PERFORMANCE OVERVIEW
380W Indoor Beam Moving Head Light overview
The 380W Indoor Beam Moving Head Light. This 380W lamp beam moving head is built for indoor stage, rental and entertainment projects that need a narrow aerial look. The listed 0–3.8° beam, fixed gobos, color choices and prism configurations give operators several ways to change the visual texture while keeping the fixture in a beam role.
380W Lamp
High-brightness lamp with a separate 600W rated fixture power.
0–3.8° Beam
A narrow output for defined aerial beams in an indoor show environment.
Prism Options
Specifications list 8-facet and 8+16+24 prism configurations.
16 / 20CH DMX
Two listed DMX modes, plus Sound, Auto and Master-slave operation.
BEAM & PRISM EFFECTS
Move from a single beam to multiplied patterns.
The lamp and color-coated optical lens produce a listed 0–3.8° beam. The product specification names 8-facet and 8+16+24 prism configurations, alongside 13 fixed gobos and an open position. Confirm the required prism configuration when requesting a quotation.
OPTICAL CONTROL
Color, gobos and frost for different cue shapes.
Use the color and fixed gobo systems for defined beam looks, then introduce gradual frost when a softer effect is needed. The listed 0–100% dimming range supports intensity transitions between cues.
The supplied specification lists 13 colors plus white and a multicolor effect, 13 fixed gobos plus open, and gradual frost. These are effect choices for show programming; final control behavior should be checked against the supplied channel chart for the selected 16CH or 20CH mode.
PRODUCT DETAILS
See the housing and connections from every side.

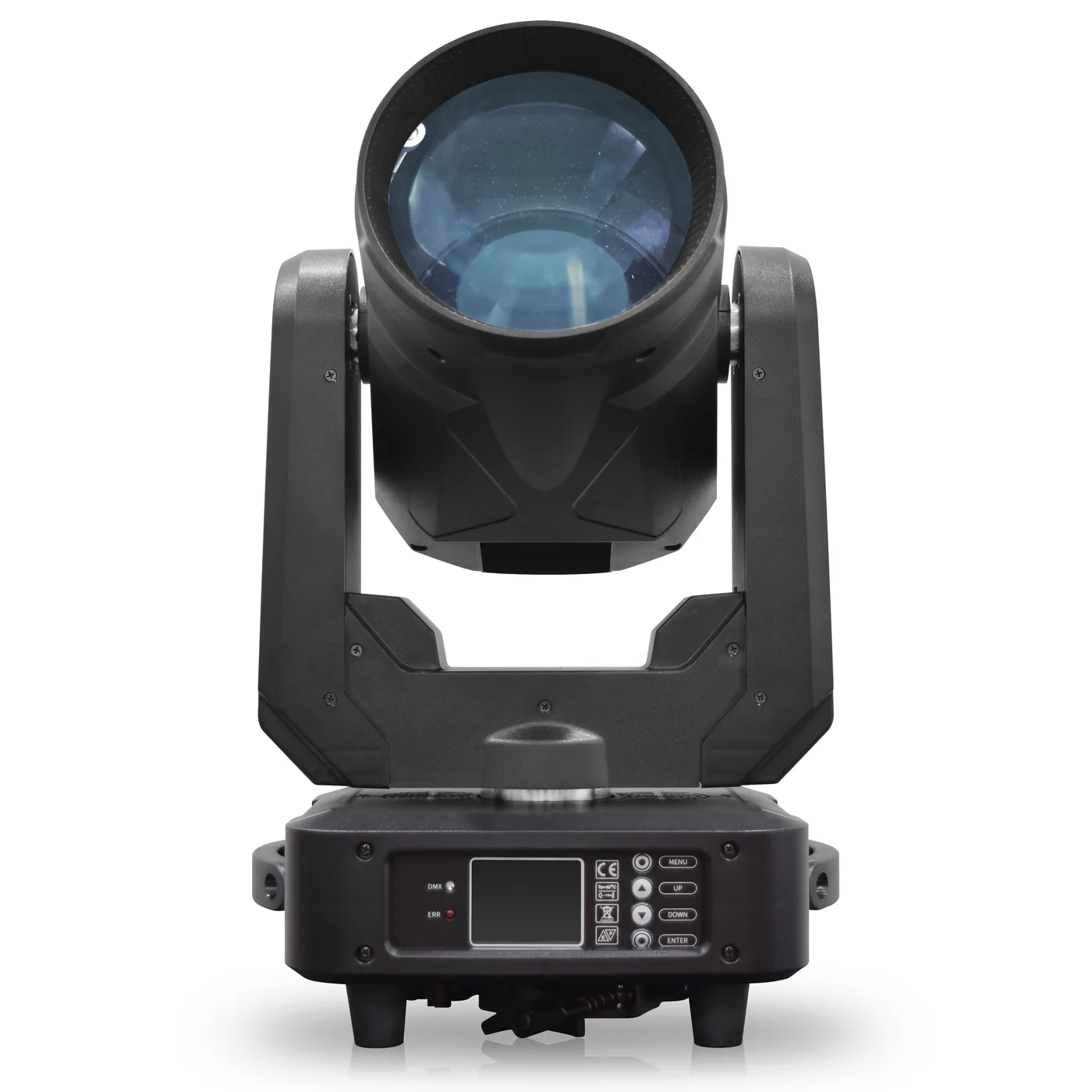

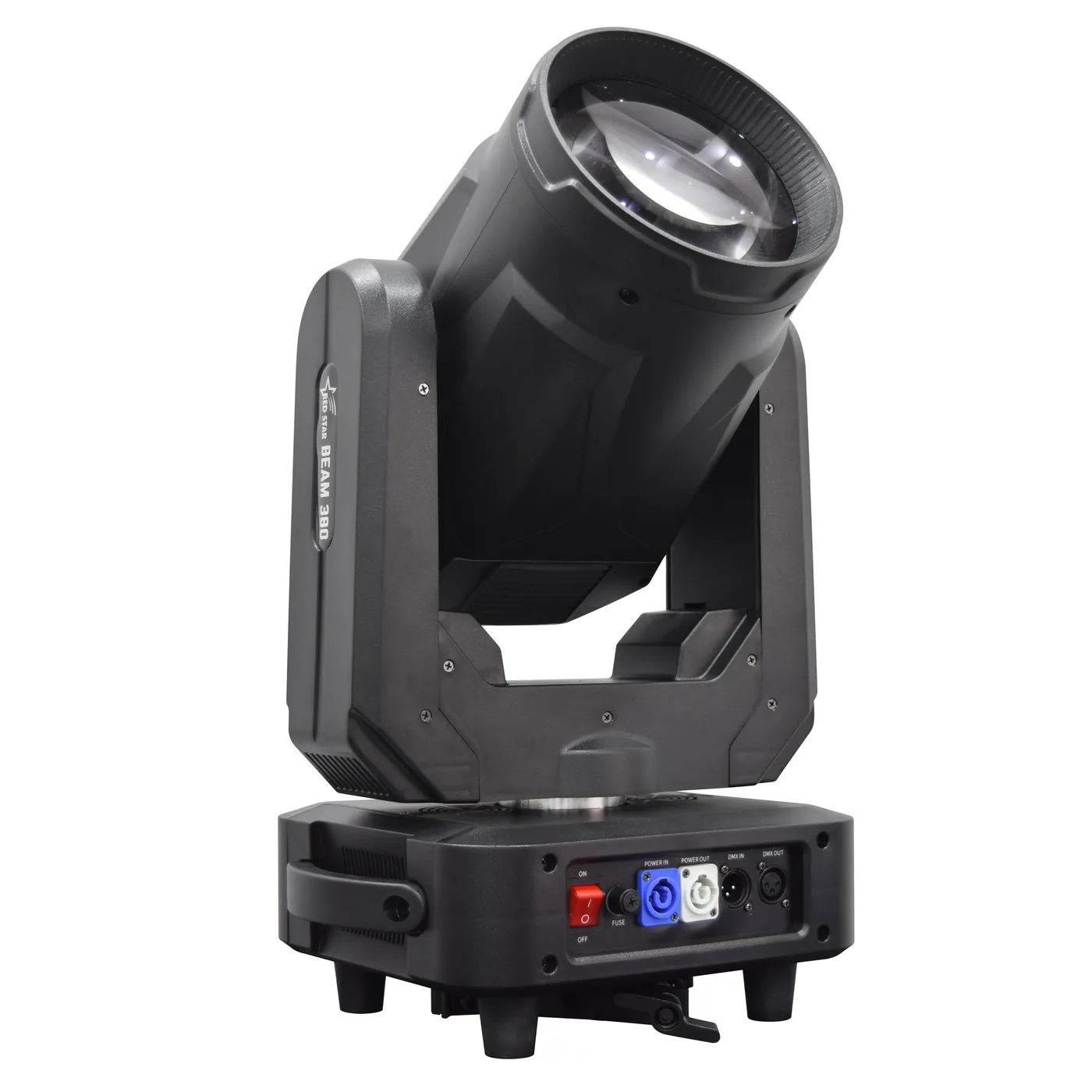

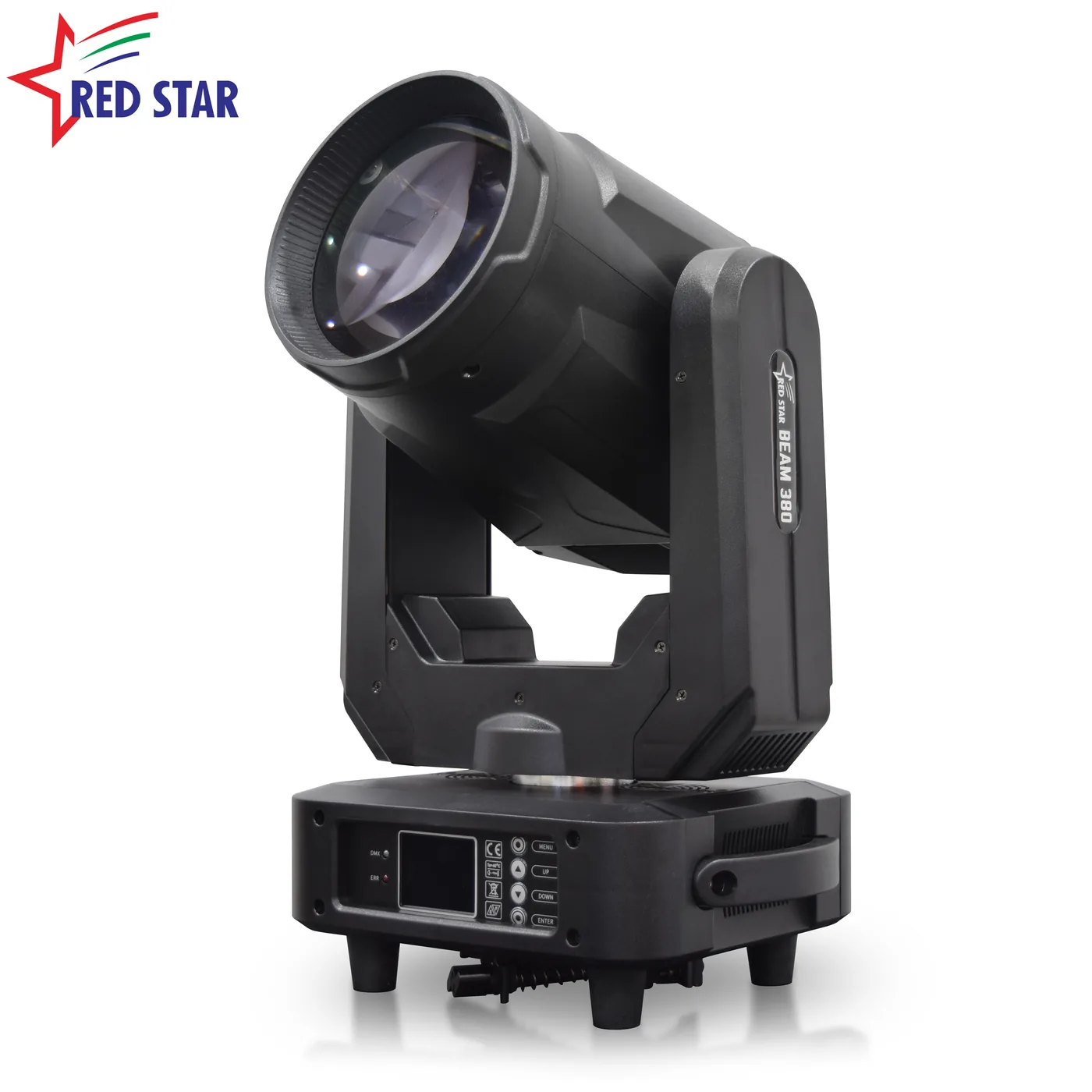

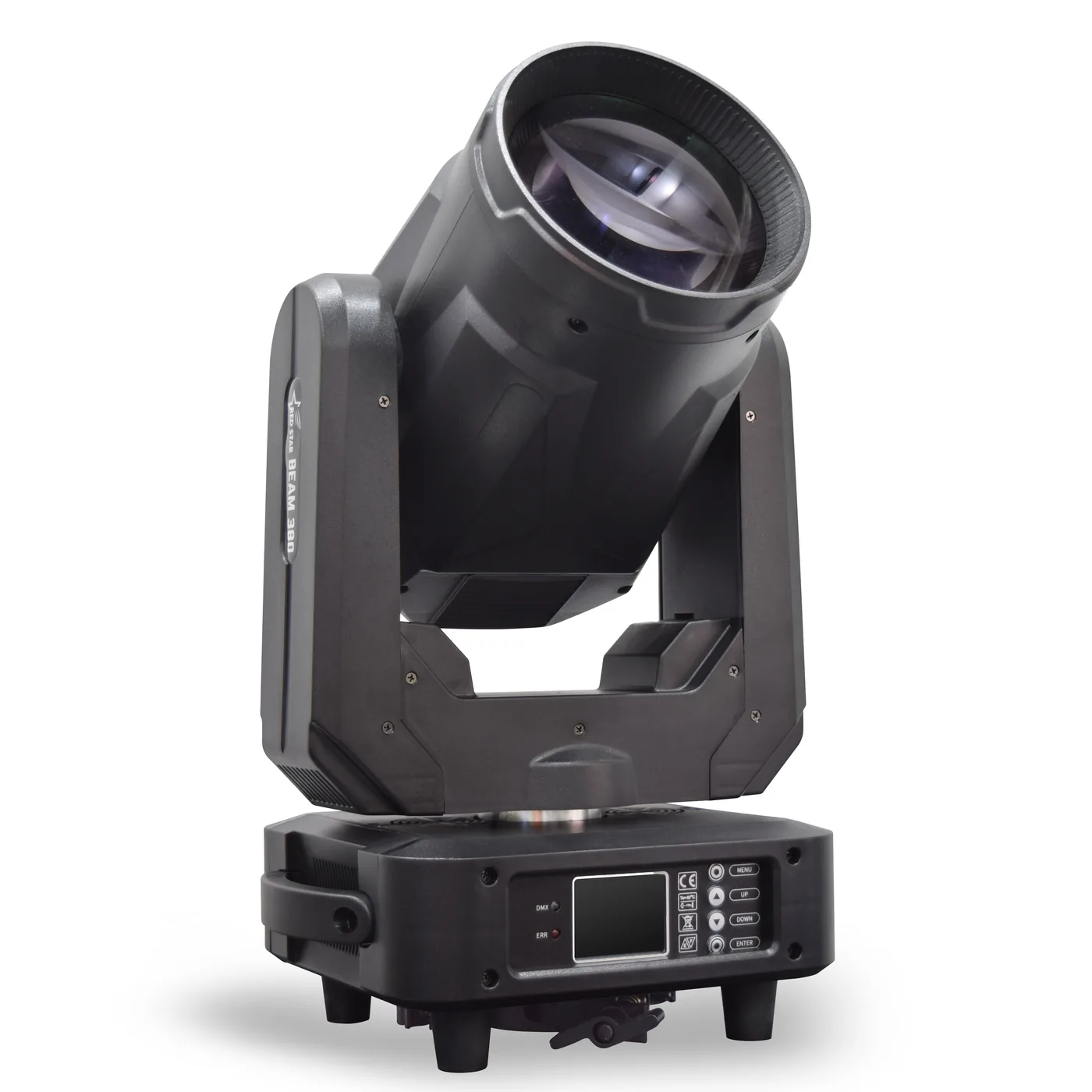

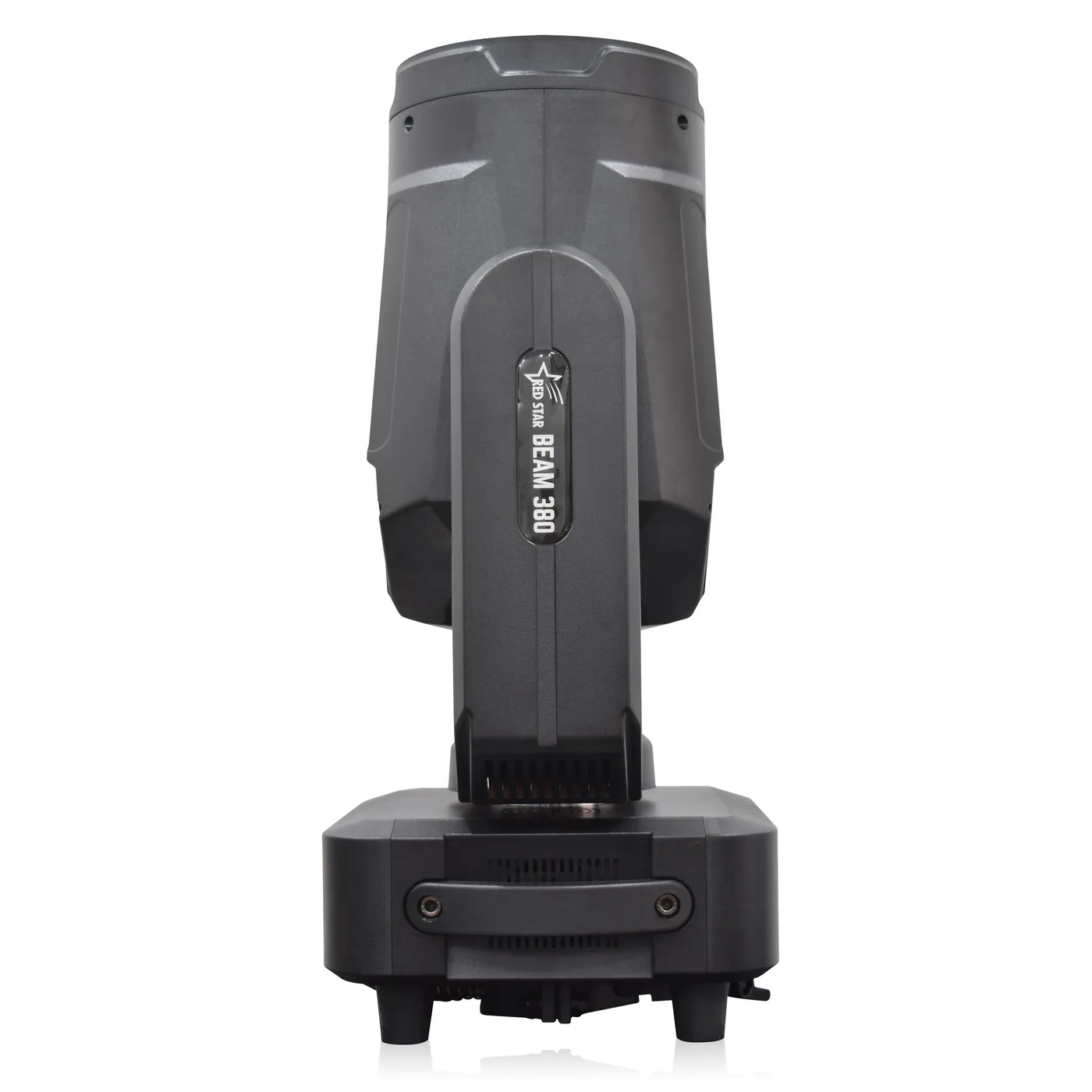

The supplied views show the lens, yoke, control panel and rear power and DMX connections. Confirm the plug and accessory configuration for the destination market before ordering.
PRODUCT VIDEO
Watch the beam moving head in motion.
The supplied demonstration gives a view of the moving light and visible effects. Use the specifications below for the stated configuration, and share your required prism and control mode when requesting a quote.
WORKSHOP CONTEXT

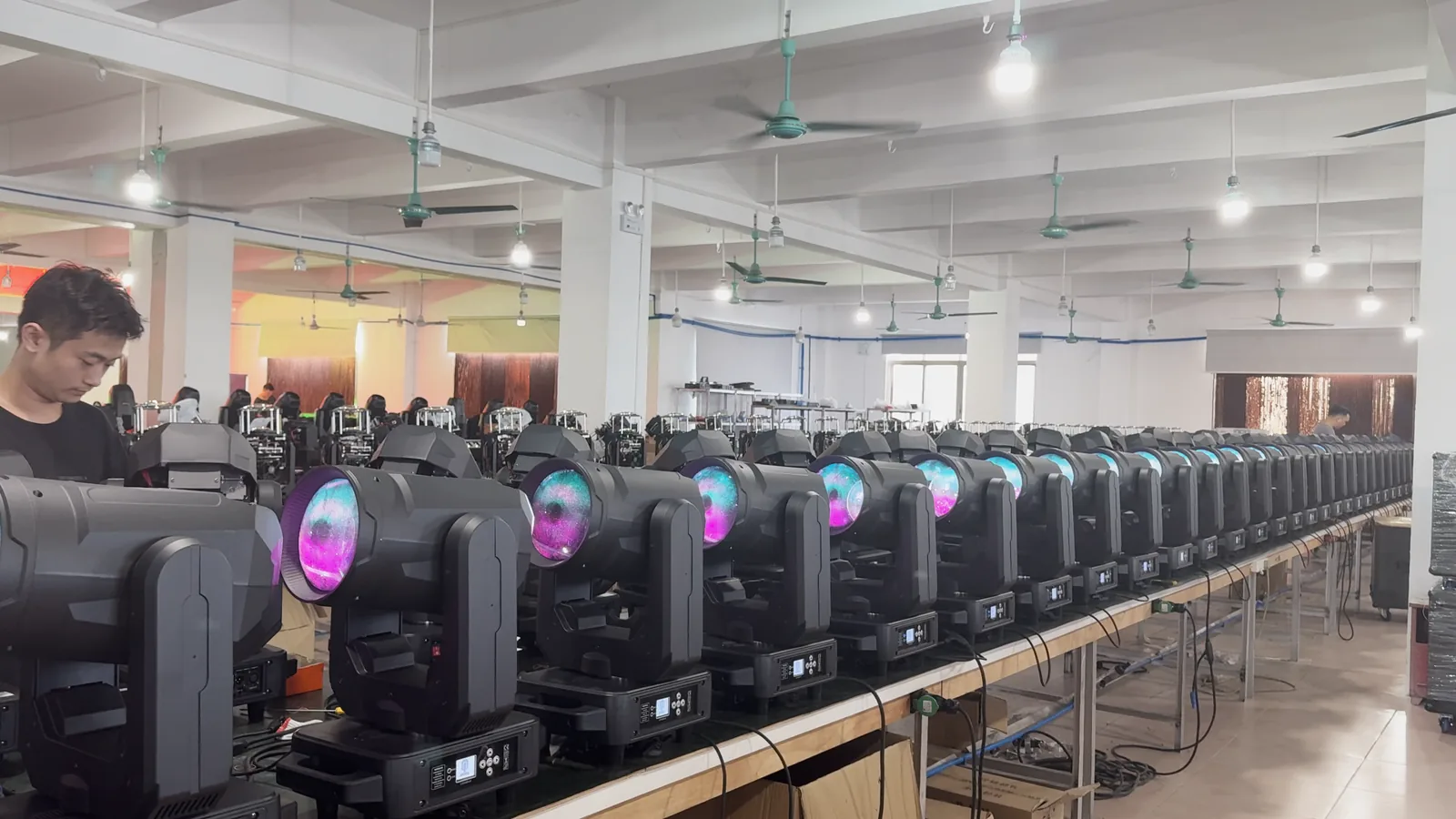

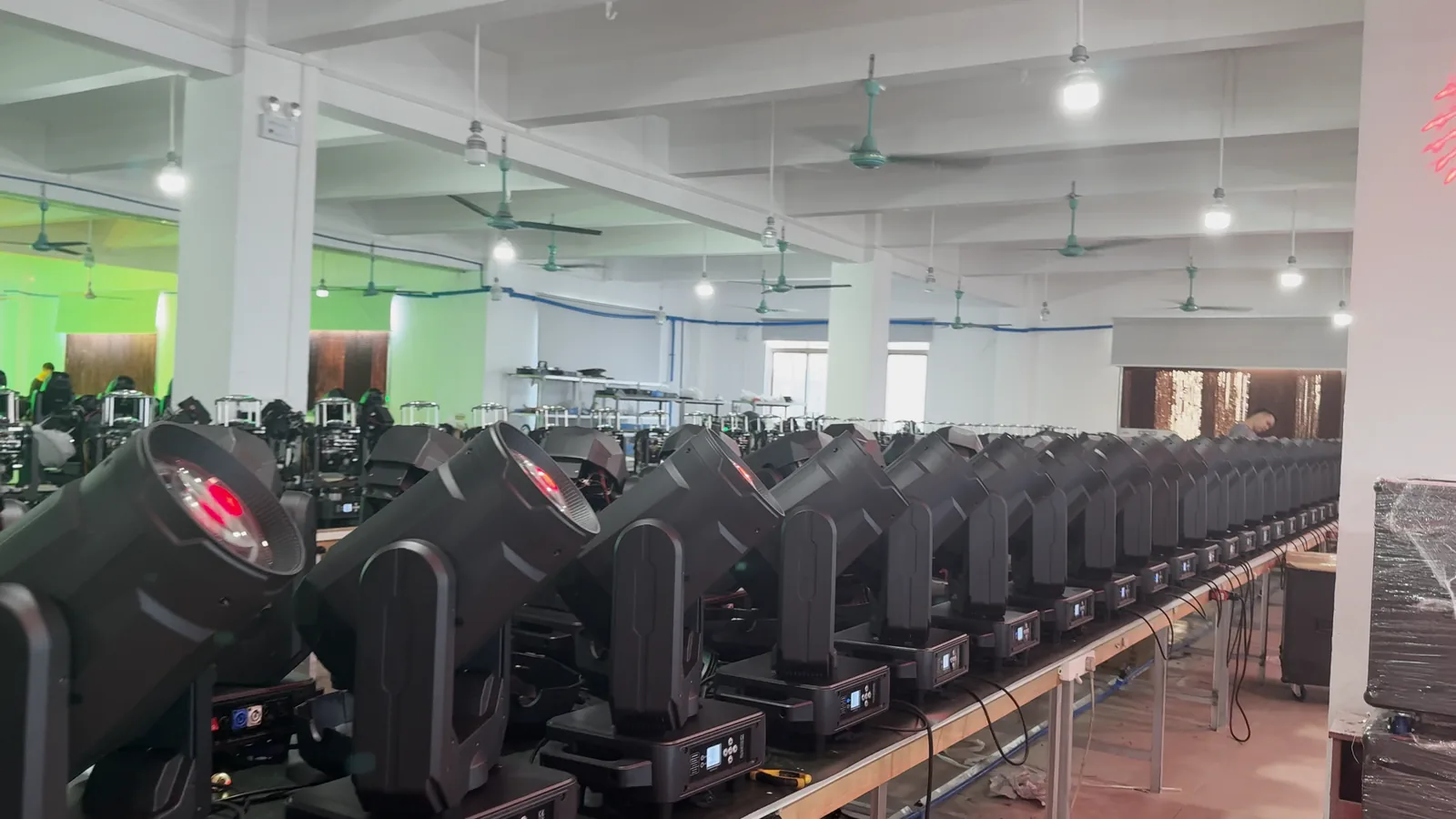

Beam fixtures pictured on the production line.
The supplied workshop photographs show multiple beam moving heads arranged for production work. They provide a view of the manufacturing setting; order quantity and configuration should still be confirmed directly for a quotation.
Specifications
Technical specifications
| Model | RG-128 PLUS |
|---|---|
| Public product power | 380W lamp |
| Light source | 380W high-brightness lamp |
| Rated fixture power | 600W |
| Voltage | AC 100–240V, 50–60Hz |
| DMX channels | 16CH / 20CH |
| IP rating | IP20 |
| Net weight | 16.75 kg |
| Gross weight | 19.05 kg |
| Rated lamp lifespan | 3,000 hours (lamp) |
| Control modes | DMX512, Sound, Auto, Master-slave |
| Beam angle | 0–3.8° |
| Color wheel | 13 colors + white + multicolor effect |
| Fixed gobo wheel | 13 fixed gobos + open |
| Prism system | 8-facet / 8+16+24 configurations |
| Frost | Gradual frost |
| Pan / tilt | 540° pan / 270° tilt |
| Dimming | 0–100% linear |
APPLICATION FIT
Designed for indoor beam effects.
For 380W Indoor Beam Moving Head Light projects, use this fixture for narrow aerial beams and pattern effects in indoor or properly protected installations. Its IP20 rating makes environmental protection part of the rig plan; a beam effect should not be treated as general face lighting. Compare related beam moving head lights when planning your lighting rig.
B2B ORDER FLOW
Confirm the show and order configuration.
PRODUCT FAQ
Questions Before You Order.
Direct answers about lamp power, beam effects, indoor use and configuration.
Does 380W describe the lamp or the whole fixture?
It describes the lamp. The supplied specification separately lists the fixture power as 600W.
Is this moving head suitable for outdoor use?
The listed protection rating is IP20. Use it indoors or in a properly protected installation; do not expose it to rain.
What beam angle is listed?
The supplied beam-angle range is 0–3.8°. It is intended for a focused beam effect rather than broad general lighting.
Which prism configurations are listed?
The product data names an 8-facet prism and an 8+16+24 prism system. Confirm the required supplied configuration in the quotation.
How many colors and gobos are listed?
The specification lists 13 colors plus white and a multicolor effect, with 13 fixed gobos plus an open position.
Which control modes are available?
DMX512 with 16CH or 20CH modes is listed, along with Sound, Auto and Master-slave operation.
What movement range does the fixture provide?
The stated pan range is 540° and the tilt range is 270°.
What should I send for a quotation?
Please provide quantity, application, destination, installation environment, desired prism configuration, voltage, plug type and any accessory or packing requirements.
