OUTDOOR BEAM PERFORMANCE

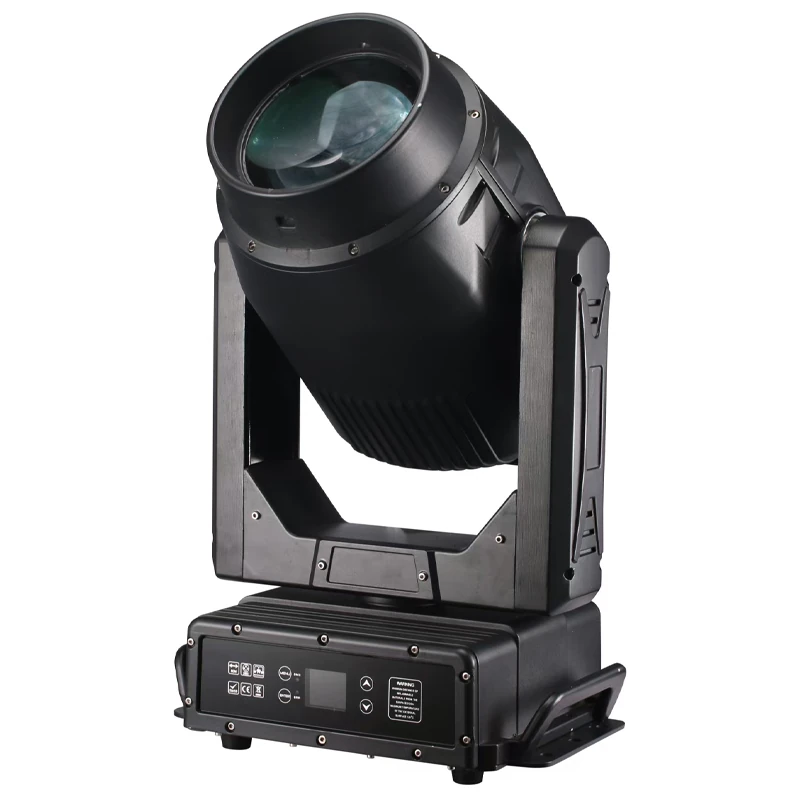

380W Waterproof Beam Moving Head Light — a narrow beam with layered prism effects.
The 380W Waterproof Beam Moving Head Light combines a 1.8° beam with a 166mm optical aperture. It suits buyers building outdoor concert, event and rental lighting systems that need moving beam accents, selectable lamp configurations and remote device management.
Defined beam accents
Use the narrow beam for directional aerial looks and moving accents in a larger lighting system.
Layered beam patterns
Rotate two independent prisms in either direction and overlap them for a composite effect.
Die-cast aluminum housing
The housing is designed for disassembly and reassembly without applying waterproof glue.
Remote device management
Manage supported fixture functions remotely alongside a 16CH or 20CH DMX control workflow.
COLOR, GOBO & OPTICS
Shape color, pattern and sharpness from the console.
The color wheel provides 14 colors plus open white, with bidirectional rainbow and half-color effects. A separate wheel supplies 14 fixed gobos plus open white and variable-speed shake. DMX linear focus adjusts pattern sharpness through multilayer-coated glass optics.
The two independent prisms can be selected from 8-, 16-, 24- and 48-facet options; specify the required pair when ordering. The built-in frost filter softens the output for wash-style cues, while 1–20 flashes per second supports programmed strobe accents. The frost effect is an additional look; the fixture remains a narrow-beam specialist.
SERVICE & CONTROL
A serviceable housing with protected local controls.
The die-cast aluminum enclosure uses a design that does not require waterproof glue during disassembly and reassembly. This avoids dependence on applied glue aging while keeping the housing accessible for service.
Pan travels through 540° and tilt through 270°, with 8- or 16-bit fine adjustment and automatic position correction. Password-protected touch controls help prevent accidental settings changes, and the interface switches between Chinese and English. The lamp can be switched on from the console, with a time-delay switching function.
Specifications
Technical specifications
| Model | RG-118A |
|---|---|
| Public product power | 650W rated fixture power |
| Light source | OSRAM 371W or Philips 380W lamp; selectable order configuration |
| Rated fixture power | 650W |
| Voltage | AC 100–240V, 50/60Hz |
| DMX channels | 16CH / 20CH |
| IP rating | IP65 |
| Product dimensions | L560 × W350 × H260mm |
| Net weight | 22kg |
| Control modes | DMX512 / Sound / Auto / Master-slave; RDM remote device management |
| Beam angle | 1.8° |
| Color wheel | 14 colors + open white; bidirectional rainbow, half-color effects and linear adjustment |
| Fixed gobo wheel | 14 fixed gobos + open white; variable-speed shake |
| Prism system | 2 independent prisms with bidirectional rotation and overlap; selectable 8-, 16-, 24- or 48-facet configuration |
| Frost | Built-in frost filter for a softer wash effect |
| Focus | DMX linear focus; high-precision multilayer-coated glass lens |
| Pan / tilt | Pan 540° / Tilt 270°; 8- or 16-bit fine adjustment and automatic position correction |
| Strobe | 1–20 flashes per second |
APPLICATION FIT
Plan beam effects as part of the complete lighting system.
For 380W Waterproof Beam Moving Head Light applications, use this fixture for outdoor concert beam arrays, temporary event stages and rental inventories requiring an IP65 housing. Select positions, beam direction and prism cues for the actual stage layout and viewing distance.
The 1.8° beam is intended for beam effects. Frost adds a softer look, but the supplied specification does not define a wash coverage angle. IP65 does not describe underwater use or establish a permanent-installation lifetime. Review the installation and connection requirements for the intended exposure.
Compare the wider beam moving head light range when choosing the role of each fixture in your system.
B2B ORDER FLOW
Specify the lamp, prism pair and project requirements.
For your 380W Waterproof Beam Moving Head Light order, send your fixture quantity, delivery country, event or installation type, supply voltage and preferred lamp configuration. Add the intended 16CH or 20CH mode and the required prism pair so the quotation refers to the correct configuration. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
380W Waterproof Beam Moving Head Light — Buyer Questions
Lamp choices, outdoor use, optical effects and purchasing details.
Which lamp configurations are available?
Choose an OSRAM 371W or Philips 380W lamp configuration for the order. These are alternative configurations; the 650W figure is the rated power of the complete fixture.
What beam angle and aperture does it use?
The beam angle is 1.8° and the optical aperture is 166mm. DMX linear focus adjusts gobo sharpness; no variable beam-angle range is specified.
How do the two prisms work?
Two independent prisms rotate bidirectionally and can overlap to form a composite effect. Available prism choices are 8-, 16-, 24- and 48-facet; specify the required pair in the order.
What colors and gobos are available?
The color wheel has 14 colors plus open white, including rainbow and half-color effects. The fixed gobo wheel has 14 gobos plus open white and variable-speed shake.
Which control modes does it support?
The fixture supports 16CH and 20CH DMX modes, DMX512, sound control, automatic operation and master-slave operation. RDM remote device management is also supported.
Can it be used outdoors?
The die-cast aluminum housing is rated IP65. Choose a suitable installation and protect power and data connections as required for the site; underwater use is outside this rating.
Does the frost filter make it a wash light?
The built-in frost filter gives a softer wash-style effect. The main optical specification remains a 1.8° beam, and no wash coverage angle is stated.
What information is needed for a quotation?
Send quantity, destination, event or installation type, voltage, lamp choice, prism pair and control mode. Include plug, mounting, spare-part, packing and delivery-date requirements.
