PERFORMANCE OVERVIEW
300W Beam Moving Head Light overview

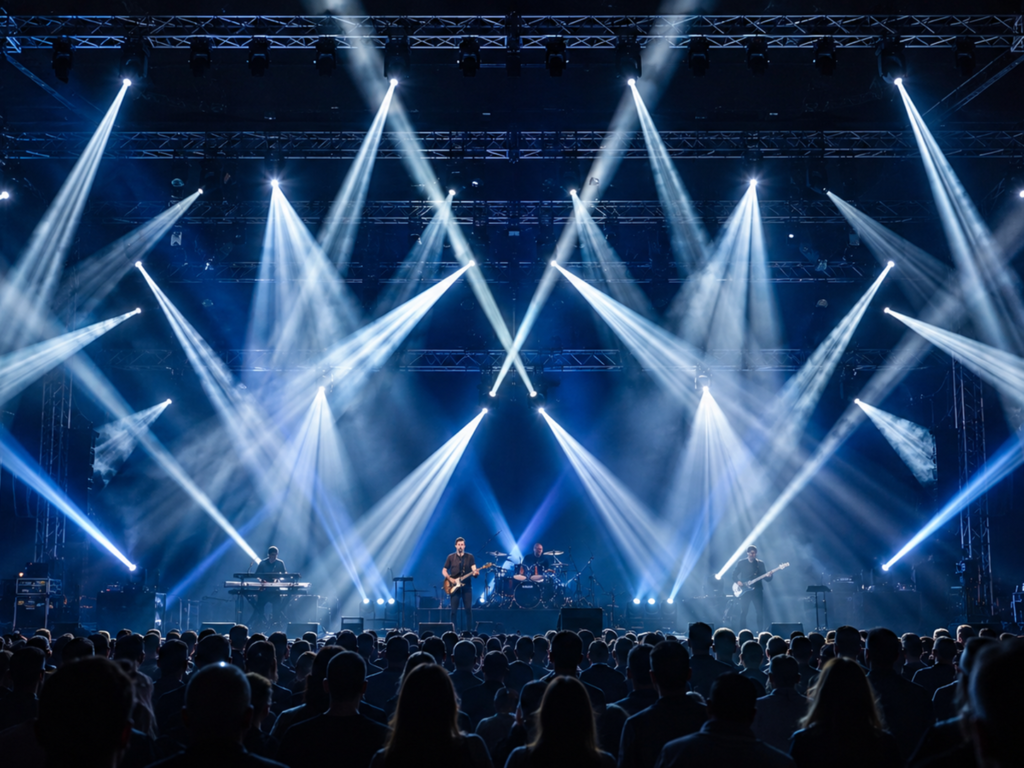

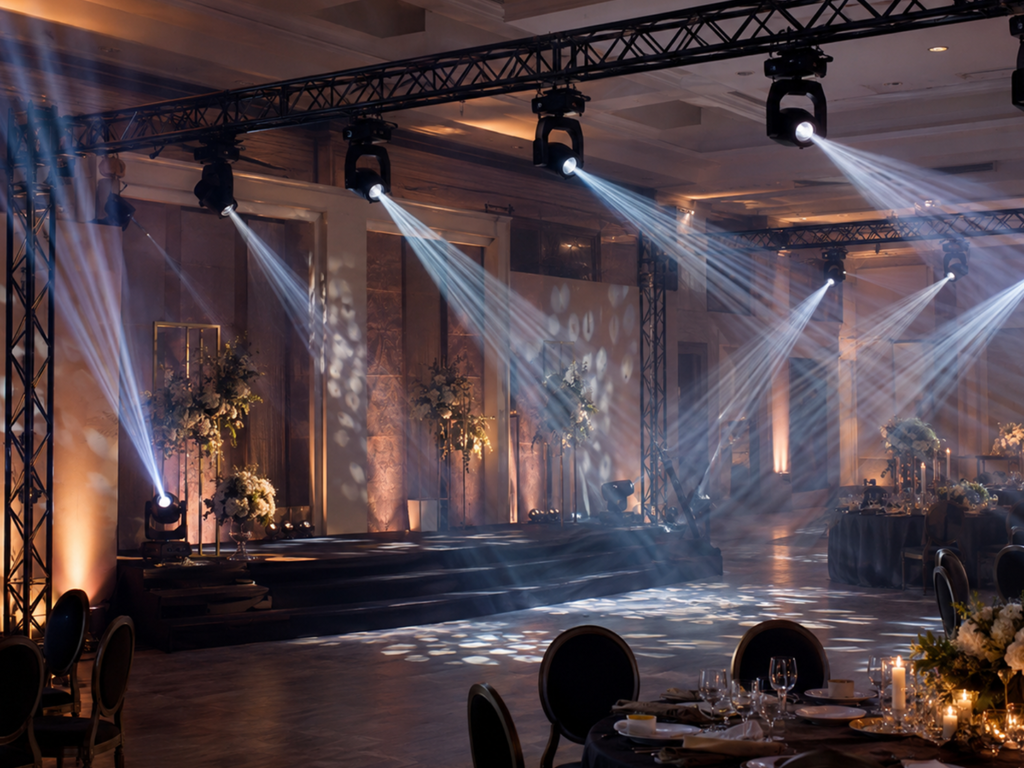

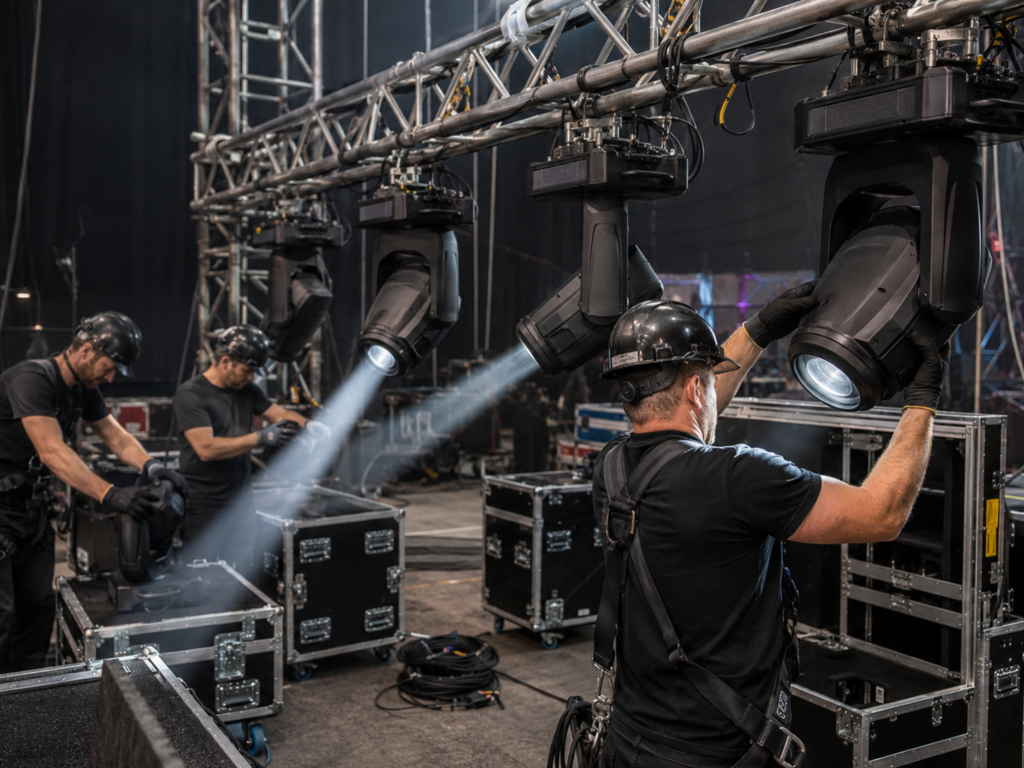

300W Beam Moving Head Light. The 420 Prism King is designed for rental stock, touring shows, live venues and indoor stage projects that need a narrow beam plus flexible effect combinations. Four prism structures, fixed gobos, a color wheel and an RGB aperture ring give programmers distinct visual layers without changing fixtures.
Four Prism Structures
Choose 8-facet, 8+16, 8+16+24 or 6-linear geometry, with bidirectional prism rotation.
Focused 2° Beam
A narrow aerial effect for indoor stages and properly protected production environments.
RGB Aperture Accent
The 24 × 0.5W RGB 3-in-1 ring adds a color layer around the main optical output.
Flexible Operation
DMX, Auto, Sound and Master-slave modes support programmed and standalone use.

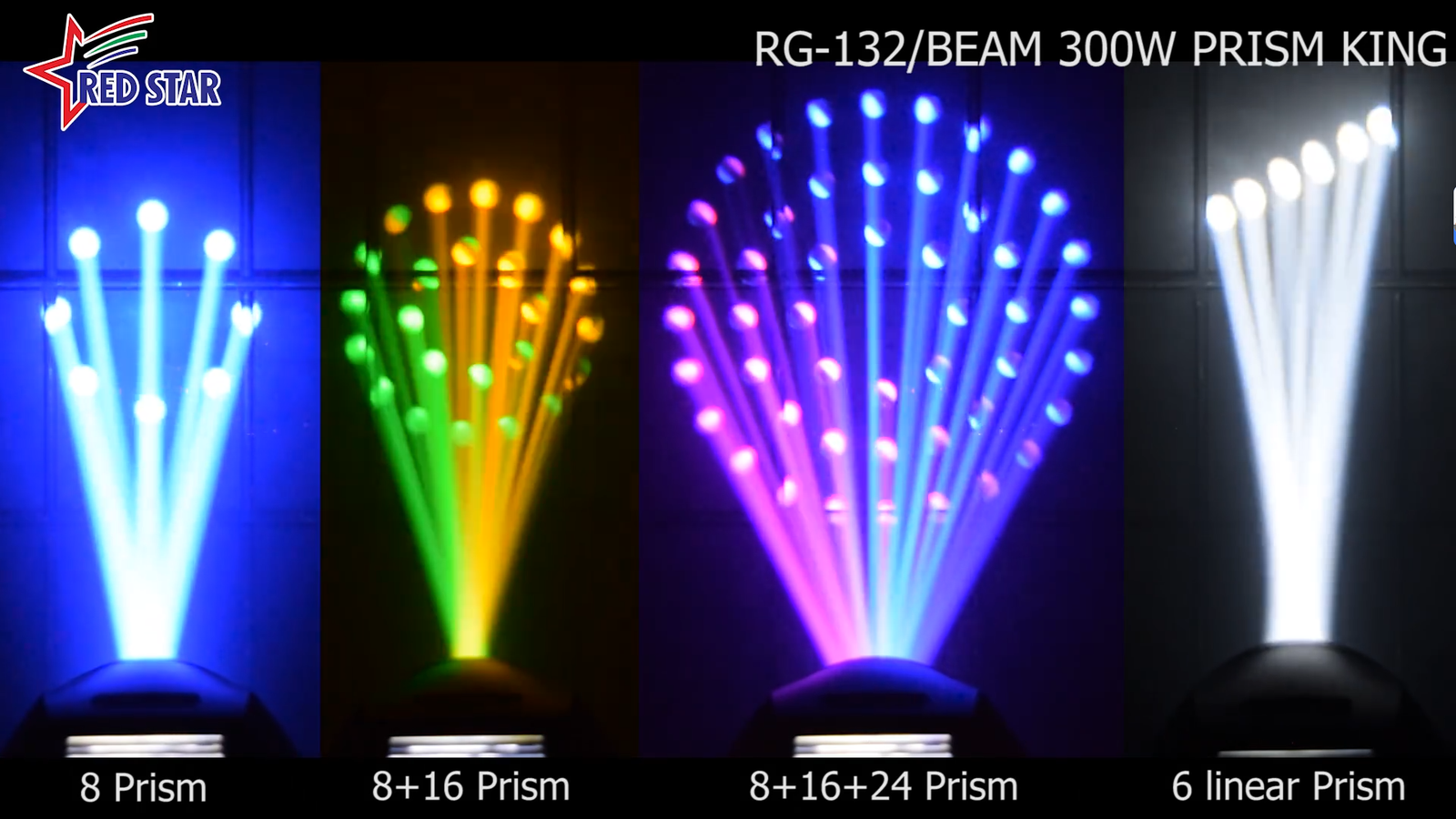

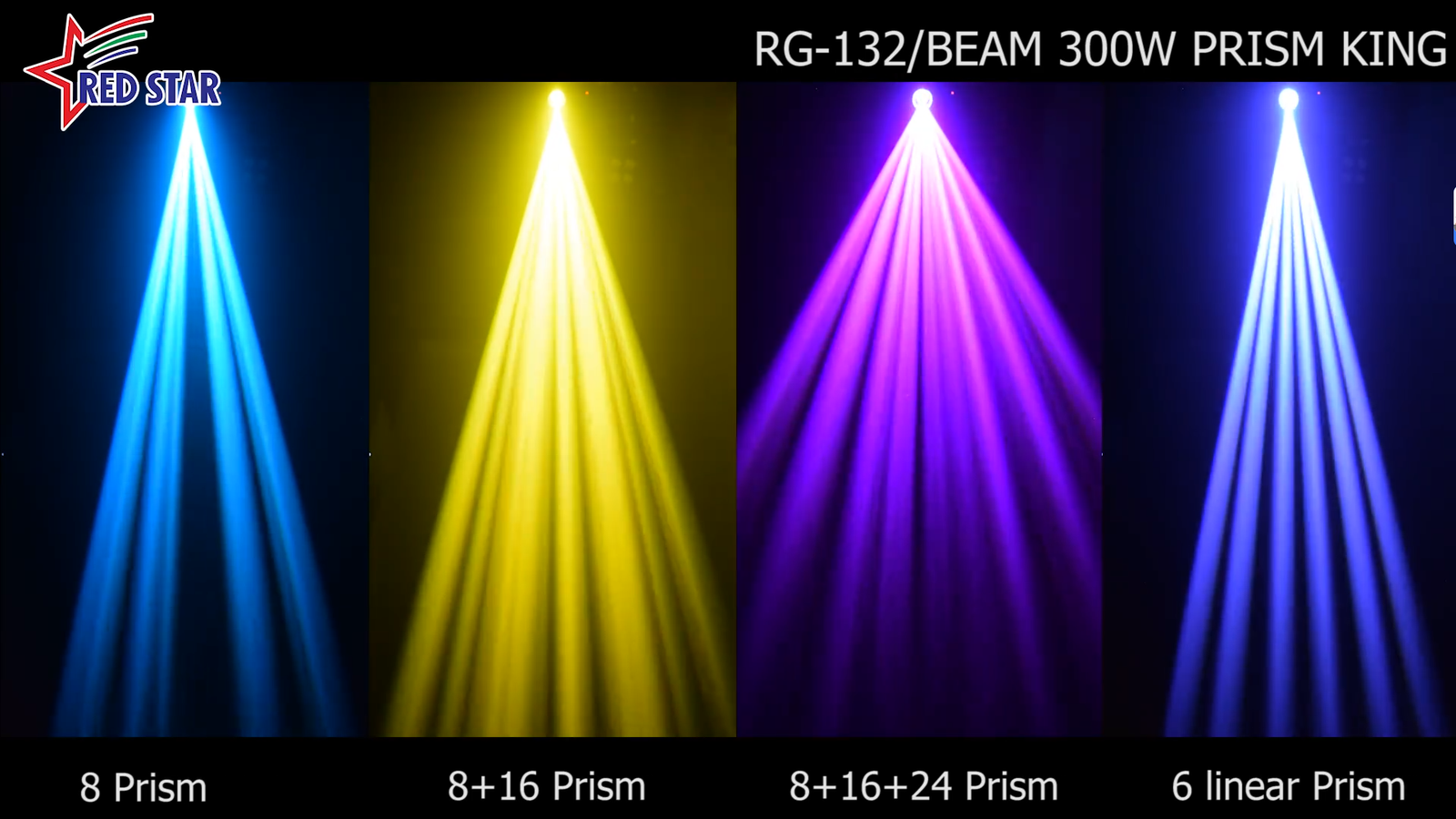

MULTI-PRISM SYSTEM
Four beam geometries for different visual densities.
A prism multiplies the main beam into repeated rays. The 8-facet option gives a balanced spread; 8+16 adds density; 8+16+24 creates the most layered field; and the 6-linear prism arranges rays into a fan-like line. Rotation in either direction adds movement to every structure. Compare prism effects for event use.

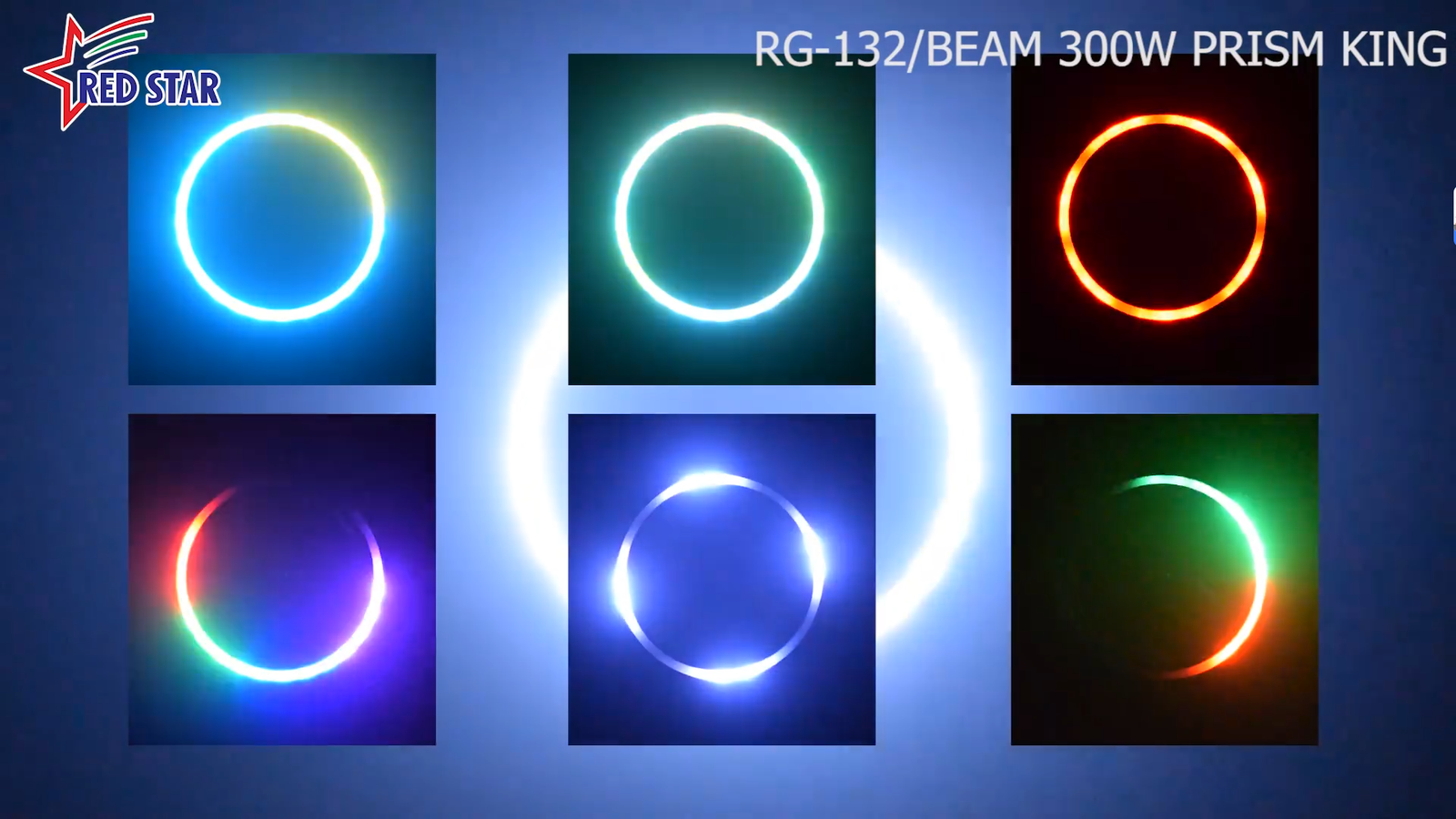

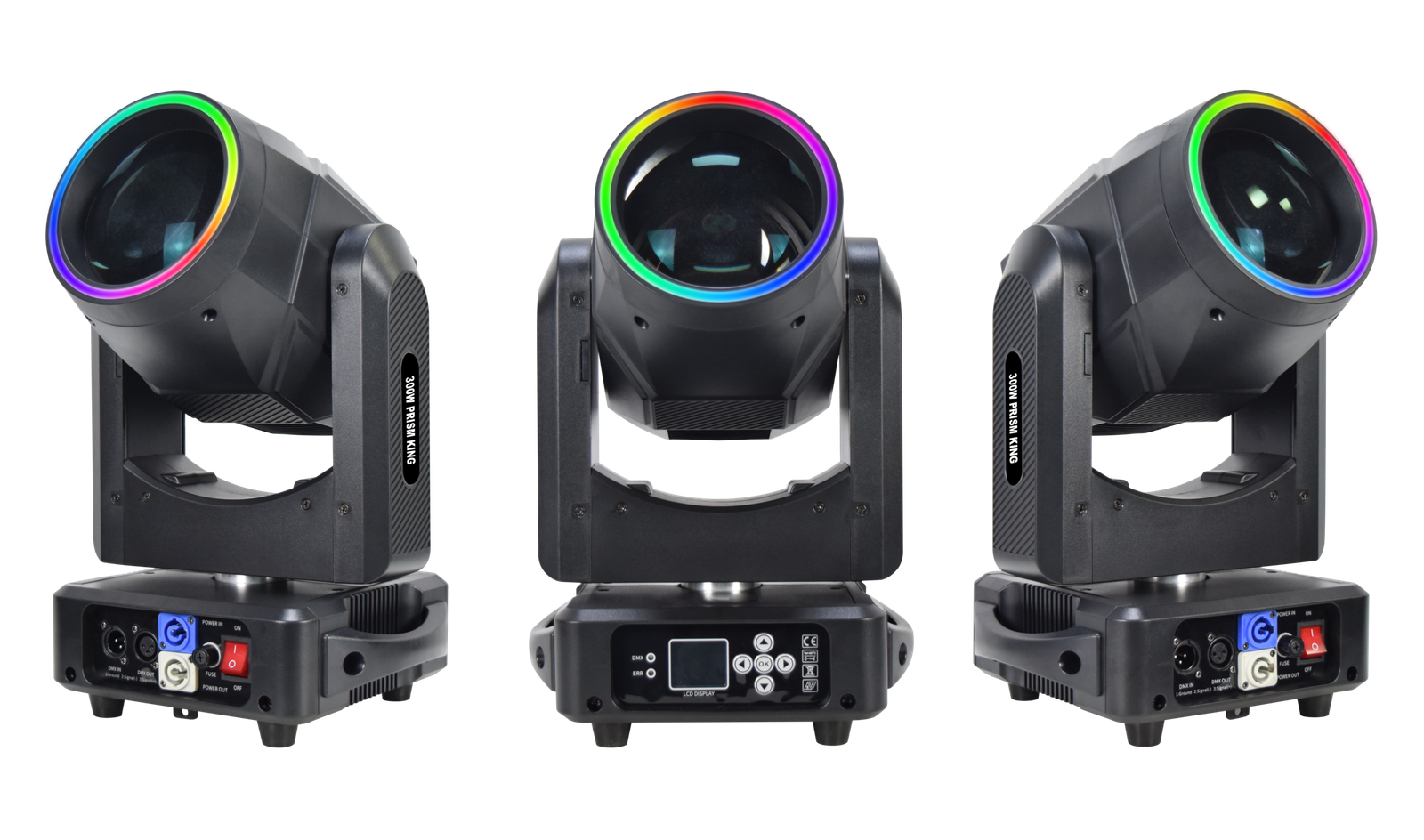

RGB FRONT RING
A visible accent even before the beam effect changes.

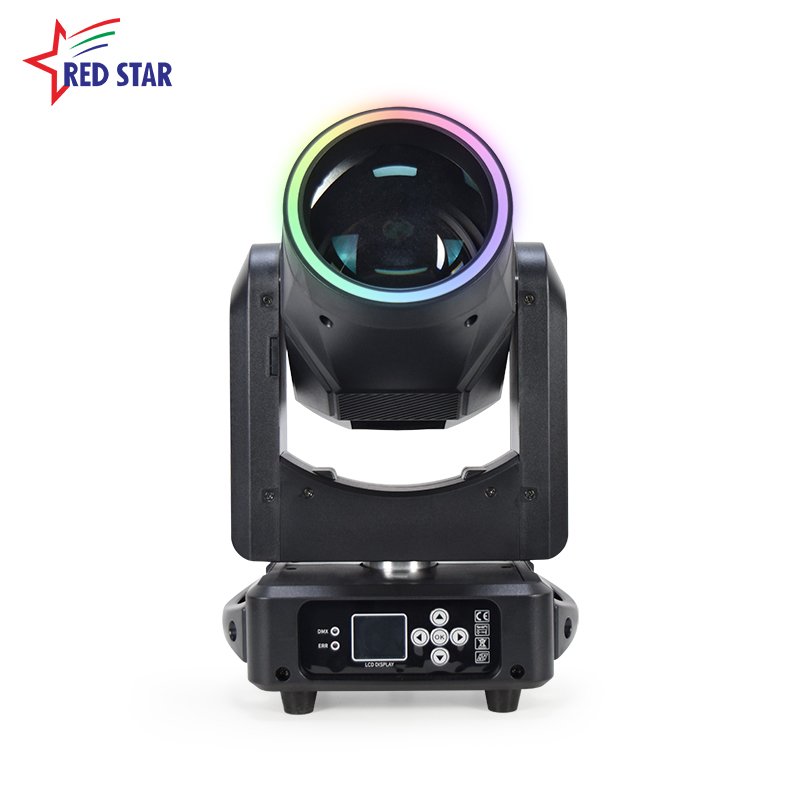

The RGB front ring frames the lens with color and helps the fixture contribute to a stage look from the audience viewpoint. It is a separate accent around the main beam, not a replacement for the main light source. Independent pixel control is not claimed for this configuration.
COLOR & GOBO SYSTEM
Patterns, color changes and rainbow transitions.

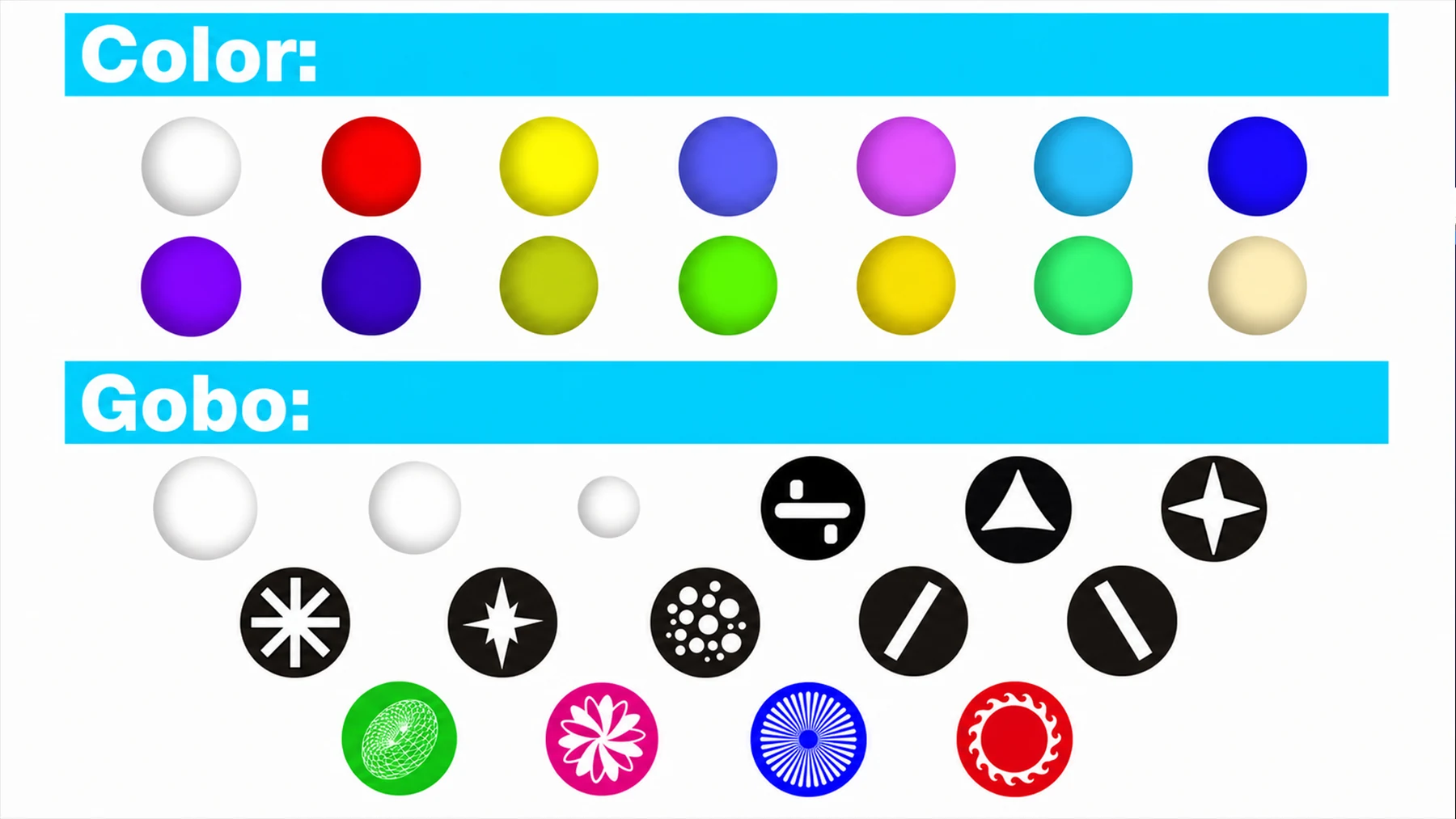

The verified optical system provides 13 colors plus white and a rainbow effect. Its fixed pattern wheel combines an open position with 10 metal gobos and 4 glass gobos, giving operators a practical library for beam texture and shape changes.

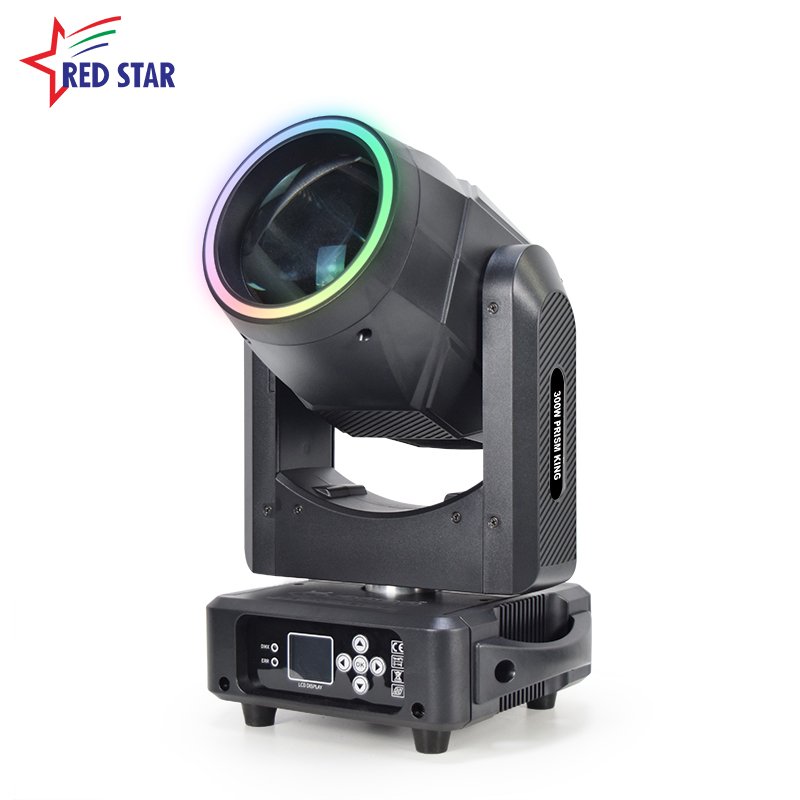

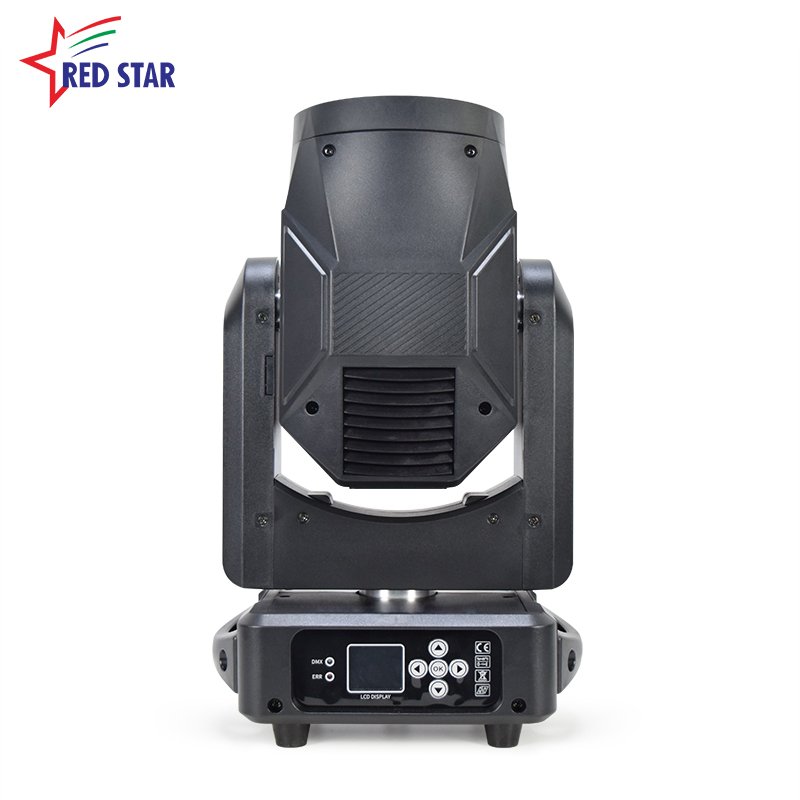

PRODUCT DETAILS
Inspect the fixture from every working angle.

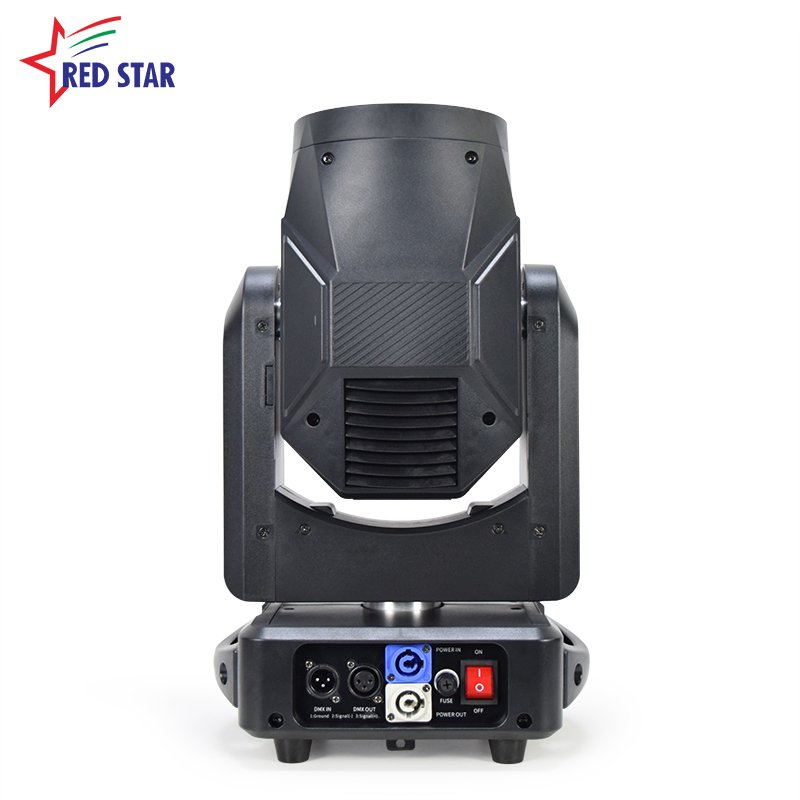

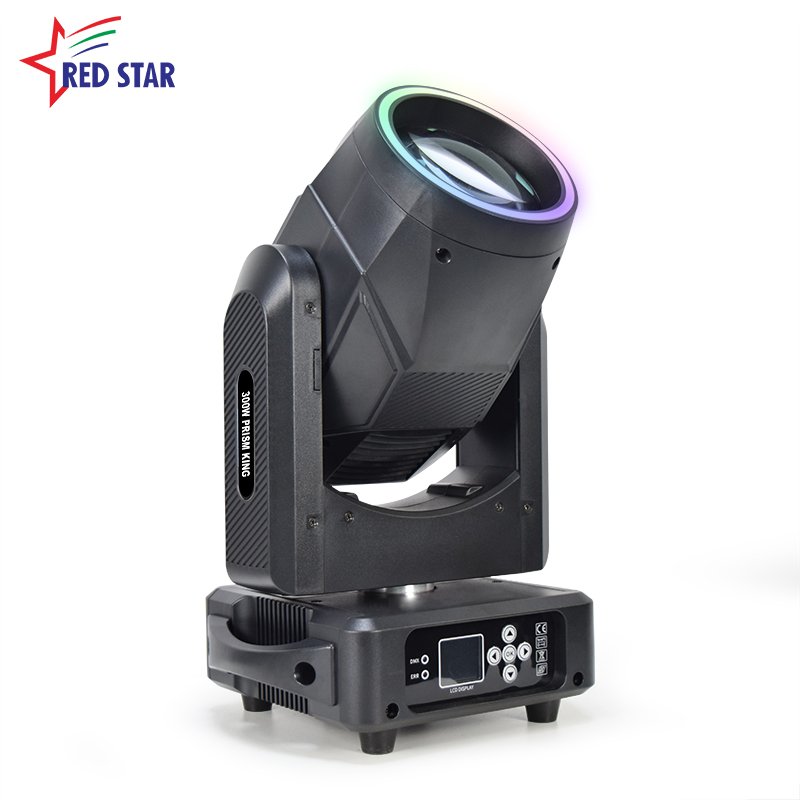

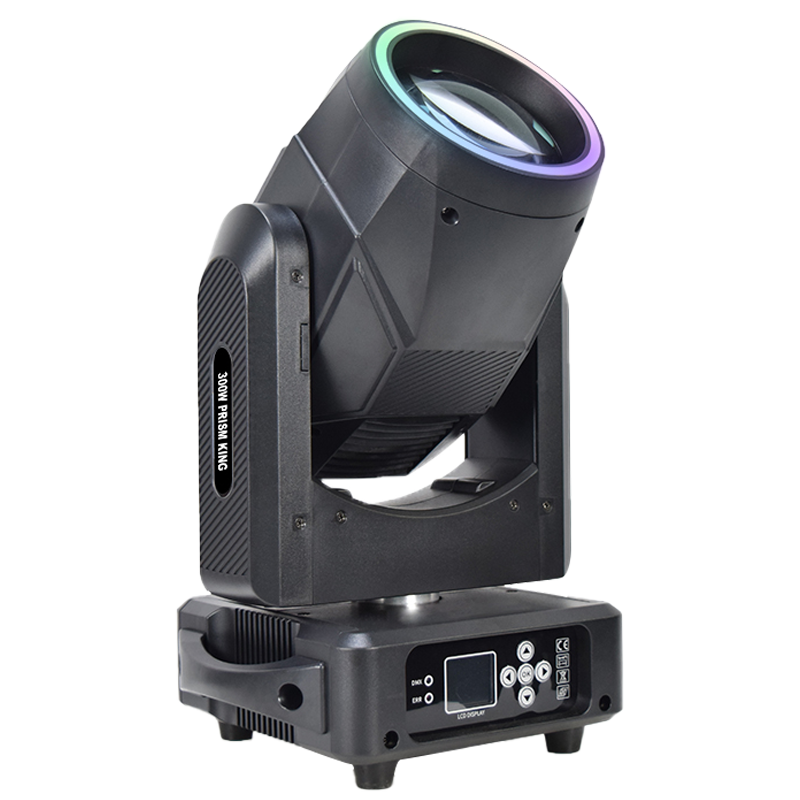

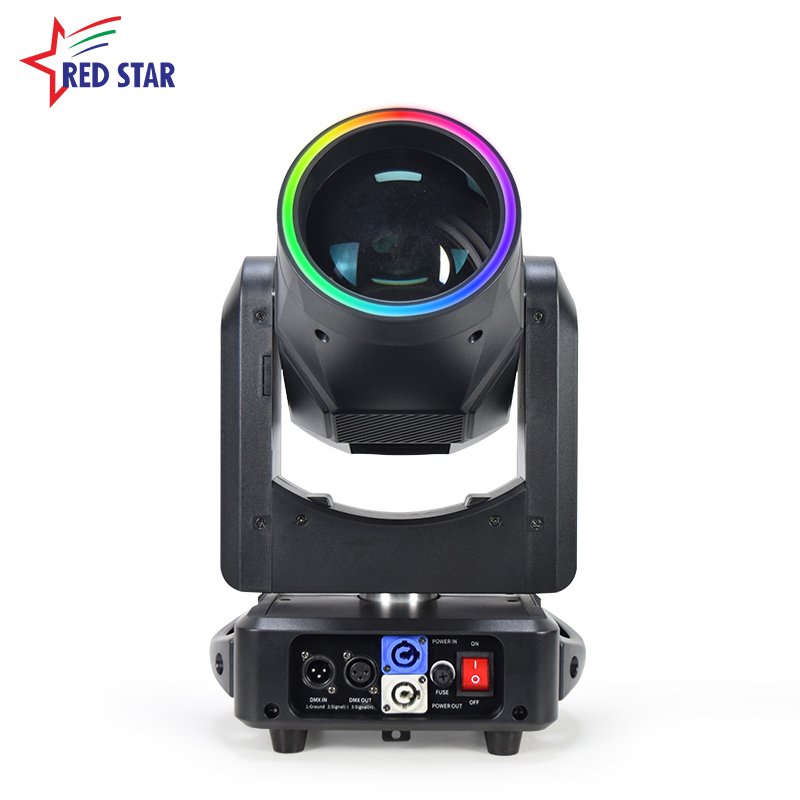

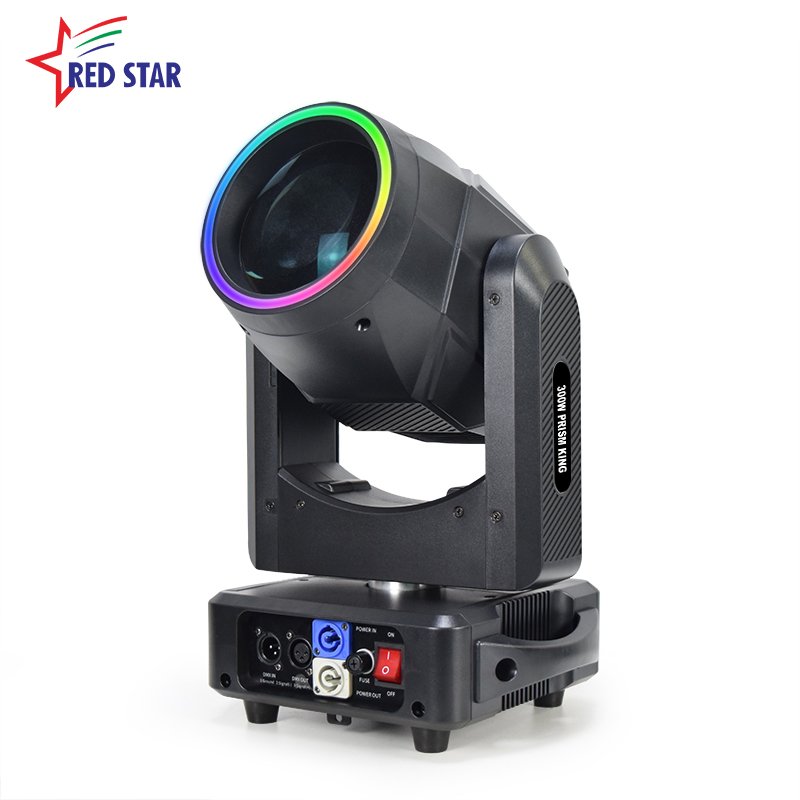

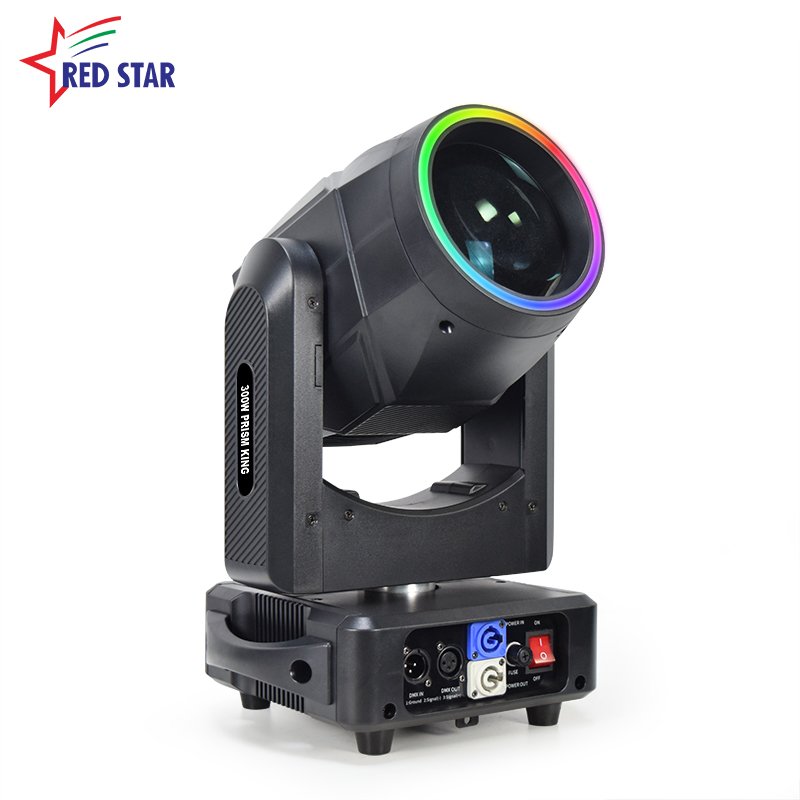

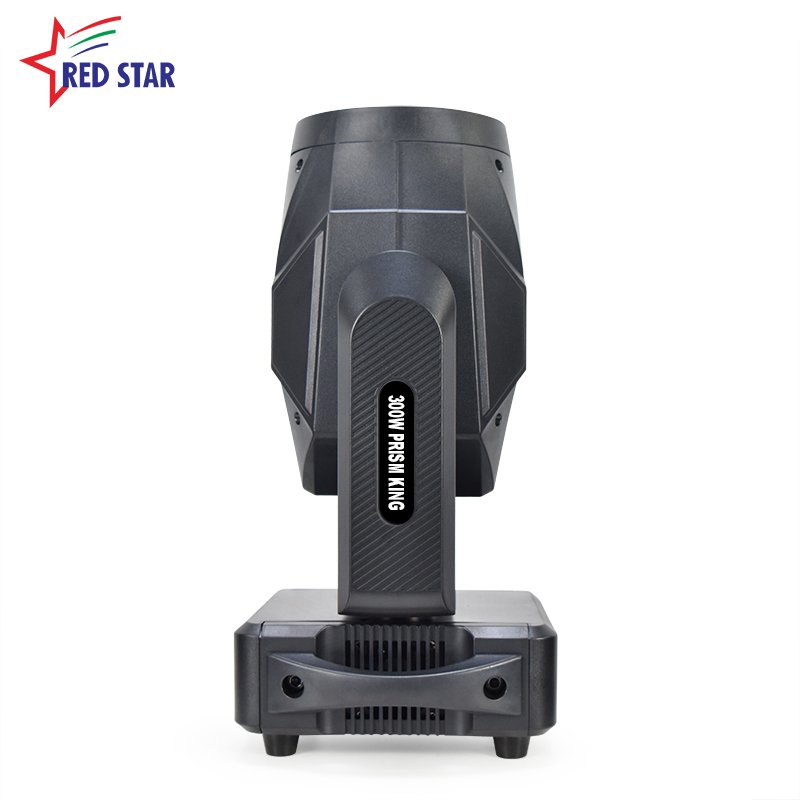

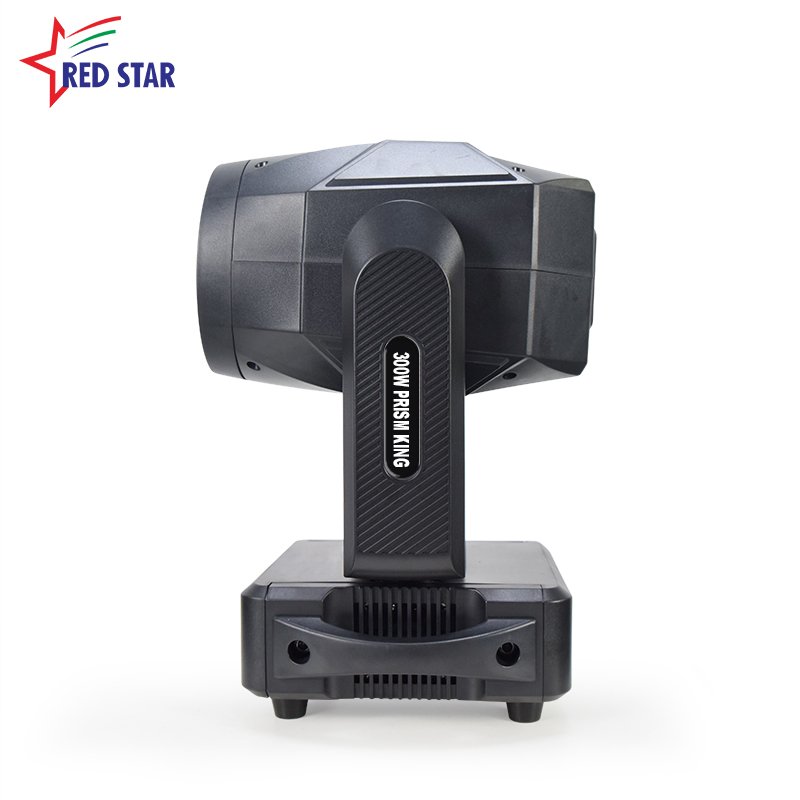

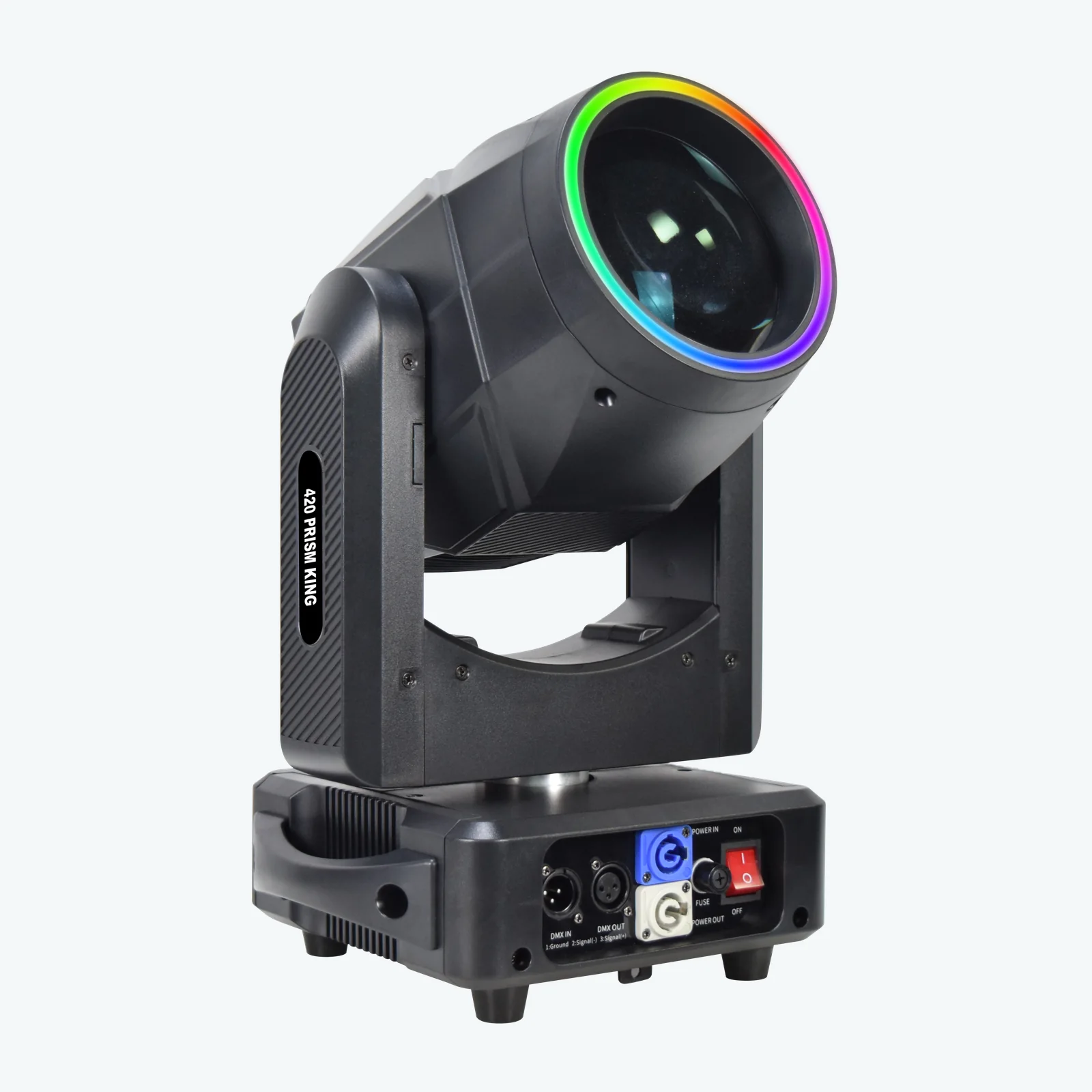

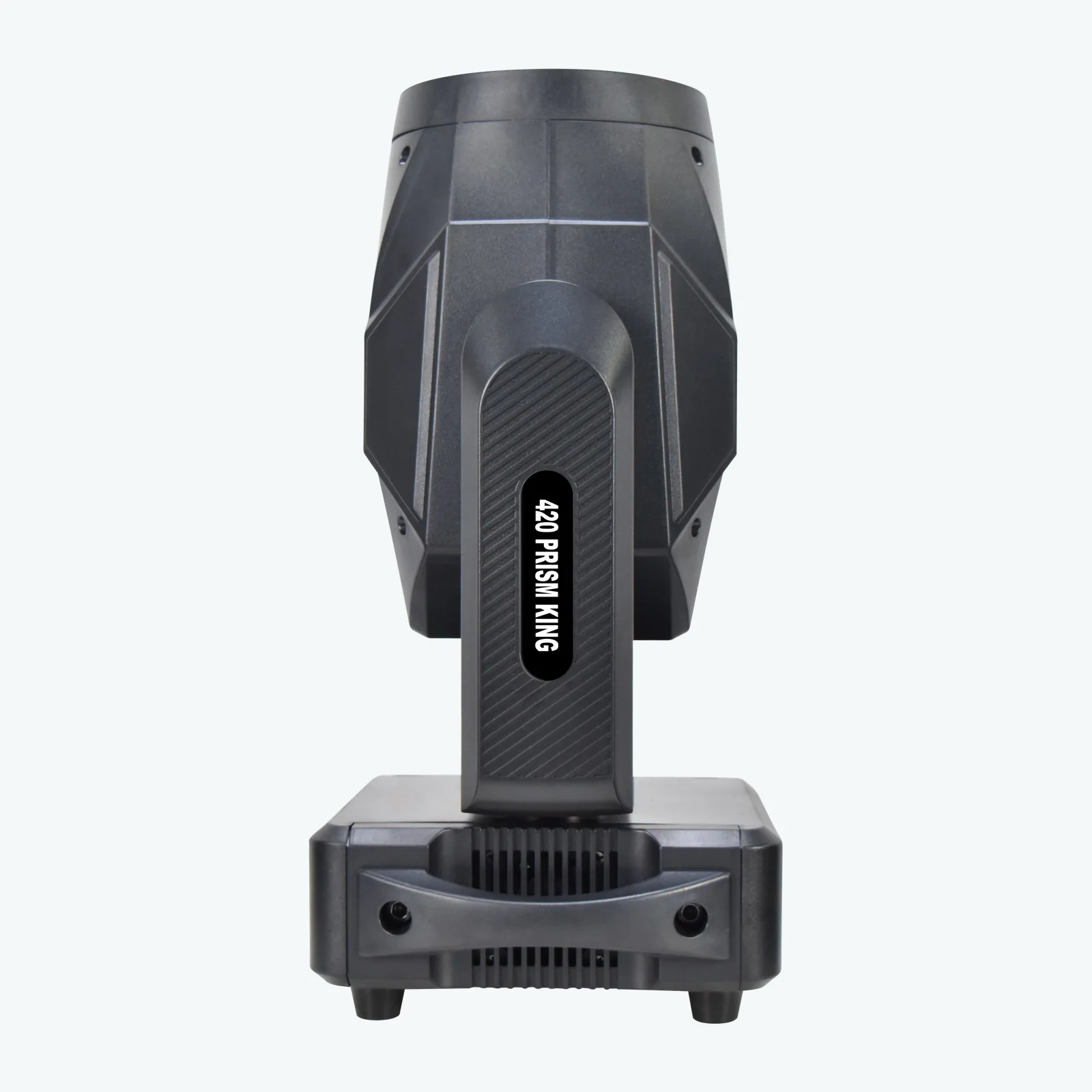

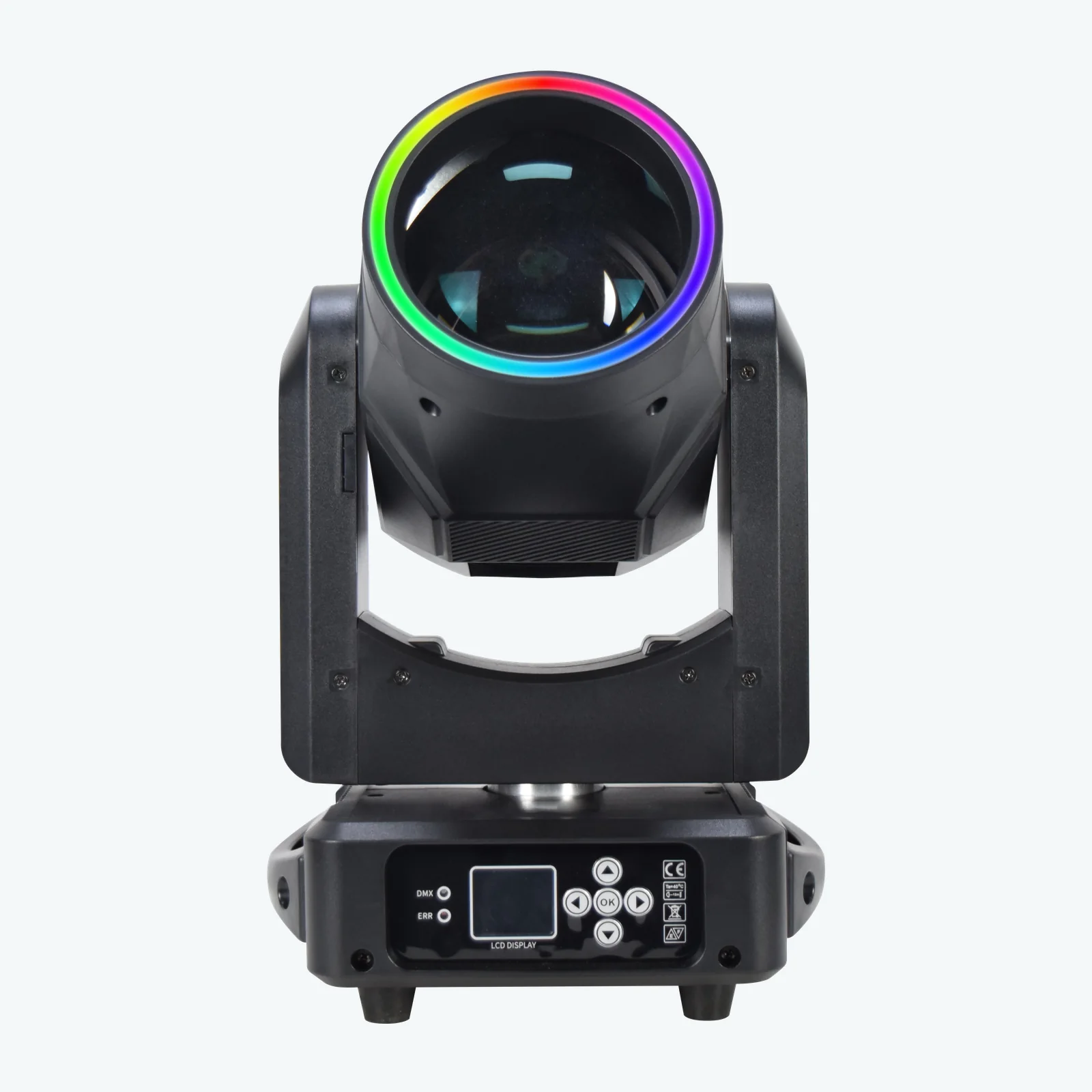

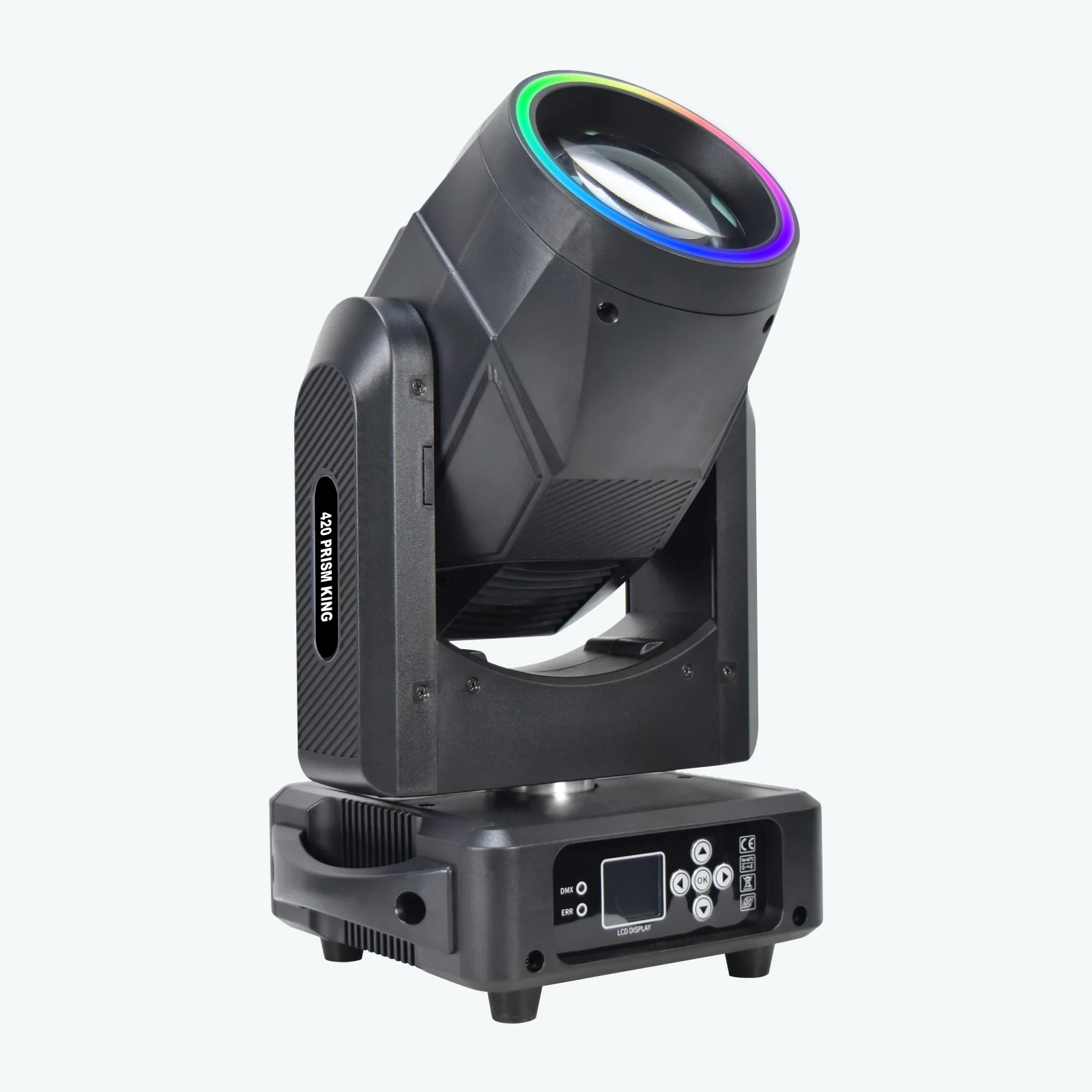

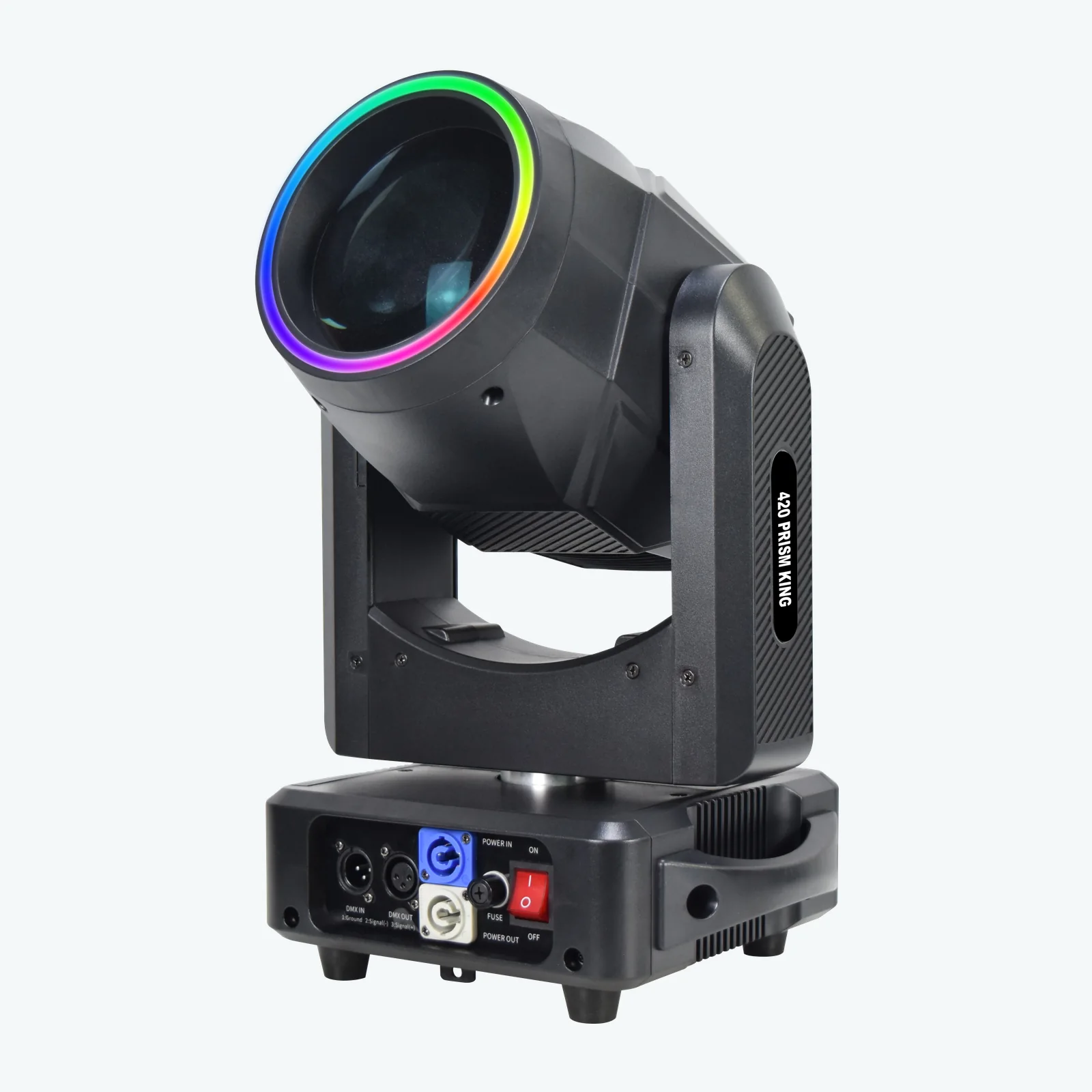

The gallery shows the housing, yoke, control panel and DMX/power connection areas. Voltage, plug, accessories and spare-parts requirements should be confirmed for each order.
PRODUCT VIDEO
Watch the beam, prism and RGB effects in motion.
The demonstration shows the visible effect behavior. For purchasing decisions, use the verified specification table and confirm the required order configuration with our team.

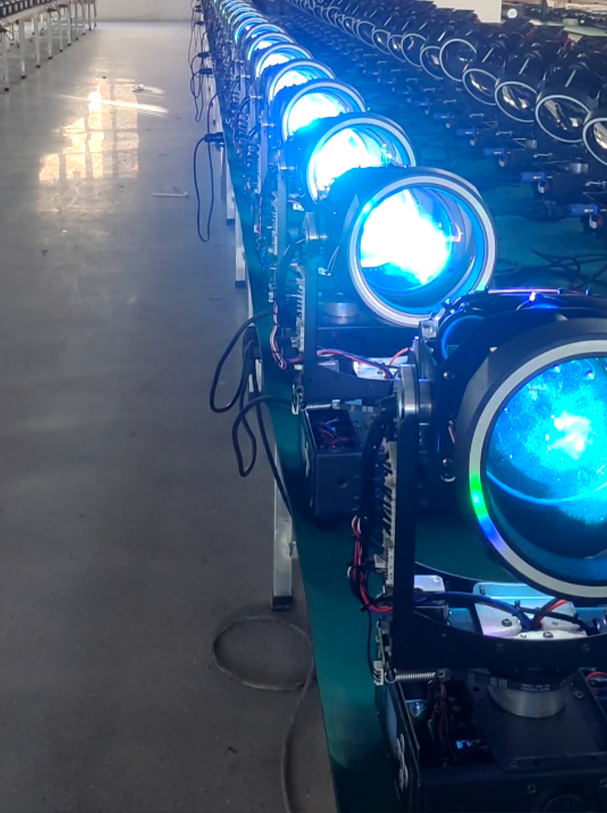

PRODUCTION EVIDENCE

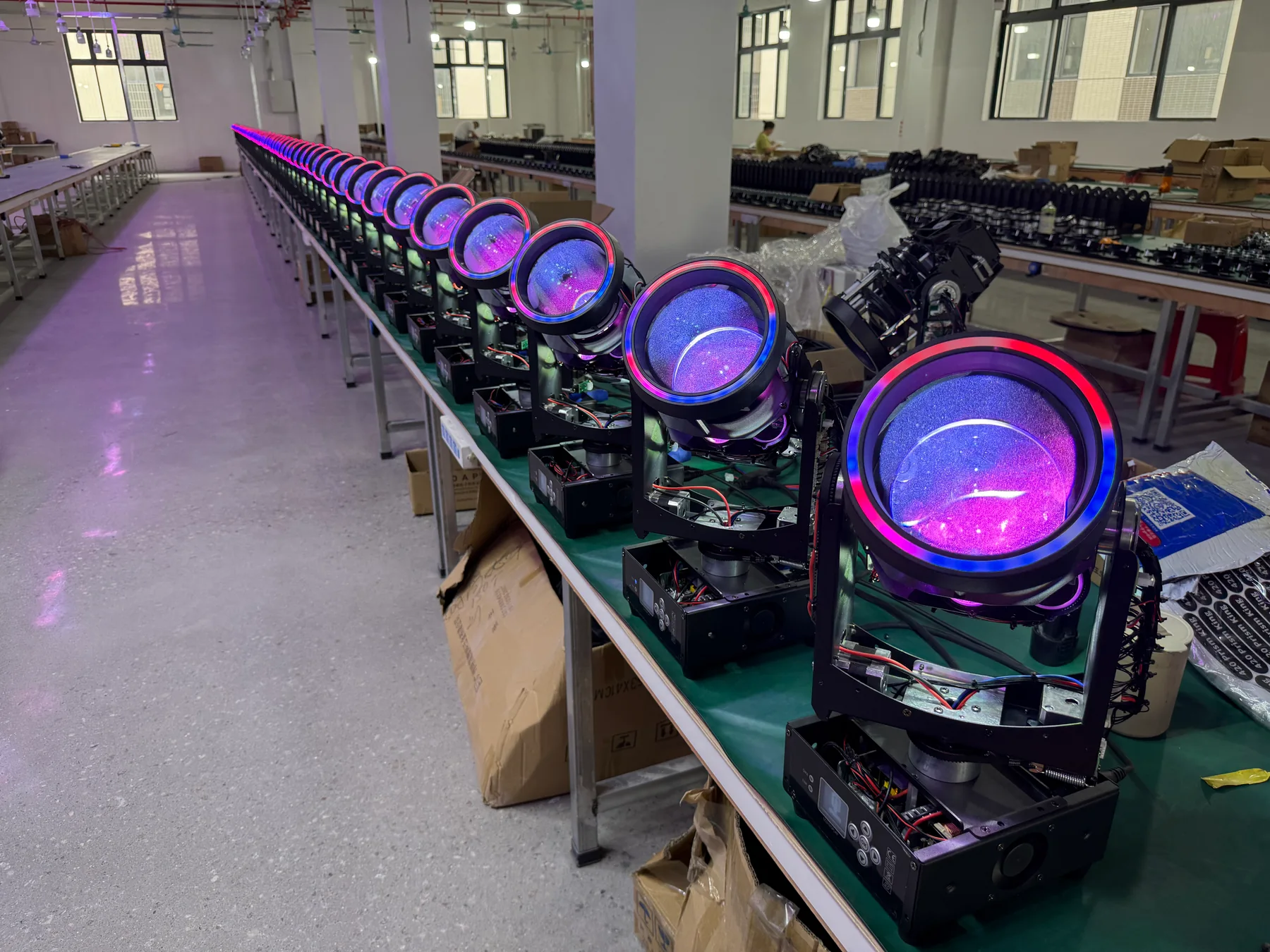

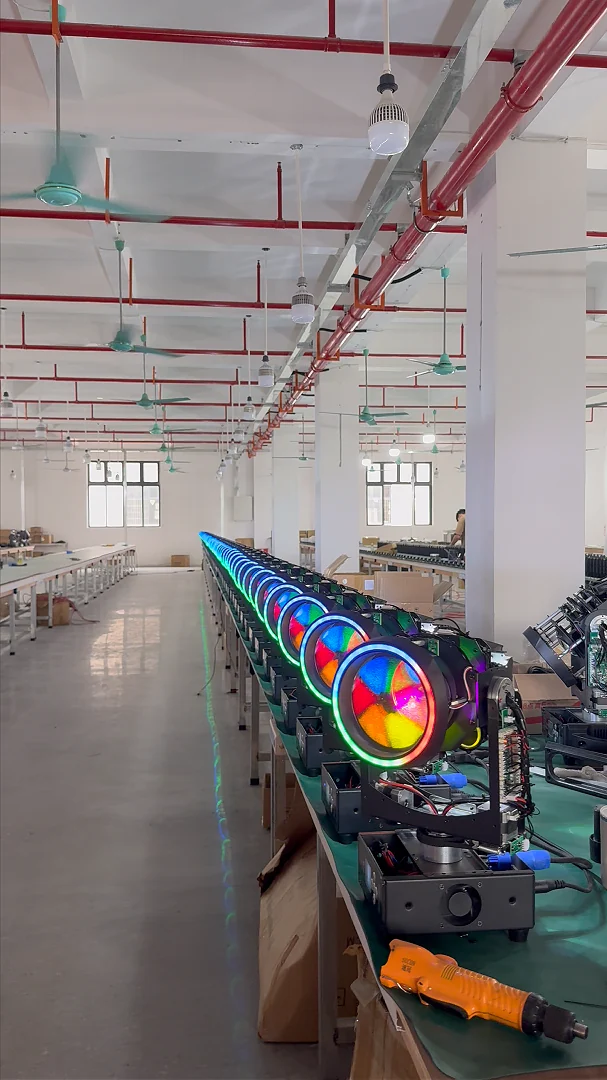

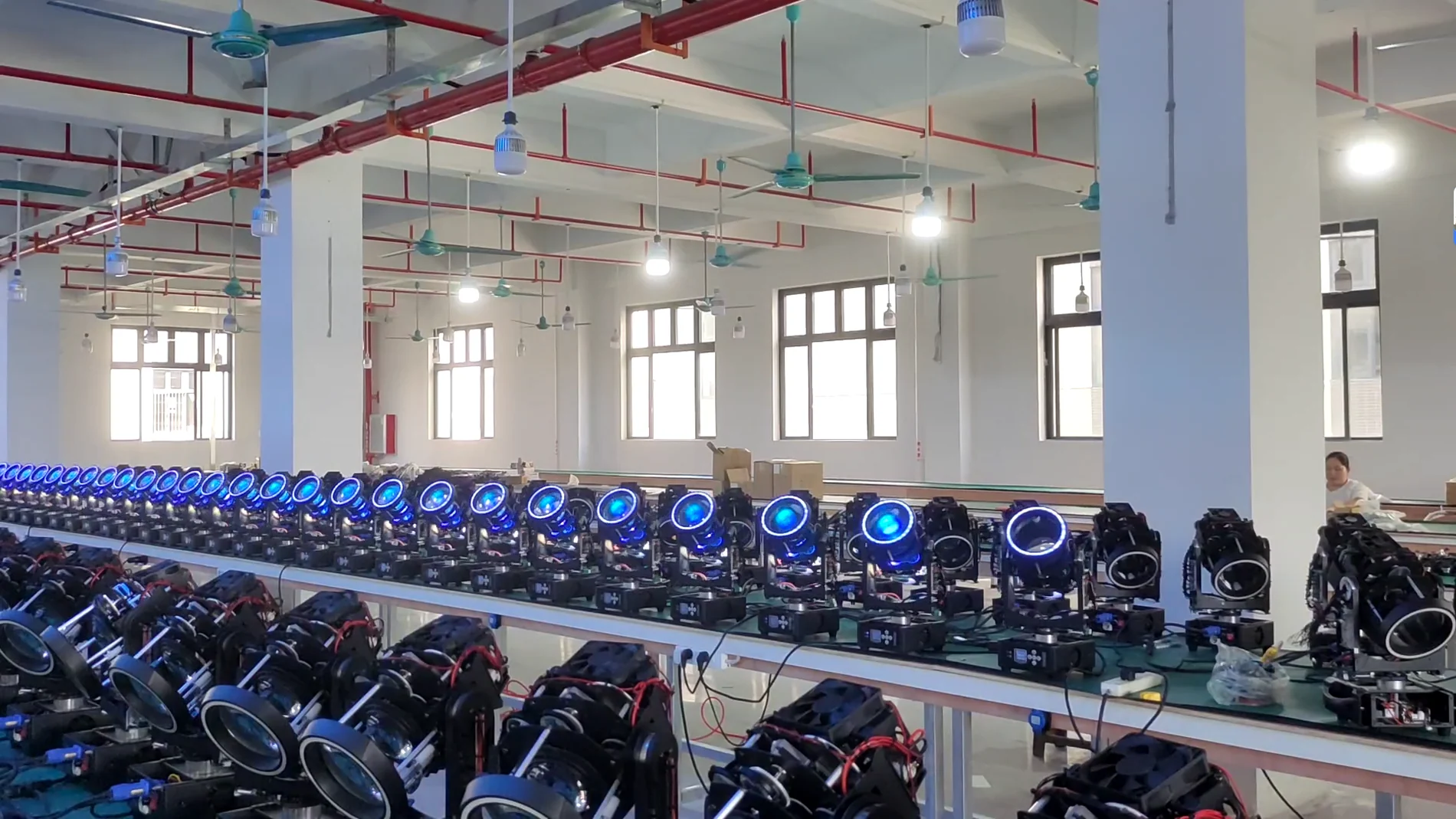

Batch assembly visible on the workshop line.

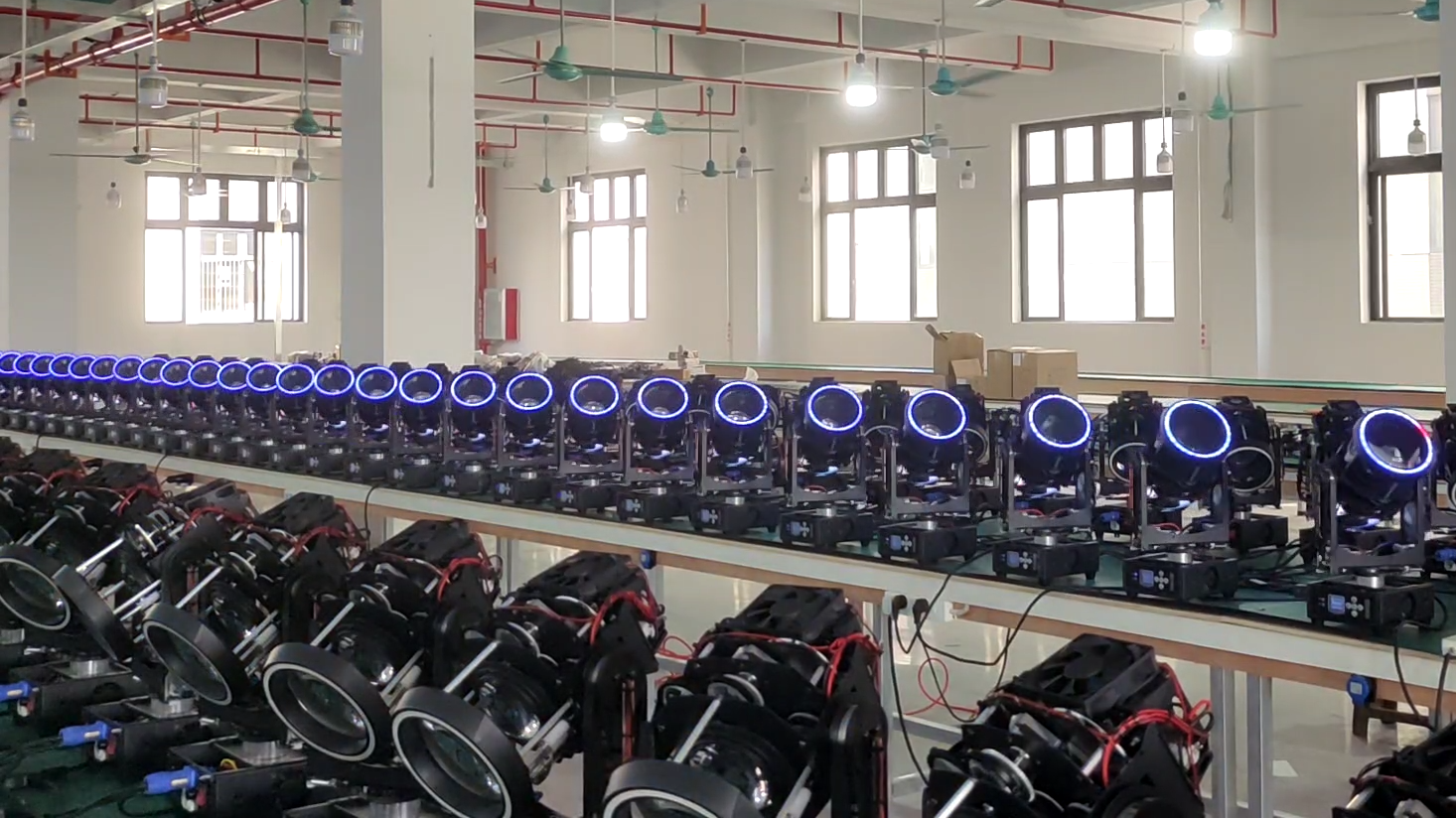

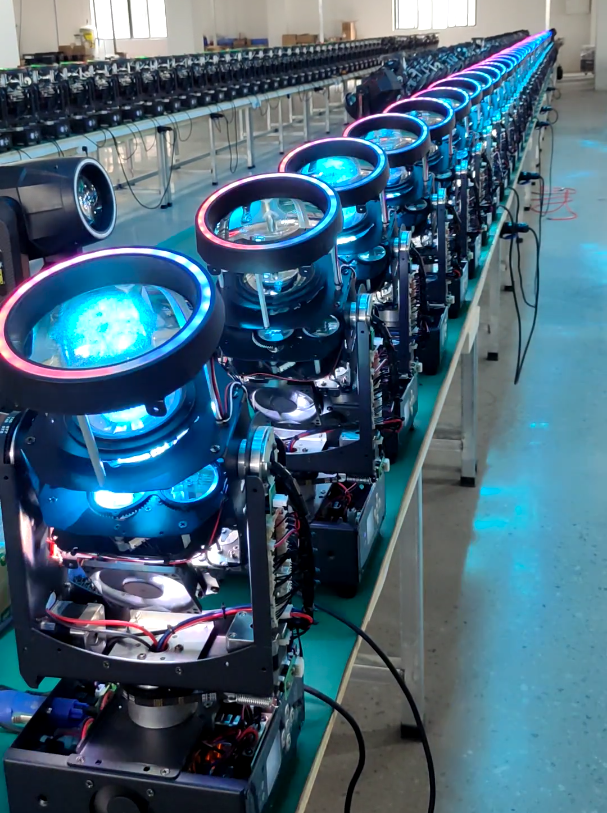

These real workshop images show multiple units in line assembly and powered visual checks. They provide production context without inventing capacity, certification or test claims that are not documented.
For a wholesale quotation, share quantity, destination, voltage, plug type, accessories, spare-parts request and packing preference so the order configuration can be reviewed before production.
Specifications
Technical specifications
| Light source | 300W lamp + 24 × 0.5W RGB 3-in-1 LED strip ring |
|---|---|
| Rated fixture power | 450W |
| Voltage | AC 90–240V, 50/60Hz |
| DMX channels | 18 / 22 CH |
| IP rating | IP20 |
| Product dimensions | 280 × 230 × 465 mm |
| Net weight | 9 kg |
| Rated lamp lifespan | 15,000 hours (lamp specification) |
| Control modes | Auto / Sound / DMX / Master-slave |
| Beam angle | 2° |
| RGB front ring | 24 × 0.5W RGB 3-in-1 LED strip ring |
| Color wheel | 13 colors + White, with rainbow effect |
| Fixed gobo wheel | Open/White + 10 metal gobos + 4 glass gobos |
| Prism system | 8-facet, 8+16, 8+16+24 and 6-linear; bidirectional rotation |
| Pan / tilt | 16-bit; Pan 540° / Tilt 270° |
| Dimming | 0–100% linear dimming |
| Strobe | 1–25 flashes per second |

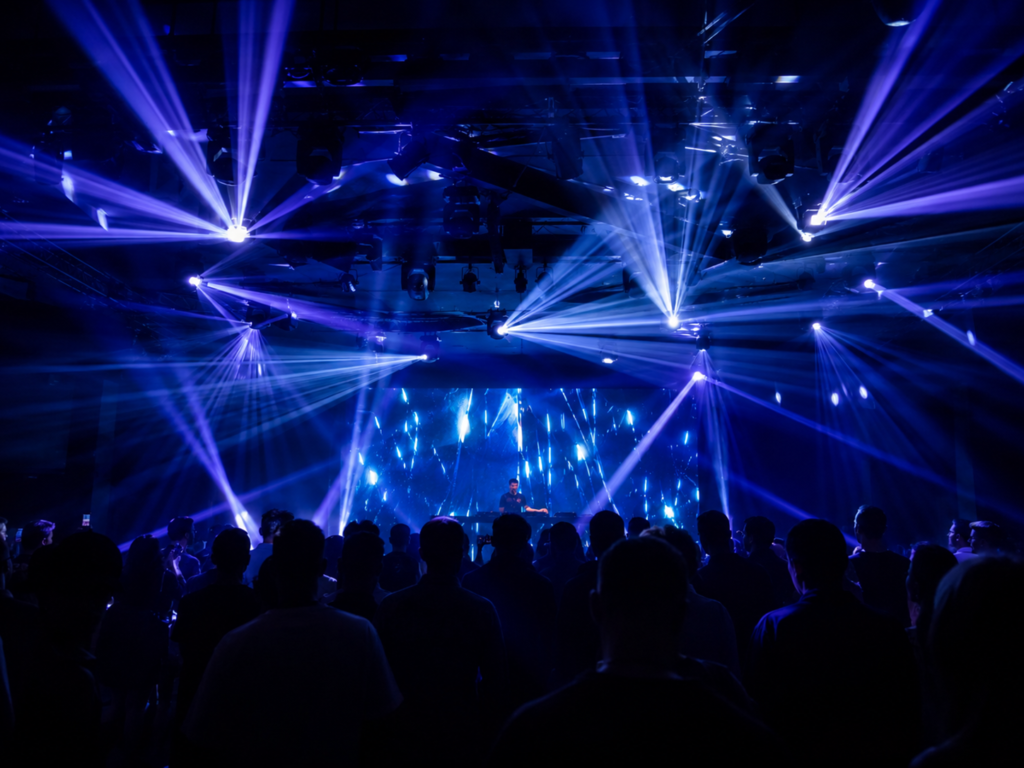

APPLICATION FIT
Where this fixture fits—and where it does not.
For 300W Beam Moving Head Light projects, this is a narrow-beam effect fixture for indoor or protected environments. It is not a waterproof fixture and should not be treated as a front-light replacement for evenly lighting faces. Compare related beam moving head lights when planning your lighting rig.
B2B ORDER FLOW
From requirement review to a relevant quotation.
PRODUCT FAQ
Questions Before You Order.
Direct answers about effects, configuration, indoor use and quotation requirements.
What prism effects does this beam moving head include?
It includes 8-facet, 8+16, 8+16+24 and 6-linear prism structures. The prism system can rotate in both directions.
Does the fixture have an RGB front ring?
Yes. The front ring uses 24 × 0.5W RGB 3-in-1 LEDs as a visual accent around the main beam. Independent pixel control is not specified.
Does “420” mean the lamp is 420W?
No. “420 Prism King” is the public product name. The verified specification uses a 300W lamp and lists 450W rated fixture power.
Is this beam moving head waterproof?
No. The fixture is rated IP20, so it is intended for indoor use or a professionally designed protected environment.
What control options are available?
The verified configuration supports 18/22-channel DMX plus Auto, Sound and Master-slave modes. A project-specific channel map should be confirmed from the supplied manual.
What movement range does it provide?
The fixture provides 16-bit movement with 540° pan and 270° tilt.
Which colors and gobos are included?
The verified system includes 13 colors plus white and a rainbow effect, with an open position, 10 metal gobos and 4 glass gobos.
What information is needed for a wholesale quotation?
Please share quantity, application, destination, voltage, plug type, accessories, spare-parts request and packing preference.
