SOURCE AND FOCUS

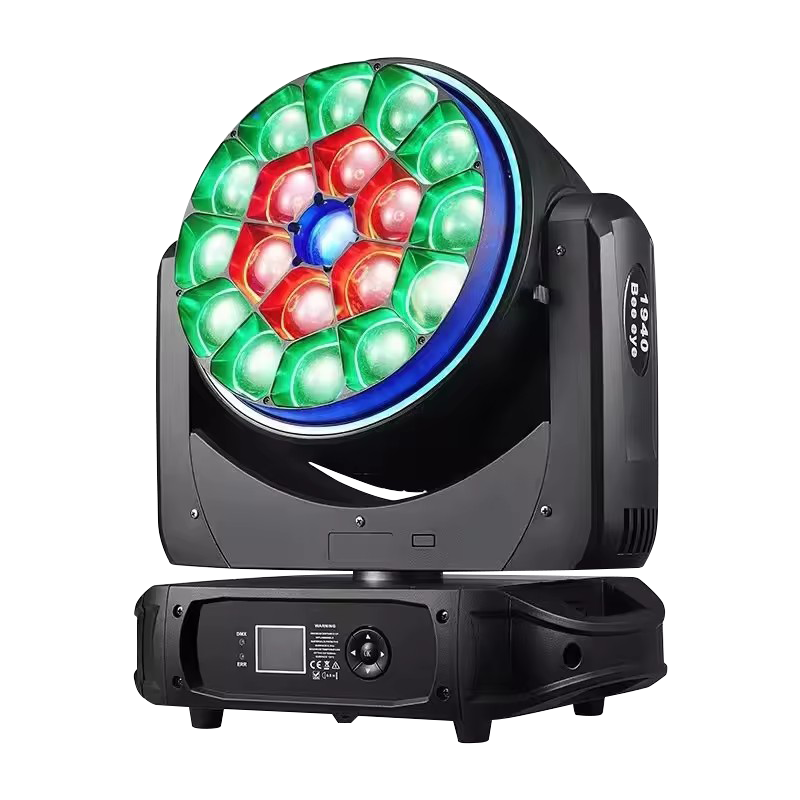

19x40W Focusing Bee Eye Moving Head overview
Choose this 19×40W focusing bee eye moving head when a rig needs adjustable stage color and a visible multi-cell lens face. Nineteen four-in-one OSRAM LEDs supply the main output; the listed 4–60° range changes its spread. Plan working distance and spacing for the required color coverage, then decide whether front-disc effects and the separate RGB strip are part of the cue.
19 × 40W OSRAM
Nineteen four-in-one LED sources form the main bee-eye array.
4–60° Focus
Select a tighter or wider spot angle for the planned throw and coverage.
74 RGB Strip LEDs
A separate colored accent traces the face of the fixture.
Seven DMX Modes
Choose from the listed 24 to 102-channel configurations.
FRONT LENS AND RGB STRIP
A moving lens with a separate RGB accent layer.
The front mirror disc rotates continuously to produce vortex and kaleidoscope looks. A strip of 74 RGB LEDs adds a colored border around the main bee-eye face. Review the stills and video to select an appearance that fits your cue list.
DEMONSTRATED OUTPUT
See white output and layered color looks.

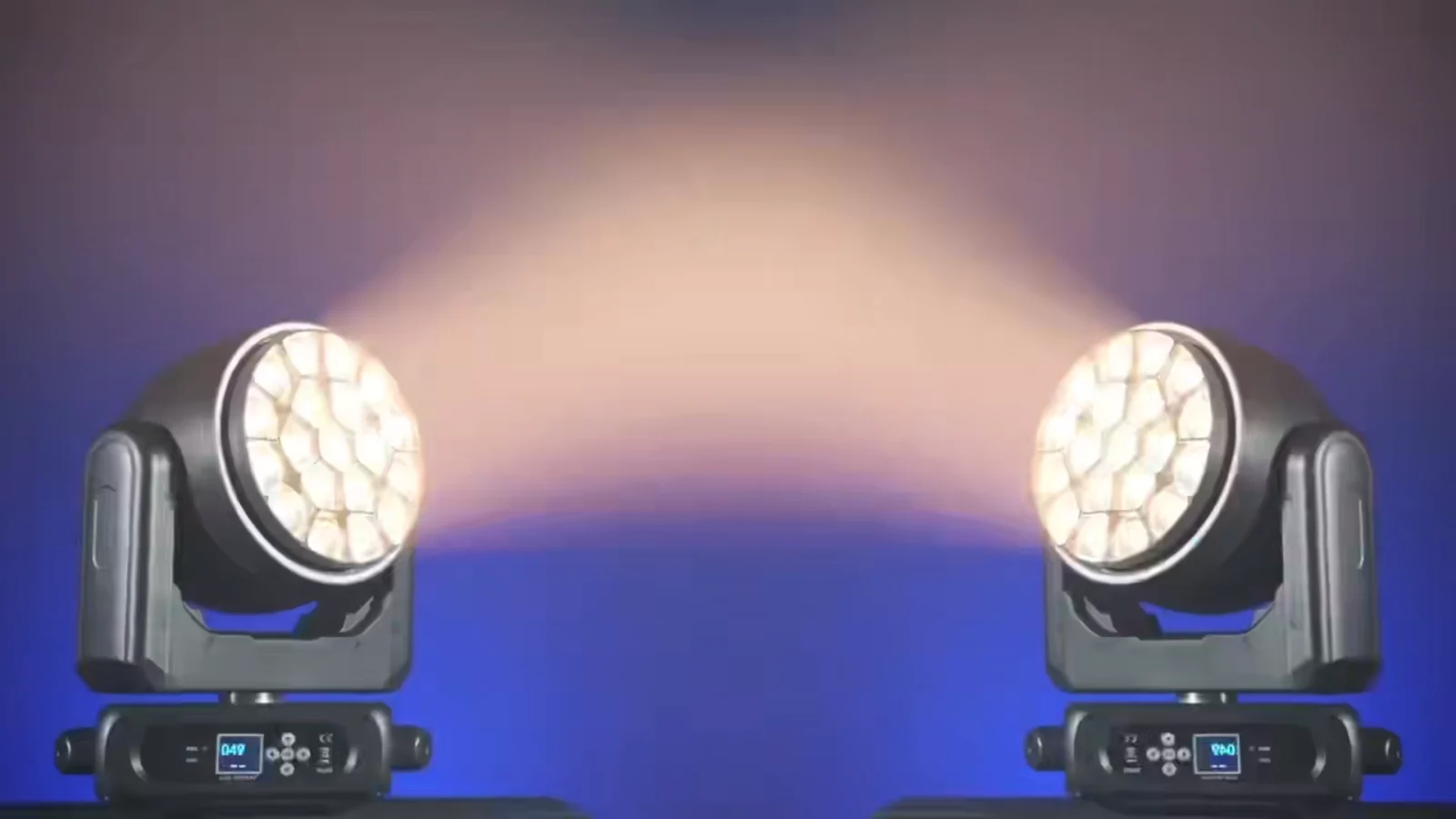

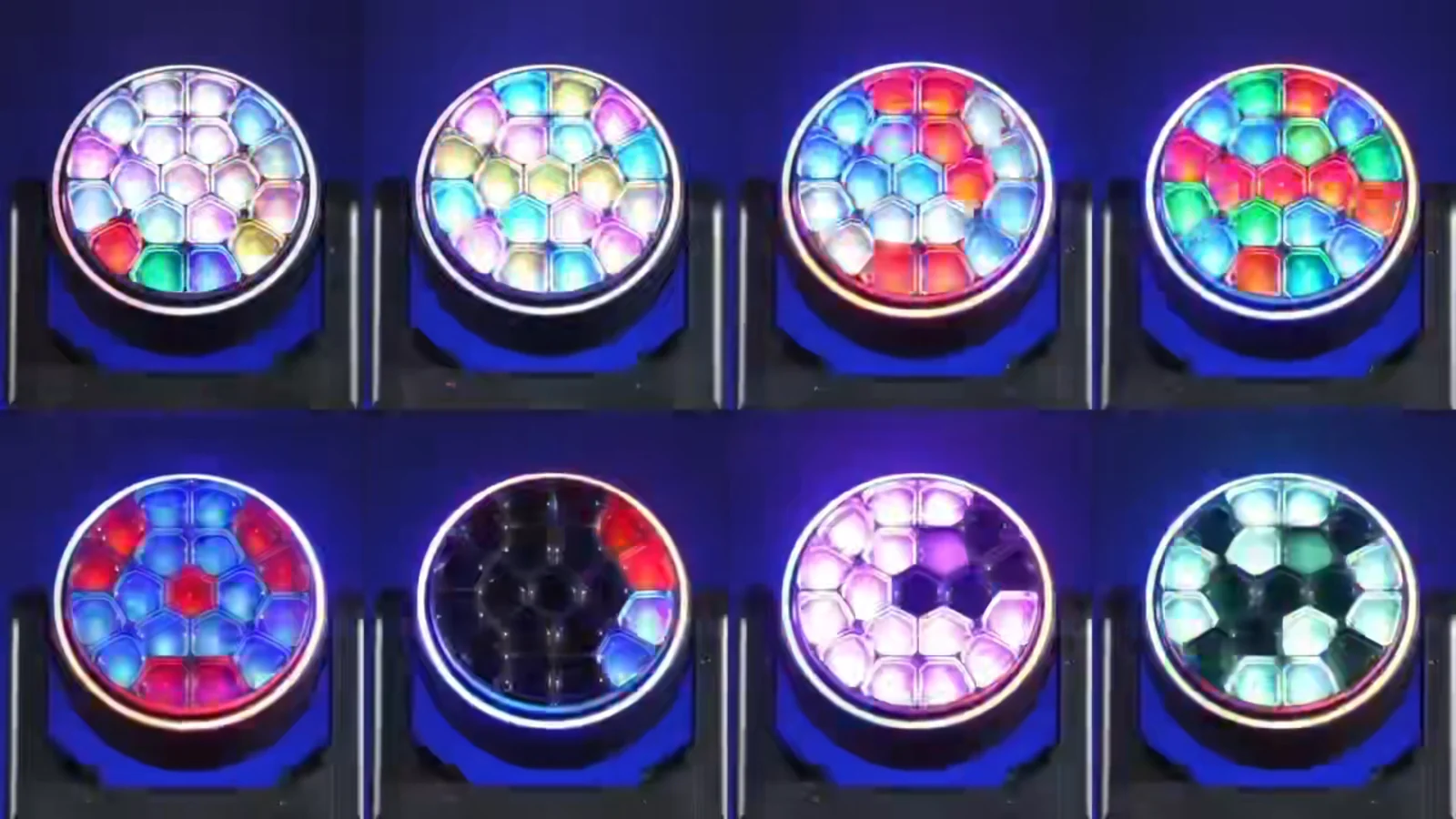

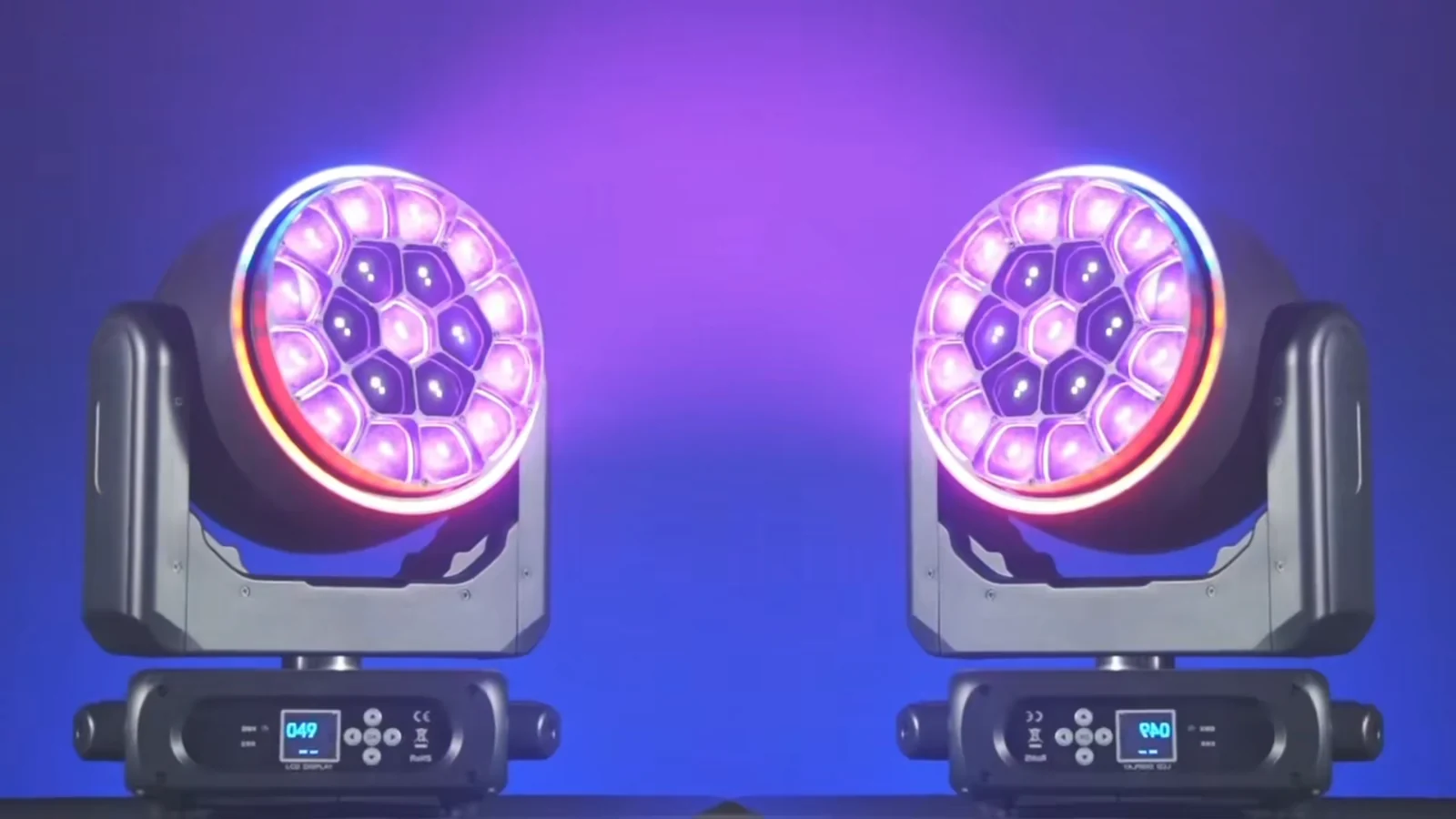

Compare the warm-white output with the colored front-lens looks in these stills. The main output and RGB border serve different visual roles; use the video to review motion, while choosing fixture placement around the intended coverage and whether the audience sees the lens face.
PRODUCT VIDEO
Watch the bee-eye moving head in motion.
Watch the supplied demonstration to assess visible front-lens motion and the RGB accent ring before programming the show cues.
Specifications
Technical specifications
| Model | RG-1940 |
|---|---|
| Light source | 19 × 40W four-in-one OSRAM LED sources |
| DMX channels | 24 / 26 / 38 / 81 / 95 / 100 / 102 CH |
| Control modes | DMX512, Sound, Auto, Master/Slave |
| LED configuration | 74 × 5050 RGB strip LEDs, 0.12W per LED |
| Color system | Four-in-one main source; RGB strip; 2800–8500K color temperature; CTO |
| Zoom range | 4–60° spot angle |
APPLICATION FIT
Where this bee-eye moving head fits.
For 19x40W Focusing Bee Eye Moving Head projects, use it when a show needs both a visible multi-cell lens face and adjustable stage color from a moving-head position. Narrower settings support aerial cues where haze is part of the design; wider settings support broader color looks. For rain-exposed positions, specify a fixture with a documented outdoor rating and a suitable weather protection plan. Compare related LED wash lights when planning your lighting rig.
B2B ORDER FLOW
Plan the fixture around your rig.
For an RG-1940 quotation, send the venue, quantity, working distance and required color or front-lens effects. Identify this model when comparing similar 19×40W fixtures; it remains separate from RG-1940B. For DMX network planning, consult ESTA’s DMX512-A guide and request the channel chart for the selected version.
PRODUCT FAQ
Questions Before You Order.
Answers about the light source, effects, control and quotation.
What does 19×40W describe?
It describes the nineteen 40W LED sources in the main optical array. It does not state the fixture's total input power.
Can the spot angle be adjusted?
Yes. The listed spot-angle range is 4–60°. Share the throw distance and coverage target when planning the rig.
What does the RGB strip add?
The separate 74-LED RGB strip creates a colored accent around the main bee-eye face.
What does the rotating front disc do?
It supports vortex and kaleidoscope lens looks. See the demonstration video for examples.
Which DMX modes are listed?
The listed modes are 24, 26, 38, 81, 95, 100 and 102 channels.
Can it run without a DMX desk?
The supplied control options include sound, auto and master/slave operation as well as DMX512. Confirm the intended setup when requesting a quote.
Is it suitable for exposed outdoor use?
For rain-exposed positions, specify a fixture with a documented outdoor rating and a suitable weather plan. Share the venue conditions when requesting a quote.
What should I send for an accurate quotation?
Send the quantity, destination, venue dimensions, throw distance, control plan and preferred looks. Electrical configuration and commercial terms can then be confirmed for your order.
