OUTDOOR RENTAL LED DISPLAY SERIES

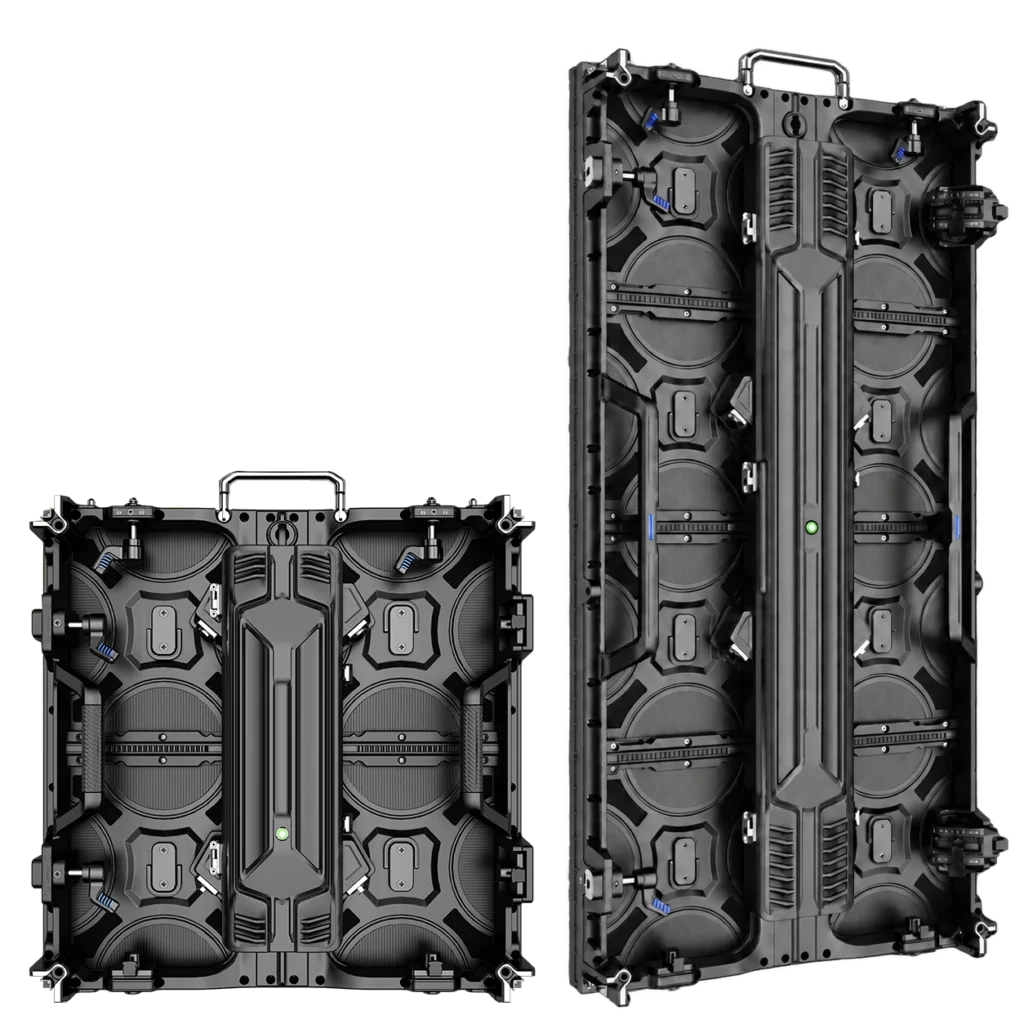

Outdoor Rental LED Display Cabinet Series overview
Outdoor Rental LED Display Cabinet Series. Plan outdoor rental LED walls around viewing distance, daylight brightness, camera use and installation method. Choose P2.604, P2.976 or P3.91 in 500×500mm and 500×1000mm cabinet formats for concerts, festivals, touring and temporary event screens. Compare related LED display systems before finalizing the rig or screen configuration. For controller setup, use NovaStar’s official downloads for the selected processor; compatibility is confirmed for the ordered system.
Outdoor pixel pitches
Choose P2.604, P2.976 or P3.91 around distance, scale and project budget.
Cabinet formats
Use 500×500mm for layout flexibility or 500×1000mm for faster wall coverage.
Camera-ready refresh
All three supplied outdoor configurations list a 7680Hz refresh rate.
Maintenance access
Rear service access is listed across the supplied outdoor series.
OUTDOOR PIXEL-PITCH DECISION
Choose Pixel Pitch by Distance and Screen Scale.
Use the nearest important viewing position, content detail, total screen pixels, camera plan and budget together. A finer pitch adds detail; a wider pitch can improve scale efficiency when the audience is farther away.
- Density
- 147,456 dots/m²
- Brightness
- 4000–4500 cd/m²
- LED
- SMD1415
- Density
- 112,896 dots/m²
- Brightness
- 4000–4500 cd/m²
- LED
- SMD1415
- Density
- 65,536 dots/m²
- Flagship brightness
- 3500–4200 cd/m²
- LED
- SMD1921
CABINET SIZE OPTIONS
Choose the Right Outdoor Cabinet Format.
Both formats use the current shared cabinet appearance. Confirm frame batch, locks, receiving-card mapping, curve requirements, power configuration and protection level before mixing sizes.

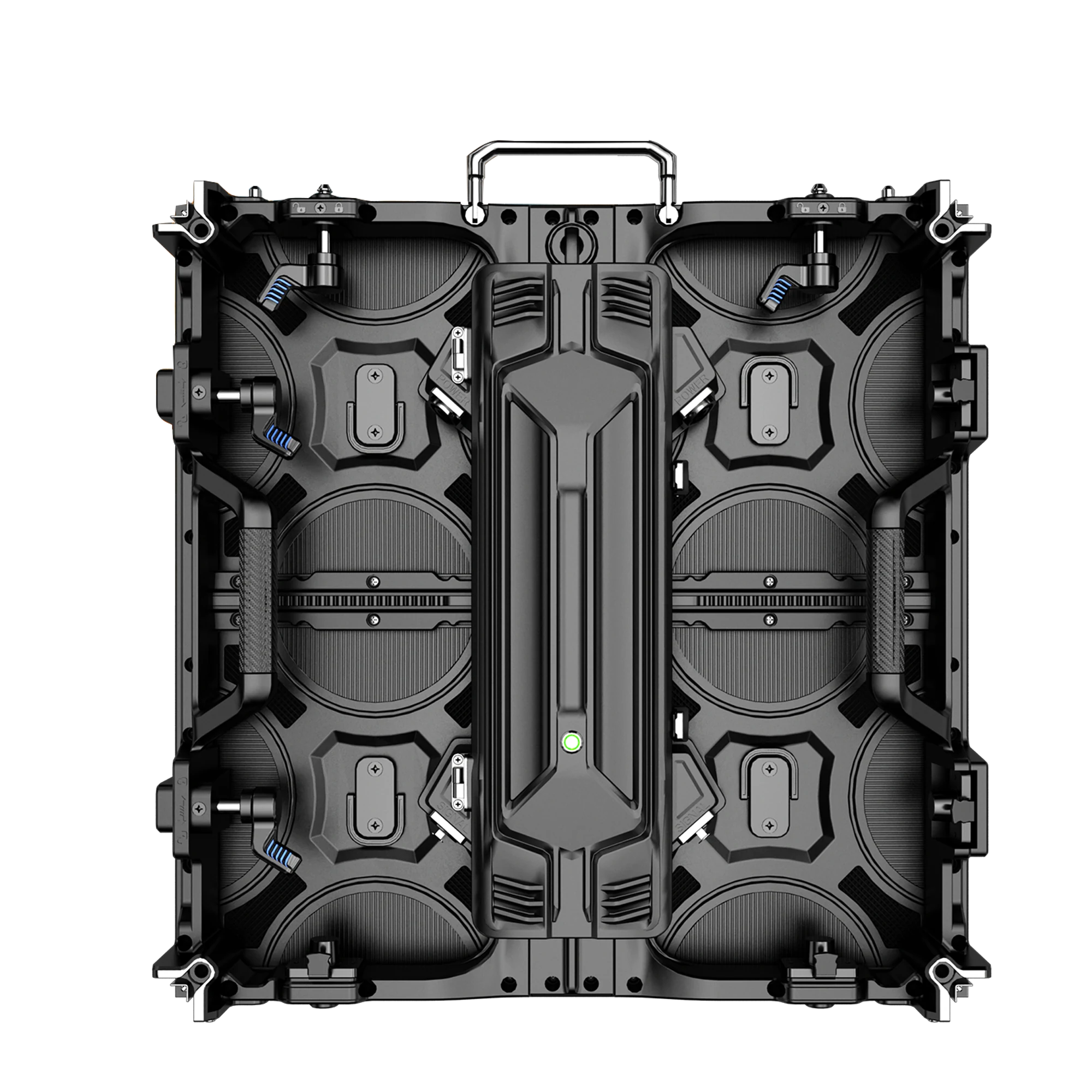

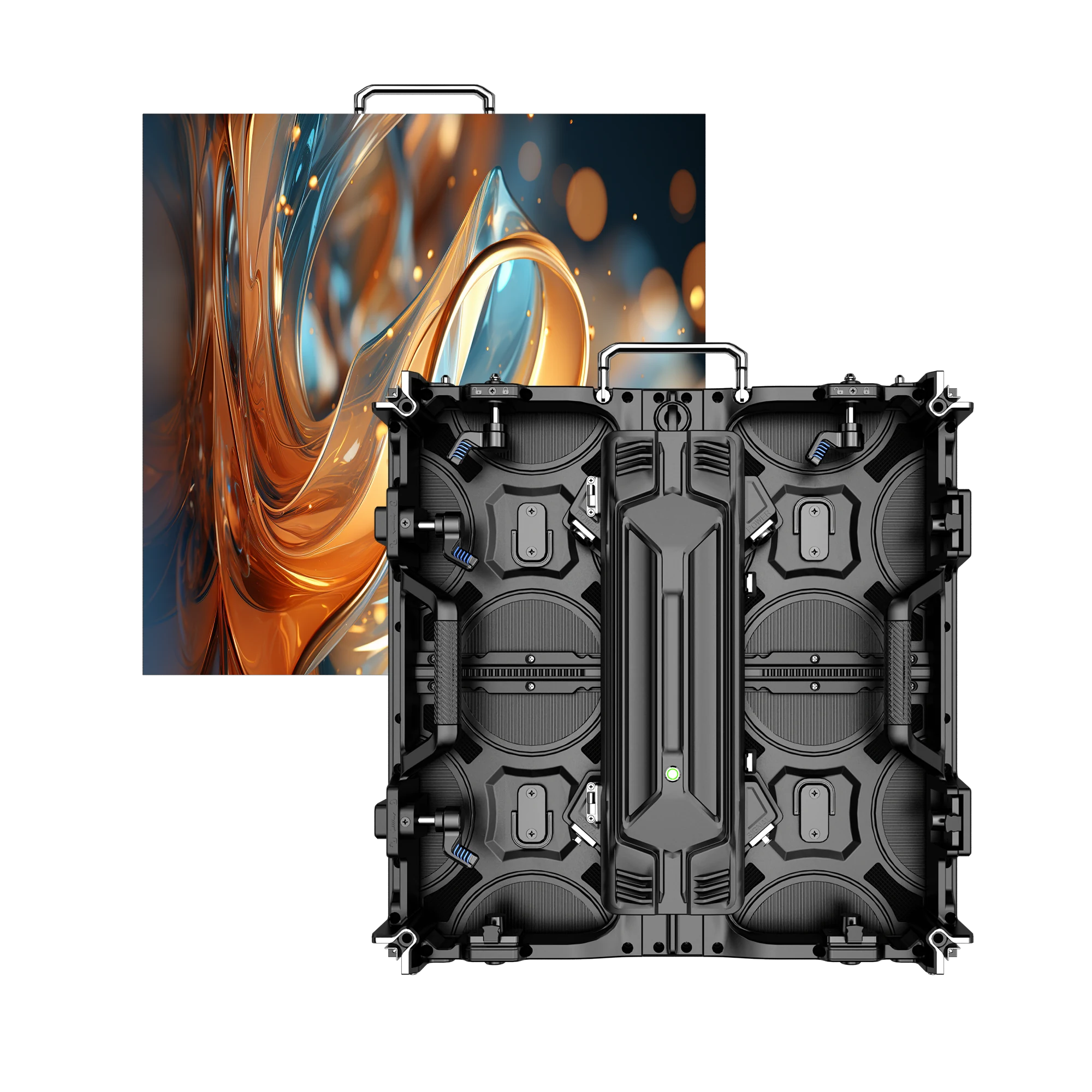

500×500mm Cabinet
- Format
- Square cabinet
- Best fit
- Flexible rows and partial-height layouts
- Planning
- Fine dimensional control

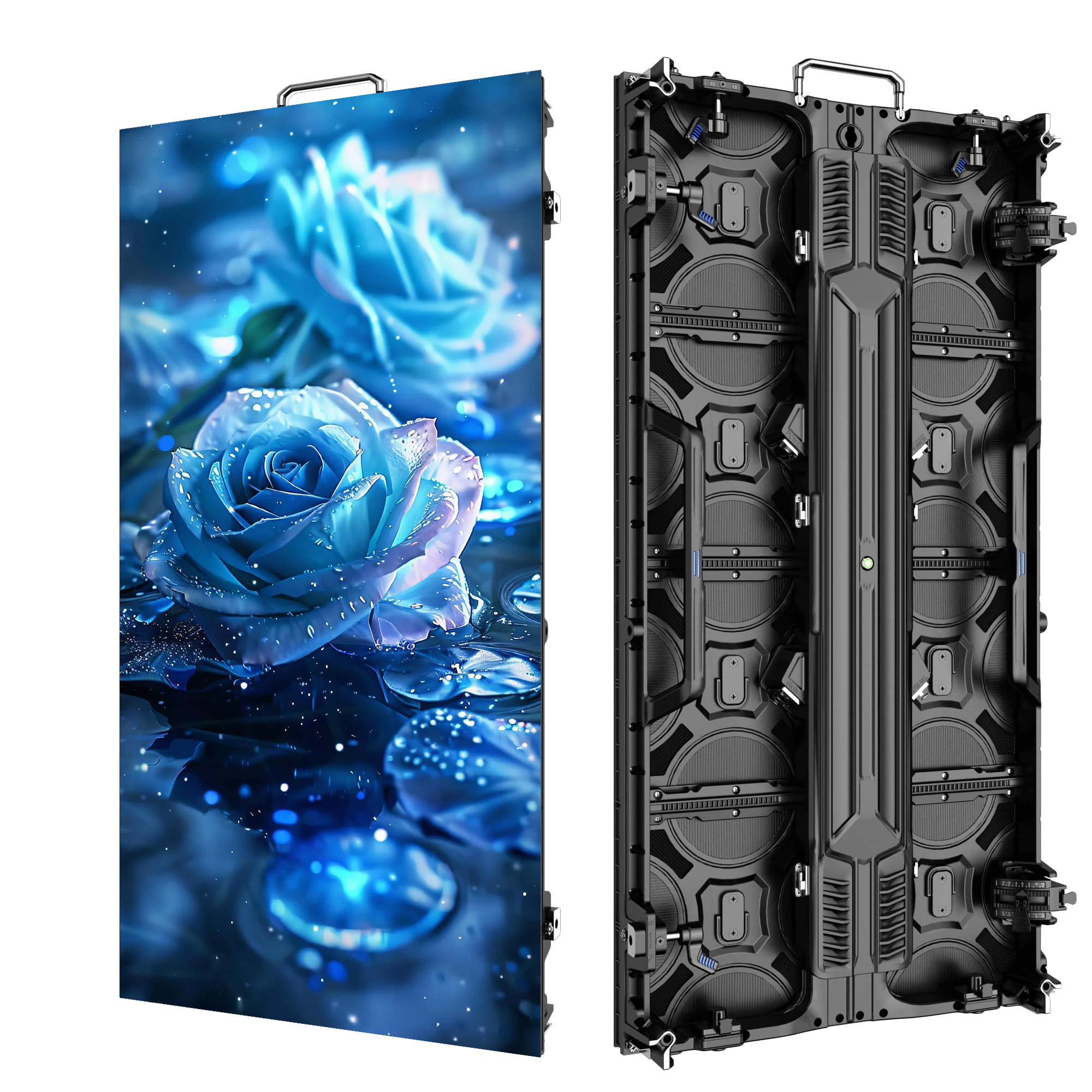

500×1000mm Cabinet
- Format
- Portrait cabinet
- Best fit
- Large rectangular rental walls
- Planning
- Fewer cabinets for standard walls
Cabinet appearance does not prove a protection rating. P3.91 flagship IP65 is verified on its dedicated product page; P2.604 and P2.976 protection levels require order confirmation.
CABINET DETAILS

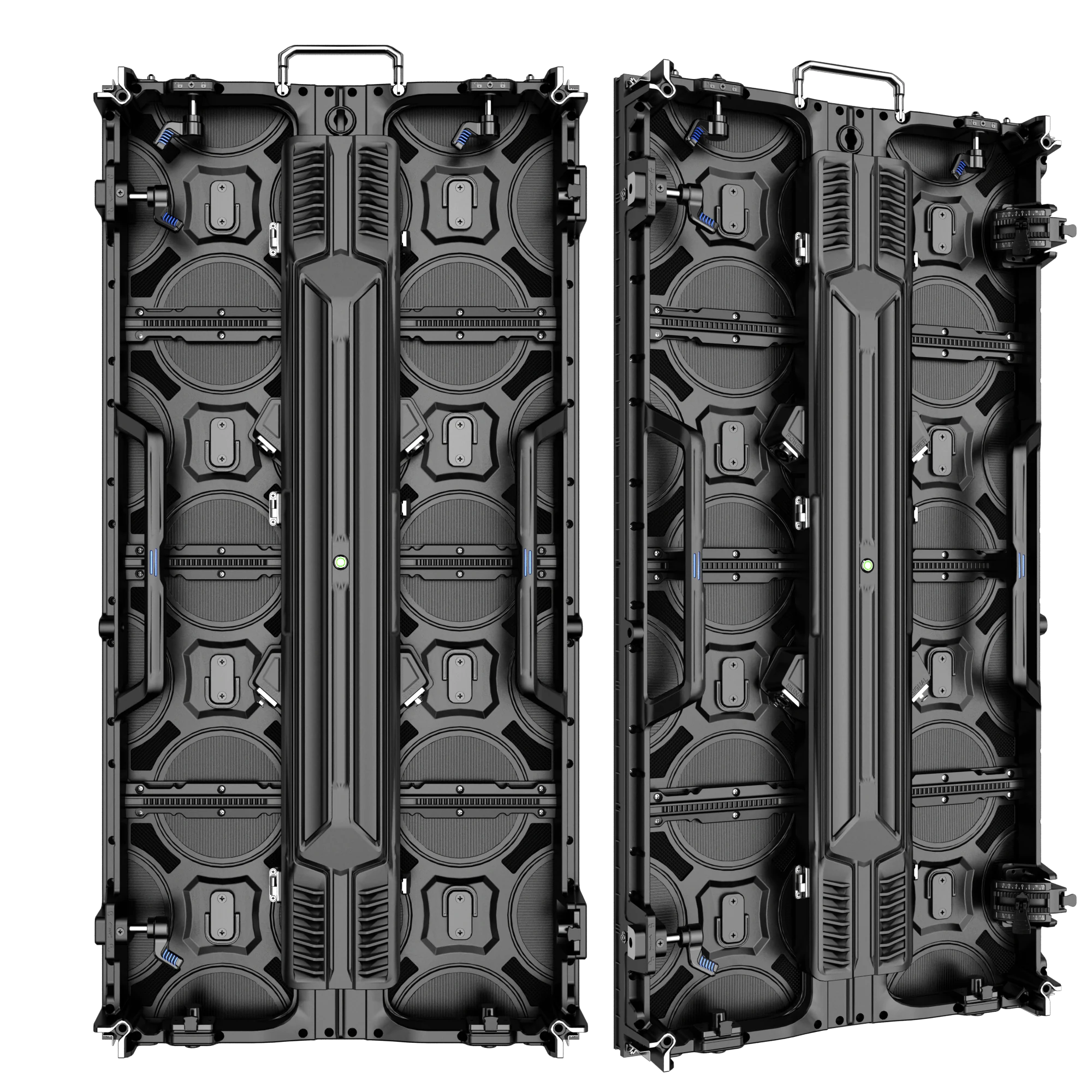

See Both Cabinet Formats in Full.
Review the rear structure, handles and cabinet proportions without image cropping. Confirm connectors, locks, curve hardware and service layout for the ordered production batch.
OUTDOOR CONFIGURATION COMPARISON
Compare Three Outdoor Pixel Pitches.
P3.91 follows the existing flagship single-product page values. Protection ratings for P2.604 and P2.976 remain order-confirmed rather than inferred.
| Configuration | P2.604 | P2.976 | P3.91 |
|---|---|---|---|
| LED type | SMD1415 | SMD1415 | SMD1921 |
| Pixel density | 147,456 dots/m² | 112,896 dots/m² | 65,536 dots/m² |
| Module | 250×250mm · 96×96 | 250×250mm · 84×84 | 250×250mm · 64×64 |
| Brightness | 4000–4500 cd/m² | 4000–4500 cd/m² | 3500–4200 cd/m² flagship reference |
| Refresh / gray scale | 7680Hz · 14-bit | 7680Hz · 14-bit | 7680Hz · 14-bit |
| Protection | Confirm ordered configuration | Confirm ordered configuration | IP65 flagship configuration |
CABINET RESOLUTION MATRIX
Plan Native Resolution by Cabinet Size.
Multiply cabinet resolution by the number of cabinets across and high to estimate the complete screen pixel load.
| Pixel pitch | 500×500mm cabinet | 500×1000mm cabinet |
|---|---|---|
| P2.604 | 192×192 px | 192×384 px |
| P2.976 | 168×168 px | 168×336 px |
| P3.91 | 128×128 px | 128×256 px |
SCREEN PLANNING EXAMPLES
See How Cabinet Size Changes the Build.
These complete-cabinet examples show native resolution before processor selection. Structural, wind, electrical and weather planning require project approval.
3m × 2m screen
6 cabinets wide × 4 cabinets high · 24 cabinets total
- P2.604
- 1152×768 px
- P2.976
- 1008×672 px
- P3.91
- 768×512 px
- Build area
- 6m²
4m × 2m screen
8 cabinets wide × 2 cabinets high · 16 cabinets total
- P2.604
- 1536×768 px
- P2.976
- 1344×672 px
- P3.91
- 1024×512 px
- Build area
- 8m²
Specifications
Technical specifications
| Model | P2.604 / P2.976 / P3.91 |
|---|---|
| IP rating | P3.91 flagship: IP65; other configurations confirm per order |
| Pixel pitch | P2.604 / P2.976 / P3.91 |
| Brightness | 3500–4500 cd/m², configuration dependent |
| Refresh rate | 7680Hz |
| Cabinet size | 500×500mm / 500×1000mm |
| Scan mode | Confirm per ordered configuration |
PERFORMANCE BY CONFIGURATION
Plan Camera, Power and Service Requirements.
The three supplied outdoor configurations share the listed performance references below. Protection level remains configuration-specific and must be confirmed separately.
Gray scale
Listed across P2.604, P2.976 and P3.91 outdoor configurations.
Viewing angle
Horizontal and vertical viewing references for project planning.
Power per square meter
Listed maximum and average power references across the supplied series.
Refresh rate
High-refresh reference for camera-facing outdoor event workflows.
OUTDOOR APPLICATION FIT
Match the Screen to the Event Environment.
OUTDOOR PROJECT CHECKLIST
Confirm the Complete Outdoor LED Wall.
The cabinet is only one part of the system. A qualified outdoor plan must cover exposure, structure, signal, power and the operating workflow.
Brightness target
Match brightness to daylight exposure, viewing direction and operating hours.
Protection boundary
Confirm cabinet, connectors, distribution and complete installation protection.
Wind and support
Engineer hanging or ground support for the actual site and screen dimensions.
Refresh and scan
Confirm the ordered refresh, scan configuration and camera workflow.
Total pixel load
Match processor capacity, inputs, outputs, backup and cable runs.
Power, spares and access
Plan distribution, service space, spare modules, receiving cards and packing.
B2B PROJECT FLOW
Turn the Outdoor Screen Plan Into a Quotation.
OUTDOOR LED DISPLAY FAQ
Questions Before You Plan an Outdoor Screen.
Direct answers about pixel pitch, cabinet size, brightness, protection, installation and quotation planning.
Which pixel pitches are available in this outdoor series?
The series lists P2.604, P2.976 and P3.91 in 500×500mm and 500×1000mm cabinet formats.
Which option provides the highest pixel density?
P2.604 is the highest-density listed option at 147,456 dots/m². Choose it only when the viewing distance, content, screen size and budget justify the additional pixel load.
What brightness is listed for the outdoor configurations?
P2.604 and P2.976 list 4000–4500 cd/m². The existing P3.91 flagship product page retains its verified 3500–4200 cd/m² reference.
Are all three configurations IP65?
No universal IP65 claim is made. The dedicated P3.91 flagship configuration is verified as IP65; P2.604 and P2.976 protection levels must be confirmed for the ordered configuration.
Can I mix 500×500mm and 500×1000mm cabinets?
Mixed-size planning is possible only after frame, lock, receiving-card, power and batch compatibility are confirmed.
Can the outdoor cabinets be hung or stacked?
Outdoor rental systems may be planned for hanging or stacking, but structure, ballast, wind loading and safety engineering must be approved for the actual site.
How do I calculate total screen resolution?
Multiply the native cabinet resolution by the number of cabinets across and high, then confirm processor capacity, output mapping and backup requirements.
What should I send for a quotation?
Send screen dimensions, viewing distance, venue, daylight exposure, installation method, camera use, quantity, destination, processor needs, power, spares, packing and schedule.
