RGB LASER · THREE LED RINGS
5W / 10W RGB Moving Head Laser — combine animated RGB laser cues with ring effects.
5W / 10W RGB Moving Head Laser offers 5W and 10W RGB full-color laser configurations, three-layer color-effect LED strips and 256 laser animation patterns. Fixture power is 300W, with 20CH and 25CH control profiles.
5W / 10W RGB laser
Choose the RGB output configuration for the order.
Three-layer LED strip
Three concentric color-effect LED strips surround the laser aperture.
30Kpps · 256 patterns
Galvanometer scanning is specified at 30Kpps, with 256 laser animation patterns.
540° pan / 270° tilt
Mechanical movement is separately specified from the ±20° laser scanning angle.
SUPPLIED PRODUCT VIEWS
Review the scanner, pattern and rear-panel illustrations.

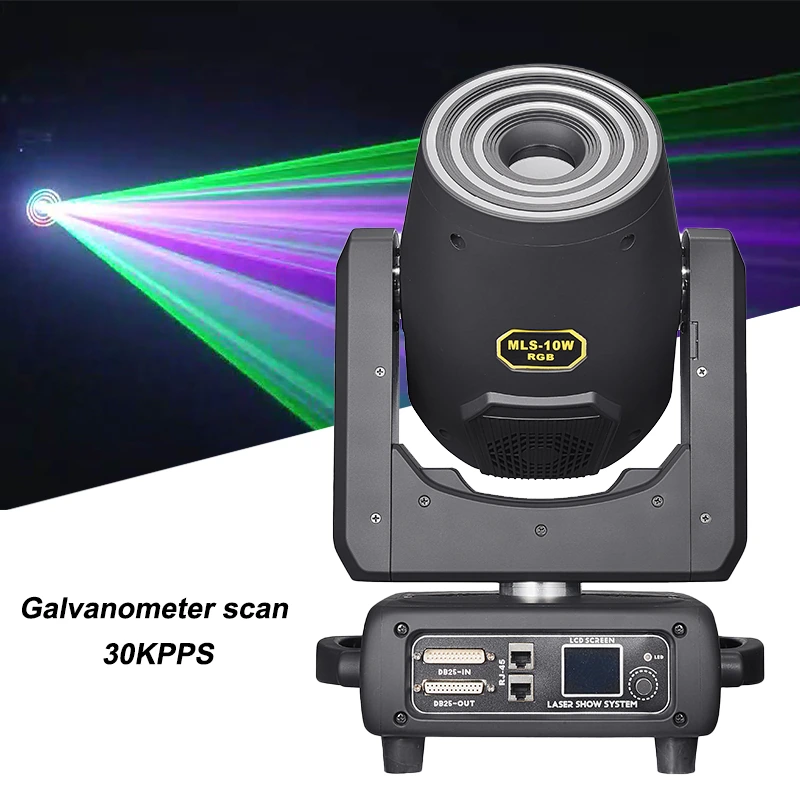

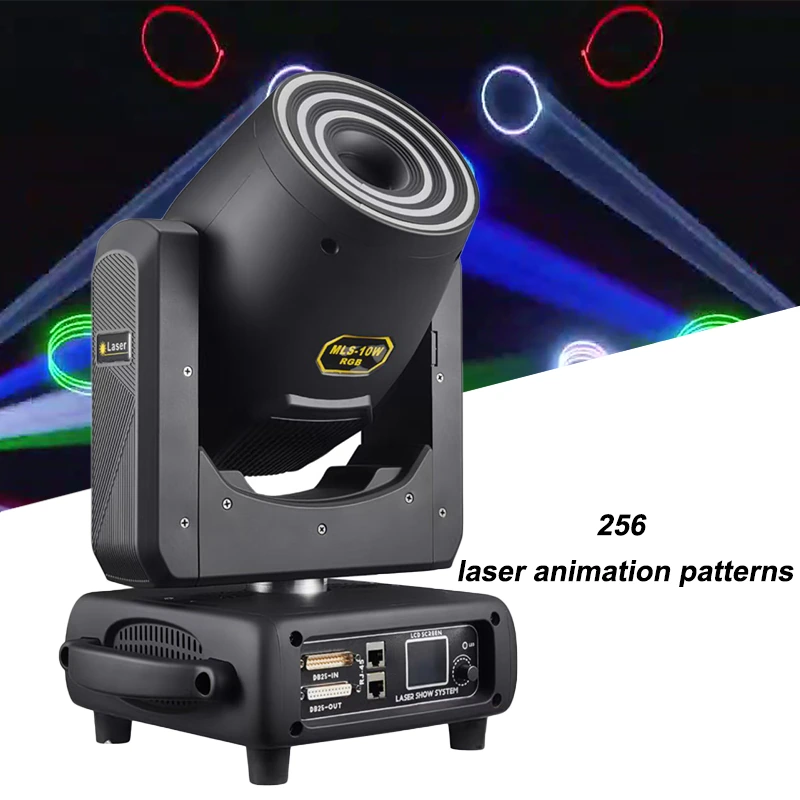

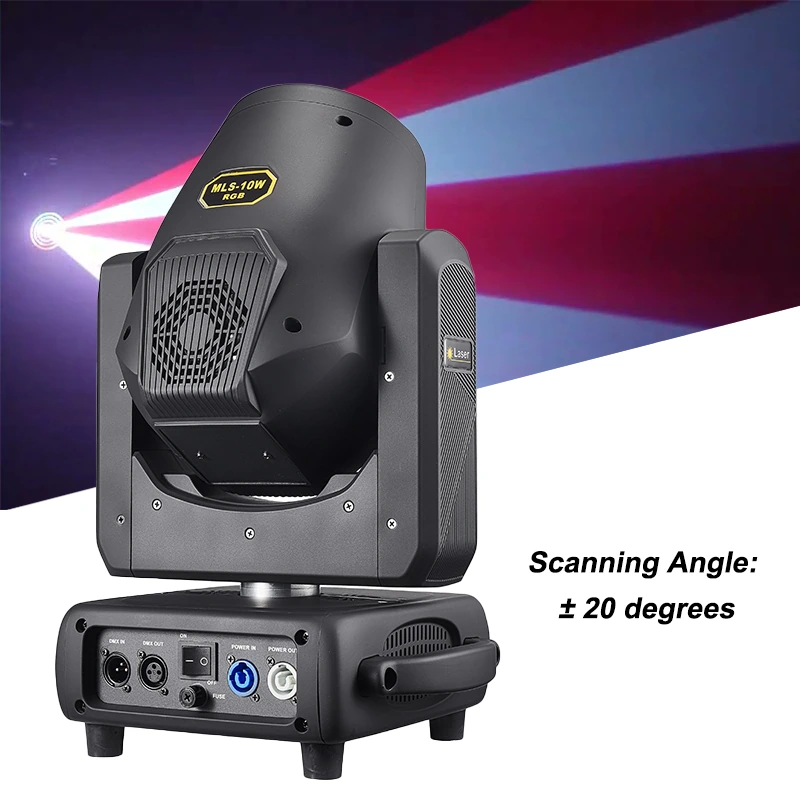

These supplied promotional composites show the fixture, rear connections and illustrated laser effects. The images support the product brief; they are not measured output or installation photographs.
Specifications
Technical specifications
| Model | RG-769 |
|---|---|
| Public product power | 300W |
| Light source | 5W or 10W RGB laser + three-layer color-effect LED strip |
| Rated fixture power | 300W |
| Voltage | AC110–220V, 50–60Hz |
| DMX channels | 20CH / 25CH |
| Product dimensions | 29 × 24 × 45cm |
| Net weight | 10kg |
| Gross weight | 12kg |
| Control modes | DMX512 / Sound / Auto / ILDA interface / Art-Net |
| Color system | RGB full-color laser |
| Effect type | Laser animation and three-layer LED ring effects |
| Movement | 540° pan / 270° tilt |
LASER VERSIONS
Choose 5W or 10W RGB output.
The 10W configuration lists red 3W at 638nm, green 3W at 525nm and blue 4W at 447nm. The 5W configuration lists red 1W, green 1W and blue 3W; wavelengths for that version are not specified.
SCANNING AND MOVEMENT
Separate laser scanning from pan and tilt.
Laser scanning uses a 30Kpps galvanometer system with a ±20° scanning angle. Mechanical movement is specified as 540° horizontal and 270° vertical. The listed pattern library contains 256 laser animations.
CONTROL AND POWER
Match the control profile and supply.
DMX512, Sound, Auto, ILDA interface and Art-Net are the listed control methods. Choose 20CH or 25CH and request the matching channel chart and interface instructions. Rated fixture power is 300W, with AC110–220V input at 50–60Hz.
DIMENSIONS AND PACKING
Plan fixture space and shipment weight.
Bare fixture dimensions are 29 × 24 × 45cm, with a 10kg net weight. Packaging dimensions are 50 × 35 × 37cm and gross weight is 12kg.
APPLICATION FIT
Plan animated laser and LED ring cues.
For stage, DJ and entertainment briefs, choose the output version and define laser animation, ring effects, fixture positions and control requirements.
Compare other laser lights by output configuration and control interfaces.
B2B ORDER FLOW
Request the RG-769 configuration and quotation.
For your 5W / 10W RGB Moving Head Laser order, identify the required laser version, controller setup and delivery information. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
RGB versions, animation, control and handling.
Which laser versions are offered?
RGB full-color 5W and 10W configurations are listed. Specify the required output version in your order.
What are the RGB component ratings?
10W: red 3W at 638nm, green 3W at 525nm and blue 4W at 447nm. 5W: red 1W, green 1W and blue 3W; that version’s wavelengths are not specified.
What LED strips and patterns are included?
Three-layer color-effect LED strips and 256 laser animation patterns are listed.
What scanner and scanning angle are specified?
The galvanometer scanning system is 30Kpps, with a ±20° scanning angle.
What are the mechanical movement ranges?
Horizontal pan is 540° and vertical tilt is 270°, separate from laser scanning angle.
Which controls, channels and supply are specified?
DMX512, Sound, Auto, ILDA and Art-Net are listed, with 20CH/25CH profiles. Rated fixture power is 300W; input is AC110–220V at 50–60Hz.
What are the dimensions and weights?
Bare fixture: 29 × 24 × 45cm and 10kg net. Packaging: 50 × 35 × 37cm and 12kg gross.
What should I include in a quotation request?
Send quantity, 5W or 10W version, animation and ring cues, controller/interface setup, fixture positions, supply, plug, destination and delivery date.
