OUTPUT OPTIONS
IP65 Outdoor Laser Projector overview
The range offers 20W, 30W, 50W and 100W laser output. These values are separate from the listed 1300–2000W equipment-consumption range.
20W
Listed lower-output option.
30W
Additional project-output choice.
50W
Listed higher-output choice.
100W
Highest listed output in the series.
OUTDOOR EFFECTS

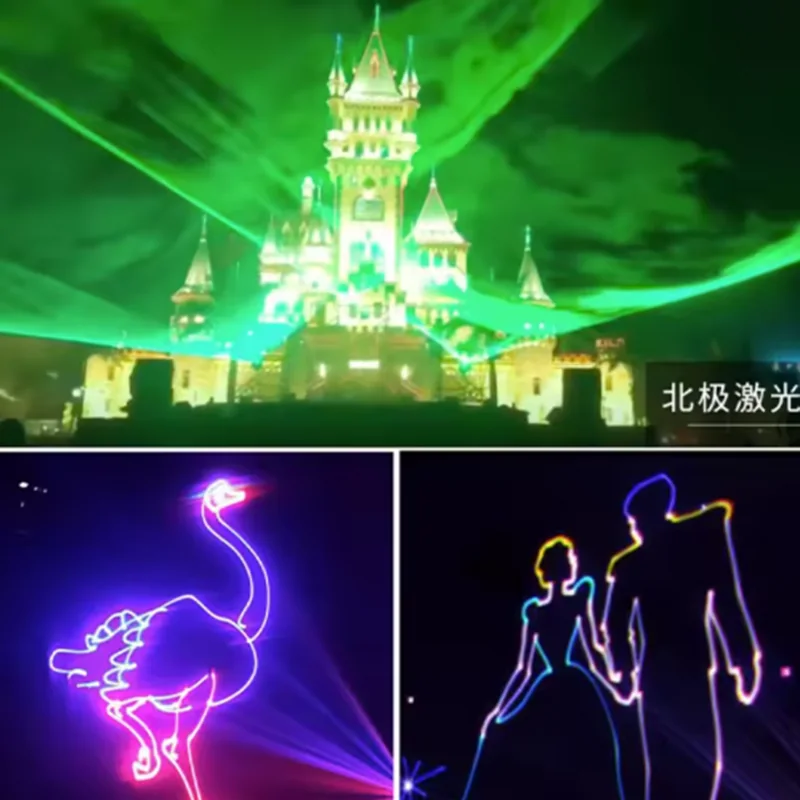

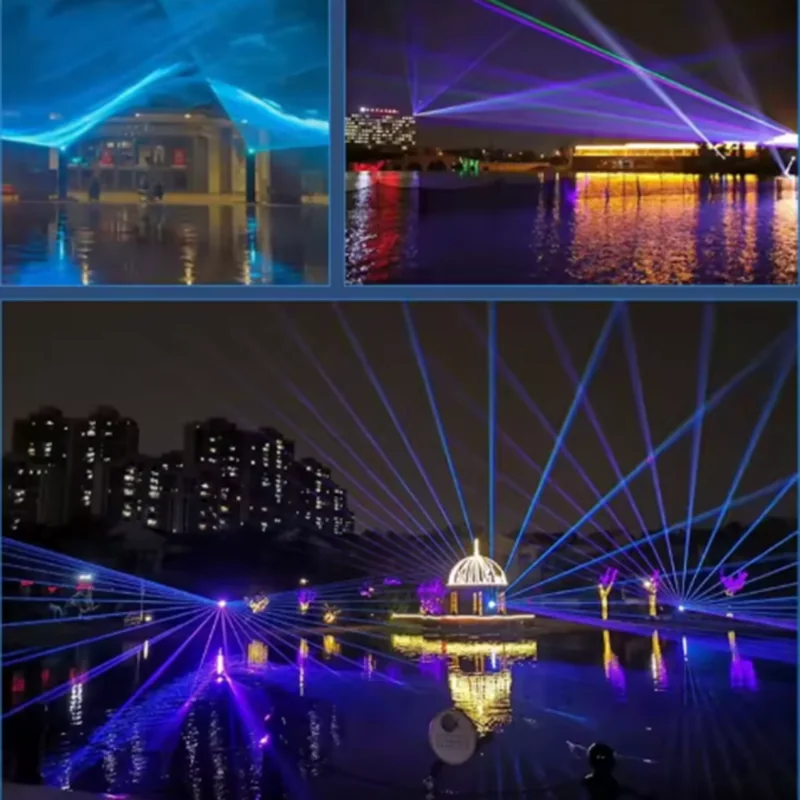

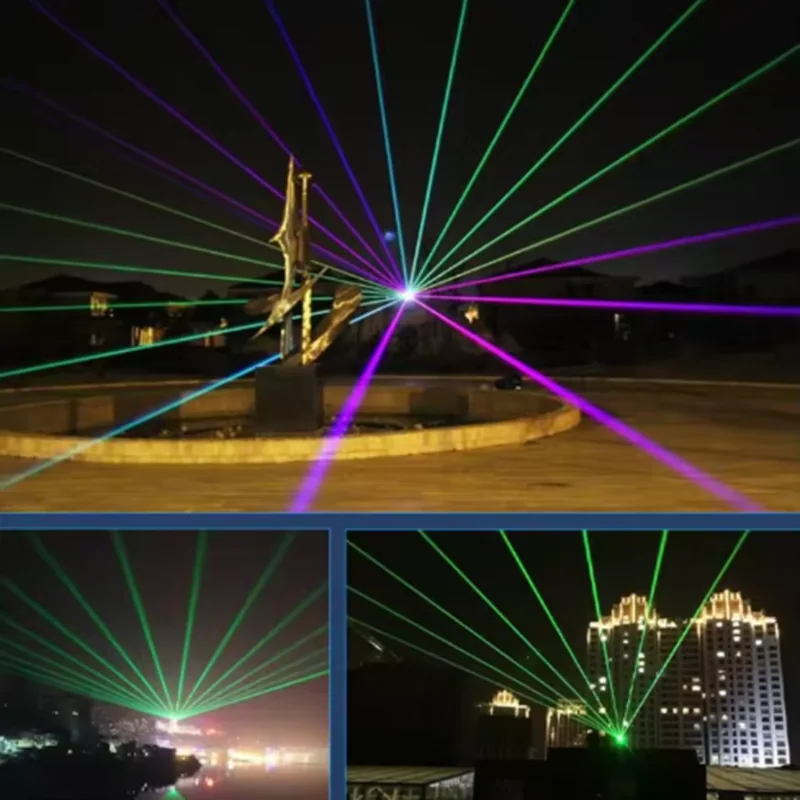

See visual directions from the supplied outdoor examples.
The collages are visual references, not measured distance or single-unit performance claims.
SCAN & MODULATION
Define motion and beam geometry from the listed figures.
The supplied data lists 30–40Kpps scanning, analog modulation above 100kHz, full-angle divergence below 1.6mrad and a standard 60° scan angle. Manual 360° adjustment describes orientation, not scan angle.
PRODUCT VIEWS

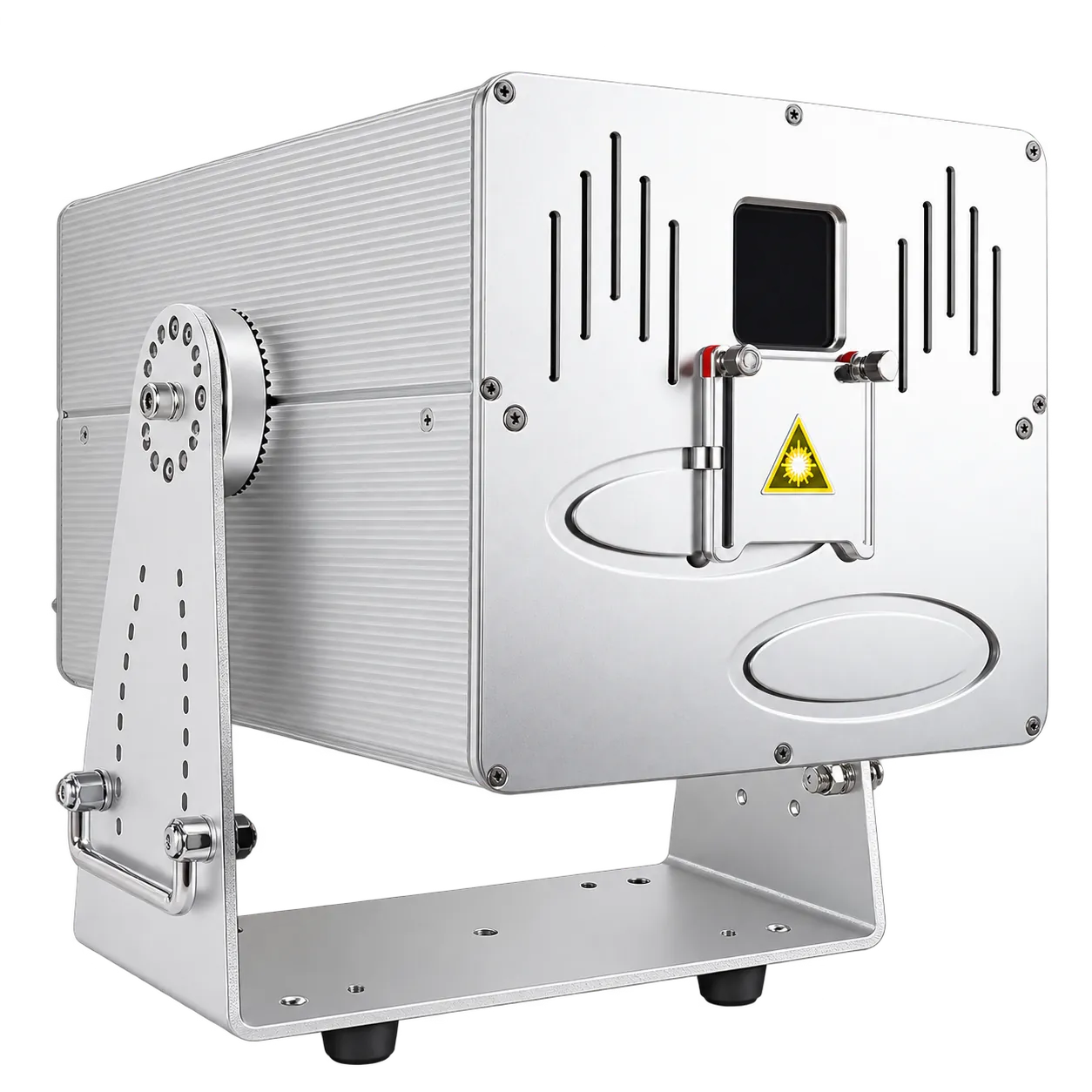

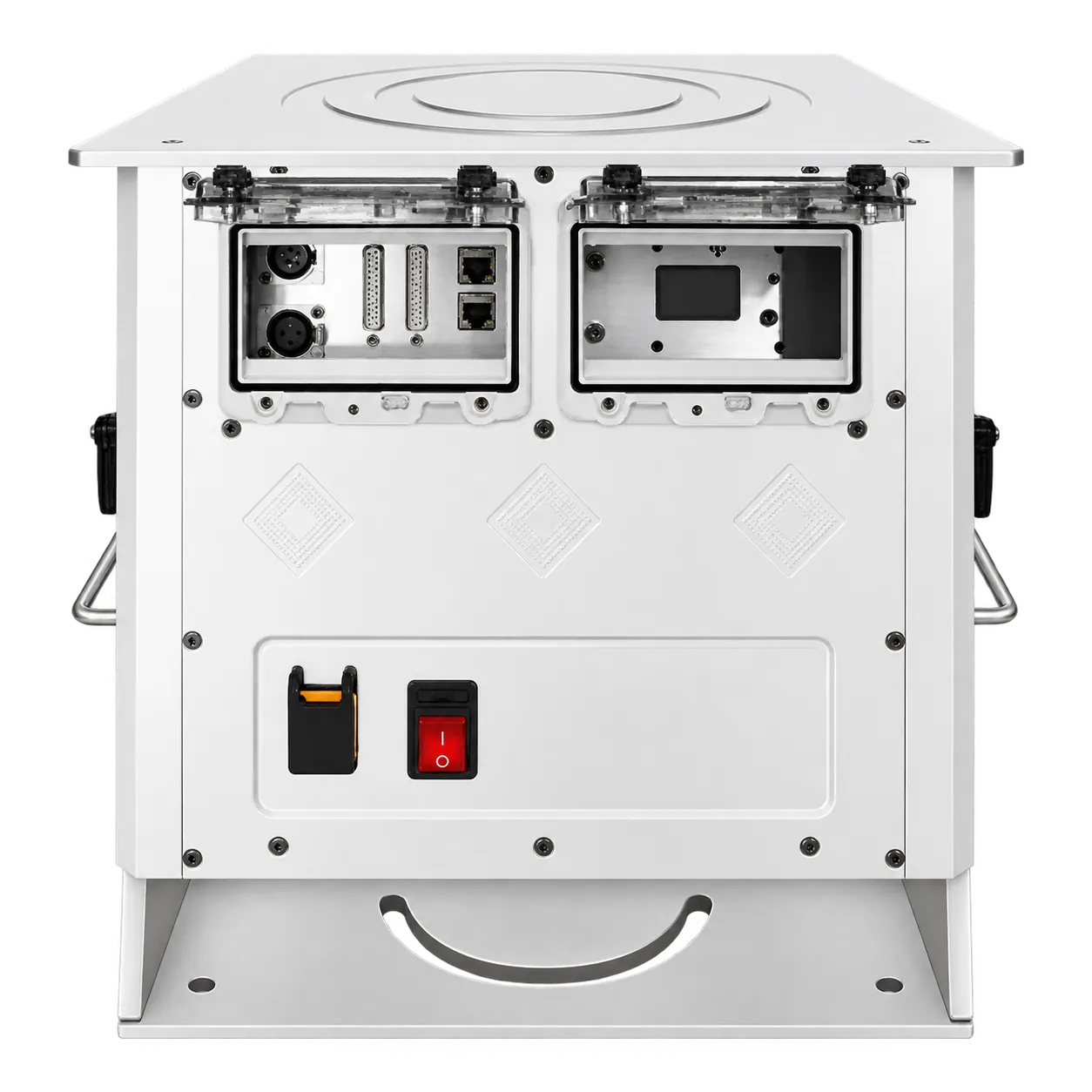

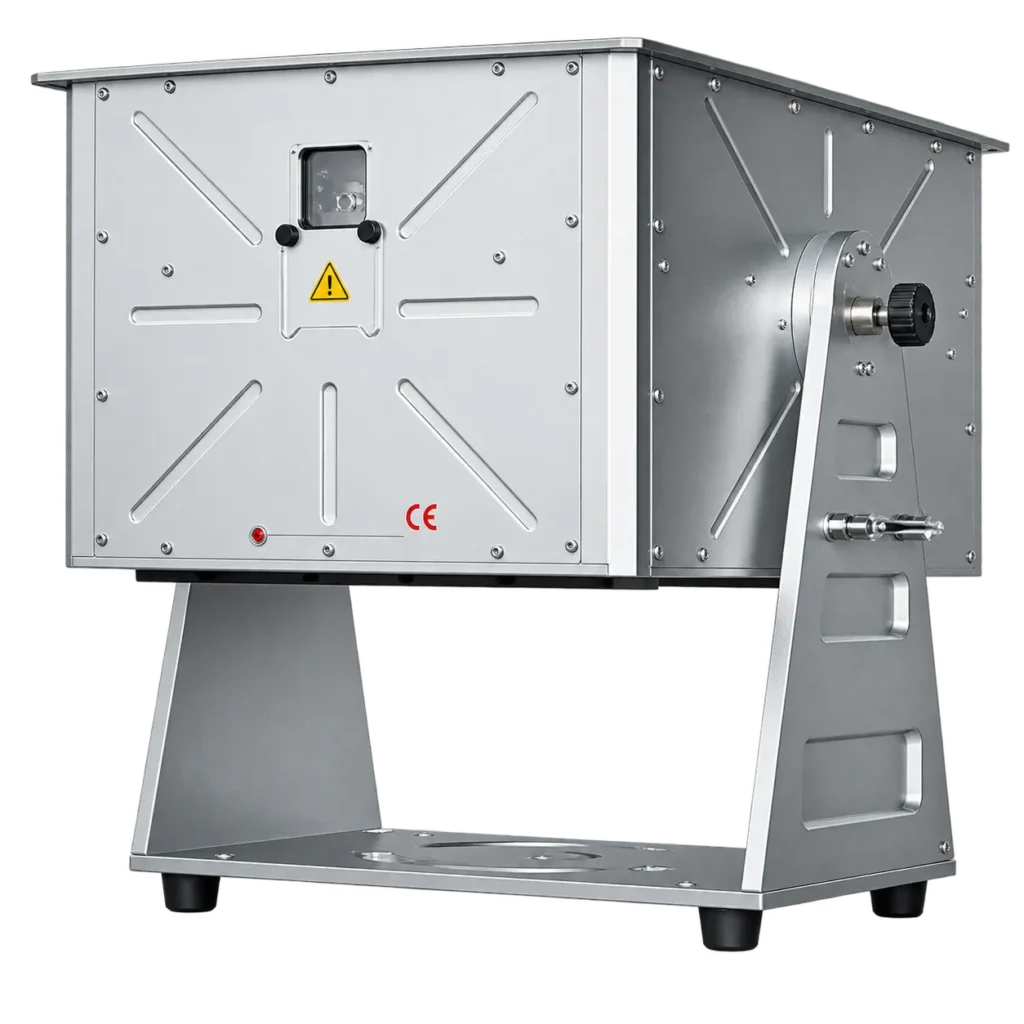

Inspect the silver housing, bracket and rear access.
Use these supplied views to discuss mounting and cable access; they do not prove the protection of the complete connected system.
Specifications
Technical specifications
| Model | RG-758 |
|---|---|
| Public product power | 20W / 30W / 50W / 100W laser output |
| Rated fixture power | 1300–2000W listed equipment-consumption range |
| Voltage | 220V, 50/60Hz |
| IP rating | IP65 |
| Product dimensions | 500 × 488 × 364mm |
| Net weight | 44kg listed body weight |
| Control modes | PC with ILDA software; DMX512 |
| Effect type | 30–40Kpps outdoor laser projection |
APPLICATION FIT
Build the outdoor installation around the whole system.
For IP65 Outdoor Laser Projector projects, the projector body is listed IP65. A complete show still needs appropriate power and data connections, mounting, weather planning and controlled beam paths for the actual site. Compare related laser lighting options when planning your lighting rig.
B2B ORDER FLOW
Specify output and the complete outdoor laser system.
Specify the 20W, 30W, 50W or 100W output version with the outdoor site, projection content and PC/ILDA or DMX workflow. Include the available 220V supply, weather exposure, mounting and cable plan. The listed consumption range is separate from laser output; request version-specific electrical data before distribution planning. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
Direct answers about configuration, control, installation and quotation.
Which laser-output versions are available?
The listed choices are 20W, 30W, 50W and 100W.
Is laser output the same as equipment consumption?
No. Output versions are separate from the listed 1300–2000W equipment-consumption range.
What protection rating is stated?
The projector body is listed IP65; power, data, mounting and the remaining installation need their own protection plan.
What scanning speed is listed?
The specification lists 30–40Kpps scanning and analog modulation above 100kHz.
What is the stated divergence?
The listed full-angle divergence is below 1.6mrad. The spot-size figure has no supplied measurement distance.
Does 360° describe the scan angle?
No. The standard scan angle is 60°; 360° is the listed manual orientation adjustment.
How is the projector controlled?
The supplied control paths are PC with ILDA software and DMX512.
What should I include in my inquiry?
Send output version, quantity, destination, site and weather conditions, mounting position and control plan.
