Interactive LED Floor Screen overview
This interactive LED floor screen uses 500×1000mm cabinets with P2.5, P2.604, P2.976 or P3.91 configurations. Supplied product and demonstration images document the cabinet structure, rear service access and responsive floor content; load, surface protection and interaction hardware are confirmed for each order. For controller setup, use NovaStar’s official downloads for the selected processor; compatibility is confirmed for the ordered system.
Four pixel-pitch options
Select the viewing-distance and resolution balance around the project dimensions.
Modular floor cabinet
Plan the floor area with a consistent half-square-meter cabinet format.
High-refresh reference
The supplied standard and high-brightness specifications both list 7680Hz refresh.
Brightness configuration
Choose 700–1000cd/m² standard brightness or 2000–3000cd/m² high brightness.
BRIGHTNESS CONFIGURATIONS
Select the LED package and output range together.
The two supplied series share the cabinet format, refresh rate, gray scale and viewing angles. High brightness alone does not establish an outdoor or waterproof rating.
| Specification | Standard brightness | High brightness |
|---|---|---|
| LED type | SMD1515 | SMD1415 |
| Brightness | 700–1000cd/m² | 2000–3000cd/m² |
| Refresh rate | 7680Hz | 7680Hz |
| Gray scale | 14 bit | 14 bit |
| Maximum power | 600W/m² | 800W/m² |
| Average power | 150W/m² | 250W/m² |
| Viewing angle | 160° horizontal / 140° vertical | 160° horizontal / 140° vertical |
PIXEL-PITCH COMPARISON
Match pitch and native cabinet resolution.
These module and cabinet resolutions follow the supplied configuration table. Final production mapping is confirmed with the selected controller and ordered brightness version.
| Specification | P2.5 | P2.604 | P2.976 | P3.91 |
|---|---|---|---|---|
| Module size | 250×250mm | 250×250mm | 250×250mm | 320×160mm |
| Module resolution | 100×100 | 96×96 | 84×84 | 64×64 |
| Cabinet size | 500×1000mm | 500×1000mm | 500×1000mm | 500×1000mm |
| Cabinet resolution | 200×400 | 192×384 | 168×336 | 128×256 |
| Pixel density reference | 160,000 dots/m² | 147,456 dots/m² | 112,896 dots/m² | 65,536 dots/m² |
CABINET STRUCTURE
Inspect five supplied cabinet and service views.

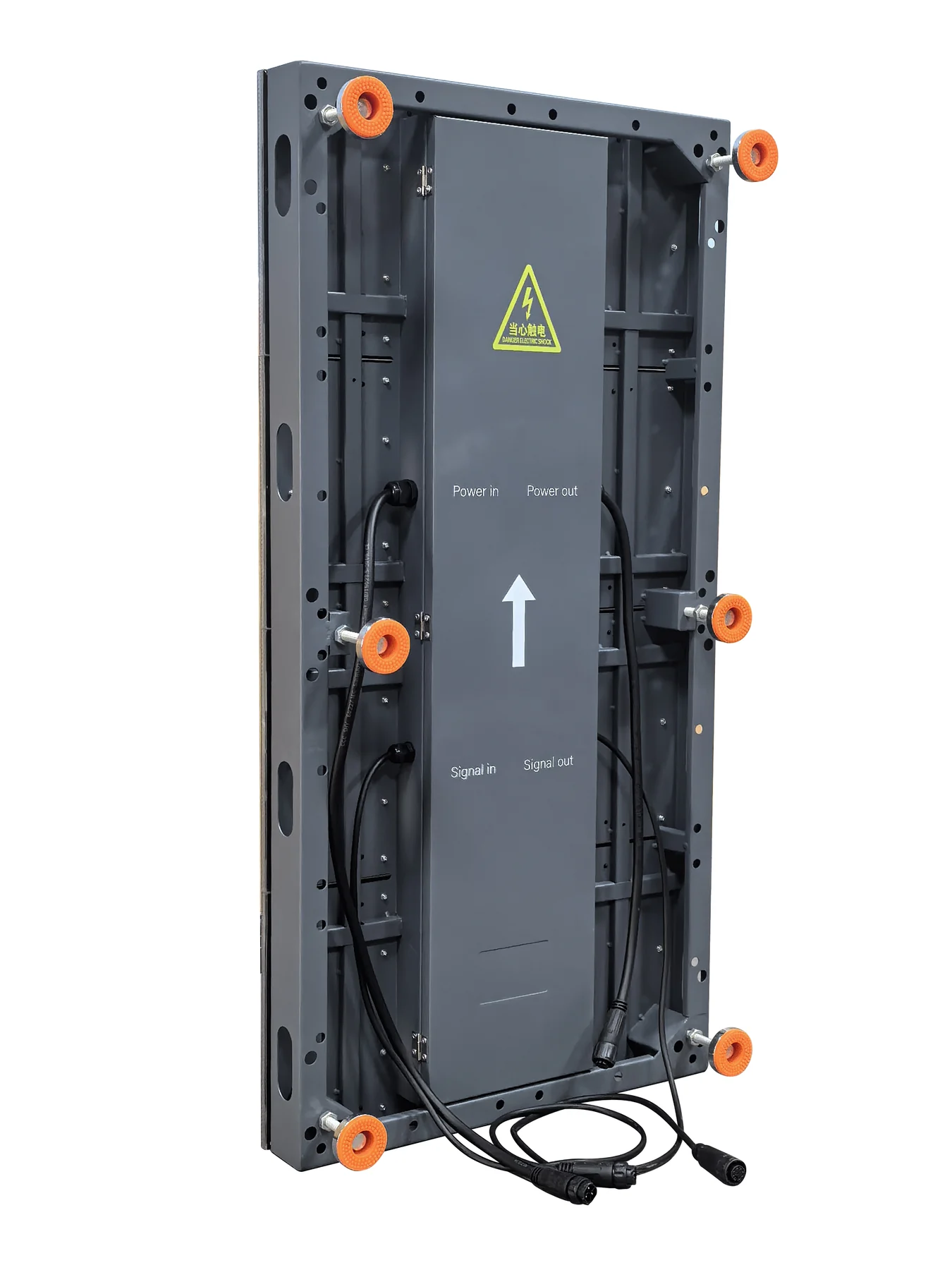

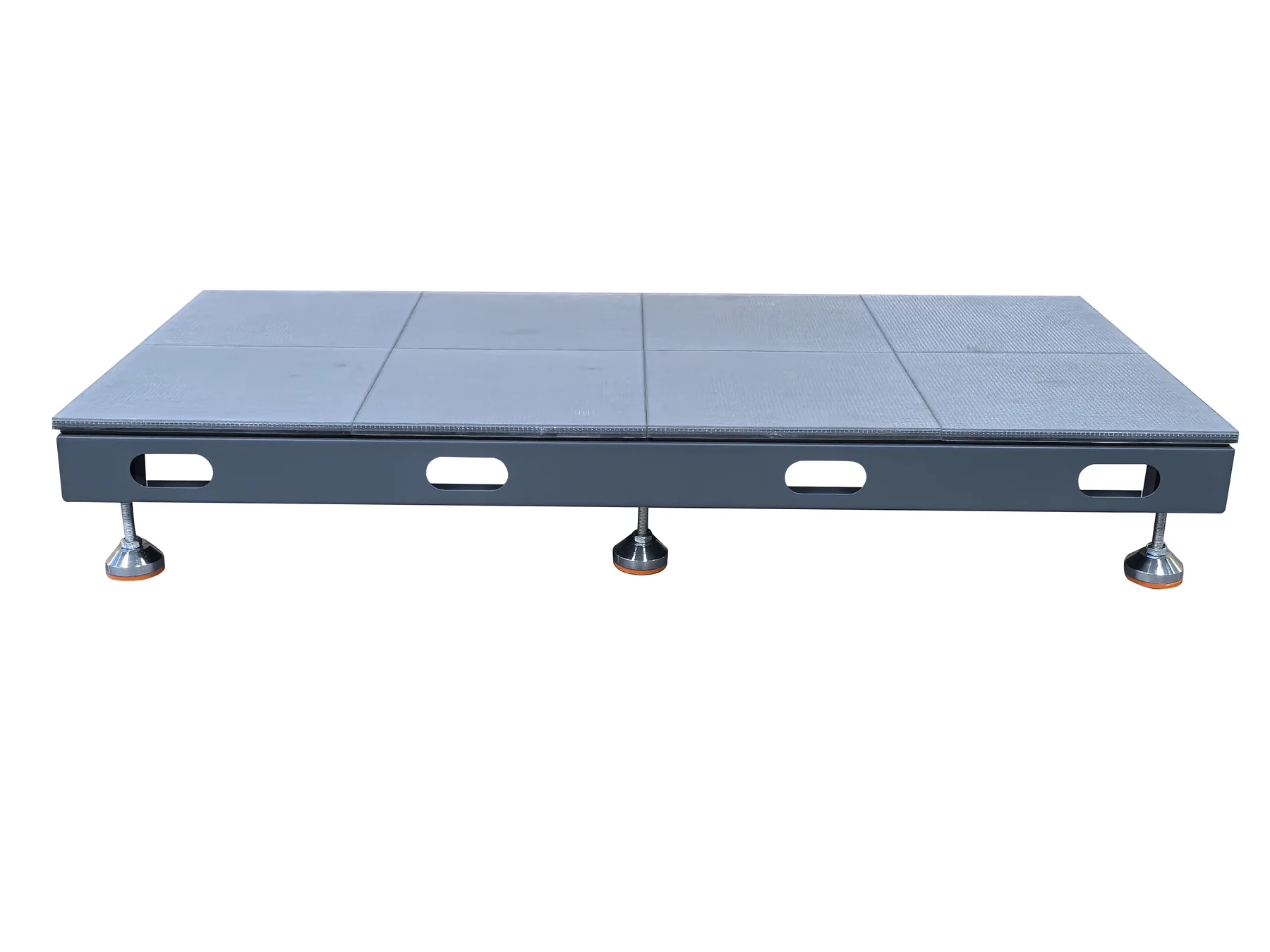

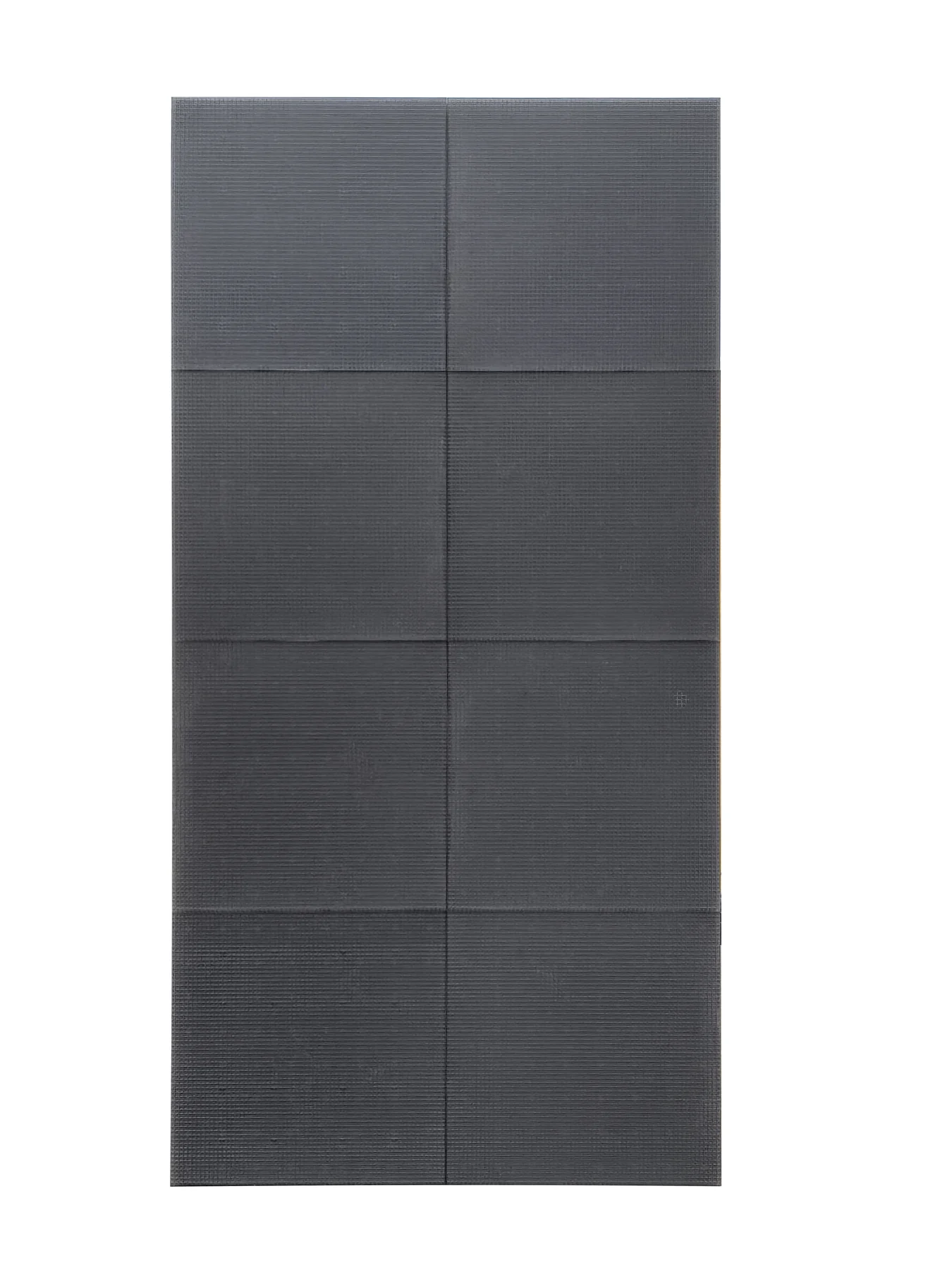

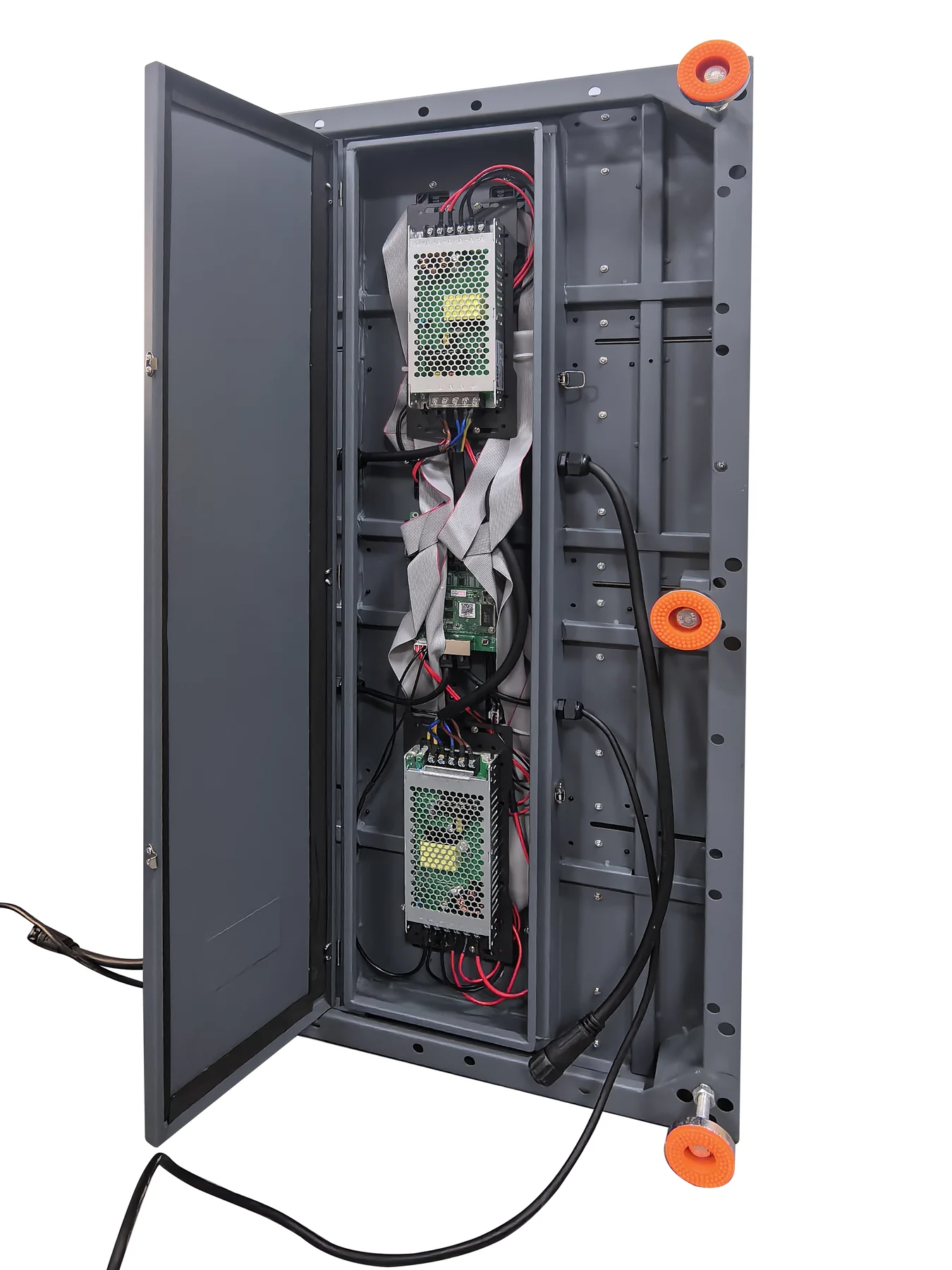

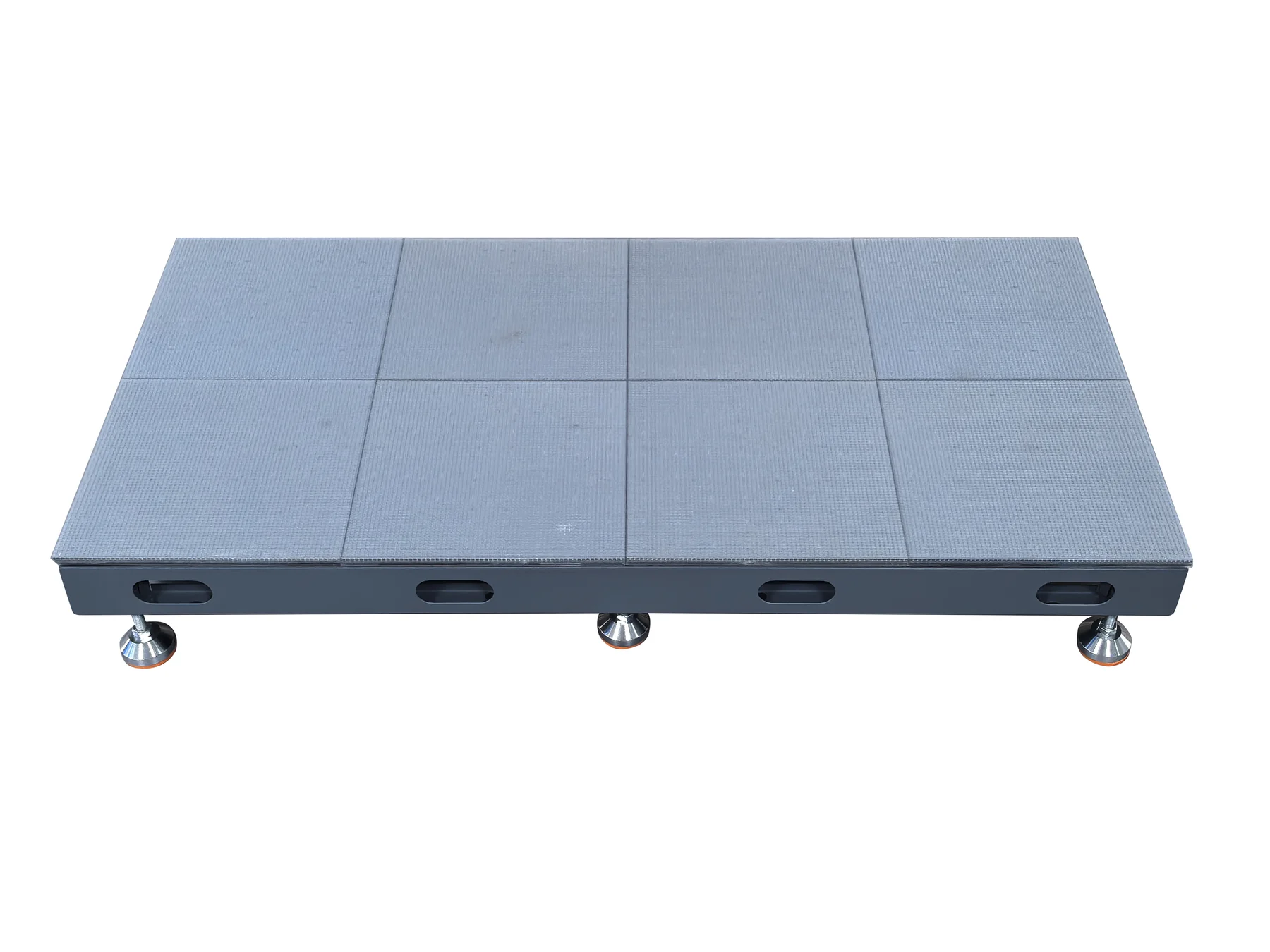

The images show the module layout, metal frame, adjustable support feet, labeled power and signal connections, and rear access to power and control components.
REAL INTERACTIVE DEMONSTRATION
Review three supplied operating views.

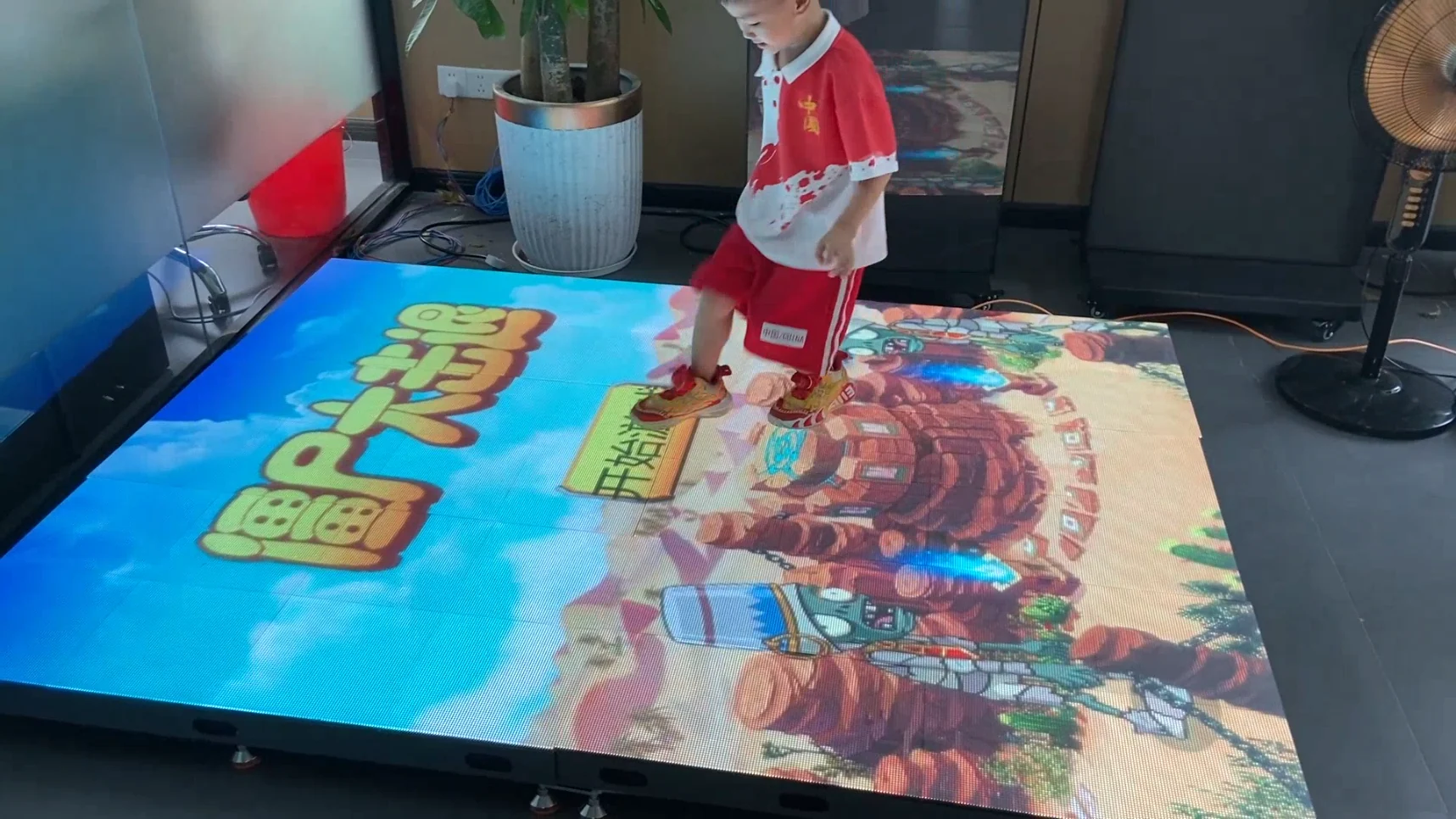

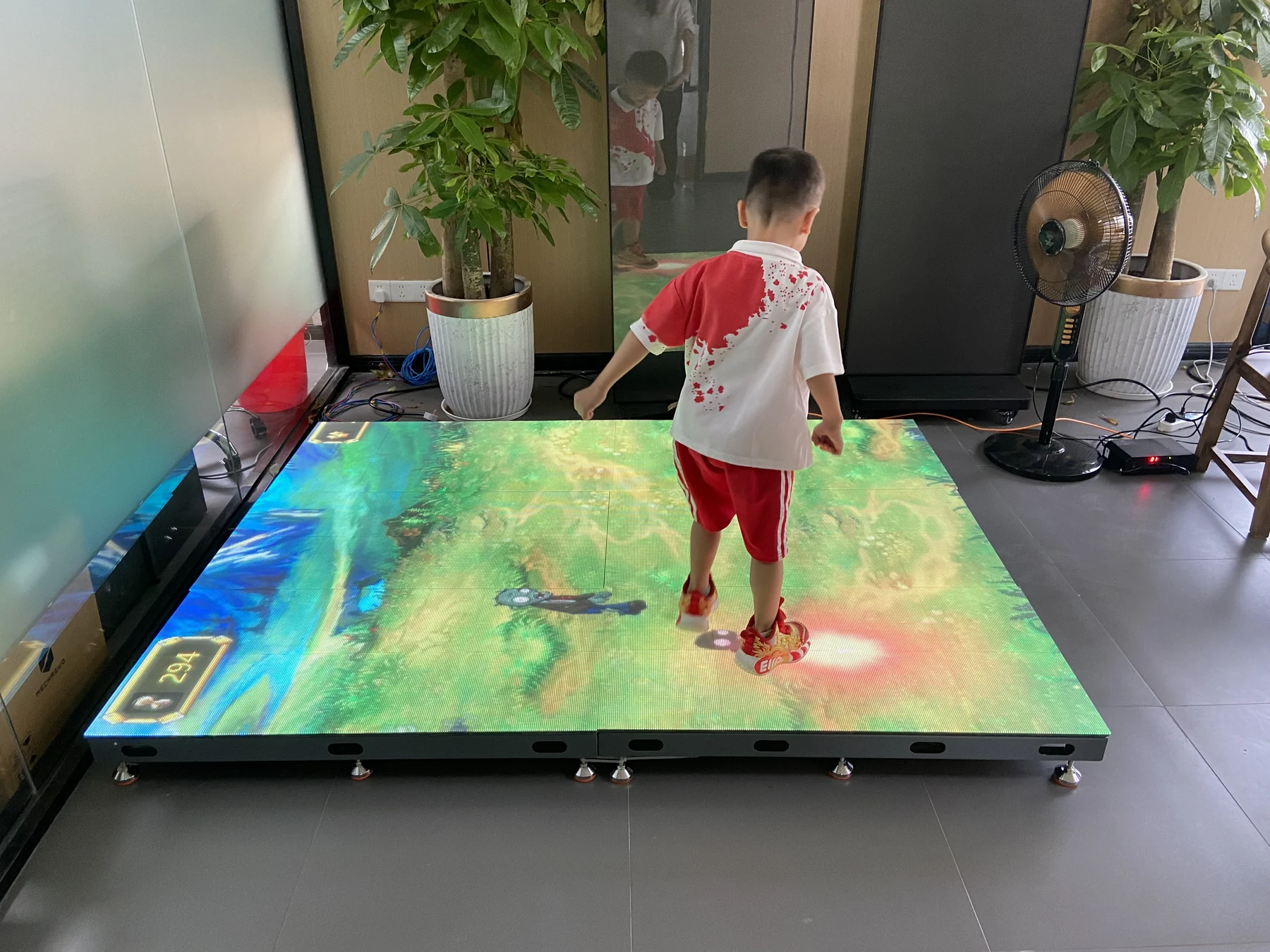

These real demonstration images show multiple cabinets running responsive visual content around a moving participant. They document the visible effect without assigning an unconfirmed sensor type to the full series.
Specifications
Technical specifications
| Model | P2.5 / P2.604 / P2.976 / P3.91 |
|---|---|
| Pixel pitch | P2.5 / P2.604 / P2.976 / P3.91 |
| Brightness | 700–1000cd/m² / 2000–3000cd/m² |
| Refresh rate | 7680Hz |
| Cabinet size | 500×1000mm |
PRODUCT VIDEO
Watch the supplied interactive floor demonstration.
The video documents one P2.9 pressure-sensitive demonstration configuration. Its sensor description is not applied as a universal specification for every pitch on this page.
APPLICATION FIT
Plan the floor around the real environment and interaction brief.
For Interactive LED Floor Screen projects, use the supplied configurations for immersive attractions, exhibition experiences, retail installations and entertainment venues after the project load, surface treatment, edge protection and interaction system are confirmed. Compare related LED floor displays when planning the screen system.
B2B PROJECT FLOW
Turn the floor area into a project-ready configuration.
INTERACTIVE LED FLOOR FAQ
Questions Before You Plan the Floor.
Direct answers based on the supplied configurations and demonstration evidence.
Which pixel pitches are available for this interactive LED floor screen?
The supplied options are P2.5, P2.604, P2.976 and P3.91 in a 500×1000mm cabinet format.
What is the difference between the two brightness configurations?
The standard series uses SMD1515 LEDs at 700–1000cd/m² and lists 600W/m² maximum power. The high-brightness series uses SMD1415 LEDs at 2000–3000cd/m² and lists 800W/m² maximum power.
What refresh rate and gray scale are listed?
Both supplied configurations list 7680Hz refresh and 14-bit gray scale.
How does the interactive response work?
The supplied images and video document responsive floor content. The exact sensor, controller and software workflow are confirmed for the ordered configuration.
What load can the LED floor support?
A universal load figure has not been supplied. Send the expected traffic and load conditions so the cabinet, support and installation plan can be confirmed before quotation.
Is the surface anti-slip and impact resistant?
No numerical anti-slip, wear or impact rating is published from the current source data. Required surface and safety performance must be confirmed for the project.
Can this LED floor screen be used outdoors?
Brightness alone does not establish outdoor suitability. Confirm the required IP protection, drainage, power protection and operating environment for the ordered system.
What should I send for a quotation?
Send floor dimensions, viewing distance, ambient light, pixel pitch, brightness, interaction requirement, load conditions, installation environment, controller, power plan, quantity, destination and schedule.
