THREE OUTPUT LAYERS

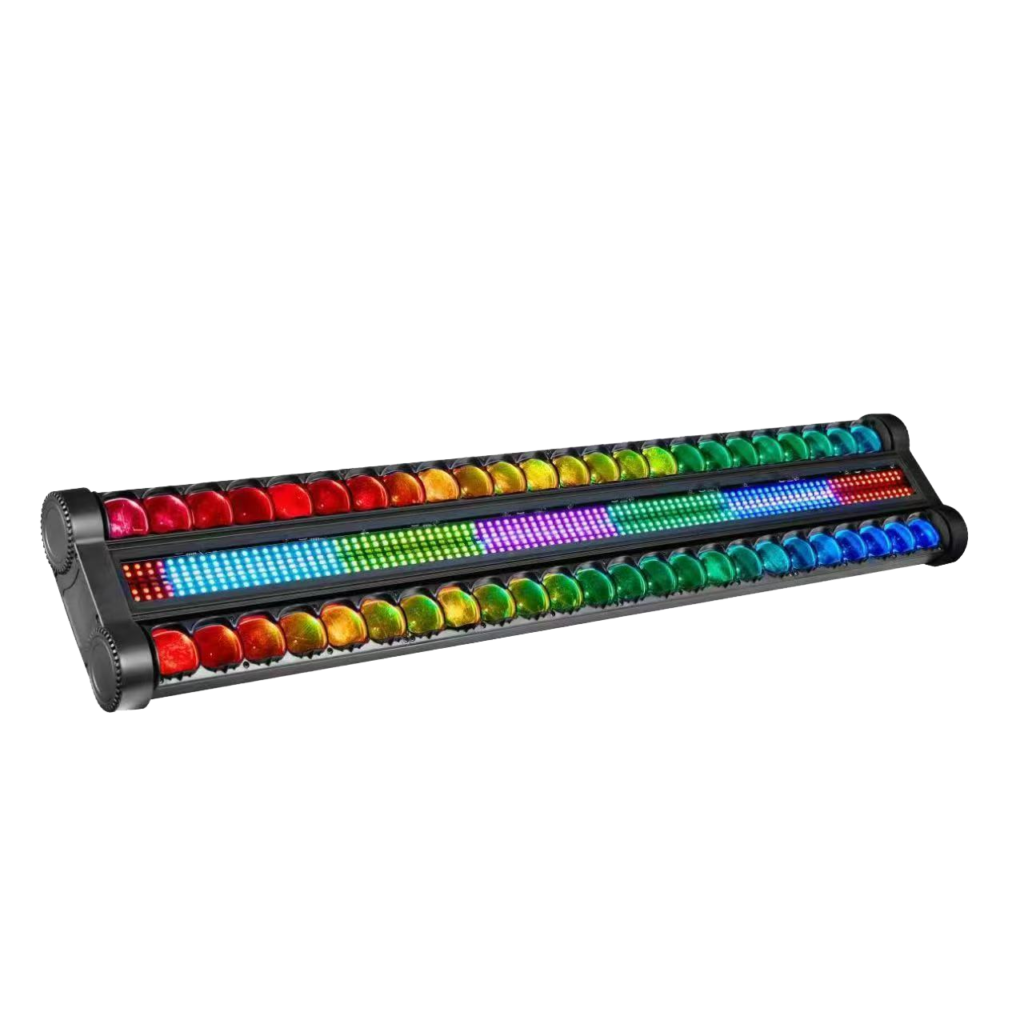

253W Double-Row Beam Swing Strobe Light overview
The 253W Double-Row Beam Swing Strobe Light (RG-906) is for show cues that combine moving RGBW beam rows, center color and white flashes from one rig position. Use the two rows for coordinated lines or crossing looks; use the separate white layer for accents. For DMX network planning, consult ESTA's DMX512-A guide and request this fixture's current channel chart.
BEAM MOVEMENT

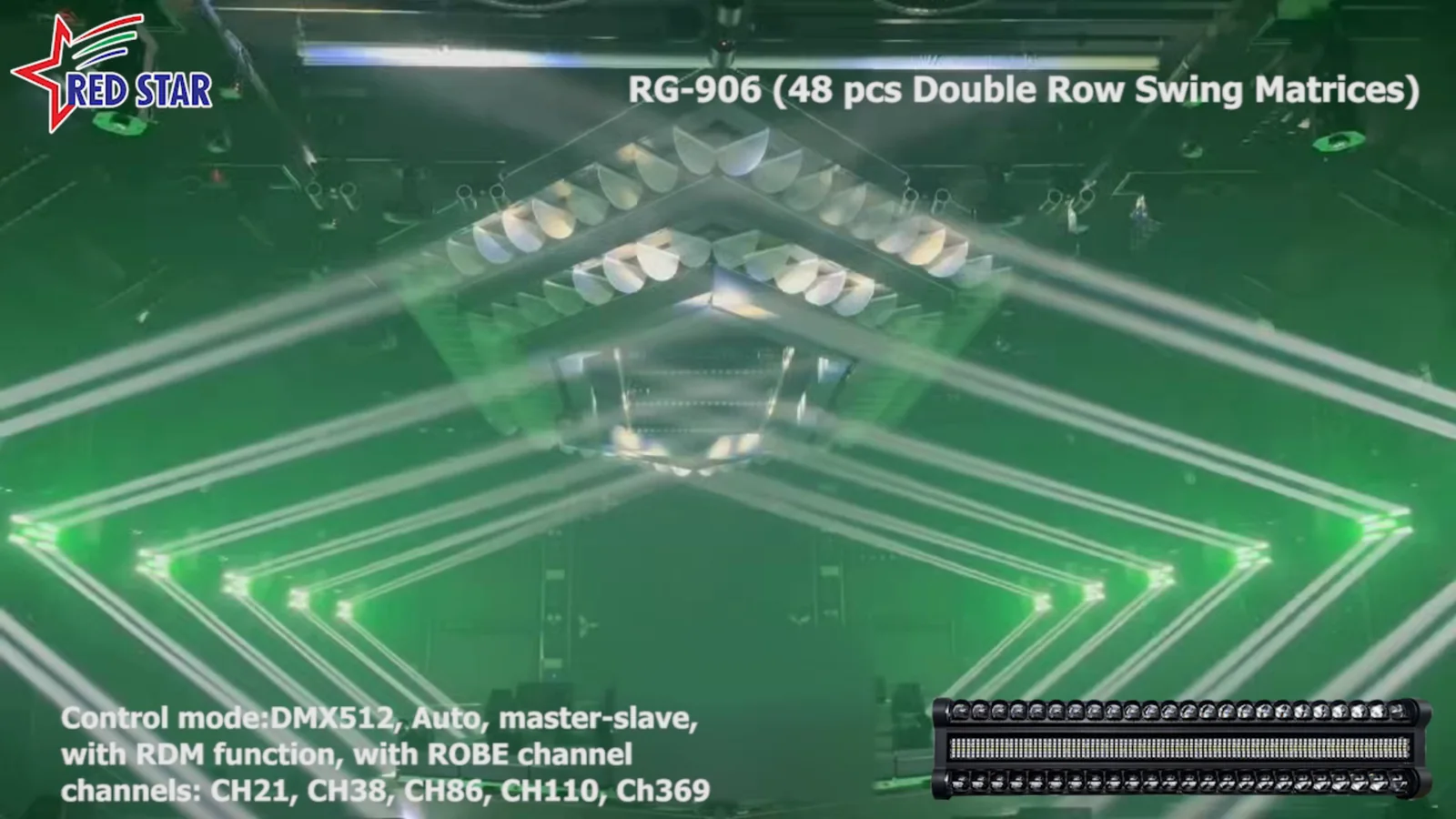

Build Crossing Beams Across the Stage.

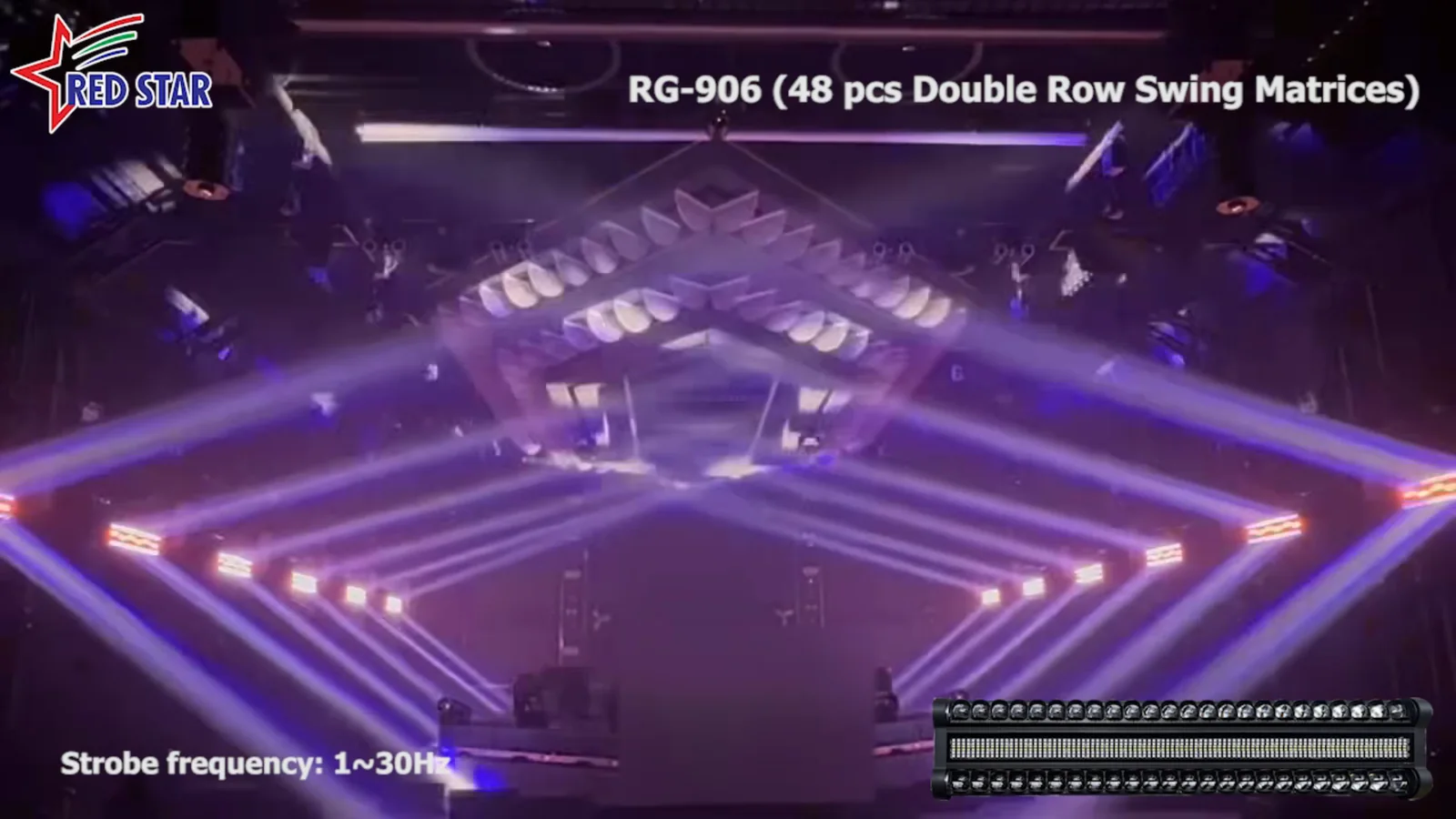

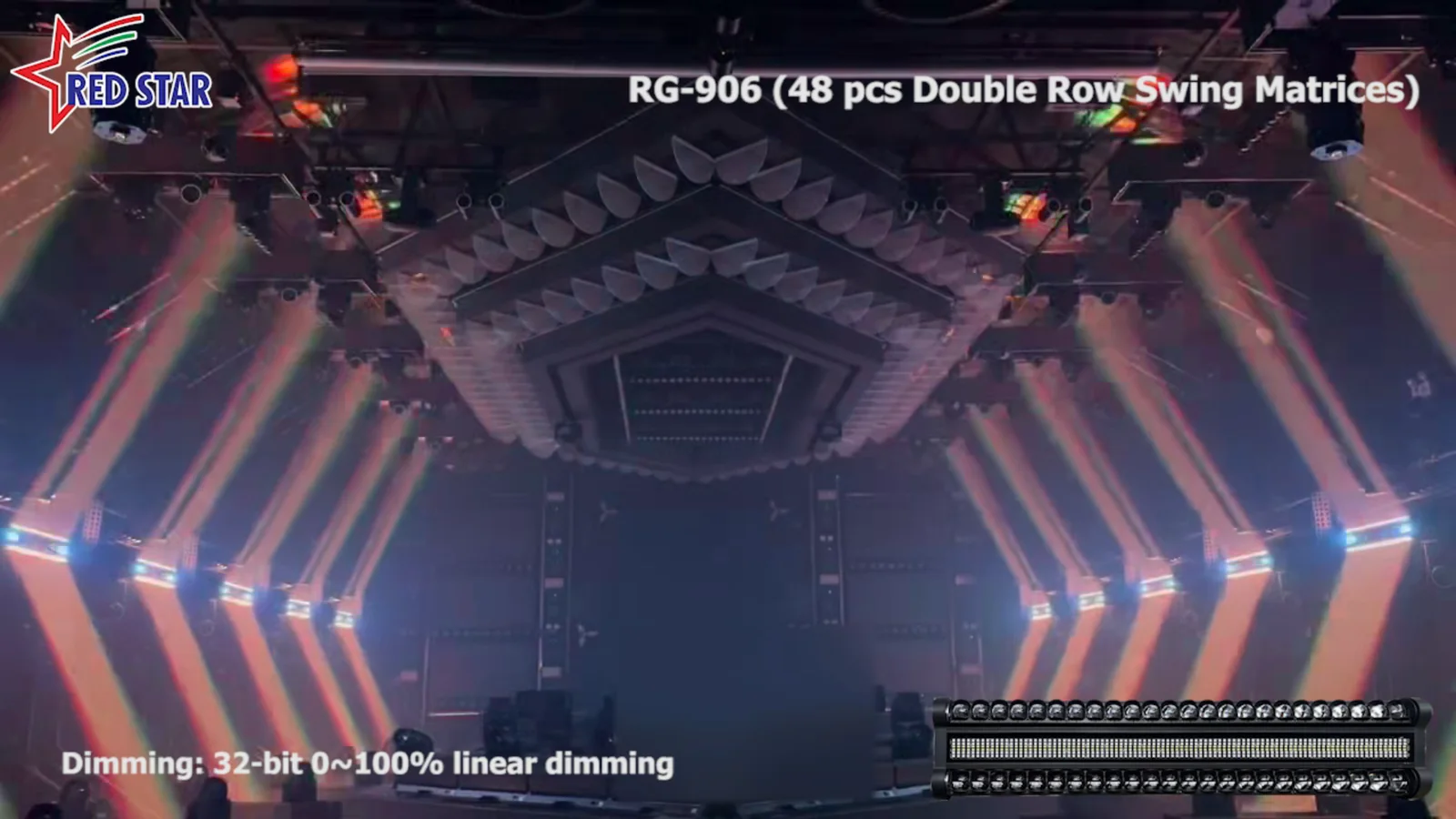

Watch the beam-row movement, center color and white flashes separately in the demonstration. The repeated fixtures show symmetrical line effects; compare their movement clearance with your mounting layout. For camera work, test the planned cues and the listed 1–30 Hz strobe range with the actual frame rate and shutter settings.
PRODUCT DEMONSTRATION
Watch RG-906 in Motion.
See the moving beam rows, layered color output and white strobe cues in the product video.
DMX CONTROL
Choose the Control Detail Your Rig Needs.
The supplied specification lists five DMX channel modes: 21, 38, 86, 110 and 369 CH. DMX512, Auto, master/slave and RDM are listed. Confirm the final channel chart against your console patch before ordering. Review DMX channel and address planning.
FIXTURE EVIDENCE

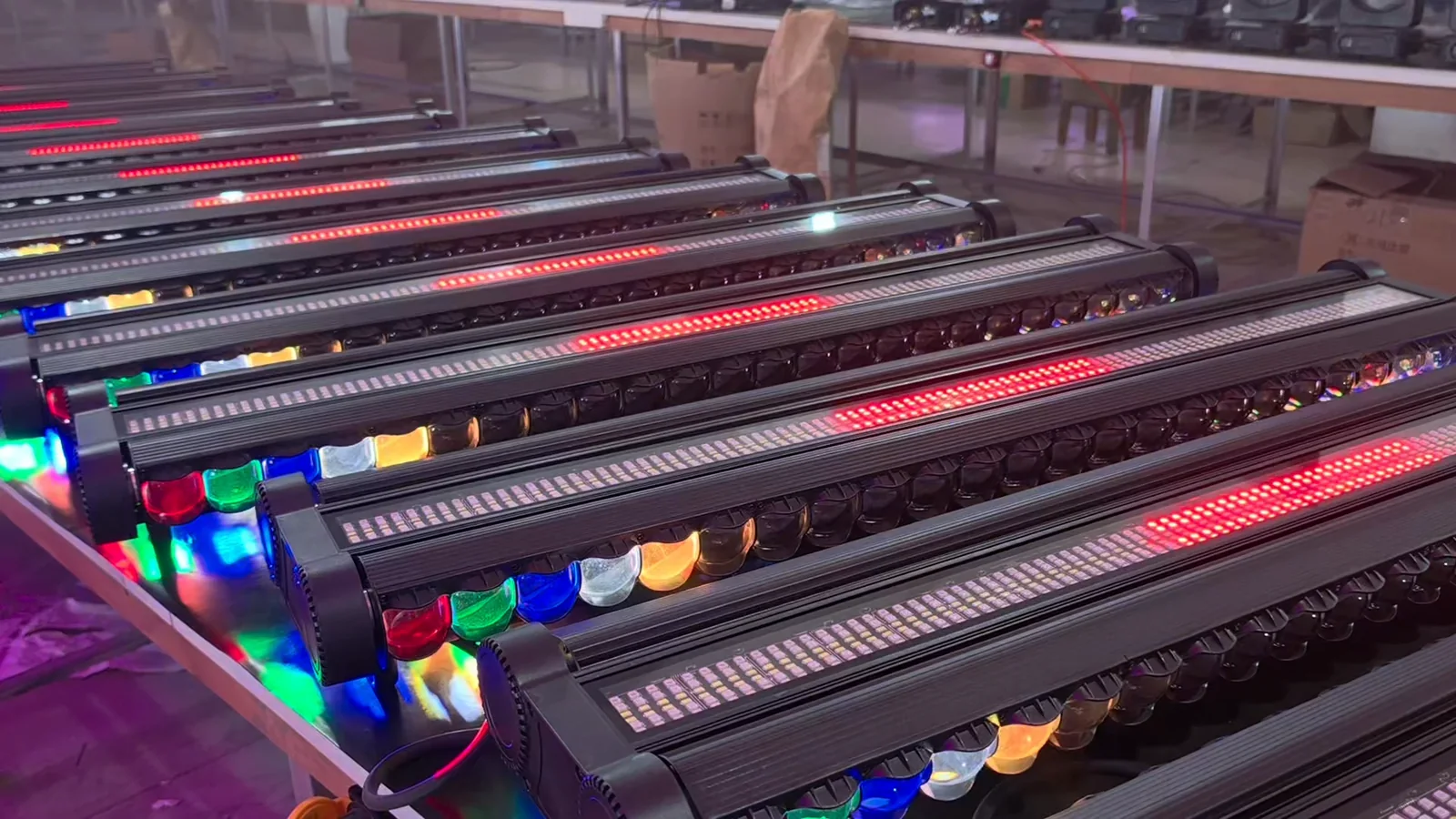

Inspect the Lens Rows and Center Layers.

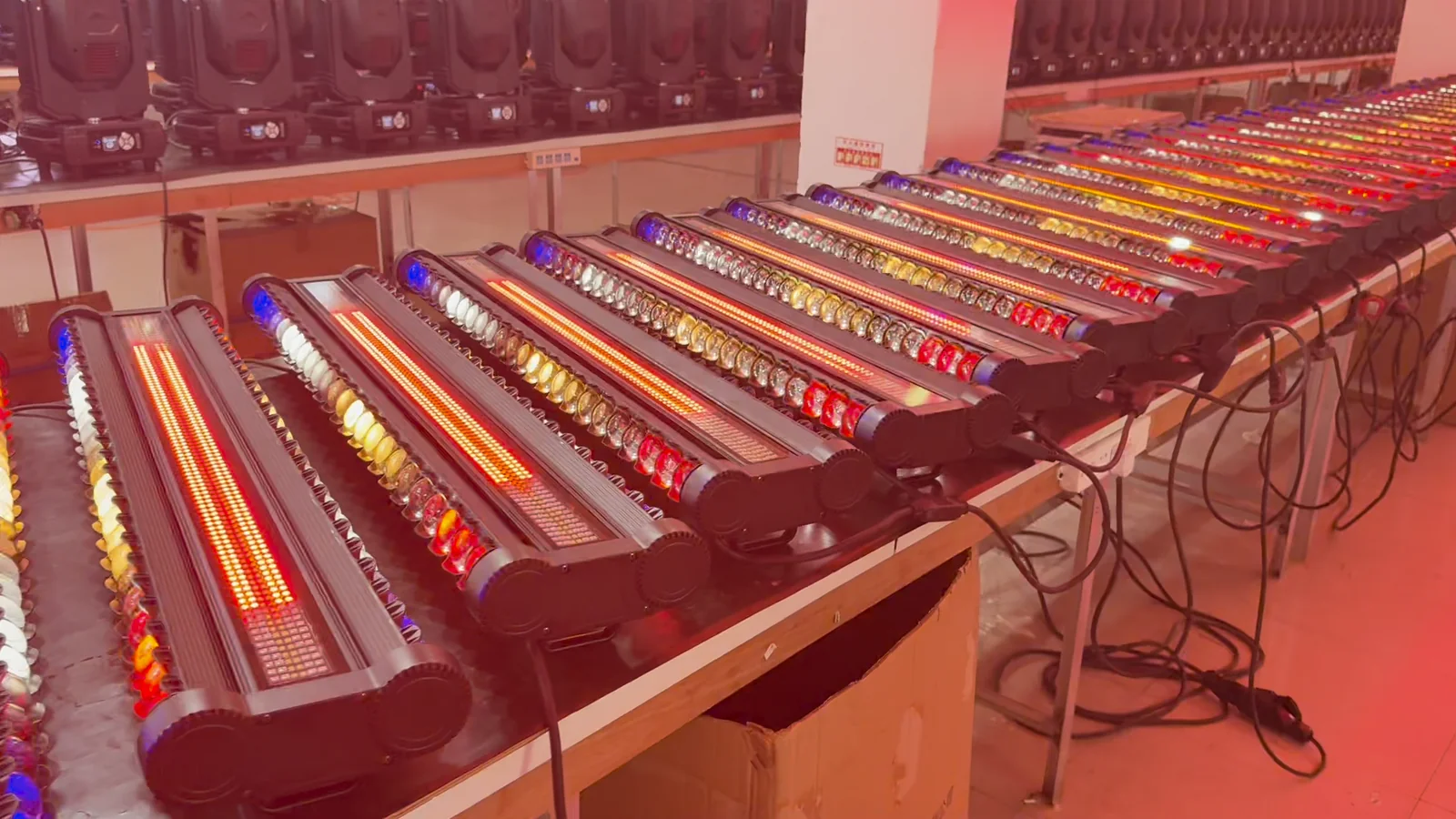

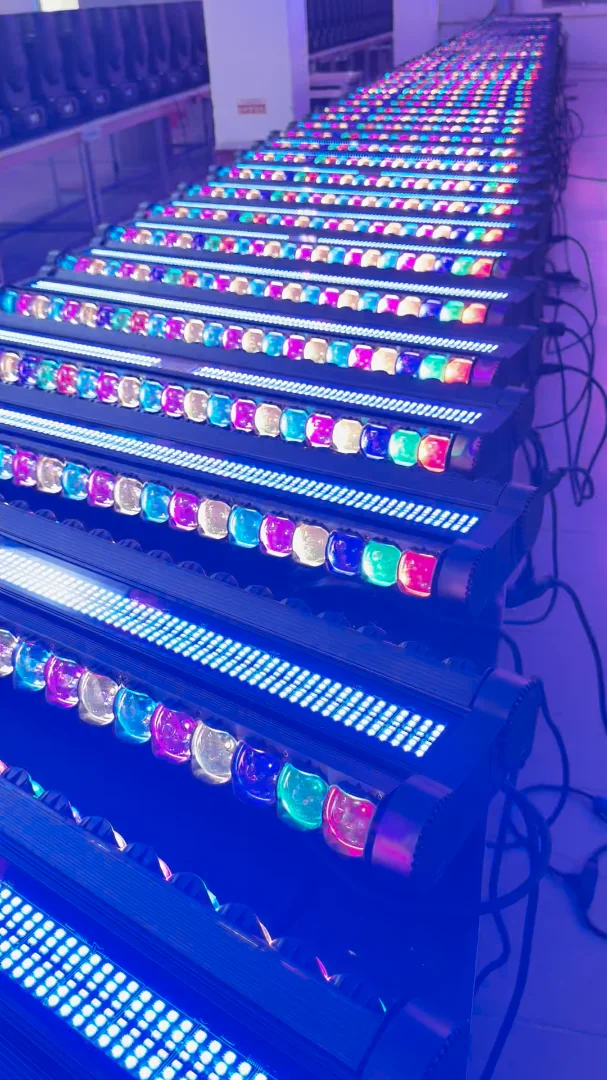

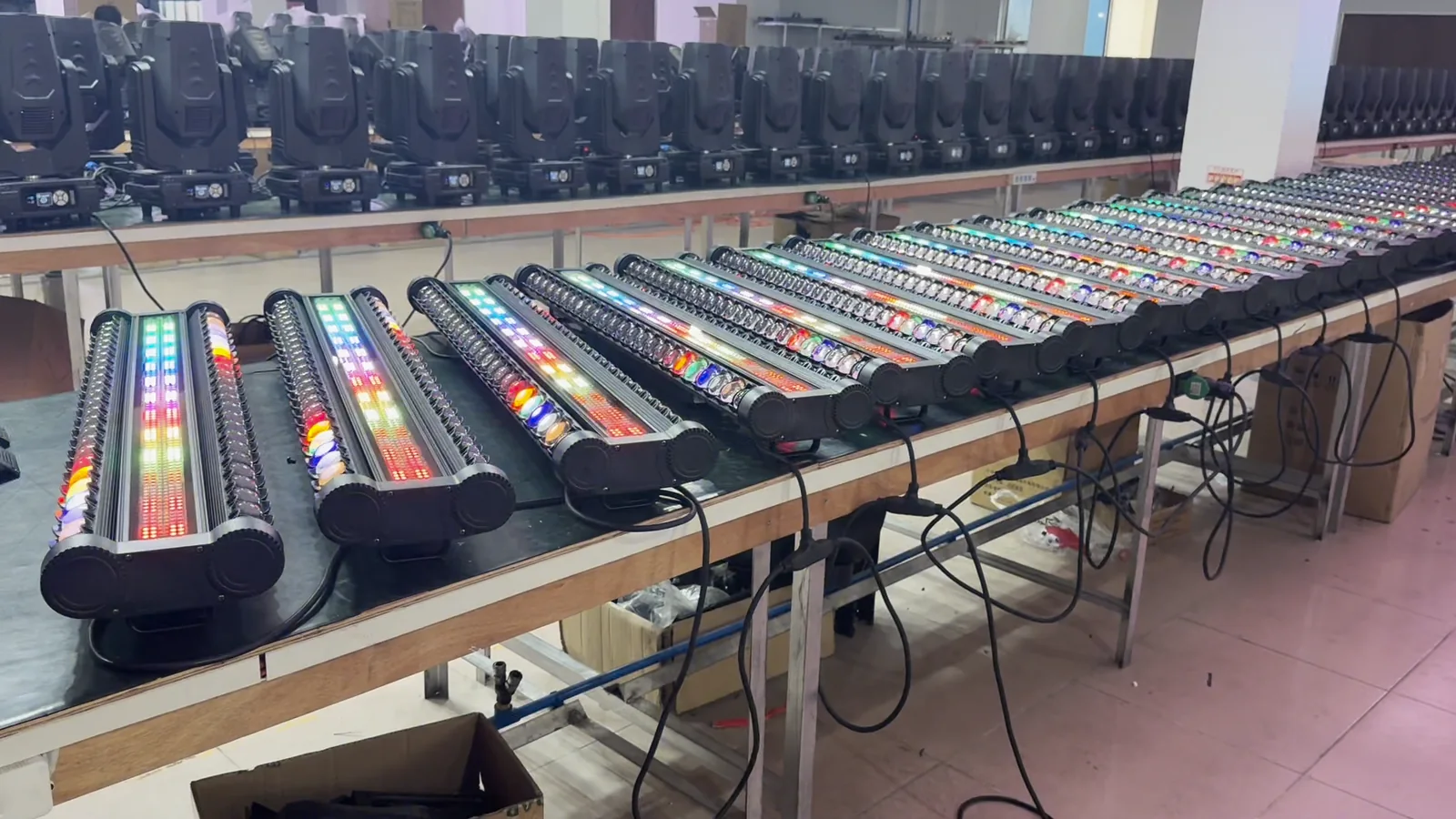

These supplied photos show multiple powered RG-906 units, the double-row lens layout and the central LED layers. The stage demonstration above shows the resulting beam patterns.
Specifications
Technical specifications
| Model | RG-906 |
|---|---|
| Public product power | 253W |
| Light source | Dual RGBW 3535 rows; 384 × 5050 tri-color LEDs; 192 × 5730 white LEDs |
| Rated fixture power | 253W |
| Voltage | AC 100–240V, 50/60Hz |
| DMX channels | 21 / 38 / 86 / 110 / 369 CH |
| Product dimensions | 1075 × 215 × 100 mm |
| Control modes | DMX512, Auto, master/slave, RDM |
| Pixel control | Dual 24-segment RGBW rows; 48-segment tri-color layer; 24-segment white layer |
| Strobe rate | 1–30 Hz |
| Zone control | 48 RGBW row segments; 48 tri-color segments; 24 white segments |
APPLICATIONS
Where This Moving Strobe Bar Fits.
RG-906 suits concert, club and event cue designs that call for moving beams, segmented color and rapid white accents. The specified dimensions are 1075 × 215 × 100 mm, weight is 9.5 kg, and operating temperature is −30°C to +50°C.
For exposed outdoor use, select equipment with a confirmed protection rating appropriate to the site.
ORDER PLANNING
Send a Rig Brief for a Relevant Quote.
Share the quantity, destination, rig positions and the movement, color and strobe cues you need. Include your console model, preferred DMX channel mode, camera use and operating environment so we can review the project configuration.
Explore related fixtures in Stage Effect Lights and LED Strobe Lights.
BUYER QUESTIONS
RG-906 Frequently Asked Questions
Direct answers about control, strobe operation and quotation.
What light layers does RG-906 have?
It has two segmented RGBW spherical-lens rows, a 384-LED tri-color layer and a separate 192-LED white layer.
Does 253W describe the complete fixture?
Yes. The supplied specification lists 253W as fixture power.
Which DMX channel modes are listed?
21, 38, 86, 110 and 369 CH. Check the final channel chart before patching your console.
Does RG-906 support RDM?
RDM is listed in the control specification. Confirm the intended console and network setup for your project.
What is the specified strobe range?
The listed strobe frequency is 1–30 Hz.
What should I send for a quote?
Send quantity, destination, venue and rig position, required cues, control mode and any camera or operating-environment needs.
