PRODUCT OVERVIEW
Mini 380 Beam Moving Head Light overview
The Mini 380 is a beam moving head for stage shows and event rigs. Its 0–2° beam, two prism systems, color wheel and gobo patterns give designers several ways to build aerial effects. The fixture supports 16CH and 20CH DMX modes.
0–2° Beam
A narrow beam with a 152 mm optical lens for visible stage effects.
Two Prism Systems
8-facet and 8+16+24 prism systems create different beam patterns.
Colors & Gobos
14 colors plus white, 10 gobos and four wave patterns.
Show Control
16CH/20CH DMX512, master/slave, auto and sound modes.
STAGE EFFECT

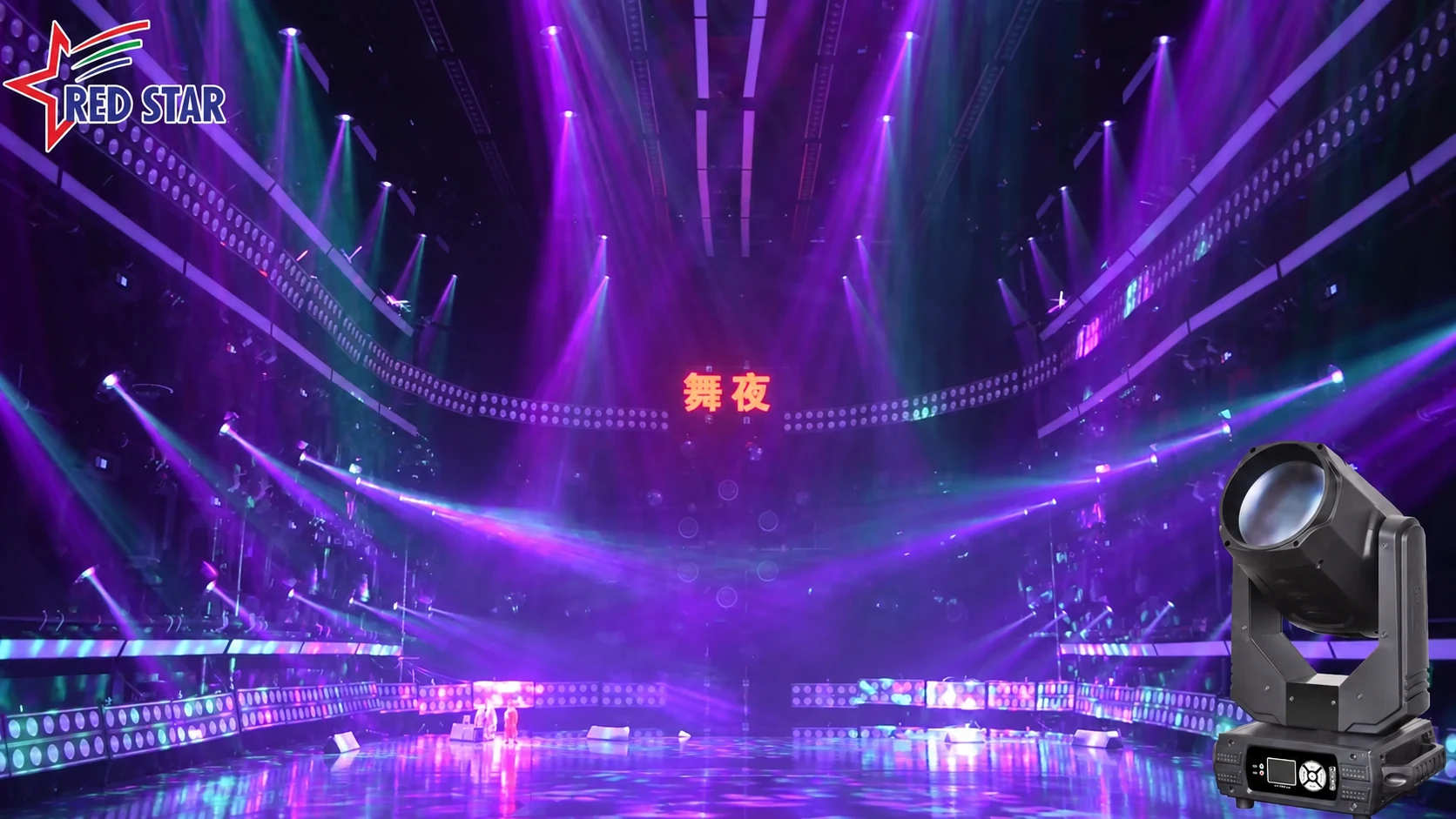

Mini 380 beams in a live stage setting.
The supplied stage image shows the Mini 380 in an event lighting environment, with colored aerial beams visible across the venue.
PRISM & FROST
Shape the beam for each cue.
Two listed prism systems, independent frost and a rainbow prism effect expand the available looks.
COLOR & PATTERNS
Build color and pattern changes into the show.
The Mini 380 combines a 14-color wheel plus white light with 10 gobos and four wave patterns.

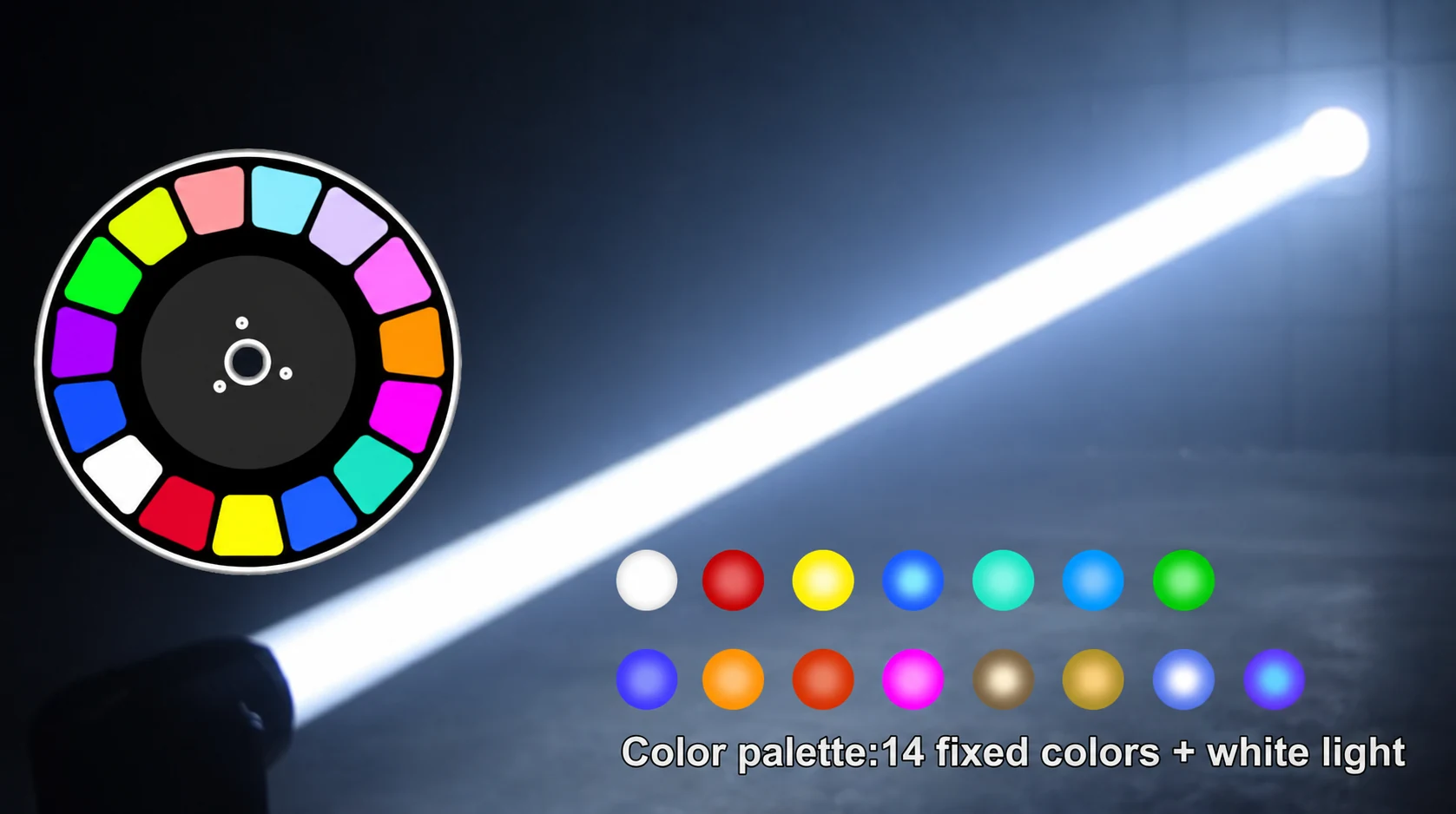

Color and gobo options
Use the color wheel for changes between cues, then add a gobo or wave pattern when the beam needs a distinct shape. The image illustrates the listed color options; pattern counts come from the supplied specification.

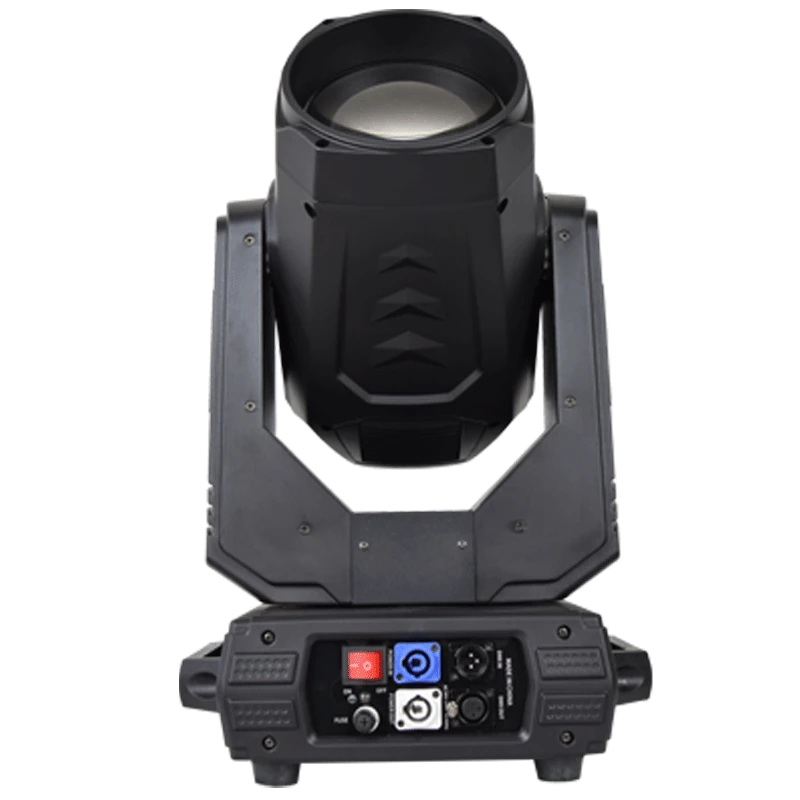

PRODUCT VIEWS
See the fixture from two angles.
Specifications
Technical specifications
| Model | Mini380 |
|---|---|
| Light source | Philips 250 |
| Rated fixture power | 500 W |
| Voltage | AC 100–240 V, 50–60 Hz |
| DMX channels | 16 / 20 CH |
| Rated lamp lifespan | 3,000 hours |
| Control modes | DMX512 / Master-slave / Auto / Sound |
| Beam angle | 0–2° |
| Color wheel | 14 colors + white |
| Fixed gobo wheel | 10 gobos + 4 wave patterns + open |
| Prism system | 8-facet and 8+16+24 prism systems |
| Frost | Independent frost effect |
| Focus | Electric focus |
| Pan / tilt | Pan 540° / Tilt 270° |
| Strobe | Dual-panel, 0.3–13 flashes/s |
APPLICATION FIT
Use Mini 380 for visible stage beams.
For the planned installation, its narrow 0–2° beam and prism effects suit show cues where the audience can see aerial light. Plan it as an effects fixture alongside the front and wash lighting needed to illuminate performers and scenery. Review beam angle and venue selection. Compare related beam moving head lights when planning your lighting rig.
B2B ORDER FLOW
Send the details needed for a Mini 380 quotation.
For the order, a clear project brief lets us quote the correct fixture configuration and shipping requirement. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Mini 380 product questions
Key details for selecting and specifying this moving head.
What light source and power are listed?
Mini 380 is the version name, not a statement that the lamp is 380W. The light source is listed as Philips 250. Rated power for the complete fixture is 500 W. Confirm the exact lamp identification when ordering.
Which prism systems does the Mini 380 have?
The specification lists an 8-facet prism system and an 8+16+24 prism system.
What colors and patterns are available?
The Mini 380 lists 14 colors plus white, 10 gobos, four wave patterns and open light.
What are the beam angle and lens size?
The listed beam angle is 0–2°, with a 152 mm optical lens.
Which control modes are supported?
It lists 16CH and 20CH DMX512 modes, plus master/slave, auto and sound activation.
Does it have frost and strobe effects?
It has independent frost and a dual-panel strobe specified at 0.3–13 flashes per second.
Can this fixture be exposed to rain?
No IP rating was supplied for this version. Protect the fixture from rain and confirm the installation requirements for outdoor projects.
What information helps with a quotation?
Share the quantity, destination, application, voltage and plug needs, control mode and any accessory requirements.
