THREE OUTPUT OPTIONS
10W / 20W / 30W RGB Animation Laser overview
This full-color RGB animation projector is offered in 10W, 20W and 30W laser-output versions. Choose the output version together with the projection content and control workflow. Output rating alone does not establish viewing distance or permitted audience exposure.
10W
Listed lower-output option in this indoor series.
20W
Middle listed output option for the project plan.
30W
Highest listed output option in this three-version range.
30Kpps
Listed ILDA scanning speed; not an animation frame rate.
ANIMATION IN ACTION
See beams and line graphics in the supplied demonstration.
These frames illustrate visual directions; finished cues depend on content, positioning and atmospheric conditions.
CONTROL WORKFLOW
Plan PC, ILDA or DMX512 operation.
The supplied specification lists PC/ILDA and DMX512 control, Bluetooth on all three versions and sound control as an option. Confirm the operating package before programming.

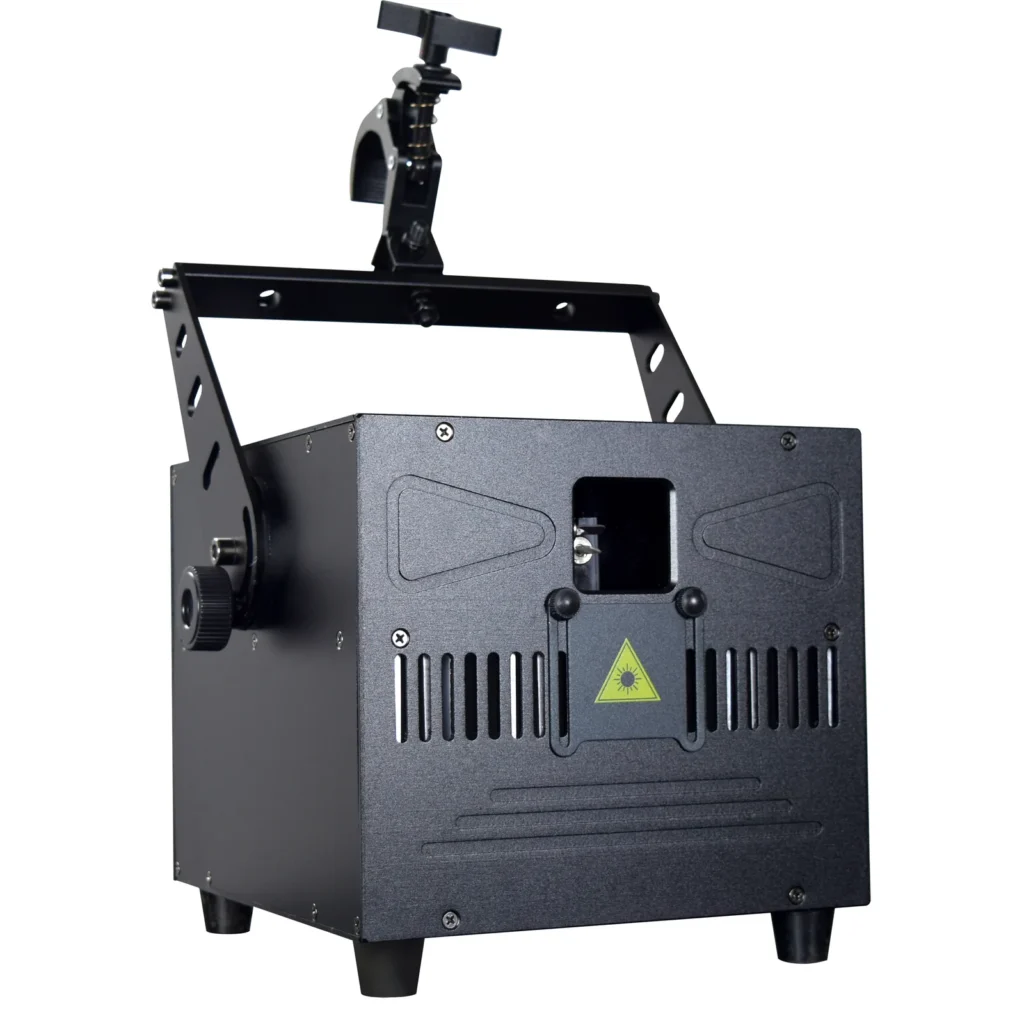

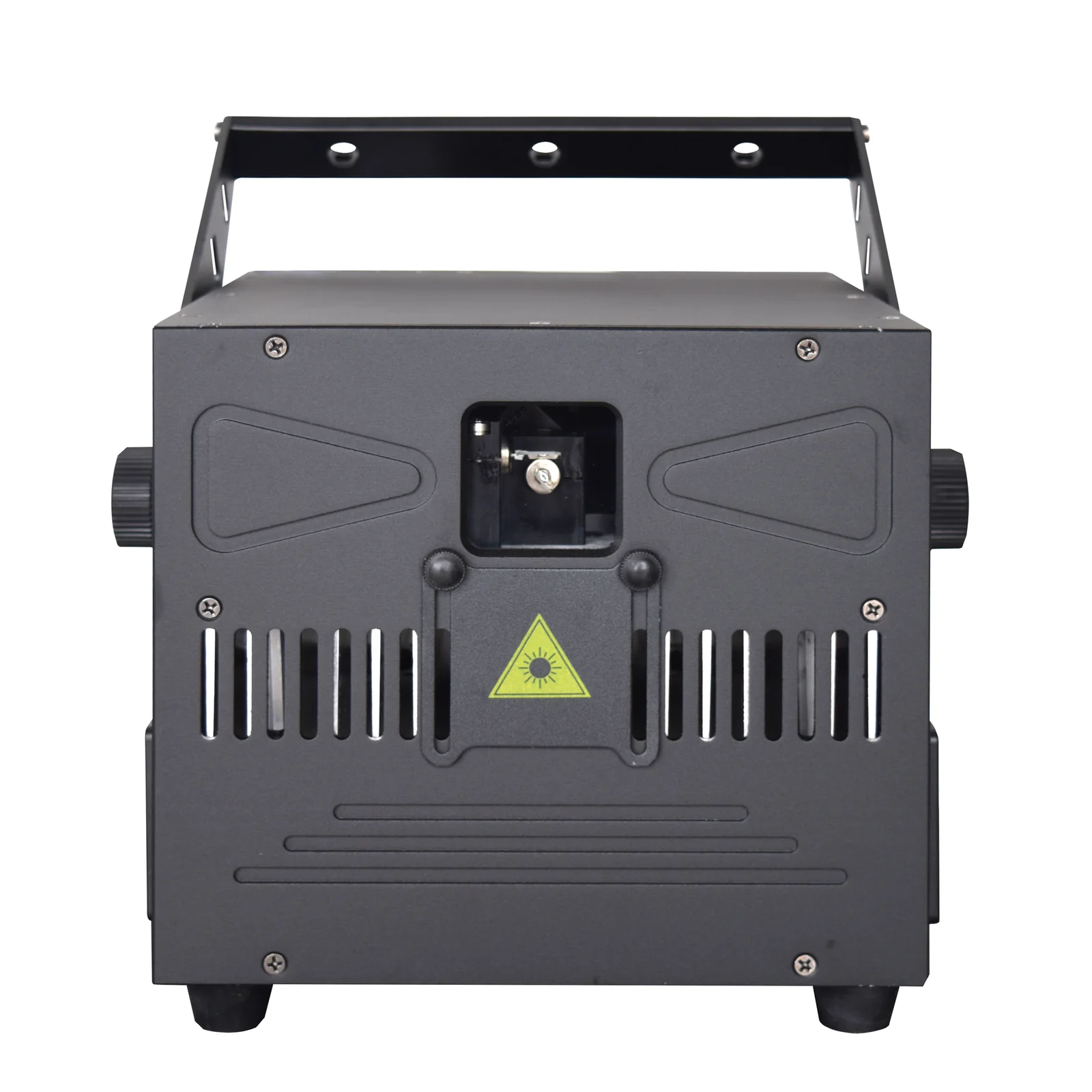

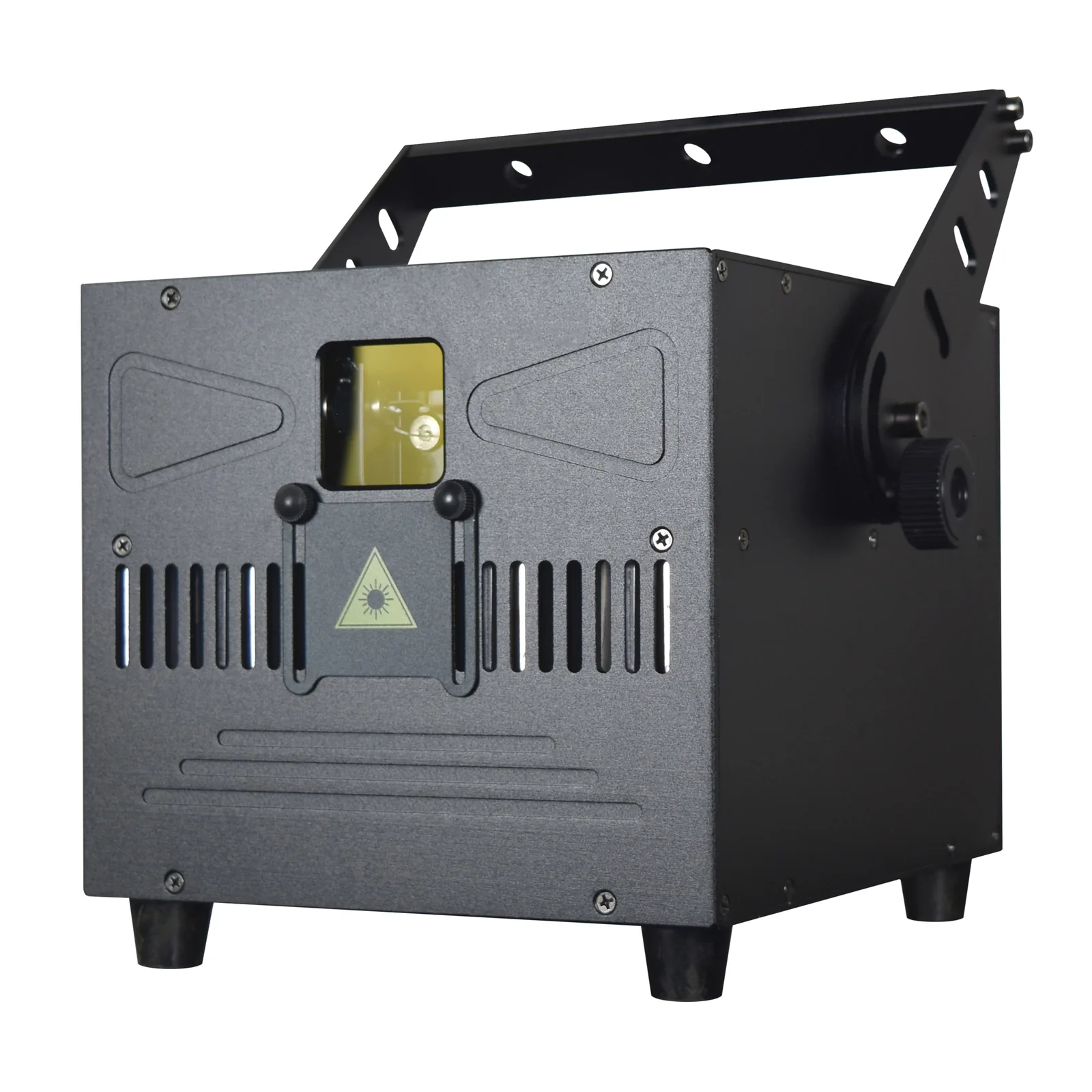

PRODUCT VIEWS

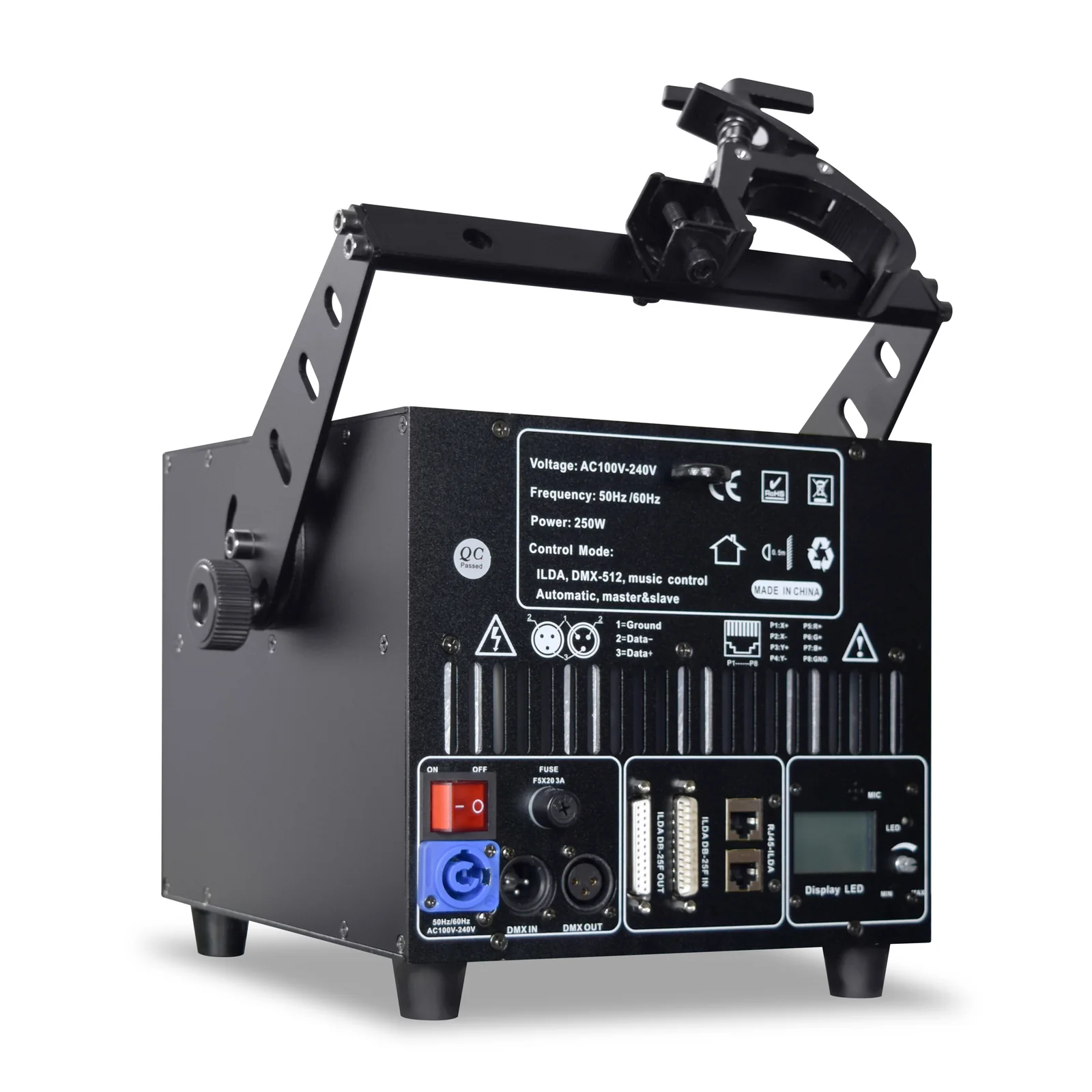

Inspect the housing and rear access.
Use the supplied views to discuss mounting, connections and the selected version.
Specifications
Technical specifications
| Model | RG-757 |
|---|---|
| Public product power | 10W / 20W / 30W laser output |
| Light source | Semiconductor-pumped all-solid-state laser or semiconductor laser |
| Voltage | AC 90–240V, 50/60Hz |
| IP rating | Not waterproof |
| Control modes | PC / ILDA / DMX512; sound control optional; Bluetooth listed |
| Effect type | Full-color RGB animation |
APPLICATION FIT
Use this non-waterproof series in protected installations.
For 10W / 20W / 30W RGB Animation Laser projects, the series is not waterproof. Plan indoor or fully protected positions and confirm show-content, mounting and laser-safety responsibilities for the venue. Compare related laser lighting options when planning your lighting rig.
B2B ORDER FLOW
Specify 10W, 20W or 30W and the animation setup.
Choose 10W, 20W or 30W laser output and send the animation content, projection surface and mounting plan. Specify PC/ILDA or DMX operation; Bluetooth is listed across the range, while sound control is optional. Include indoor or fully protected placement and the operating package required for the project. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
Direct answers about configuration, control, installation and quotation.
Which laser-output versions are available?
The listed choices are 10W, 20W and 30W.
What scanning speed is specified?
The supplied specification lists a 30Kpps ILDA scanning galvanometer.
Which control paths are available?
PC/ILDA and DMX512 are listed; sound control is optional.
Is Bluetooth included?
Bluetooth is listed for the 10W, 20W and 30W versions. The protocol and control range were not supplied.
Can this series be used outdoors?
It is described as non-waterproof. Use it indoors or in a suitably protected installation.
Is fixture consumption the same as laser output?
No. The 10W, 20W and 30W figures identify laser-output versions; complete fixture consumption was not supplied.
Are wavelength and laser class specified?
No verified wavelength breakdown or laser-safety class was supplied for this page.
What should I include in my inquiry?
Send output version, quantity, destination, venue, control workflow, mounting and power requirements.
