MOBILE INDOOR LED POSTER
Indoor LED Poster Display overview
This freestanding indoor LED poster display combines P1.25, P1.538, P1.86, P2 or P2.5 modules with 640×1920mm or 960×1920mm cabinet formats. The supplied product and operating images document the slim housing, rear compartment and mobile caster base.
Five pitch options
Select the native resolution around viewing distance, content detail and project budget.
Cabinet format choices
Plan with a 640×1920mm or 960×1920mm poster cabinet.
High-refresh reference
The supplied series data lists a 7680Hz refresh rate.
Indoor configuration
The supplied IP31 reference keeps this product positioned for indoor environments.
PIXEL-PITCH COMPARISON
Compare native resolution for both poster widths.
The values below follow the supplied 320×160mm module data. Confirm the final controller map and selected cabinet width before production.
| Specification | P1.25 | P1.538 | P1.86 | P2 | P2.5 |
|---|---|---|---|---|---|
| Module resolution | 256×128 | 208×104 | 172×86 | 160×80 | 128×64 |
| Pixel density | 640,000 dots/m² | 427,716 dots/m² | 288,369 dots/m² | 250,000 dots/m² | 160,000 dots/m² |
| 640×1920mm cabinet | 512×1536 px | 416×1248 px | 344×1032 px | 320×960 px | 256×768 px |
| 960×1920mm cabinet | 768×1536 px | 624×1248 px | 516×1032 px | 480×960 px | 384×768 px |
| Best viewing distance | >1.3m | >1.6m | >1.9m | >2m | >2.5m |

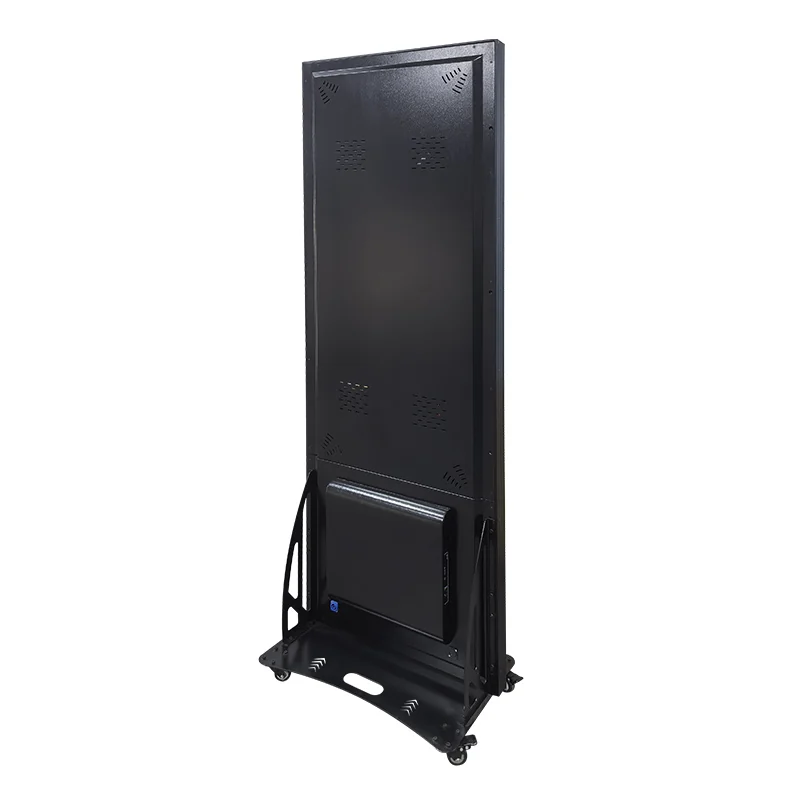

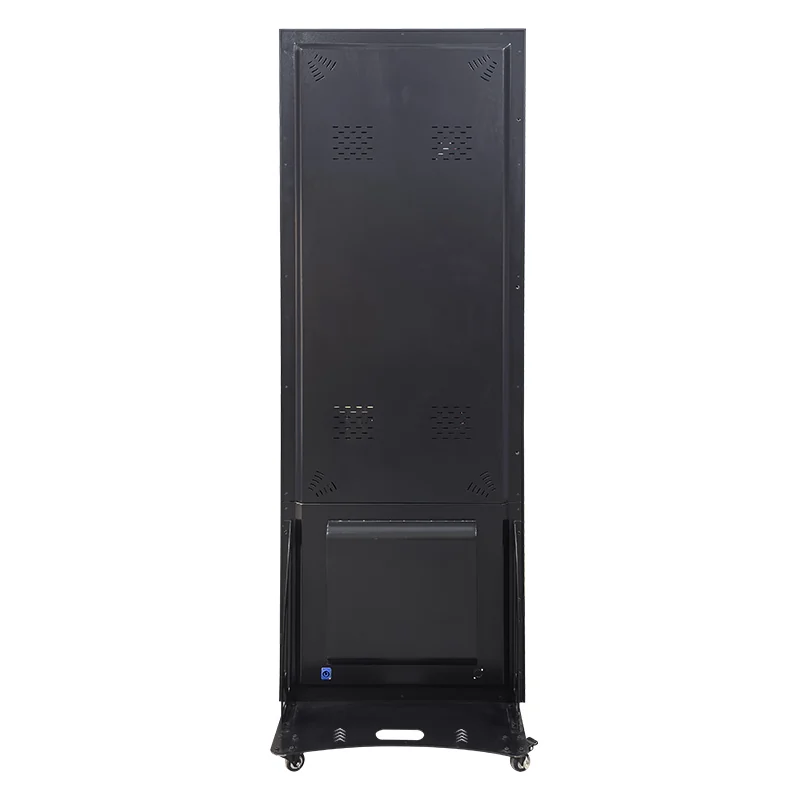

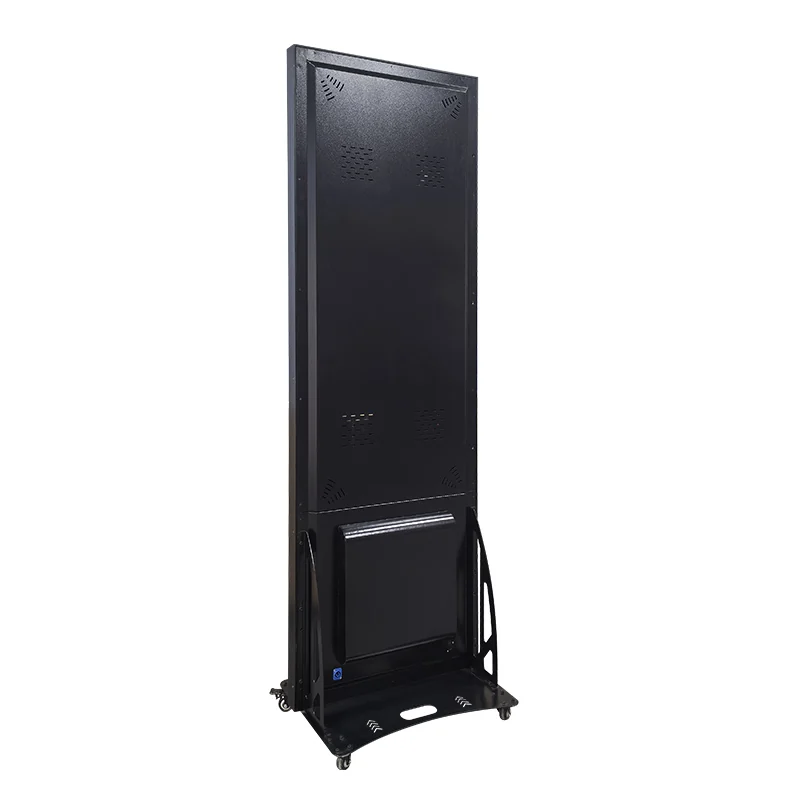

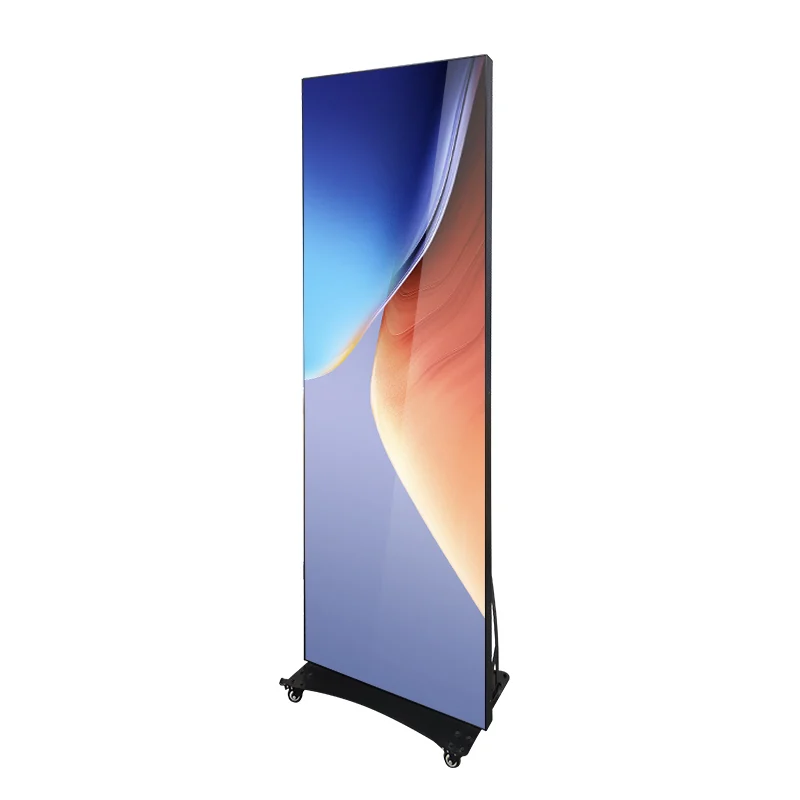

CABINET VIEWS
Inspect the housing, caster base and rear compartment.
Use the front view to assess the poster format and the rear views to plan access to the control compartment, ventilation and cables. Check the intended placement and movement route around the caster base; cabinet width and pixel pitch should match the audience distance and content layout.

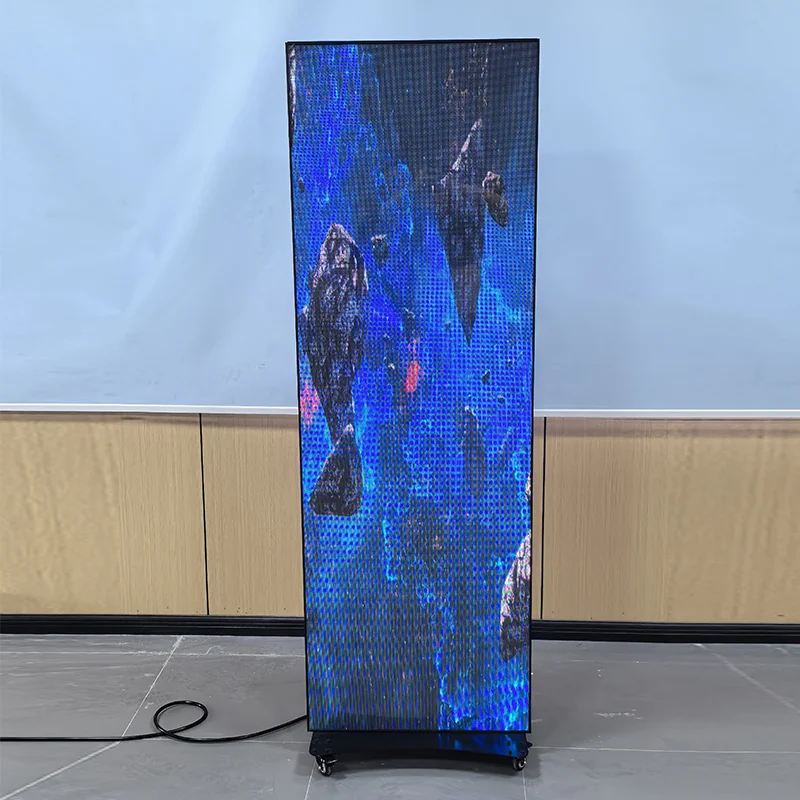

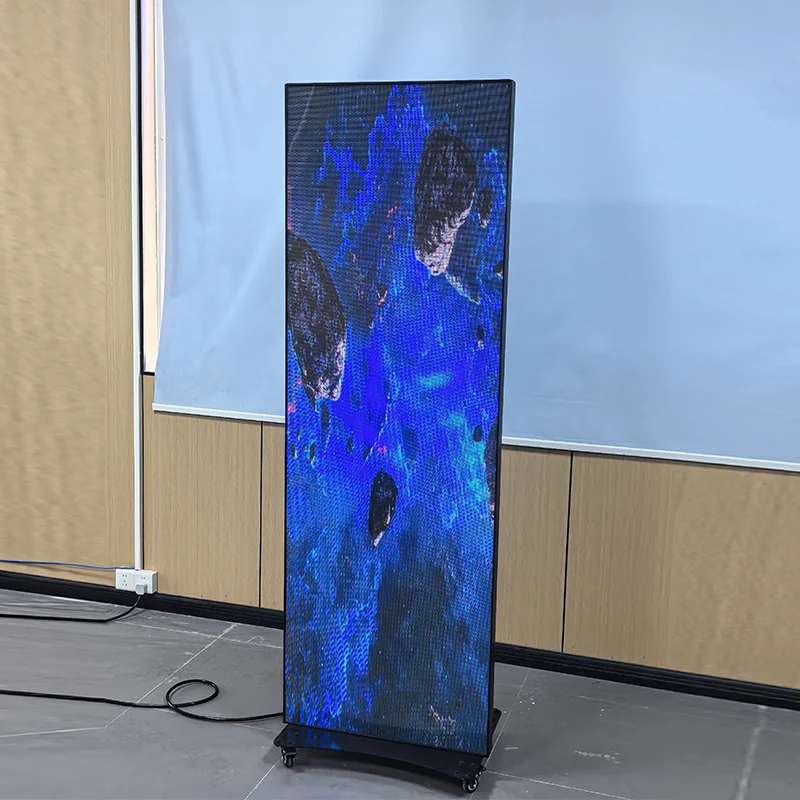

REAL OPERATING REFERENCES
Review two supplied indoor display views.
These photographs show the poster operating in an indoor demonstration environment. They are visual references rather than a customer-case claim.
Specifications
Technical specifications
| Model | P1.25 / P1.538 / P1.86 / P2 / P2.5 |
|---|---|
| IP rating | IP31 |
| Pixel pitch | P1.25 / P1.538 / P1.86 / P2 / P2.5 |
| Brightness | 500–700cd/m² |
| Refresh rate | 7680Hz |
| Cabinet size | 640×1920mm / 960×1920mm |
| Cabinet weight | 45kg supplied series reference; confirm selected size |
PRODUCT VIDEO
Watch the supplied LED poster display reference.
Review the freestanding format and displayed content in the video, then specify whether the poster will show scheduled advertising, live inputs or another content workflow. Confirm the controller and publishing method for that workflow before ordering; a display demonstration does not establish a particular software or network feature.
APPLICATION FIT
Use a mobile poster format for close-view indoor communication.
For Indoor LED Poster Display projects, the supplied IP31 configuration is positioned for indoor retail, showroom, exhibition and venue use. Select the cabinet width, pitch and content workflow around the real placement. Compare related LED display systems when planning the screen system.
B2B ORDER FLOW
Lock the poster format before quotation.
LED POSTER DISPLAY FAQ
Questions Before You Choose a Poster.
Direct answers based on the supplied indoor LED poster configurations.
Which pixel pitches are available?
The supplied options are P1.25, P1.538, P1.86, P2 and P2.5, all based on 320×160mm modules.
Which cabinet sizes are listed?
The supplied cabinet formats are 640×1920mm and 960×1920mm. Confirm the selected width and matching native resolution before production.
What brightness and refresh rate are supplied?
The current series data lists 500–700cd/m² brightness and 7680Hz refresh.
Is this LED poster intended for outdoor use?
No. The supplied rating is IP31, so this page positions the product as an indoor LED poster display.
How is the poster moved?
The supplied product images show an integrated base with caster wheels. Final locking, handling and packing arrangements are confirmed for the ordered cabinet.
Does the poster include wireless publishing or an operating system?
No universal wireless, storage or operating-system specification is published from the current data. Confirm the controller and content workflow required for the order.
What weight is listed?
The supplied series reference lists 45kg but does not assign it to one cabinet width. Confirm the selected size and final packing data before shipment.
What should I send for a quotation?
Send quantity, destination, cabinet width, pixel pitch, viewing distance, controller, content workflow, power and plug requirements, accessories and schedule.
