BEAM · SPOT · WASH

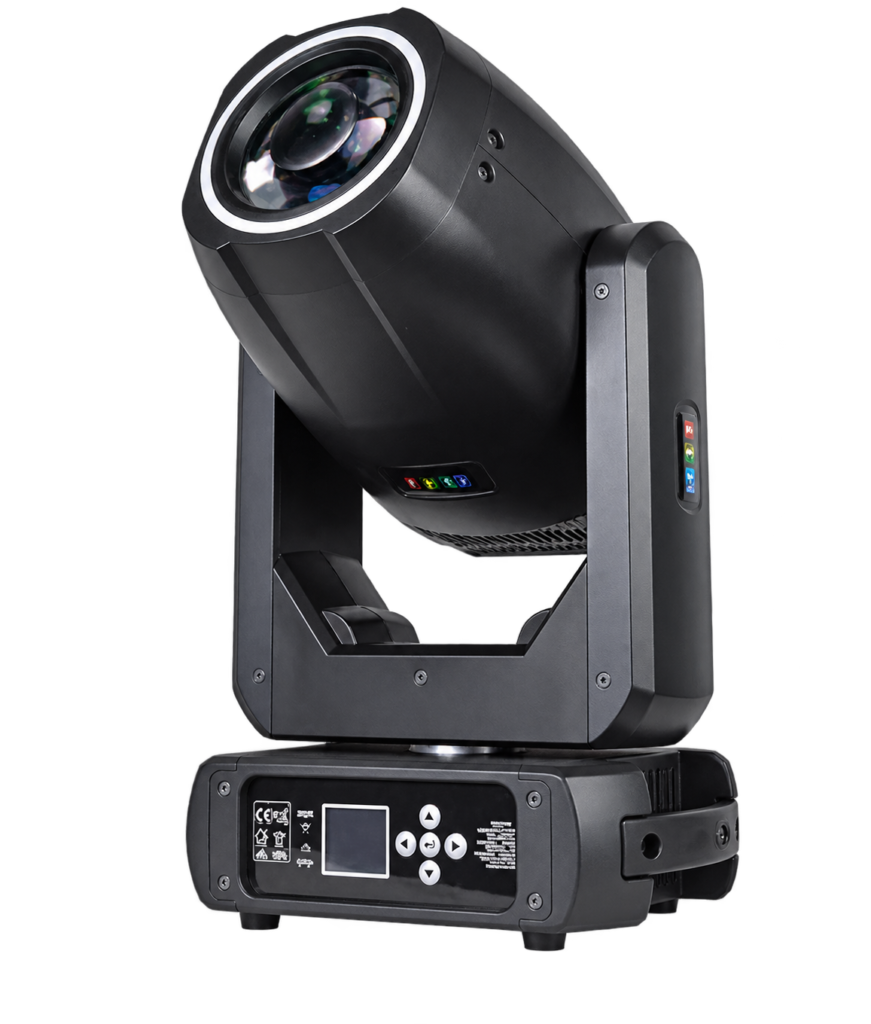

300W LED BSW Moving Head Light overview
300W LED BSW Moving Head Light. Use the same moving head to change the visual role of a cue: defined aerial beams, pattern-led spot looks or broader color coverage. The demonstration below shows the actual fixture in a multi-light stage setup, so buyers can judge the look before planning a rig.
COLOR, GOBOS & PRISM
Build More Looks from Color, Gobos and Prism
The color wheel offers nine colors plus white. A rotating gobo wheel adds seven patterns plus open, while the demo highlights six glass gobo looks. The single 3-facet prism can rotate at adjustable speed to multiply a projected pattern.
PRODUCT VIDEO
Watch the Moving Head Demonstration
The product video shows beam movement, color changes, pattern projections and the combined stage look. Use it to shortlist visual effects, then confirm your cue list and quantity with our team.
SPECIFICATIONS
Control and Technical Specifications
Program the fixture through DMX512 in 18- or 22-channel mode, or use Auto, master/slave and sound control for simpler setups.
| Light source | 300W LED module |
|---|---|
| Color temperature | 7000K |
| Input voltage | AC 100–240V, 50/60Hz |
| Color wheel | 9 colors + white |
| Gobo wheel | 7 patterns + open; six glass gobo looks shown in the demo |
| Prism | One rotating 3-facet prism; adjustable rotation speed |
| Focus / dimming | 0–100% linear focus / 0–100% linear dimming |
| Movement | Pan 540° / tilt 270° |
| Strobe | 0.5–14 flashes per second |
| DMX channels | 18 / 22 CH |
| Control modes | DMX512, Auto, master/slave, sound control |
APPLICATION FIT
Built for Stage and Rental Rigs
For 300W LED BSW Moving Head Light projects, use beam looks for aerial accents, gobos for projected texture, and wash output for color across the stage. The yellow-beam demonstration shows the fixture in a multi-unit live production setup. Compare related profile and spot moving heads before finalizing the rig or screen configuration.
Confirm throw distance, beam spread, control cues and venue conditions against your rig plan. Compare beam, spot and wash moving heads and use our output-role comparison guide to plan the fixture mix. For exposed outdoor positions, select equipment with a confirmed protection rating.
B2B ORDER FLOW
Plan the Configuration Before Requesting a Quote
For your 300W LED BSW Moving Head Light order, tell us the fixture quantity, destination country, venue type and the effect roles required in your show. If you use a console, include the preferred DMX mode and any channel-file requirements. We will use those details to discuss the suitable configuration, packing and quotation for your project. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order
Direct answers about the optical system, control and project quotation.
What does BSW mean on this moving head?
BSW stands for beam, spot and wash. The fixture is designed to produce defined aerial looks, gobo projections and broader color coverage from one moving-head position.
Does 300W refer to the LED or the whole fixture?
It refers to the LED light source module. The fixture’s total input power should be taken from the final product documentation for the supplied configuration.
How many colors and gobos are available?
The demonstrated configuration has nine colors plus white and a rotating gobo wheel with seven patterns plus open. The demo also shows six glass gobo looks.
What does the prism add?
The rotating 3-facet prism splits a projected look into multiple images. Its rotation speed is adjustable for different cue styles.
Which control options are listed?
DMX512 with 18- or 22-channel operation is listed, along with Auto, master/slave and sound control.
What should I send for an accurate quote?
Send the quantity, destination, venue type, intended effects and preferred control setup. Include any gobo or accessory requirements so the configuration can be checked with the quotation.
