RGBW WASH · IP65 FIXTURE

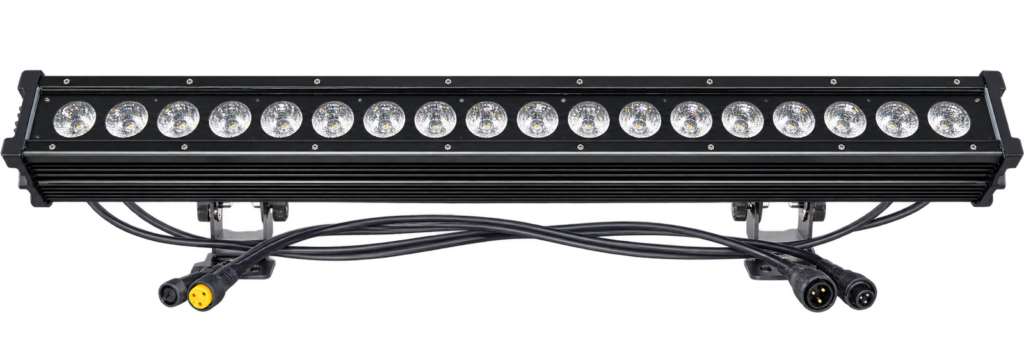

18x10W RGBW IP65 Wall Wash Bar — plan color wash with eighteen RGBW sources.
18x10W RGBW IP65 Wall Wash Bar combines 18 × 10W RGBW four-in-one LEDs in a wall wash bar. The listed controls are DMX512, Auto and master-slave, with 4CH and 8CH profiles. Electronic dimming and multiple strobe modes support wash and flash cues.
18 RGBW sources
Eighteen 10W four-in-one LEDs combine red, green, blue and white in the main wash source.
IP65 fixture
The listed IP65 rating supports outdoor fixture selection and installation planning.
4CH or 8CH DMX
Choose the DMX profile for the console and the wash cues required in the lighting brief.
Dimming and strobe
Independent electronic linear dimming and 1–25Hz strobe provide intensity and flash cues.
PRODUCT VIDEO
See the RG-657 color wash demonstration.
The model-matched video shows the wall wash fixture in operation. Use the specifications below to plan the control profile, supply and installation.
Specifications
Technical specifications
| Model | RG-657 |
|---|---|
| Light source | 18 × 10W RGBW four-in-one LEDs |
| Voltage | AC100–240V, 50/60Hz |
| DMX channels | 4CH / 8CH |
| IP rating | IP65 |
| Product dimensions | 1000 × 200 × 250mm |
| Net weight | 10.8kg |
| Gross weight | 11.2kg |
| Control modes | DMX512 / Auto / master-slave |
| LED configuration | 18 × 10W RGBW four-in-one LEDs |
| Color system | RGBW |
WASH AND FLASH CUES
Build intensity and strobe changes into the brief.
Independent electronic linear dimming covers 0–100%. Independent electronic strobe is listed at 1–25Hz, with random, pulse, synchronous and asynchronous strobe modes.
CONTROL AND INSTALLATION
Match the fixture to the console and mounting plan.
DMX512 provides 4CH and 8CH profiles; Auto and master-slave are also listed. Input is AC100–240V at 50/60Hz. The fixture measures 1000 × 200 × 250mm and weighs 10.8kg net.
APPLICATION FIT
Specify RGBW wash for the surfaces and rig positions.
For event backdrops, stage scenery and outdoor lighting briefs, provide the surface size, fixture spacing, throw distance and required colors. The IP65 rating applies to the fixture; match the complete installation and connectors to the site conditions.
Explore other LED wash lights for different source arrangements and control requirements.
B2B ORDER FLOW
Prepare a quotation for the wall wash installation.
For your 18x10W RGBW IP65 Wall Wash Bar order, provide the wash target and rig requirements so the quotation can cover the fixture configuration, accessories and delivery. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
18x10W RGBW IP65 Wall Wash Bar — Buyer Questions
RGBW sources, control profiles, strobe and installation planning.
What light source does this bar use?
It uses 18 × 10W RGBW four-in-one LEDs, combining red, green, blue and white.
Which DMX channel profiles are listed?
4CH and 8CH are listed. Request the matching chart for the console and wash cues.
Can it operate without a DMX console?
Auto and master-slave operation are listed in addition to DMX512.
What dimming is specified?
Independent electronic linear dimming covers 0–100%.
Which strobe effects are available?
Independent electronic strobe is listed at 1–25Hz, with random, pulse, synchronous and asynchronous strobe modes.
What is the waterproof rating?
The fixture is rated IP65. Provide outdoor exposure and connector requirements when specifying the complete installation.
What are the voltage, dimensions and weight?
Input is AC100–240V, 50/60Hz. Dimensions are 1000 × 200 × 250mm. Net weight is 10.8kg and gross weight is 11.2kg.
What should I send for a quotation?
Send quantity, target surface dimensions, throw distance, fixture spacing, required colors, console/profile, mounting, supply/plug, connectors, destination and delivery date. Confirm accessories and packing details.
