ROUND RETRO FACE AND TWO STROBE SOURCE GROUPS

150W Ferris Wheel Retro LED Effect Light

Ferris Wheel Retro LED effect fixture combining six 20W three-in-one LEDs, six 3W circular strobe LEDs and six 3W bar-shaped strobe LEDs. The 150W fixture supports 10CH and 37CH DMX profiles, Master-Slave, Auto and Sound Activated playback, 0–100% dimming and 25 flashes per second.

6 × 20W three-in-one LEDs
Circular + bar-shaped strobe LEDs
150W / 10CH or 37CH

Get a Quote

150W Ferris Wheel Retro LED Effect Light Ferris Wheel Retro fixture with round face, six lens positions and radial segments

SOURCE CONFIGURATION

150W Ferris Wheel Retro LED Effect Light — build a round retro face with two strobe groups.

For 150W Ferris Wheel Retro LED Effect Light configurations, six 20W three-in-one LEDs are combined with six 3W circular strobe LEDs and six 3W bar-shaped strobe LEDs.

Six three-in-one LEDs

The main LED configuration is six sources rated at 20W each.

Circular strobes

Six circular strobe LEDs are listed at 3W each.

Bar-shaped strobes

Six bar-shaped strobe LEDs are listed at 3W each.

Two DMX profiles

Select the 10CH or 37CH profile for the required control setup.

Specifications

Technical specifications

Model	Ferris Wheel Retro
Public product power	150W fixture power
Light source	6 × 20W three-in-one LEDs; 6 × 3W circular strobe LEDs; 6 × 3W bar-shaped strobe LEDs
Rated fixture power	150W
Voltage	AC 220V, 50Hz
DMX channels	10CH / 37CH
Control modes	DMX512 / Master-Slave / Auto / Sound Activated
Dimming	0–100% dimming
Strobe	25 flashes per second

RADIAL FACE SCENES

Review the supplied illuminated face looks.

The supplied demonstrations show circular sources alongside colored radial segments. Colors in demonstration photographs do not define the three-in-one LED channel composition.

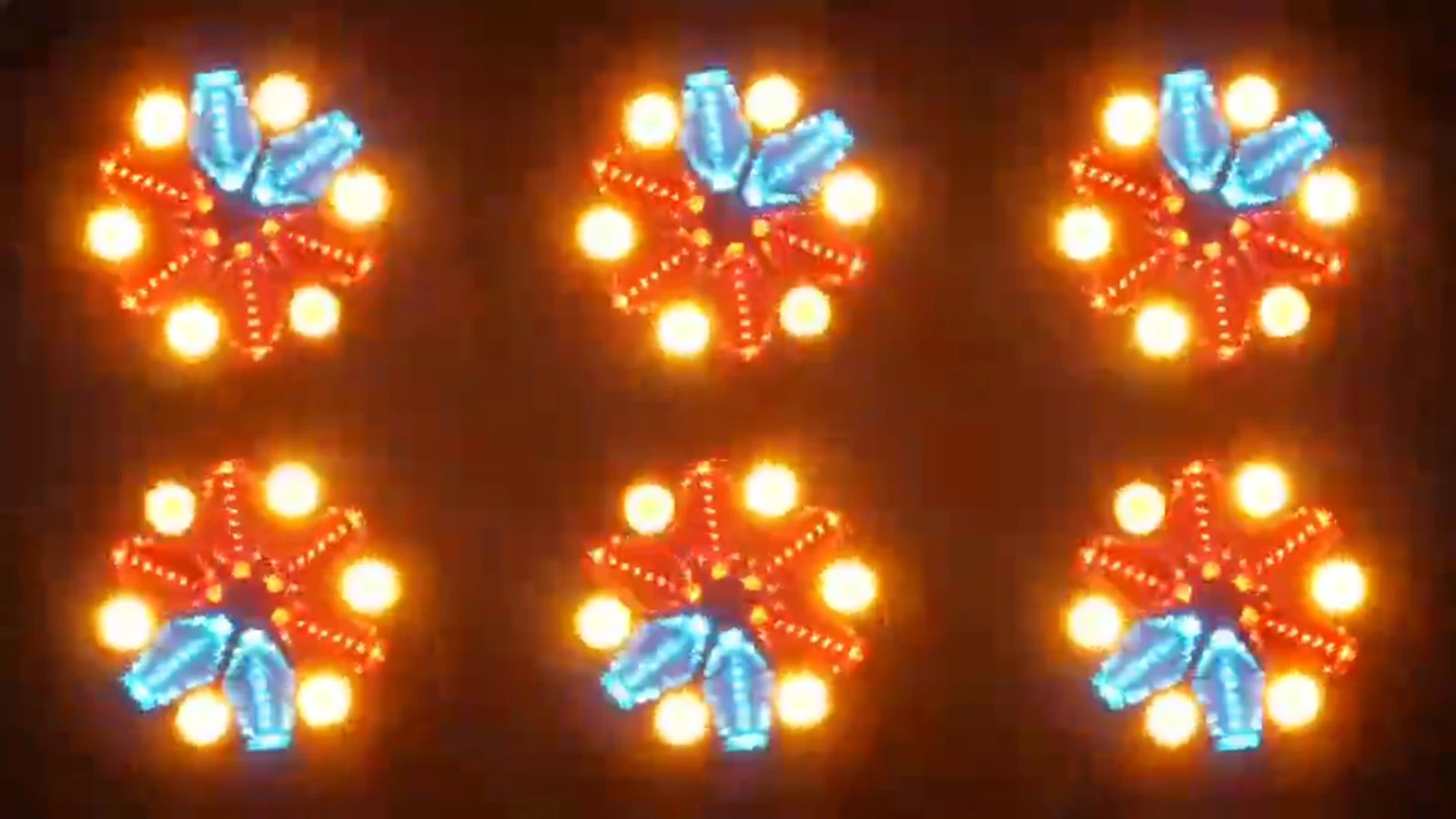

Supplied Ferris Wheel Retro demonstration with amber-looking circles and blue and red radial segments

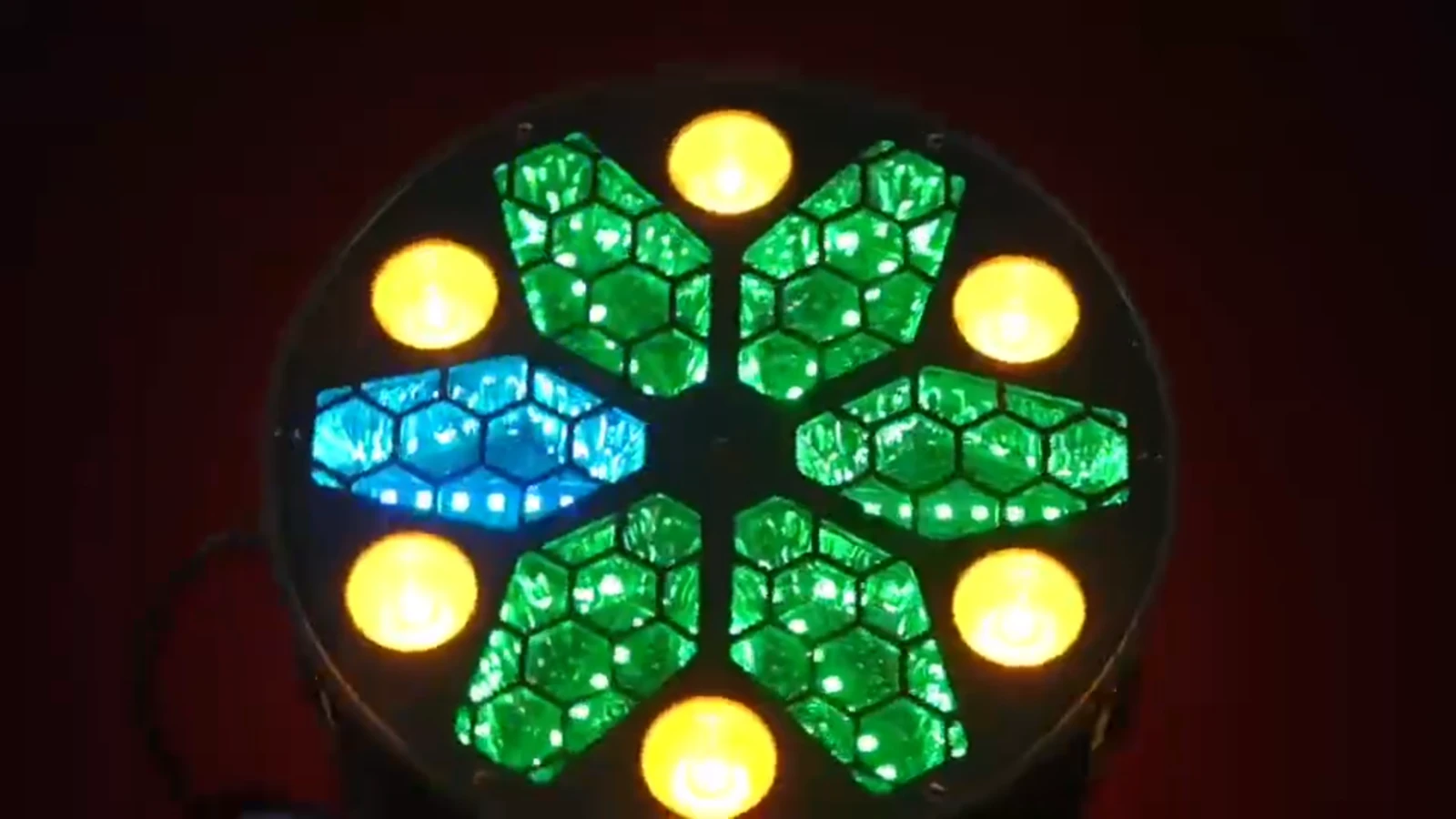

Supplied close-up of illuminated circular sources and green and blue radial segments

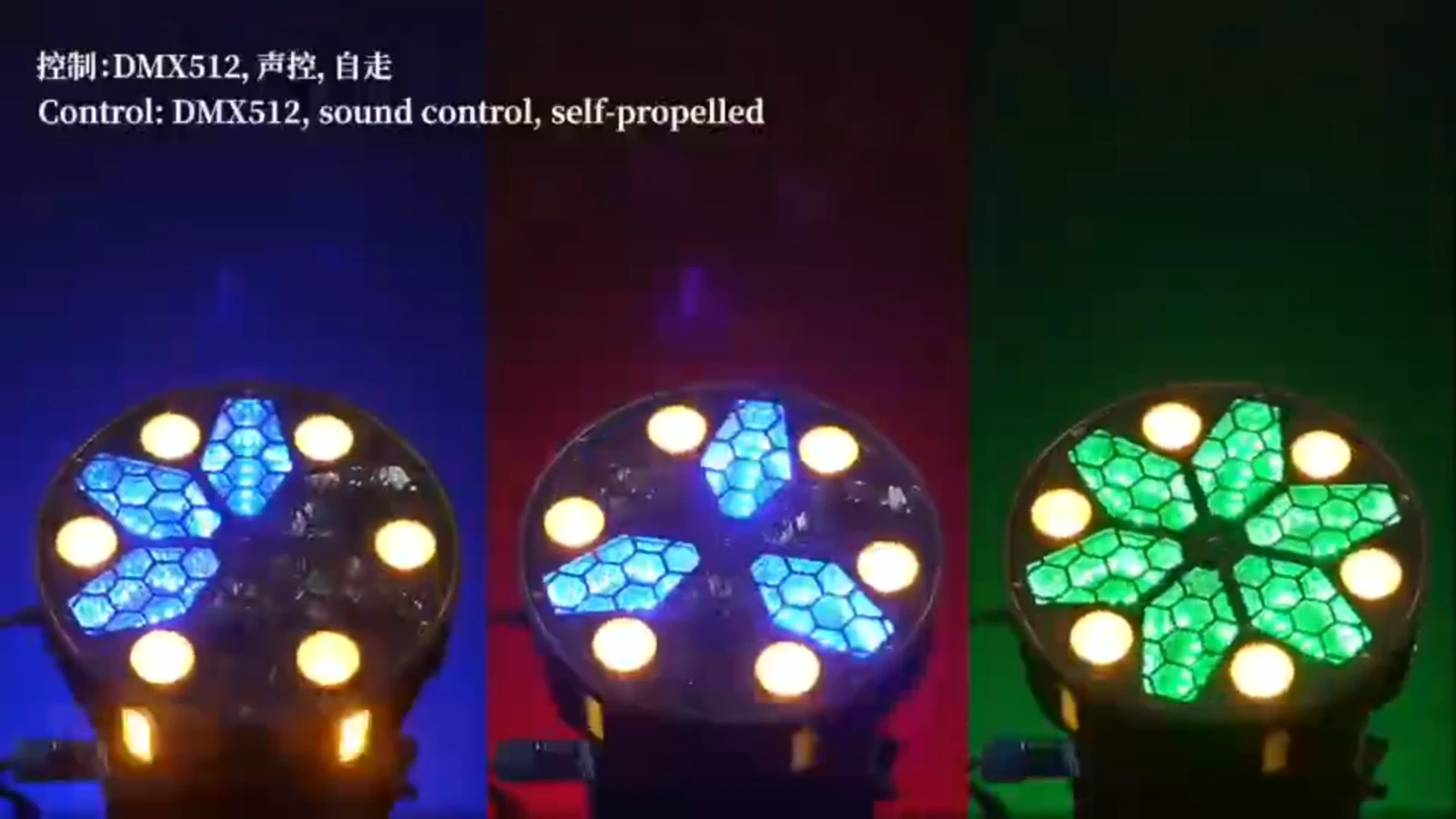

Supplied fixture color scenes with DMX, sound and automatic playback caption

AERIAL DEMONSTRATIONS

Compare blue and warm-colored scenes.

These paired fixture scenes show aerial lighting in the demonstration environment. Haze, positioning and exposure affect the visible appearance.

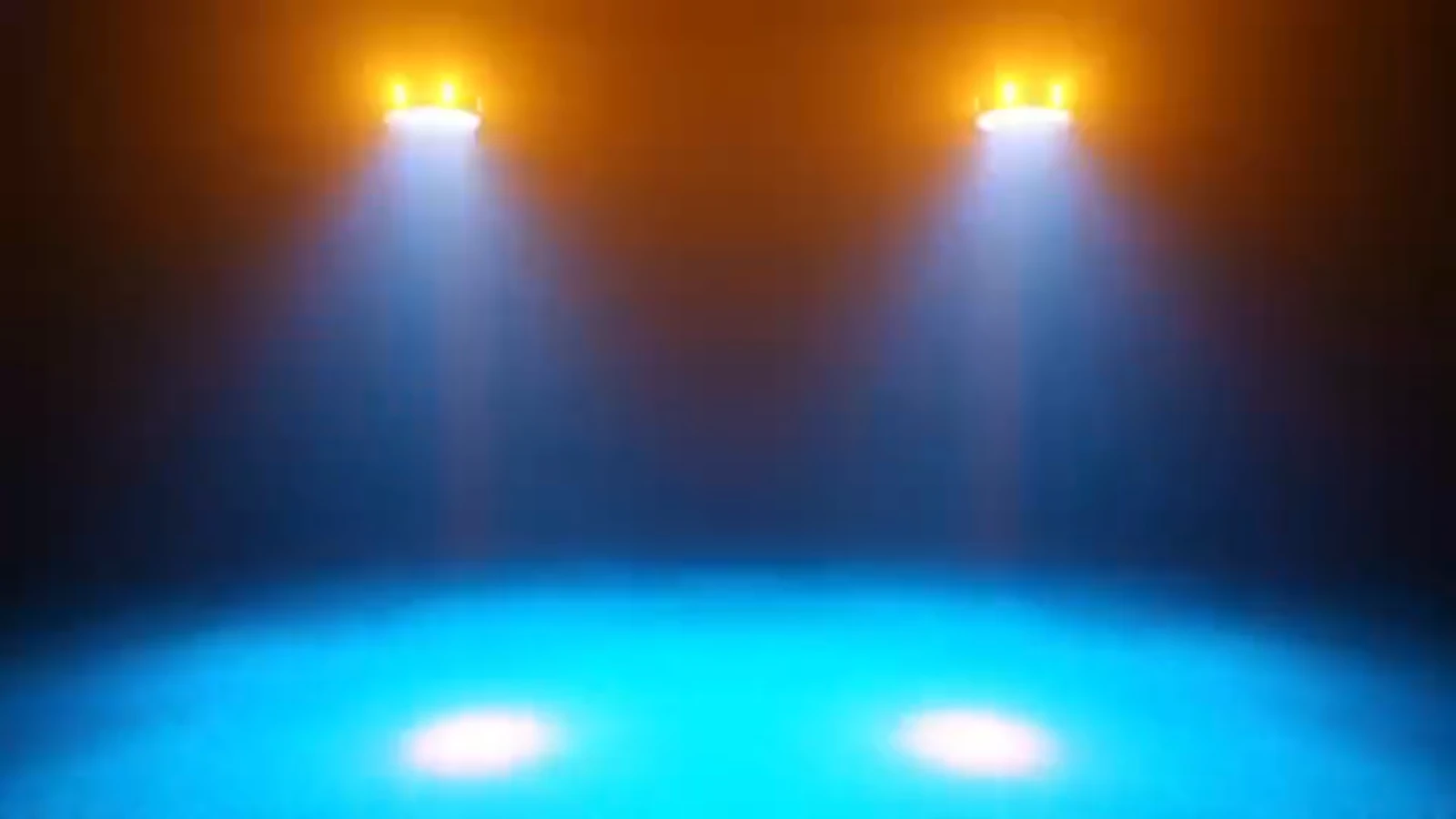

Supplied paired fixture demonstration showing blue aerial light

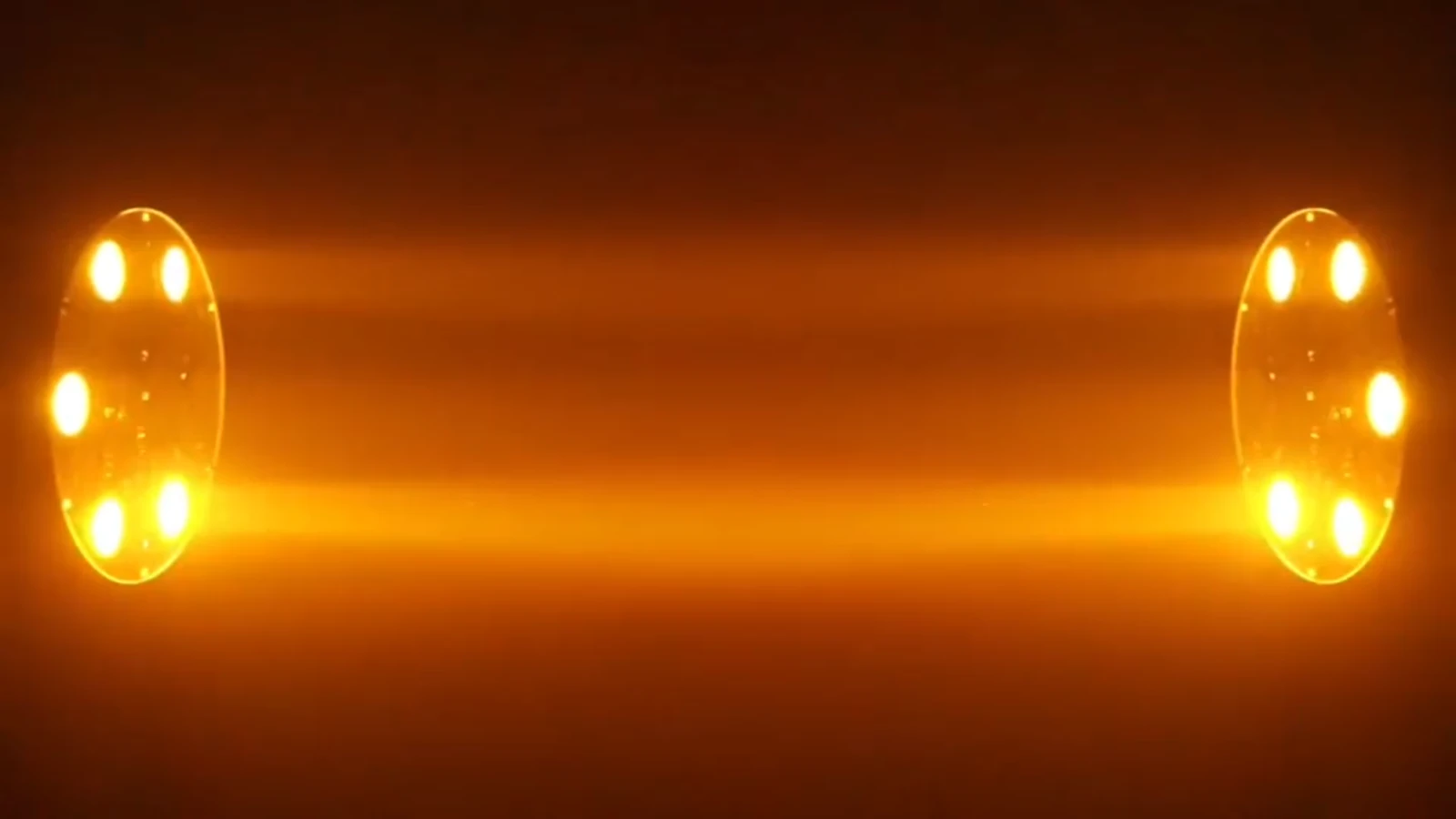

Supplied paired fixture demonstration showing warm-colored aerial light

MULTI-FIXTURE LOOKS

See repeated round-face patterns.

These supplied collages illustrate repeated fixture-face scenes for a lighting design brief.

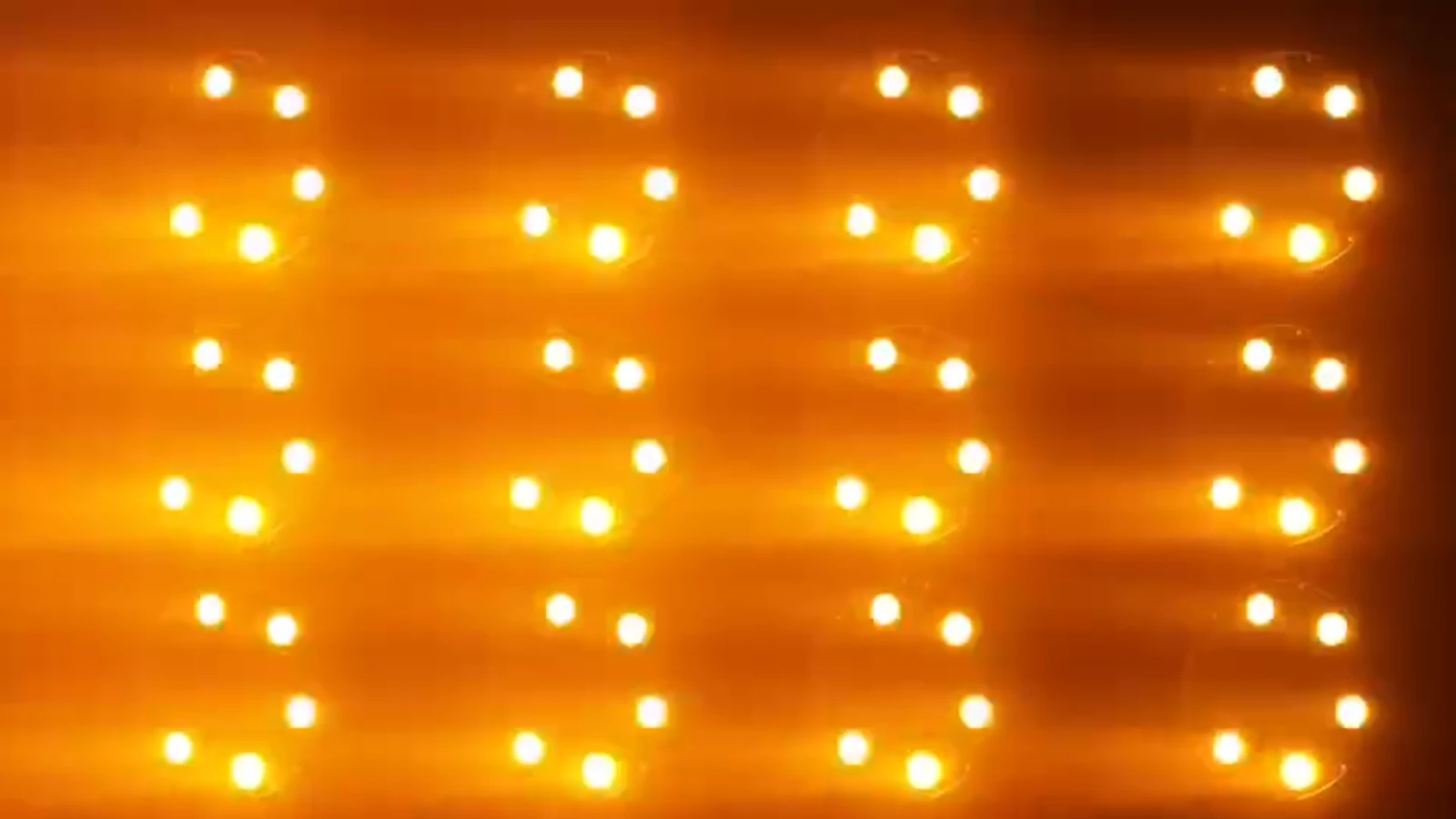

Supplied multi-fixture collage showing illuminated circular faces

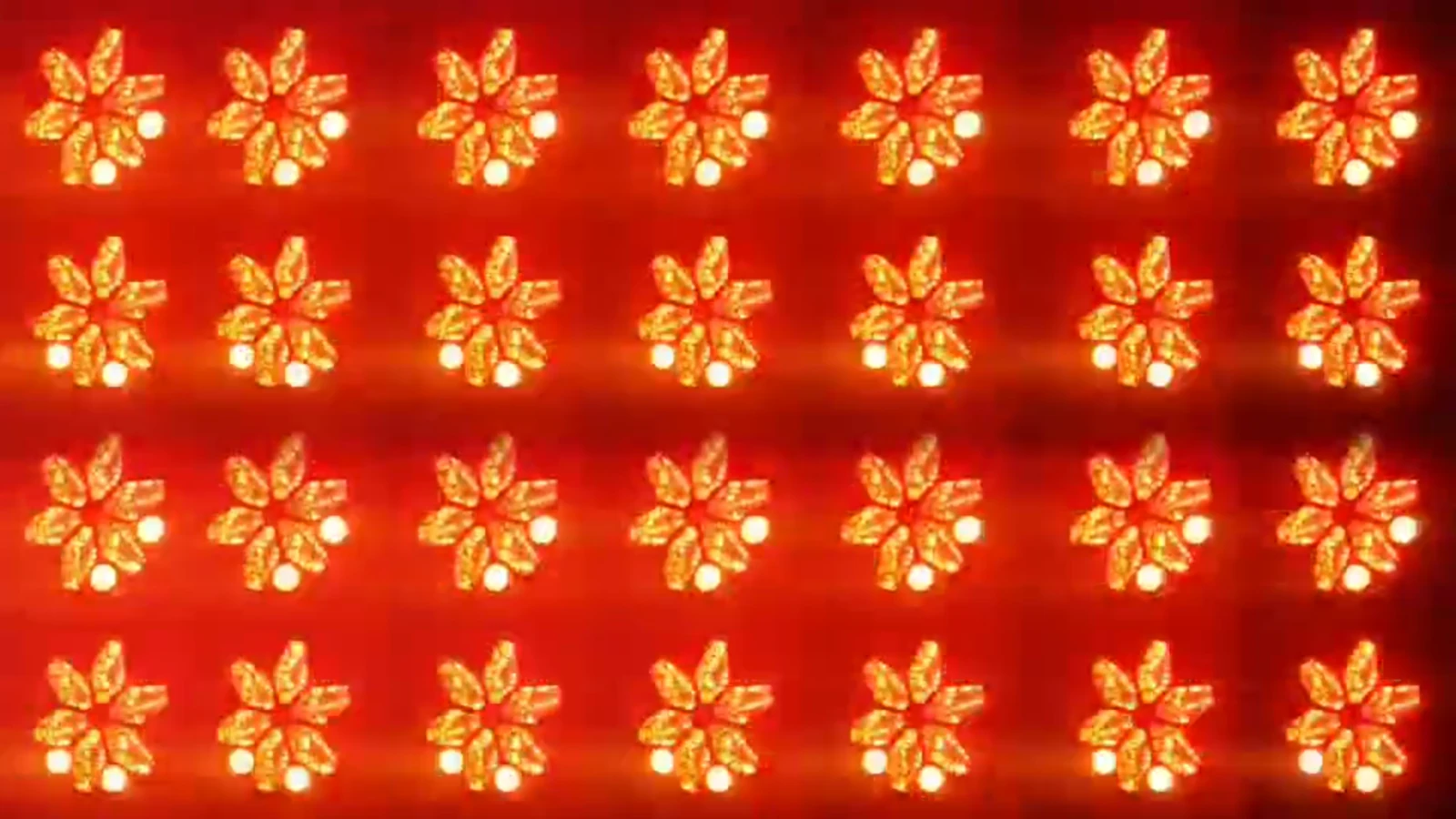

Supplied multi-fixture demonstration collage with red and warm-colored radial faces

PRODUCT VIDEO

Watch the Ferris Wheel Retro demonstration.

This video is mapped to the Ferris Wheel Retro variant in the verified product-video index.

CONTROL AND INTENSITY

Choose console, linked or standalone playback.

DMX512, Master-Slave, Auto and Sound Activated operation are listed. Dimming is 0–100%, with a specified strobe rate of 25 flashes per second.

10CH or 37CHRequest both channel charts to select the profile for the required cues.

Linked and standalone modesMaster-Slave, Auto and Sound Activated are listed alongside DMX512.

Electrical planningInput is AC 220V at 50Hz, with a 150W fixture power rating.

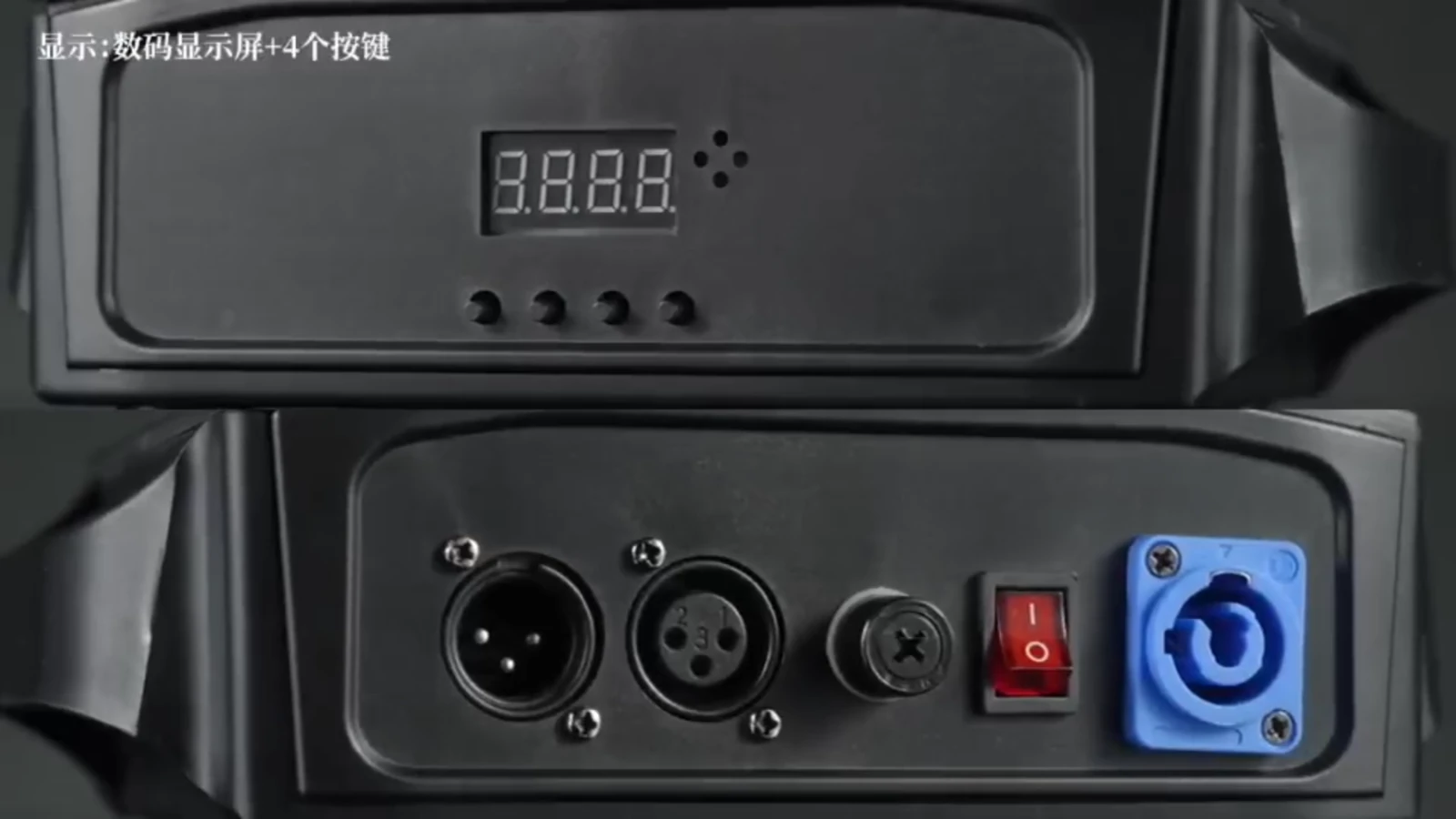

Control display with four buttons and rear DMX and power connections

APPLICATION FIT

Specify face patterns and flash cues.

For 150W Ferris Wheel Retro LED Effect Light applications, provide the required circular-face looks, fixture positions and playback workflow for the venue or event.

Stage face effectsDescribe the radial face colors and circular or bar flash cues.

Venue operationChoose console, linked, automatic or sound-triggered playback.

DMX programmingChoose 10CH or 37CH and request the corresponding control chart.

Power and supply briefState AC 220V/50Hz availability, quantity, plug requirements and accessories.

Compare the beam moving head light range for other fixture configurations.

B2B ORDER FLOW

Request the selected fixture configuration.

Identify 150W Ferris Wheel Retro LED Effect Light and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.

01 · LIGHTING

Describe the required lighting cues.

Provide fixture positions, venue layout and the color or pattern roles required from Ferris Wheel Retro.

02 · CONTROL

Specify the console and operating profile.

Include the selected channel mode, console, power connections and accessory requirements.

03 · DELIVERY

Complete the supply brief.

State quantity, destination, schedule, mounting accessories and packing configuration for this model.

PRODUCT FAQ

Questions Before You Order.

Sources, optical functions, control and order configuration.

Which main LEDs are specified?

Six 20W three-in-one LED sources are listed.

What strobe sources are included?

Six 3W circular strobe LEDs and six 3W bar-shaped strobe LEDs are specified.

What is the complete-fixture power rating?

Product power is 150W. Individual source ratings are separate specification values.

What input voltage is required?

The specified input is AC 220V at 50Hz.

Which DMX profiles are available?

10CH and 37CH profiles are listed. Request the matching channel charts before programming.

Which operating modes are specified?

DMX512, Master-Slave, Auto and Sound Activated modes are listed.

What dimming and strobe functions are specified?

0–100% dimming and 25 flashes per second are listed.

What should I include in an inquiry?

Identify the Ferris Wheel Retro variant and provide quantity, destination, desired face patterns and flash cues, fixture positions, 10CH or 37CH profile, playback mode, AC 220V/50Hz supply, plugs, accessories, packing and schedule.
