UPGRADED EIGHT-EYE LASER EFFECT

Upgraded Eight-Eye Rotating Laser Bar

Upgraded eight-eye laser bar with eight solid-state laser tubes, 270° rotation and eight built-in automatic programs for slow and fast flowing beam effects. The 100W fixture supports 6CH or 14CH DMX and Master-Slave, Auto or Sound Activated playback. Choose a red, green or blue single-color version, or the RGB full-color version. Each head is rated at 500mW; RGB power is the combined output per head.

8 laser heads / 500mW per head
8 built-in automatic programs
270° rotation / 6CH or 14CH

Get a Quote

Eight-eye rotating laser bar housing showing source apertures, display, and power and DMX connections

UPGRADED LASER EFFECT

Upgraded Eight-Eye Rotating Laser Bar — eight sources with automatic flowing-beam programs.

Upgraded Eight-Eye Rotating Laser Bar combines eight solid-state laser tubes with a listed 270° rotation range. Eight built-in automatic programs provide slow and fast flowing-beam effects.

Eight laser sources

Eight solid-state laser tubes form the source system across the bar.

Eight automatic programs

Built-in automatic programs provide preset playback for the listed flowing-beam effects.

Slow and fast effects

Use the flowing-beam effect roles when describing the desired cue rhythm.

6CH or 14CH DMX

Select the control profile and request the matching chart for console setup.

RED CONFIGURATION DEMONSTRATION

Review red parallel and crossing beam looks.

These red-effect photographs show multiple bars operating together; the whole scene is not the output of one bar.

Two laser bars producing red fan and parallel-beam looks in a demonstration

Parallel red laser beams from two bars in a demonstration setup

Crossing red laser beams from two bars in a demonstration setup

Red parallel beams and a sweeping red look from multiple bars in a demonstration

SHARED PRODUCT VIEWS

Inspect the eight-eye bar housing and connections.

These hardware views show the bar housing, source apertures, display and marked power and DMX connections.

Opposite angled view of the eight-eye laser bar with RED STAR branding

Low connection-side view of the eight-eye bar showing power and DMX connections

CONFIGURATION OPTIONS

Choose single-color or RGB full-color output.

Red, green and blue single-color versions and an RGB full-color version are available. Output is 500mW per laser head; for RGB this is the combined red, green and blue output per head. State the required configuration in your inquiry.

RGB FULL-COLOR DEMONSTRATIONS

Review multicolor crossing and fan looks.

These supplied scenes illustrate the RGB configuration using multiple bars. The red demonstration images elsewhere on this page illustrate single-color output.

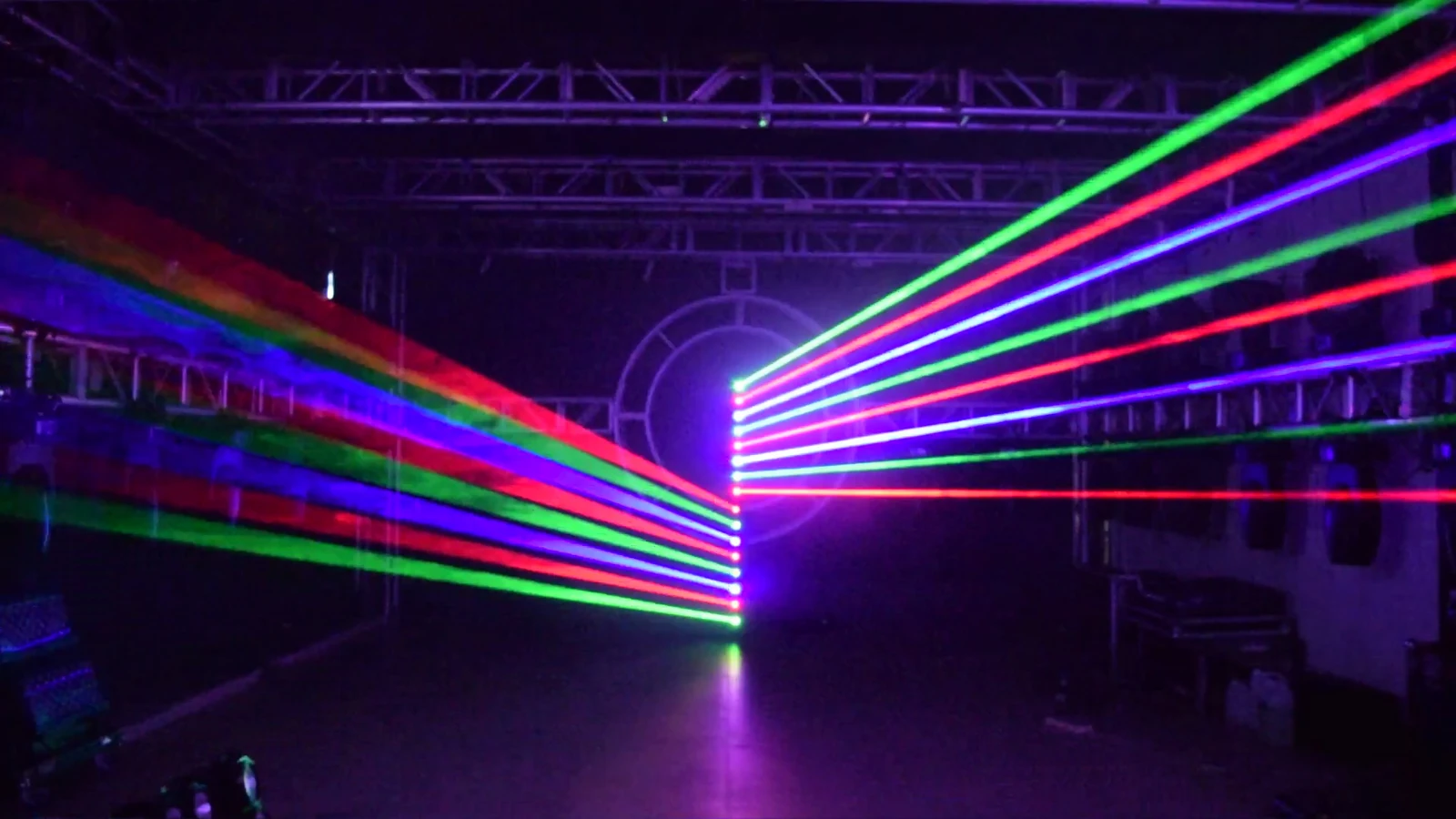

Supplied RGB full-color eight-eye laser demonstration 1

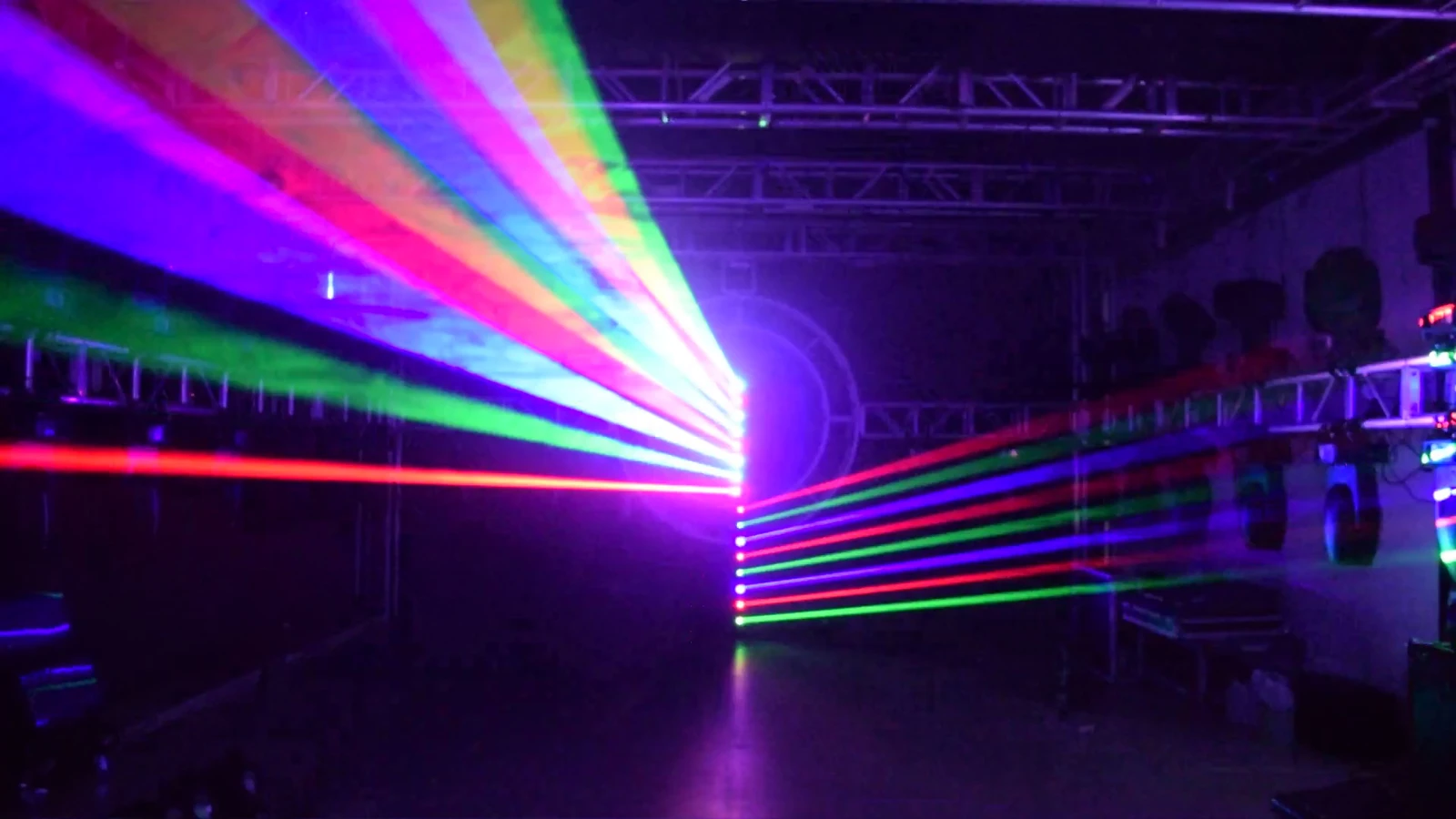

Supplied RGB full-color eight-eye laser demonstration 2

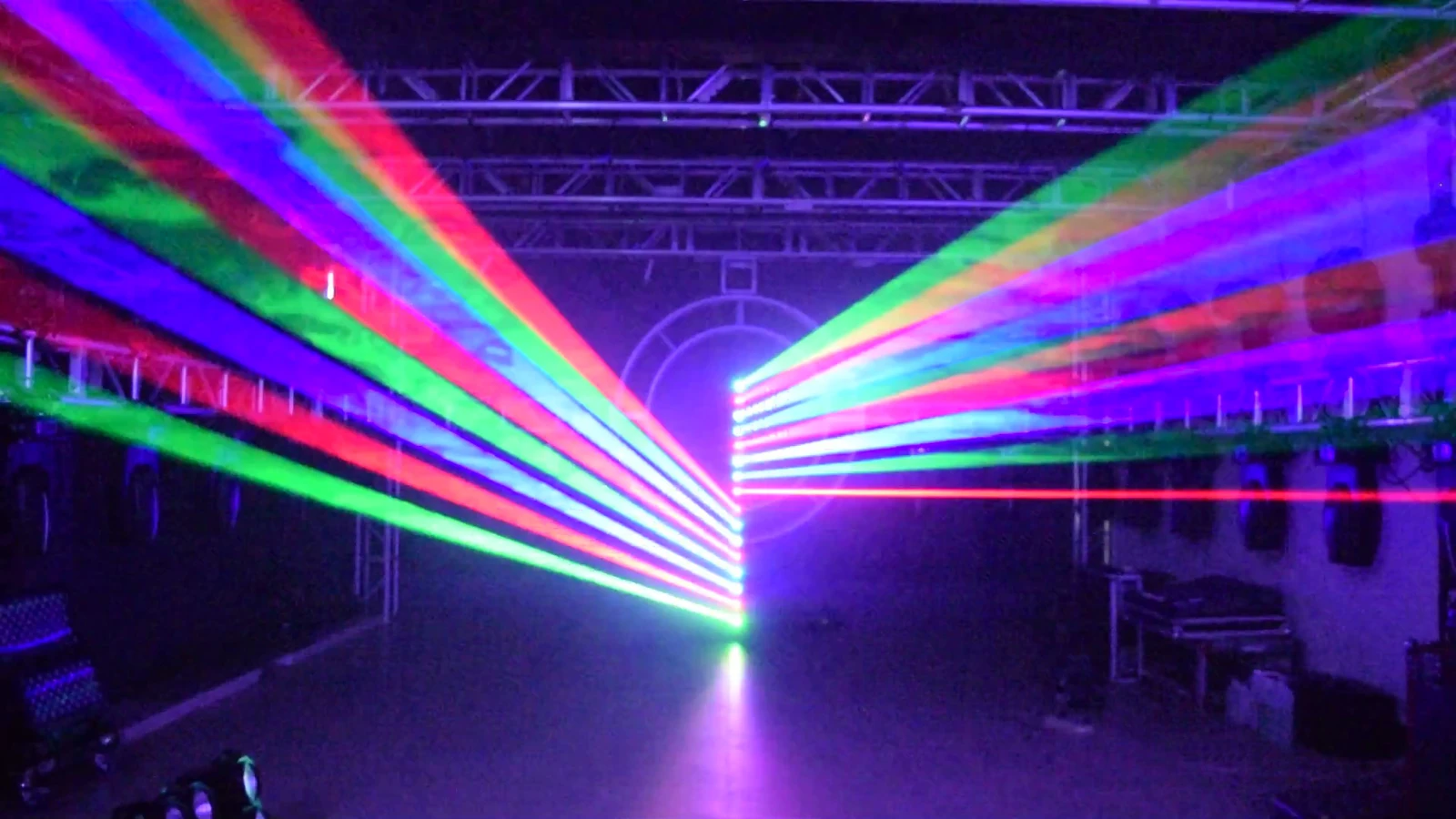

Supplied RGB full-color eight-eye laser demonstration 3

Supplied RGB full-color eight-eye laser demonstration 4

Specifications

Technical specifications

Model	RG-759B
Public product power	100W fixture power
Light source	8 solid-state laser heads; 500mW per head for single-color configurations; 500mW combined RGB output per head for full-color configuration
Rated fixture power	100W
Voltage	AC 100–240V, 50/60Hz
DMX channels	6CH / 14CH
Product dimensions	1140 × 320 × 250mm
Control modes	DMX512 / Master-Slave / Auto / Sound Activated
Color system	Single-color red, green or blue options; RGB full-color option
Effect type	Eight-eye laser mesh; slow and fast flowing effects; 8 built-in automatic programs
Movement	270° rotation

PLAYBACK AND MOVEMENT

Choose automatic playback or console programming.

Master-Slave, Sound Activated, Auto and DMX512 operating modes are listed, alongside 6CH and 14CH profiles.

Automatic playbackEight built-in programs provide the listed slow and fast flowing-beam looks.

Console cuesRequest the channel chart for the selected 6CH or 14CH profile and planned cue sequence.

Bar dimensionsThe listed fixture dimensions are 1140 × 320 × 250mm, with 270° rotation.

APPLICATION FIT

Specify beam patterns, timing and placement.

For Upgraded Eight-Eye Rotating Laser Bar applications, select the upgraded configuration where an eight-source laser mesh and preset flowing-beam effects match the lighting design.

Flowing beam cuesDescribe the intended slow and fast rhythm for the scene.

Multi-bar mesh layoutsProvide the number and placement of bars for crossing-beam arrangements.

Standalone playbackChoose one of the listed automatic programs when planning preset playback.

Console-operated designsState the console, selected profile and required beam cue sequence.

Review the laser light range for other source and effect configurations.

B2B ORDER FLOW

Request the selected fixture configuration.

Identify Upgraded Eight-Eye Rotating Laser Bar and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.

01 · LIGHTING

Describe the required lighting cues.

Choose red, green or blue single-color output, or the RGB full-color version, then describe the required eight-head arrangement. State whether preset flowing-beam playback or programmed 6CH/14CH operation is needed. The 500mW figure is per head; for RGB it is the combined color output of that head.

02 · CONTROL

Specify the console and operating profile.

Include the selected channel mode, console, power connections and accessory requirements.

03 · DELIVERY

Complete the supply brief.

State quantity, destination, schedule, mounting accessories and packing configuration for this model.

PRODUCT FAQ

Questions Before You Order.

Sources, optical functions, control and order configuration.

What distinguishes the RG-759B upgraded version?

The supplied specification lists eight built-in automatic programs and slow and fast flowing-beam effects.

How many laser sources are listed?

Eight solid-state laser tubes are listed across the bar.

Which beam-color options are listed?

Choose a red, green or blue single-color version, or an RGB full-color version. Each laser head is rated at 500mW. For RGB, 500mW is the combined red, green and blue output per head.

What does 100W describe?

100W is the complete-fixture power rating, separate from optical laser output.

Which control modes and channels are available?

DMX512, Master-Slave, Auto and Sound Activated modes are listed, with 6CH and 14CH profiles. Request the matching channel chart for the selected profile.

What movement and dimensions are listed?

Rotation is listed as 270° and product dimensions as 1140 × 320 × 250mm.

What input voltage and frequency are listed?

The fixture is specified for AC 100–240V at 50/60Hz.

What should I include in an upgraded-version inquiry?

Identify RG-759B, beam-color configuration, fixture quantity and positions, flowing-effect rhythm, automatic or DMX playback, console profile, power connections, mounting accessories, packing requirements, destination and schedule.
