SIX-EYE RGB LASER EFFECT

Six-Eye Rotating RGB Laser Bar

Six-eye RGB full-color laser bar with six solid-state laser heads, each rated at 500mW combined RGB output, and 270° rotation. The 100W fixture offers 6CH or 14CH DMX profiles and two-fixture flight-case packing.

6 heads / 500mW RGB per head
270° rotation
6CH or 14CH / two-unit flight case

Get a Quote

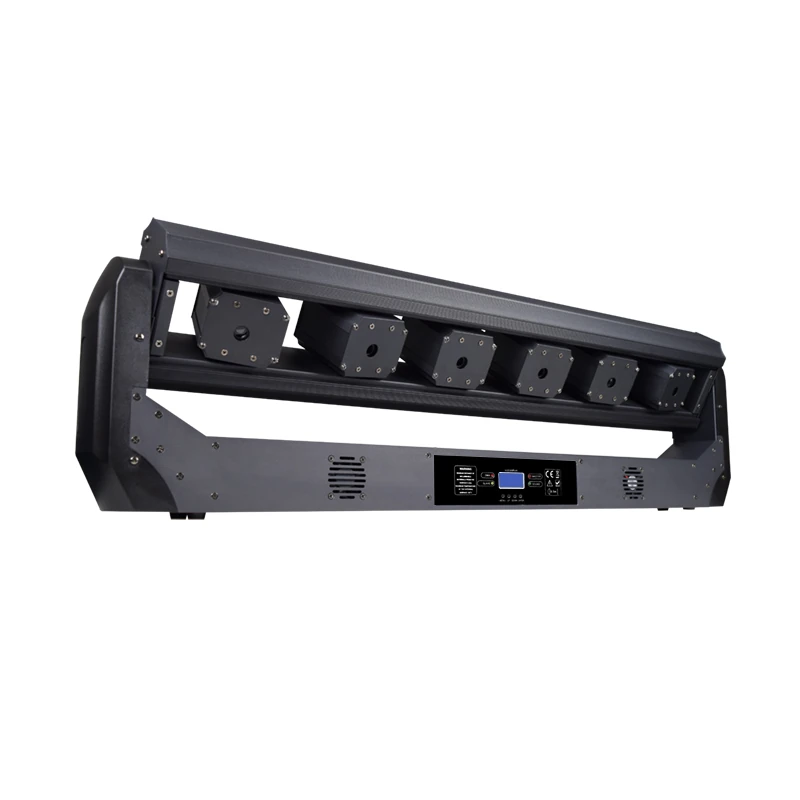

Six-Eye Rotating RGB Laser Bar — Angled front view of RG-762B RGB laser bar with six laser heads and control display

RGB FULL-COLOR CONFIGURATION

Six-Eye Rotating RGB Laser Bar — six laser sources for rotating color cues.

Six-Eye Rotating RGB Laser Bar is the RGB full-color version of the six-eye laser bar. Six solid-state laser heads, each rated at 500mW combined RGB optical output, and a listed 270° rotation range provide its source and movement configuration.

RGB full color

Choose the RGB configuration for multicolor laser cues in the lighting design.

Six laser tubes

Six heads are specified, each with 500mW combined RGB optical output.

270° rotation

Use the listed rotation range when planning moving laser cues and fixture positions.

6CH or 14CH DMX

Select a profile and request its matching channel chart for console patching.

COLOR DEMONSTRATION

Review multicolor lines and crossing looks.

The supplied images show multiple bars operating together. Colored and crossing-beam scenes illustrate that demonstration setup; the complete scene is not the output of a single fixture.

Multiple RGB laser bars producing multicolored upward beams in a demonstration

Multiple RGB laser bars producing pale crossing beams in a demonstration

Blue green and yellow crossing beams from multiple laser bars in a demonstration

PRODUCT VIEWS

Inspect the six-head housing and connection sides.

The product photographs show the control display, module ventilation, housing and marked power and DMX connections.

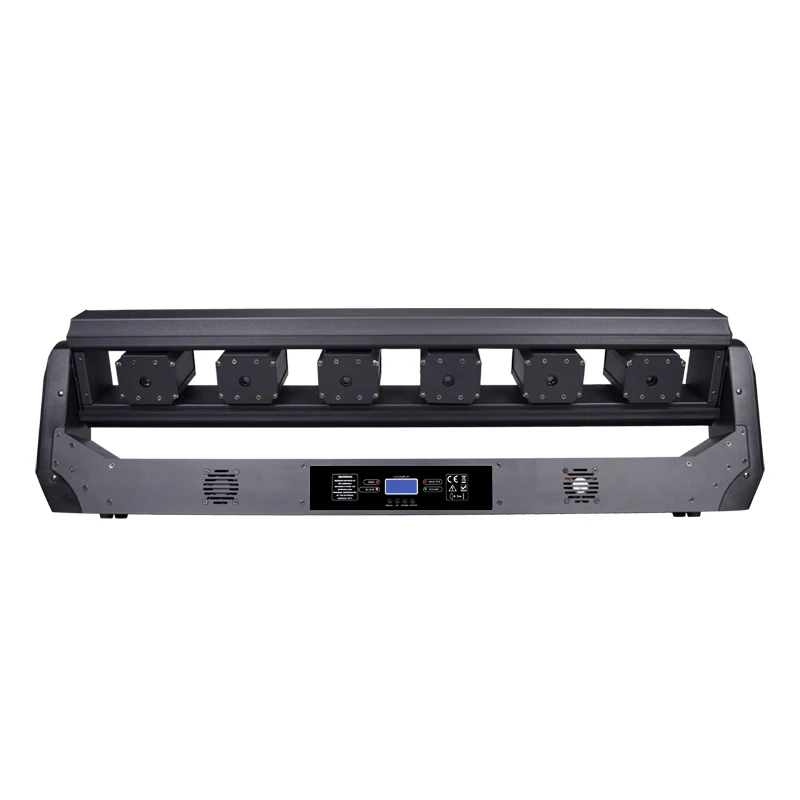

Straight control-side view of RG-762B six-head laser bar

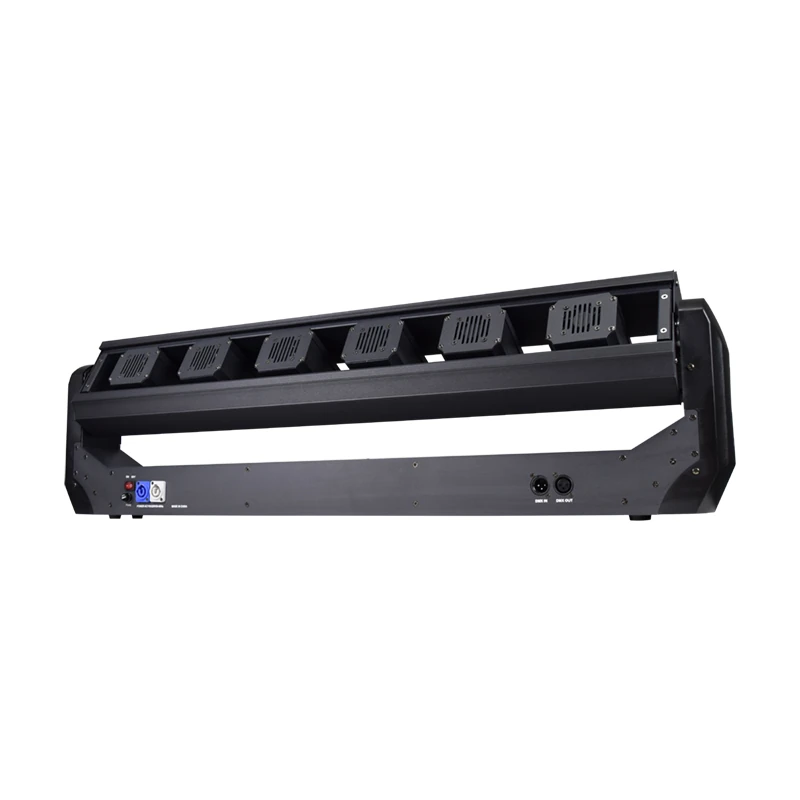

Rear angled view of RG-762B showing module ventilation and power and DMX connections

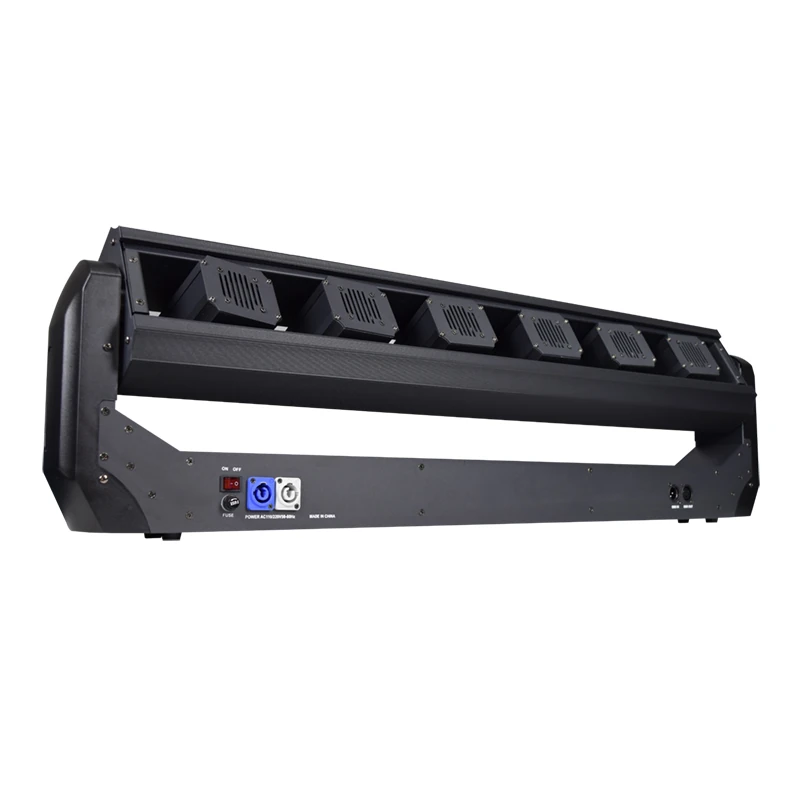

Opposite rear angle of RG-762B RGB laser bar and connection panel

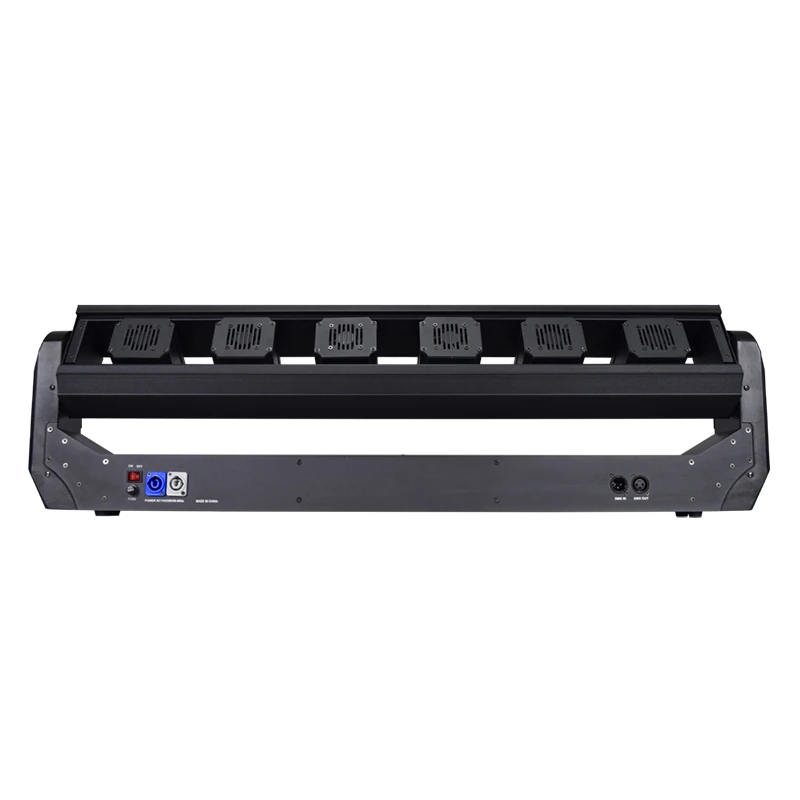

Straight rear view of RG-762B six-eye laser bar

Specifications

Technical specifications

Model	RG-762B
Public product power	100W fixture power
Light source	6 solid-state laser heads; 500mW combined RGB optical output per head
Rated fixture power	100W
Voltage	AC 100–240V, 50/60Hz
DMX channels	6CH / 14CH
Product dimensions	1015 × 90 × 255mm
Control modes	DMX512 / Master-Slave / Auto / Sound Activated
Color system	RGB full color
Effect type	Six-eye rotating RGB laser bar
Movement	270° rotation

PLAYBACK AND SIZE

Choose the control profile and plan space for the bar.

DMX512, Master-Slave, Auto and Sound Activated modes are listed, with 6CH and 14CH profiles.

Console patchingRequest the channel chart for the selected profile and your intended color and movement cues.

Playback modesSelect linked Master-Slave playback or the listed standalone Auto and Sound Activated modes.

Product dimensionsThe bar is listed at 1015 × 90 × 255mm, with a listed weight of 13.2kg.

APPLICATION FIT

Specify color cues and the role of each bar.

For Six-Eye Rotating RGB Laser Bar applications, use the RGB version for a lighting design that calls for a six-source full-color laser effect. Describe the intended scene and number of bars when requesting the configuration.

Multicolor scenesIdentify the required laser color cues and the position of each bar in the scene.

Crossing-beam layoutsProvide fixture positions and quantity; the supplied demonstrations use multiple bars.

Programmed showsState the console and chosen 6CH or 14CH profile for channel-chart matching.

Case-based ordersPlan quantities around the supplied two-fixture flight-case configuration.

Explore the laser light range for different source and effect configurations.

FLIGHT-CASE PACKING

Specify two fixtures in one flight case.

The supplied packing configuration is a two-in-one flight case for two RG-762B fixtures.

Two fixtures per caseState fixture quantity and the corresponding number of two-unit flight cases.

Case transport detailsInclude handling and destination requirements in the shipping brief for this case configuration.

Electrical planningUse the 100W fixture rating and AC 100–240V, 50/60Hz input when specifying supply and plugs.

B2B ORDER FLOW

Request the selected fixture configuration.

Identify Six-Eye Rotating RGB Laser Bar and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.

01 · LIGHTING

Describe the required lighting cues.

Specify the six-eye RGB full-color version, mounting positions, number of bars and required color sequences. Each head has 500mW combined RGB output. Select 6CH or 14CH from the matching function chart and state the two-fixture flight-case requirement; distinguish this order from the single-red version.

02 · CONTROL

Specify the console and operating profile.

Include the selected channel mode, console, power connections and accessory requirements.

03 · DELIVERY

Complete the supply brief.

State quantity, destination, schedule, mounting accessories and packing configuration for this model.

PRODUCT FAQ

Questions Before You Order.

Sources, optical functions, control and order configuration.

Is RG-762B the RGB full-color version?

Yes. This configuration is specified as RGB full color, distinct from the single-color RG-762 version.

What does the 500mW RGB rating refer to?

Each of the six laser heads is rated at 500mW combined RGB optical output. This is a per-head rating, rather than a separate 500mW rating for each color.

Does 100W describe optical laser output?

100W is the complete-fixture power rating, separate from optical laser output.

What rotation range is listed?

The specified rotation range is 270°.

What control profiles and playback modes are available?

6CH and 14CH DMX profiles are listed, with DMX512, Master-Slave, Auto and Sound Activated operation. Request the matching channel chart for the selected profile.

What voltage, size and weight are listed?

Input is AC 100–240V at 50/60Hz. Product dimensions are 1015 × 90 × 255mm and listed weight is 13.2kg.

What packing configuration is supplied?

Two fixtures are packed in one flight case, described as a two-in-one flight case.

What should I include in an RGB-version inquiry?

Specify RG-762B RGB, fixture quantity, intended color cues and bar positions, console profile, power connections, mounting accessories, two-unit flight-case quantity, destination and delivery schedule.
