RED LASER CONFIGURATION
Six-Eye Rotating Red Laser Bar — six red laser sources in a rotating bar.
Six-Eye Rotating Red Laser Bar is supplied here as the single-red version. Six solid-state laser tubes form the source system, with a listed rotation range of 270°.
Six laser tubes
The bar contains six solid-state laser tubes in the red configuration.
270° rotation
The listed rotation range provides movement for red laser cues.
6CH or 14CH DMX
Select the profile and request its matching channel chart for console patching.
Single-color options
Green or blue configurations are optional; identify the required beam color in the order.
RED EFFECT DEMONSTRATION

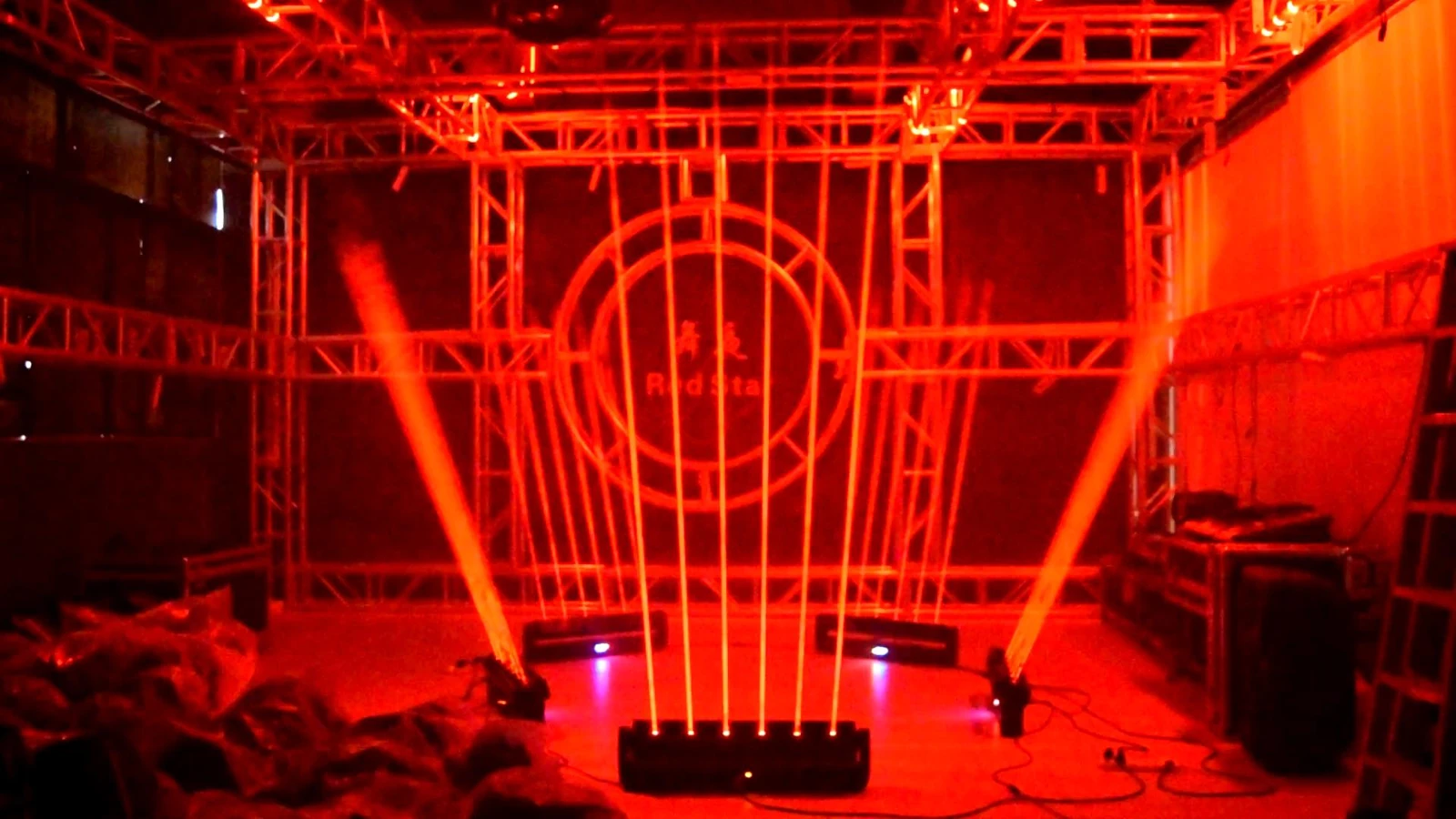

Review vertical, crossing and fan-like red looks.
These supplied images show several laser bars together with other lighting fixtures. They illustrate the demonstration setup; the complete scene is not the output of one bar.
PRODUCT VIEWS

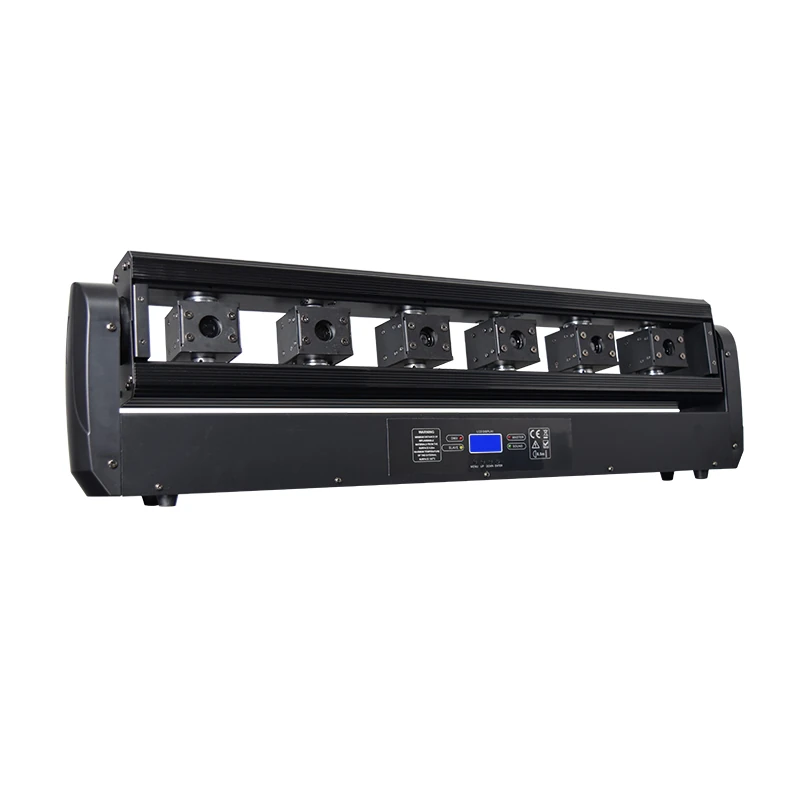

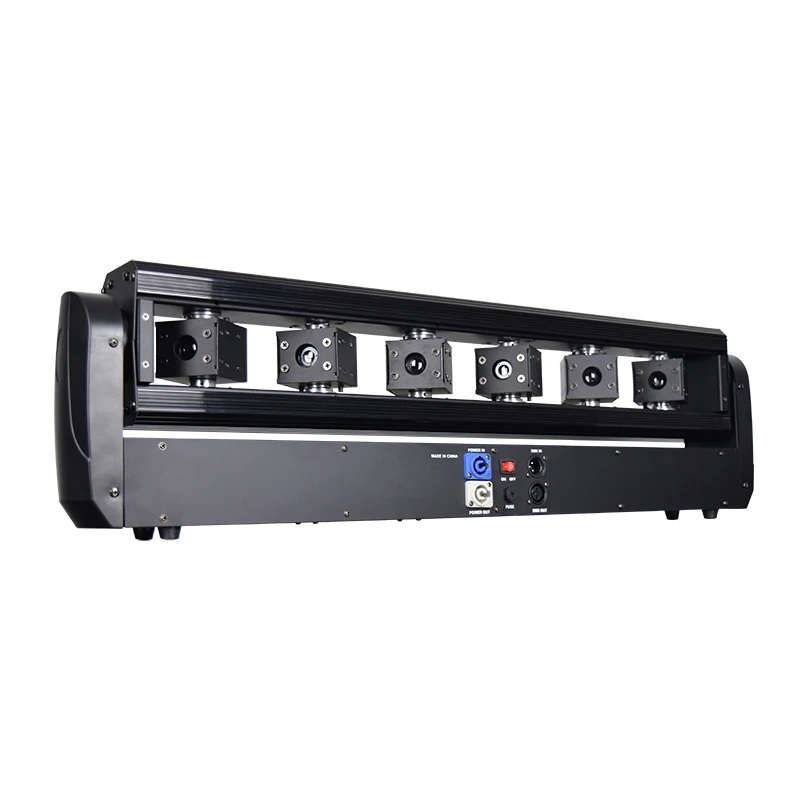

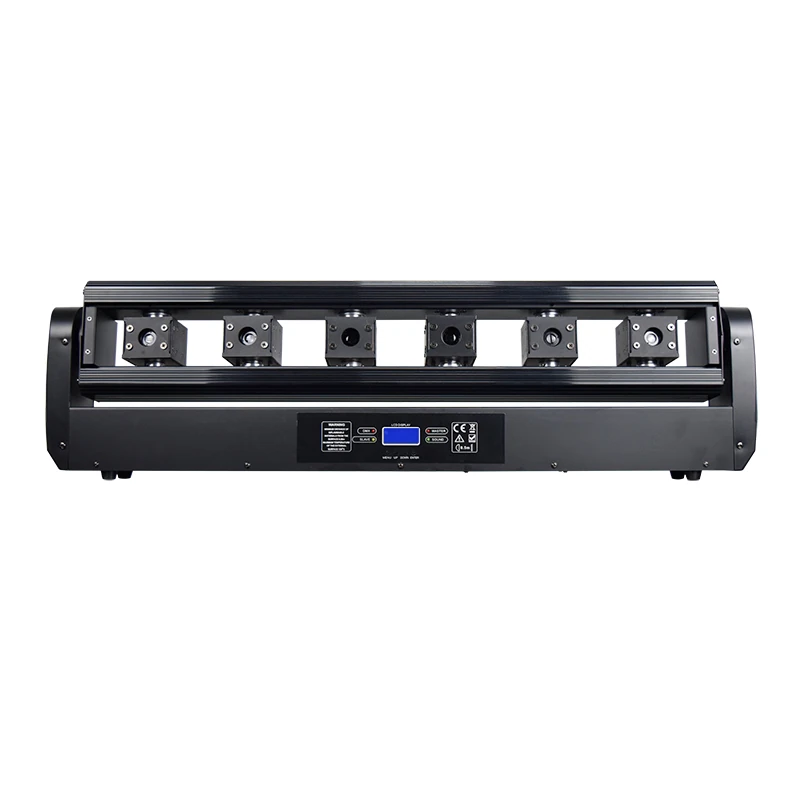

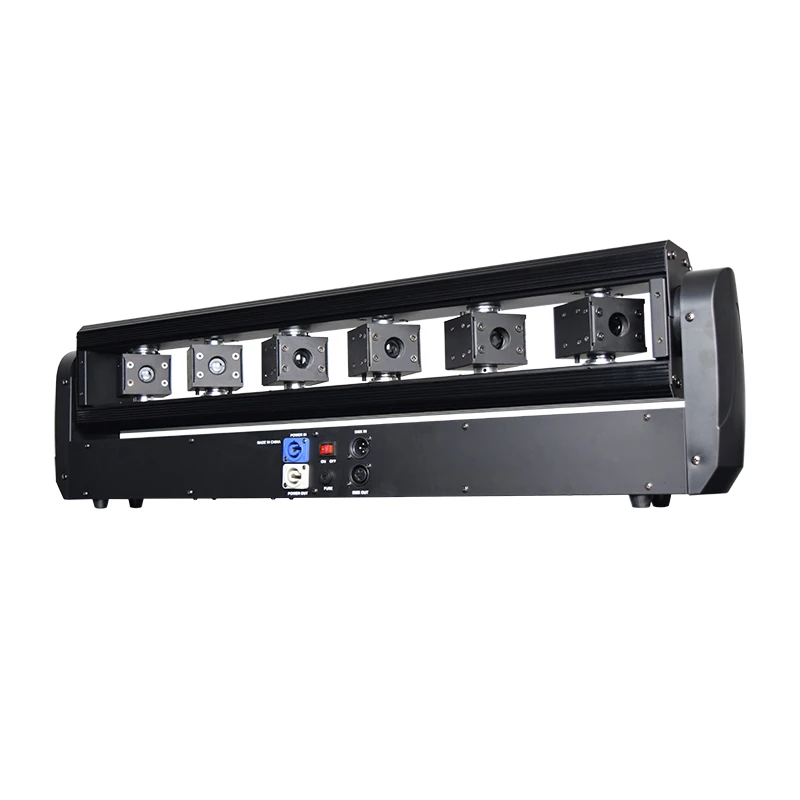

Inspect the six-head bar and connection sides.
The supplied views show the front modules, housing, control display and marked power and DMX connections.
PRODUCT VIDEO
Watch the red six-eye laser demonstration.
View the six-eye red laser bar in the supplied demonstration setup.
500mW red output per laser head.
Each of the 6 red laser heads is rated at 500mW. This optical output is specified separately from the 100W complete-fixture power.
Specifications
Technical specifications
| Model | RG-762 |
|---|---|
| Public product power | 100W fixture power |
| Light source | 6 solid-state red laser heads; 500mW output per head |
| Rated fixture power | 100W |
| Voltage | AC 100–240V, 50/60Hz |
| DMX channels | 6CH / 14CH |
| Product dimensions | 860 × 200 × 150mm |
| Control modes | DMX512 / Master-Slave / Auto / Sound Activated |
| Color system | Red; green or blue single-color configurations optional |
| Effect type | Six-eye rotating laser bar |
| Movement | 270° rotation |
PLAYBACK AND SIZE
Choose the control workflow and allow room for the bar.
Use DMX512 with the 6CH or 14CH profile, or select Master-Slave, Auto or Sound Activated operation.
APPLICATION FIT
Specify the red beam role in the lighting design.
For Six-Eye Rotating Red Laser Bar applications, select this configuration where a six-source red laser effect is required. Use the demonstrated scenes as references when describing the desired cue structure.
Review the laser light range when comparing source and effect configurations.
TWO-UNIT PACKING
Plan the supplied carton configuration.
The listed packing is two fixtures per carton, with carton dimensions of 95 × 42 × 32cm.
B2B ORDER FLOW
Request the selected fixture configuration.
Identify Six-Eye Rotating Red Laser Bar and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
Sources, optical functions, control and order configuration.
Is this RG-762 configuration red or RGB?
This page describes the single-red version. Green and blue are optional single-color configurations; simultaneous RGB mixing is not specified.
How many laser sources are included?
Six solid-state laser tubes are listed for the bar.
What does the 100W rating describe?
100W is the complete-fixture power rating. It is separate from optical laser output.
What rotation range is specified?
The listed rotation range is 270°.
Which DMX profiles and operating modes are available?
6CH and 14CH profiles are listed, with DMX512, Master-Slave, Auto and Sound Activated modes. Request the matching channel chart for console setup.
What voltage and fixture size are listed?
Input is AC 100–240V at 50/60Hz. Fixture dimensions are 860 × 200 × 150mm and listed fixture weight is 5kg.
How is RG-762 packed?
The supplied packing is two fixtures per carton, with carton dimensions of 95 × 42 × 32cm.
What should I include in a red-version inquiry?
Specify the red configuration, quantity, fixture positions, intended red beam cues, console and channel profile, power connections, mounting accessories, destination and delivery schedule.
