P1.86 · GOB · TRI-FOLD
Fine-pitch detail. A folding format.
A P1.86 GOB tri-fold LED display on a caster base. Select it around the content viewers need to read, the available floor space and the way your team will operate it.
Specifications
Technical specifications
| Model | P1.86 GOB Tri-Fold LED Display |
|---|---|
| Product dimensions | Approx. 1280 mm (W) × 2060 mm (overall H), including caster base |
| Pixel pitch | P1.86 / 1.86 mm |
| Cabinet size | Approx. 1280 (W) × 1920 (H) × 50 (D) mm; unfolded screen body, base excluded |
PRODUCT WALKAROUND
See the display in motion.

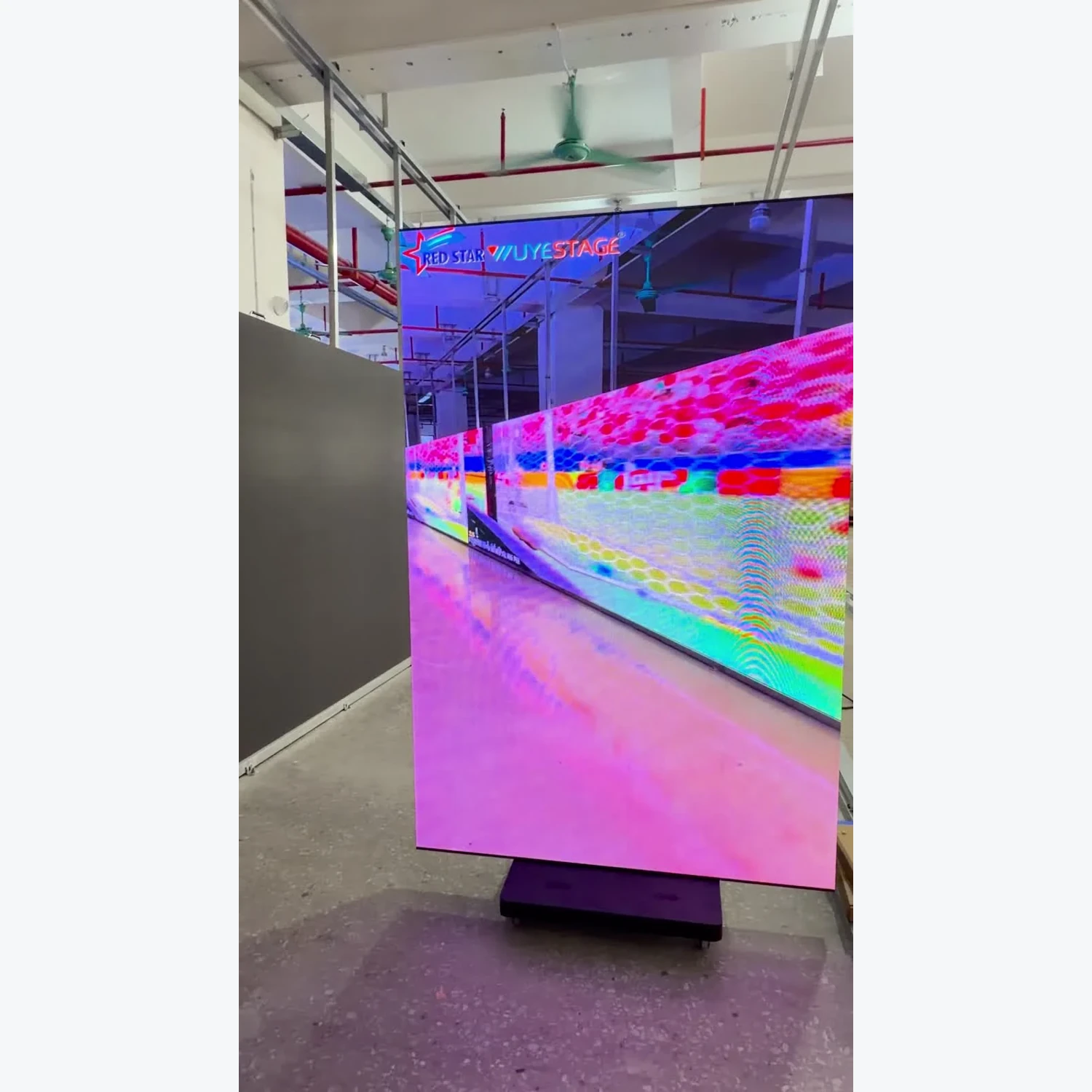

Watch the powered screen, then follow the side, rear cabinet and base. The video shows the unit as photographed; the gallery below provides a closer look.
THREE VIEWS · ONE DISPLAY
A clear view of the complete unit.

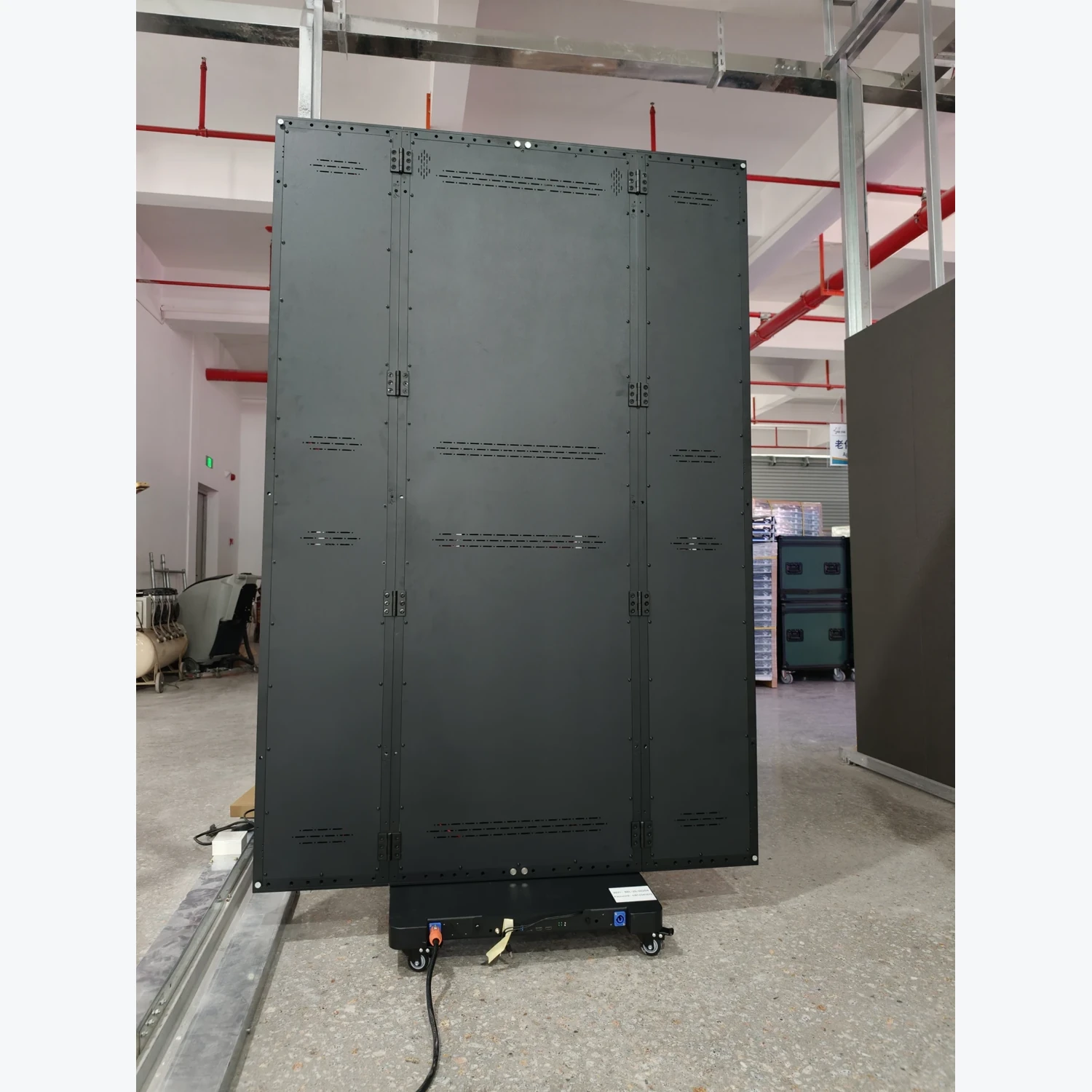

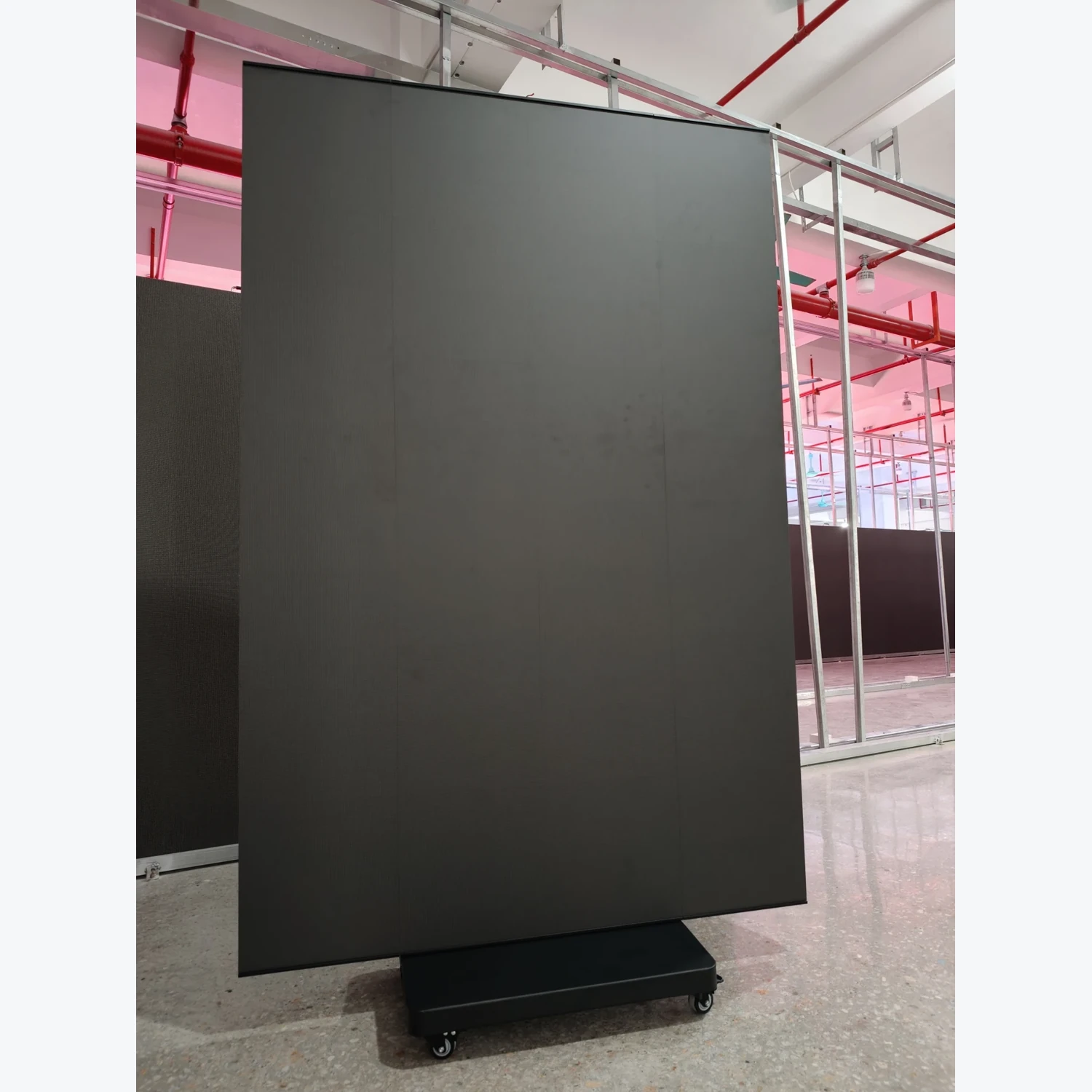

The powered-display still, unpowered front view and rear view show the same product from different perspectives. Compare the screen face, cabinet panels and floor-standing base.
BASE & PACKING
Plan the space around the screen.

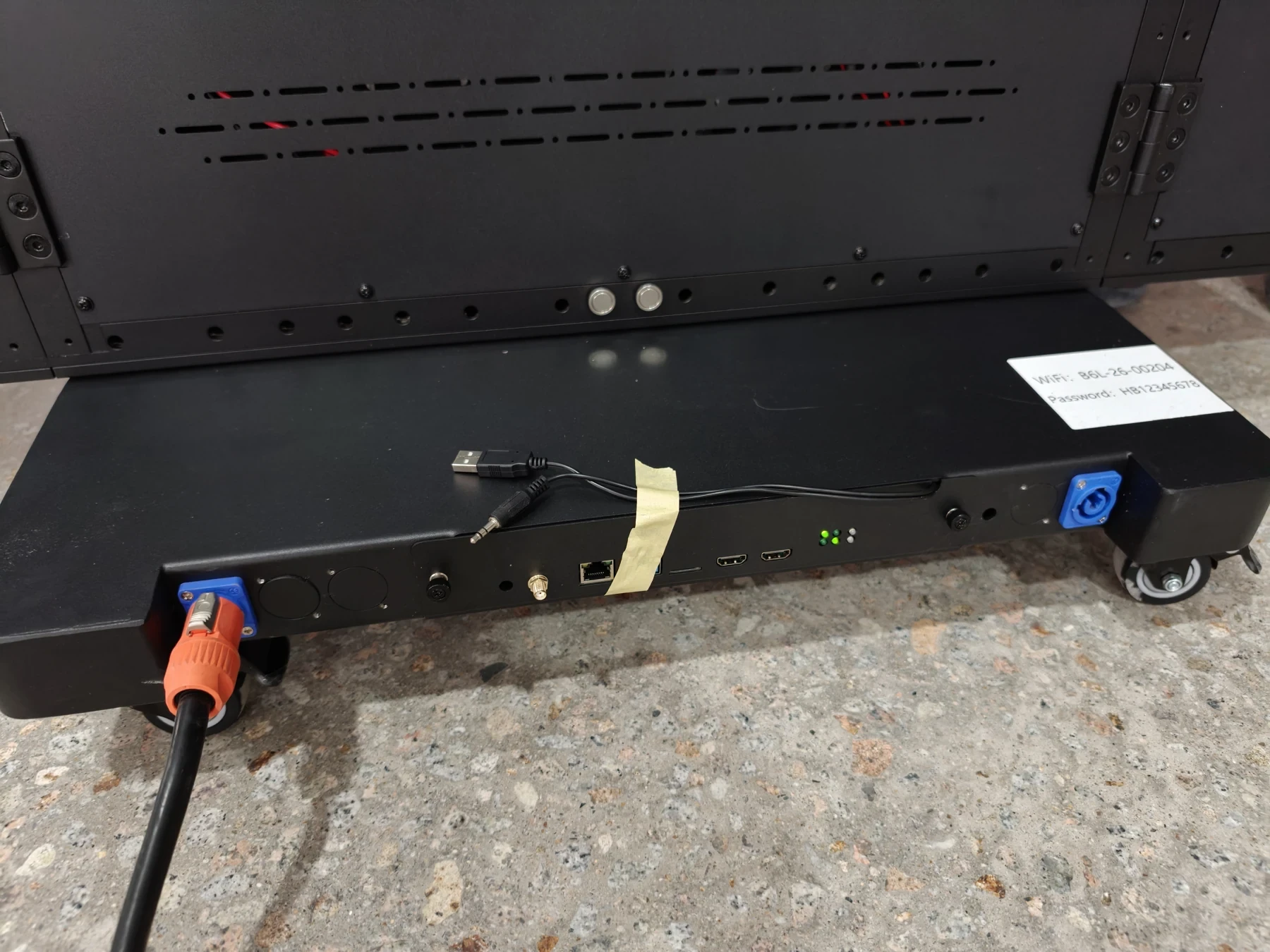

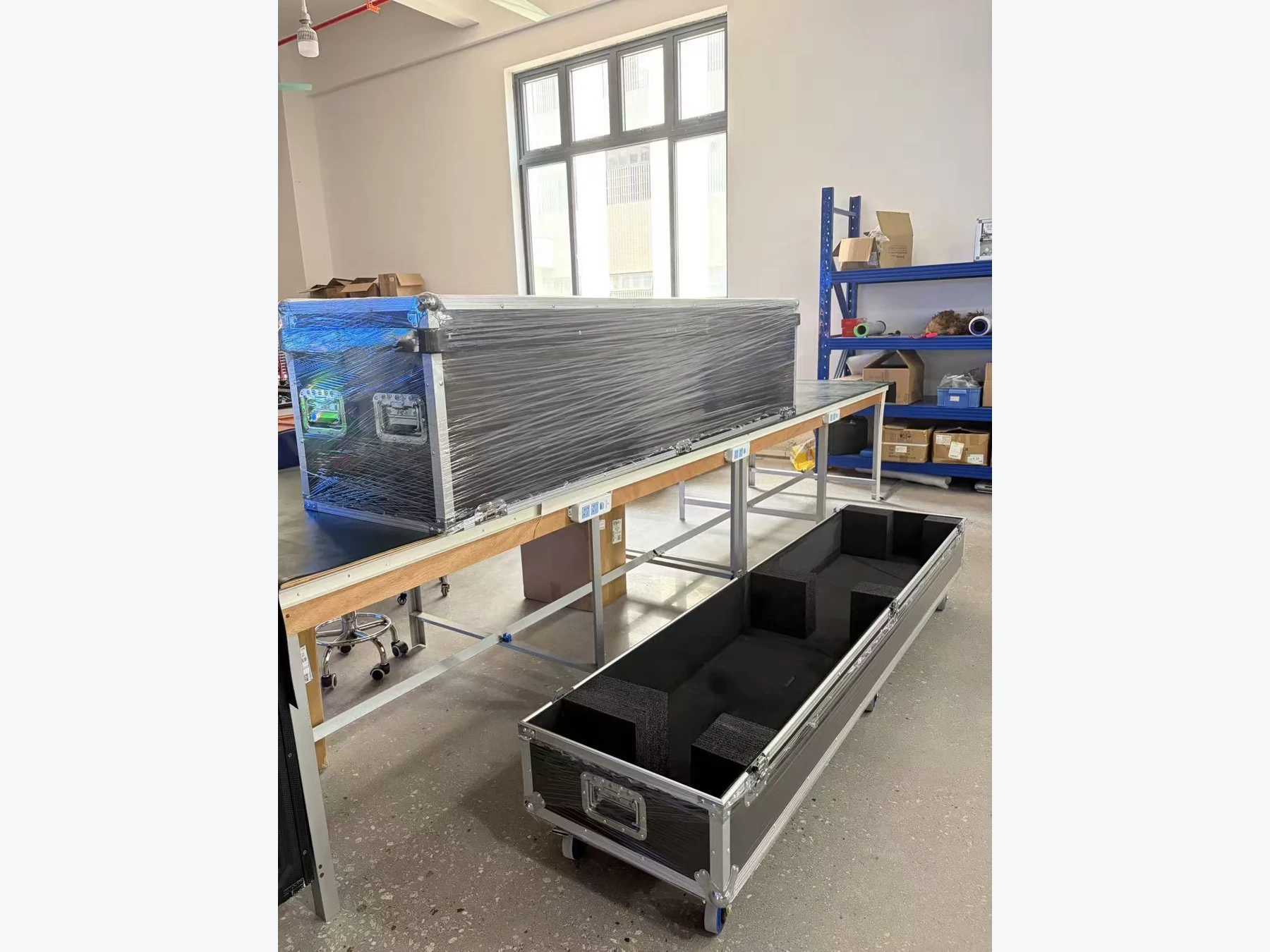

The base detail shows connection positions and caster wheels. The flight-case photograph shows a packing reference with divided foam compartments; agree on the packing arrangement for your order.
APPLICATION FIT
Choose around the way you work.
Start with the viewing task, then review how the display will be positioned and operated.
B2B ORDER FLOW
From display brief to delivery.
Identify the P1.86 GOB tri-fold configuration in your inquiry so the quotation covers the required display, control and delivery arrangement.
TRI-FOLD DISPLAY FAQ
Questions Before You Order.
Pixel pitch, cabinet structure, placement and purchasing.
What does P1.86 mean?
It identifies a nominal pixel pitch of 1.86 mm. Your content layout and viewing distance should be considered together when selecting the display.
What does GOB refer to on this product?
GOB means Glue on Board and refers to the LED surface technology. Select the product for the intended environment using the complete configuration, rather than treating the GOB label alone as an outdoor protection rating.
Does tri-fold mean three separately controlled screens?
Tri-fold describes the physical structure. Separate content zones, playback mapping and any multi-display arrangement should be agreed as part of the control configuration.
What are the unfolded dimensions and overall height?
The tape-measure photographs indicate an unfolded screen body of approximately 1280 mm wide, 1920 mm high and 50 mm deep. Overall height including the caster base is approximately 2060 mm. These are approximate photo-based measurements. Screen-body depth excludes the base; folded dimensions and base depth are separate from these readings.
What should I check before positioning the unit?
Check the access route, floor and clearance around the base and rear connections. Include any movement or storage requirements when discussing the mechanical arrangement.
What should I send for a quotation?
Send quantity, destination, intended location, viewing distance, sample content and delivery timing. Add your playback and packing requirements so the quotation can define the complete configuration.
