MINI LED BEE EYE AND WASH

Mini 10×20W LED Zoom Bee Eye & Wash Moving Head

A mini LED zoom bee eye and wash moving head with ten 20W RGBW LEDs, a 100W white LED, 300W total power, seven static gobos and 22/28/64-channel DMX modes.

10 × 20W RGBW + 100W white
300W total power
22 / 28 / 64CH DMX

Get a Quote

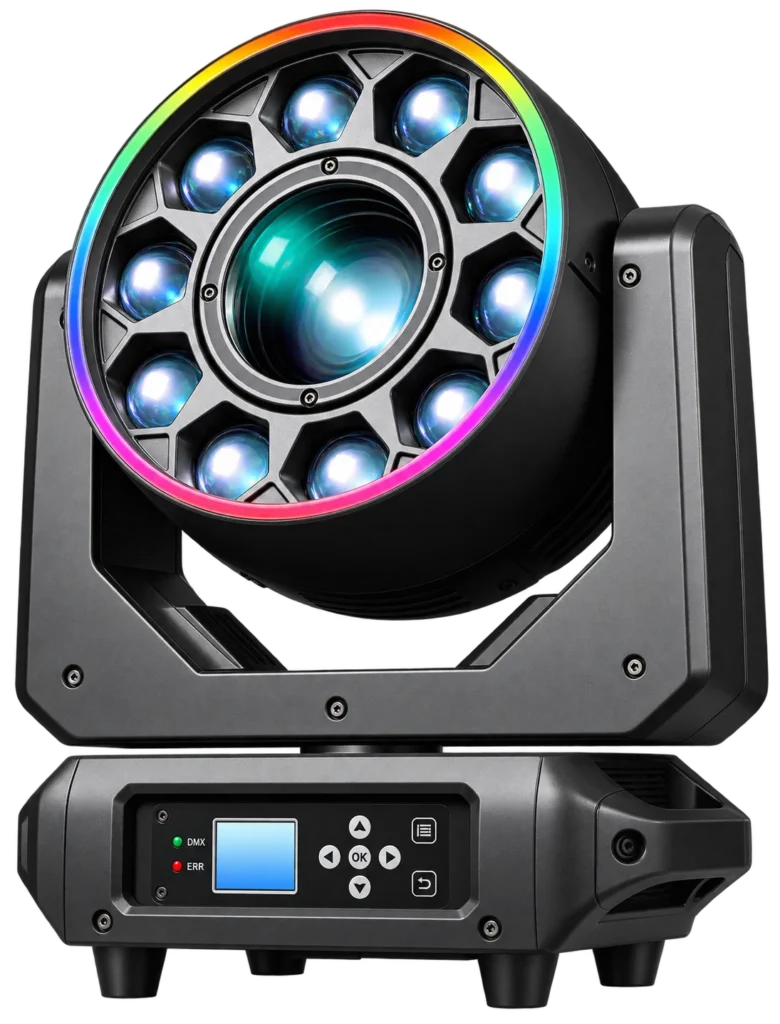

Mini 10x20W LED Zoom Bee Eye moving head with central lens, ten surrounding RGBW LED lenses and illuminated outer ring

MINI BEE EYE AND WASH

Mini 10x20W LED Zoom Bee Eye — RGBW color around a separate white-light source.

Choose this Mini 10×20W LED Zoom Bee Eye & Wash Moving Head when a rig position needs RGBW color around a separate white-light source. Ten 20W RGBW LEDs provide the surrounding color system; a 100W white LED supports the listed color-wheel and static-gobo functions. The complete fixture rating is 300W, with 22CH, 28CH and 64CH profiles for the control plan.

10 × 20W RGBW LEDs

Four-in-one RGBW sources provide the surrounding color system for wash and mixed-color looks.

100W white LED

The separate white-light source works with the fixture’s listed color and static-gobo functions.

22 / 28 / 64CH

Select the required DMX profile before patching a group of fixtures or programming the show.

300W fixture rating

Use the complete fixture rating when planning electrical distribution, distinct from each source rating.

COLOR AND PATTERN SYSTEM

Combine mixed-color looks with static gobo cues.

Use the RGBW array for mixed-color looks and the separate white source with the listed seven-color wheel plus white and seven static gobos. A static gobo changes the projected pattern; it does not establish an independently rotating gobo. Describe the required color or pattern cue when comparing the configuration.

RGBW color mixingThe ten RGBW four-in-one LEDs provide the color-source configuration for wash cues.

Seven-color wheelChoose the listed fixed-wheel colors or white within the fixture’s optical control workflow.

Seven static gobosUse the static-gobo wheel for pattern cues alongside the separate white LED source.

Visible outer ringThe product image shows a multicolor illuminated ring around the optical face, adding a visible fixture accent.

Specifications

Technical specifications

Model	RG-812mini
Public product power	300W fixture power
Light source	10 × 20W RGBW 4-in-1 LEDs + 100W white LED
Rated fixture power	300W
Voltage	AC 100–240V, 50/60Hz
DMX channels	22CH / 28CH / 64CH
Product dimensions	55 × 19 × 27cm
Gross weight	7.3kg packaging weight
Control modes	DMX512 / Master-slave / Auto Run / Sound Activated
Color wheel	7 colors + white; mixed-color effect
Fixed gobo wheel	1 wheel with 7 static gobos
Pan / tilt	Pan 540° / Tilt 270°
Dimming	0–100% linear dimming
Strobe	1–25Hz

MOVEMENT AND INTENSITY

Position the fixture and build dimming or strobe cues.

Pan is 540° and tilt is 270°. Linear dimming runs from 0 to 100%, while the specified strobe-frequency range is 1–25Hz.

Movement cuesUse the pan and tilt ranges when selecting fixture positions and programming direction changes.

Intensity transitionsThe listed linear dimming range supports adjustment from zero to full output.

Strobe accentsProgram strobe cues within the stated 1–25Hz range for the scene and operating context.

CONTROL AND POWER

Choose the DMX profile for the console workflow.

DMX512, Master/Slave, Auto Run and Sound Activated are listed. Power input is AC 100–240V, 50/60Hz, and total fixture power is 300W.

Console operationChoose 22CH, 28CH or 64CH and use the matching channel chart for the show file.

Linked playbackMaster/Slave provides a linked operating option; plan the connection layout for the selected setup.

Standalone playbackAuto Run and Sound Activated support scenes where a live DMX console is not required.

APPLICATION FIT

Plan color, pattern and movement roles in the lighting system.

Plan this configuration for venue and event cues requiring color, static patterns and moving-head positioning from one location. Decide which role matters most, then check working distance, pattern readability and color coverage. The supplied data does not give a numeric zoom range, so do not select fixture spacing from a different model’s angle.

Event rigsCombine RGBW color scenes, static-gobo cues and moving-head direction changes in the show plan.

Stage lightingAllocate the fixture’s wash and pattern roles alongside the other lights required for the performance.

Control planningStandardize the selected 22CH, 28CH or 64CH profile across the fixture group and console file.

Installation reviewProduct dimensions are 55 × 19 × 27cm. Review mounting, ventilation, environmental exposure and coverage requirements before installation.

Compare the LED wash light range when choosing color-source configuration and optical roles. Zoom coverage should be matched to the project’s throw distance and operating documentation.

B2B ORDER FLOW

Request a quotation for the selected mini configuration.

Specify Mini 10x20W LED Zoom Bee Eye with ten 20W RGBW LEDs and a 100W white LED. Include the show, channel-mode and delivery details so the offer identifies the requested fixture and accessories. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.

01 · SCENES

Describe the intended color and pattern cues.

Provide venue layout, fixture positions, coverage needs and the RGBW or white-source effects required.

02 · CONTROL

Select a DMX mode and supply.

State the console, required 22CH/28CH/64CH profile, AC voltage, plug and connector needs.

03 · LOGISTICS

Complete the order and packing brief.

Send quantity, delivery country, schedule and mounting or case requests. The supplied packaging-weight figure is 7.3kg; identify the required packing configuration in the quotation.

PRODUCT FAQ

Questions Before You Order.

Sources, channel modes, optical functions and packing.

What are the light sources and total power?

The sources are ten 20W RGBW four-in-one LEDs plus a 100W white LED. Total fixture power is 300W.

Which DMX modes are available?

The standard modes listed are 22CH, 28CH and 64CH. Select the profile and request its channel chart for the console file.

Can it run without a live DMX console?

Yes. Auto Run and Sound Activated are listed, along with Master/Slave and DMX512 control.

What colors and gobos are listed?

The specification lists a seven-color wheel plus white and mixed-color effects. One gobo wheel contains seven static gobos.

What movement, dimming and strobe ranges are provided?

Pan is 540° and tilt is 270°. Linear dimming is 0–100%, and the stated strobe frequency is 1–25Hz.

What voltage does the fixture accept?

The listed input is AC 100–240V at 50/60Hz, with a 300W total fixture rating.

Is 7.3kg the fixture’s net weight?

The supplied figure is packaging weight: 7.3kg. Product dimensions are 55 × 19 × 27cm. Keep the packing configuration and fixture handling details separate in the quotation.

What information should I send for a quotation?

Provide quantity, destination, venue layout, mounting positions, coverage needs, selected DMX profile, voltage, plug and schedule. Include accessory, case and packing requests.
