CONFIGURATION CHOICES
LED Profile Moving Head Light — choose the LED output configuration for the lighting rig.
This LED profile moving head light series offers five LED source choices from 500W to 1200W. It is intended for buyers selecting a framing fixture for stage, theatre, venue and event lighting. The main photograph represents the 800W configuration; the detailed technical specification on this page describes the 1000W configuration.
Five LED source choices

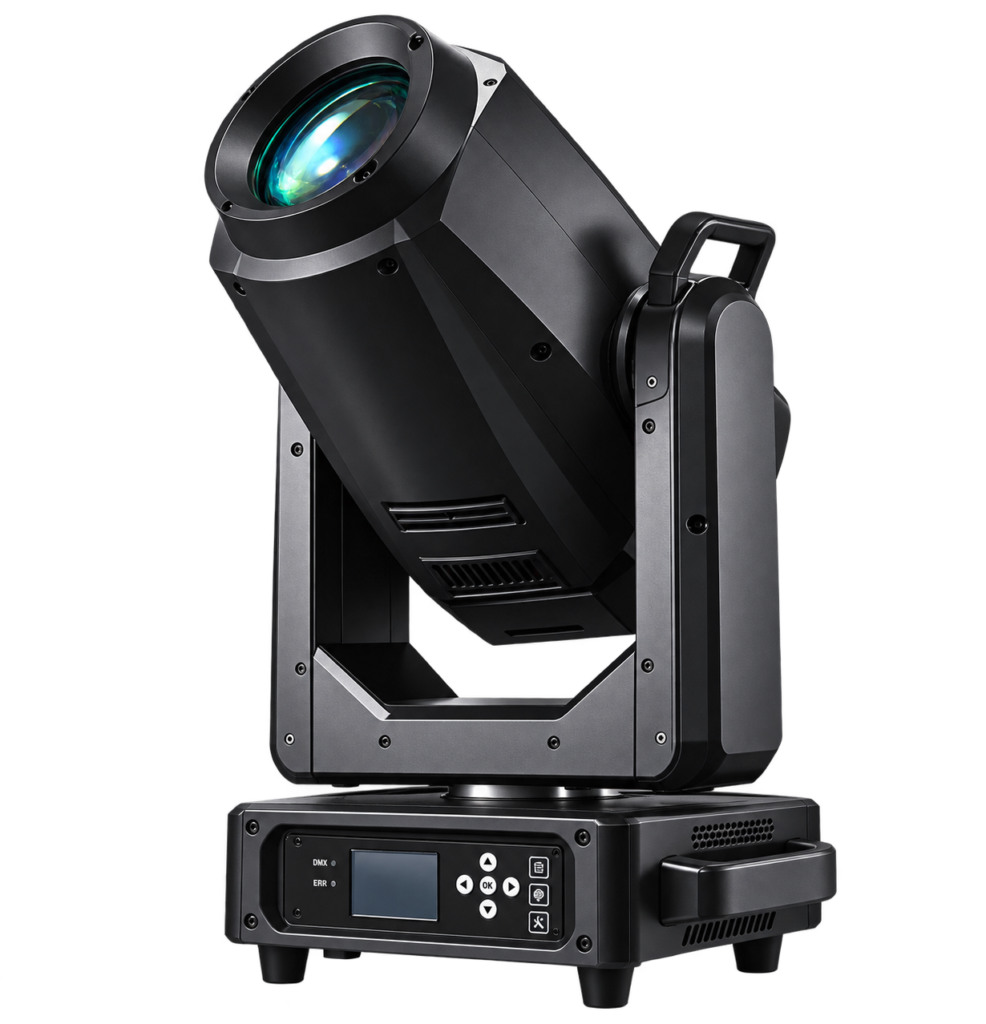

Select a 500W, 600W, 800W, 1000W or 1200W LED module configuration. The hero image shows the 800W version.
Four-blade framing
The 1000W configuration has four independent framing blades, each capable of closing the beam, with a stated 90° rotation range.
CMY plus linear CTO
The 1000W specification combines independent CMY mixing with linear CTO adjustment from 2800K to 6500K and six fixed colors plus open white.
Zoom, frost and iris
For the 1000W configuration, 5.5°–60° linear zoom, 0–100% linear frost and a 6–100% iris range provide several ways to shape the output.
SOURCE OPTIONS
Compare five source configurations in one series.
The option wattages describe the LED source choices. They are not five whole-fixture consumption figures. The supplied 1000W version is rated at 1050W for the fixture; request the configuration-specific datasheet and electrical load for the version you plan to order.
| Configuration | LED source option | Page reference |
|---|---|---|
| 500W | 500W LED module | 500W product view below |
| 600W | 600W LED module | 600W product view below |
| 800W | 800W LED module | Main product image |
| 1000W | 1000W LED module | Detailed technical specification below; 1050W fixture power |
| 1200W | 1200W LED module | Available source configuration |
CONFIGURATION VIEWS
Inspect the 500W and 600W product housings.

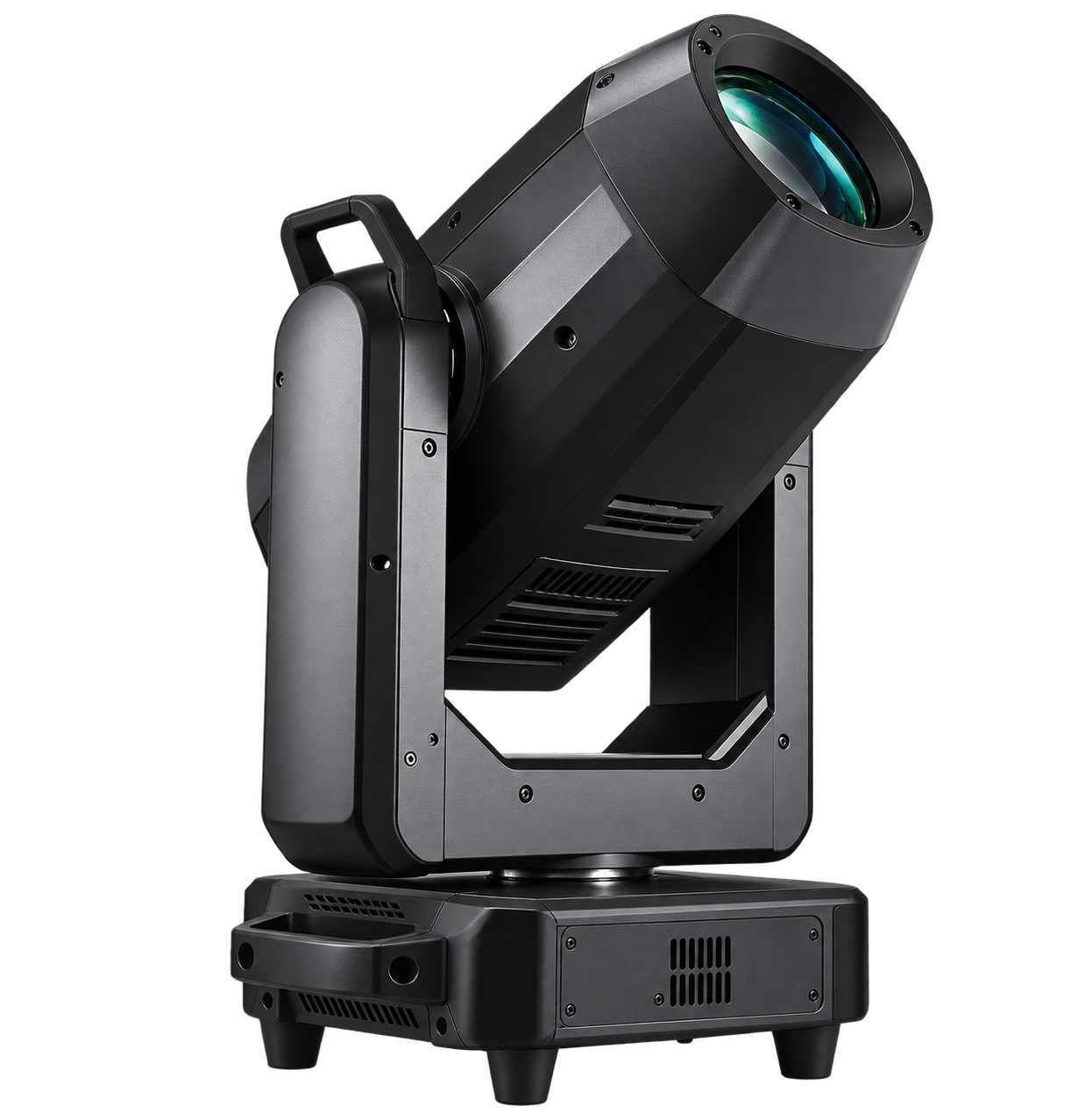

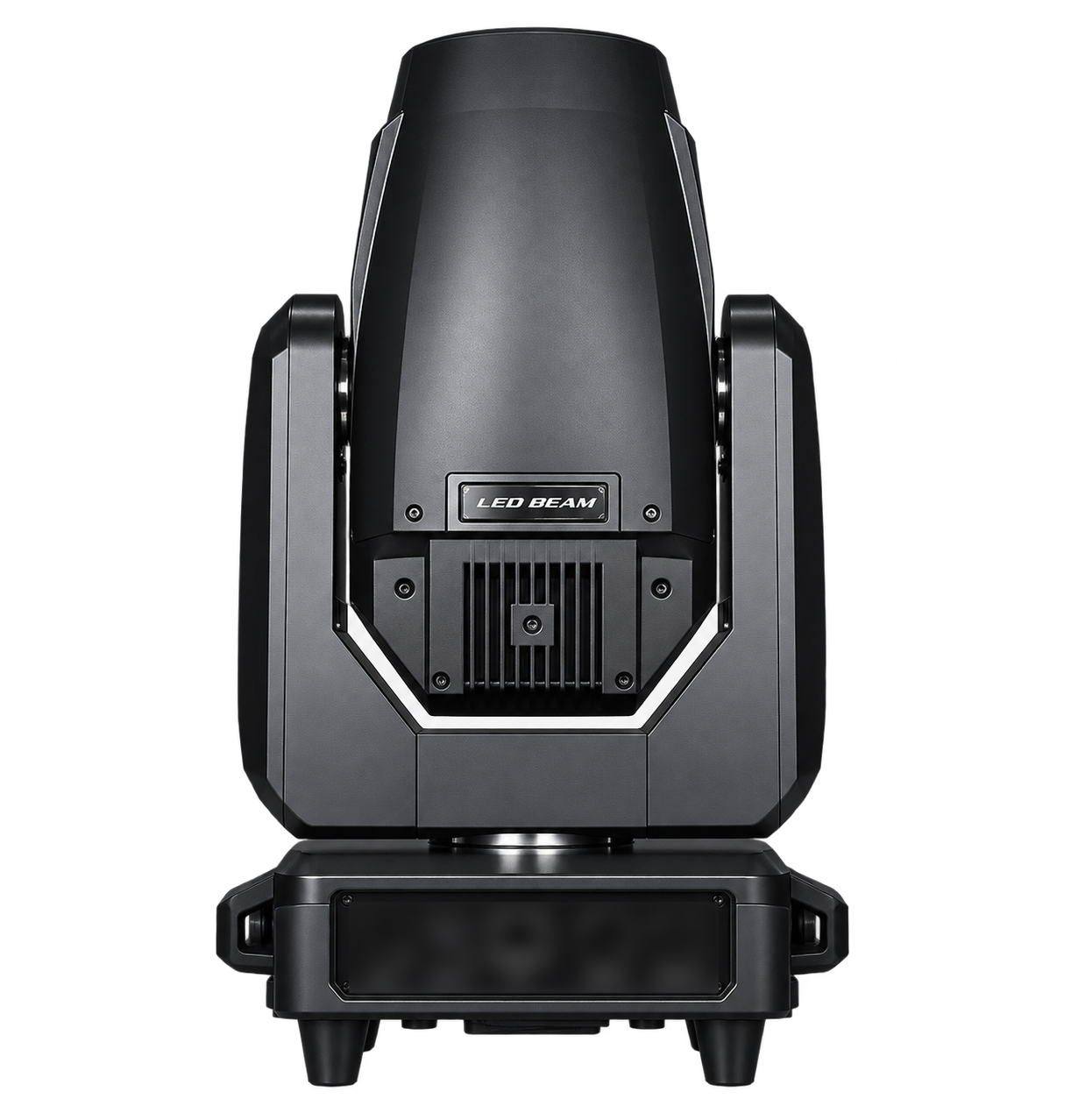

The first supplied catalogue cutout shows the 500W configuration and the second shows the 600W configuration. The 800W image is used in the hero. Select the required LED source in your inquiry and request dimensions, weight and mounting details for that configuration.
1000W OPTICAL SYSTEM
Shape the beam, color and projected pattern.
The detailed 1000W configuration lists a 6500K LED module and a 150mm lens aperture. Four independent framing blades support beam-edge shaping and individual closure. CMY mixing and CTO adjustment work alongside six fixed colors plus white. Use the optical specification to plan the required effect, then request demonstration footage or photometric data for the exact source option.
1000W REFERENCE SPECIFICATION
Read the technical data for the 1000W configuration.
The following technical data is for the 1000W LED version. For 500W, 600W, 800W or 1200W orders, request the selected configuration’s datasheet rather than using the 1000W electrical and optical figures as interchangeable specifications.
Specifications
Technical specifications
| Model | RG-800 |
|---|---|
| Public product power | 500W / 600W / 800W / 1000W / 1200W LED options |
| Light source | 500W / 600W / 800W / 1000W / 1200W LED module options; detailed data: 1000W version |
| Rated fixture power | 1000W configuration: 1050W |
| Voltage | 1000W configuration: AC 100–240V, 50/60Hz |
| DMX channels | 1000W configuration: 36CH |
| IP rating | 1000W configuration: IP20 |
| Control modes | 1000W configuration: DMX512, RDM, Auto, Master/Slave, Sound |
| Color system | 1000W configuration: independent CMY; six fixed colors + white; independent CTO 2800K–6500K |
| Zoom range | 1000W configuration: 5.5°–60° linear |
| Framing system | 1000W configuration: four independent blades; individual beam closure; 90° rotation |
1000W COMPONENT DETAILS
Match gobos, framing and effect controls.
These component details supplement the structured 1000W specification and help buyers prepare questions about service parts, cue programming and the intended optical effect.
| Lens aperture | 150mm |
|---|---|
| LED color temperature | 6500K; independent CTO: 2800K–6500K linear |
| Fixed color wheel | Six colors plus open white |
| Prism system | Rotating 3-facet prism plus six-row mirror unit |
| Animation wheel | Dynamic flame and flowing-water effects |
| Fixed gobo dimensions | 11 replaceable fixed gobos; 25.4mm outer diameter; plus open |
| Rotating gobo dimensions | Seven replaceable rotating gobos; 26.9mm outer diameter, 16.5mm usable diameter, 1.1mm thickness |
| Framing | Four independently closing blades; 90° rotation range |
| Frost | 0–100% linear |
| Iris | 6–100% smooth adjustment |
| Dimming | 0–100% linear |
| Strobe | Up to 25Hz; random and pulse strobe modes |
| Working temperature | 0–45°C |
APPLICATION FIT
Select framing for controlled beam edges and effect cues.
For theatre, stage and venue lighting, framing is useful when the beam needs a defined edge or a shaped illuminated area. Gobo, color and animation functions can provide an additional effect layer for concerts and event rigs. The supplied 1000W configuration is IP20 with a 0–45°C working range, so plan dry indoor operation. Verify the selected source option and its photometric data against throw distance and the required output.
Compare profile and spot moving head lights by framing, color and optical requirements.
B2B ORDER FLOW
Request the offer for your selected LED configuration.
For your LED Profile Moving Head Light order, a source selection and installation brief let the quotation identify the correct fixture version and the documents needed for approval. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
Source options, reference specifications and configuration-specific purchasing.
Which LED power configurations can I choose?
The series offers 500W, 600W, 800W, 1000W and 1200W LED source configurations. Specify the required version in the inquiry.
Which configuration is shown in the main image?
The main product image shows the 800W configuration. The additional product views show the supplied 500W and 600W catalogue images.
Does the 1050W power rating apply to every option?
No. The supplied detailed specification pairs a 1000W LED module with 1050W rated fixture power. Obtain the whole-fixture power rating for another source option from its own datasheet.
What framing and color functions are listed for the 1000W version?
The supplied specification lists four independent framing blades with individual closure and 90° rotation, independent CMY mixing, six fixed colors plus white and linear CTO from 2800K to 6500K.
What zoom, frost and iris ranges are listed?
For the supplied 1000W configuration, linear zoom is 5.5°–60°, linear frost is 0–100%, and the iris adjustment is 6–100%.
Which control modes and DMX channel count are listed?
The 1000W specification lists 36 DMX channels with DMX512, RDM, Auto, Master/Slave and Sound control. Request the channel chart for the exact version being ordered.
Can the supplied 1000W configuration be used outdoors?
The stated IP20 protection and 0–45°C working range support planning for dry indoor use. Do not select it for exposed outdoor installation.
What should I send for a configuration-specific quotation?
Send source option, quantity, destination, venue, throw distance, supply voltage, plug, console and mounting needs. Ask for that version’s datasheet, fixture power, dimensions, weight, packing, accessories and delivery proposal.
