INDOOR FLEXIBLE LED DISPLAY
Indoor Flexible Curved LED Screen overview
The Indoor Flexible Curved LED Screen. This indoor flexible LED display combines P2.604 or P2.976 modules with 500×500mm and 500×1000mm die-cast aluminum cabinet formats. The supplied workshop photographs document concave, wave-shaped and near-cylindrical screen builds; final curve hardware and achievable geometry are confirmed for the ordered cabinet batch. For controller setup, use NovaStar’s official downloads for the selected processor; compatibility is confirmed for the ordered system.
Higher-density option
147,456 pixels per square meter supports detailed indoor content and closer viewing positions.
Balanced curved display
112,896 pixels per square meter balances screen resolution, cabinet count and project budget.
High-refresh reference
The supplied configuration lists a 7680Hz refresh rate for camera-facing indoor applications.
Cabinet format choices
Plan the surface with 500×500mm or 500×1000mm cabinets after batch geometry is approved.

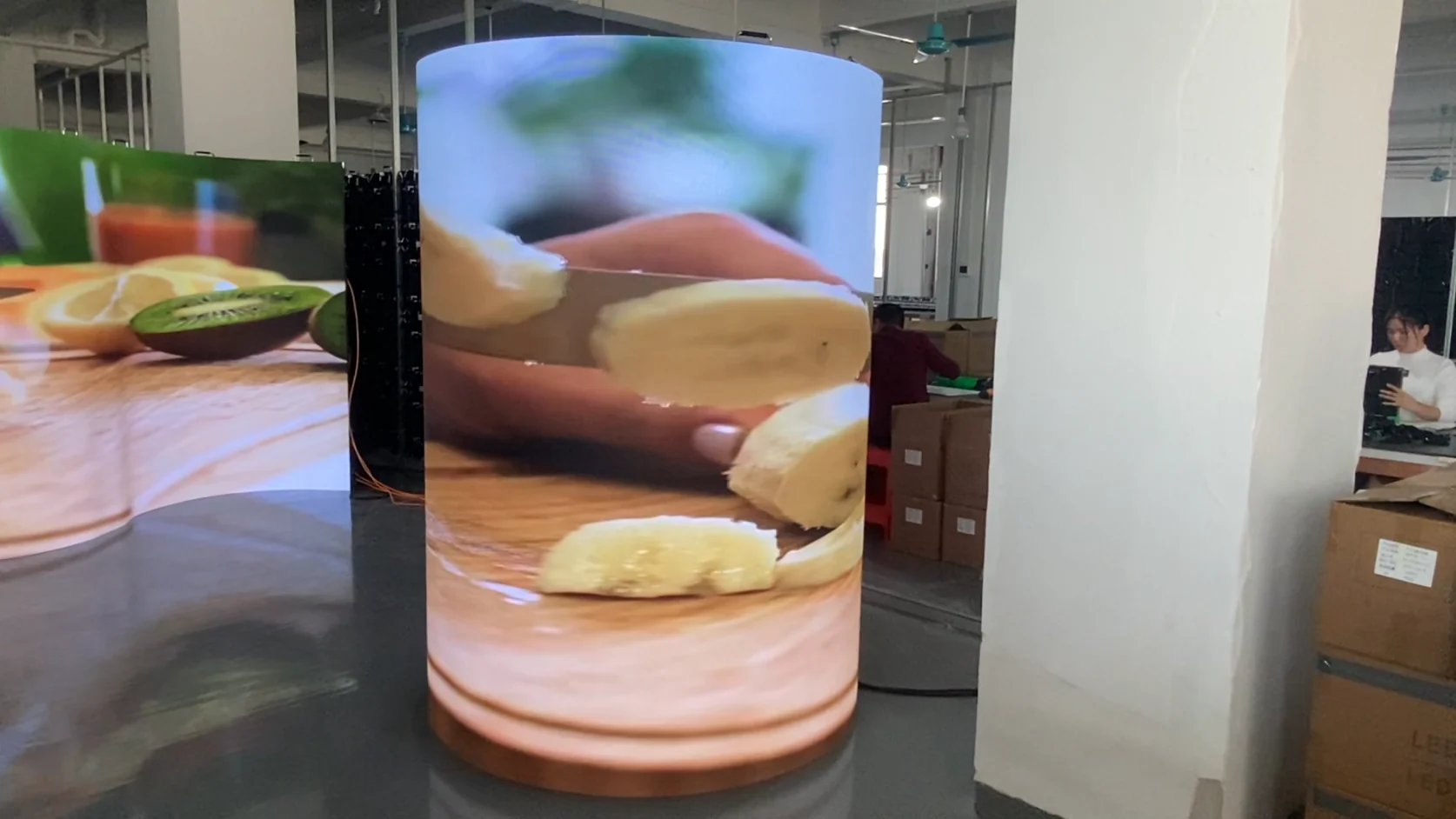

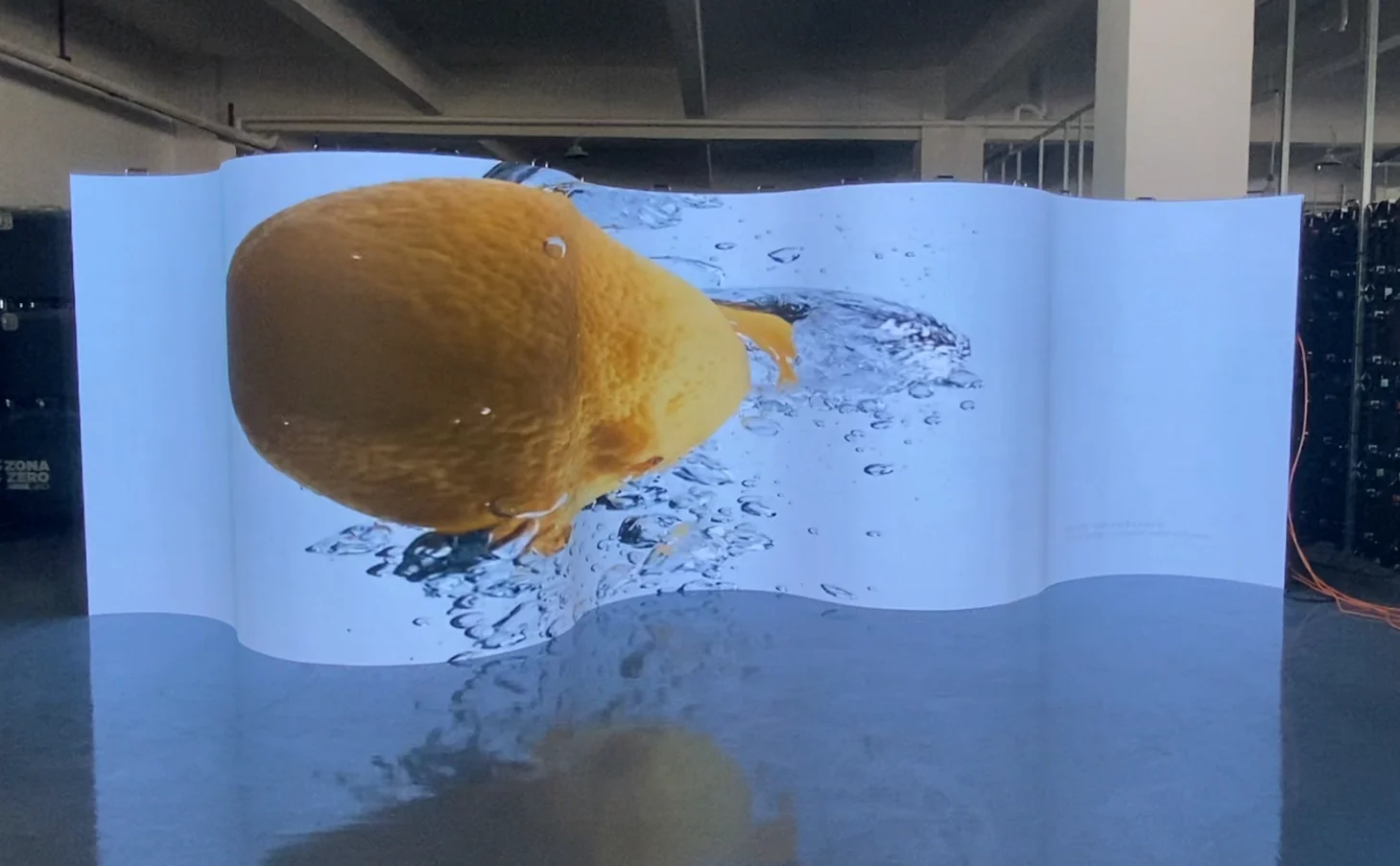

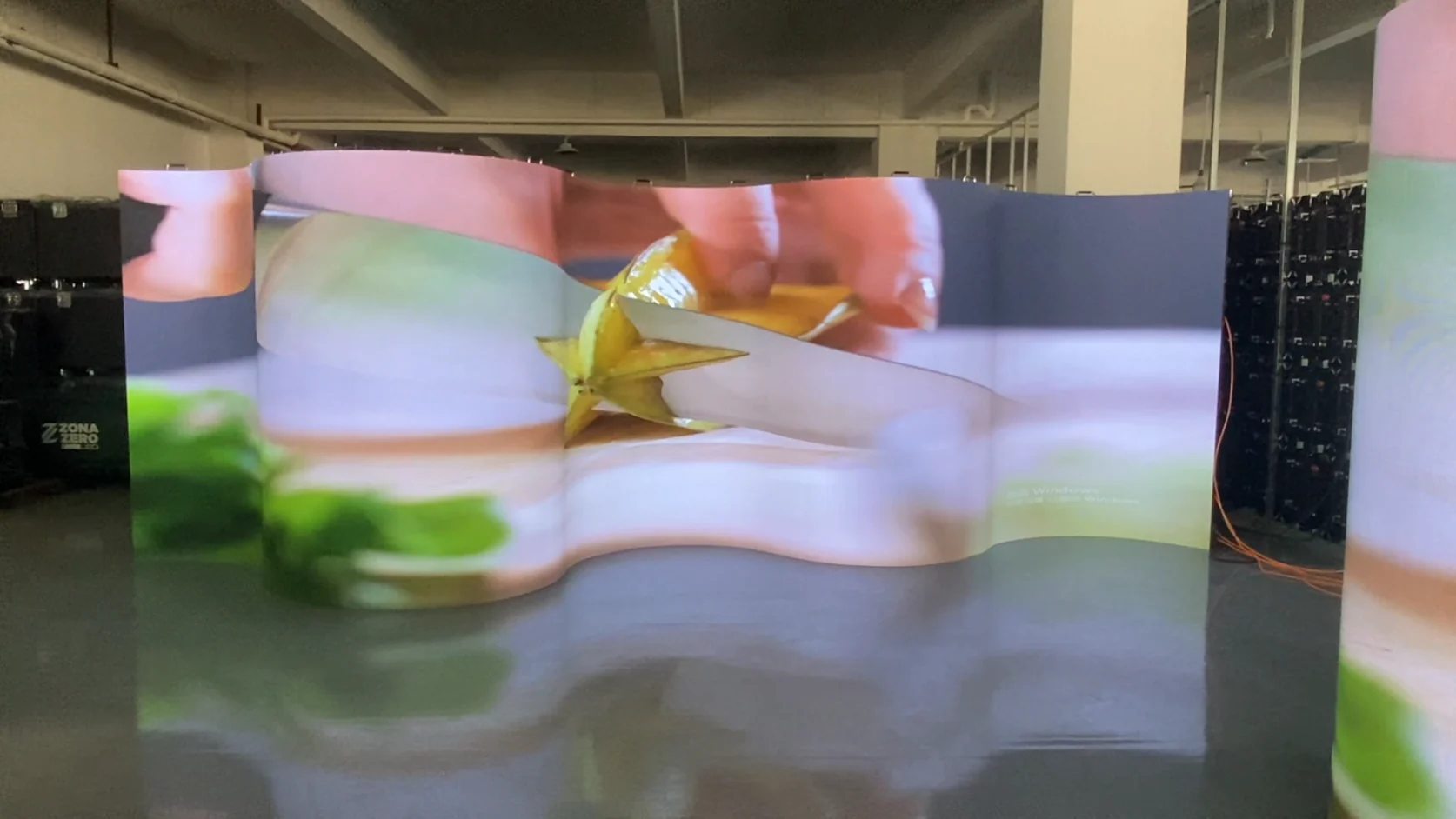

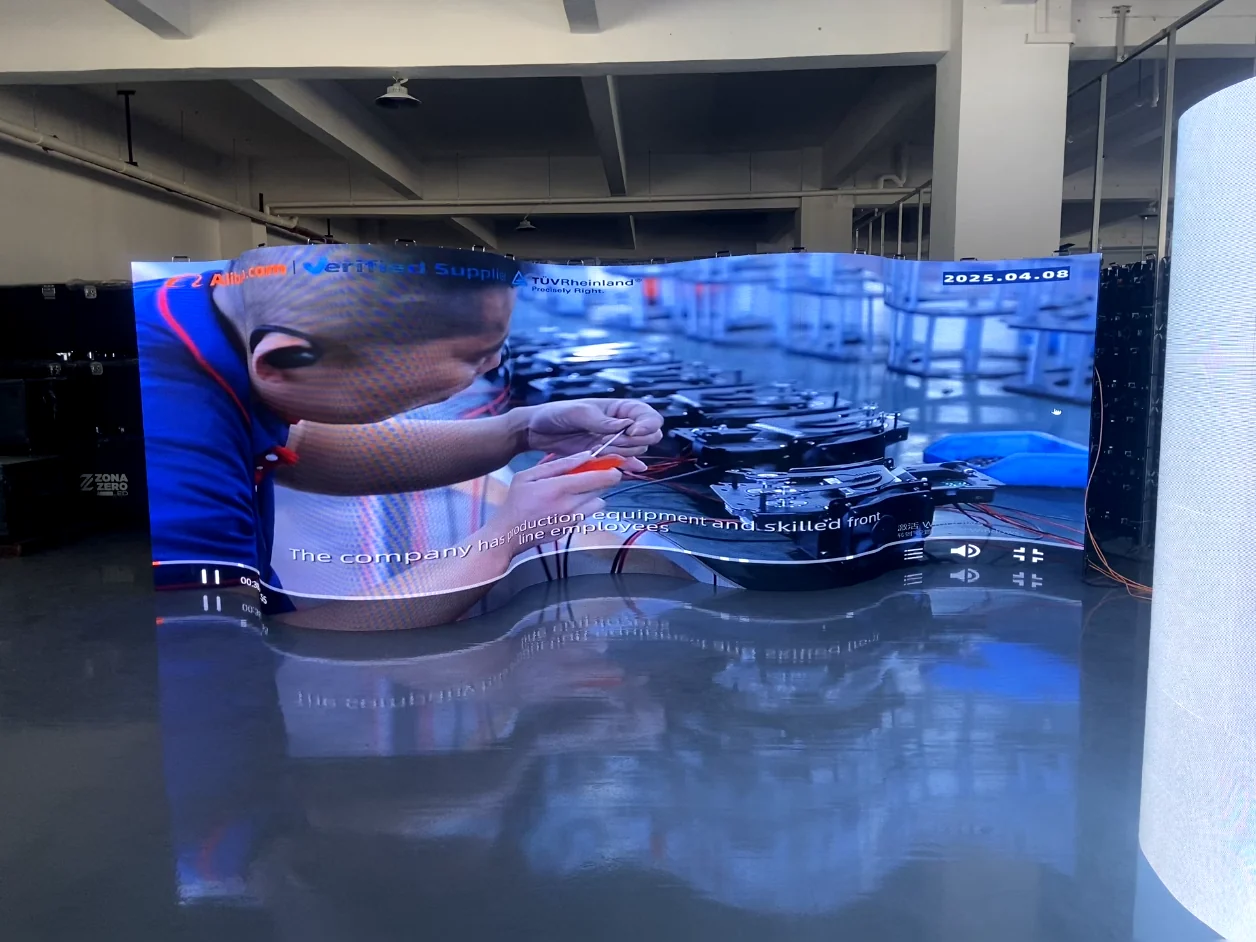

REAL CURVED-SCREEN REFERENCES
Review six supplied workshop and cabinet views.

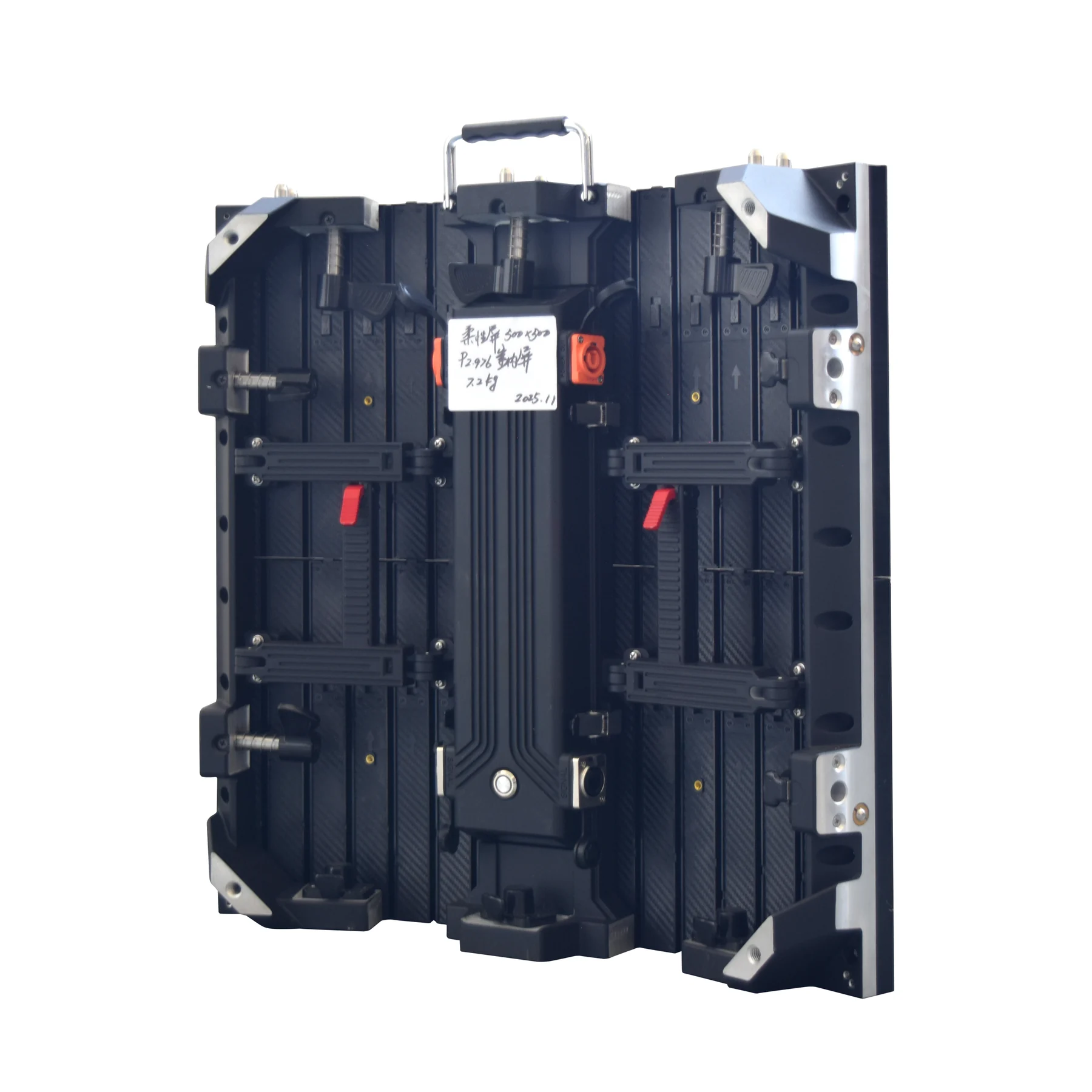

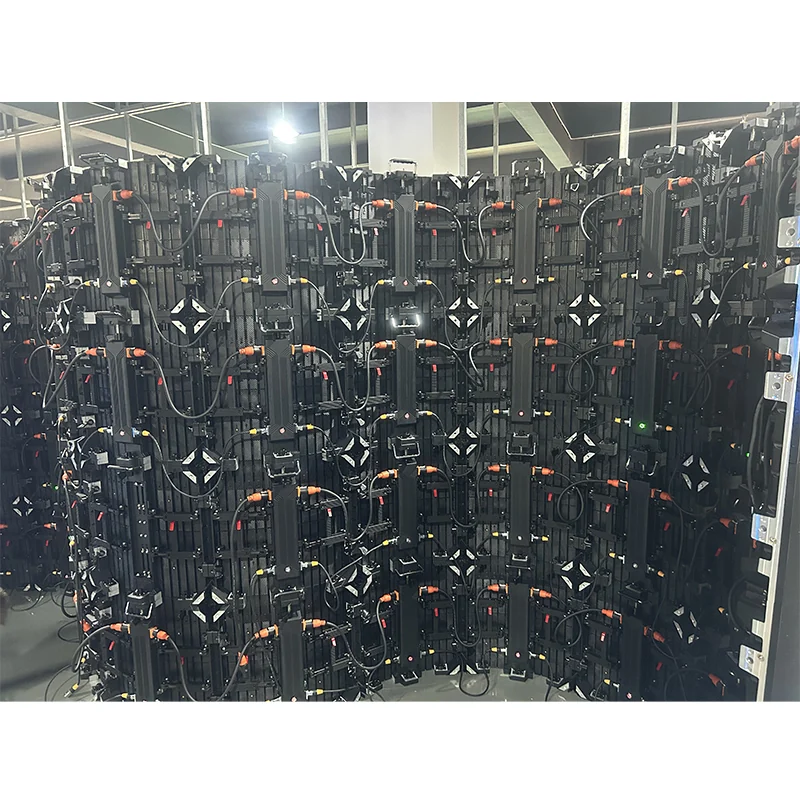

All six images are supplied real-product references. They show completed curved surfaces, workshop demonstrations and rear cabinet structure without using the separate concept rendering as product evidence.
PIXEL-PITCH COMPARISON
Compare P2.604 and P2.976 configurations.
The figures below come from the supplied product data. Curve radius, adjustment angle and support for inward or outward curves remain batch- and structure-specific.
| Specification | P2.604 | P2.976 |
|---|---|---|
| LED configuration | SMD1515 · 1R1G1B | SMD1515 · 1R1G1B |
| Pixel pitch | 2.604mm | 2.976mm |
| Module size / resolution | 250×250mm · 96×96 px | 250×250mm · 84×84 px |
| Pixel density | 147,456 dots/m² | 112,896 dots/m² |
| 500×500mm cabinet | 192×192 px | 168×168 px |
| 500×1000mm cabinet | 192×384 px | 168×336 px |
Specifications
Technical specifications
| Model | P2.604 / P2.976 |
|---|---|
| Pixel pitch | P2.604 / P2.976 |
| Brightness | ≥800 nits |
| Refresh rate | 7680Hz |
| Cabinet size | 500×500mm / 500×1000mm |
| Cabinet weight | 15kg/m² |
PRODUCT VIDEO
Watch a supplied curved LED screen demonstration.
Use the video to review the visible P2.976 curved-screen effect. Its title refers to another application version, so protection level and indoor or outdoor configuration must be confirmed separately for the ordered product.
APPLICATION FIT
Use curved geometry where a flat wall is not enough.
For Indoor Flexible Curved LED Screen projects, the supplied references support indoor concave, wave and near-cylindrical display concepts. A buildable quotation still requires the target dimensions, drawings and viewing path so the cabinet quantity and curve hardware can be checked. Compare related LED display systems when planning the screen system.
B2B PROJECT FLOW
Turn the target curve into a buildable screen plan.
FLEXIBLE LED DISPLAY FAQ
Questions Before You Plan a Curved Screen.
Direct answers about pixel pitch, cabinet size, curved geometry and quotation planning.
Which pixel pitches are available for this indoor flexible screen?
The supplied configurations are P2.604 and P2.976, both using SMD1515 LEDs and 250×250mm modules.
Which cabinet sizes are listed?
The supplied cabinet formats are 500×500mm and 500×1000mm in die-cast aluminum. Confirm the curve hardware for the ordered batch.
What is the cabinet resolution?
P2.604 provides 192×192 pixels in 500×500mm and 192×384 pixels in 500×1000mm. P2.976 provides 168×168 and 168×336 pixels respectively.
What refresh rate and brightness are listed?
The supplied reference lists 7680Hz refresh and at least 800 nits brightness for these indoor configurations.
Can the screen form concave, wave or cylindrical shapes?
The supplied real photographs document concave walls, wave surfaces and a near-cylindrical workshop build. Final geometry depends on the ordered curve hardware and structure.
What curve radius or adjustment angle is available?
No universal radius or angle is published because it has not been supplied as a confirmed series specification. Send the target geometry for a batch-specific review.
Is this page claiming an outdoor waterproof configuration?
No. This product page covers the supplied indoor flexible screen. Any outdoor protection requirement must be confirmed as a separate ordered configuration.
What should I send for a quotation?
Send drawings, target dimensions, curve direction and radius, viewing distance, pixel pitch, installation method, quantity, destination, processor, power, spares and schedule.
