THREE SOURCE SYSTEMS
Four-Head LED Wheel Moving Head Light with Laser & Strobe — combine LED wheel, laser and white strobe cues.

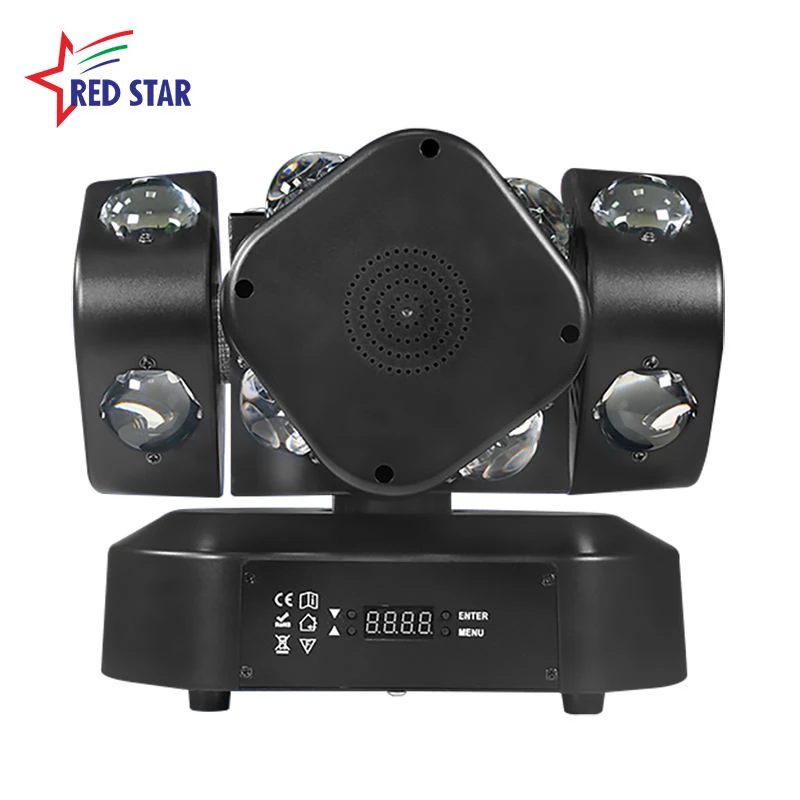

Four-Head LED Wheel Moving Head Light with Laser & Strobe uses sixteen 10W CREE 4-in-1 LEDs, two 10W white strobes, one red laser and one green laser in a four-head wheel configuration.
Sixteen 10W LEDs
CREE 4-in-1 lamp beads form the main LED source system.
White strobes
Two separately specified 10W white strobes add flash cues.
Red and green lasers
One 100mW red laser and one 50mW green laser are listed.
16CH control
Request the matching channel chart for console patching.
FIXTURE DIMENSIONS
Plan space for the four-head fixture.

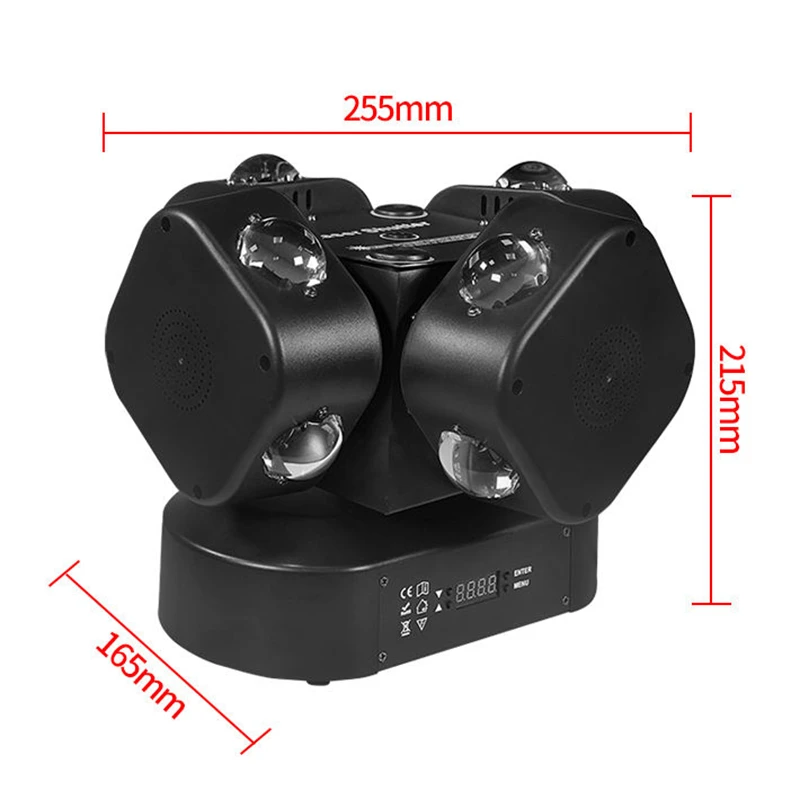

The fixture dimensions are 255 × 165 × 215mm. These are product dimensions.
Specifications
Technical specifications
| Model | RG-265 |
|---|---|
| Public product power | 200W fixture power |
| Light source | 16 × 10W CREE 4-in-1 LEDs; 2 × 10W white strobes; 1 × 100mW red laser + 1 × 50mW green laser |
| Rated fixture power | 200W |
| Voltage | AC 95–245V, 50Hz |
| DMX channels | 16CH |
| Control modes | DMX512 / Master / Auto / Sound Activated |
| Dimming | 0–100% super-smooth dimming |
| Strobe | 20 flashes per second |
CONNECTIONS AND CONTROLS
Review the rear connections and front panel.

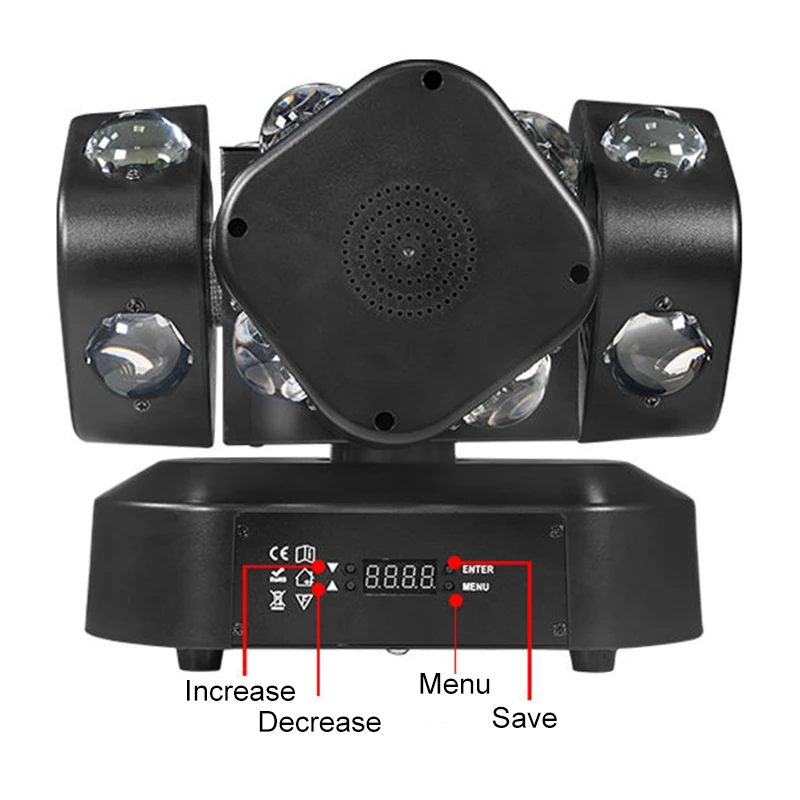

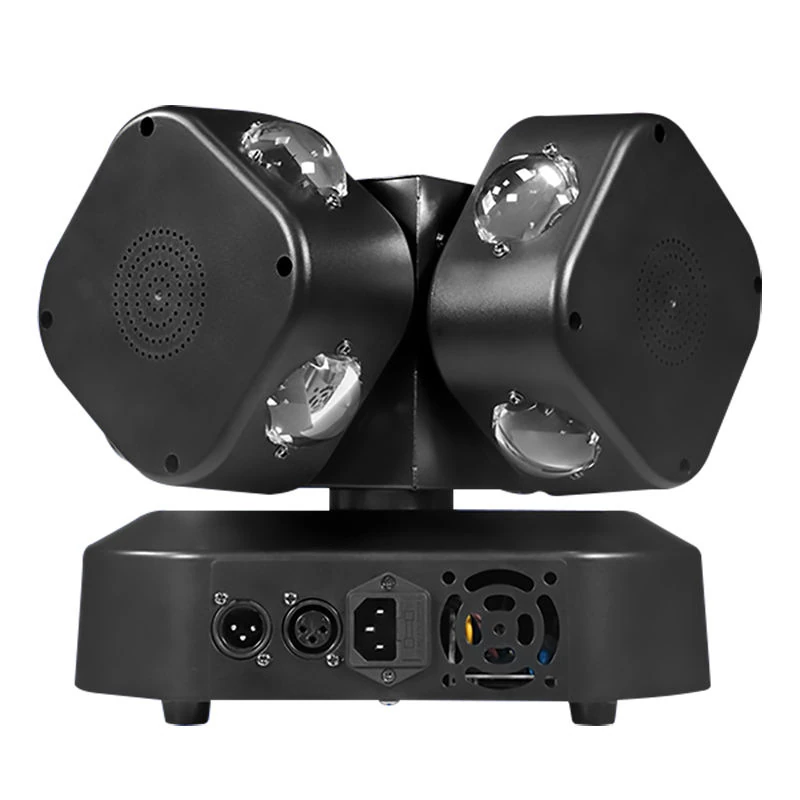

The supplied views show the power inlet, DMX connections and cooling fan, alongside the annotated front display controls.
SUPPLIED EFFECT SCENES
See the colored beam and laser demonstrations.

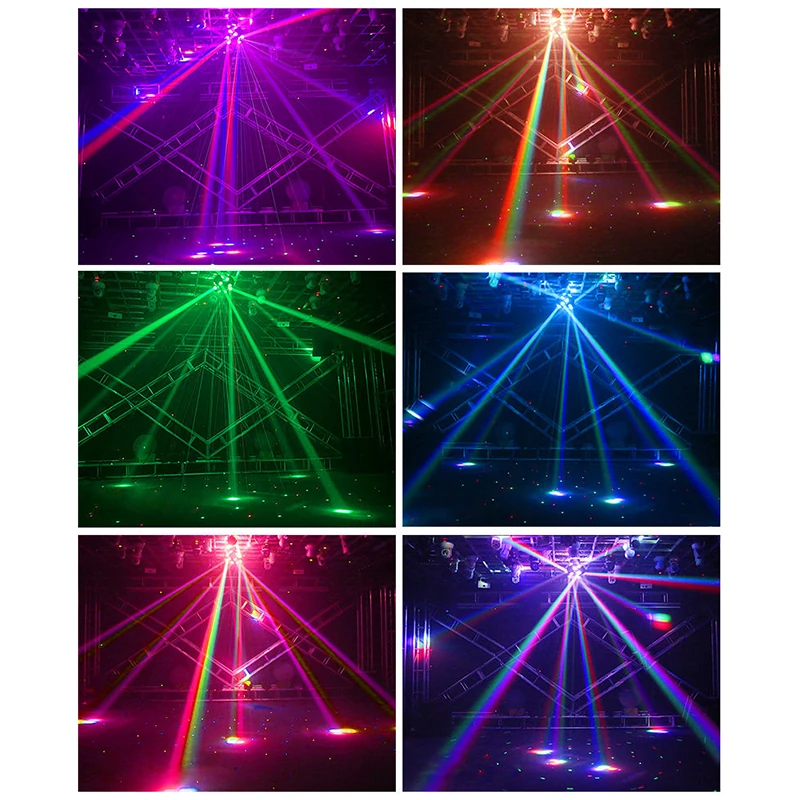

The supplied collage illustrates several lighting scenes. Beam visibility depends on haze and the demonstration environment.
INTENSITY AND PLAYBACK
Select the dimming and playback mode.
The listed intensity functions are 0–100% super-smooth dimming and 20 flashes per second.
APPLICATION FIT
Define the role of each source in the lighting plan.
Use the four-head wheel fixture when the scene needs LED looks, separate white flash accents and red/green laser effects. Set out each cue layer for the 16CH chart and specify mounting positions before selecting quantity. Choose dedicated performer lighting where needed; combined effects are not a measured general-lighting specification.
Compare the beam moving head light range for other source configurations.
B2B ORDER FLOW
Request the selected fixture configuration.
Identify Four-Head LED Wheel Moving Head Light with Laser & Strobe and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
Sources, optical functions, control and order configuration.
Which LED source is specified?
Sixteen 10W CREE 4-in-1 lamp beads are listed.
Which laser sources are included?
One 100mW red laser and one 50mW green laser are specified.
What white strobe sources are listed?
Two 10W white strobes are specified.
What is the complete-fixture power?
The fixture rating is 200W. The LED and white strobe source ratings are listed separately.
What input voltage is specified?
AC 95–245V at 50Hz is listed.
Which channels and operating modes are available?
The DMX512 profile is 16CH. DMX512, Master, Auto and Sound Activated modes are listed.
What dimming and strobe functions are specified?
0–100% super-smooth dimming and a stated rate of 20 flashes per second are listed.
What should I include in an inquiry?
Provide quantity, fixture positions, LED, laser and white strobe cue requirements, console, playback mode, electrical and plug requirements, mounting accessories, packing, destination and schedule.
