FOUR-EYE RGB LASER · RG-728
Four-Eye Fan-Shaped RGB Laser Light — create a fan-shaped RGB laser effect layout.

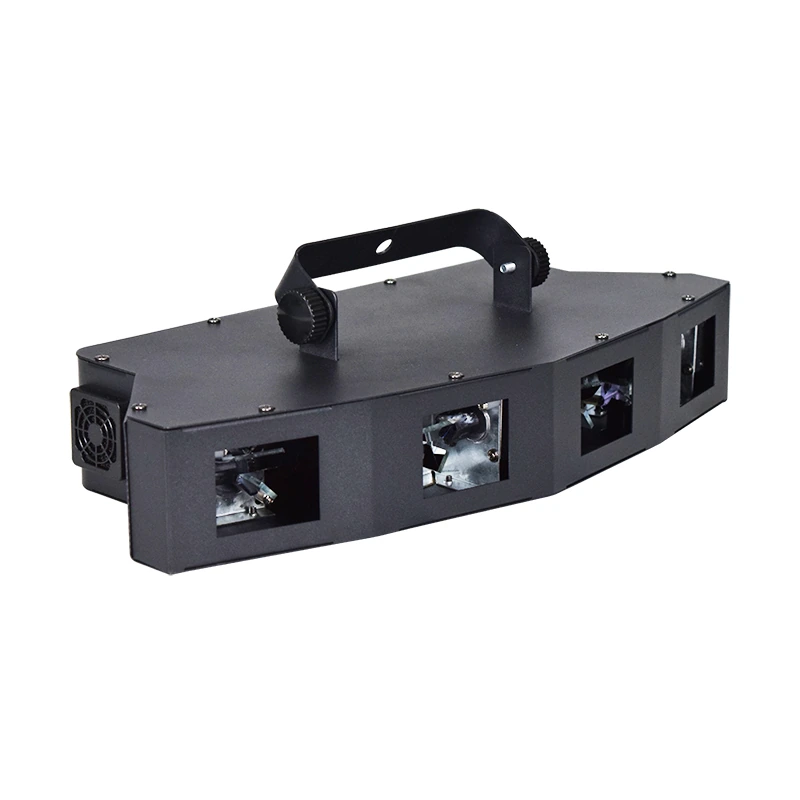

Four-Eye Fan-Shaped RGB Laser Light is a black, fan-shaped four-eye full-color RGB laser light. PC, ILDA, DMX512, Sound and Auto are the listed control methods. Input is AC90–240V at 50/60Hz; net weight is 5.95kg.
Four-eye fan-shaped fixture
Four laser apertures are arranged across the curved front of the black fixture.
Full-color RGB laser
Full-color RGB is the specified color system; demonstration images show several color arrangements.
PC / ILDA / DMX512
PC, ILDA and DMX512 are listed alongside Sound and Auto control.
5.95kg net weight
The supplied net weight is 5.95kg, with four fixtures per carton.
FIXTURE DETAILS
Review the four apertures, bracket and rear panel.

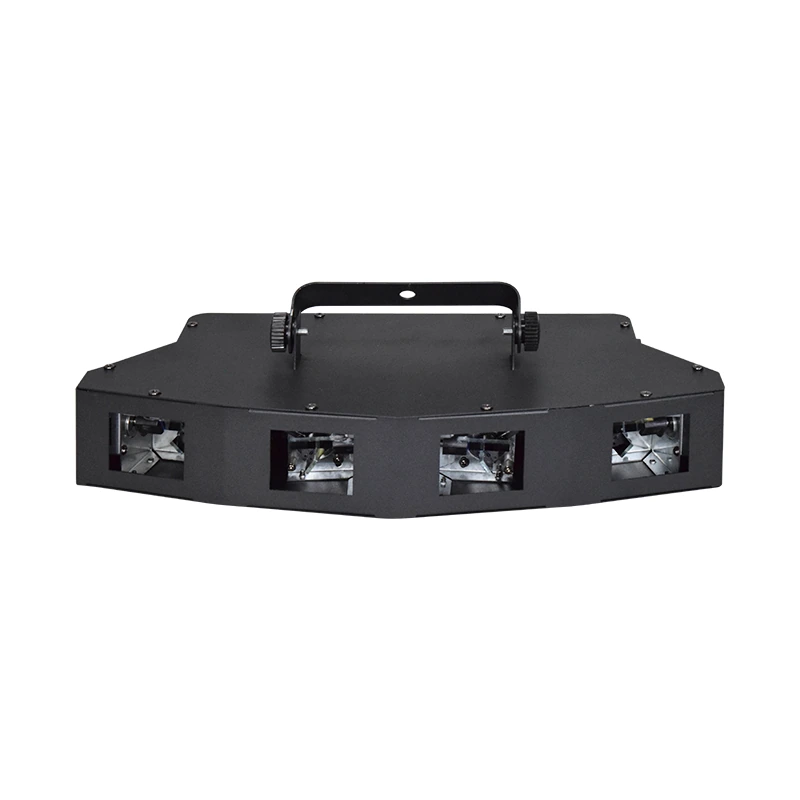

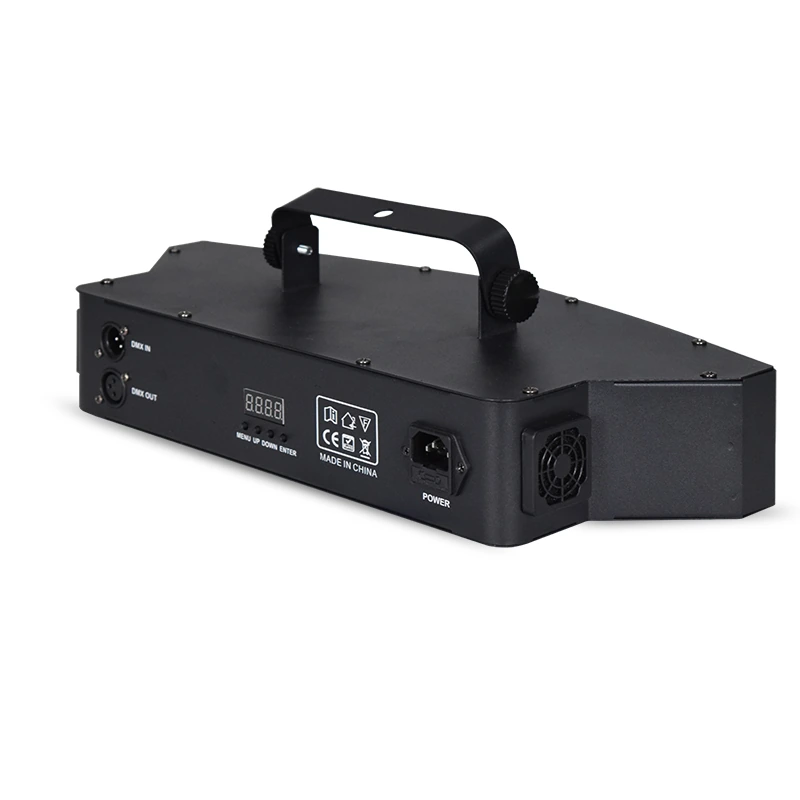

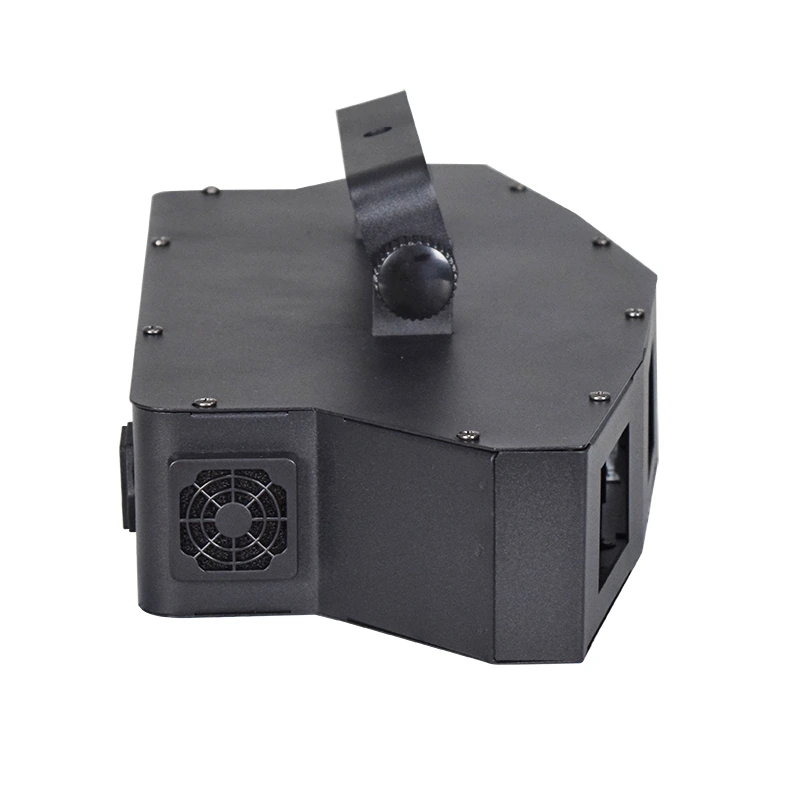

The front, side and rear views show the fan-shaped housing, mounting bracket, fan grille, control display and DMX connections. Match the installation and control plan to the model-specific documentation.
RGB LASER EFFECT EXAMPLES
Compare fan-shaped and line-based laser looks.
These supplied demonstration images show purple/white, blue/cyan, multicolor and blue line arrangements. Use them to communicate the desired look; beam visibility depends on atmosphere, ambient light and fixture placement.
Specifications
Technical specifications
| Model | RG-728 |
|---|---|
| Light source | Four-eye full-color RGB laser |
| Voltage | AC90–240V, 50/60Hz |
| DMX channels | 10CH / 13CH / 33CH |
| Net weight | 5.95kg |
| Control modes | PC / ILDA / DMX512 / Sound / Auto |
| Color system | Full-color RGB laser |
| Effect type | Four-eye fan-shaped RGB laser effects |
CONTROL WORKFLOW
Choose PC, ILDA, DMX512, Sound or Auto.
Specify the controller and playback workflow for the four-eye laser installation. PC and ILDA are listed control methods, together with DMX512, Sound and Auto. Choose 10CH, 13CH or 33CH and obtain the matching connection instructions and DMX chart before patching.
SUPPLY AND SHIPPING
Match the AC supply and four-unit carton plan.
Input is AC90–240V at 50/60Hz. The black fixture has a specified net weight of 5.95kg, and packing is four fixtures per carton. Request dimensions, carton size and gross weight for mounting and transport planning.
APPLICATION FIT
Plan the four-eye laser within the effect design.
For stage, DJ and entertainment lighting briefs, describe the desired RGB fan and line effects, fixture positions and control workflow. Use the supplied images to align the look with the production brief.
Compare other laser lights by aperture layout and control requirements.
B2B ORDER FLOW
Request the RG-728 configuration and quotation.
For your Four-Eye Fan-Shaped RGB Laser Light order, include the effect, control and shipment information so the offer matches the four-eye laser project. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
Four-eye layout, RGB color, controller options and shipping.
What fixture arrangement does RG-728 have?
It is a black, fan-shaped laser fixture with four laser apertures across the front.
What color system is specified?
The supplied color specification is full-color RGB. The demonstration images provide examples of several laser color arrangements.
Which control methods are listed?
PC, ILDA, DMX512, Sound and Auto are listed. Provide your controller and software details when requesting setup information.
What should I request for DMX512 integration?
Three DMX512 modes are confirmed: 10CH, 13CH and 33CH. Request the matching RG-728 channel chart and connection instructions for the console configuration.
What input supply does the fixture use?
Input voltage is AC90–240V at 50/60Hz. Include the destination plug and supply details in your order brief.
What is the net fixture weight?
The specified net weight is 5.95kg. Request product dimensions and mounting instructions for installation planning.
How many fixtures are packed per carton?
Packing is four fixtures per carton. Request carton dimensions and gross weight for the shipment plan.
What should I include in a quotation request?
Send quantity, venue, fixture positions, RGB effects, PC/ILDA or DMX setup, Sound/Auto requirements, supply, plug, destination and delivery date.
