FIVE-STAR BEAM, STROBE AND BEE-EYE EFFECTS

Five-Star LED Effect Light with Beam, Strobe & Bee-Eye Effects

Five-pointed star effect light combining LED beams, strobe, a central bee-eye effect and a colorful auxiliary outline strip. The 120W fixture provides a rotation effect, 16CH / 56CH DMX profiles, 0–100% ultra-smooth dimming and a stated strobe rate of 25 flashes per second.

Beam / Strobe / Central bee-eye
Colorful outline strip / 120W fixture
16CH / 56CH DMX

Get a Quote

Five-Star LED Effect Light star-shaped fixture showing beam lenses and central bee-eye assembly

FOUR EFFECT ROLES

Five-Star LED Effect Light — combine beams, flashes, a bee-eye center and a star outline.

Five-Star LED Effect Light combines ten 10W four-in-one LEDs, four bee-eye lenses, a strobe function and a colorful auxiliary strip in a five-pointed star shape.

LED beam effects

Ten 10W four-in-one LEDs provide the main beam source.

Central bee-eye

Four bee-eye lenses provide the central lighting effect.

Strobe function

The stated flash rate is 25 flashes per second.

Colorful outline strip

The auxiliary strip follows the visible star outline.

PRODUCT VIEWS

Review the illuminated face and control display.

The supplied views show the star outline, central lens assembly and front display.

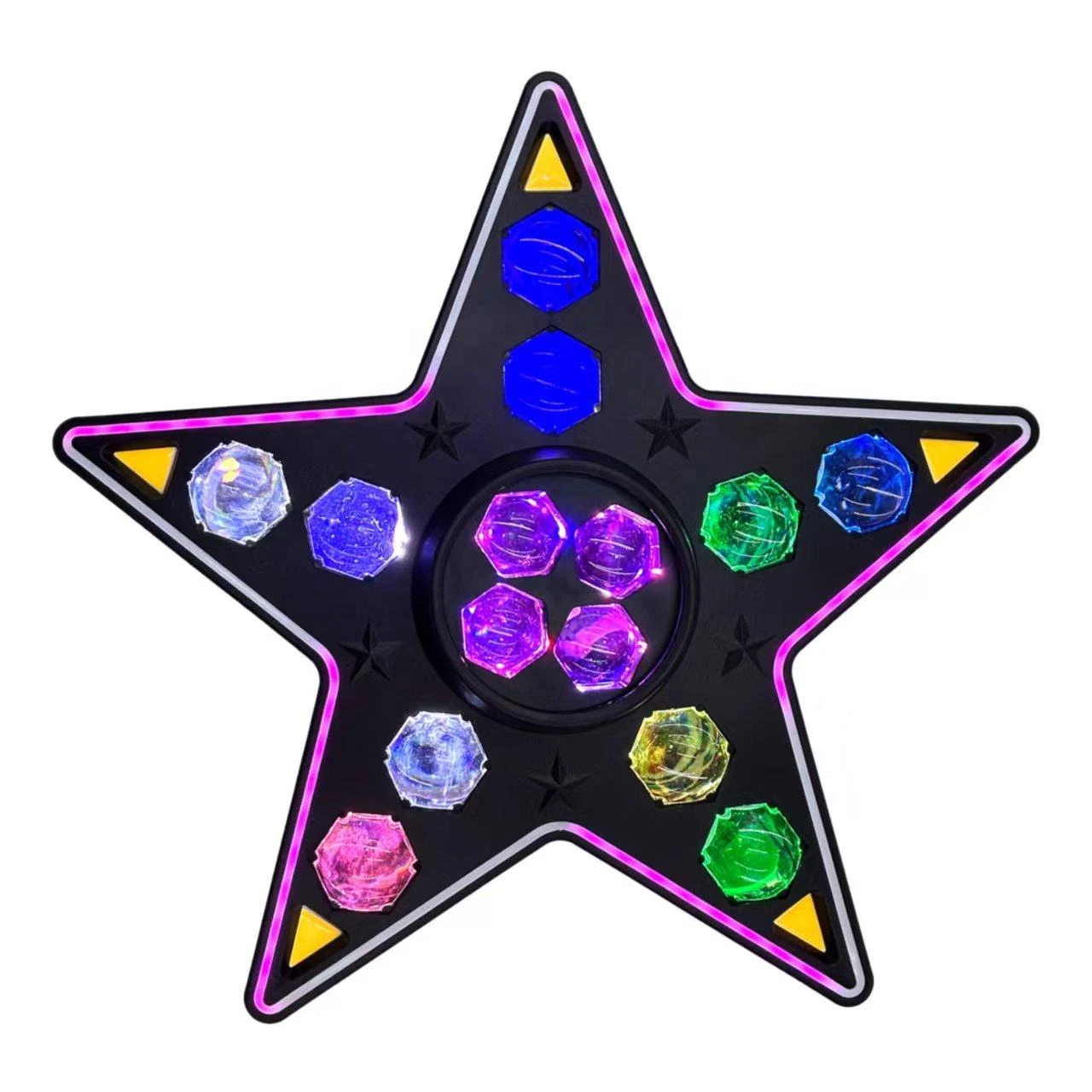

Supplied front view with illuminated star outline and colored lenses

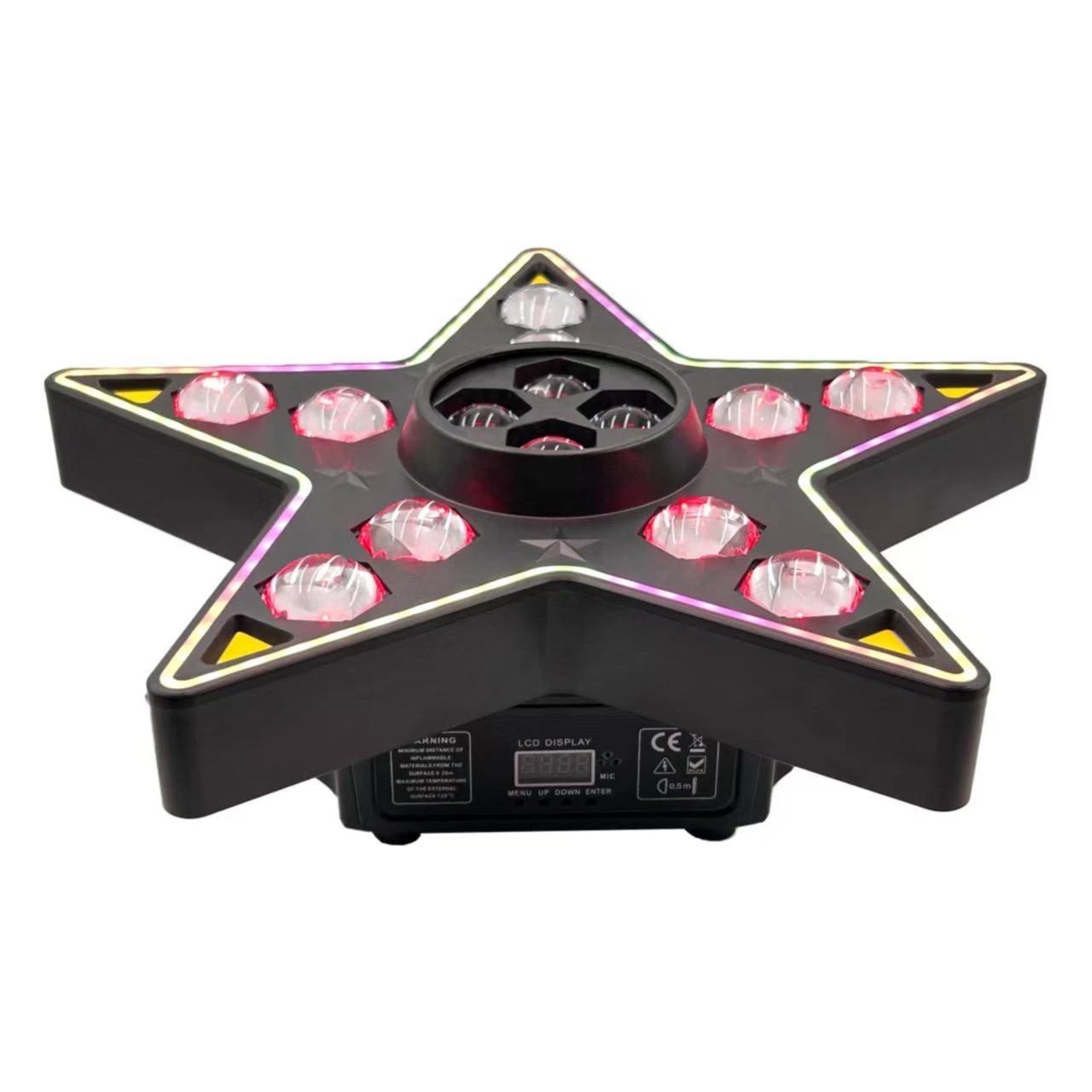

RG-294 angled front view showing star shape, center lenses and front display

View the star-shaped fixture.

RG-294 star-shaped fixture showing beam lenses and central bee-eye assembly

Specifications

Technical specifications

Model	RG-294
Public product power	120W fixture power
Light source	10 × 10W 4-in-1 LEDs, four bee-eye lenses, strobe function and auxiliary colorful LED strip
Rated fixture power	120W
Voltage	AC 220V, 50Hz
DMX channels	16CH / 56CH
Control modes	DMX512 / Master-Slave / Auto / Sound Activated
RGB front ring	Auxiliary colorful LED outline strip
Dimming	0–100% ultra-smooth dimming
Strobe	25 flashes per second

OUTLINE DEMONSTRATIONS

See the star outline accents.

The supplied demonstrations show red and multicolor illuminated star outlines.

Supplied demonstration showing illuminated red star outlines

Supplied demonstration showing green, blue and yellow star outlines

BEAM DEMONSTRATIONS

See downward and crossing beam scenes.

These supplied demonstrations show the fixtures producing colored aerial beams. Visibility depends on haze and the demonstration environment.

Supplied demonstration with star outline accents and downward colored beams

Supplied demonstration showing crossing colored beams from star-shaped fixtures

PRODUCT VIDEO

Watch the confirmed five-star fixture demonstration.

This video carries the earlier RG-214 label. The user has confirmed that the demonstrated five-star product now uses model RG-294.

BASE VIEW

Review the underside of the fixture.

The supplied underside image shows the base feet, handles and ventilation.

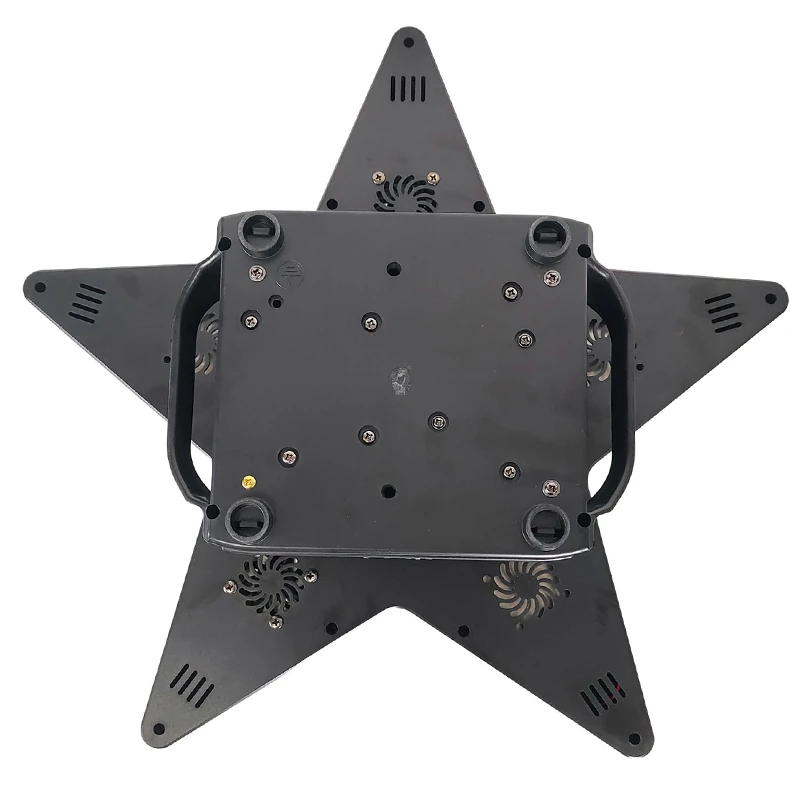

Underside view of the star fixture showing base feet, handles and ventilation

CONTROL AND INTENSITY

Choose the DMX profile and playback mode.

The listed functions include a rotation effect, 0–100% ultra-smooth dimming and 25 flashes per second.

16CH / 56CH DMXRequest the corresponding channel chart for the chosen console profile.

Playback modesDMX512, Master-Slave, Auto and Sound Activated are specified.

Rotation effectA rotation effect is listed; request the control chart for cue programming.

APPLICATION FIT

Define the star silhouette and lighting cues for the scene.

Choose the five-star form when its visible silhouette is part of the backdrop. Describe the main LED beams, central bee-eye look, flash cues and strip outline separately. Compare the 16CH and 56CH charts for the required control detail; the product’s shape and rotation-effect description do not establish individual control of every source.

Event accentsSpecify the star outline colors and the intended beam and bee-eye cues.

Venue playbackChoose linked, standalone or console playback for the workflow.

Console planningProvide console details and select the 16CH or 56CH chart.

Electrical planningUse the 120W fixture rating and AC 220V, 50Hz specification for the supply brief.

Compare the beam moving head light range for other source and effect configurations.

B2B ORDER FLOW

Request the selected fixture configuration.

Identify Five-Star LED Effect Light and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.

01 · LIGHTING

Describe the required lighting cues.

Provide fixture positions, venue layout and the color or pattern roles required from RG-294.

02 · CONTROL

Specify the console and operating profile.

Include the selected channel mode, console, power connections and accessory requirements.

03 · DELIVERY

Complete the supply brief.

State quantity, destination, schedule, mounting accessories and packing configuration for this model.

PRODUCT FAQ

Questions Before You Order.

Sources, optical functions, control and order configuration.

Which lighting effects are listed?

Ten 10W four-in-one LEDs, four bee-eye lenses, a strobe function and an auxiliary colorful LED strip are specified.

What shape and movement effect are specified?

The fixture has a five-pointed star shape with a listed rotation effect.

What is the complete-fixture power?

The complete-fixture power consumption is 120W.

What input voltage is specified?

AC 220V at 50Hz is listed.

Which DMX profiles are available?

16CH and 56CH profiles are listed. Request the chart for the selected profile.

Which operating modes are specified?

DMX512, Master-Slave, Auto and Sound Activated are listed.

What dimming and strobe functions are listed?

0–100% ultra-smooth dimming and a stated rate of 25 flashes per second are specified.

What should I include in an inquiry?

Provide quantity, destination, fixture positions, desired beam, strobe, bee-eye and outline cues, console profile, playback mode, electrical and plug requirements, mounting accessories, packing and schedule.
