RED LASER CONFIGURATION
Eight-Eye Rotating Red Laser Bar — eight red laser sources in a rotating bar.
Eight-Eye Rotating Red Laser Bar is supplied here as the single-red version. Eight solid-state laser tubes form the source system, with a listed rotation range of 270°.
Eight laser tubes
Eight solid-state laser tubes are specified across the red laser bar.
270° rotation
Use the listed rotation range when planning red laser cues and bar positions.
6CH or 14CH DMX
Select a profile and request the matching channel chart for console patching.
Single-color options
Green or blue single-color options are listed; identify the red configuration in this order.

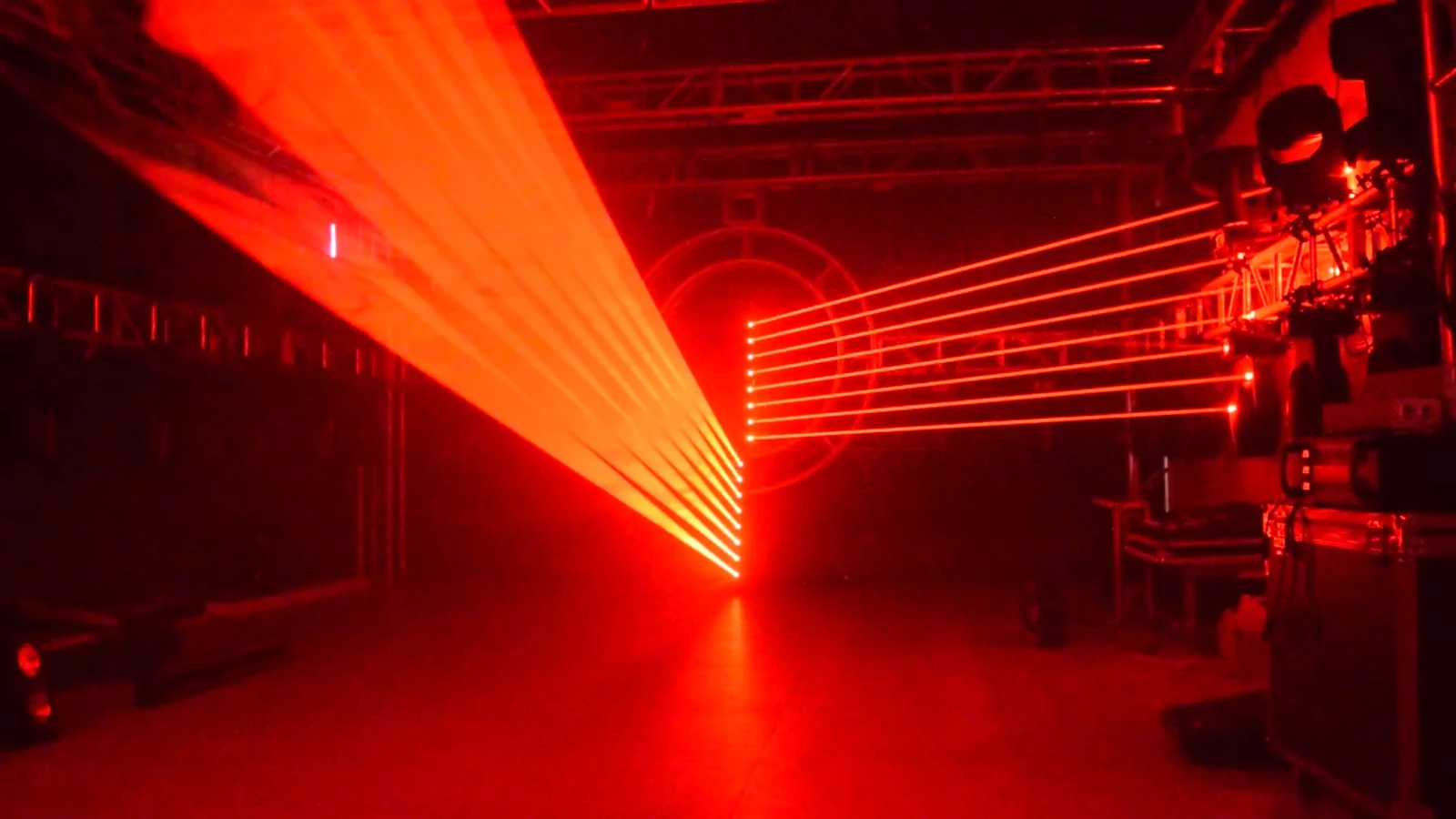

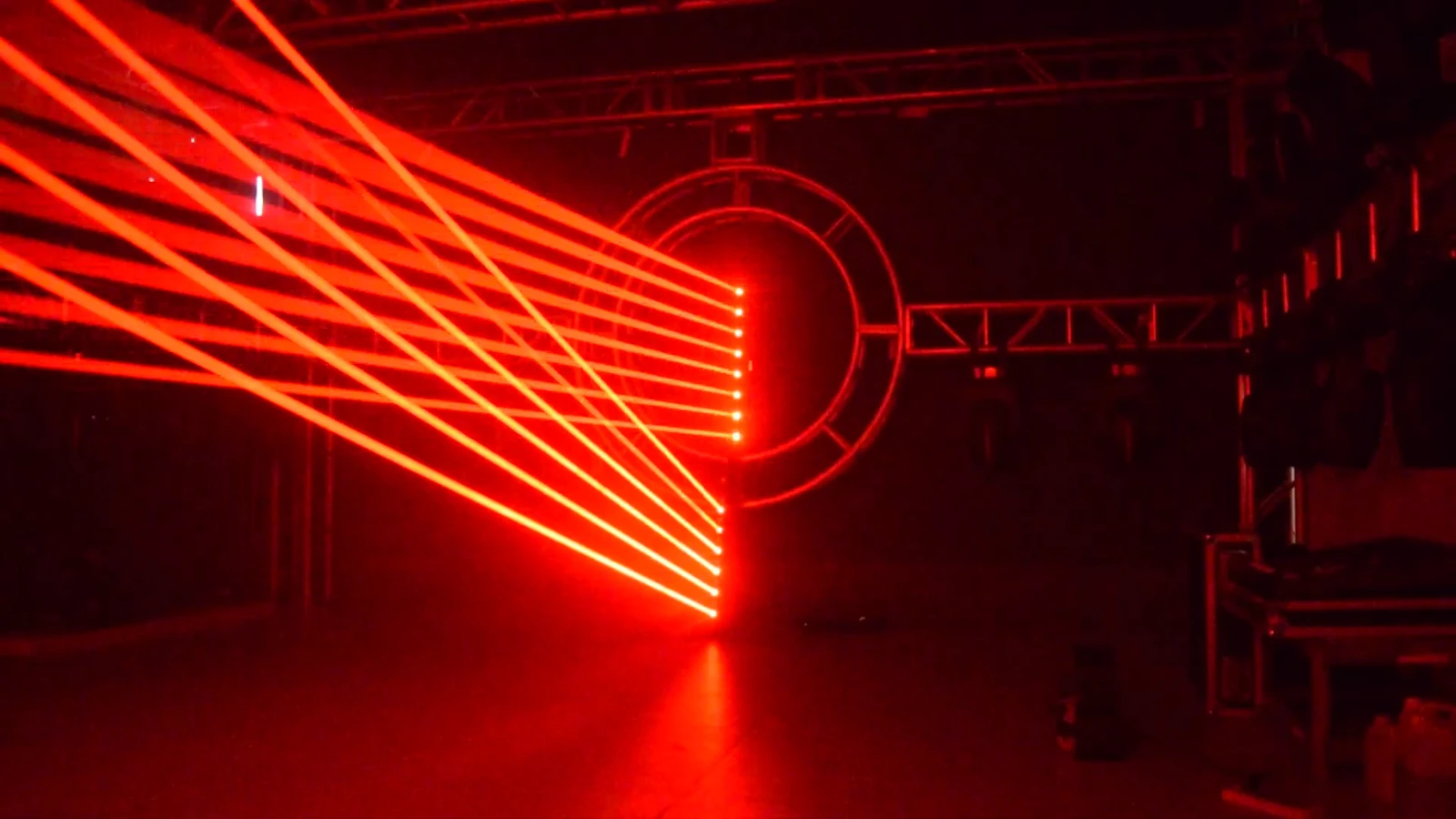

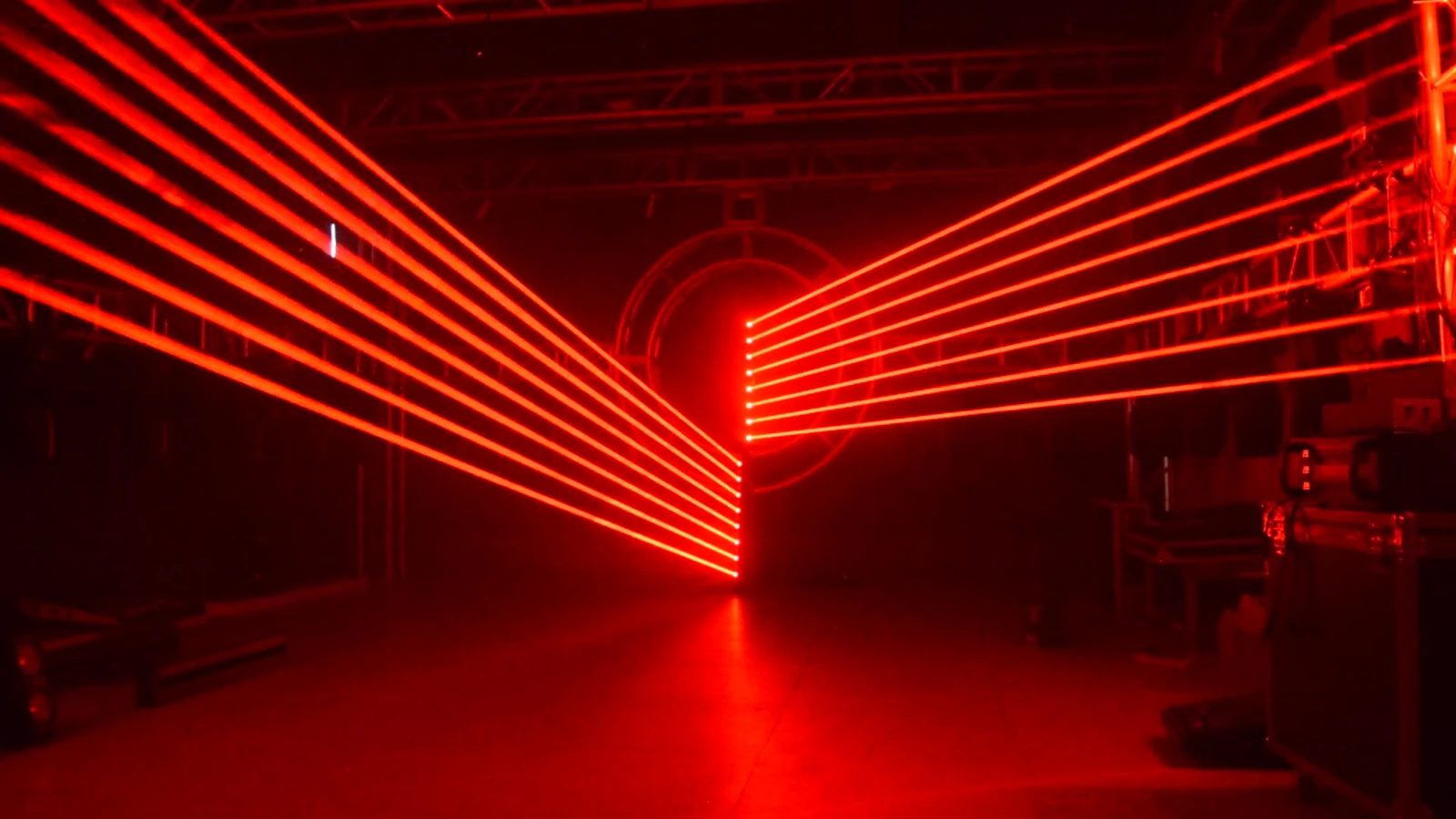

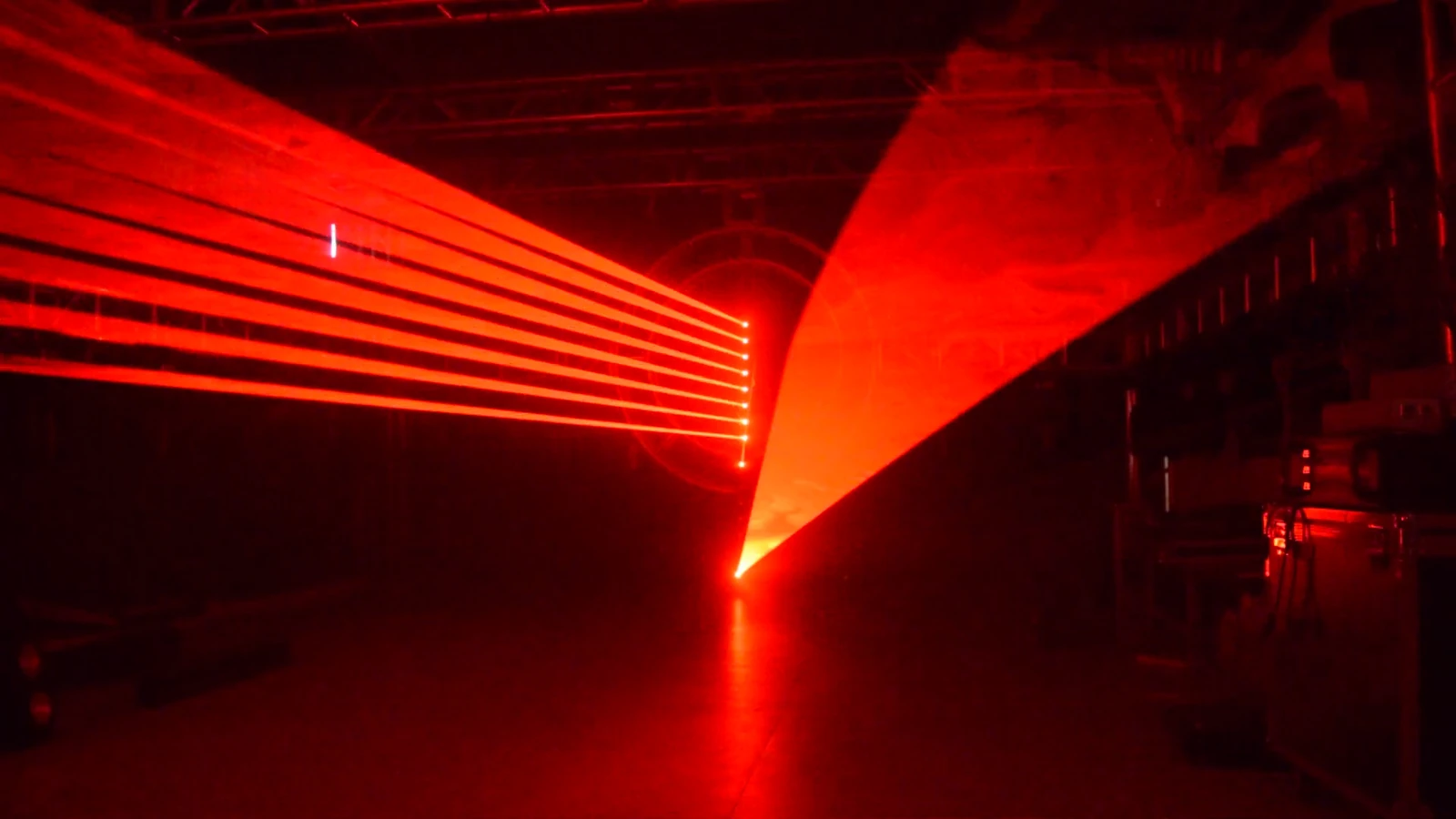

RED EFFECT DEMONSTRATION
Review red parallel, crossing and fan-like looks.
The supplied red photographs show multiple bars operating together. These are demonstration scenes, with the complete visible pattern produced by the setup rather than one fixture.

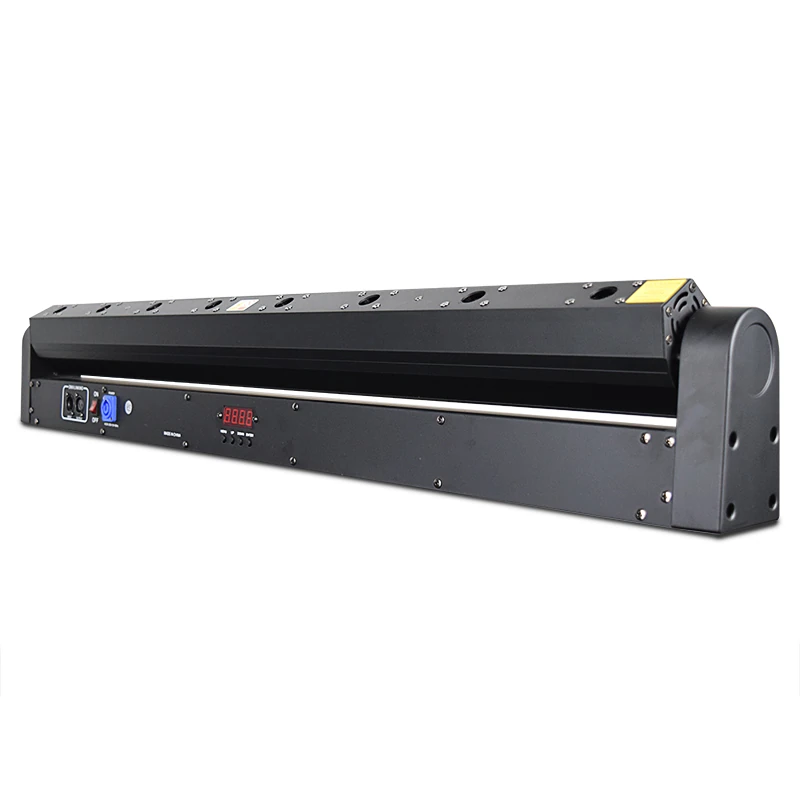

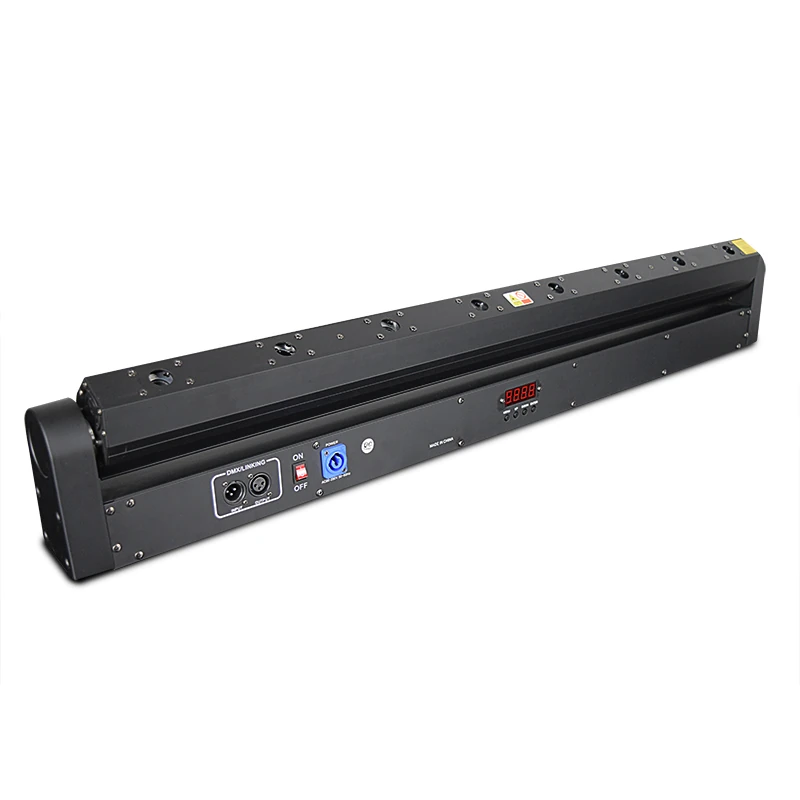

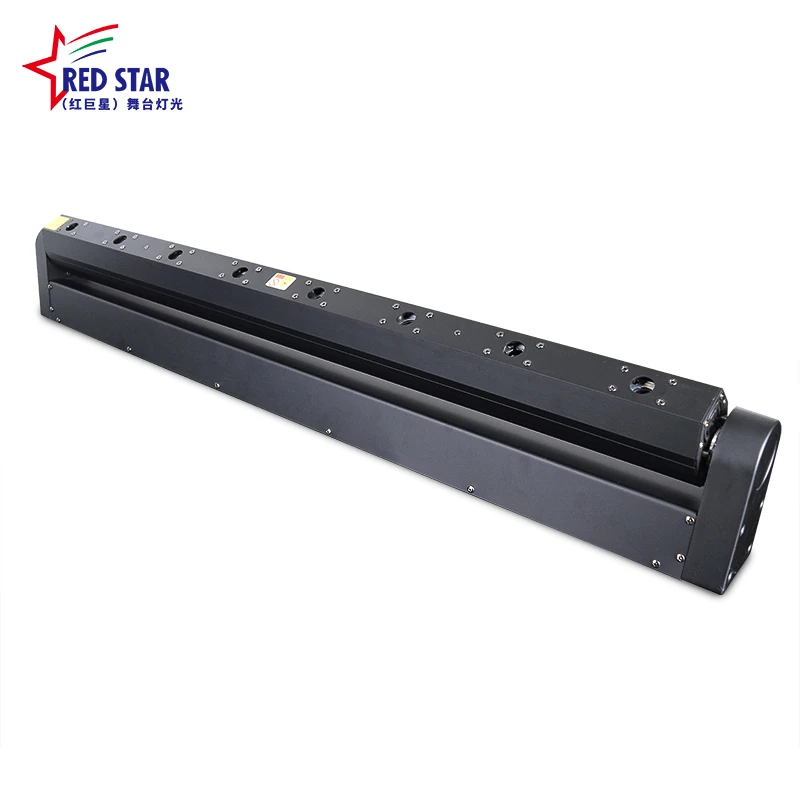

PRODUCT VIEWS
Inspect the long-bar housing and connection sides.
These supplied views show the eight source apertures, housing, control display and marked power and DMX connections.
500mW red output per laser head.
Each of the 8 red laser heads is rated at 500mW. This optical output is specified separately from the 100W complete-fixture power.
PRODUCT VIDEO
Watch the RG-759A demonstration.
Review the lighting effects in the supplied product demonstration.
Specifications
Technical specifications
| Model | RG-759A |
|---|---|
| Public product power | 100W fixture power |
| Light source | 8 solid-state red laser heads; 500mW output per head |
| Rated fixture power | 100W |
| Voltage | AC 100–240V, 50/60Hz |
| DMX channels | 6CH / 14CH |
| Product dimensions | 1140 × 320 × 250mm |
| Control modes | DMX512 / Master-Slave / Auto / Sound Activated |
| Color system | Red; green or blue single-color configurations optional |
| Effect type | Eight-eye rotating red laser bar |
| Movement | 270° rotation |
PLAYBACK AND SIZE
Choose the profile and allow space for the long bar.
DMX512, Master-Slave, Auto and Sound Activated modes are listed, with 6CH and 14CH profiles.
APPLICATION FIT
Specify the red beam role and bar positions.
For Eight-Eye Rotating Red Laser Bar applications, use this red configuration where an eight-source laser effect is required. Include the number and position of bars when describing the demonstration look you want to achieve.
Review the laser light range for different source and effect configurations.
FOUR-UNIT FLIGHT CASE
Specify four fixtures in one flight case.
The supplied packing configuration is a four-in-one flight case for four RG-759A fixtures.
B2B ORDER FLOW
Request the selected fixture configuration.
Identify Eight-Eye Rotating Red Laser Bar and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
Sources, optical functions, control and order configuration.
Is this RG-759A configuration red or RGB?
This page describes the single-red configuration. Green and blue are listed as optional single-color choices; simultaneous RGB mixing is not specified for this red version.
How many laser sources are included?
Eight solid-state laser tubes are listed across the bar.
What does the 100W rating describe?
100W is the complete-fixture power rating, separate from optical laser output.
What rotation range is listed?
The specified rotation range is 270°.
Which control profiles and playback modes are listed?
6CH and 14CH profiles are listed, with DMX512, Master-Slave, Auto and Sound Activated operation. Request the matching channel chart for the selected profile.
What voltage, size and weight are listed?
Input is AC 100–240V at 50/60Hz. Product dimensions are 1140 × 320 × 250mm and listed fixture weight is 6.4kg.
What packing is supplied?
Four fixtures are packed in one flight case, described as a four-in-one flight case.
What should I include in a red-version inquiry?
Specify RG-759A red, quantity, desired beam cues, bar positions, console and profile, power connections, mounting accessories, four-unit flight-case quantity, destination and delivery schedule.
