TWIN OPTICAL SYSTEMS
Dual-Head LED Beam Moving Head Light — build beam and pattern cues with two LED optical systems.
This dual-head LED beam moving head light combines two 80W white LED modules with paired color, gobo, focus and prism systems. It gives stage, club and event lighting buyers a twin-output fixture for programmed beam and projected-pattern effects.
Two 80W LED modules
Two white LED sources feed the twin optical systems. The fixture power is 260W, distinct from the individual LED ratings.
Two color and gobo wheels
Each color wheel has 11 colors plus open. Each metal gobo wheel has 18 fixed patterns plus open, with shake and flowing effects.
3.5°–45° optical range
Electronic linear zoom and focus from 3m to infinity support narrow beam looks and broader projected patterns.
34-channel DMX with RDM
DMX512 and RDM support console-based operation. Fixture firmware can be upgraded through the DMX signal line.
COLOR AND GOBO EFFECTS
Compare colored beams and projected patterns.
The supplied demonstration collage shows colored beam looks and several projected gobo patterns. Each optical system has an 11-color wheel plus open, an 18-pattern fixed gobo wheel plus open, and a unidirectionally rotating 4-facet prism. Bidirectional color-wheel rotation produces rainbow effects; gobo shake and flowing effects add movement. Beam visibility depends on haze, ambient light and placement.
PRODUCT VIEWS
Inspect the housing, controls and dimensions.

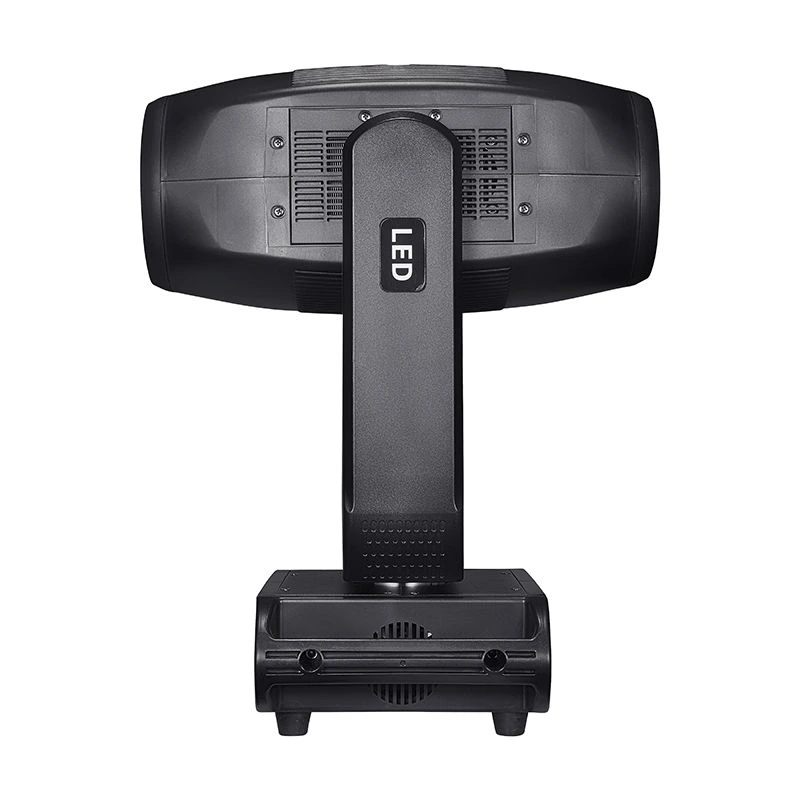

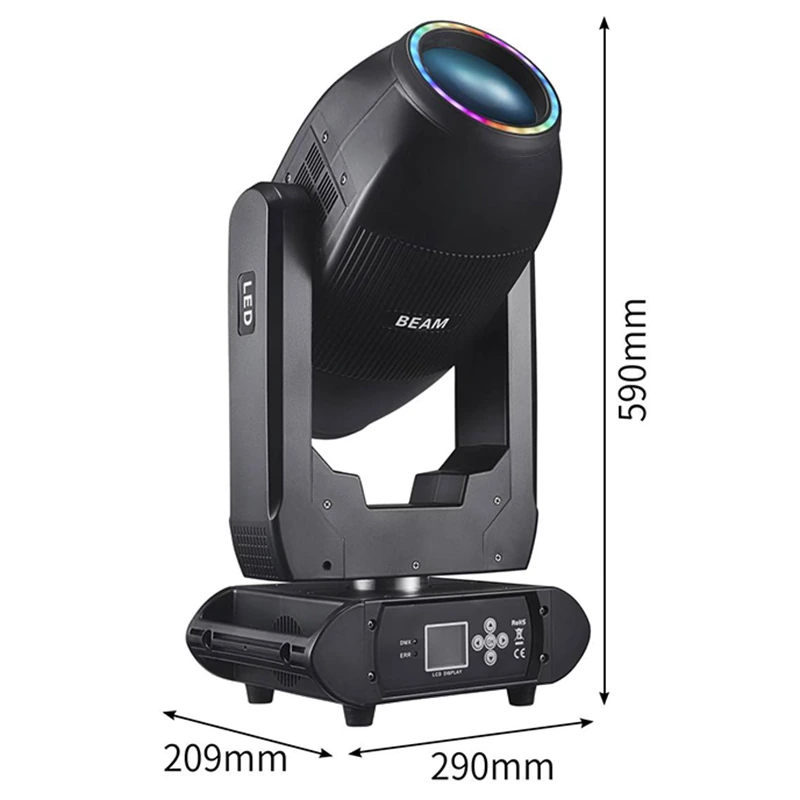

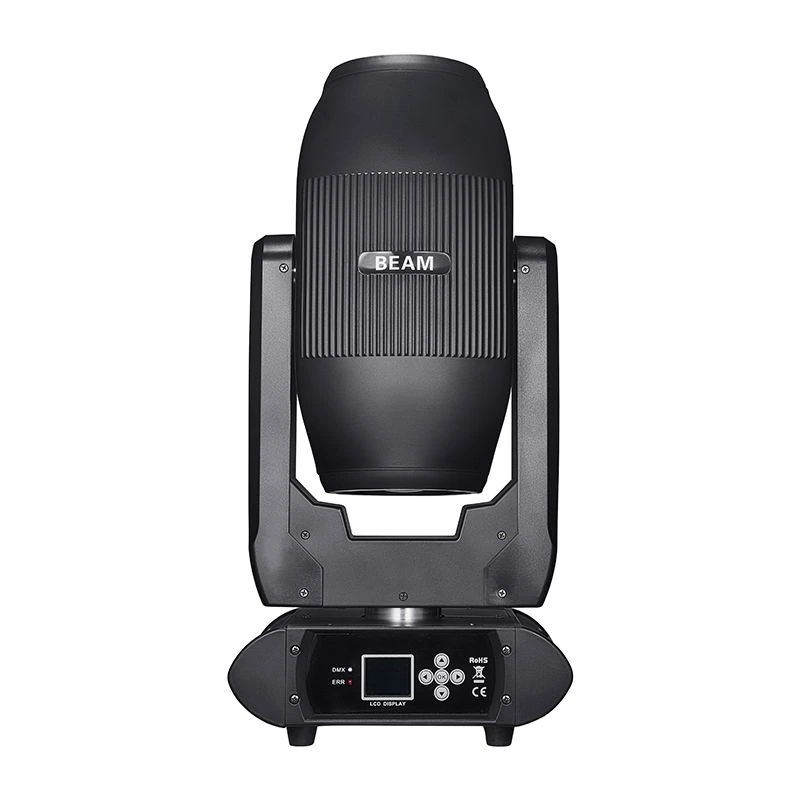

The front, dimension and side views show the dual-ended housing, yoke and LCD control base. The supplied dimension drawing lists 290 × 209 × 590mm; use these product dimensions when planning fixture clearance, then obtain mounting and packing details for the order.
Specifications
Technical specifications
| Model | RG-202 |
|---|---|
| Public product power | 260W |
| Light source | 2 × 80W white LED modules |
| Rated fixture power | 260W |
| Voltage | AC 100–240V, 50/60Hz |
| DMX channels | 34CH |
| Product dimensions | 290 × 209 × 590mm (W × D × H) |
| Rated lamp lifespan | >20,000 hours (stated average) |
| Control modes | DMX512 with RDM; fixture upgrade via DMX signal line |
| Beam angle | 3.5°–45° electronic linear zoom |
| Color wheel | 2 wheels; each 11 colors + open; bidirectional rainbow rotation |
| Fixed gobo wheel | 2 metal wheels; each 18 fixed gobos + open; shake and flowing effects |
| Prism system | 2 × unidirectionally rotating 4-facet prisms |
| Focus | 2 electronic focus systems; 3m to infinity |
| Pan / tilt | 540° pan / 240° tilt; 16-bit resolution; continuous rotation capability |
| Dimming | 2 systems; 0–100% linear electronic dimming |
| Strobe | 2 systems; fast electronic strobe |
MOTION AND CONTROL
Program motion, fades and flash cues.
The specified movement is 540° pan and 240° tilt with 16-bit resolution and continuous rotation capability. Both optical systems provide 0–100% linear electronic dimming and fast electronic strobe. Request the 34-channel chart to map movement, wheel, prism and optical functions before building a show file.
APPLICATION FIT
Use twin beams as an effect layer in the lighting rig.
For stage performances, club installations and event effect rigs, choose this fixture when colored moving beams and projected patterns are the required visual role. Plan indoor or protected placement and obtain suitability confirmation for exposed installations. Select performer front lighting separately; assess projection distance and haze conditions when planning the effect.
Compare the wider range of beam moving head lights by source, optics and control requirements.
B2B ORDER FLOW
Request a quote for the complete twin-beam setup.
For your Dual-Head LED Beam Moving Head Light order, provide the lighting and installation brief along with the order quantity so the offer can cover the fixtures and the accessories your rig requires. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
Answers about twin optics, power, movement and order planning.
Does 260W describe the fixture or each LED?
260W is the whole-fixture power. The light-source configuration is two 80W white LED modules, with a stated average lifespan greater than 20,000 hours.
What color and gobo systems are included?
There are two color wheels, each with 11 colors plus open, and two metal gobo wheels, each with 18 fixed patterns plus open. Rainbow, gobo shake and flowing effects are listed.
What zoom and focus range is specified?
The stated electronic linear zoom range is 3.5°–45°. Two electronic focus systems cover a stated focus distance from 3m to infinity.
Which prism effect does it provide?
Each of the two optical systems has a unidirectionally rotating 4-facet prism for multiplying the beam or pattern effect.
How many DMX channels does it use?
The standard mode uses 34 channels. DMX512 control and RDM are supported, and fixture upgrades can use the DMX signal line. Request the channel chart for console setup.
What movement and dimming are available?
The specification lists 540° pan and 240° tilt, 16-bit resolution and continuous rotation capability. Both systems have 0–100% linear electronic dimming and fast electronic strobe.
What are the input voltage and dimensions?
Input is AC 100–240V at 50/60Hz. The supplied dimension drawing shows a 290mm width, 209mm depth and 590mm height.
What information is needed for a quotation?
Send quantity, destination, venue, projection distance, supply voltage, plug, control requirements and mounting needs. Request the DMX chart, packing dimensions, weight, accessories and delivery proposal with the offer.
