DUAL-ARM CONFIGURATION
Dual-Arm LED Wheel Moving Head Light with Red & Green Lasers — combine CREE LED sources and two laser colors.
Dual-Arm LED Wheel Moving Head Light with Red & Green Lasers uses eight 10W CREE four-in-one LEDs, one red laser and one green laser in a dual-arm wheel arrangement.
Eight CREE LEDs
Eight four-in-one LED sources form the listed LED configuration.
Two laser colors
One red and one green laser add two laser-color sources.
13-channel DMX
Use the matching 13CH chart to program the fixture functions.
120W fixture rating
Use the complete-fixture rating when planning electrical capacity.
FRONT AND ANGLED VIEWS
Review the two optical heads.

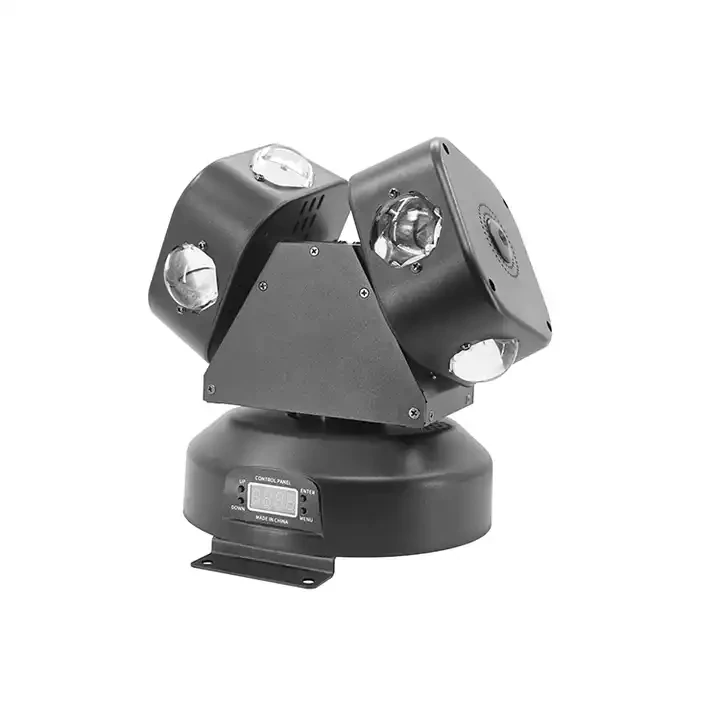

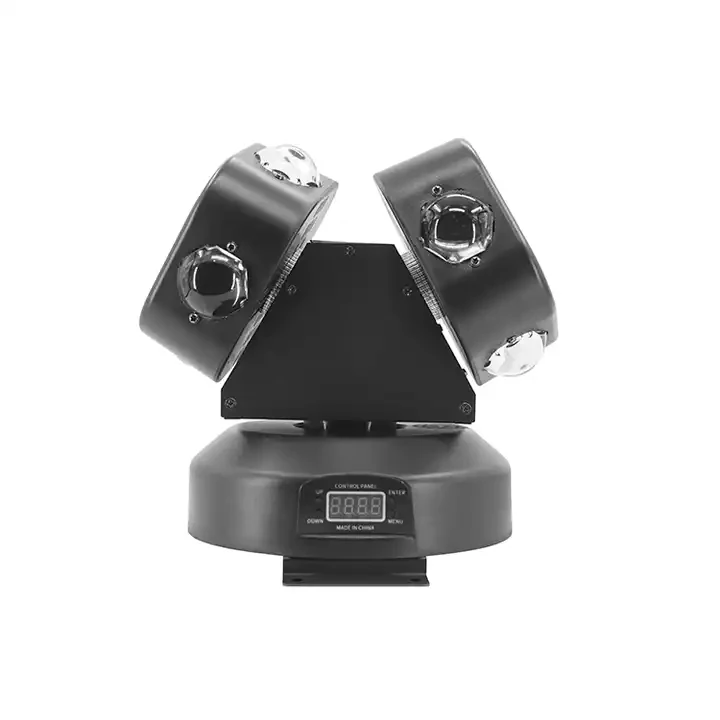

The supplied views show the wheel heads, front display and mounting base.
SIDE AND REAR VIEWS
Review the apertures and connections.

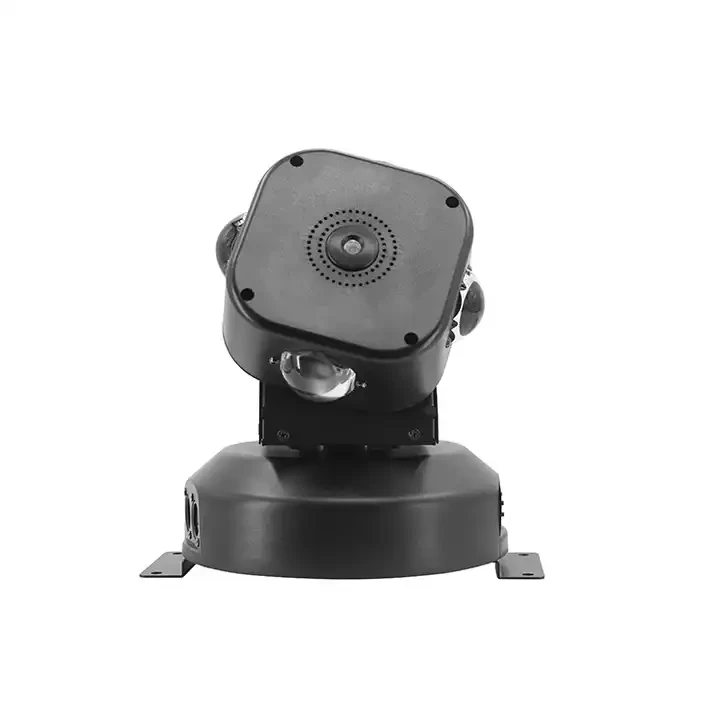

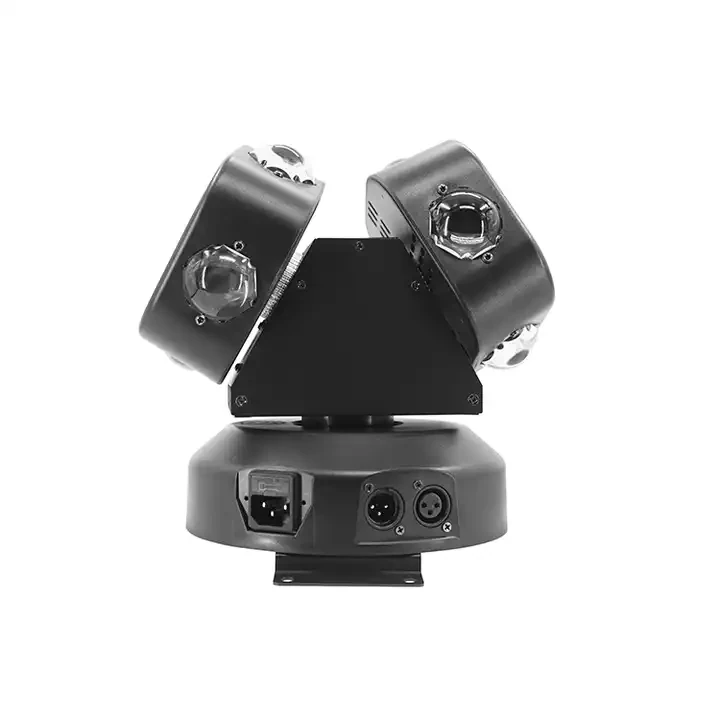

These views show a laser aperture, the lens arrangement, power inlet and DMX sockets.
BLUE-LENS VIEW
See the supplied lit-lens appearance.
This supplied view shows blue-lit lenses on the two optical heads.
Specifications
Technical specifications
| Model | RG-263 |
|---|---|
| Public product power | 120W fixture power |
| Light source | 8 × 10W CREE four-in-one LEDs; 1 red laser + 1 green laser |
| Rated fixture power | 120W |
| Voltage | AC 90–240V, 50/60Hz |
| DMX channels | 13CH |
| Control modes | DMX512 / Master / Auto / Sound Activated |
| Dimming | 0–100% ultra-smooth dimming |
| Strobe | 20 flashes per second |
APPLICATION FIT
Plan LED and laser cues for the venue.
Choose the dual-arm wheel arrangement for paired LED effects with a separate red/green laser layer. Plan the cue sequence around the 13CH chart and the intended mounting positions. Keep the 3.3kg net fixture weight separate from carton weights when planning handling, and identify the laser setup in the installation brief.
Compare the beam moving head light range for other optical arrangements.
WEIGHT AND FOUR-UNIT PACKING
Separate fixture weight from carton weight.
The fixture net weight is 3.3kg; single-product gross weight is 3.74kg. The four-unit outer carton has a gross weight of 16.5kg.
B2B ORDER FLOW
Request the selected fixture configuration.
Identify Dual-Arm LED Wheel Moving Head Light with Red & Green Lasers and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
Sources, optical functions, control and order configuration.
Which LED and laser sources are included?
Eight 10W CREE four-in-one LEDs, one red laser and one green laser are specified.
What is the complete-fixture power and input?
Fixture power is 120W, with AC 90–240V input at 50/60Hz.
Which DMX profile is specified?
The channel profile is 13CH. Request the corresponding chart for console programming.
Which playback modes are listed?
DMX512, Master, Auto and Sound Activated are listed.
What dimming and strobe rate are listed?
0–100% ultra-smooth dimming and 20 flashes per second are stated.
What are the fixture net and gross weights?
Fixture net weight is 3.3kg. Single-product gross weight is 3.74kg.
What are the inner and outer carton specifications?
The inner box is 27 × 27 × 31cm. The outer box is 56 × 29 × 66cm for four fixtures, with a complete-carton gross weight of 16.5kg.
What should I include in an inquiry?
Provide quantity, venue layout, LED/laser cue requirements, playback mode, 13CH console profile, electrical and plug requirements, mounting accessories, destination, four-unit carton or other packing needs, and delivery schedule.
