RGBW FLOOD LIGHT
960W RGBW LED Flood Light — specify color coverage with a dual-panel fixture.

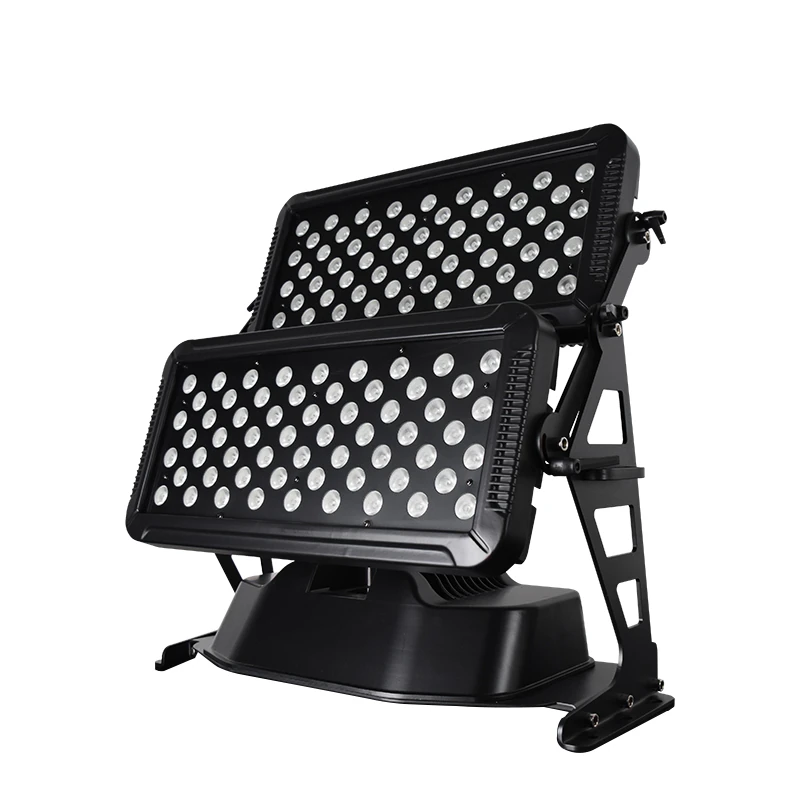

960W RGBW LED Flood Light combines 120 × 10W RGBW 4-in-1 LED sources in two rectangular panels. Complete-fixture power is listed at 960W.
RGBW source configuration
Use red, green, blue and white source requirements in the scene brief.
960W fixture rating
Use the complete-fixture power rating for electrical planning.
Selectable optical angles
15°, 25°, 35° and 45° optical configurations are listed.
Dimming and strobe
0–100% dimming and 1–20Hz strobe are specified.
PRODUCT VIEWS
Review the dual-panel front profile.

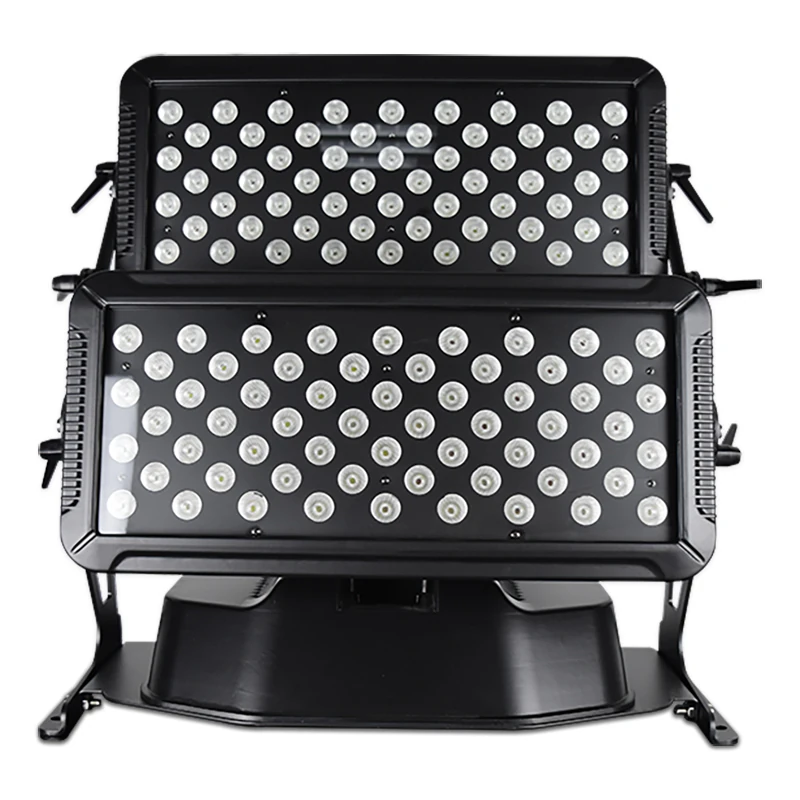

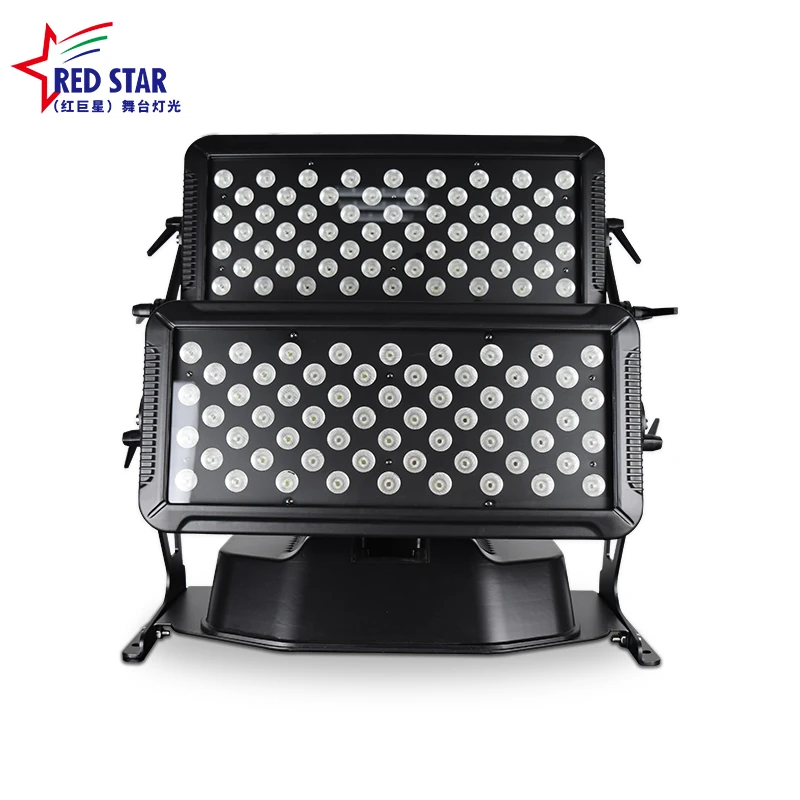

The supplied front photographs show the two-panel arrangement and mounting frame.
Specifications
Technical specifications
| Model | RG-302 |
|---|---|
| Public product power | 960W fixture power |
| Light source | 120 × 10W RGBW 4-in-1 LEDs |
| Rated fixture power | 960W |
| Voltage | AC 90–240V, 50/60Hz |
| Control modes | DMX512 / Auto / Master-Slave |
OPTICS AND SCENE CONTROL
Select the optical configuration for the lighting area.
15°, 25°, 35° and 45° are selectable optical configurations. Identify the required angle when ordering.
FRAME AND COOLING
Review the side frame and rear cooling fins.

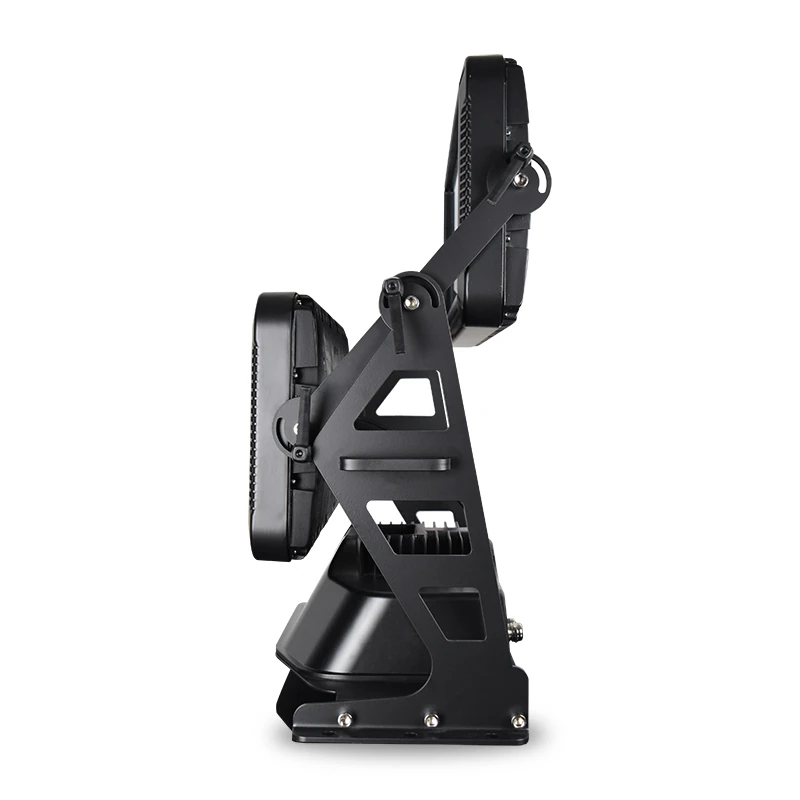

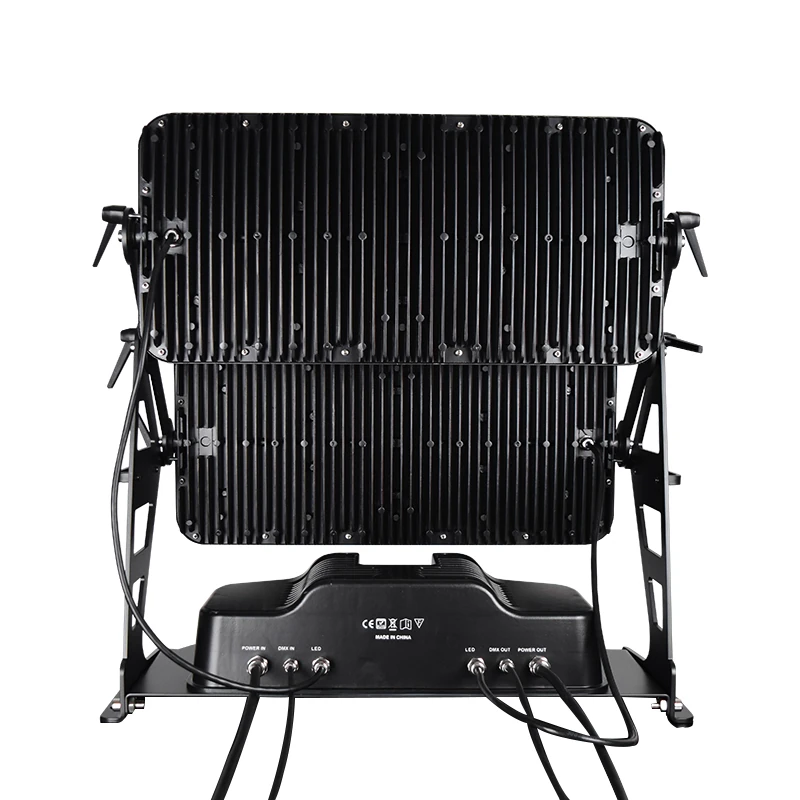

The housing is specified as black aluminum, with natural-convection heat transfer. The photographs show the support frame and rear connections.
COLOR DEMONSTRATION
View the supplied RGBW lighting looks.
This supplied collage illustrates colored light output in a demonstration setting. It provides visual examples rather than measured brightness or coverage data.
PRODUCTION SCENES
View the user-confirmed production photographs.

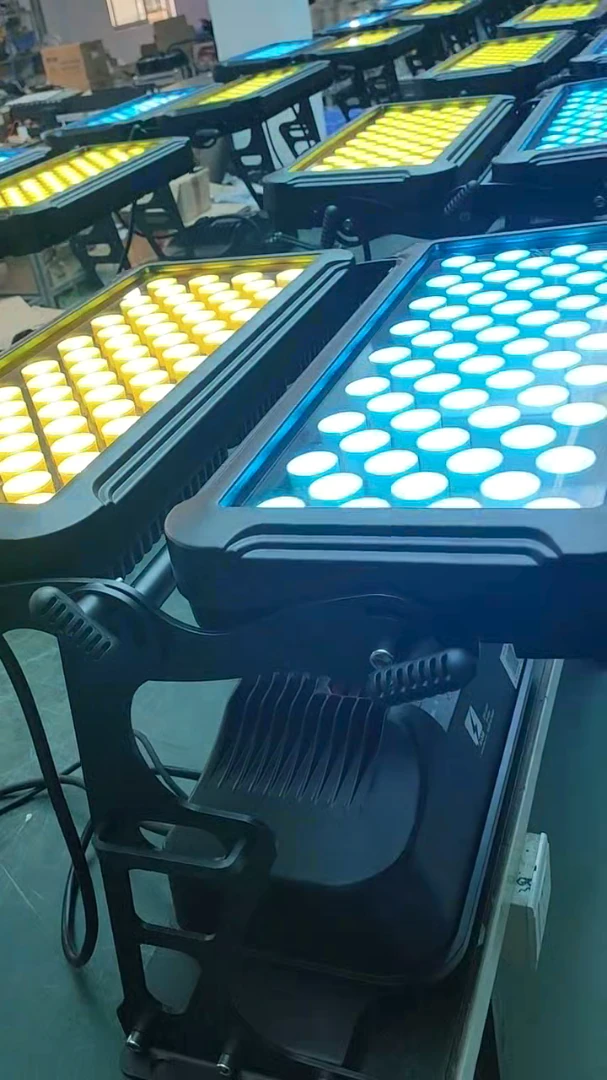

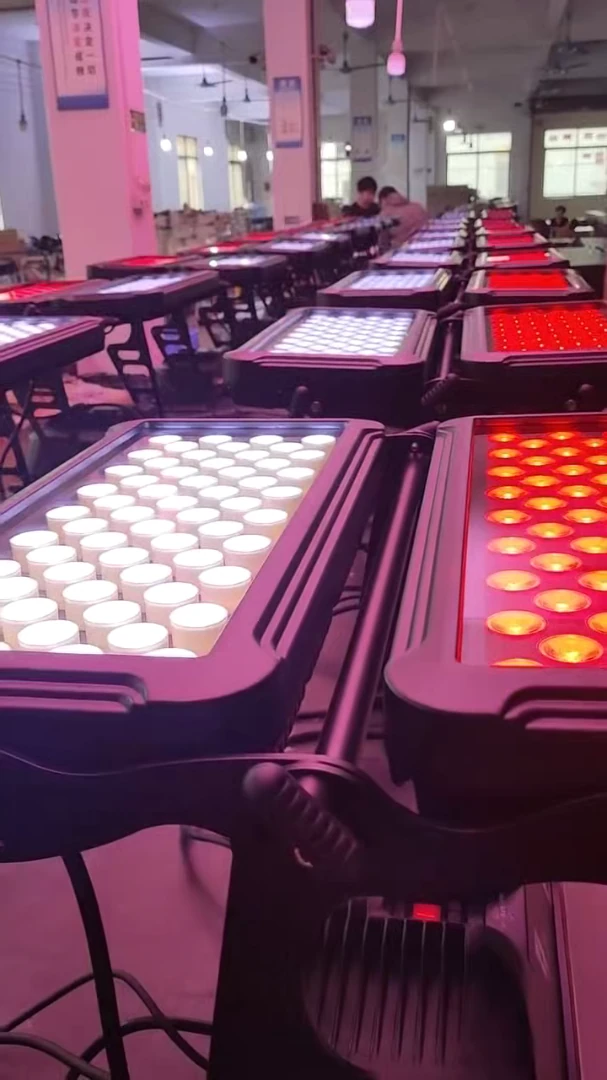

These supplied photographs show powered-on fixtures in a production setting. Their RG-302 association was confirmed by the user; the images do not establish measured performance or inspection results.
PRODUCT VIDEO
Watch the RG-302 lighting demonstration.
The verified product-video record identifies this demonstration as RG-302. Confirm the configuration in the order alongside the requested channel chart.
APPLICATION AND PACKING
Specify stage, studio and theatre color-lighting requirements.
Choose this dual-panel fixture for RGBW color coverage on stage scenery or other planned surfaces. Select 15°, 25°, 35° or 45° optics around throw distance and target width; these are order choices, not a stated motorized zoom. Confirm environmental suitability for exposed positions because no IP rating is supplied. A one-fixture flight-case configuration is listed for transport.
Explore the LED wash light range for other source and coverage configurations.
B2B ORDER FLOW
Request the selected fixture configuration.
Identify 960W RGBW LED Flood Light and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
Sources, optical functions, control and order configuration.
What source system and fixture power are listed?
RG-302 uses 120 × 10W RGBW 4-in-1 LEDs in a dual-panel fixture, with 960W complete-fixture power. LED-source ratings and complete-fixture power are separate specifications.
Which optical angles can be selected?
The listed optical configurations are 15°, 25°, 35° and 45°. Select the required angle when ordering.
Which control modes and channel profiles are listed?
DMX512, Auto and Master-Slave modes are listed. The source sheet lists 4CH/8CH or 3CH/7CH; request the chart that corresponds to the selected LED version before console patching.
What dimming and strobe functions are specified?
0–100% dimming and 1–20 flashes per second, equivalent to 1–20Hz, are specified.
What input and operating temperature are specified?
Input is AC 90–240V at 50/60Hz. The listed operating temperature range is −20°C to 40°C.
What housing, cooling and LED service life are listed?
Black aluminum housing and natural-convection heat transfer are specified. The stated LED service life exceeds 100,000 hours; this is separate from warranty duration.
What packing configuration is listed?
One fixture per flight case is listed. Request case dimensions and gross weight for shipping; fixture dimensions and net weight should be confirmed separately.
What should I include in an RG-302 inquiry?
Identify RG-302, quantity, LED-count version, selected optical angle, target area and fixture positions, required RGBW cues, console and channel chart, connections, mounting accessories, flight-case packing, destination and schedule.
