WHITE COB ZOOM WASH

800W COB LED Zoom Wash Moving Head Light

6000K white COB zoom wash moving head with an 800W LED source, 820W total fixture power and motorized 5–50° zoom. CTO, Ra > 90, linear dimming and 12CH DMX support white-light scene planning.

800W COB / 820W fixture
5–50° motorized zoom
6000K / Ra > 90 / CTO

Get a Quote

800W COB LED Zoom Wash Moving Head Light COB zoom wash moving head with large front lens and display

WHITE COB WASH

800W COB LED Zoom Wash Moving Head Light — adjust white-light coverage with motorized zoom.

800W COB LED Zoom Wash Moving Head Light uses an 800W 6000K white COB LED, with total fixture power listed at 820W. Motorized 5–50° zoom changes the specified light angle for different coverage roles.

800W 6000K white COB LED

The 800W source rating is separate from the complete-fixture 820W power rating.

5–50° motorized zoom

Adjust the listed angle range for tighter or wider white-light coverage.

Ra > 90 and CTO

The specified CRI and CTO support white-light color-temperature planning.

12CH DMX

Use the 12-channel profile and request its matching chart for console patching.

PRODUCT VIEWS

Inspect the optical face and rear connections.

These supplied hardware views show the large front lens and rear ventilation, power and DMX connections.

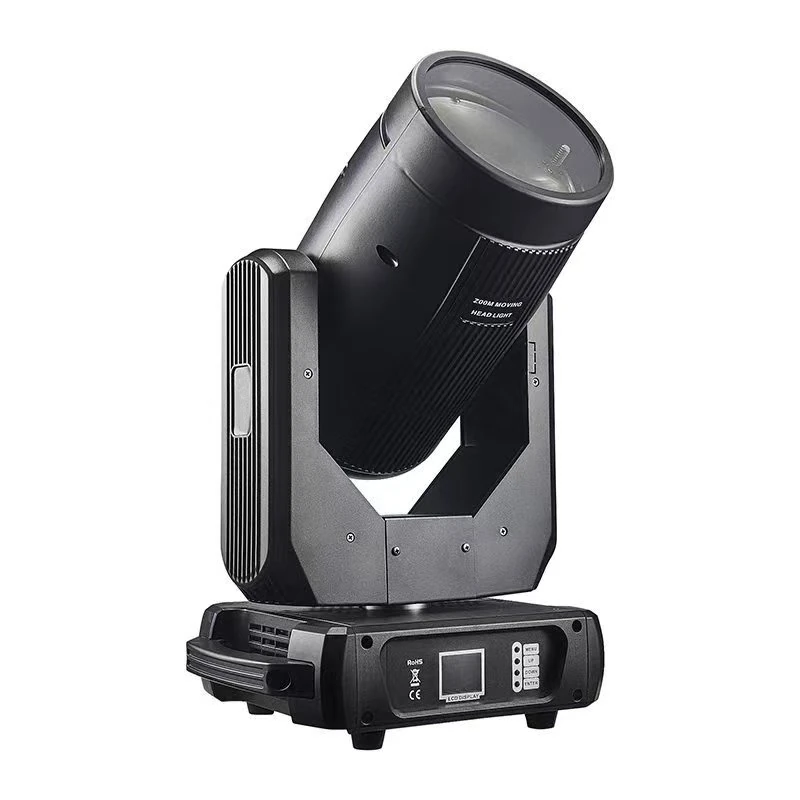

Opposite front angle of RG-Z800 showing the large lens and control display

Rear view of RG-Z800 showing ventilation and power and DMX connectors

Specifications

Technical specifications

Model	RG-Z800
Public product power	800W COB source / 820W fixture power
Light source	800W 6000K white COB LED
Rated fixture power	820W
Voltage	AC 100–240V, 50/60Hz
DMX channels	12CH
Control modes	DMX512 / Master-Slave / Auto / Sound Activated
LED configuration	800W 6000K white COB LED; average source life 50,000 hours
Color system	6000K white LED with CTO
Zoom range	5–50° motorized zoom

WHITE-LIGHT CONTROL

Set intensity, strobe and movement cues.

CTO and Ra > 90 are specified for the white source. Dimming is 0–100% linear, with 1–20Hz strobe.

Intensity and flashesUse the listed linear dimming and strobe range when defining the scene cues.

Pan and tiltPan is 540° and tilt is 270°, with 16-bit control and linear correction.

Playback modesDMX512, Master-Slave, Auto and Sound Activated operation are listed.

Operating temperatureThe listed working environment is −20°C to 40°C; use this temperature range for the fixture environment.

HOUSING AND DISPLAY

Review the side profile and upright head position.

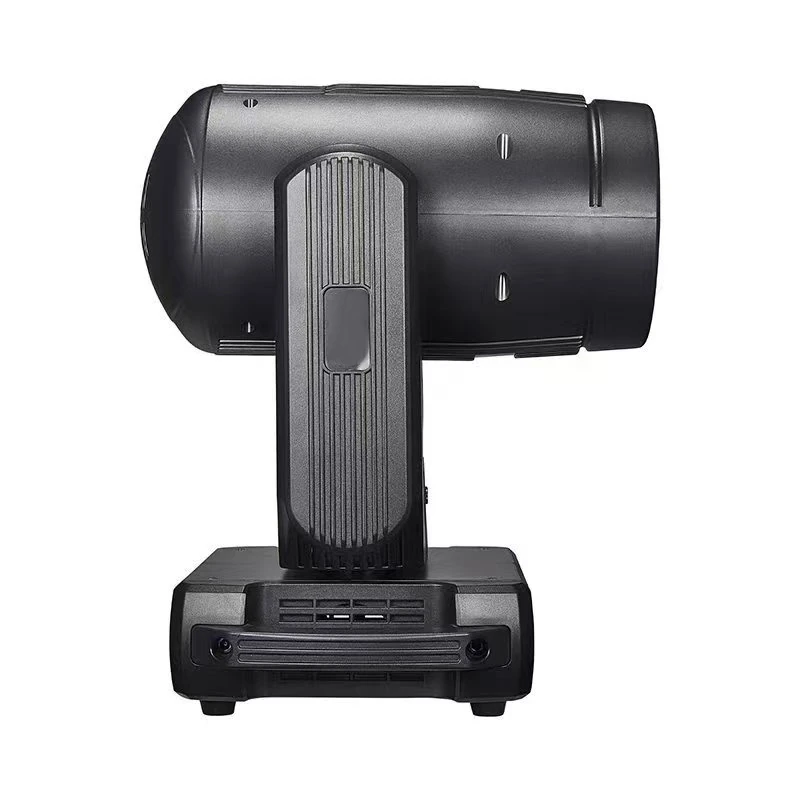

The side and upright views show the housing, support structure and front display.

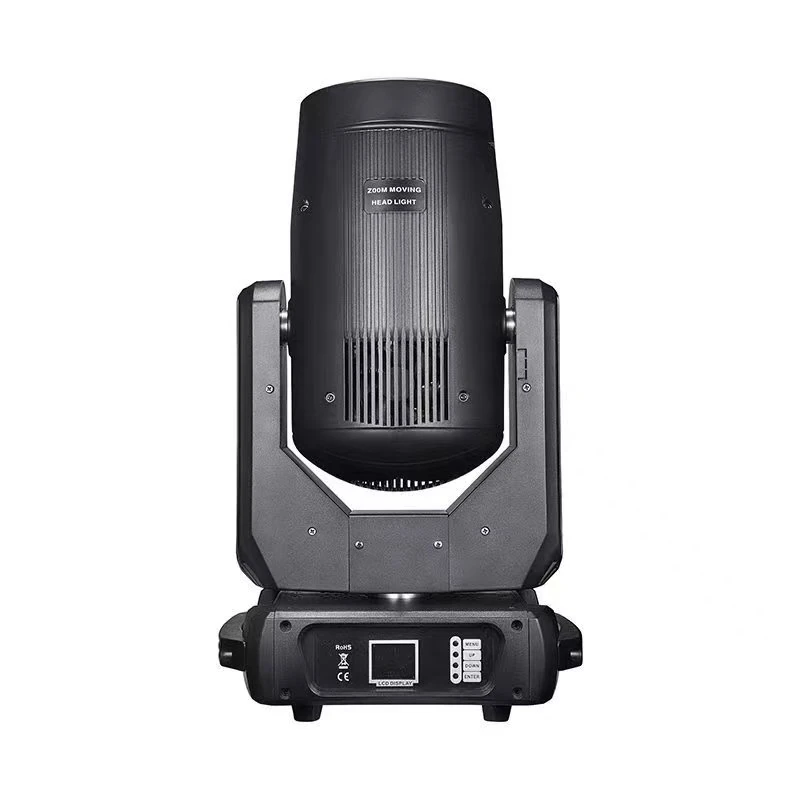

RG-Z800 with upright lamp housing and front control display

APPLICATION FIT

Specify white-light coverage and color requirements.

Choose the 800W white COB zoom wash when a rig position needs moving white-light coverage and a zoom change during programmed cues. Use the listed 5–50° motorized range to plan concentrated or broader looks, then check overlap at the working distance. The 6000K source has CTO and Ra > 90; confirm the required white tone rather than assuming an unlisted CTO range.

Stage white washDescribe the area to cover and the required white-light cues.

Event illuminationState lighting distance and whether the scene calls for tighter or wider coverage.

Color rendering needsIdentify the required white-light appearance using the stated Ra > 90 and CTO functions.

Console planningProvide the console and desired zoom, dimming and movement cue sequence for the 12CH profile.

Review the LED wash light range for different source and coverage configurations.

PACKING AND SUPPLY

Separate packing data from fixture dimensions.

The supplied package dimensions are 66 × 40 × 32cm, with a listed package weight of 13.5kg.

66 × 40 × 32cm packageUse this figure for the supplied package rather than the fixture body dimensions.

13.5kg listed package weightUse the supplied package-weight figure in the shipping brief; it is not a stated fixture net weight.

820W electrical planningPlan supply using 820W total fixture power and AC 100–240V, 50/60Hz input.

B2B ORDER FLOW

Request the selected fixture configuration.

Identify 800W COB LED Zoom Wash Moving Head Light and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.

01 · LIGHTING

Describe the required lighting cues.

Send the lighting area, mounting distance, required white tone and zoom or movement cues. Include camera settings when white-light fades or strobe are part of the production.

02 · CONTROL

Specify the console and operating profile.

Include the selected channel mode, console, power connections and accessory requirements.

03 · DELIVERY

Complete the supply brief.

State quantity, destination, schedule, mounting accessories and packing configuration for this model.

PRODUCT FAQ

Questions Before You Order.

Sources, optical functions, control and order configuration.

Is 800W the complete-fixture power?

800W is the white COB LED source rating. Total fixture power is separately listed at 820W.

What zoom range is specified?

Motorized zoom is listed from 5° to 50°.

What white-light and color-rendering functions are listed?

The fixture uses a 6000K white COB LED with CTO and specified CRI Ra > 90.

What dimming and strobe are listed?

0–100% linear dimming and 1–20Hz strobe are specified.

Which channels, movement and control modes are listed?

The profile is 12CH, with pan 540° and tilt 270°, 16-bit control and linear correction. DMX512, Master-Slave, Auto and Sound Activated modes are listed.

What input and operating temperature are listed?

Input is AC 100–240V at 50/60Hz. The stated working environment is −20°C to 40°C.

What lifetime and package data are listed?

Average LED source life is listed as 50,000 hours, which is separate from a fixture warranty. Package size is 66 × 40 × 32cm and listed package weight is 13.5kg.

What should I include in a COB wash inquiry?

Provide quantity, lighting area and distance, white-light requirements, zoom and movement cues, console and 12CH profile, supply and plugs, mounting accessories, packing requirements, destination and schedule.
