RGBW BEE-EYE WASH
7x40W RGBW Bee-Eye Zoom Moving Head Light — choose seven-source RGBW output with variable coverage.
The 7x40W RGBW Bee-Eye Zoom Moving Head Light combines seven RGBW LEDs with a 4.5°–45° spot-angle range for stage, club and event wash setups. Choose overall control or point-control DMX profiles to match the cue design. The fixture power is 350W.
Seven 40W RGBW LEDs
Seven four-color LED sources form the bee-eye optical face. The fixture power is 350W, separate from the 40W rating of each source.
4.5°–45° zoom
Adjust the specified spot-angle range for narrower output or a wider wash. Choose placement and throw distance to suit the lighting role.
Overall or point control
Overall control lists 12CH and 17CH profiles. Point-control profiles list 11CH, 17CH, 18CH and 38CH for a different control workflow.
DMX512 and Master/Slave
Use DMX512 for console cues or Master/Slave for linked operation. Request the profile-specific chart before patching the fixtures.
PRODUCT VIEWS
Inspect the optical face, ventilation and connections.

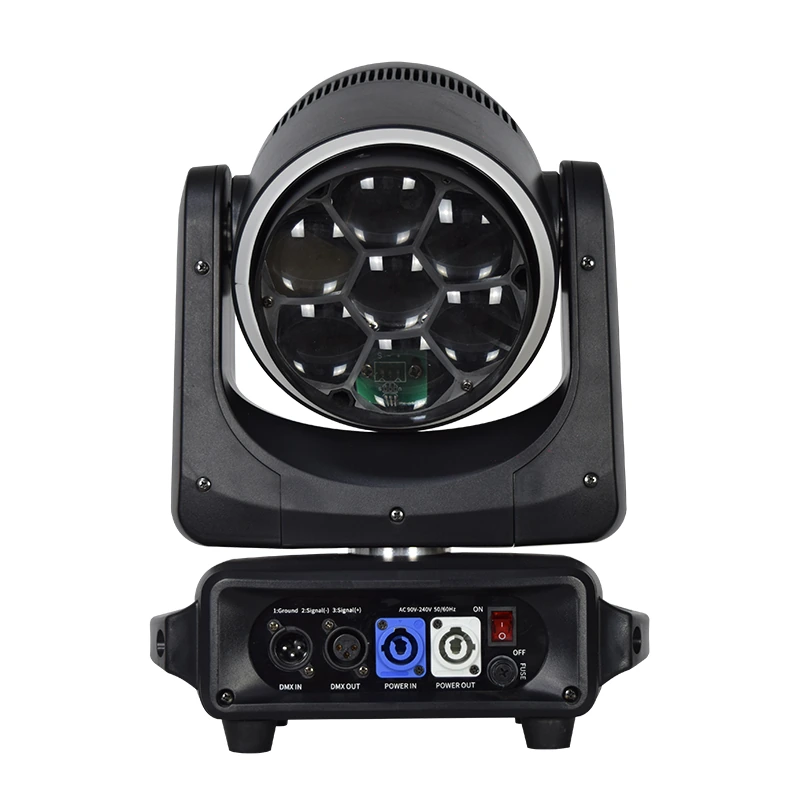

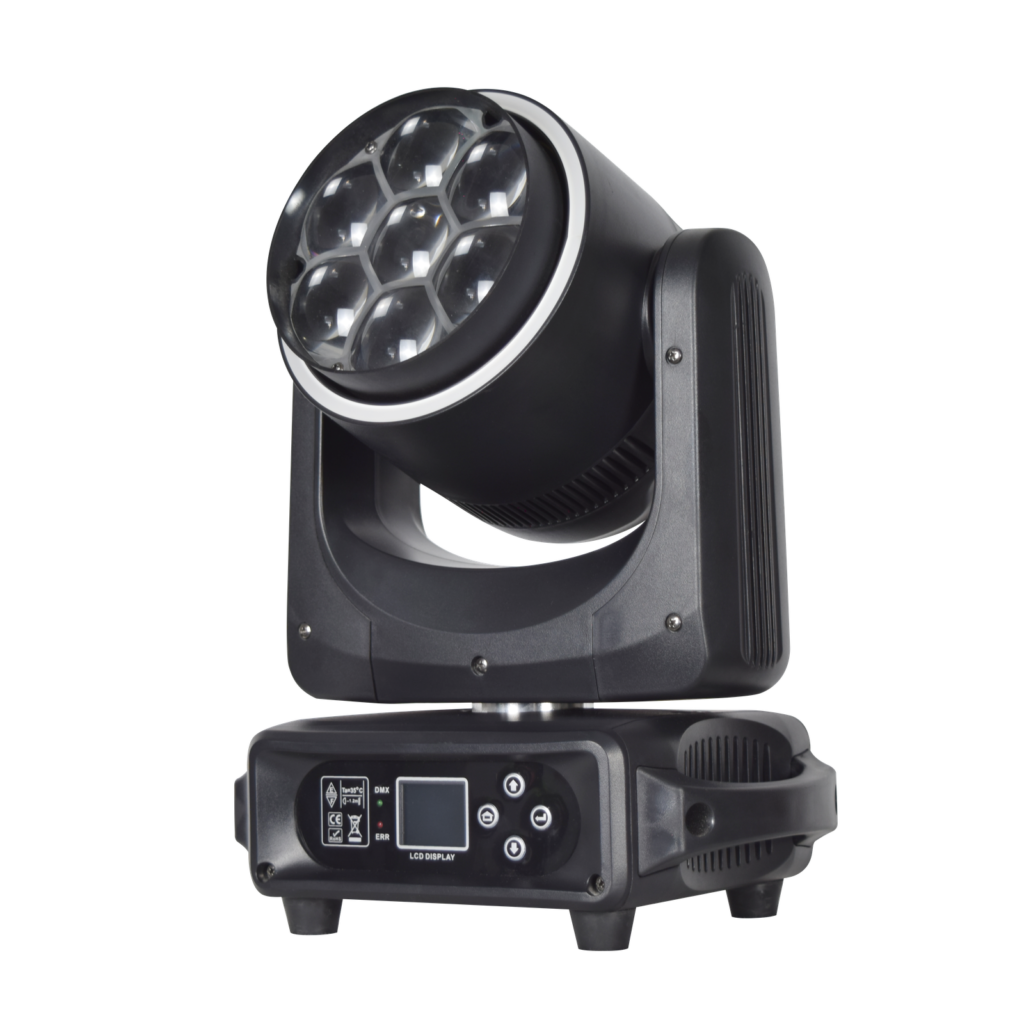

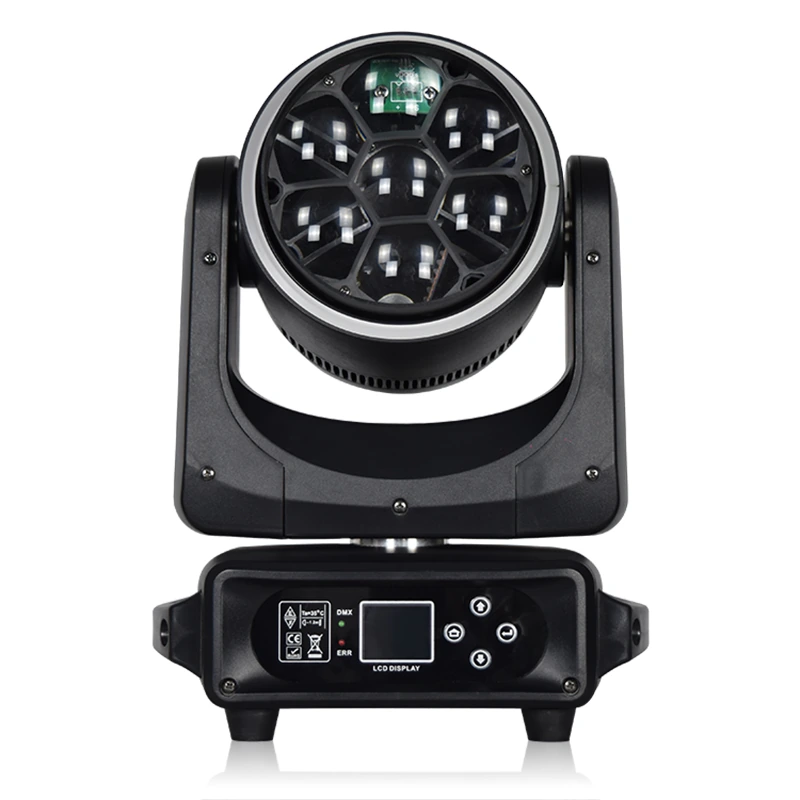

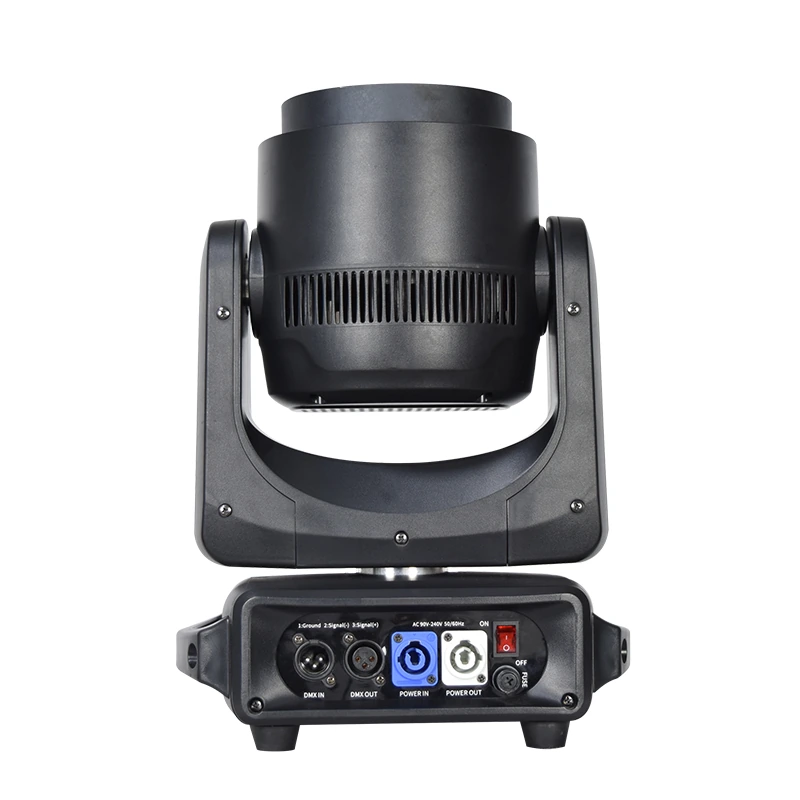

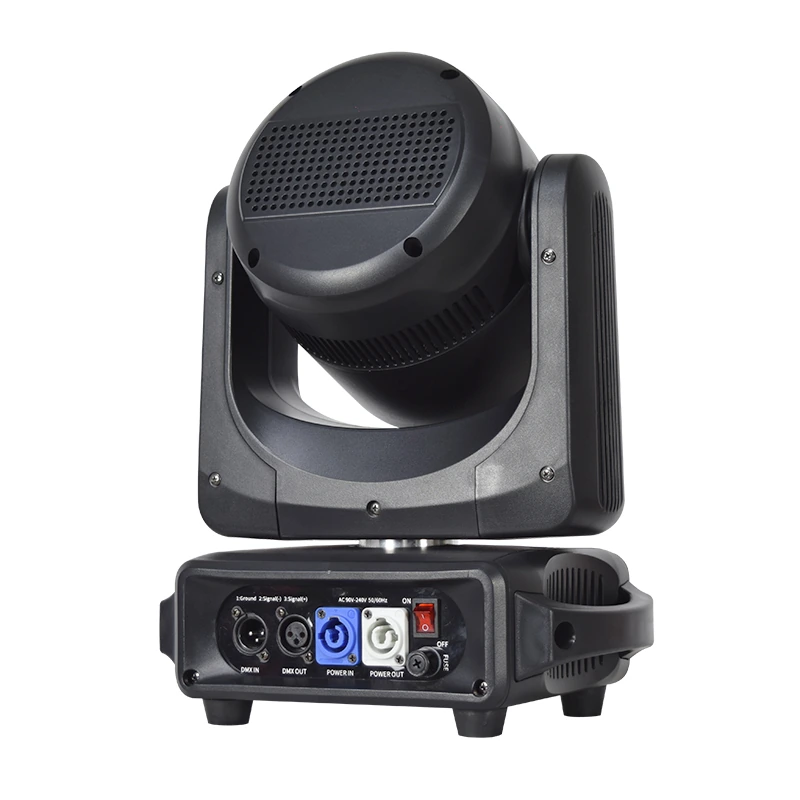

The front view shows seven lenses and the LCD control panel. Additional rear and tilted views show the housing vents, DMX input/output and power input/output labels. Use these product views to plan access to connections and controls; obtain mounting and cable-loading information for your installation.
CONTROL PROFILES
Select the DMX workflow before creating the show file.
The overall-control and point-control profiles are listed separately. A 17-channel profile appears in both families, so identify the control family as well as the channel count. Request the channel chart for the chosen profile to check addresses and functions against your console.
| Control family | Listed profiles | Planning role |
|---|---|---|
| Overall control | 12CH / 17CH | Choose an overall-control profile when patching the fixture for that workflow. |
| Point control | 11CH / 17CH / 18CH / 38CH | Choose a point-control profile when the cue design calls for control of individual LED points. |
Specifications
Technical specifications
| Model | RG-740 |
|---|---|
| Public product power | 350W |
| Light source | 7 × 40W RGBW LEDs |
| Rated fixture power | 350W |
| Voltage | AC 100–240V, 50–60Hz; switch-mode power supply |
| DMX channels | Overall: 12CH / 17CH; point control: 11CH / 17CH / 18CH / 38CH |
| Rated lamp lifespan | 50,000 hours (stated LED source lifespan) |
| Control modes | DMX512; Master/Slave |
| LED configuration | 7 × 40W RGBW; LED drive current 2.5A |
| Color system | RGBW; stated color-temperature range 2800K–8500K |
| Zoom range | 4.5°–45° |
| Pixel control | Point-control profiles: 11CH / 17CH / 18CH / 38CH |
SOURCE AND POWER
Separate LED ratings, fixture power and electrical input.
The optical system uses seven 40W RGBW LEDs with a stated color-temperature range of 2800K–8500K and a stated source lifespan of 50,000 hours. Fixture power is 350W. The switch-mode power supply accepts AC 100–240V at 50–60Hz.
APPLICATION FIT
Match the wash role and control profile to the venue.
For stage and event color lighting, use the zoom range to plan coverage at the intended fixture position. Club installations can use DMX512 for programmed cues, while linked Master/Slave operation suits a shared playback workflow. Plan indoor or protected placement and confirm suitability before exposed use. Select dedicated performer front lighting separately when the project requires a specified white-light or color-rendering performance.
Compare other LED wash moving head lights by LED layout, zoom range and control requirements.
B2B ORDER FLOW
Request a quote with the LED control profile included.
For your 7x40W RGBW Bee-Eye Zoom Moving Head Light order, a clear wash-lighting brief helps identify the fixture count, DMX profile and installation information to include in the offer. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
LED sources, zoom, DMX control families and order planning.
What is the LED source configuration?
The fixture uses seven 40W RGBW LEDs. RGBW provides red, green, blue and white sources in the seven-point optical layout.
Is 350W the power of each LED?
No. 350W is the fixture power. Each of the seven RGBW LED sources is rated at 40W.
What zoom range is specified?
The stated spot-angle range is 4.5°–45°. Choose the fixture position and angle for the coverage required by the lighting setup.
Which overall-control DMX profiles are listed?
Overall control lists 12CH and 17CH modes. Request the corresponding channel chart before patching the console.
Which point-control profiles are listed?
Point control lists 11CH, 17CH, 18CH and 38CH. Specify the point-control family as well as the channel count, because 17CH is also listed under overall control.
What power input and control modes are available?
The switch-mode supply accepts AC 100–240V at 50–60Hz. The listed control modes are DMX512 and Master/Slave operation.
What source color temperature and lifespan are stated?
The supplied specification states 2800K–8500K and a 50,000-hour LED source lifespan. These figures do not establish a CRI rating or a warranty term.
How are the fixtures packed and what should I send for a quote?
The listed packing arrangement is two fixtures per package. Send fixture quantity, destination, venue, throw distance, control family and profile, voltage, plug and mounting needs; request packing dimensions, weight and accessory details with the offer.
