COMPACT IP65 FLAT PAR

7/9-LED IP65 Waterproof Flat PAR Light

RG-433 is a compact 120W IP65 flat PAR offered with 7 or 9 LED positions and RGBW 4-in-1, RGBWA 5-in-1 or RGBWAP 6-in-1 source packages. It supports 8CH DMX512 plus Master-slave, Sound and Auto modes in a 3kg fixture.

7 / 9 LED options
120W fixture
IP65 rating

Get a Quote

7/9-LED IP65 Waterproof Flat PAR Light — IP65 flat PAR with 9-LED front and attached waterproof leads

COMPACT IP65 FLAT PAR

7/9-LED IP65 Waterproof Flat PAR Light overview

RG-433 combines a shallow round housing with a supplied IP65 fixture rating. Select 7 or 9 LED positions, then match that layout with 10W RGBW 4-in-1, 15W RGBWA 5-in-1 or 15W RGBWAP 6-in-1 LEDs.

7 / 9

Two LED-count options

Choose the front layout before production; the current product photographs show the 9-LED version.

4-IN-1

10W RGBW

Red, green, blue and white are combined in each listed 10W source package.

5 / 6

15W RGBWA or RGBWAP

Add amber in the five-color package or the supplied RGBWAP six-color combination.

IP65

Weather-rated fixture

Use weather-appropriate power, signal, mounting and drainage protection around the fixture.

9-LED FIXTURE DETAILS

Inspect the flat housing, brackets and attached connections.

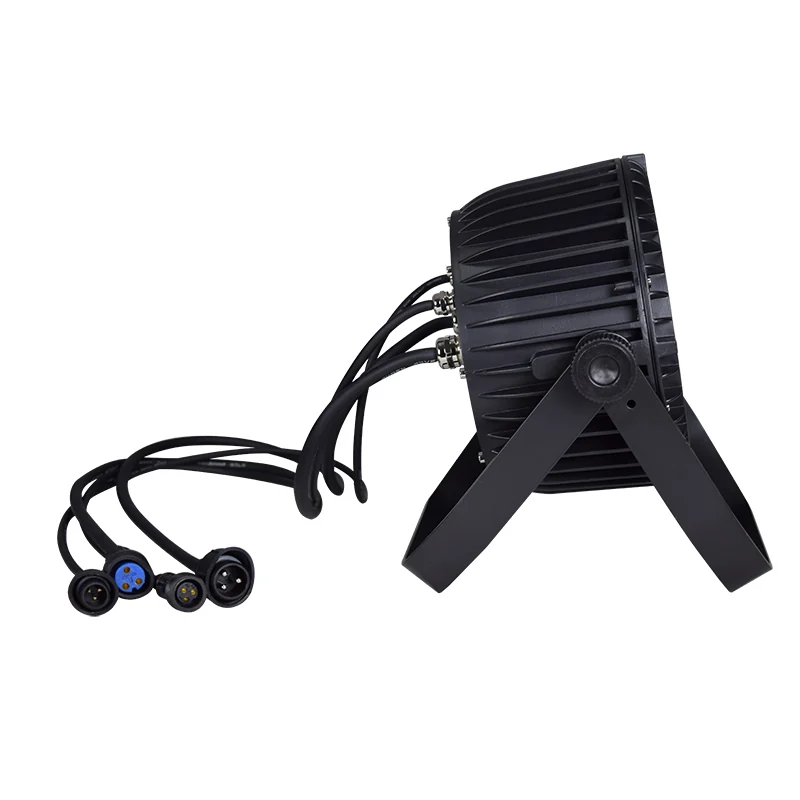

The supplied photographs document the 9-position front, heat-sink profile, double bracket, rear display and hard-wired DMX and power leads. They do not claim that the 7-position face has the same lens arrangement.

7/9-LED IP65 Waterproof Flat PAR Light — RG-433 IP65 flat PAR with 9-LED front and attached waterproof leads

Front view of the RG-433 9-LED waterproof flat PAR

Angled front view of RG-433 9-LED flat PAR light

Rear angled view of RG-433 with display and cable connections

Rear control panel of RG-433 IP65 flat PAR

RG-433 rear cable and power link connection detail

SUPPLIED OUTPUT REFERENCES

Review color mixing, white output and the IP65 spray test.

These demonstration stills show the 9 × 15W six-color version producing white, green, blue, amber and mixed-color output, plus a supplied spray-test reference. They are visual evidence rather than photometric measurements or proof of a complete installation rating.

RG-433 9 by 15W six-color LED source demonstration

White wash output from two RG-433 flat PAR lights

RG-433 fixture shown during an IP65 spray-test demonstration

Green white and mixed-color output references for RG-433

Green blue and white wash examples from RG-433

Amber wash output from RG-433 waterproof flat PAR

PRODUCT VIDEO

Watch the verified RG-433 demonstration.

Use the video to review the visible color output and water-test sequence for the demonstrated 9 × 15W six-color version, then confirm the ordered LED count and source package.

Specifications

Technical specifications

Model	RG-433
Public product power	120W
Light source	7 or 9 × 10W RGBW 4-in-1 / 15W RGBWA 5-in-1 / 15W RGBWAP 6-in-1 LEDs
Voltage	AC 90–240V, 50/60Hz
DMX channels	8CH
IP rating	IP65
Net weight	3kg
Control modes	DMX512 / Master-slave / Sound / Auto
LED configuration	7 or 9 LED positions
Color system	RGBW 4-in-1 / RGBWA 5-in-1 / RGBWAP 6-in-1

APPLICATION FIT

Use the compact flat housing for outdoor events and fixed wash positions.

RG-433 suits stages, event tents, architectural accents and rental systems that need a compact IP65 color-wash fixture. Final quantity depends on LED package, throw distance, target area, ambient light and mounting position. Compare related LED PAR lights when planning your lighting rig.

Outdoor eventsIntegrate the fixture into a weather-aware power, signal and mounting plan.

Stages and venuesSelect RGBW, RGBWA or RGBWAP around the required palette.

Rental inventoryRecord LED count, source package and current 8CH map for batch consistency.

B2B ORDER FLOW

Lock the LED count and color package before production.

For the order, send quantity, destination, 7- or 9-LED layout, 4-in-1/5-in-1/6-in-1 source choice, voltage, channel-chart requirement, exposure, mounting, plug and packing needs. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.

01 · LAYOUT

Choose 7 or 9 LEDs.

Identify the required front layout; current supplied photographs document the 9-LED version.

02 · SOURCE

Select the color package.

Confirm 10W RGBW, 15W RGBWA or 15W RGBWAP for the ordered batch.

03 · DELIVERY

Complete the project brief.

Add quantity, destination, voltage, exposure, plug, accessories, schedule and packing needs.

PRODUCT FAQ

Questions Before You Order.

Direct answers about RG-433 configurations, control, IP rating and quotation.

Does RG-433 use 7 or 9 LEDs?

Both LED-count options are listed. The current supplied photographs and demonstration show the 9-LED version.

Which source packages are available?

Choose 7 or 9 × 10W RGBW 4-in-1, 7 or 9 × 15W RGBWA 5-in-1, or 7 or 9 × 15W RGBWAP 6-in-1.

What does the P in RGBWAP mean?

The supplied specification uses RGBWAP but does not expand the final letter. Confirm the exact sixth-color LED package on the quotation and sample.

What does the 120W rating describe?

It is the listed complete-fixture power and is kept separate from the nominal per-LED ratings.

Which control modes are available?

The listed modes are 8CH DMX512, Master-slave, Sound and Auto. Request the current 8-channel function chart for the selected source package.

Does IP65 cover the complete installation?

No. Mating cable connections, plugs, power distribution, mounting and drainage still require project-appropriate protection.

What are the listed net weight and packing size?

The supplied values are 3kg net weight and 20 × 20 × 23cm packing size; confirm the final carton and order quantity before shipment.

What should I include in an inquiry?

Send quantity, destination, LED count, source package, voltage, exposure, mounting, plug, accessories, schedule and packing needs.
