SIX COB SOURCES · RGB AUXILIARY LIGHT
6x50W COB Matrix Bar — combine COB wash and RGB auxiliary cues.
6x50W COB Matrix Bar is the six-source matrix bar configuration with six 50W four-in-one COB LEDs and two auxiliary strips, each containing 60 RGB 5050 LEDs. Fixture power is 400W. DMX512/RDM, Auto and master-slave support the control workflow.
Six 50W COB sources
Six four-in-one COB LEDs form the main wash layer.
Two RGB auxiliary strips
Each auxiliary strip contains 60 RGB 5050 LEDs.
Four DMX profiles and RDM
7CH, 22CH, 32CH and 160CH are listed with DMX512/RDM.
32-bit linear dimming
0–100% linear dimming supports intensity cues across the lighting brief.
Specifications
Technical specifications
| Model | RG-706 |
|---|---|
| Public product power | 400W |
| Light source | 6 × 50W four-in-one COB LEDs + 2 × 60 RGB 5050 auxiliary LEDs |
| Rated fixture power | 400W |
| Voltage | AC100–240V, 50/60Hz |
| DMX channels | 7CH / 22CH / 32CH / 160CH |
| Control modes | DMX512 with RDM / Auto / master-slave |
| LED configuration | 6 × 50W four-in-one COB LEDs |
MAIN AND AUXILIARY LIGHT
Specify the six-source fixture configuration.
The main layer uses 6 × 50W four-in-one COB LEDs. Two 60-bead RGB 5050 auxiliary strips provide an additional lighting layer. The listed effect functions are wash, strobe and auxiliary light.
DMX AND INTENSITY
Choose the profile and intensity cues.
DMX profiles are 7CH, 22CH, 32CH and 160CH. RDM, Auto and master-slave are listed with DMX512. Dimming is specified as 32-bit 0–100% linear dimming. Request the matching chart and RDM function list for integration.
SUPPLY AND CONNECTIONS
Plan power distribution and fixture links.
Input is AC100–240V at 50/60Hz, with 400W fixture power. Connections are listed as DMX512 input/output and power input/output. The stated operating temperature is −30°C to 50°C.
APPLICATION FIT
Plan COB wash and auxiliary accents within the rig.
For stage, DJ and entertainment lighting briefs, describe the main wash and auxiliary color cues, fixture positions and selected control profile.
Compare other LED wash lights by source arrangement and control requirements.
B2B ORDER FLOW
Request the six-source RG-706 configuration.
For your 6x50W COB Matrix Bar order, identify six 50W COB sources and two 60-bead RGB auxiliary strips, then provide control and delivery requirements. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
6x50W COB Matrix Bar — Buyer Questions
Six-source configuration, auxiliary LEDs and DMX/RDM planning.
Which RG-706 configuration is shown?

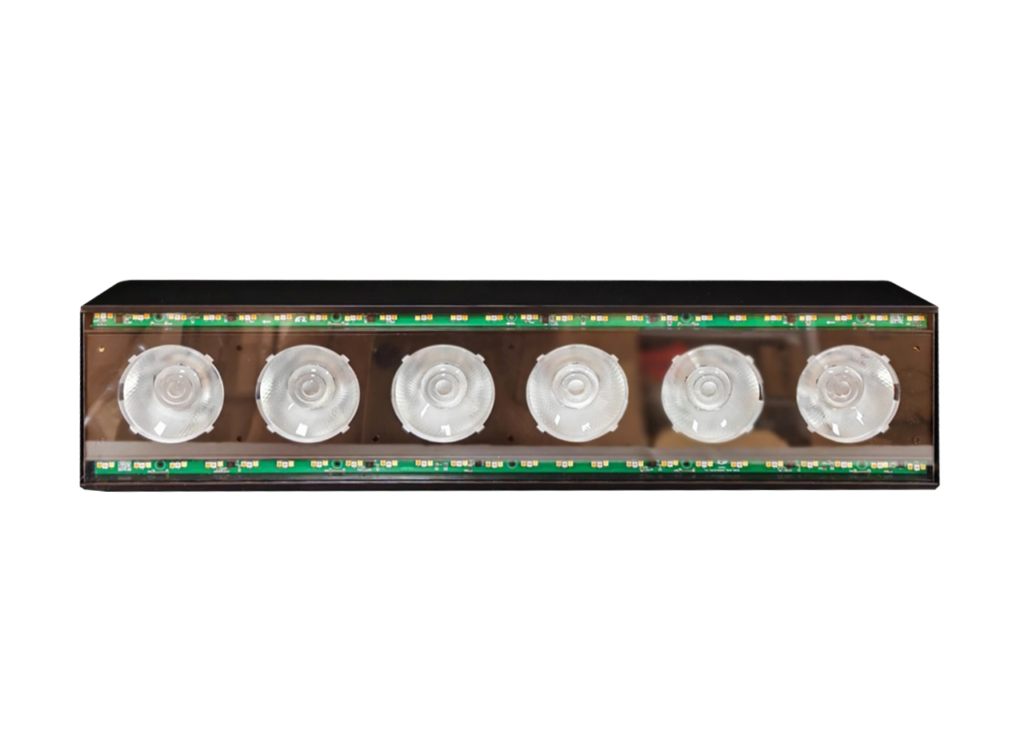

The product image and this page cover the six-source configuration with 6 × 50W four-in-one COB LEDs.
What auxiliary LEDs are specified?
Two auxiliary strips, each with 60 RGB 5050 LEDs, are specified.
What are the fixture power and voltage?
Fixture power is 400W. Input is AC100–240V at 50/60Hz. Fixture power is separately specified from the source ratings.
Which DMX profiles are listed?
7CH, 22CH, 32CH and 160CH are listed. Request the matching six-source configuration chart.
What controls and dimming are specified?
DMX512 with RDM, Auto and master-slave are listed. Dimming is 32-bit 0–100% linear.
Which effect functions are listed?
Wash, strobe and auxiliary lighting are the specified functions.
What connections and temperature range are specified?
DMX512 input/output and power input/output are listed. The stated operating range is −30°C to 50°C.
What should I send for a quotation?
Send quantity, six-source configuration, venue, fixture positions, wash/strobe/auxiliary cues, console/profile/RDM requirements, supply, plug, destination and delivery date. Request mounting, weight and packing details.
