BEE EYE, LASER AND RGB RING

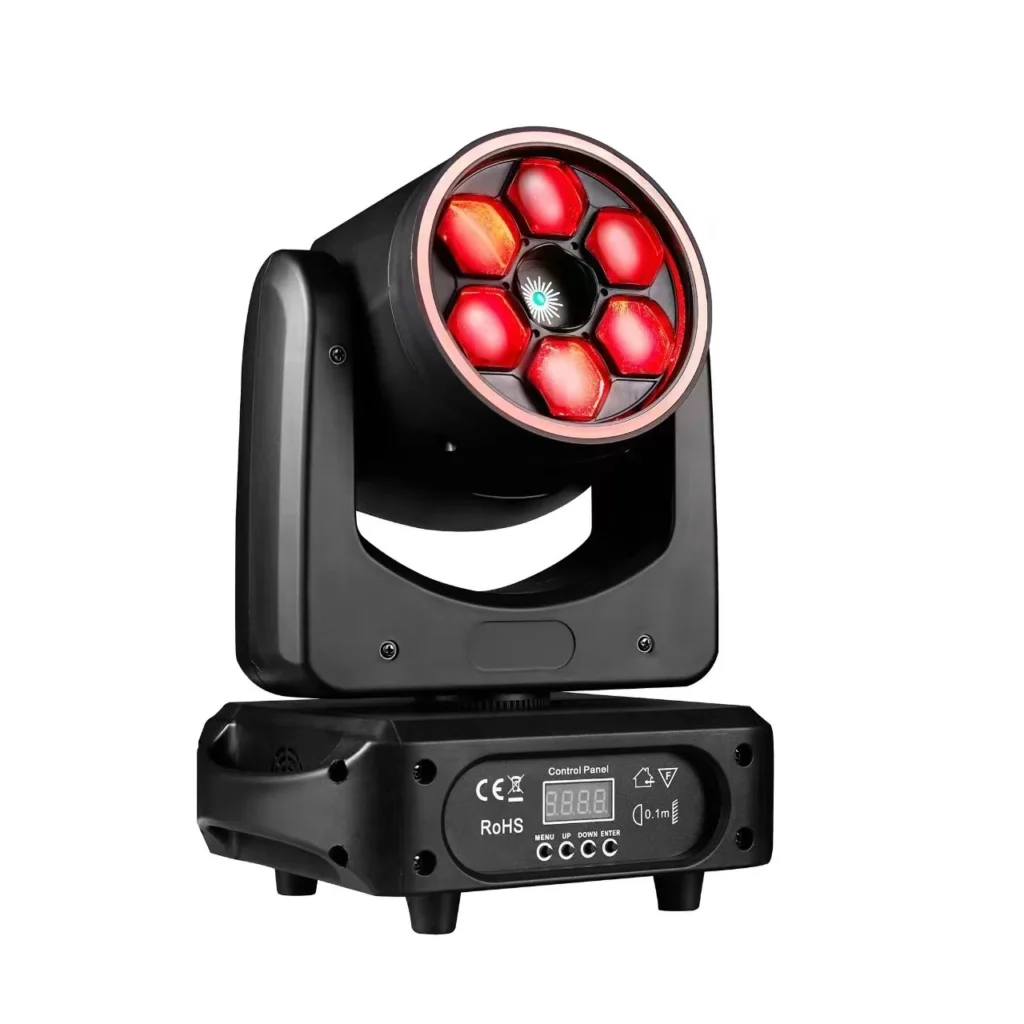

6x15W Bee Eye Moving Head — combine three source systems in one moving head.
6x15W Bee Eye Moving Head combines six 15W CREE four-in-one LEDs, one 100mW green laser and 24 × 0.2W 5050 RGB strip LEDs. The complete fixture is rated at 120W and uses a 16-channel DMX profile.
6 × 15W CREE LEDs
Six four-in-one LED sources form the bee eye optical face.
100mW green laser
A separate green laser adds another source to the fixture configuration.
24 × 0.2W RGB LEDs
5050 RGB flexible-strip LEDs provide the illuminated front-ring accent.
120W fixture power
Use the total complete-fixture rating when planning power distribution.
Specifications
Technical specifications
| Model | RG-336 |
|---|---|
| Public product power | 6 × 15W CREE LEDs |
| Light source | 6 × 15W CREE 4-in-1 LEDs + 1 × 100mW green laser + 24 × 0.2W 5050 RGB strip LEDs |
| Rated fixture power | 120W |
| Voltage | AC 100–240V, 50/60Hz |
| DMX channels | 16CH |
| Control modes | DMX512 / Master-slave / Auto / Sound Activated |
| RGB front ring | 24 × 0.2W 5050 RGB flexible-strip LEDs |
| Pan / tilt | Pan 540° / Tilt 180° |
| Strobe | 0–20Hz |
CONTROL AND MOVEMENT
Select console control or standalone playback.
DMX512, Master/Slave, Auto and Sound Activated are listed. Pan is 540° and tilt is 180°, with a specified strobe range of 0–20 flashes per second.
SOURCE CONFIGURATION
Plan bee eye, laser and ring roles in the scene.
The six LED sources, green laser and RGB ring are separate elements of the listed hardware configuration. Use the supplied channel chart to identify how these functions are controlled in the 16CH profile.
APPLICATION FIT
Specify the combined effects for the lighting plan.
For 6x15W Bee Eye Moving Head applications, choose RG-336 when the project calls for a six-source bee eye moving head with a green laser and RGB ring. Match the source roles, movement and control setup to the actual scene.
Compare the LED wash light range for different source counts and optical configurations.
CARTON PACKING
Keep four-unit carton data separate from fixture dimensions.
The supplied packing specification is four fixtures per carton. Carton size is 59 × 34.5 × 56cm and carton gross weight is 17kg.
B2B ORDER FLOW
Request the six-LED configuration with laser and ring.
Specify 6x15W Bee Eye Moving Head, 120W total fixture power and 16CH control. Include the effect, operating and packing requirements so the quotation identifies the requested version. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
6x15W Bee Eye Moving Head — Buyer Questions
LED, laser and ring configuration, control and carton packing.
What sources are included in RG-336?
The listed sources are six 15W CREE four-in-one LEDs, one 100mW green laser and 24 × 0.2W 5050 RGB flexible-strip LEDs.
What is the complete-fixture power and voltage?
Total fixture power is 120W. Input voltage is AC 100–240V at 50/60Hz.
What type of laser is specified?
The configuration includes one green laser rated at 100mW. Include this source in the effect and installation brief.
How many DMX channels does it use?
The listed profile is 16CH. Request the matching channel chart to map the LED, laser, ring and movement functions.
Can it operate without a live console?
Auto and Sound Activated modes are listed, together with Master/Slave and DMX512 control.
What movement and strobe ranges are listed?
Pan is 540° and tilt is 180°. The specified strobe range is 0–20 flashes per second, equivalent to 0–20Hz.
Does 17kg refer to one fixture?
No. The supplied packing data is four fixtures per carton, with a carton gross weight of 17kg and carton dimensions of 59 × 34.5 × 56cm.
What details are needed for a quotation?
Provide quantity, destination, venue layout, source-effect requirements, operating mode and console. Include voltage, plug, connections, mounting accessories, packing and schedule requirements.
