54×3W CREE WATERPROOF PAR
54x3W CREE IP65 Waterproof PAR Light overview
54x3W CREE IP65 Waterproof PAR Light. The verified RG-401A specification covers a 54 × 3W RGB 3-in-1 CREE source, 180W fixture power and IP65 protection. Supplied product images also show 18- and 24-position fronts, but their LED wattage and color package require confirmation before quotation.

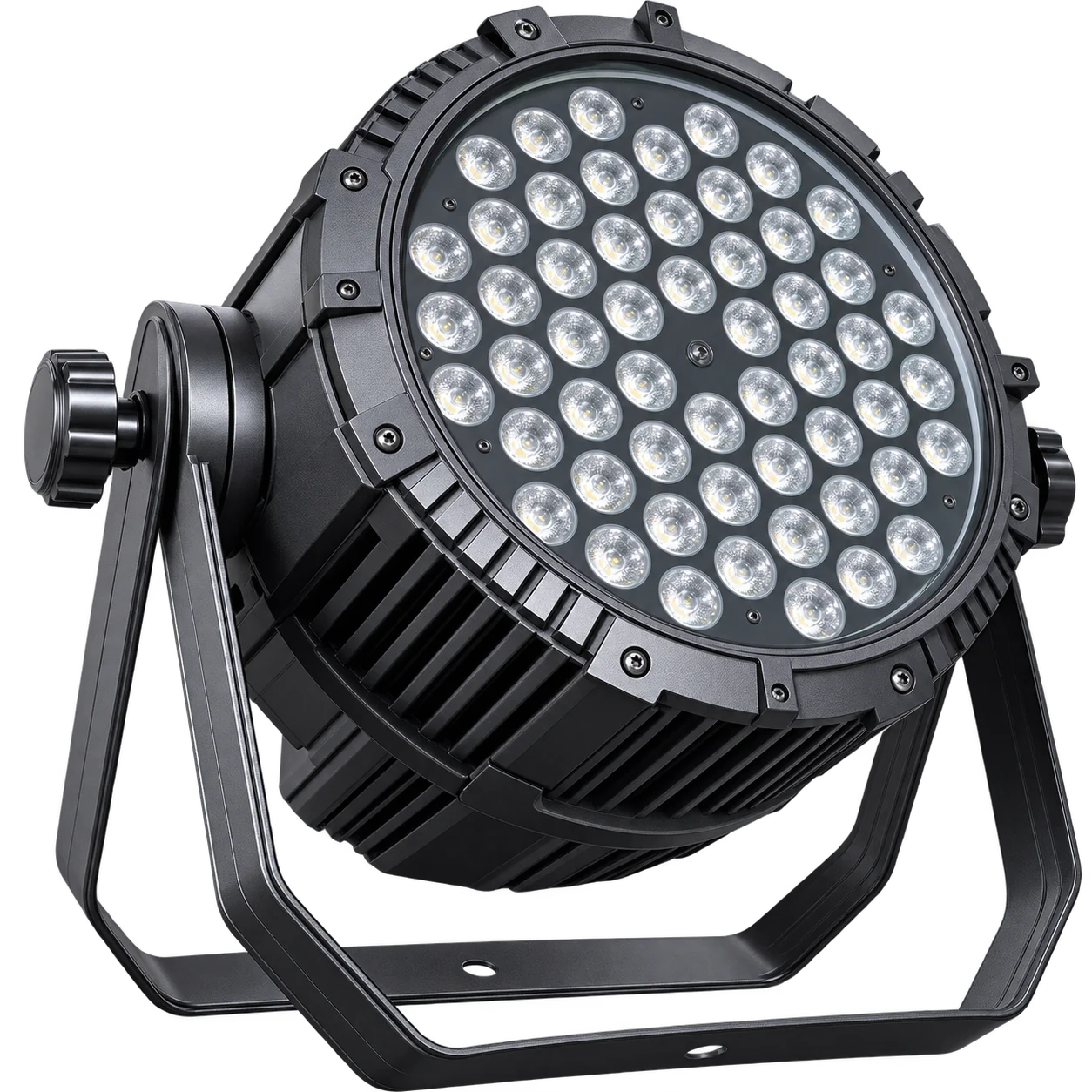

54 × 3W CREE LEDs
The confirmed source uses RGB 3-in-1 CREE lamp beads in a 54-position face.
Specified beam angle
A supplied 25-degree beam supports defined wash placement and fixture spacing.
Weather-rated fixture
The supplied IP65 rating supports outdoor use within a protected installation system.
DMX and standalone modes
Use the listed channel modes or Auto, Master-slave and Sound operation.

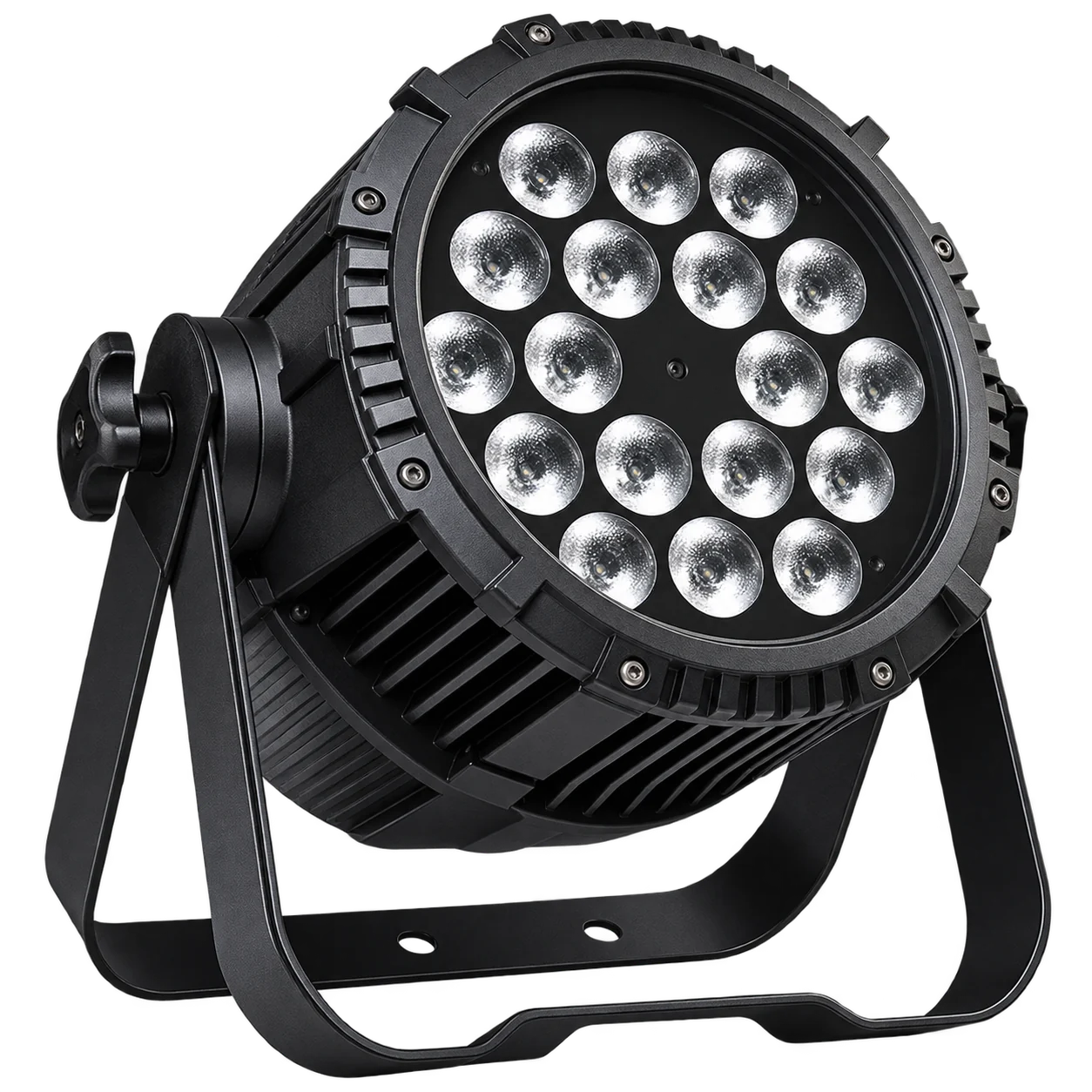

FRONT CONFIGURATIONS
Review the supplied 18-, 24- and 54-position housings.
The 54-position version carries the verified 54 × 3W RGB 3-in-1 CREE specification. The 18- and 24-position images confirm available front layouts only; request their current source and channel data before ordering.

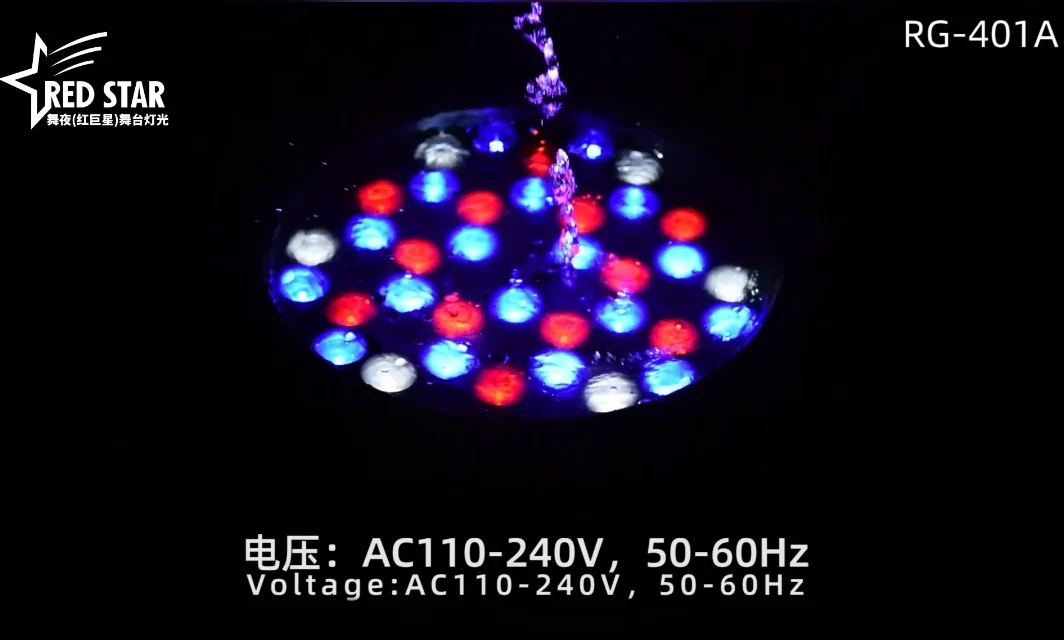

SUPPLIED OUTPUT REFERENCES
Check RGB source operation and visible stage wash.
These RG-401A screenshots document color operation and a stage-wash example. They are visual references rather than photometric measurements, and no traceable YouTube video ID is currently recorded.
Specifications
Technical specifications
| Model | RG-401A |
|---|---|
| Public product power | 180W |
| Light source | 54 × 3W RGB 3-in-1 CREE LEDs; 18- and 24-position options require source confirmation |
| Voltage | AC 110–240V, 50/60Hz |
| DMX channels | 6CH / 8CH |
| IP rating | IP65 |
| Product dimensions | 240 × 240 × 280mm |
| Net weight | 6.5kg |
| Control modes | DMX512 / Auto / Master-slave / Sound |
APPLICATION FIT
Use the 25° RGB wash where defined coverage and weather protection matter.
54x3W CREE IP65 Waterproof PAR Light (RG-401A) fits outdoor events, venue lighting and rental projects that need a fixed RGB wash. Final fixture count depends on throw distance, mounting position, target area, ambient light and the ordered front configuration. Compare related LED PAR lights when planning your lighting rig.
B2B ORDER FLOW
Confirm the front configuration before production.
For your 54x3W CREE IP65 Waterproof PAR Light order, send quantity, destination, required LED count, source package, voltage, channel mode, venue exposure, mounting, plug and accessory requirements. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
Direct answers about RG-401A configuration, control, protection and quotation.
Which RG-401A source configuration is fully specified?
The verified configuration is 54 × 3W RGB 3-in-1 CREE LEDs.
Are 18- and 24-LED fronts available?
Supplied images show both layouts, but their LED wattage and color package should be confirmed before ordering.
What does the 180W rating describe?
It is the listed complete-fixture power, separate from the nominal 54 × 3W source-package description.
What beam angle is specified?
The supplied fixed luminous angle is 25 degrees.
Which control modes are listed?
The supplied modes are 6CH or 8CH DMX512, Auto, Master-slave and Sound.
Does IP65 cover the complete installation?
No. Cable connections, power distribution, mounting and drainage still require suitable project-level protection.
Is there a verified RG-401A YouTube video?
No traceable RG-401A YouTube ID is currently recorded, so this page uses supplied output screenshots instead.
What should I include in an inquiry?
Send quantity, destination, LED count, source package, voltage, channel mode, venue exposure, mounting and accessories.
