TWO POWER OPTIONS
480W / 600W LED CMY+CTO Moving Head overview
Choose between 480W and 600W LED modules around the required projection, color and effect cues. Both versions share the listed CMY+CTO, gobo and prism systems; the module label alone does not establish coverage at your working distance. The 480W version lists 600W complete-fixture power and 23.65kg net weight; the 600W version lists 800W and 24.65kg for electrical and mounting planning.
480W LED module
Listed total fixture power: 600W. Net weight: 23.65 kg.
600W LED module
Listed total fixture power: 800W. Net weight: 24.65 kg.
Shared color system
CMY+CTO mixing, white and seven fixed colors.
Shared control
24-channel DMX512, Auto, Master/Slave and Sound.
COLOR & OPTICS
Build color transitions, gobos and prism looks.
The two configurations share the listed color, pattern and prism systems.
Both versions combine CMY+CTO mixing with white and seven fixed colors. A fixed gobo wheel provides 12 patterns plus open; a rotating wheel provides seven patterns plus open. The 3-facet and 8-facet prisms support independent bidirectional rotation.
LIGHT IN ACTION
See the beam, spot and wash looks.
The supplied demonstration shows the shared effect system. Visual output and coverage depend on the actual rig and selected LED module.

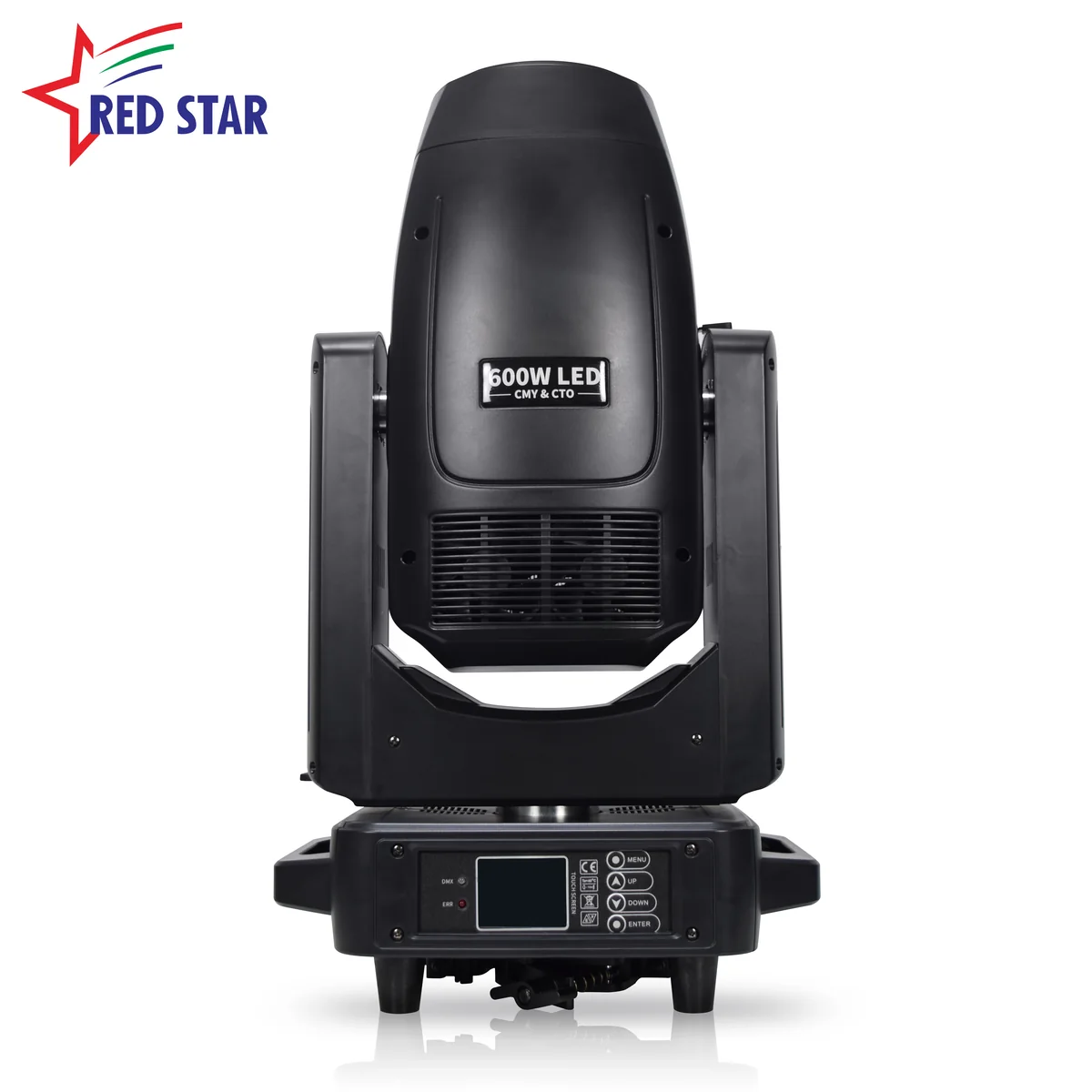

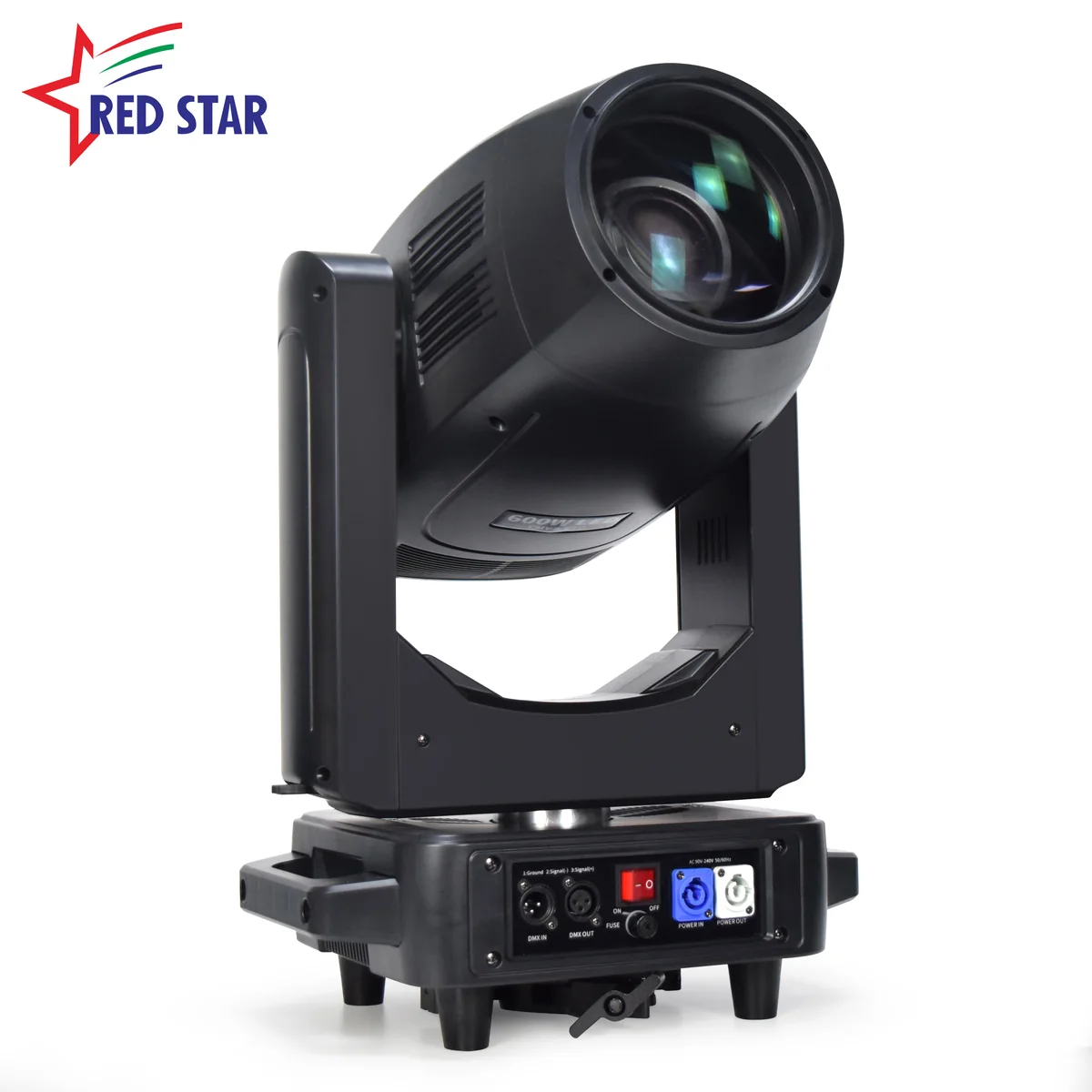

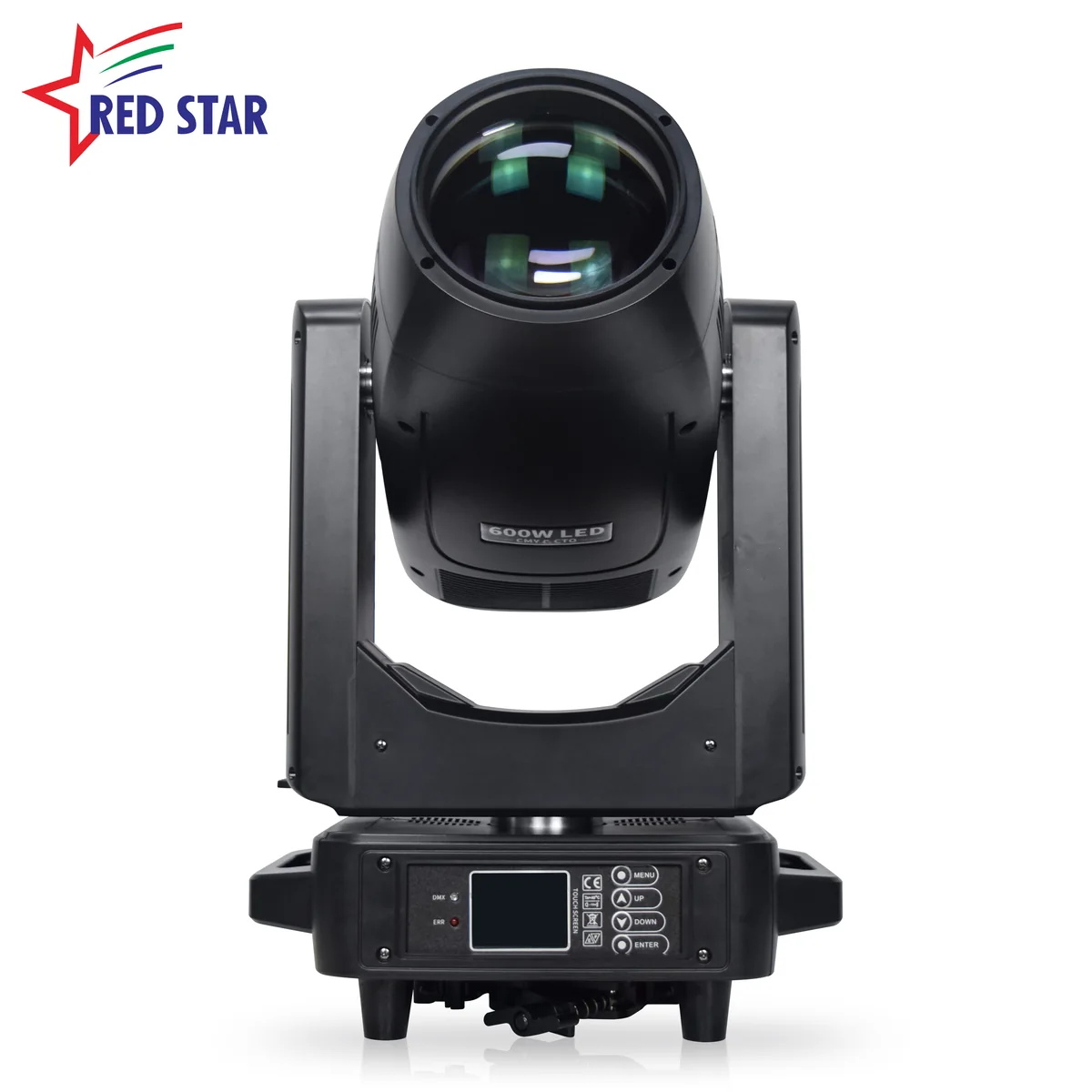

PRODUCT VIEWS
Inspect the housing and connections.

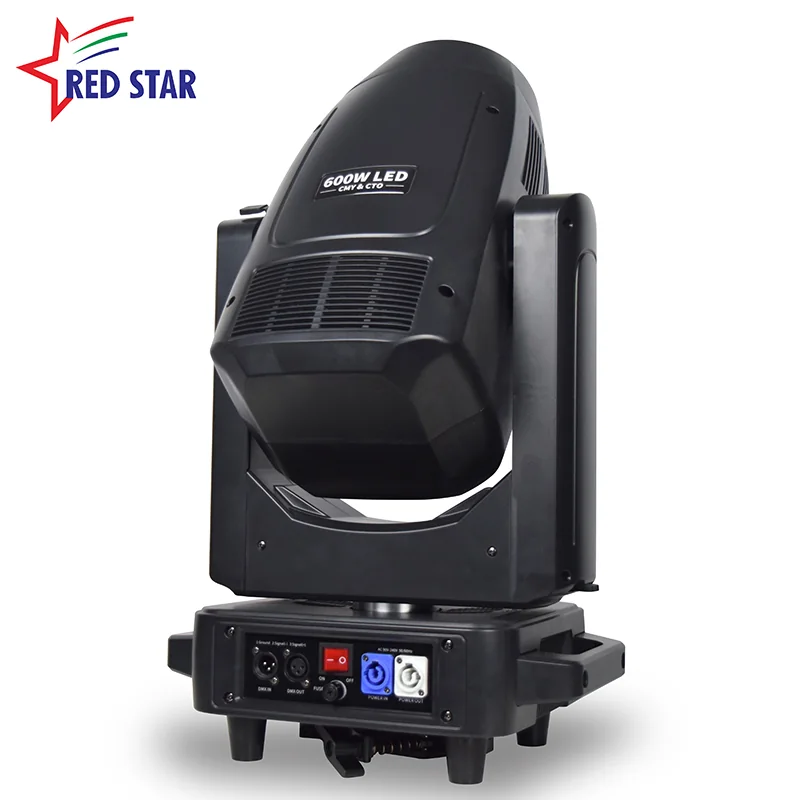

The supplied photos show a 600W-marked housing shared with the 480W LED option. The rear view shows the power and DMX area; confirm the supplied connector specification for your destination market when ordering.
PRODUCTION CHECK
See the fixtures under effect inspection.

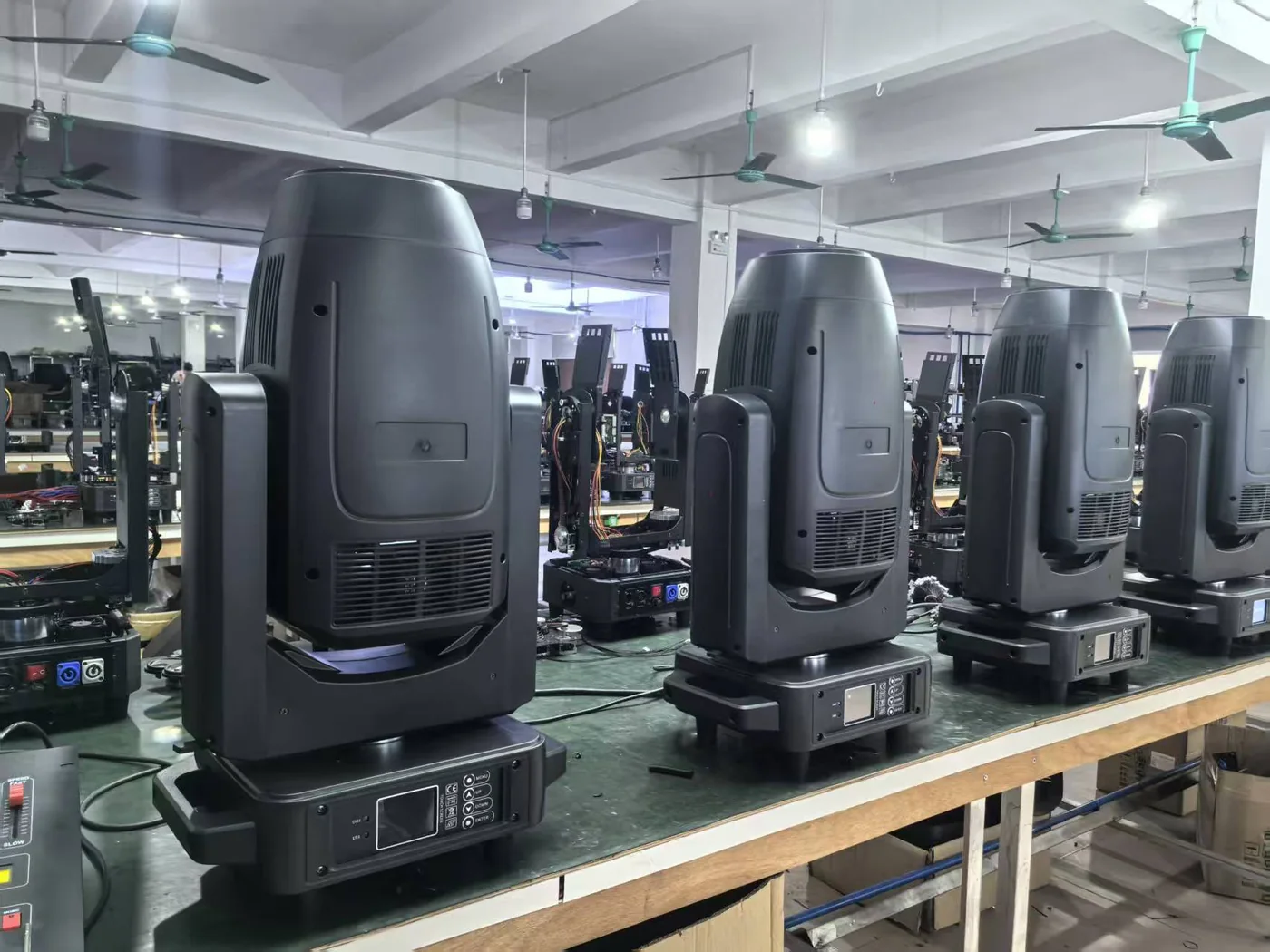

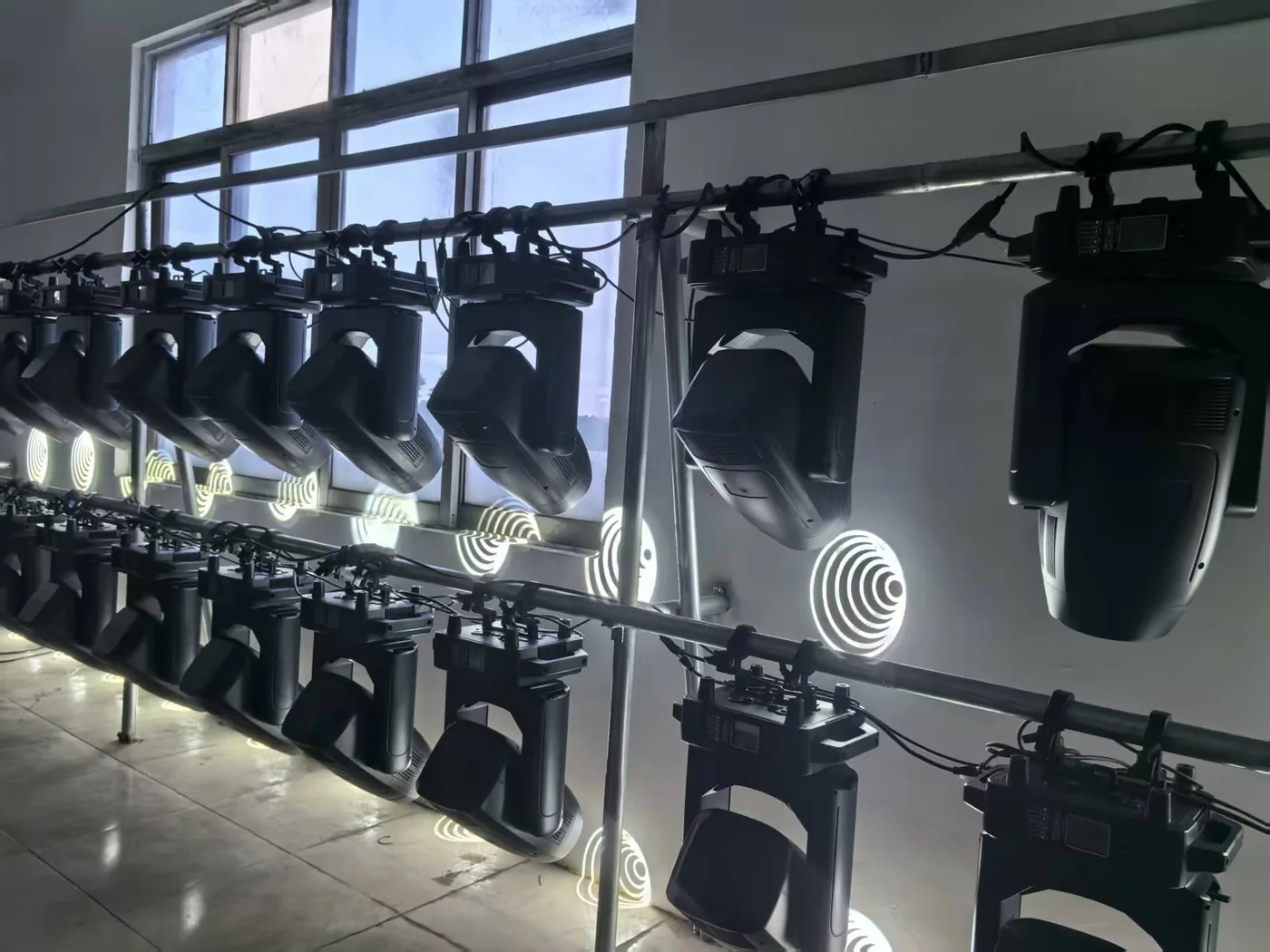

The supplied factory images show fixture line-up and projected patterns during production checks.
PRODUCT VIDEO
Watch the shared product demonstration.
Review the moving effects, then tell us which LED module configuration is required for your order.
Specifications
Technical specifications
| Model | RG-480 / RG-600 |
|---|---|
| Public product power | 480W / 600W LED module options |
| Light source | 480W or 600W LED module |
| Rated fixture power | 600W (480W LED module) / 800W (600W LED module) |
| Voltage | AC100–240V, 50/60Hz |
| DMX channels | 24 CH |
| Net weight | 23.65 kg (480W module) / 24.65 kg (600W module) |
| Control modes | DMX512 / Auto / Master-Slave / Sound |
| Color wheel | CMY+CTO, white and 7 fixed colors |
| Fixed gobo wheel | 12 patterns + open |
| Rotating gobo wheel | 7 patterns + open |
| Prism system | 3-facet and 8-facet; independent bidirectional rotation |
| Focus | 0–100% linear focus and zoom; 16-bit precision |
| Pan / tilt | Pan 540° / Tilt 270° |
| Dimming | 0–100% electronic linear; 16-bit precision |
| Strobe | 1–25 flashes/second |
CONTROL & OUTPUT
Program the fixture around your show.
The listed control modes are DMX512, Auto, Master/Slave and Sound. Focus and zoom are linear controls. The catalogue lists a 2.5-second X-axis and 1.3-second Y-axis scan speed.
24 CH
Listed DMX512 channel mode.
0–100%
Electronic linear dimming with 16-bit precision.
1–25 / second
Adjustable strobe speed.
Pan / tilt
540° / 270° travel listed in the catalogue.
APPLICATION FIT
Specify the version around your stage.
Use CMY+CTO for color transitions, focused gobos for projected texture and prisms for multiplied effects. Check pattern readability and the required field at the working distance, then select the LED module and 24-channel profile for the rig. Compare related profile and spot moving heads when the project needs another optical role.
Theatre and production
Program color, gobo and prism cues around the actual stage positions.
Event rigs
Plan the preferred LED module and total fixture power before electrical allocation.
Rental inventory
Specify one configuration for the job and confirm the 24-channel patch.
Site conditions
Include mounting, throw distance and environmental requirements in the project brief.
B2B ORDER FLOW
Tell us the configuration you need.
For the order, your version choice and rig details help us prepare a relevant quotation. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order
Source configuration, control, installation and order planning.
What is the difference between the 480W and 600W versions?
The LED module is rated at 480W or 600W. Listed total fixture power is 600W or 800W respectively. The exterior and specified effects are shared.
Does 480W or 600W mean total fixture power?
No. Those figures identify the LED module. Use the listed 600W or 800W total fixture power for electrical planning.
What color system does the fixture use?
Both versions combine CMY+CTO mixing with white and seven fixed colors. Half-color and flowing color functions are also listed.
What gobo options are specified?
The fixed wheel has 12 patterns plus open; the rotating wheel has seven patterns plus open.
Can both prisms rotate?
The listed 3-facet and 8-facet prisms support independent bidirectional rotation.
Which control modes are listed?
The fixture lists 24-channel DMX512, Auto, Master/Slave and Sound modes.
What should I provide for an exposed installation?
Share the installation environment and protection requirements so the suitable fixture specification can be checked before ordering.
What information should I send for a quote?
Specify the 480W or 600W LED module, quantity, destination, electrical requirements, DMX setup and any packing needs.
