MINI RGB + WHITE STROBE
48 RGB / 8 White Segment Mini LED Strobe — add separate RGB and white segments to a compact effect rig.

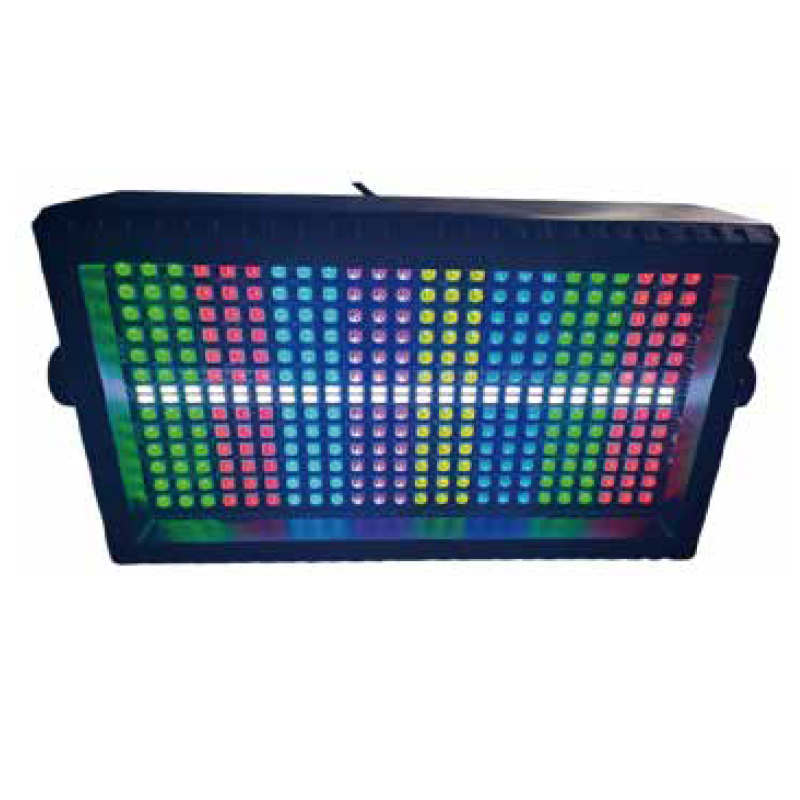

The 48 RGB / 8 White Segment Mini LED Strobe combines 48 RGB segments and 8 white segments, with a listed size of 212 × 121mm. The supplied image shows colored LED columns and a central white-light strip. Choose DMX512, Sound, Auto or Master-Slave operation for the event workflow.
48 RGB + 8 white segments
Separate RGB and white segment groups form the mini panel’s effect layout.
288 RGB + 48 white LEDs
The RGB section uses 288 × 0.2W 5050 LEDs; the white section uses 48 × 0.5W 5730 LEDs.
212 × 121mm listed size
Use the listed dimensions when describing fixture positions and the available mounting space.
RDM and online upgrade
RDM and DMX512 online upgrading are supported alongside console and standalone playback modes.
SOURCE AND SEGMENT MAP
Separate control groups from physical LED counts.
48 and 8 describe the RGB and white segment groups. The physical source quantities are 288 RGB LEDs and 48 white LEDs. Specify the required color and white-light cues when choosing a console setup.
POWER SUPPLY
Plan the AC input and built-in supply separately.
AC input is 100–240V at 50/60Hz. The built-in power supply has a listed output specification of 60W / maximum 2.5A. Request fixture electrical-load information for circuit planning.
Specifications
Technical specifications
| Model | RG-908H |
|---|---|
| Light source | 288 × 0.2W 5050 RGB LEDs; 48 × 0.5W 5730 white LEDs |
| Voltage | AC 100–240V, 50/60Hz |
| Product dimensions | 212 × 121mm |
| Control modes | DMX512, Sound, Auto, Master-Slave; RDM; DMX512 online upgrading |
| Zone control | 48 RGB segments + 8 white segments |
CONTROL SETUP
Match the mini panel to the playback workflow.
Use DMX512 for the required cue programming or select Sound, Auto or Master-Slave operation. Confirm the supported RDM setup and upgrade procedure against the operating instructions.
APPLICATION FIT
Choose a mini format for RGB and white effect cues.
For 48 RGB / 8 White Segment Mini LED Strobe applications, use the compact panel where the fixture layout calls for separate RGB and white-light segment groups. Include venue layout, available mounting space, exposure conditions and control requirements when selecting quantity.
Compare other LED strobe lights by fixture format and segment arrangement.
B2B ORDER FLOW
Request the 48 RGB + 8 white mini configuration.
For your 48 RGB / 8 White Segment Mini LED Strobe order, identify the mini panel and its two segment groups, then provide the cue, control, mounting and delivery information needed for the quotation. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
48 RGB / 8 White Segment Mini LED Strobe — Buyer Questions
Mini format, source groups, operating modes and order requirements.
What does 48 RGB + 8 white mean?
These are control segment counts: 48 RGB segments and 8 white segments. They are separate from the physical LED quantities.
Which LED sources are specified?
The RGB section uses 288 × 0.2W 5050 RGB LEDs. The white section uses 48 × 0.5W 5730 white LEDs.
What fixture size is listed?
The supplied size is 212 × 121mm. Request full installation dimensions and bracket clearance for the intended mounting position.
What AC input is specified?
The listed AC input is 100–240V at 50/60Hz. Include local supply and destination plug requirements in the order brief.
Which operating modes are available?
DMX512, Sound, Auto and Master-Slave operation are listed. Choose the console, standalone or linked playback workflow required for the event.
Does it support RDM and online upgrading?
RDM and DMX512 online upgrading are supported. Request the supported instructions and firmware procedure for the ordered version.
How should I prepare the console setup?
Request the matching channel chart and segment map, then identify the console and required RGB and white-light cues when planning addressing.
What should I include in a quotation request?
Send quantity, venue layout, mounting space, fixture positions, cue brief, operating mode, console, RDM requirements, AC supply and plugs, destination and delivery date. Request mounting accessories, full installation dimensions, weights, packing and electrical-load information.
