PERFORMANCE OVERVIEW

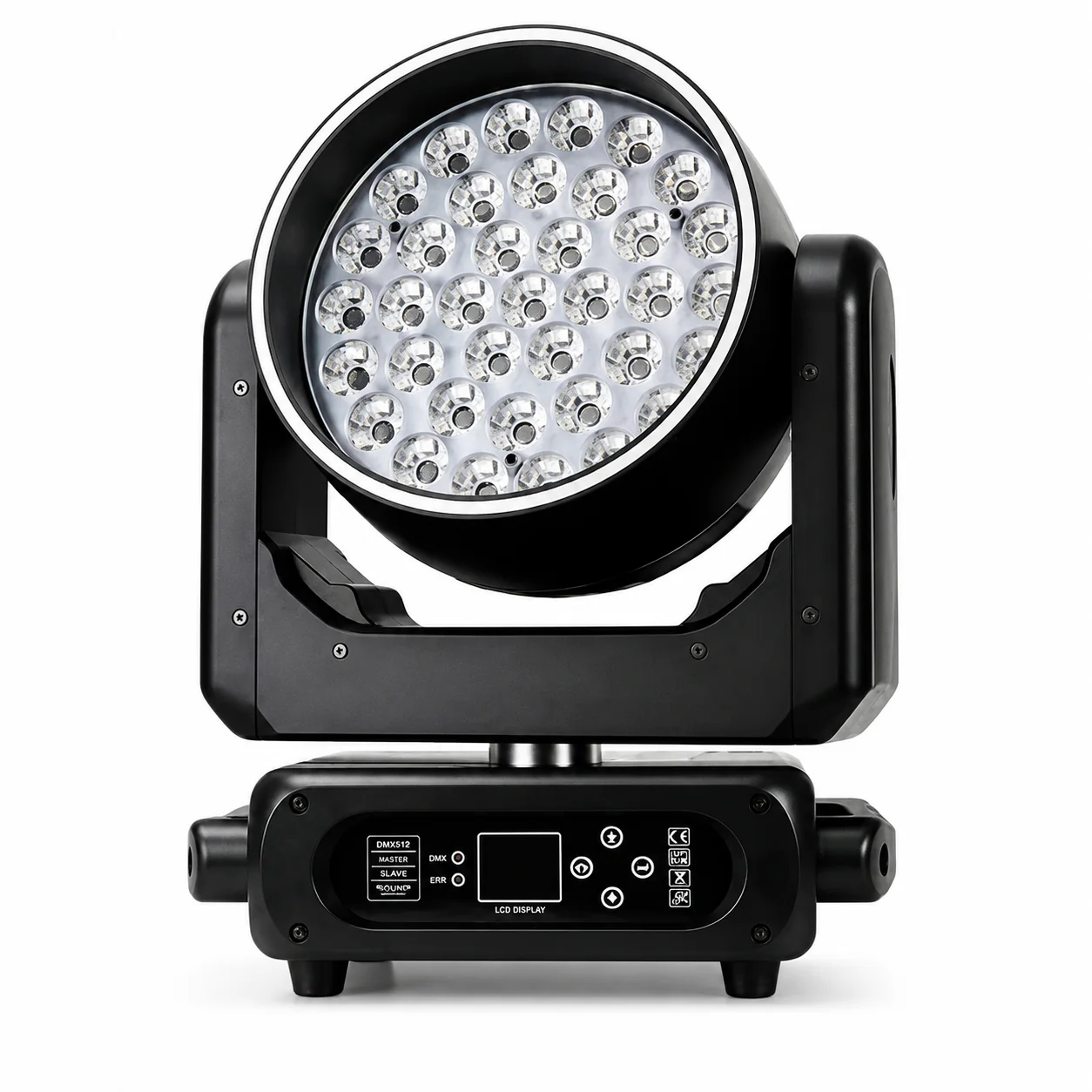

37x15W RGBW Wash Moving Head Light overview
37x15W RGBW Wash Moving Head Light. The 37-source wash array, two DMX modes and RDM addressing provide a practical basis for stage and event rig planning.
37 × 15W RGBW LEDs
A 37-source, four-in-one LED array produces the main wash output.
550W fixture rating
The supplied specification lists 550W as the complete fixture power.
22 / 50 DMX channels
Choose the channel mode to suit the control detail required by the rig.
RDM addressing
RDM remote addressing is listed for fixture setup and management.
RGBW WASH SYSTEM
37 sources for layered color coverage.
A broad LED face makes the fixture useful where moving color coverage is needed across a performance area.
The head carries 37 RGBW four-in-one LEDs. The supplied demonstration shows mixed-color washes and moving cues across multiple fixtures. Plan the number of fixtures and DMX mode around the stage dimensions and intended cue sequence.
IN ACTION
See the wash across a multi-fixture stage setup.

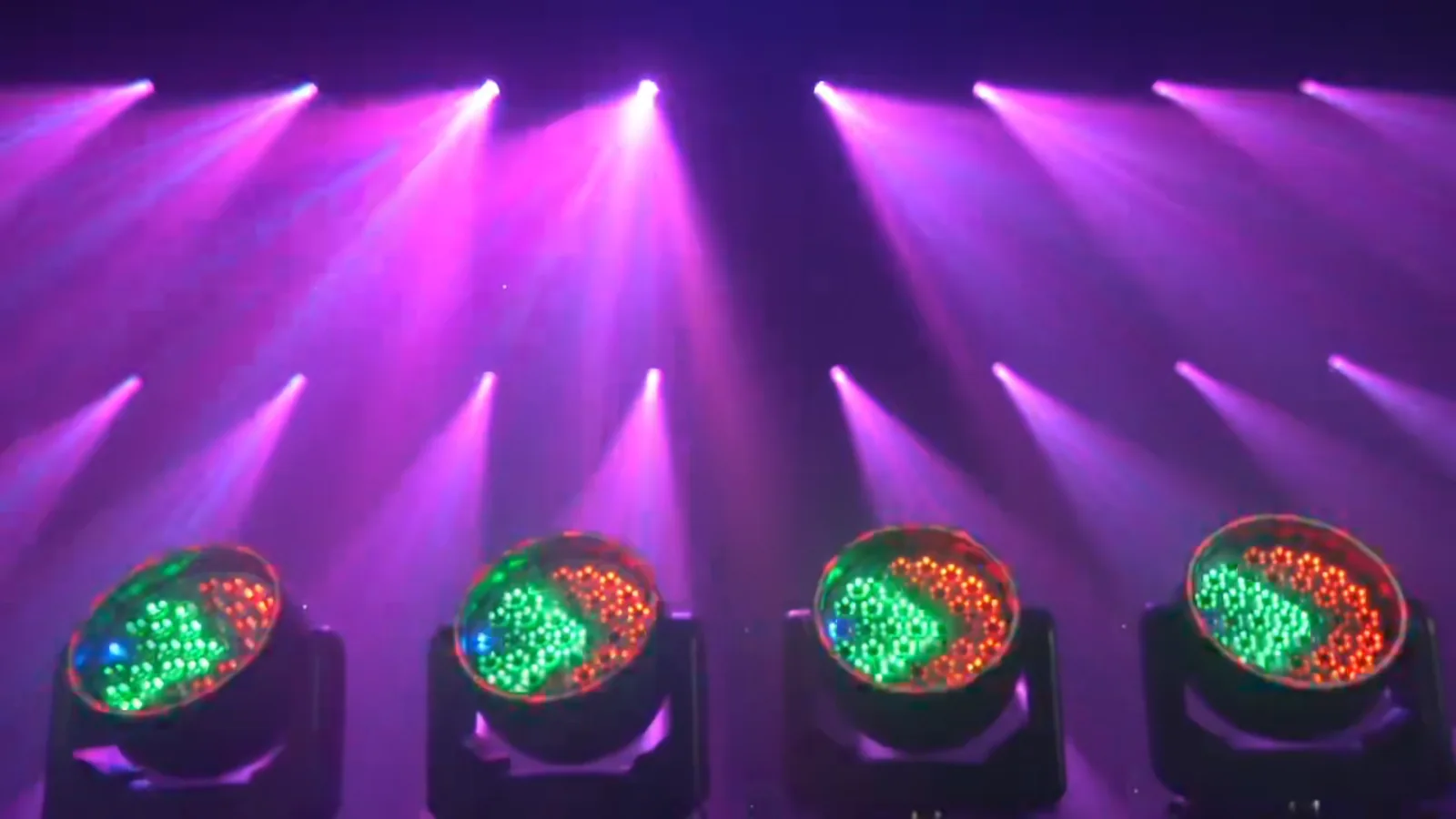

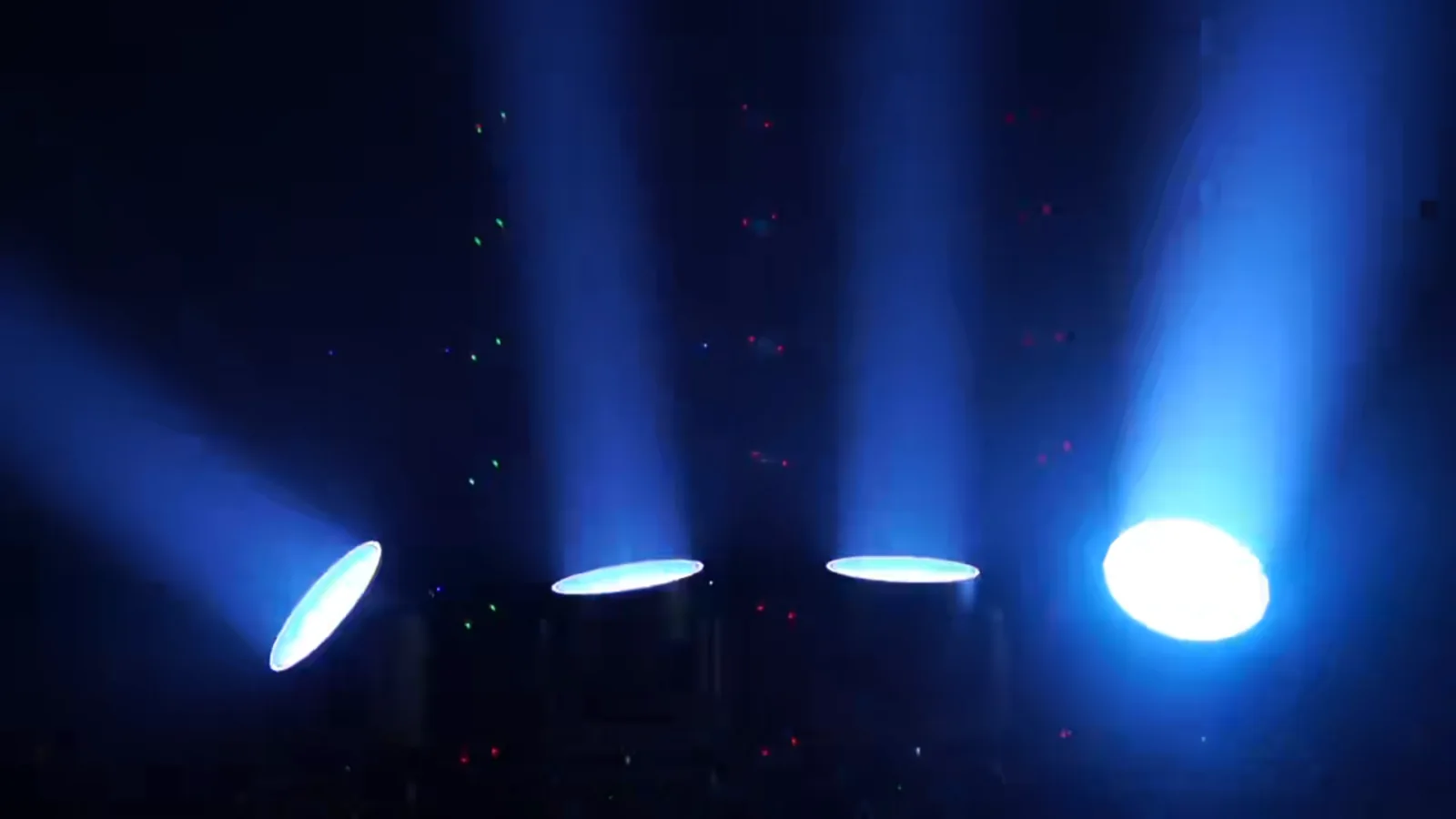

The supplied demonstration frames show how several fixtures produce purple and blue stage looks. The images document visual output; photometric coverage will depend on the actual rig.
COLOR DETAILS
Inspect the RGBW wash face in action.

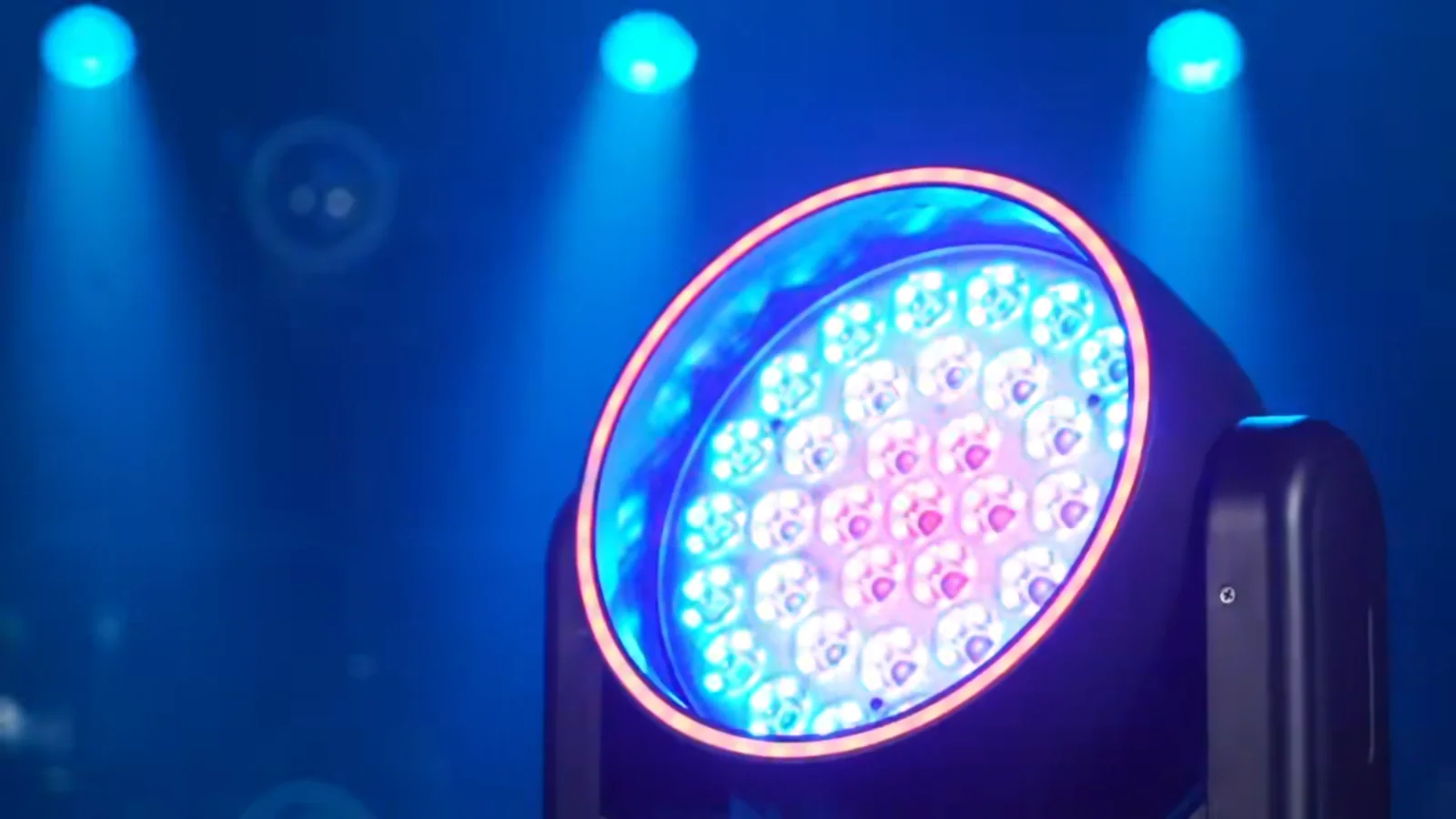

A close-up from the product demonstration shows the LED array during a mixed-color cue.
The close view from the supplied demonstration shows the lit front face during a mixed-color cue. Use the video to discuss the desired color sequence and fixture placement. For a throw-distance or coverage decision, request measured output data for the planned rig.
PRODUCT VIDEO
Watch the 37 × 15W RGBW wash moving head in use.
View the supplied fixture demonstration before specifying your show cues and control setup.
Specifications
Technical specifications
| Model | RG-3715B |
|---|---|
| Light source | 37 × 15W RGBW 4-in-1 LEDs |
| Rated fixture power | 550W |
| Voltage | AC 110–250V, 50–60Hz |
| DMX channels | 22 / 50 CH |
| Product dimensions | 415 × 380 × 470 mm |
| Net weight | 15 kg |
| Control modes | DMX512, Sound, Auto, master/slave; RDM addressing |
| Color system | RGBW 4-in-1 |
CONTROL AND OUTPUT
Plan dimming, strobe and fixture control.
The supplied configuration lists 0–100% linear electronic dimming and a 0–10 flashes-per-second strobe range. DMX512, Sound, Auto and master/slave are available control modes; RDM remote addressing is listed for setup.
APPLICATION FIT
Choose the wash position and control plan.
For 37x15W RGBW Wash Moving Head Light projects, use this fixture for moving RGBW wash roles in stage and event production. Confirm environmental protection and mounting requirements for the actual venue. Compare related LED wash lights when planning your lighting rig.
B2B ORDER FLOW
Share the rig brief for a project quote.
For your 37x15W RGBW Wash Moving Head Light order, quantity, destination and the intended control setup help us quote the right configuration. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order
37x15W RGBW Wash Moving Head Light: specifications, control and order planning.
Does 37 × 15W describe the complete fixture power?
No. It describes the 37 LED sources rated at 15W each. The supplied specification lists 550W as the fixture power.
What colors does the wash system use?
The listed light source is 37 RGBW four-in-one LEDs for color mixing.
How is the 37x15W RGBW Wash Moving Head Light controlled?
The supplied specification lists 22CH and 50CH. Confirm the channel map for the supplied version when ordering.
Does it support control without a DMX console?
Yes. Sound, Auto and master/slave modes are listed alongside DMX512.
What is the listed dimming and strobe range?
Dimming is 0–100% linear electronic. The listed strobe range is 0–10 times per second.
Can the fixture be addressed remotely?
RDM remote addressing is listed in the supplied product information. Confirm the control setup and protocol details for the ordered unit.
What are the size and weight?
The listed product size is 415 × 380 × 470 mm and net weight is 15 kg. Check the mounting plan before ordering.
What should I send for a quotation?
Send quantity, destination, venue type, voltage, plug type, preferred DMX mode and any mounting or spare-parts requirements.
