SIX-HEAD RETRO LIGHT

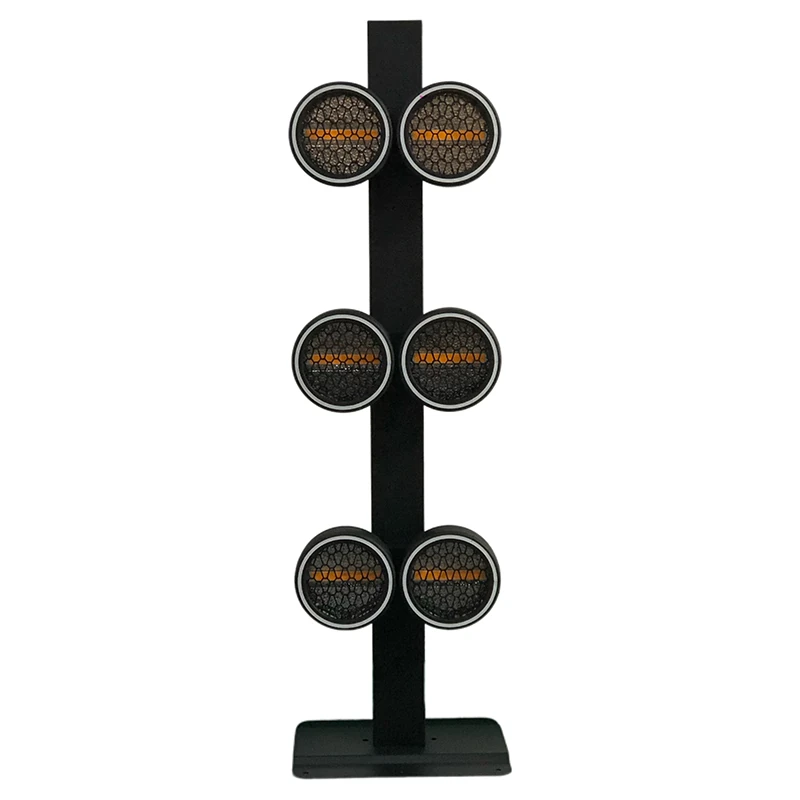

300W 6-Head Rotating Pixel Retro Light — combine six COB heads with RGB accents.
300W 6-Head Rotating Pixel Retro Light combines six 40W main COB sources with six RGB auxiliary segments and six light-strip rings. Complete-fixture power is 300W.
Six 40W COB sources
The six-head main-source configuration is separately specified from the fixture power rating.
Six RGB segments
Include the auxiliary-color roles in the scene brief.
Six light-strip rings
The ring accents surround the circular lighting faces.
Three DMX profiles
24CH, 34CH and 64CH are listed for console programming.
HOUSING AND CONNECTIONS
Inspect the rear column and side profile.

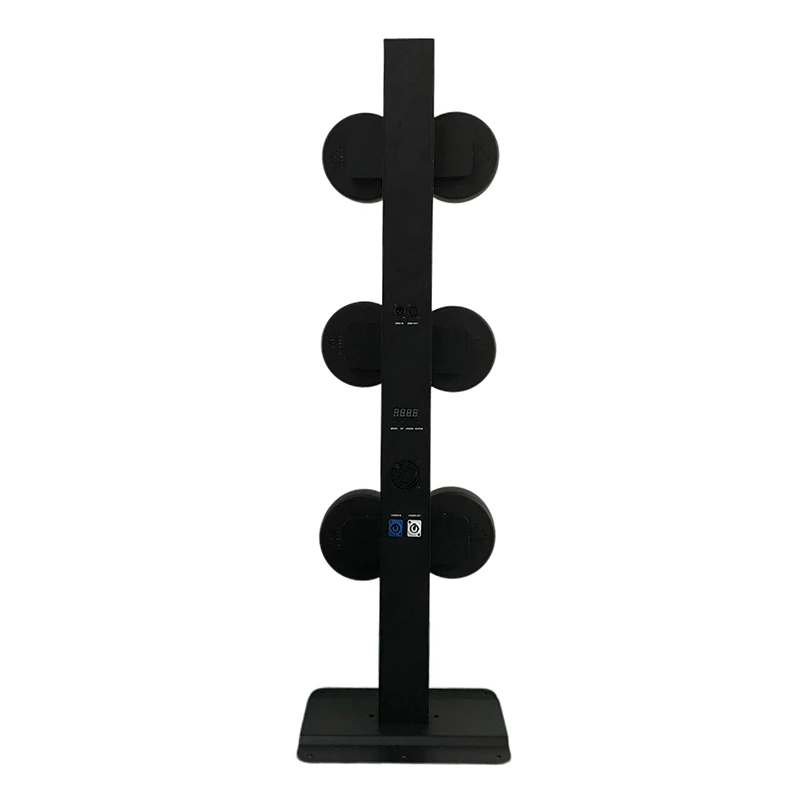

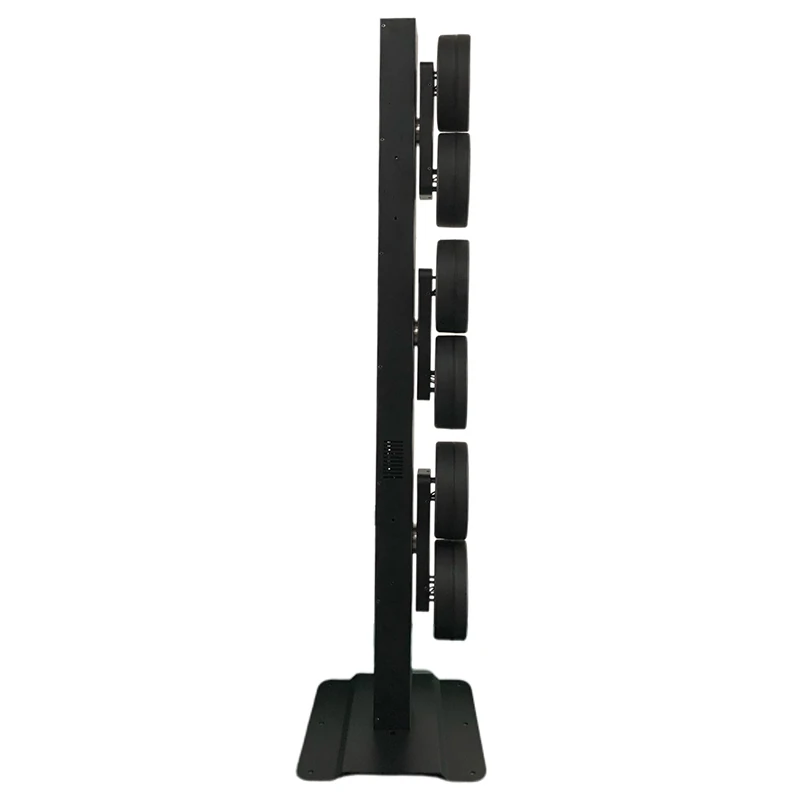

The supplied views show six head housings, the central column, rear controls and connectors, and the floor base.
Specifications
Technical specifications
| Model | RG-257 |
|---|---|
| Public product power | 300W fixture power / 6 × 40W main COB sources |
| Light source | 6 × 40W COB LEDs + 6 RGB auxiliary segments + 6 RGB light-strip rings |
| Rated fixture power | 300W |
| Voltage | AC 90–240V, 50/60Hz |
| DMX channels | 24CH / 34CH / 64CH |
| Control modes | Sound Activated / Auto / Master-Slave / DMX512 |
| Color system | Main COB sources + RGB auxiliary segments and light-strip rings |
| Effect type | Six-head pixel retro light with rotation driven by DMX or built-in programs |
INLINE ARRANGEMENT
Review the six-head vertical look.

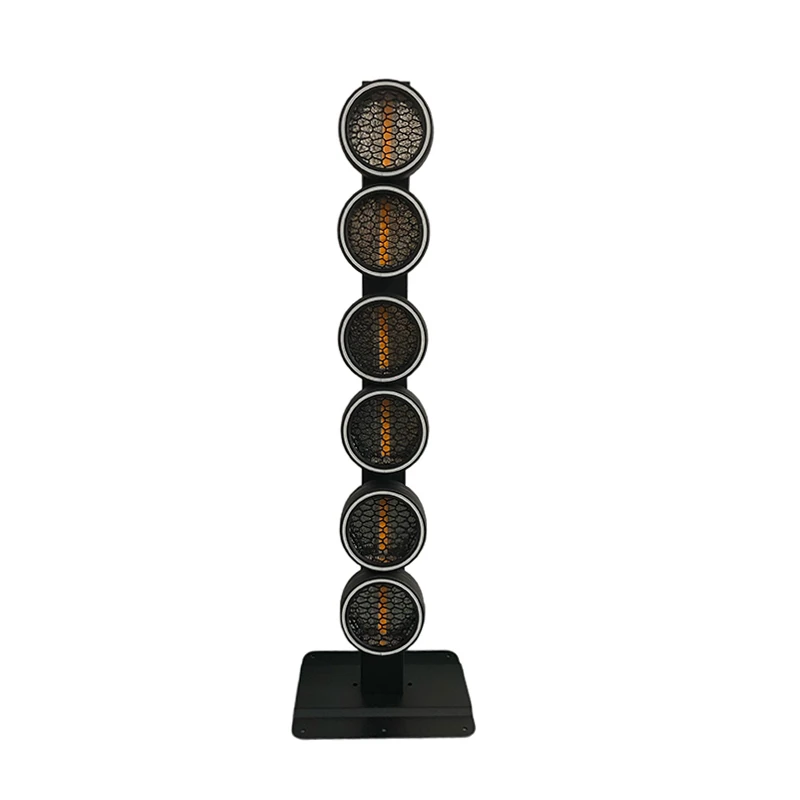

This supplied view shows all six circular heads arranged in a vertical line.
MULTI-FIXTURE VIEWS
Plan repeated retro fixture layouts.

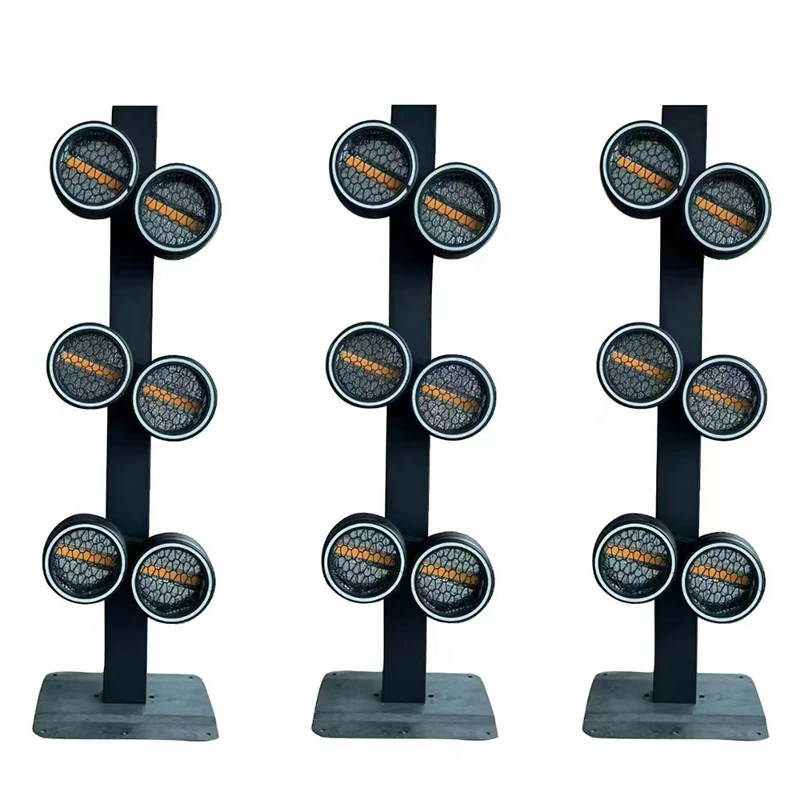

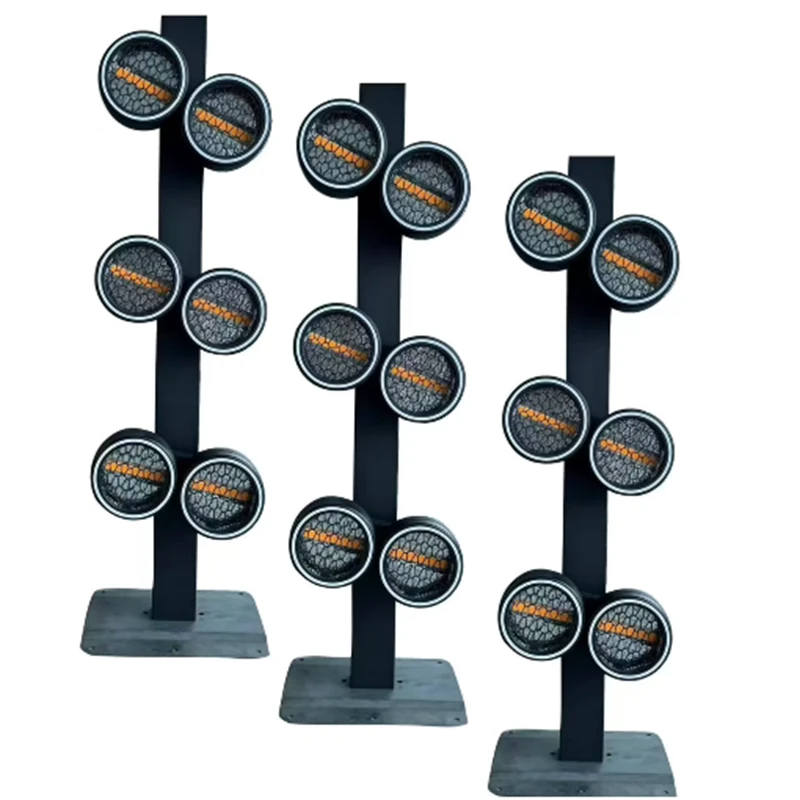

The supplied group views show three fixtures with staggered head arrangements. They provide layout references for planning fixture positions.
CONTROL AND DIMMING
Choose a console profile for the lighting cues.
Channel profiles are 24CH, 34CH and 64CH. Dimming is listed at 0–100% ultra-smooth dimming.
APPLICATION FIT
Plan the head arrangement and RGB accents.
Choose the six-head format when the visible fixture arrangement is part of the backdrop. Compare the inline and staggered examples, then describe main COB, RGB auxiliary and ring cues separately. Select 24CH, 34CH or 64CH from its chart; the photographs do not establish motorized positioning or independent control of every source.
Explore the stage effect light range for other source layouts and fixture configurations.
B2B ORDER FLOW
Request the selected fixture configuration.
Identify 300W 6-Head Rotating Pixel Retro Light and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
Sources, optical functions, control and order configuration.
What are the main-source and fixture power ratings?
Six 40W COB sources are listed. Complete-fixture power is 300W.
What RGB auxiliary elements are specified?
Six RGB auxiliary segments and six light-strip rings are listed alongside the main COB sources.
What head arrangements do the images show?
The supplied images show paired, staggered and inline six-head arrangements, plus rear and side hardware views.
What DMX profiles are available?
24CH, 34CH and 64CH are listed. Request the matching channel chart for console programming.
What dimming range is listed?
The specification lists 0–100% ultra-smooth dimming.
Which control modes are available?
Sound Activated, Auto, Master-Slave and DMX512 modes are listed.
What input voltage is specified?
Input is AC 90–240V at 50/60Hz.
What should I include in a six-head retro fixture inquiry?
Identify RG-257, quantity, head-arrangement requirements, main-light and RGB accent cues, fixture locations, console and selected DMX chart, power and signal connections, mounting and packing requirements, destination and schedule.
