4 × 70W DUAL-WHITE COB

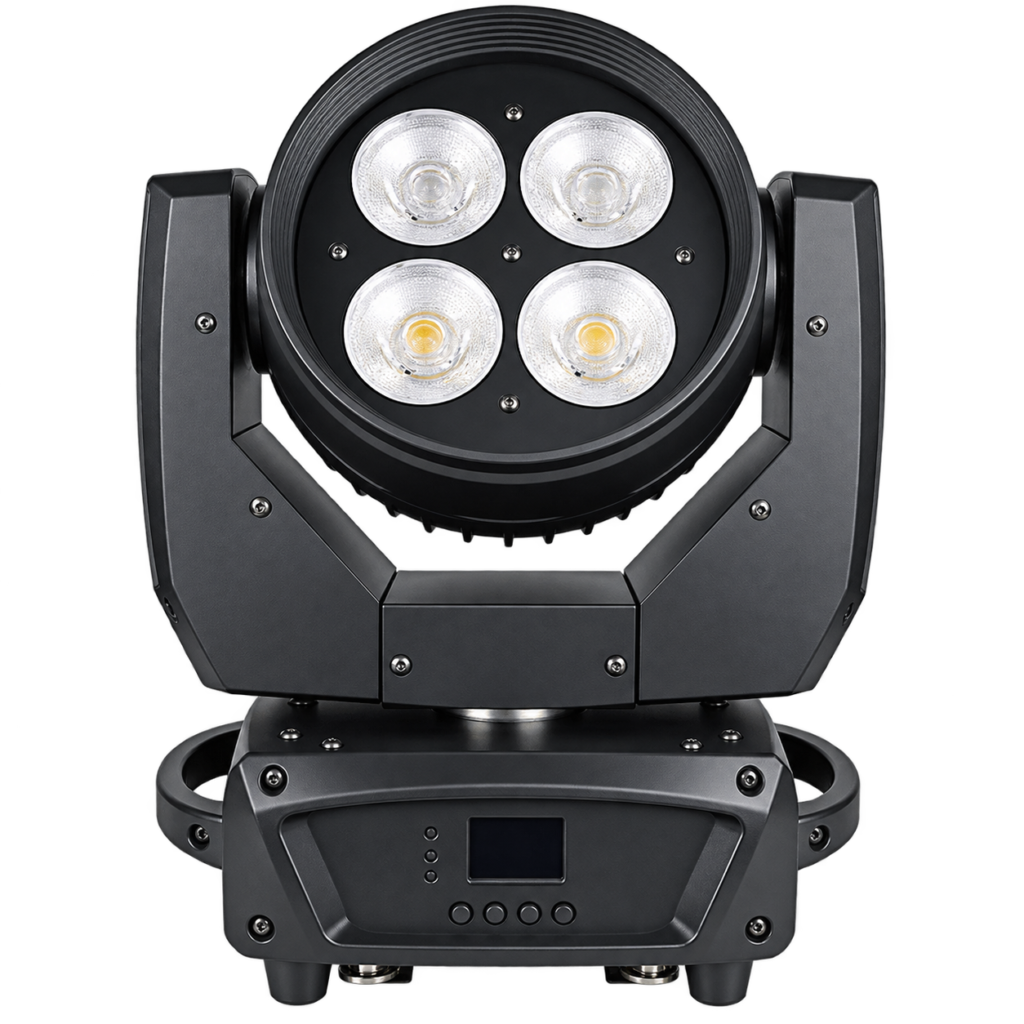

300W 4-Eye COB Moving Head Light overview
Four 70W COB light sources form the optical face. The listed 3200K warm white and 5600K white options let a project select a warmer appearance or a cleaner white look for performers, event areas and stage scenes. Confirm the ordered source arrangement and channel behavior before production.
4 × 70W COB
Four 70W sources form the optical face; 300W is the listed complete fixture rating.
3200K / 5600K
Specify the ordered warm-white and white arrangement before programming the show.
28° beam
A fixed field for white-light cues; verify coverage at the actual throw distance.
VERIFIED PRODUCT DETAIL
Move the white-light field instead of fixing it to one position.
The moving-head format supports changing fixture direction during a show. Operate it from DMX, synchronize fixtures in Master-slave mode, trigger sound-responsive programs or use Auto mode. Pan and tilt ranges and movement speeds are not supplied, so confirm them against the current manual when a project depends on exact positioning.
CONTROL & PERFORMANCE
Balance a fixed 28° beam with linear intensity and strobe control.
The fixed 28° beam provides a defined field without a listed zoom function. Linear dimming supports intensity changes, while the 0–20Hz strobe range adds rhythmic white-light effects. Final field size, brightness and camera behavior must be tested at the actual throw distance and frame rate.
Specifications
Technical specifications
| Model | RG-213 |
|---|---|
| Public product power | 300W |
| Light source | 4 × 70W COB |
| Rated fixture power | 300W |
| Voltage | AC 90–240V, 50/60Hz |
| DMX channels | 9CH / 16CH |
| Product dimensions | 28 × 20 × 40cm |
| Net weight | 7.5kg |
| Control modes | DMX / Master-slave / Sound / Auto |
| Beam angle | 28° |
| Dimming | Linear dimming |
| Strobe | 0–20Hz |
APPLICATION FIT
Add repositionable white light to live productions.
For the planned installation, use the four-source head where a production needs white illumination that can be redirected between looks. Select 3200K for a warmer appearance or 5600K for a whiter look, then verify the fixture position, beam size and movement in the real venue. Compare related stage effect lights when planning your lighting rig.
B2B ORDER FLOW
Confirm the white-light and movement requirements before production.
For the order, send the quantity, destination, venue and fixture positions. State the required 3200K/5600K behavior, preferred 9CH or 16CH mode, control method and any project requirement for pan, tilt, connectors, noise, documents or mounting accessories. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
300W 4-Eye COB Moving Head Light: specifications, control and order planning.
What is the total fixture power?
The listed total power is 300W.
What light sources does the RG-213 use?
It uses four 70W COB lamp sources, for a listed source total of 280W within the 300W fixture.
Which color temperatures are available?
The supplied specification lists 3200K warm white and 5600K white. Confirm the exact source arrangement for the ordered unit.
What is the beam angle?
The listed fixed beam angle is 28°. No zoom function is specified.
How is the 300W 4-Eye COB Moving Head Light controlled?
The fixture lists 9-channel and 16-channel DMX modes. Request the current channel chart before programming.
Can it operate without a DMX console?
Yes. Master-slave, Sound and Auto modes are also listed.
What dimming and strobe functions are specified?
The data lists linear dimming and a 0–20Hz strobe range.
What should I confirm before ordering?
Confirm quantity, destination, voltage, color-temperature behavior, channel mode, pan/tilt requirements, mounting, connectors and required documents.
