27-LED INDOOR PAR
27-LED RGBW PAR Light overview
27-LED RGBW PAR Light (RG-411D) is specified with 27 LED positions and a fixed 25° beam for indoor color-wash work. Select the LED rating and color package in the quotation so the production unit, channel chart and accessories match the project.
27 LED positions
The product specification defines a 27-source front configuration for this model.
Source options
Choose 10W, 12W or 15W LEDs and confirm the selected package per order.
7CH control
Use the listed DMX mode or Sound, Auto and Master-slave operation.
Indoor IP20 body
Plan the fixture for dry indoor spaces or properly protected positions.

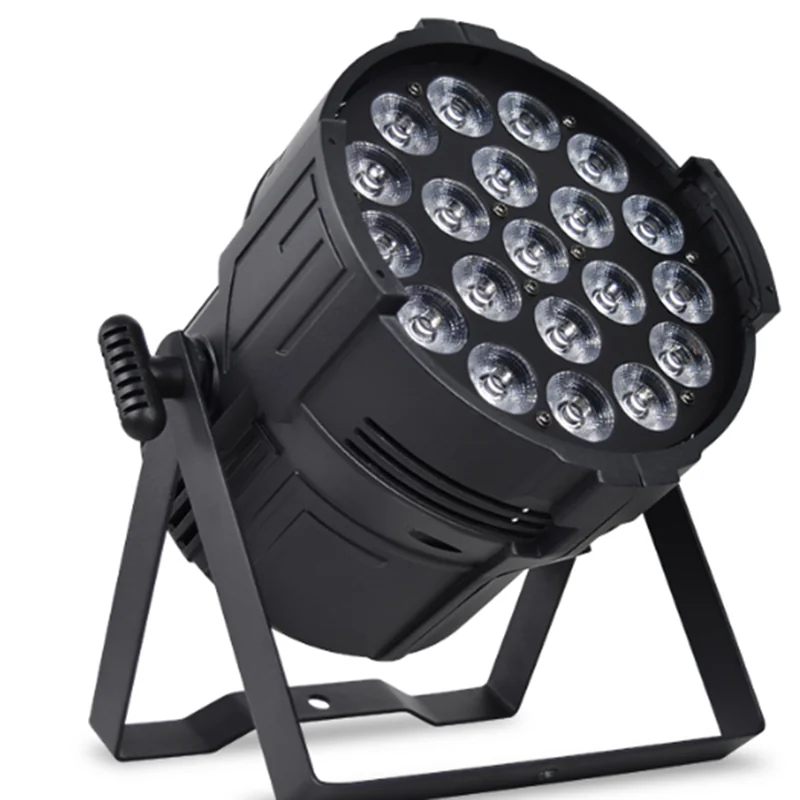

PRODUCT VIEW
Review the housing and adjustable double bracket.
The current product view shows the black ventilated housing and floor-standing or hanging bracket arrangement. Confirm connector and rear-panel requirements in the quotation when those details affect the installation plan.
Specifications
Technical specifications
| Model | RG-411D |
|---|---|
| Public product power | 200W |
| Light source | 27 × 10W / 12W / 15W LEDs; 4-in-1, 5-in-1 or 6-in-1 options |
| Voltage | AC 90–240V, 50/60Hz |
| DMX channels | 7CH |
| IP rating | IP20 |
| Product dimensions | 280 × 180 × 240mm |
| Net weight | 3kg |
| Control modes | DMX512 / Sound / Auto / Master-slave |
| Color system | RGBW 4-in-1 / 5-in-1 / 6-in-1 options |
APPLICATION FIT
Use the fixed beam where a compact indoor color wash is required.
For 27-LED RGBW PAR Light projects, the 25° beam and specified 27-source face suit indoor stages, event venues and rental packages that need a fixed-position color wash. IP20 does not support exposed outdoor use; final fixture count and placement depend on throw distance, target area and required illuminance. Compare related LED PAR lights when planning your lighting rig.
B2B ORDER FLOW
Define the configuration before production.
For your 27-LED RGBW PAR Light order, send the quantity, destination, venue conditions and selected LED configuration. The quotation can then confirm the exact color package, voltage, mounting accessories, packing and documentation. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
27-LED RGBW PAR Light: specifications, control and order planning.
How many LED positions does RG-411D use?
RG-411D is specified as a 27-position LED PAR.
Which LED source options are listed?
The supplied specification lists 27 × 10W, 27 × 12W and 27 × 15W options.
Which color packages can I order?
Choose a 4-in-1, 5-in-1 or 6-in-1 package. RGBW is the confirmed 4-in-1 option; confirm the additional colors for 5-in-1 and 6-in-1 in the quotation.
What does the 200W value describe?
It is the listed complete-fixture power and is kept separate from the nominal LED source ratings.
How is the 27-LED RGBW PAR Light controlled?
The supplied modes are 7CH DMX512, Sound, Auto and Master-slave.
What beam angle is listed?
The supplied fixed beam angle is 25 degrees.
Can this PAR light be used outdoors?
It is rated IP20, so use it indoors or in a properly protected dry position rather than exposed outdoor conditions.
What should I include in an inquiry?
Send quantity, destination, venue details, LED wattage, color package, voltage, mounting and accessory requirements.
