INDOOR MINI BEAM

230W Mini Beam Moving Head Light

A 230W lamp-based mini beam moving head with a 400W fixture rating, 17 gobos, 14 colors, an eight-facet prism and 16-channel DMX control for indoor rigs.

230W lamp / 400W fixture
17 gobos + open white
16-channel DMX / IP20

Get a Quote

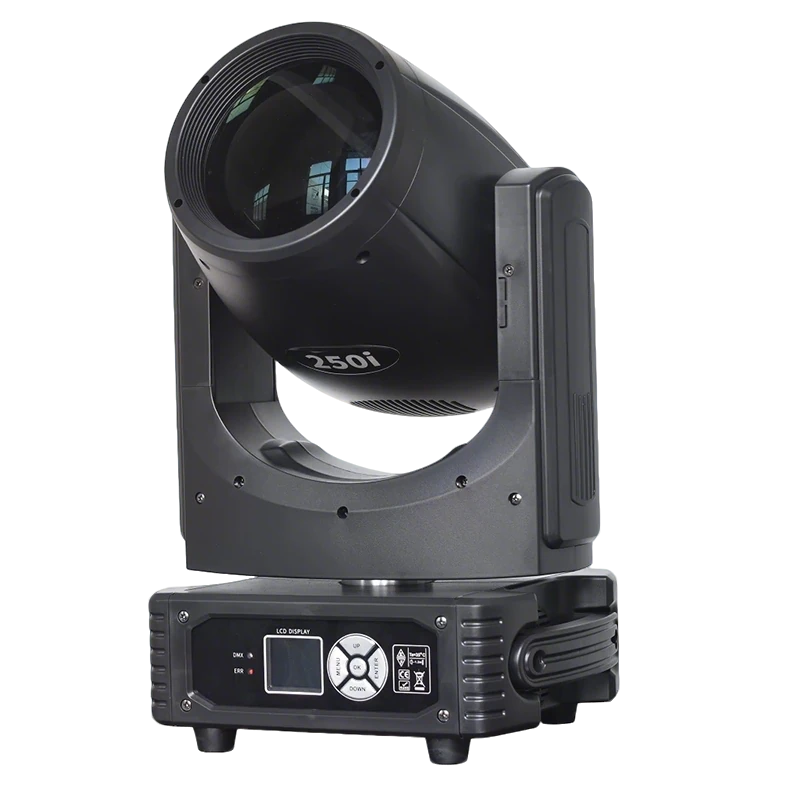

230W Mini Beam Moving Head Light mini beam moving head with tilted lens and front control panel

MINI BEAM PERFORMANCE

230W Mini Beam Moving Head Light — 230W lamp effects in a 400W fixture.

The 230W Mini Beam Moving Head Light combines a high-brightness lamp, fixed color and gobo wheels, and an eight-facet prism for indoor beam cues. Its 16-channel control mode suits coordinated moving-head rigs.

230W lamp source

The main lamp is rated at 230W; the complete fixture is rated at 400W for electrical planning.

17 gobos + open white

Select from seventeen patterns and an open white position when building beam and projection cues.

Eight-facet prism

Split the beam into multiple rays for layered aerial effects within the show design.

16-channel DMX

Patch sixteen channels per fixture and coordinate pan, tilt and optical effects from the console.

PRISM AND PATTERN EFFECTS

Build multicolor beam fans and patterned projections.

The supplied demonstration shows white and multicolor ray effects alongside patterned projections. The color wheel offers fourteen colors plus open white; the gobo wheel offers seventeen patterns plus open white.

White and multicolor fan-shaped beam effects from RG-250i

Green and yellow patterned beam projections from RG-250i

BEAM LOOKS

Combine directional beam cues with softer demonstrated looks.

Use pan and tilt to position crossing beam cues. The supplied demonstration also shows a softer purple look; select effects according to the fixture channel chart and the required scene.

Crossing green beams with the RG-250i 400W fixture-power label

Soft purple lighting effect shown in the supplied RG-250i demonstration

PRODUCT VIEWS

See the head, yoke and local control panel.

The front and side views show the housing, carrying handle and display position. Net weight is 12.35kg; include the selected mounting and transport accessories in the rig plan.

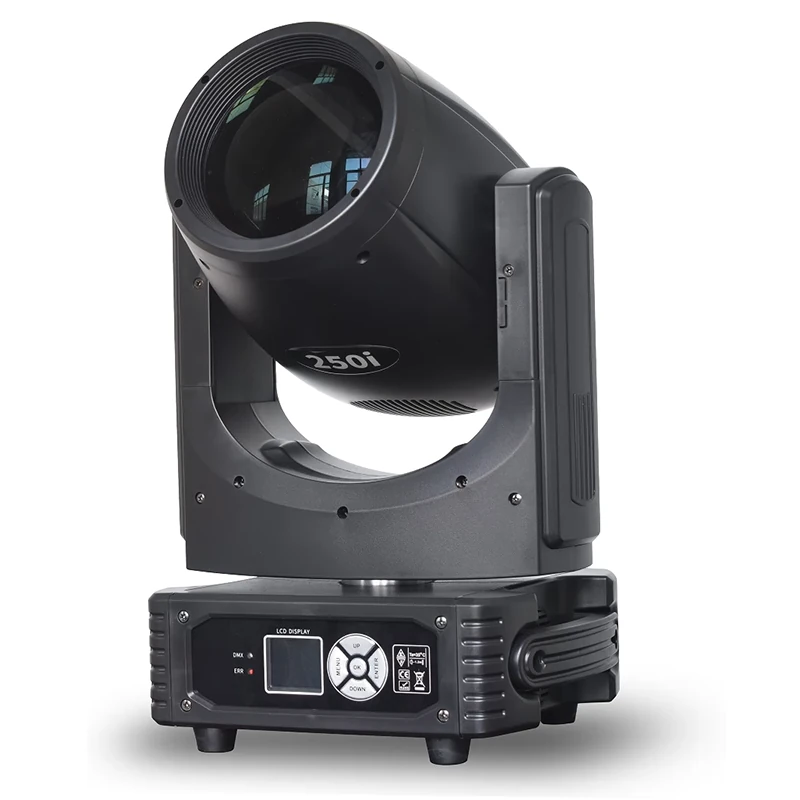

Angled product view of the RG-250i 230W mini beam moving head

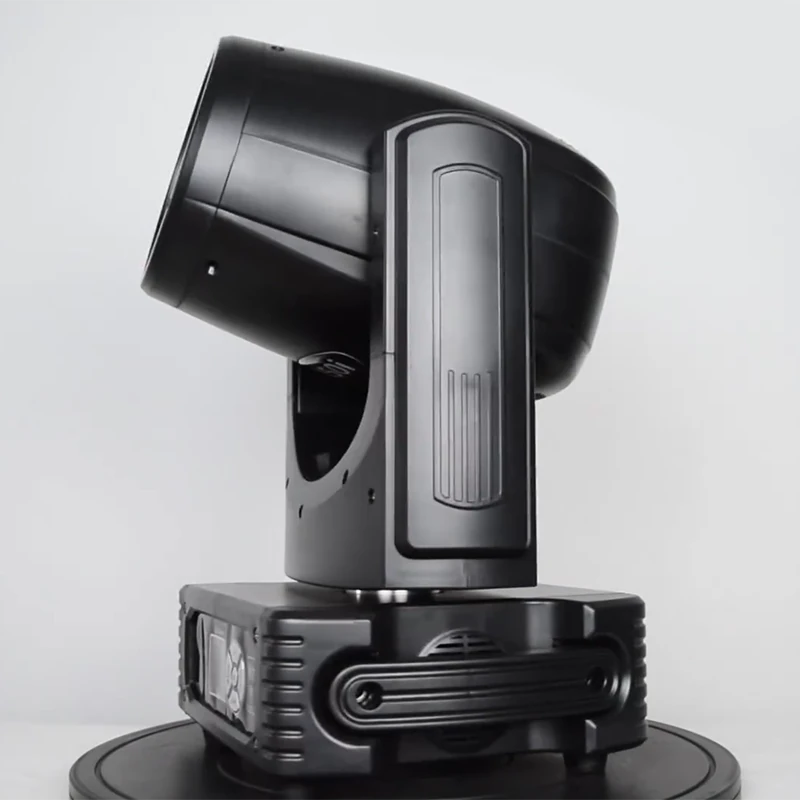

Side view showing the RG-250i head, yoke and carrying handle

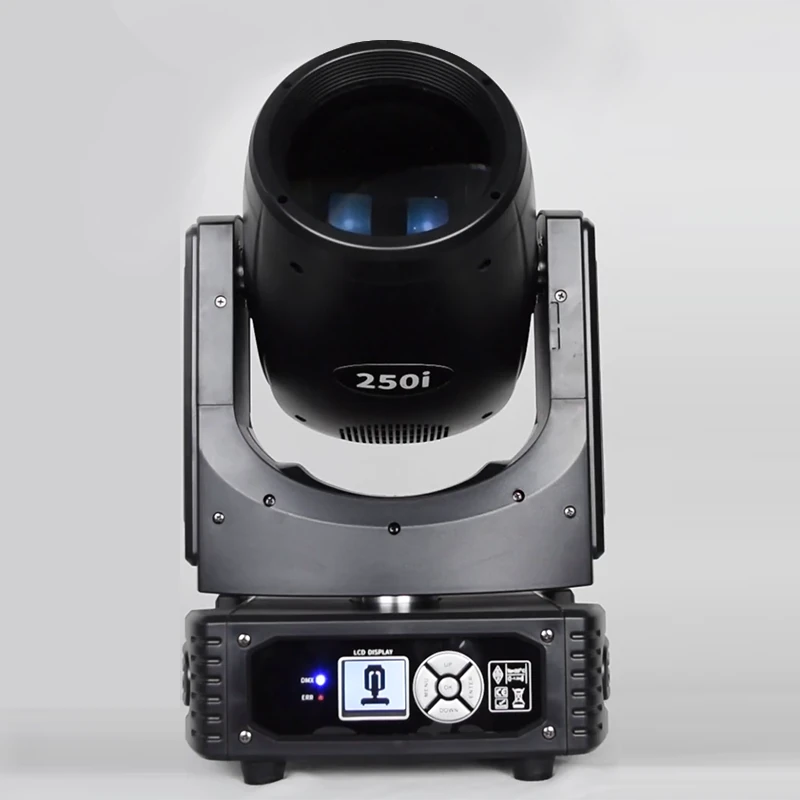

Front view of RG-250i with illuminated control display

Specifications

Technical specifications

Model	RG-250i
Public product power	400W fixture power
Light source	230W high-brightness bulb
Rated fixture power	400W
Voltage	AC 90–220V, 50Hz
DMX channels	16CH
IP rating	IP20
Net weight	12.35kg
Control modes	DMX512 / Master-slave / Auto / Sound Activated
Color wheel	14 colors + open white
Fixed gobo wheel	17 patterns + open white
Prism system	Eight-facet prism
Pan / tilt	Pan 540° / Tilt 270°
Strobe	0–10 flashes per second; adjustable speed

MOVEMENT AND CONTROL

Program 540° pan and 270° tilt.

RG-250i supports DMX512, Master/Slave, Auto and Sound Activated operation. Adjustable strobe runs from 0 to 10 flashes per second.

Console controlUse the 16-channel DMX profile to coordinate beam movement and optical effects with other fixtures.

Standalone operationAuto and Sound Activated modes provide playback options for setups without a live console.

Power and protectionInput is AC 90–220V, 50Hz, with a listed 7A fuse and overheating protection. Provide ventilation and power distribution for the 400W fixture rating.

APPLICATION FIT

Use beam accents in protected indoor spaces.

For 230W Mini Beam Moving Head Light applications, the IP20 enclosure is intended for indoor installations protected from rain and water exposure. Plan beam positions for the stage layout, throw distance and viewing directions.

Indoor DJ and event rigsAdd crossing beams, color changes and prism fans to the programmed scene.

Stage productionsUse the fixture for moving beam accents alongside separate wash and front-lighting fixtures.

Rental inventoriesPlan handling for the 12.35kg fixture and specify mounting hardware, cases and replacement lamps.

Installation planningReserve ventilation space and match power, connectors and the 16-channel patch to the venue.

Compare the beam moving head light range when selecting the role of each fixture in the lighting system.

B2B ORDER FLOW

Prepare a quotation for the complete beam rig.

Specify the 230W Mini Beam Moving Head Light fixture and its 230W lamp source, then describe how the units will be powered, controlled, mounted and transported. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.

01 · RIG

Describe the indoor show layout.

Provide fixture quantity, mounting positions, throw distance and the beam or pattern cues required.

02 · SYSTEM

Specify power and console needs.

State the AC supply, plug and connector requirements, console model and 16-channel patch plan.

03 · DELIVERY

Include transport and spares.

Send the destination and required date, with requests for cases, mounting accessories, replacement lamps and the operating manual.

PRODUCT FAQ

Questions Before You Order.

Lamp power, optical effects, indoor use and rig planning.

Does 250i mean a 250W light source?

250i is the series identifier. This configuration uses a 230W bulb and has a listed total fixture power of 400W.

How many colors and gobos are available?

The color wheel offers 14 colors plus open white. The gobo wheel offers 17 patterns plus open white.

What prism is included?

The listed prism is an eight-facet prism for multiple-ray beam effects.

Which control modes are supported?

The fixture uses 16 DMX channels and supports DMX512, Master/Slave, Auto and Sound Activated operation.

What movement and strobe ranges are listed?

Pan is 540° and tilt is 270°. Strobe speed is adjustable from 0 to 10 flashes per second.

Can it be used outdoors in rain?

The rating is IP20. Use it in protected indoor spaces and keep the fixture away from rain and water exposure.

What power input and weight should the rig plan use?

Input is AC 90–220V, 50Hz; total power is 400W. The listed fuse is 7A and net weight is 12.35kg.

What information is needed for a quotation?

Send quantity, destination, indoor venue layout, mounting positions, supply voltage, plug, console and schedule. Add transport-case, mounting-accessory and replacement-lamp requests.
